Page 1601 of 4133

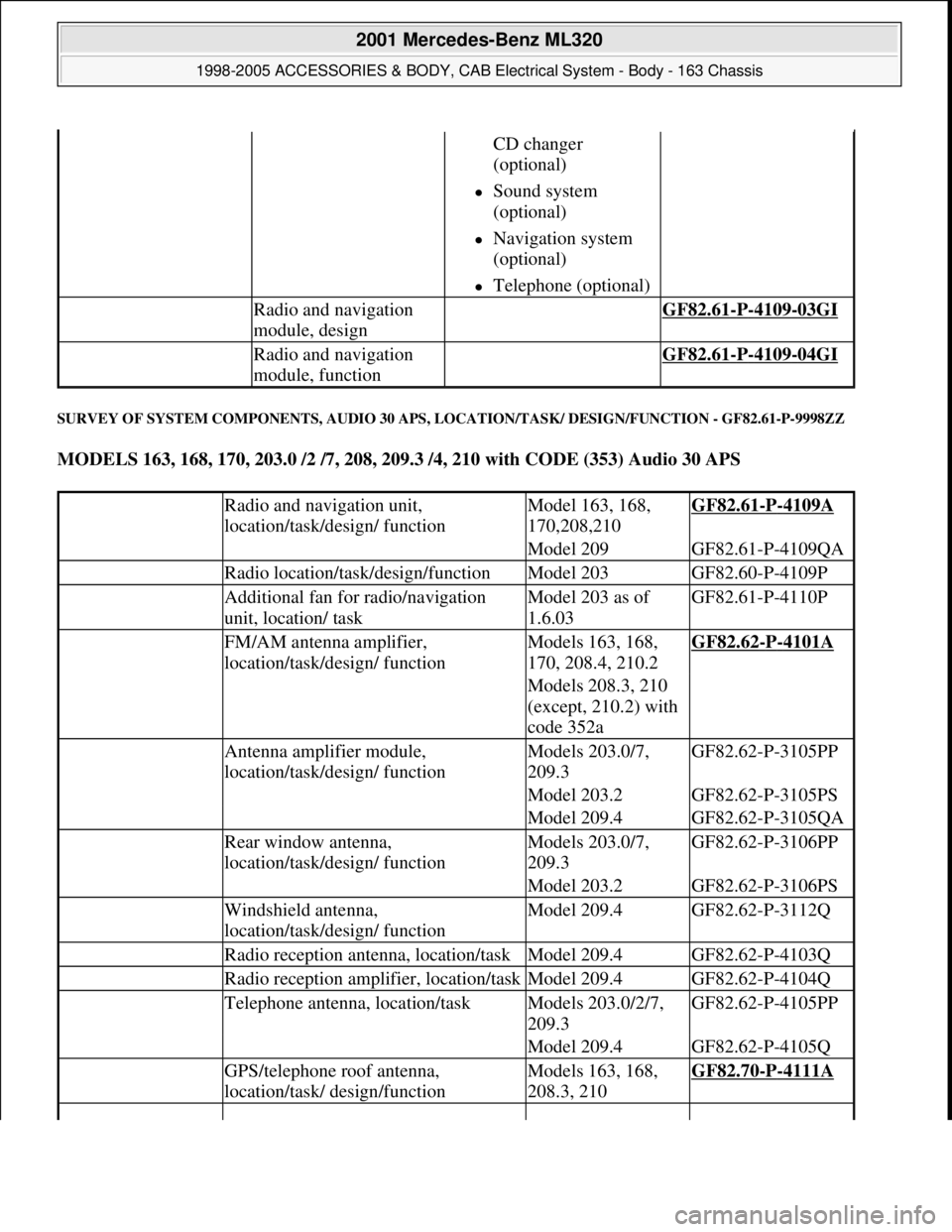

MERCEDES-BENZ ML350 1997 Complete Repair Manual SURVEY OF SYSTEM COMPONENTS, AUDIO 30 APS, LOCATION/TASK/ DESIGN/FUNCTION - GF82.61-P-9998ZZ MODELS 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS CD changer (optional

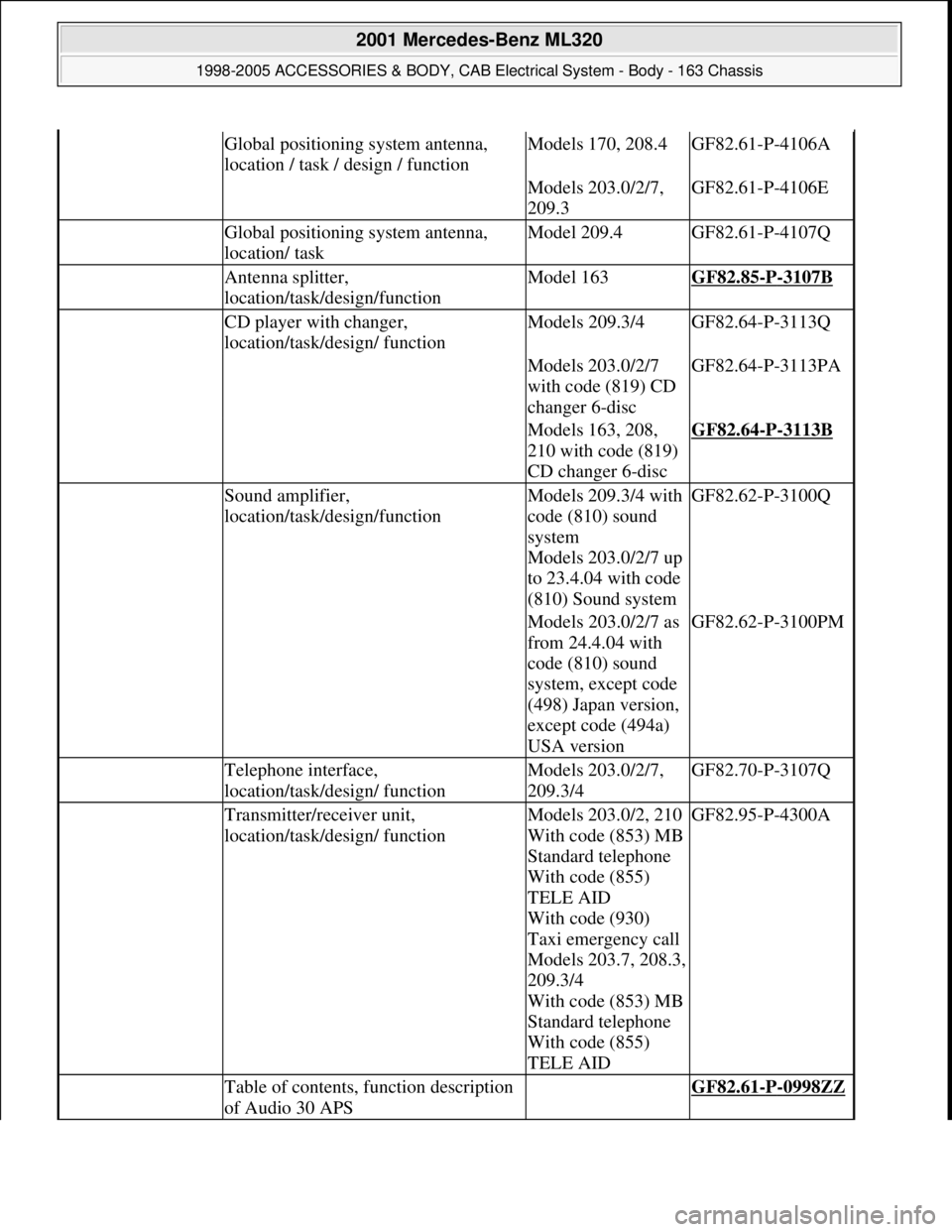

Page 1602 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Global positioning system antenna, location / task / design / functionModels 170, 208.4GF82.61-P-4106A Models 203.0/2/7, 209.3GF82.61-P-4106E Global positioning system antenna, location/ taskMo

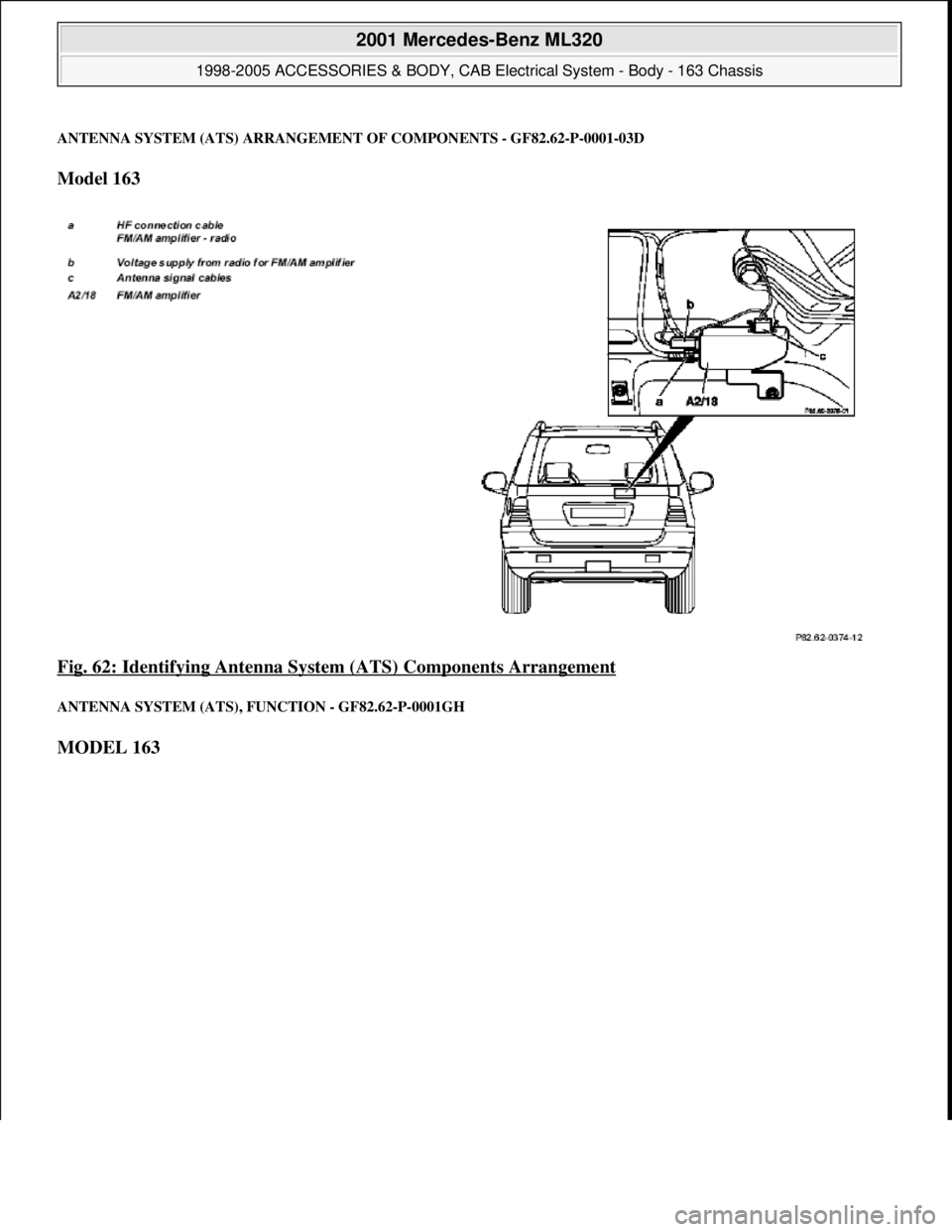

Page 1603 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual ANTENNA SYSTEM (ATS) ARRANGEMENT OF COMPONENTS - GF82.62-P-0001-03D Model 163 Fig. 62: Identifying Antenna System (ATS) Components Arrangement ANTENNA SYSTEM (ATS), FUNCTION - GF82.62-P-0001GH MO

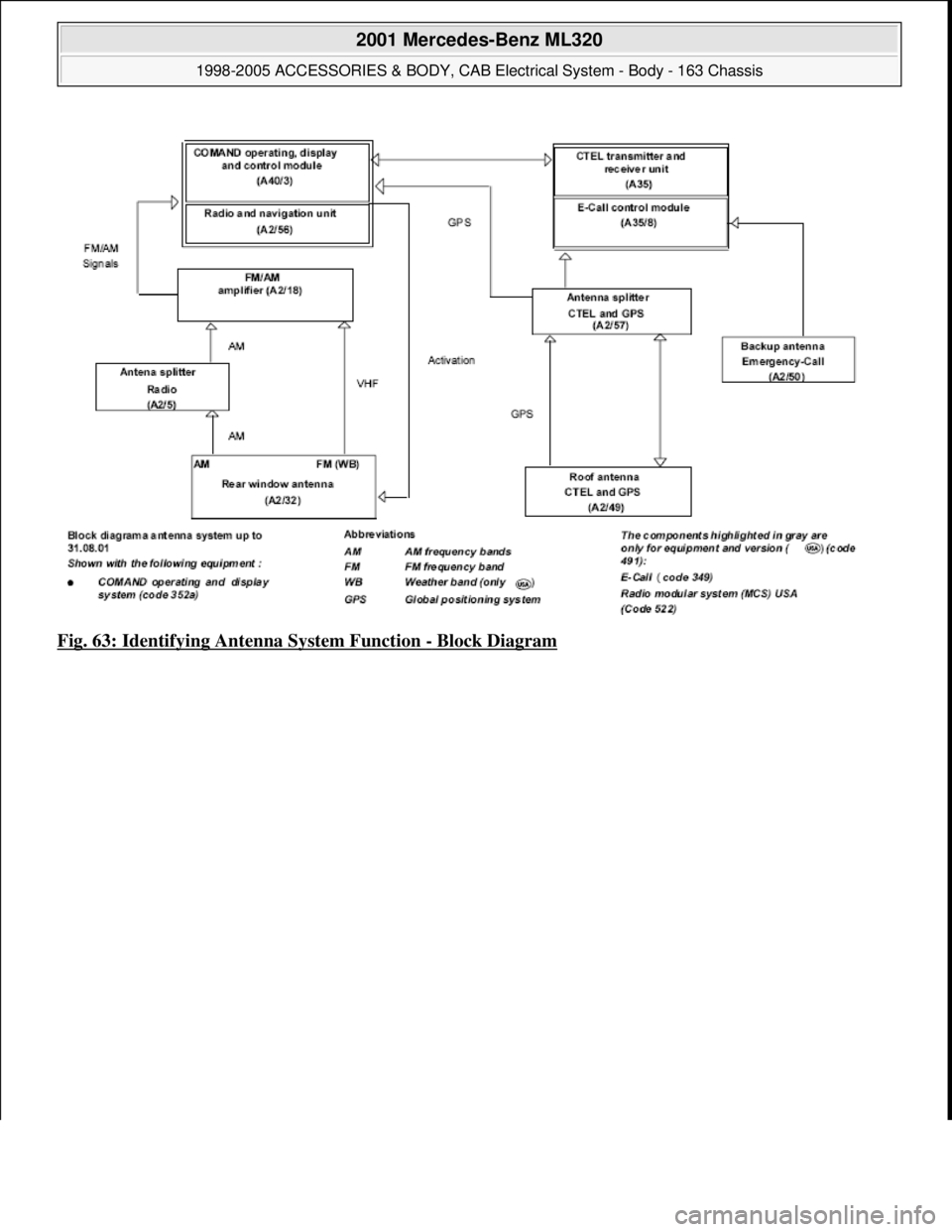

Page 1604 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 63: Identifying Antenna System Function - Block Diagram 2001 Mercedes-Benz ML320 1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis me Saturday, October 02, 2010 3:30

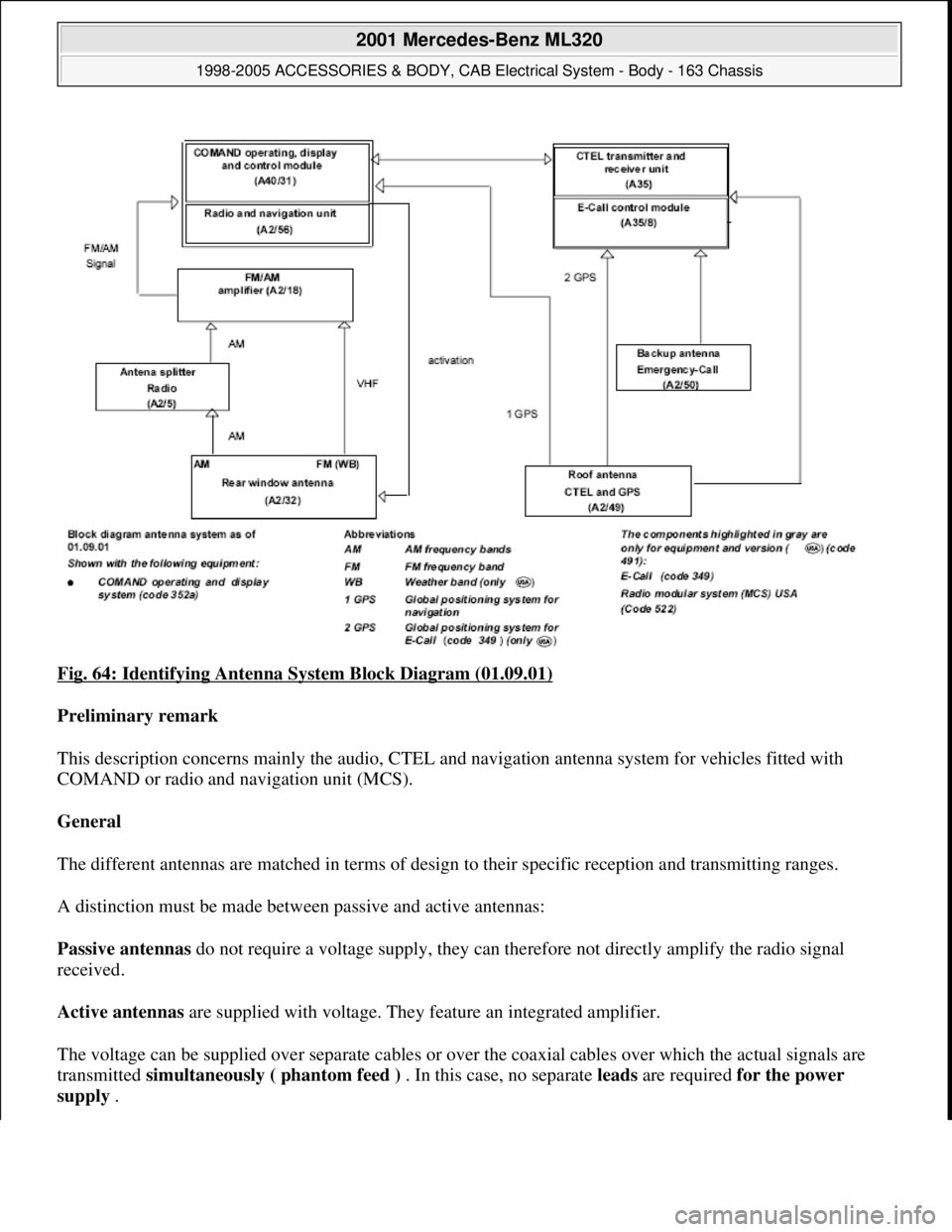

Page 1605 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 64: Identifying Antenna System Block Diagram (01.09.01) Preliminary remark This description concerns mainly the audio, CTEL and navigation antenna system for vehicles fitted with COMAND or ra

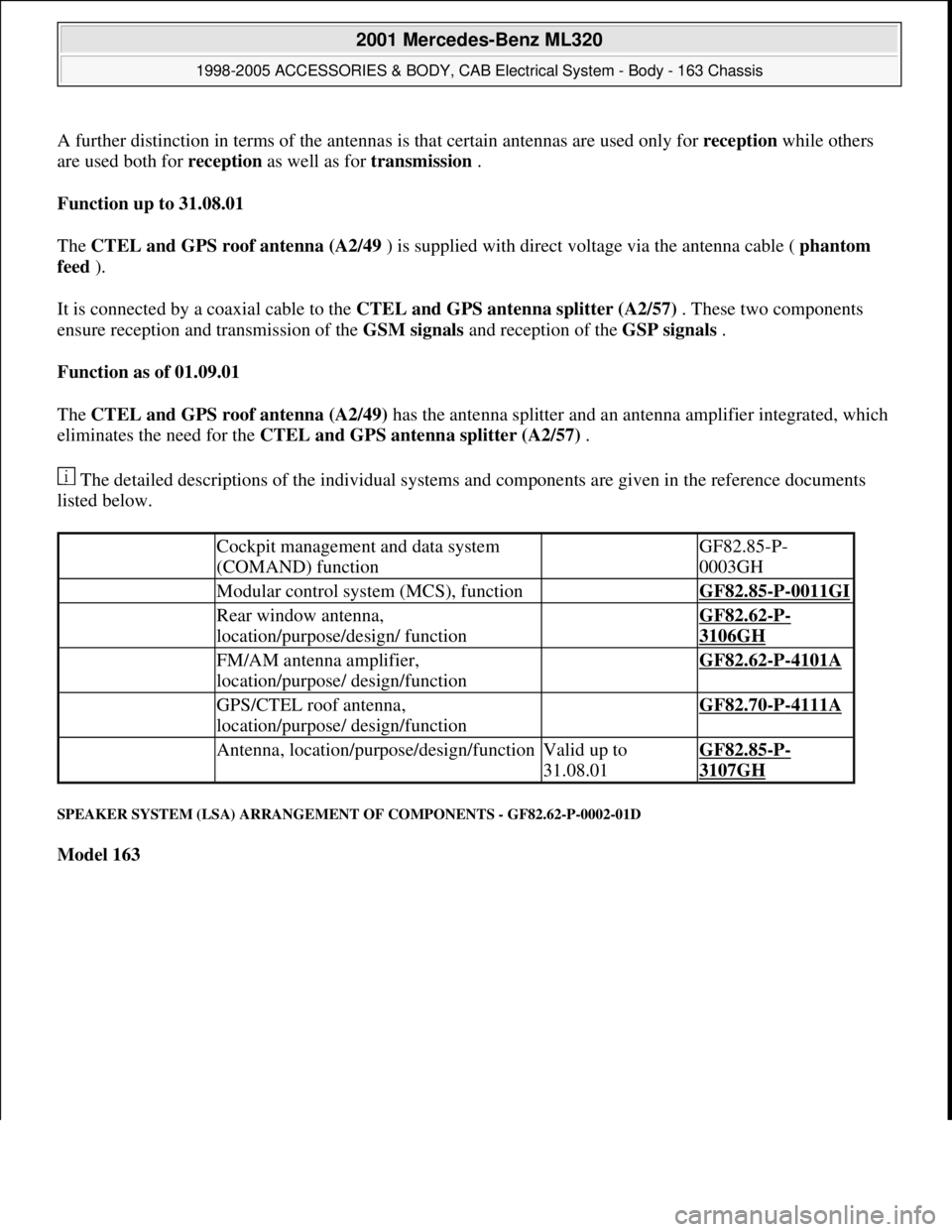

Page 1606 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual A further distinction in terms of the antennas is that certain antennas are used only for receptionwhile others are used both for reception as well as for transmission . Function up to 31.08.01 Th

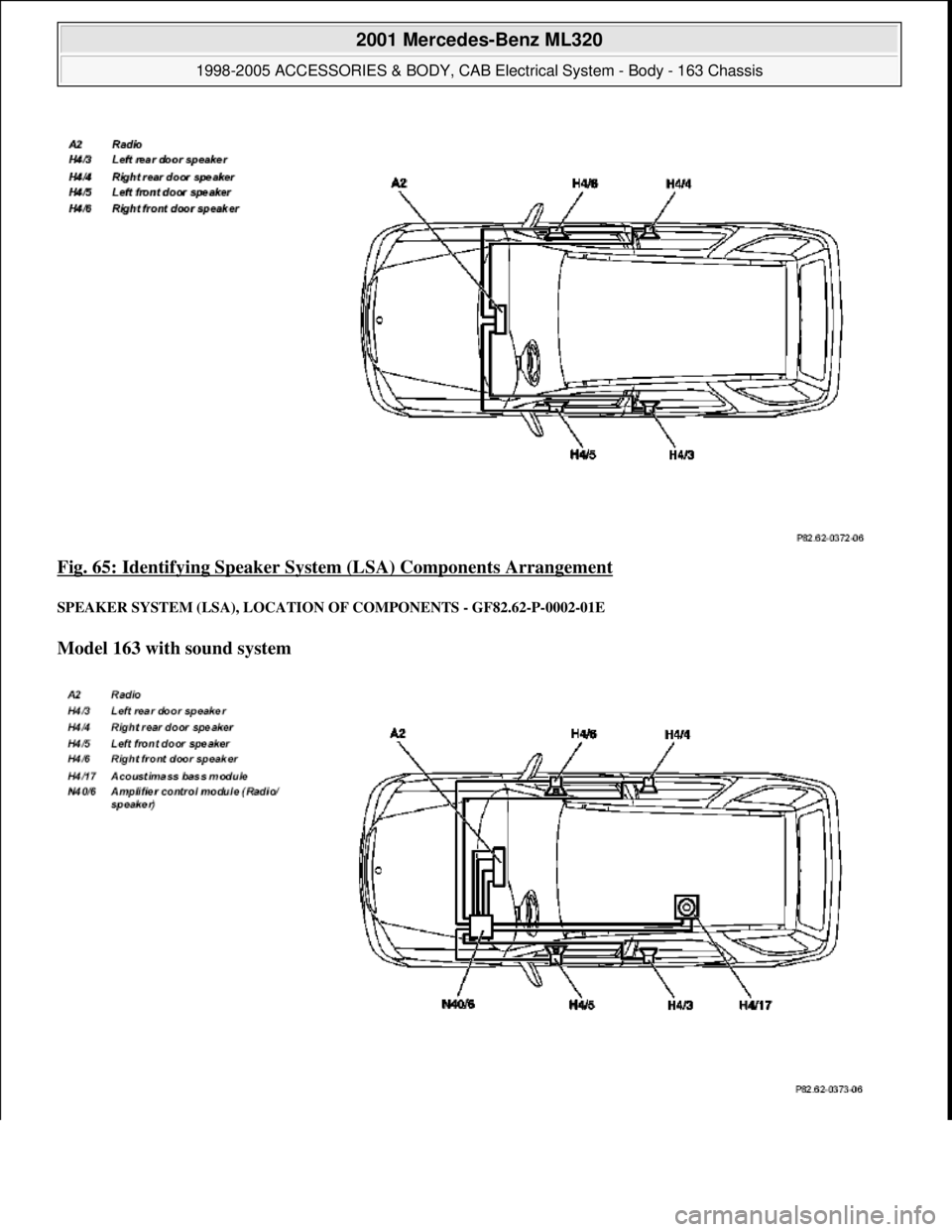

Page 1607 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 65: Identifying Speaker System (LSA) Components Arrangement SPEAKER SYSTEM (LSA), LOCATION OF COMPONENTS - GF82.62-P-0002-01E Model 163 with sound system 2001 Mercedes-Benz ML320 1998-20

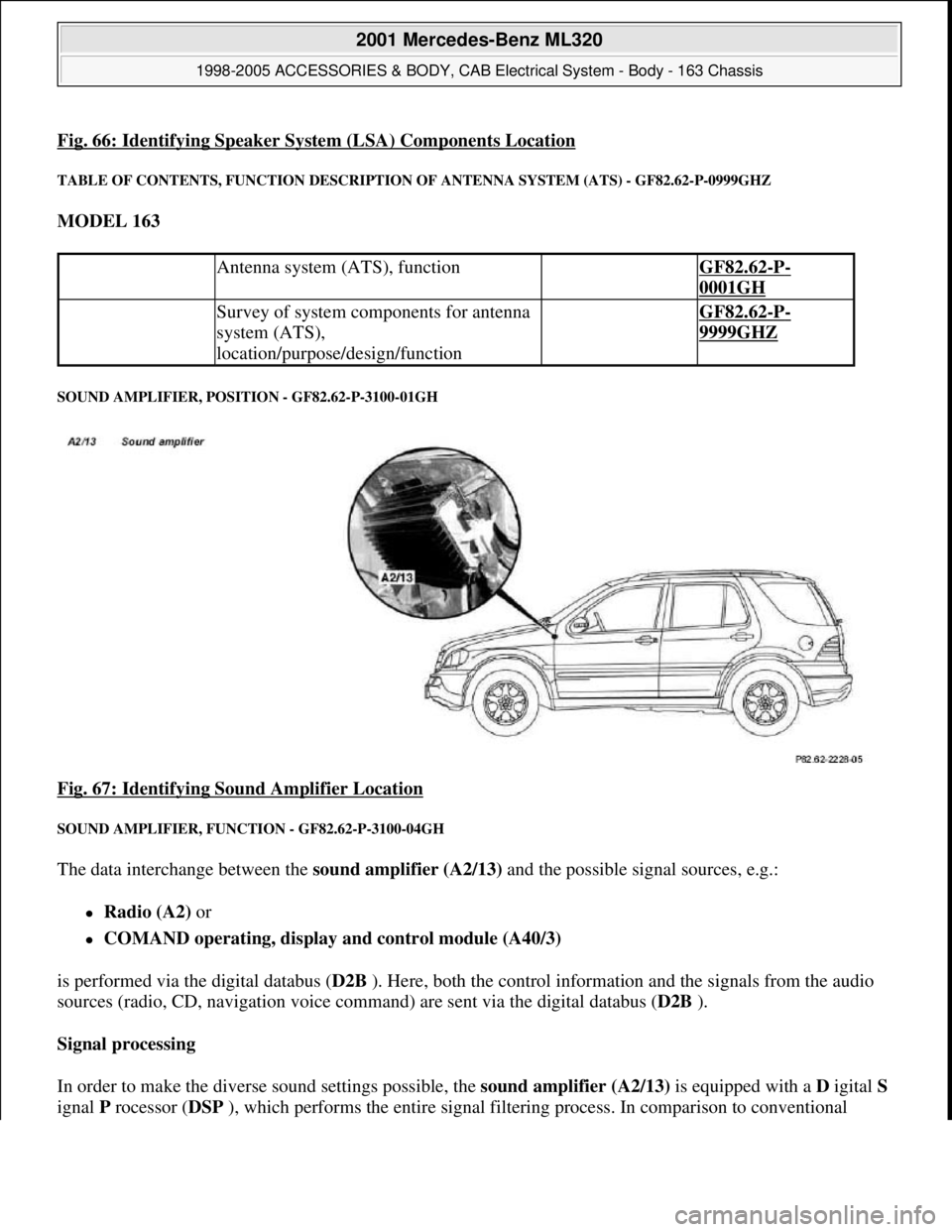

Page 1608 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 66: Identifying Speaker System (LSA) Components Location TABLE OF CONTENTS, FUNCTION DESCRIPTION OF ANTENNA SYSTEM (ATS) - GF82.62-P-0999GHZ MODEL 163 SOUND AMPLIFIER, POSITION - GF82.62-P-310
