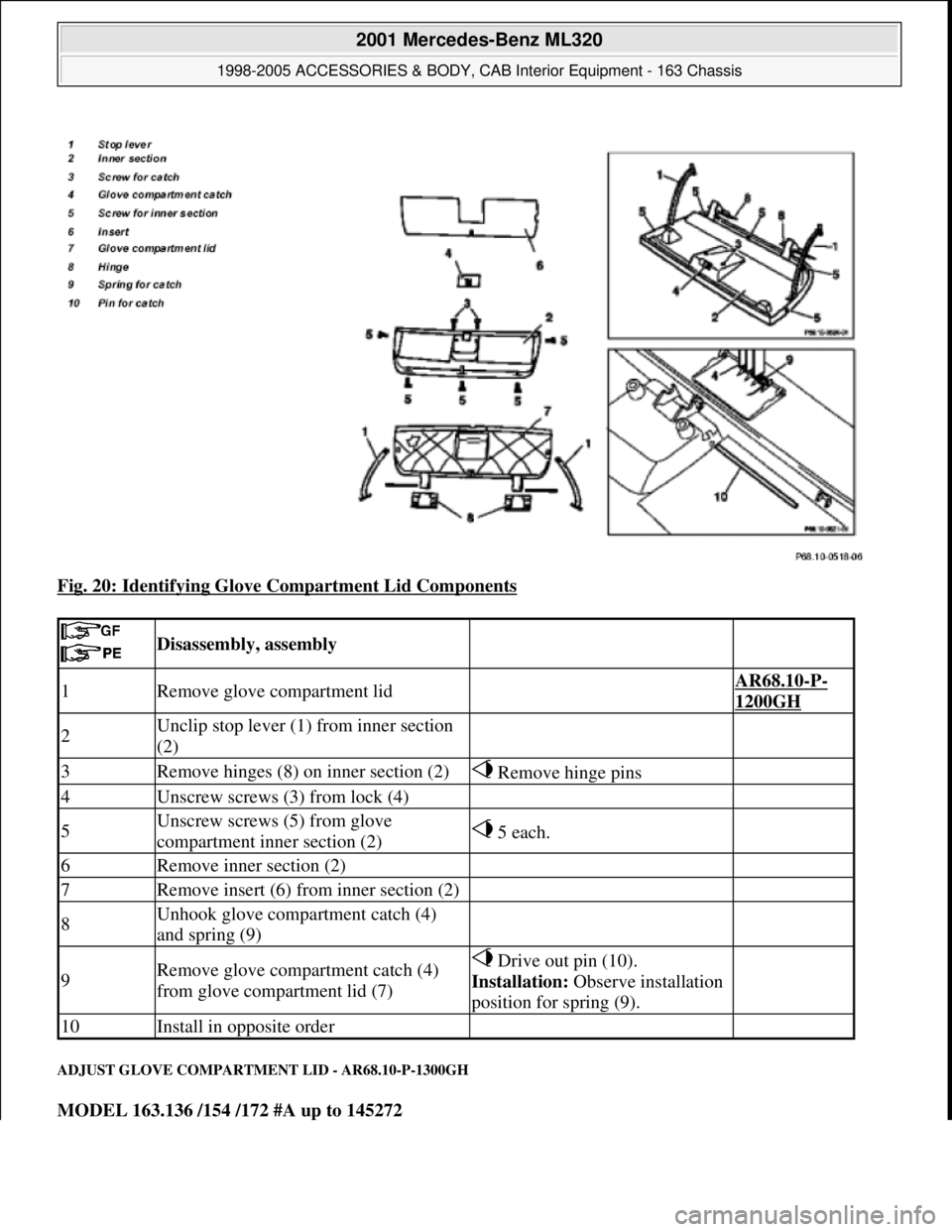

Fig. 20: Identifying Glove Compartment Lid Components
ADJUST GLOVE COMPARTMENT LID - AR68.10-P-1300GH
MODEL 163.136 /154 /172 #A up to 145272
Disassembly, assembly
1Remove glove compartment lid AR68.10-P-
1200GH
2Unclip stop lever (1) from inner section
(2)
3Remove hinges (8) on inner section (2) Remove hinge pins
4Unscrew screws (3) from lock (4)
5Unscrew screws (5) from glove
compartment inner section (2) 5 each.
6Remove inner section (2)
7Remove insert (6) from inner section (2)
8Unhook glove compartment catch (4)
and spring (9)
9Remove glove compartment catch (4)
from glove compartment lid (7) Drive out pin (10).
Installation: Observe installation
position for spring (9).
10Install in opposite order
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 27 © 2006 Mitchell Repair Information Company, LLC.
Page 3546 of 4133

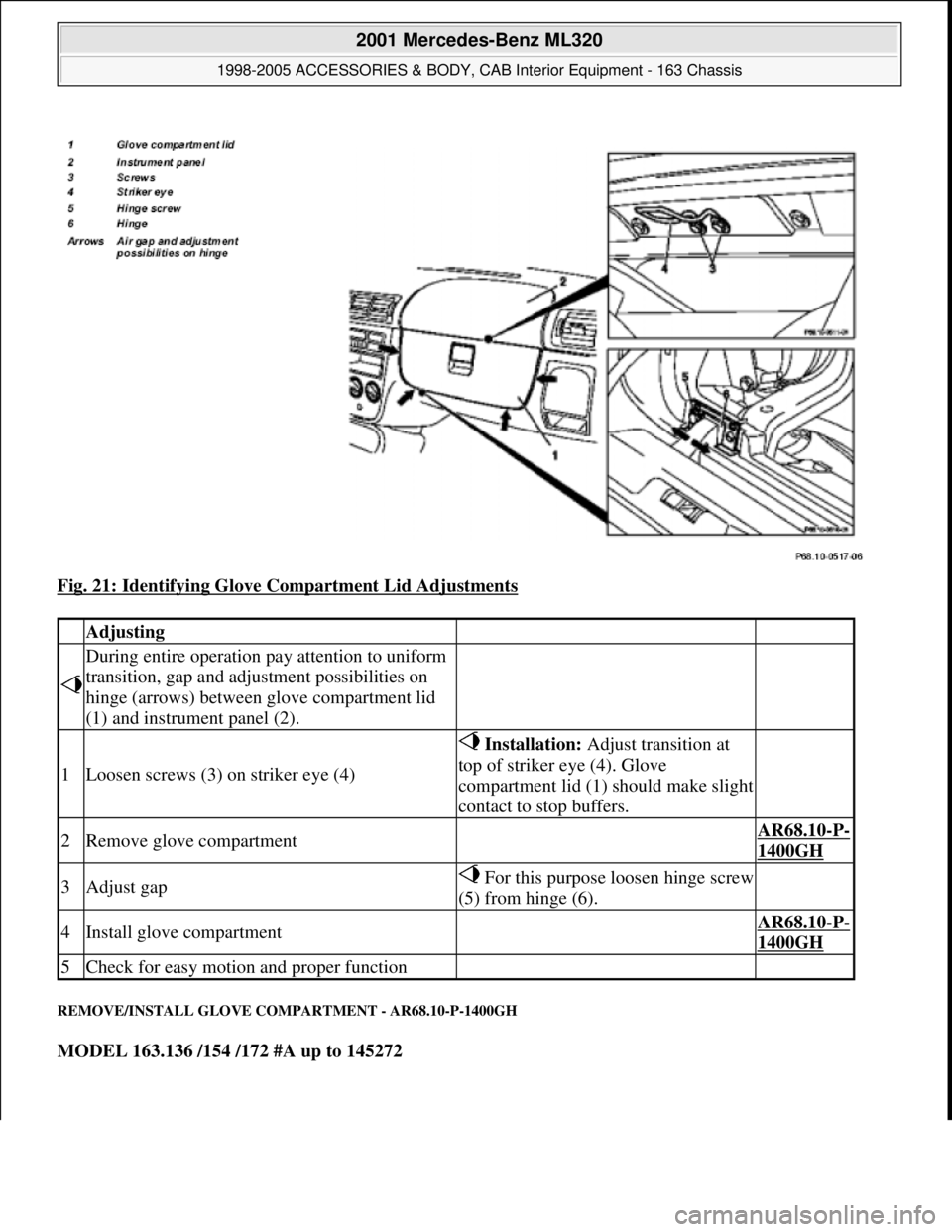

Fig. 21: Identifying Glove Compartment Lid Adjustments
REMOVE/INSTALL GLOVE COMPARTMENT - AR68.10-P-1400GH
MODEL 163.136 /154 /172 #A up to 145272
Adjusting
During entire operation pay attention to uniform
transition, gap and adjustment possibilities on
hinge (arrows) between glove compartment lid
(1) and instrument panel (2).
1Loosen screws (3) on striker eye (4)
Installation: Adjust transition at
top of striker eye (4). Glove
compartment lid (1) should make slight
contact to stop buffers.
2Remove glove compartment AR68.10-P-
1400GH
3Adjust gapFor this purpose loosen hinge screw
(5) from hinge (6).
4Install glove compartment AR68.10-P-
1400GH
5Check for easy motion and proper function
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 28 © 2006 Mitchell Repair Information Company, LLC.
Page 3547 of 4133

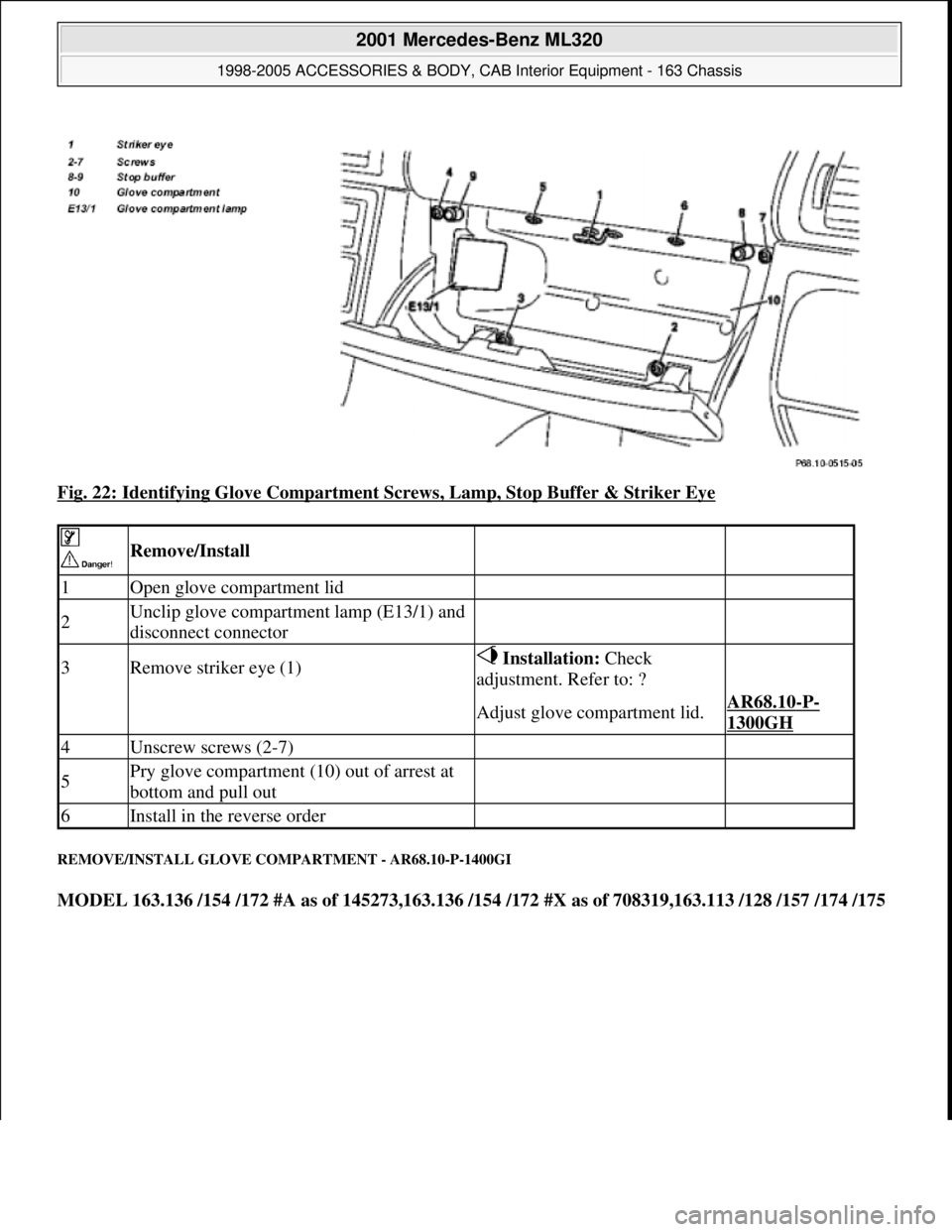

Fig. 22: Identifying Glove Compartment Screws, Lamp, Stop Buffer & Striker Eye
REMOVE/INSTALL GLOVE COMPARTMENT - AR68.10-P-1400GI
MODEL 163.136 /154 /172 #A as of 145273,163.136 /154 /172 #X as of 708319,163.113 /128 /157 /174 /175
Remove/Install
1Open glove compartment lid
2Unclip glove compartment lamp (E13/1) and
disconnect connector
3Remove striker eye (1) Installation: Check
adjustment. Refer to: ?
Adjust glove compartment lid.AR68.10-P-
1300GH
4Unscrew screws (2-7)
5Pry glove compartment (10) out of arrest at
bottom and pull out
6Install in the reverse order
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 29 © 2006 Mitchell Repair Information Company, LLC.
Page 3548 of 4133

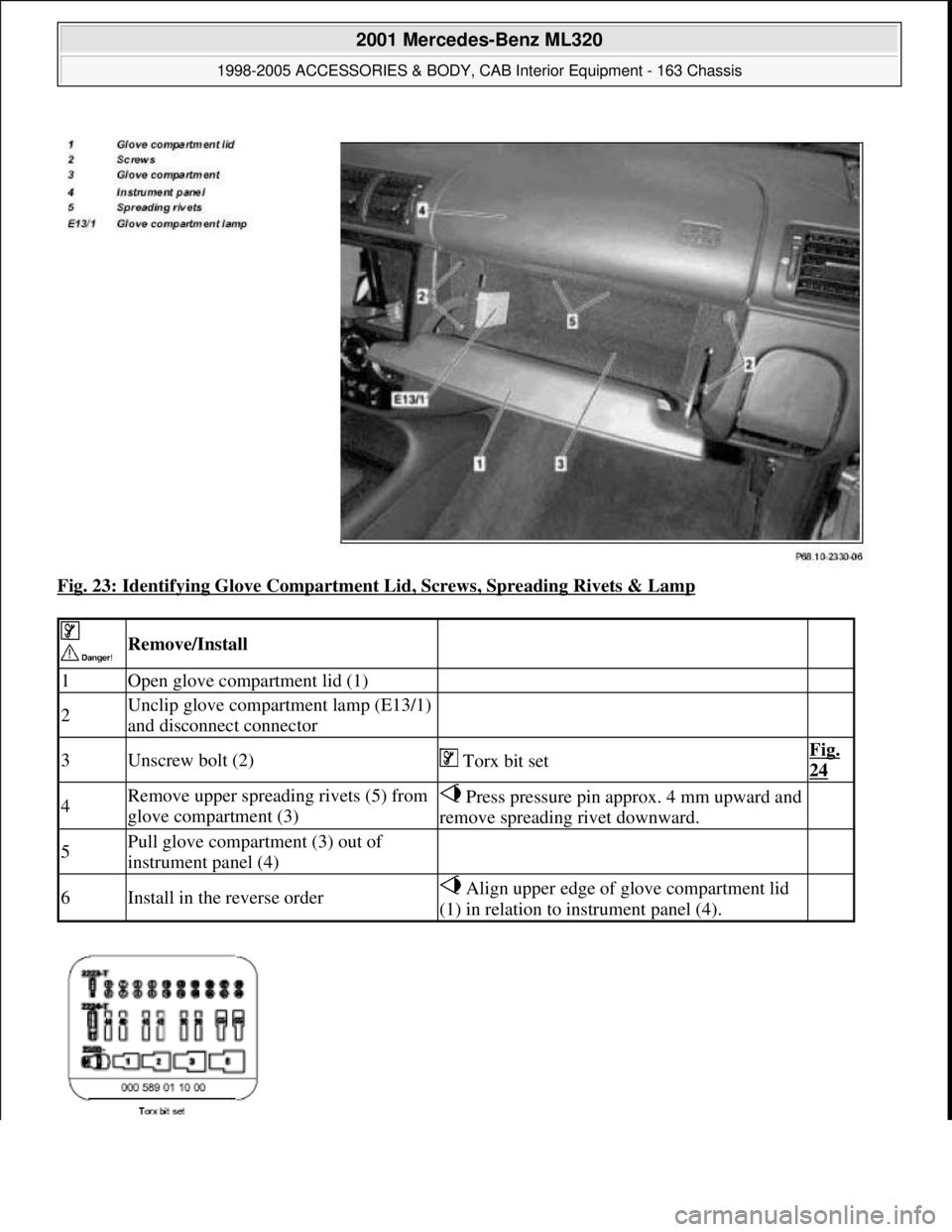

Fig. 23: Identifying Glove Compartment Lid, Screws, Spreading Rivets & Lamp
Remove/Install
1Open glove compartment lid (1)
2Unclip glove compartment lamp (E13/1)
and disconnect connector
3Unscrew bolt (2) Torx bit setFig.
24
4Remove upper spreading rivets (5) from
glove compartment (3) Press pressure pin approx. 4 mm upward and
remove spreading rivet downward.
5Pull glove compartment (3) out of
instrument panel (4)
6Install in the reverse order Align upper edge of glove compartment lid
(1) in relation to instrument panel (4).
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 30 © 2006 Mitchell Repair Information Company, LLC.
Page 3549 of 4133

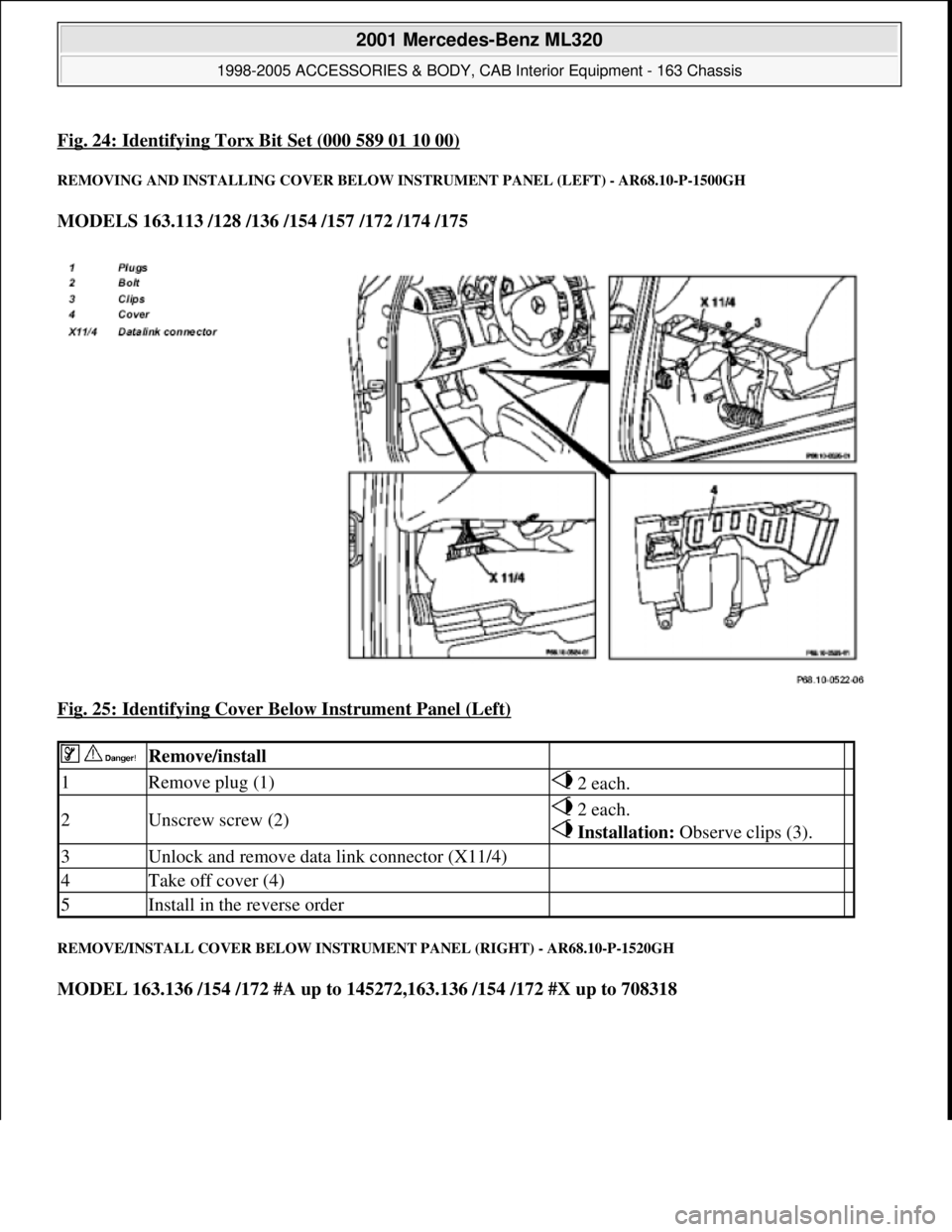

Fig. 24: Identifying Torx Bit Set (000 589 01 10 00)
REMOVING AND INSTALLING COVER BELOW INSTRUMENT PANEL (LEFT) - AR68.10-P-1500GH
MODELS 163.113 /128 /136 /154 /157 /172 /174 /175
Fig. 25: Identifying Cover Below Instrument Panel (Left)
REMOVE/INSTALL COVER BELOW INSTRUMENT PANEL (RIGHT) - AR68.10-P-1520GH
MODEL 163.136 /154 /172 #A up to 145272,163.136 /154 /172 #X up to 708318
Remove/install
1Remove plug (1) 2 each.
2Unscrew screw (2) 2 each.
Installation: Observe clips (3).
3Unlock and remove data link connector (X11/4)
4Take off cover (4)
5Install in the reverse order
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 31 © 2006 Mitchell Repair Information Company, LLC.
Page 3550 of 4133

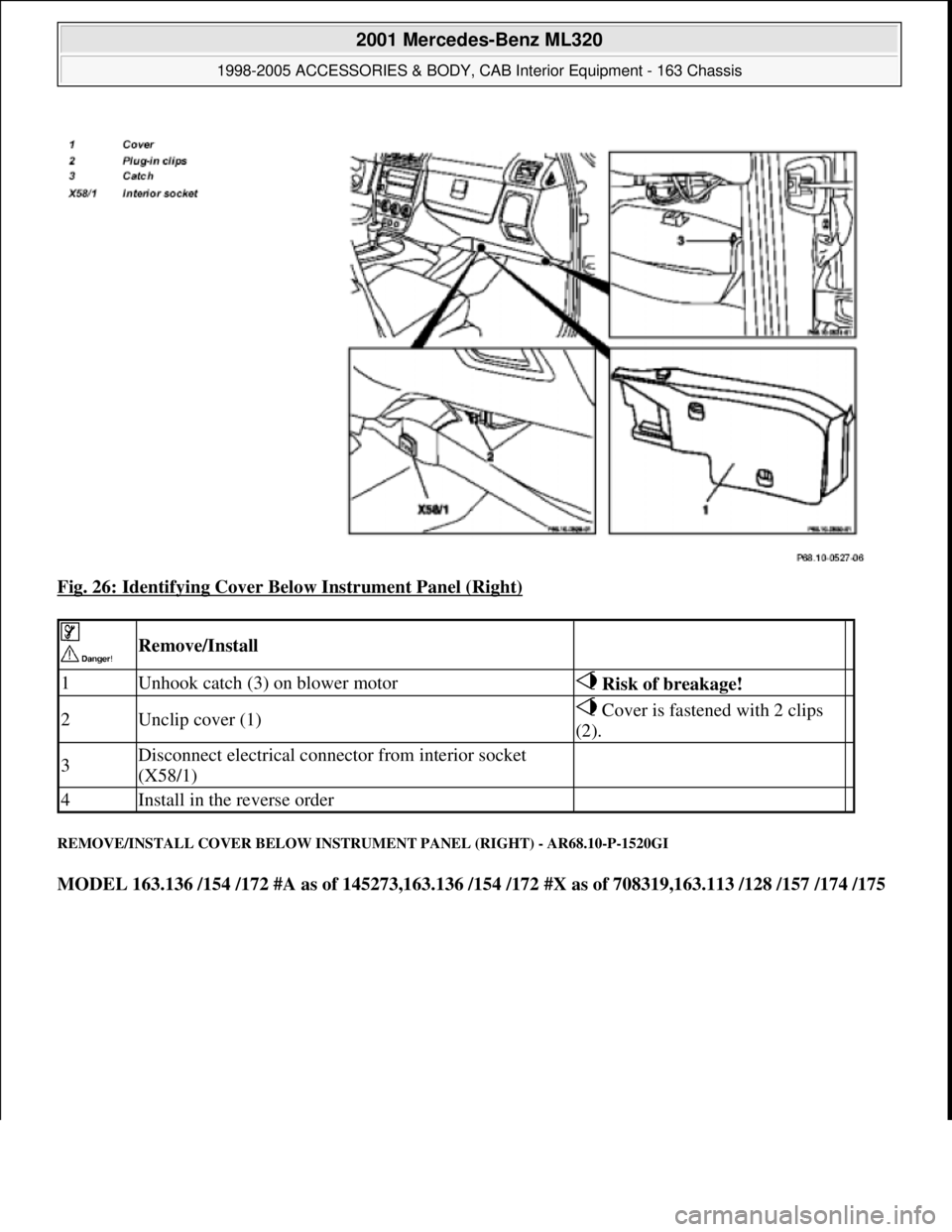

Fig. 26: Identifying Cover Below Instrument Panel (Right)
REMOVE/INSTALL COVER BELOW INSTRUMENT PANEL (RIGHT) - AR68.10-P-1520GI
MODEL 163.136 /154 /172 #A as of 145273,163.136 /154 /172 #X as of 708319,163.113 /128 /157 /174 /175
Remove/Install
1Unhook catch (3) on blower motor Risk of breakage!
2Unclip cover (1) Cover is fastened with 2 clips
(2).
3Disconnect electrical connector from interior socket
(X58/1)
4Install in the reverse order
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 32 © 2006 Mitchell Repair Information Company, LLC.
Page 3551 of 4133

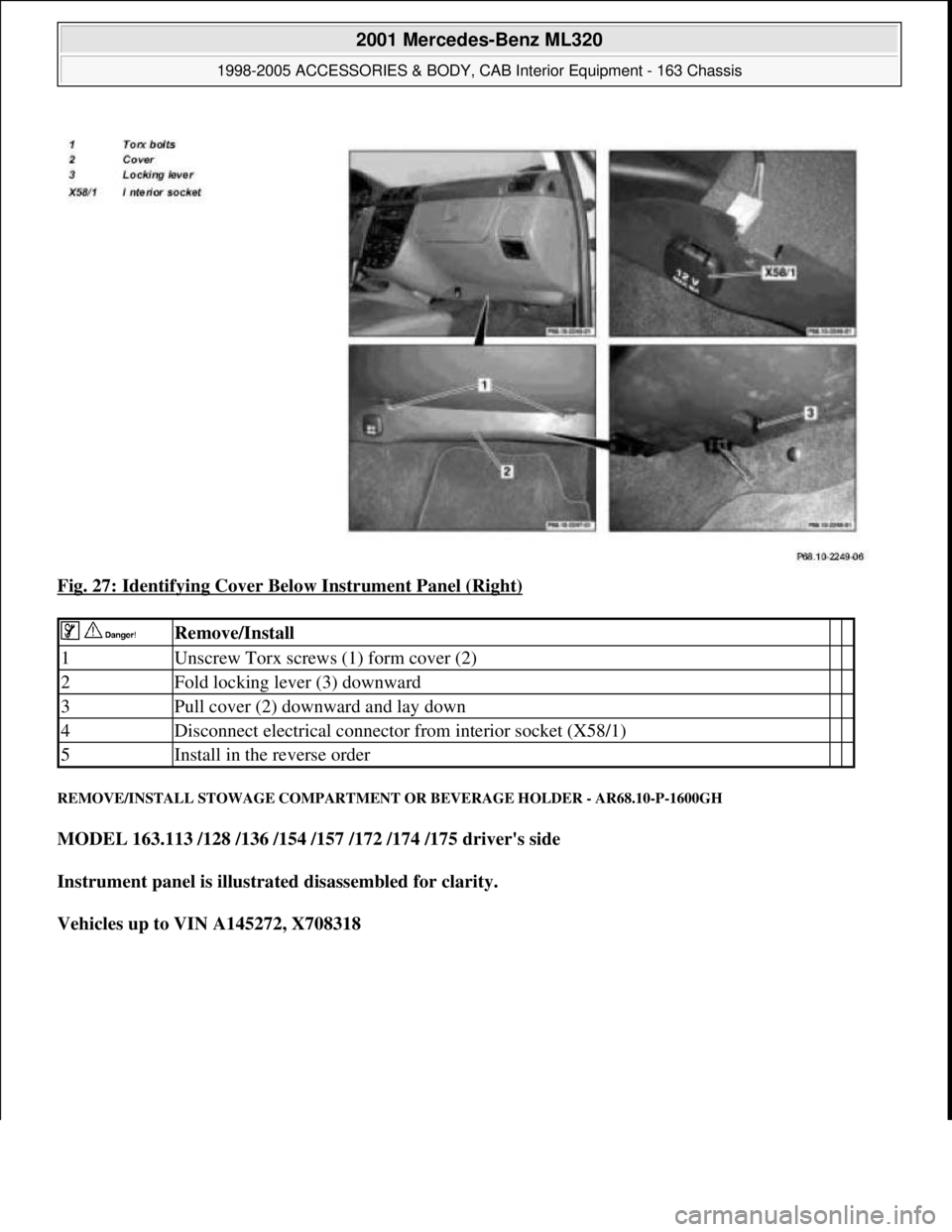

Fig. 27: Identifying Cover Below Instrument Panel (Right)
REMOVE/INSTALL STOWAGE COMPARTMENT OR BEVERAGE HOLDER - AR68.10-P-1600GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 driver's side
Instrument panel is illustrated disassembled for clarity.
Vehicles up to VIN A145272, X708318
Remove/Install
1Unscrew Torx screws (1) form cover (2)
2Fold locking lever (3) downward
3Pull cover (2) downward and lay down
4Disconnect electrical connector from interior socket (X58/1)
5Install in the reverse order
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 33 © 2006 Mitchell Repair Information Company, LLC.
Page 3552 of 4133

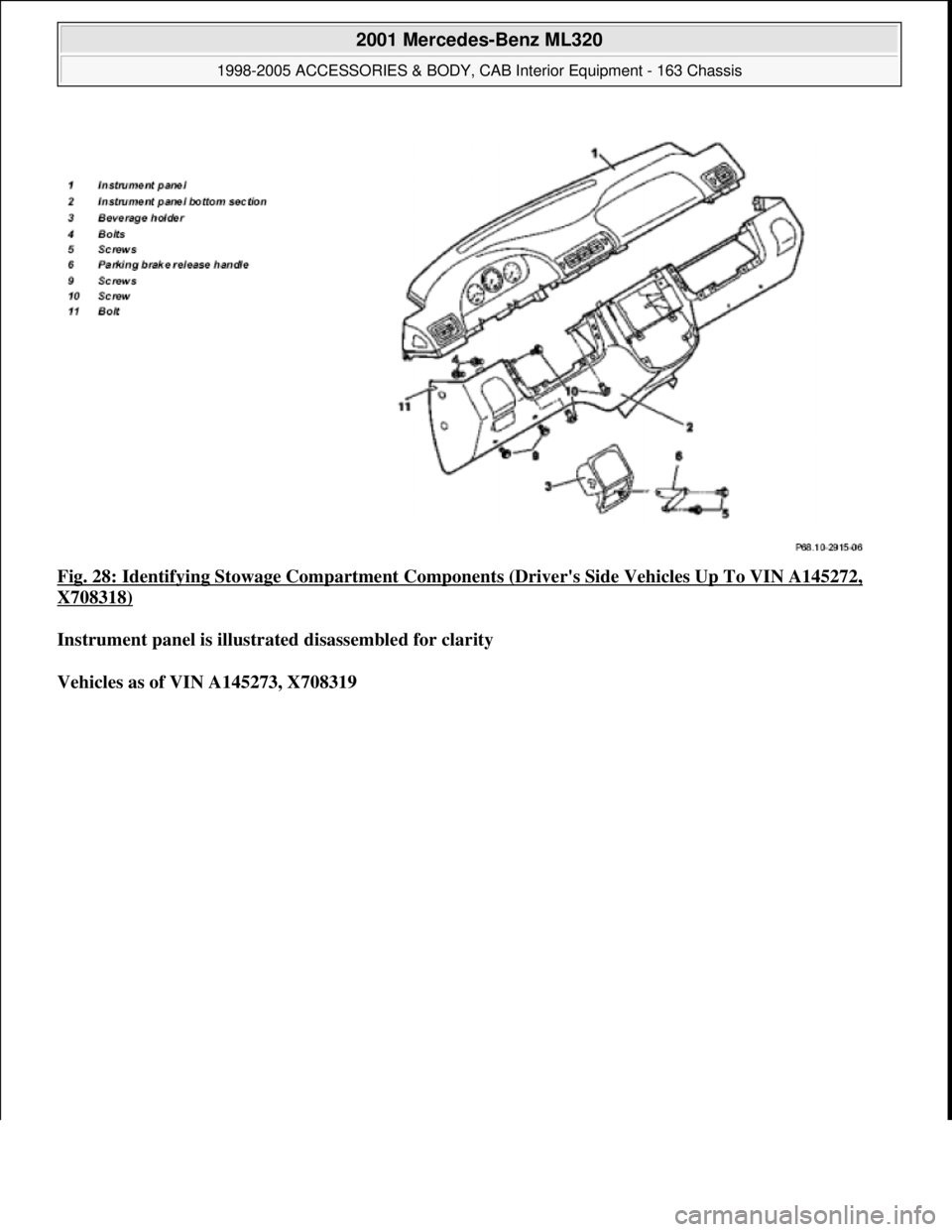

Fig. 28: Identifying Stowage Compartment Components (Driver's Side Vehicles Up To VIN A145272,
X708318)
Instrument panel is illustrated disassembled for clarity
Vehicles as of VIN A145273, X708319
