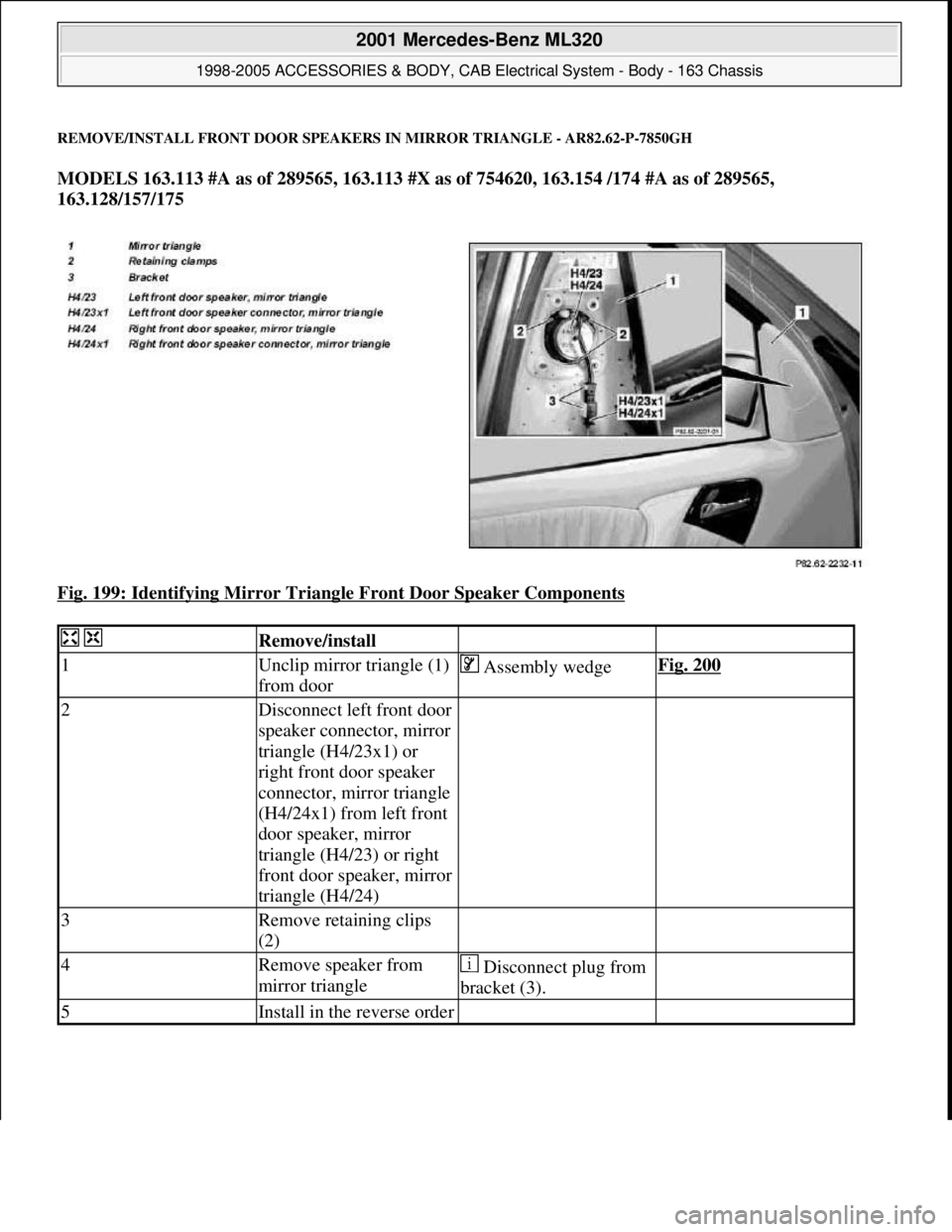

Page 1793 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual REMOVE/INSTALL FRONT DOOR SPEAKERS IN MIRROR TRIANGLE - AR82.62-P-7850GH MODELS 163.113 #A as of 289565, 163.113 #X as of 754620, 163.154 /174 #A as of 289565, 163.128/157/175 Fig. 199: Identifyin

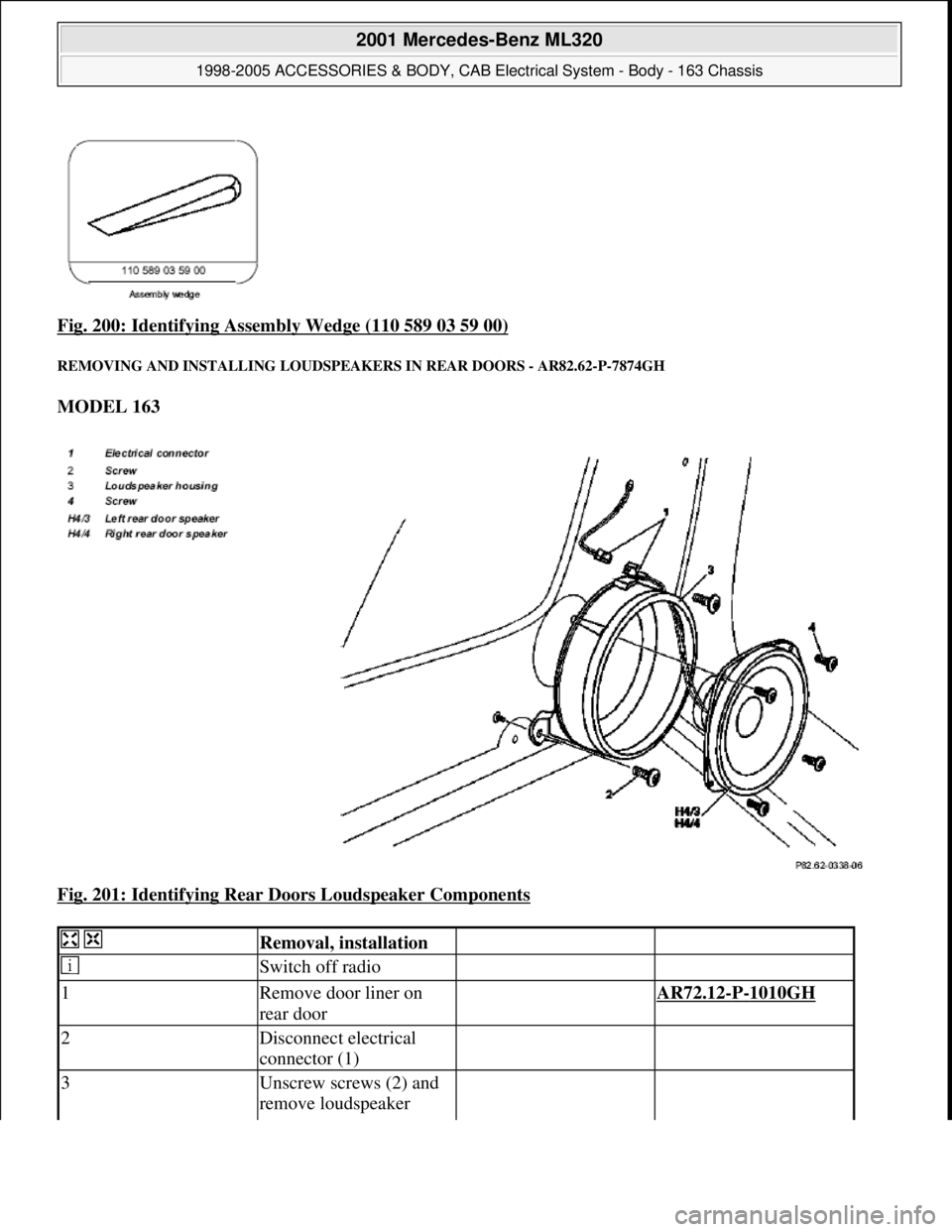

Page 1794 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 200: Identifying Asse mbly Wedge (110 589 03 59 00) REMOVING AND INSTALLING LOUDSPEAKERS IN REAR DOORS - AR82.62-P-7874GH MODEL 163 Fig. 201: Identifying Rear Doors Loudspeaker Components

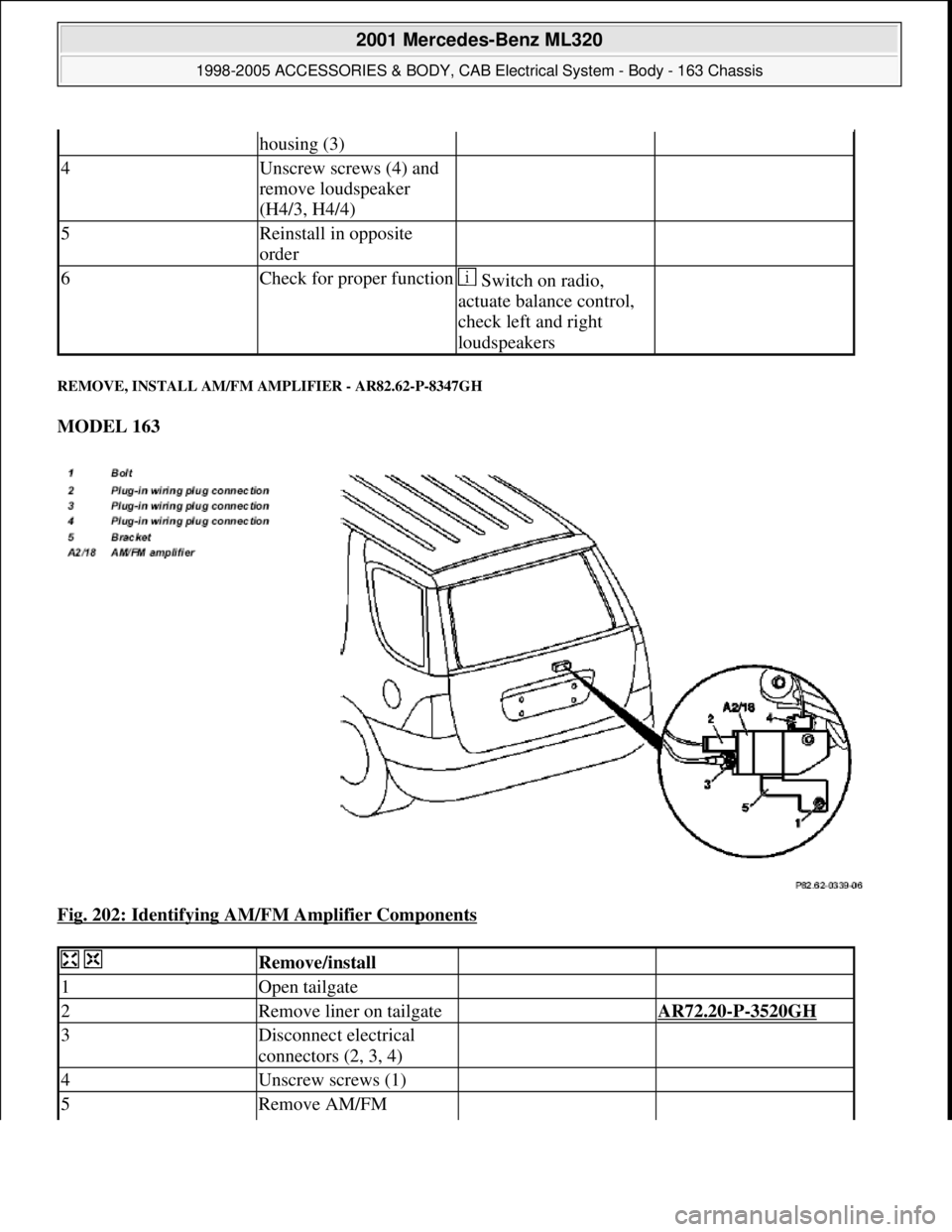

Page 1795 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual REMOVE, INSTALL AM/FM AMPLIFIER - AR82.62-P-8347GH MODEL 163 Fig. 202: Identifying AM/FM Amplifier Components housing (3) 4Unscrew screws (4) and remove loudspeaker (H4/3, H4/4) 5Reinstall in

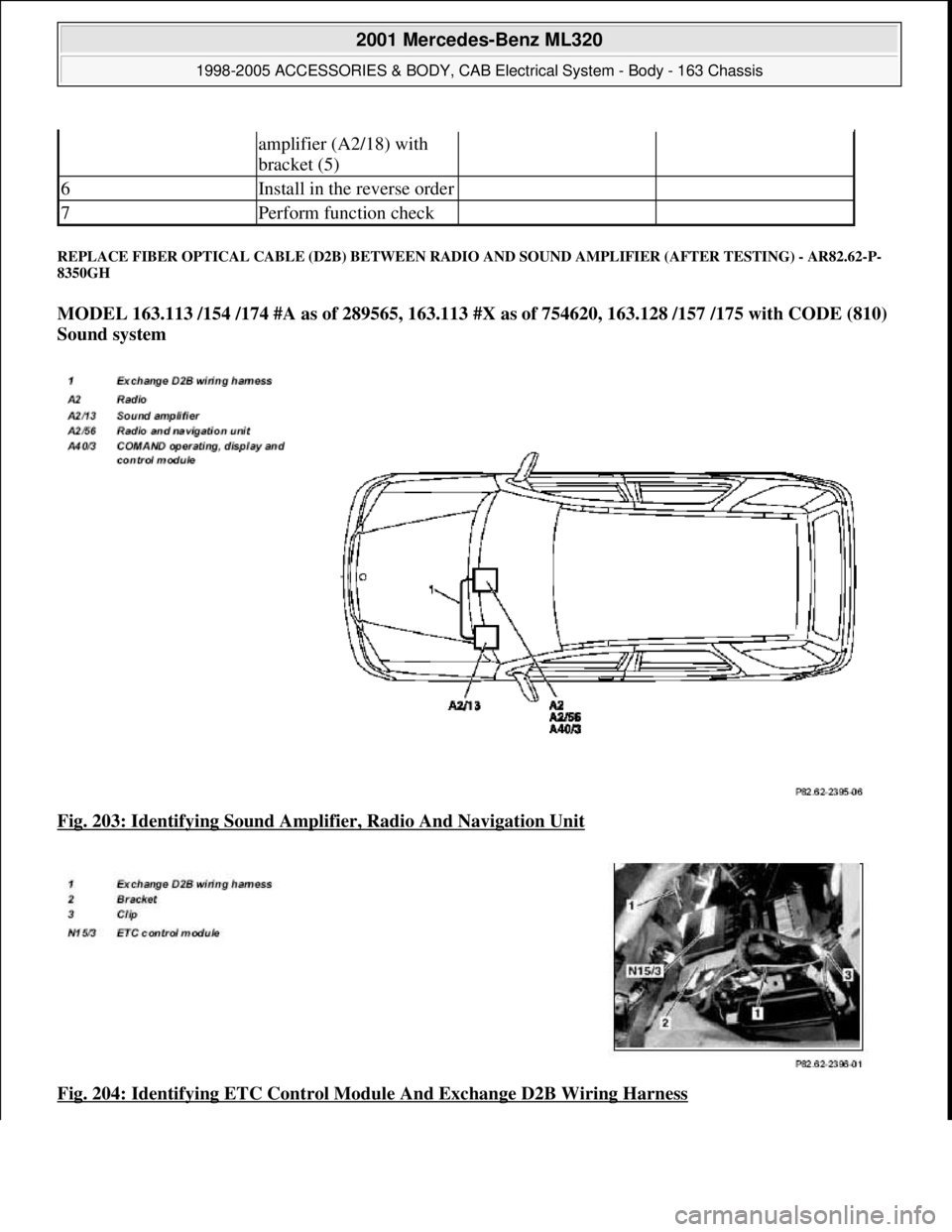

Page 1796 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual REPLACE FIBER OPTICAL CA BLE (D2B) BETWEEN RADIO AND SOUND AMPLIFIER (AFTER TESTING) - AR82.62-P- 8350GH MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128 /157 /175 with CO

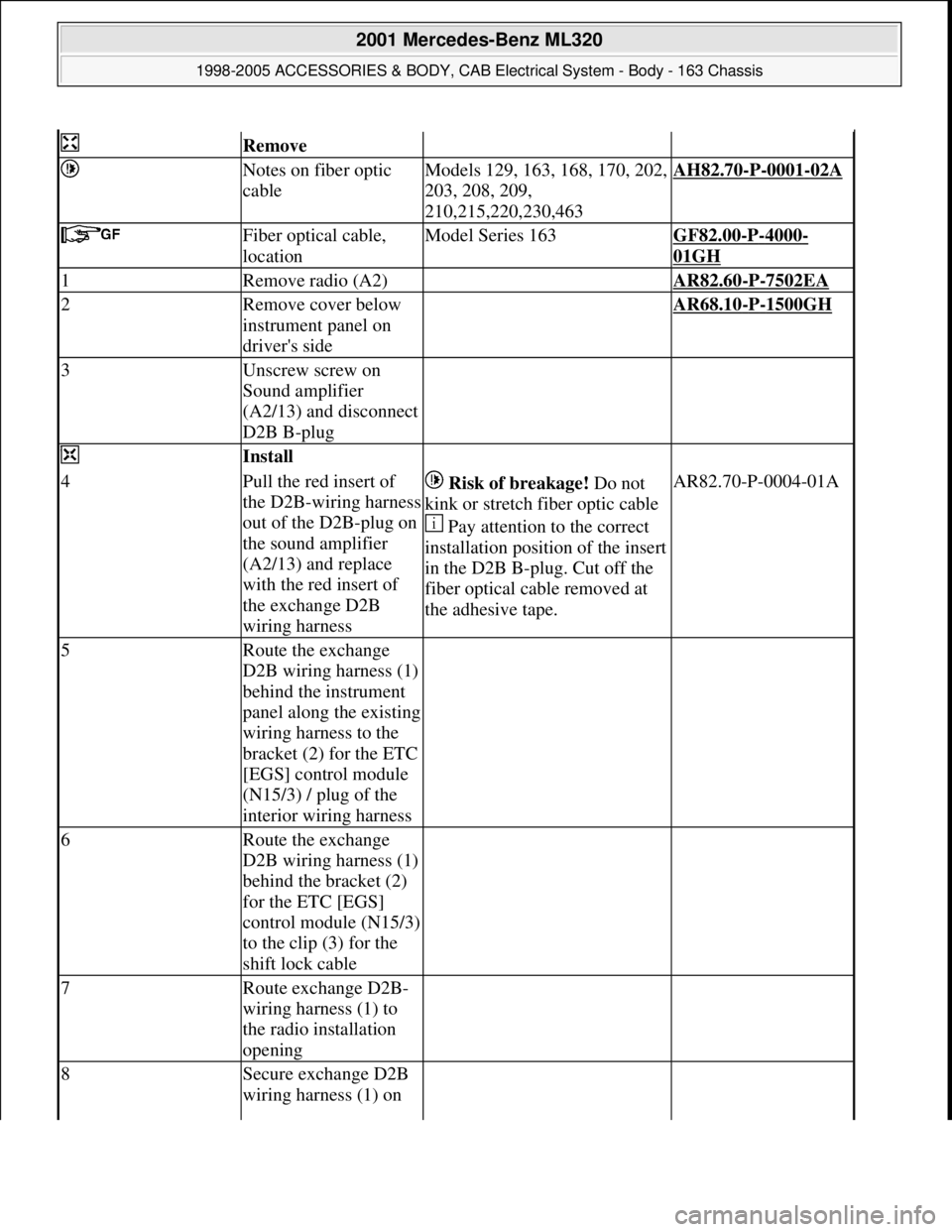

Page 1797 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Remove Notes on fiber optic cableModels 129, 163, 168, 170, 202, 203, 208, 209, 210,215,220,230,463AH82.70-P-0001-02A Fiber optical cable, locationModel Series 163GF82.00-P-4000- 01GH 1Remove

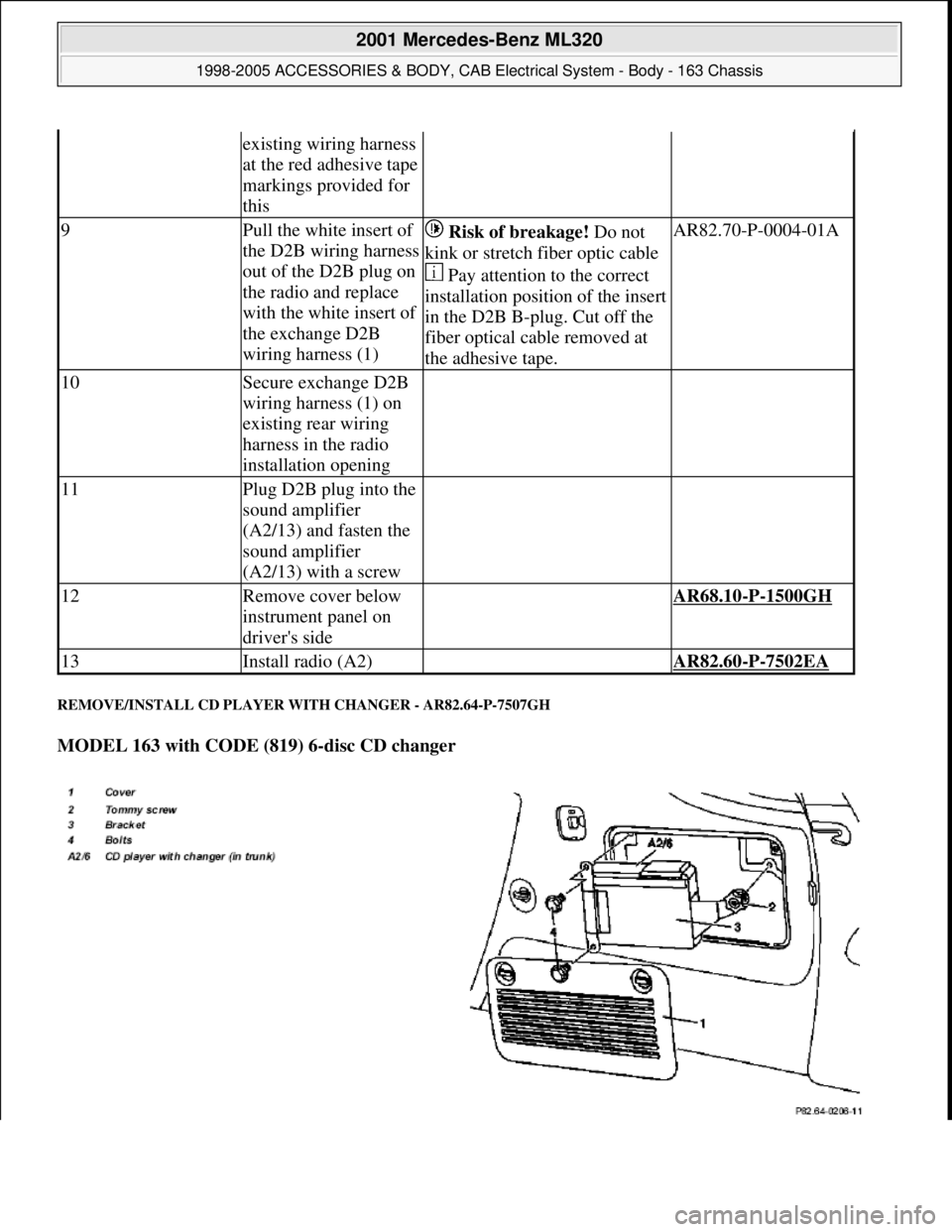

Page 1798 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual REMOVE/INSTALL CD PLAYER WITH CHANGER - AR82.64-P-7507GH MODEL 163 with CODE (819) 6-disc CD changer existing wiring harness at the red adhesive tape markings provided for this 9Pull the white i

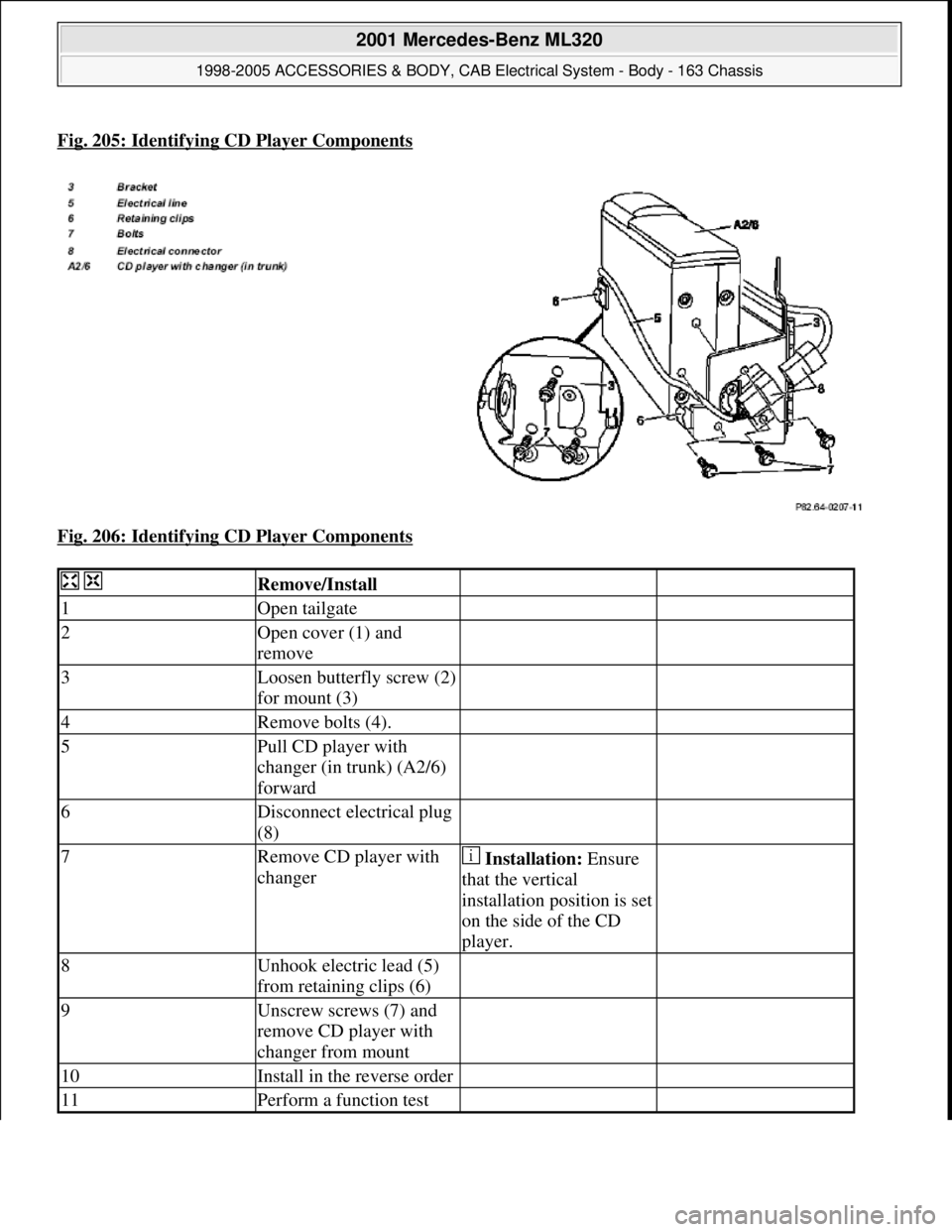

Page 1799 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 205: Identifying CD Player Components Fig. 206: Identifying CD Player Components Remove/Install 1Open tailgate 2Open cover (1) and remove 3Loosen butterfly screw (2) for mount (3) 4R

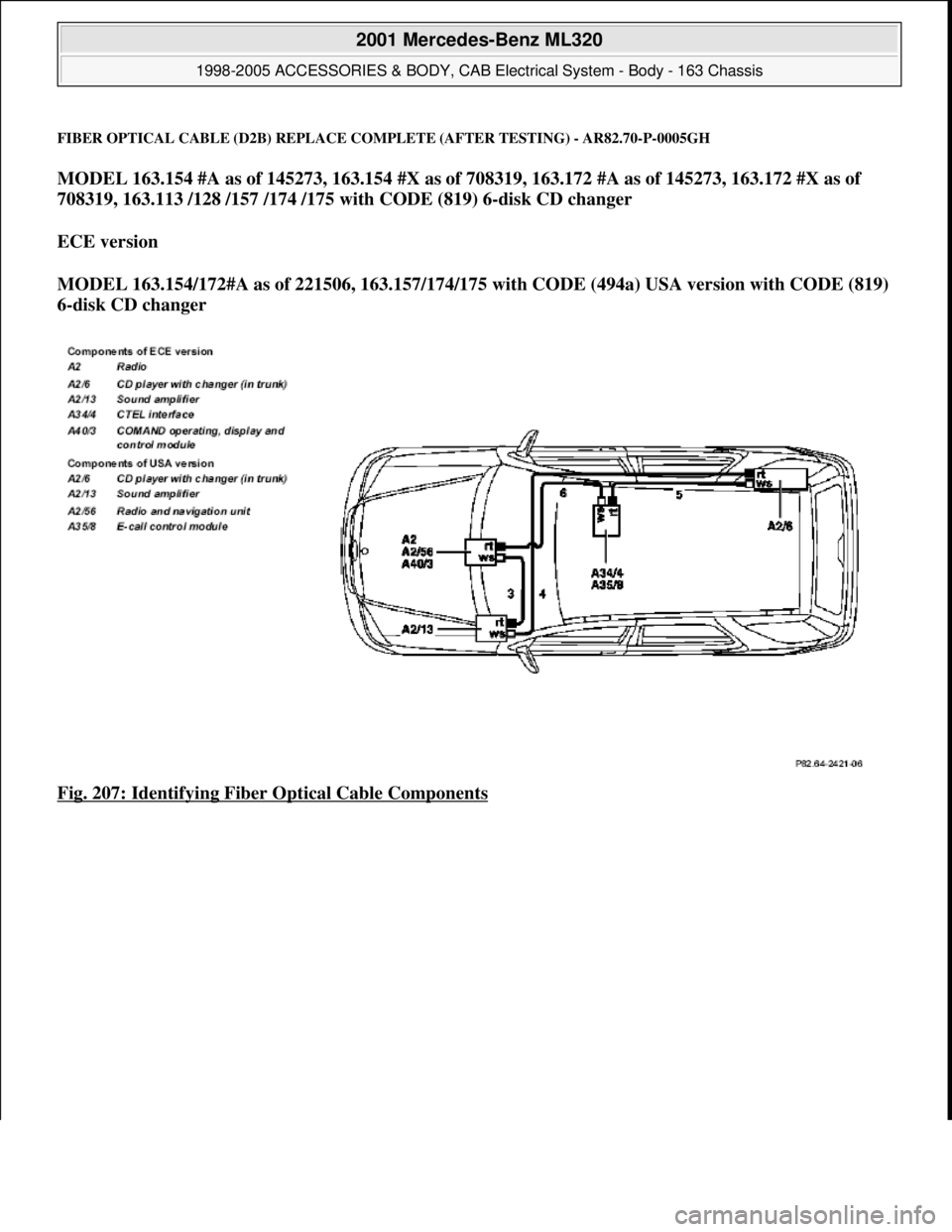

Page 1800 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual FIBER OPTICAL CABLE (D2B) REPLACE COMPLETE (AFTER TESTING) - AR82.70-P-0005GH MODEL 163.154 #A as of 145273, 163.154 #X as of 708319, 163.172 #A as of 145273, 163.172 #X as of 708319, 163.113 /128 /
