MERCEDES-BENZ ML350 1997 Complete Repair Manual
GF54.21-P-4100GK
All-activity module position/task/design/function
27.7.99

MODEL
163 as of 1.12.99

P83.30-2050-05

F1
Fuse and relay module

N10
All-activity module (AAM)

All-activity module

Page 1150 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual
GF54.30-P-3010A
Function of acoustic warnings
24.10.96

MODEL
129, 140 as of 1.6.96,

163, 168, 170,

202 as of 1.8.96,

208 up to 31.7.99,

210 as of 1.6.96 up to 30.6.99

Display
Function

T

GF54.30-P-3010A
Function of acoustic warnings
24.10.96

MODEL
129, 140 as of 1.6.96,

163, 168, 170,

202 as of 1.8.96,

208 up to 31.7.99,

210 as of 1.6.96 up to 30.6.99

Display
Function

Turn signal indicator

ticking
Switching on the turn signal indicator is

indicated acoustically by the turn signal

indicator ticking. The driver's attention is

brought to a defect in the turn signal system

by the turn signal indicator ticking at a higher

frequency.

Turn signal indicator ticking is generated

electromagnetically. The frequency

corresponds to that of the turn signal indicator

lamp.

The signal comes from the combination relay

(turn signal indicator with trailer coupling, rear

window defroster), wiper motor, ATA (N10/2),

on model 210 from the multi-function control
module (N10-1) or from the driver-side signal-

acquisition and actuation module (SAM)

(N10/1), on model 163 from the All-Activity

Module (AAM, N10), on model 168 it is

generated by the integrated turn signal

indicator control in the instrument cluster (A1).

Parking brake reminderThe parking brake warning sounds when

terminal 15g is ON from a speed of approx. 5

km/h.
Piezoelectric loudspeaker (quartz), function

GF54.30-P-3017A

Gear warning, model 168

only with automatic

transmission or automatic

clutch
The acoustic gear warning is active, when

D
a gear is engaged
and

D
the brake is
not
depressed
and

D
the accelerator pedal is
not

pressed
and

D
the driver's door is opened.

These conditions are processed in the gear

recognition module (A61) or in the automatic

clutch control module (N15/4). The

information on the status of the driver's door

is available as a CAN message. It is

transmitted by the instrument cluster (A1).

Piezoelectric loudspeaker (quartz), function

GF54.30-P-3017A

Speed warning
The speed warning sounds when terminal

15g is ON from a speed of approx. 120 km/h.

(on national variants only)

Piezoelectric loudspeaker (quartz), function

GF54.30-P-3017A

Speed limit warning
The warning sounds if the set maximum

speed is exceeded by at least 6 km/h.
(on vehicles with variable cruise control only)

Piezoelectric loudspeaker (quartz), function

GF54.30-P-3017A

Seat belt reminder
On national variants only
Piezoelectric loudspeaker (quartz), function

GF54.30-P-3017A

Switched-on lights

reminder
The switched-on lights reminder sounds when

terminal 15g is OFF, terminal 58k is ON,

when the starter key is removed and the

driver's door is opened.
Piezoelectric loudspeaker (quartz), function

GF54.30-P-3017A

Key reminder
The key reminder when terminal 15g is OFF

and the driver's door is open when the starter

key is inserted
Piezoelectric loudspeaker (quartz), function

GF54.30-P-3017A

Soft top reminder, model

170 only
The soft top reminder sounds when terminal

15 is ON and soft top reminder input is on low

level.
Piezoelectric loudspeaker (quartz), function

GF54.30-P-3017A

Copyright DaimlerChrysler AG 05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Page 1151 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual
AR83.25-P-1405GH
Remove/install cover at air intake
3.3.97

MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

P83.25-2012-06

1
Windshield wiper arms

2
Rubber seal

3
Cover

4
Nuts

5
Metal cl

Page 1152 of 4133

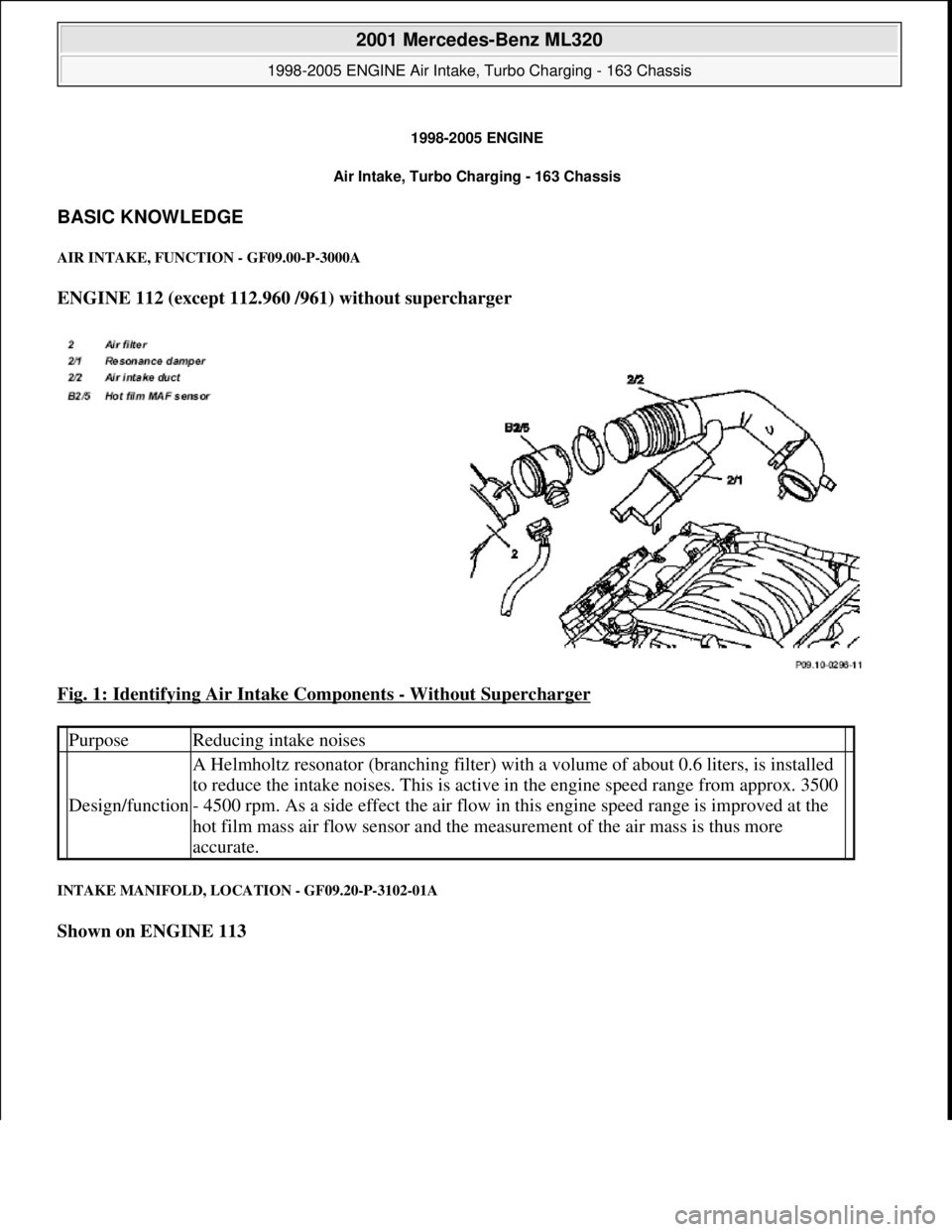

MERCEDES-BENZ ML350 1997 Complete Repair Manual 1998-2005 ENGINE
Air Intake, Turbo Charging - 163 Chassis
BASIC KNOWLEDGE
AIR INTAKE, FUNCTION - GF09.00-P-3000A
ENGINE 112 (except 112.960 /961) without supercharger
Fig. 1: Identifying Air Inta
