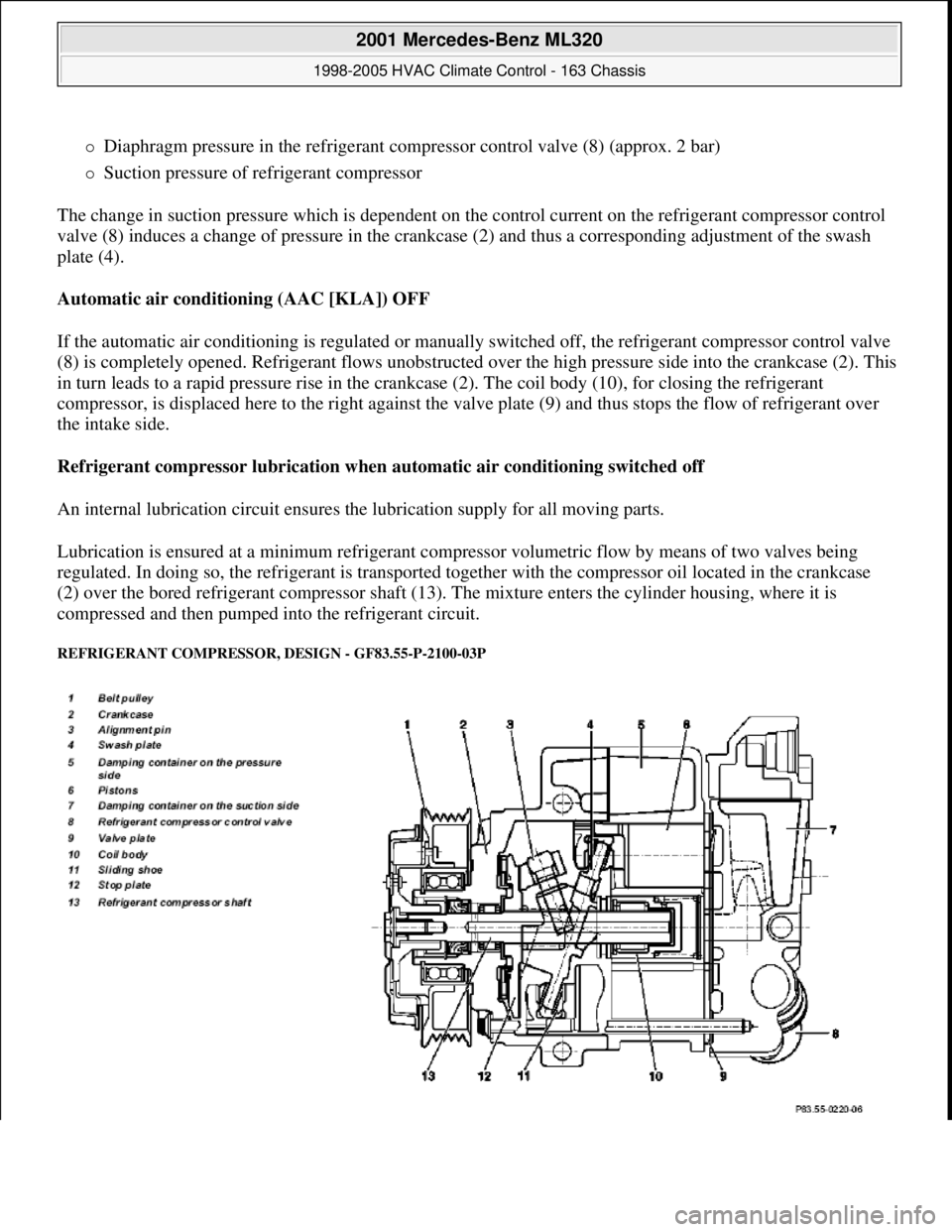

MERCEDES-BENZ ML350 1997 Complete Repair Manual Diaphragm pressure in the refrigerant compressor control valve (8) (approx. 2 bar) Suction pressure of refrigerant compressor The change in suction pressure which is dependent on the control

Page 3370 of 4133

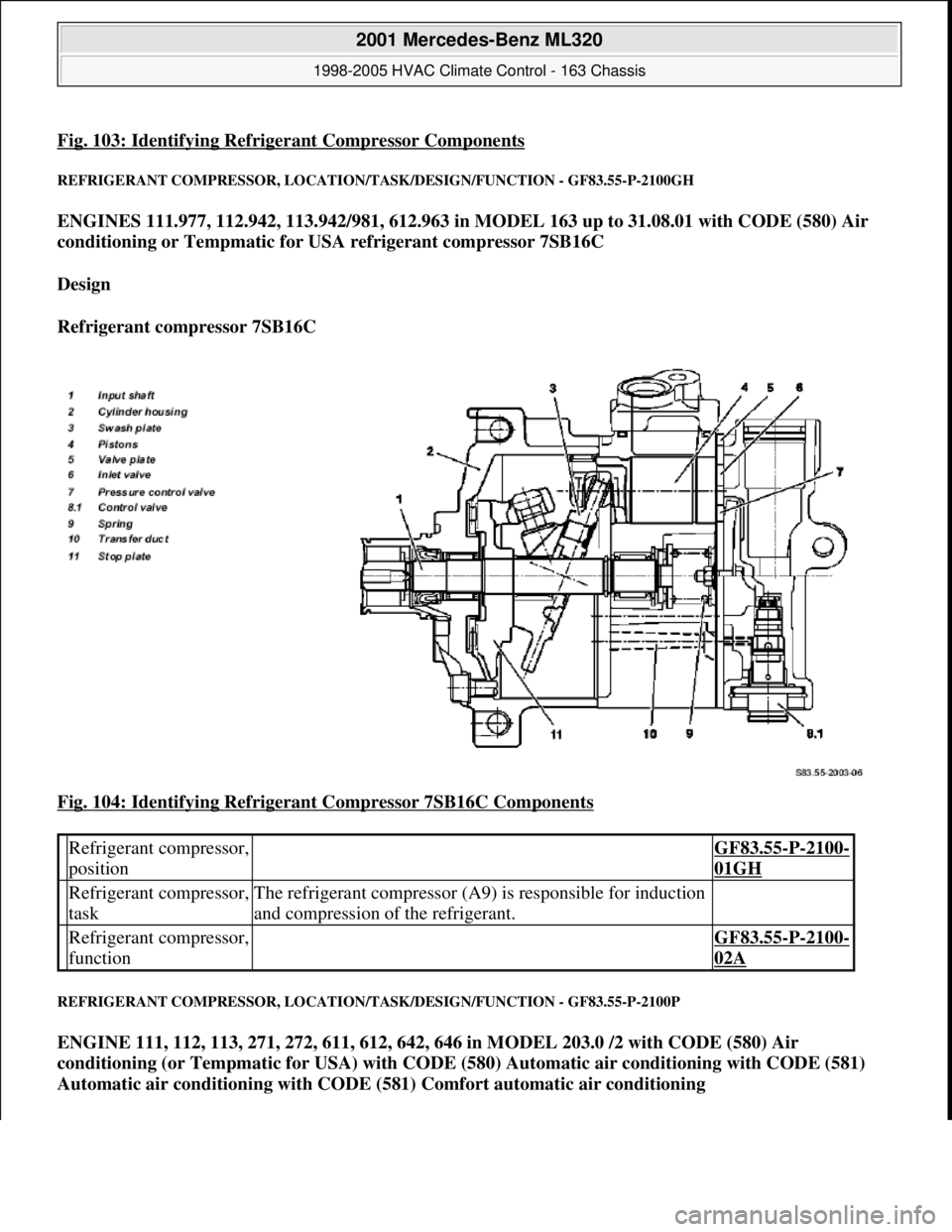

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 103: Identifying Refrigerant Compressor Components REFRIGERANT COMPRESSOR, LOCATION/TASK/DESIGN/FUNCTION - GF83.55-P-2100GH ENGINES 111.977, 112.942, 113.942/981, 612.963 in MODEL 163 up to 31.0

Page 3371 of 4133

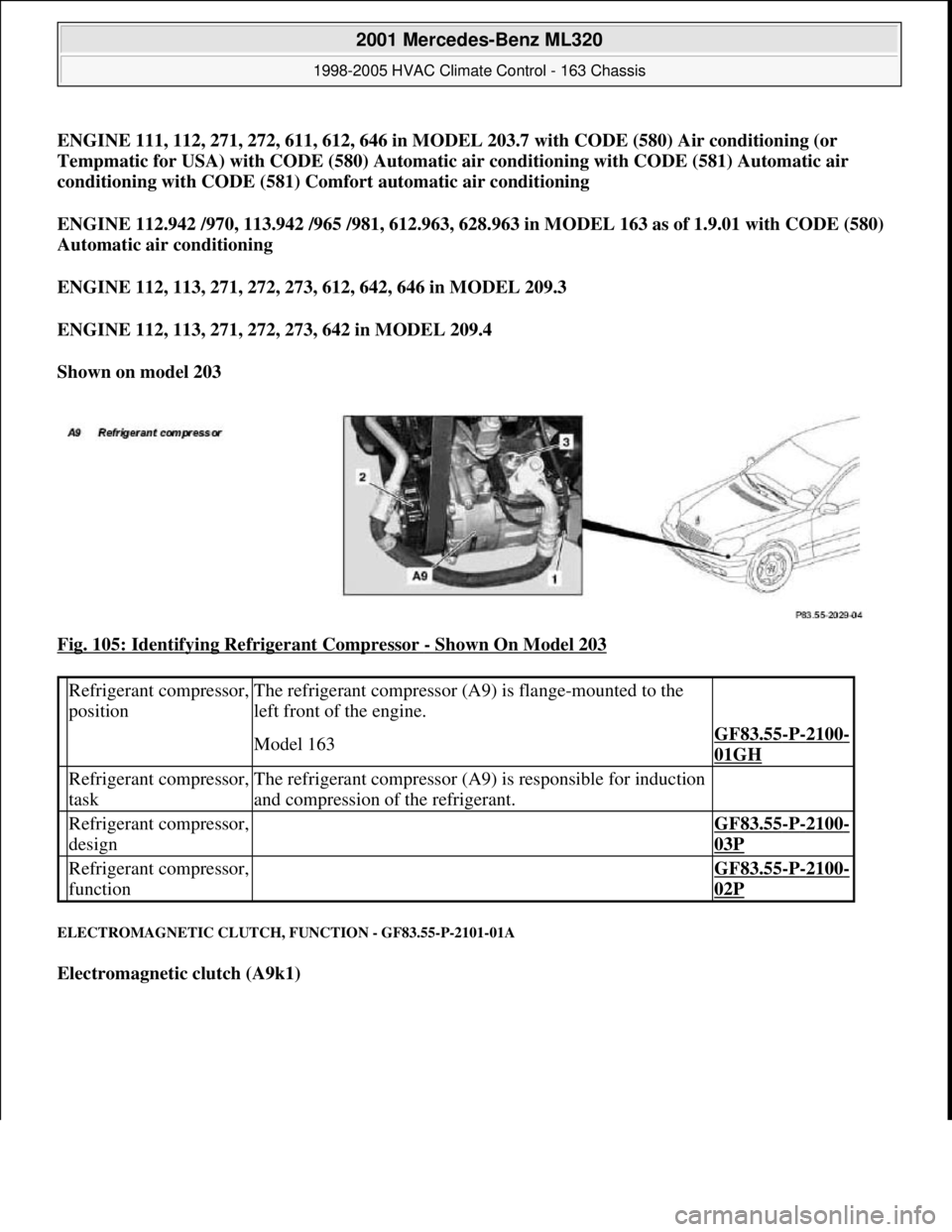

MERCEDES-BENZ ML350 1997 Complete Repair Manual ENGINE 111, 112, 271, 272, 611, 612, 646 in MODEL 203.7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning

Page 3372 of 4133

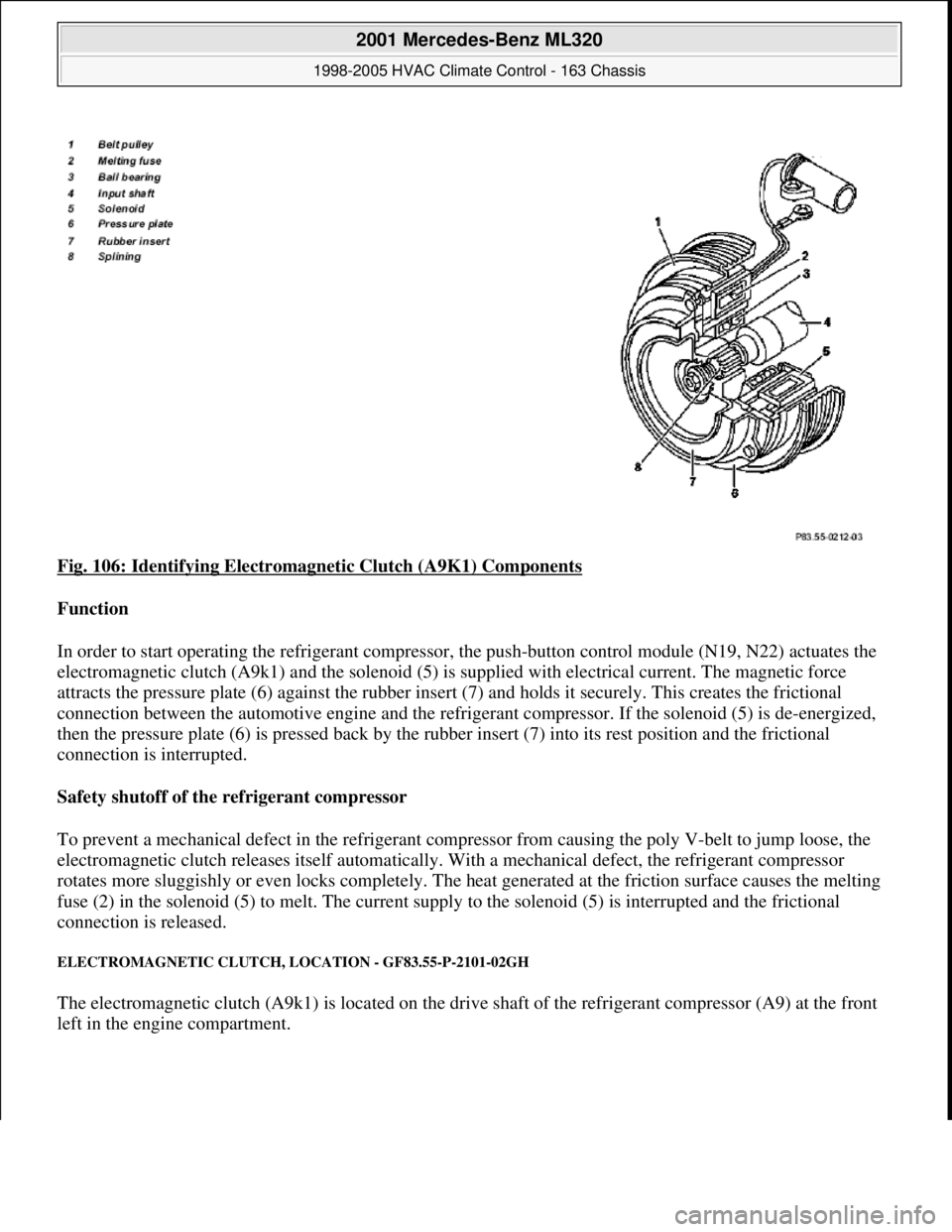

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 106: Identifying Electromagnetic Clutch (A9K1) Components Function In order to start operating the refrigerant compressor, the push-button control module (N19, N22) actuates the electromagnet

Page 3373 of 4133

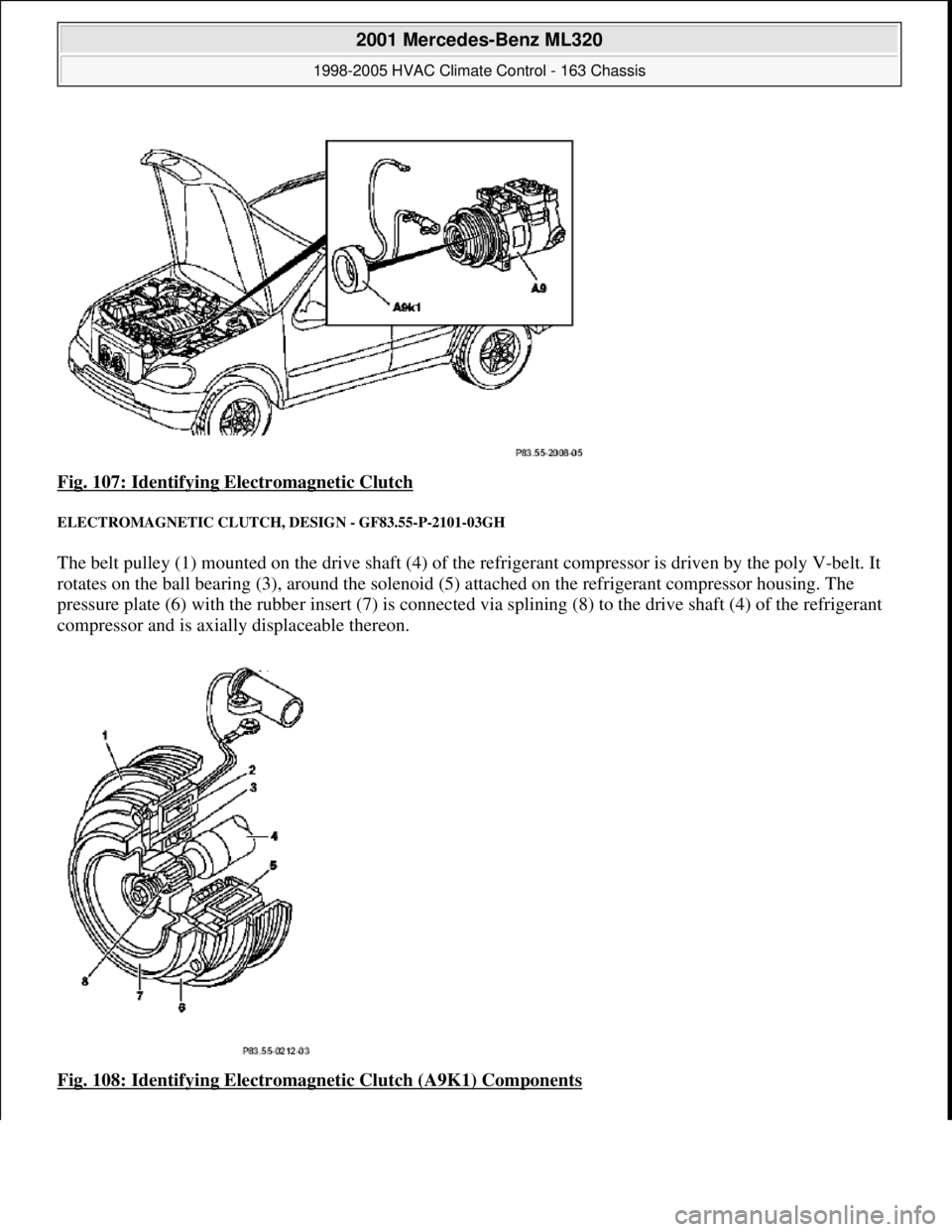

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 107: Identifying Electromagnetic Clutch ELECTROMAGNETIC CLUTCH, DESIGN - GF83.55-P-2101-03GH The belt pulley (1) mounted on the drive shaft (4) of the refrigerant compressor is driven by the

Page 3374 of 4133

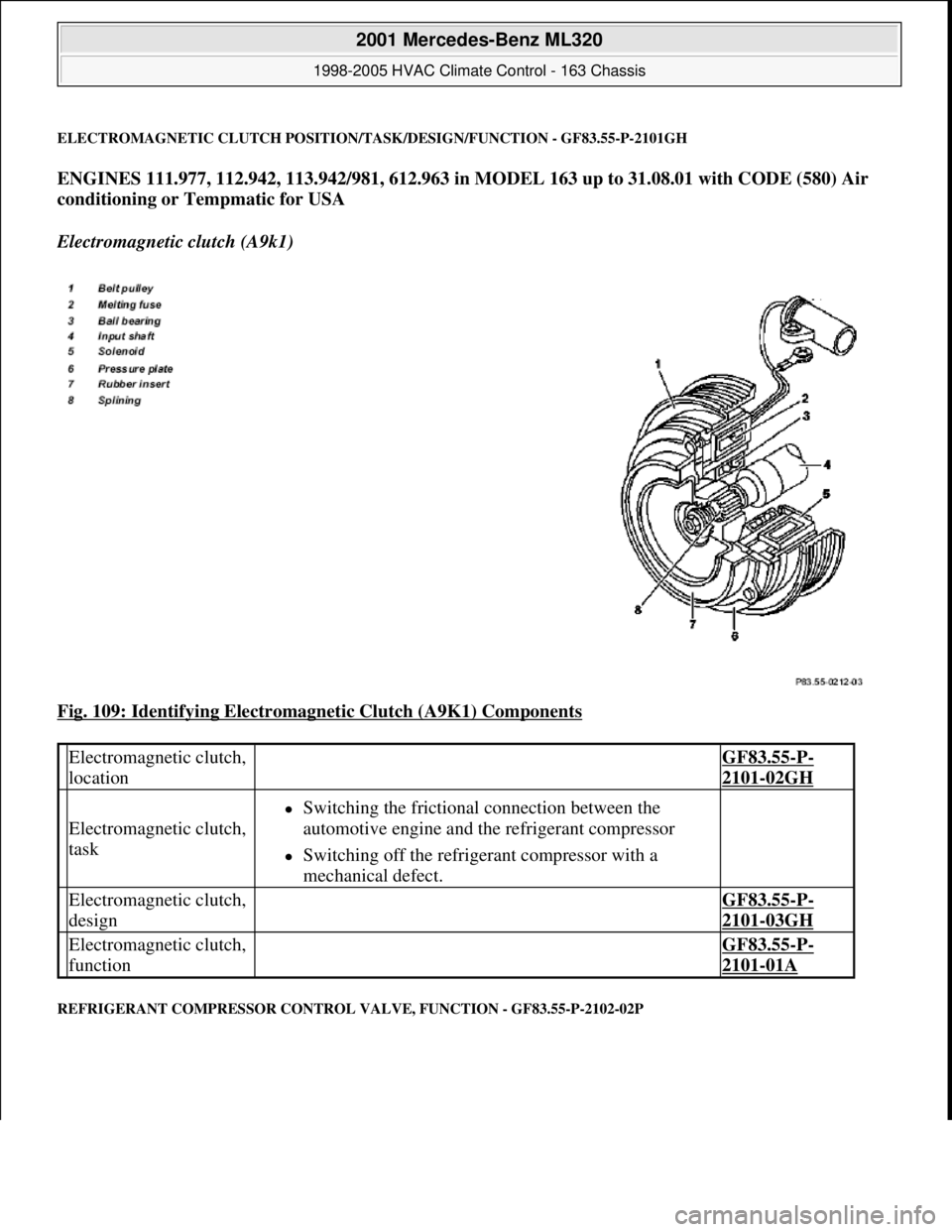

MERCEDES-BENZ ML350 1997 Complete Repair Manual ELECTROMAGNETIC CLUTCH POSITION/TASK/DESIGN/FUNCTION - GF83.55-P-2101GH ENGINES 111.977, 112.942, 113.942/981, 612.963 in MODEL 163 up to 31.08.01 with CODE (580) Air conditioning or Tempmatic for U

Page 3375 of 4133

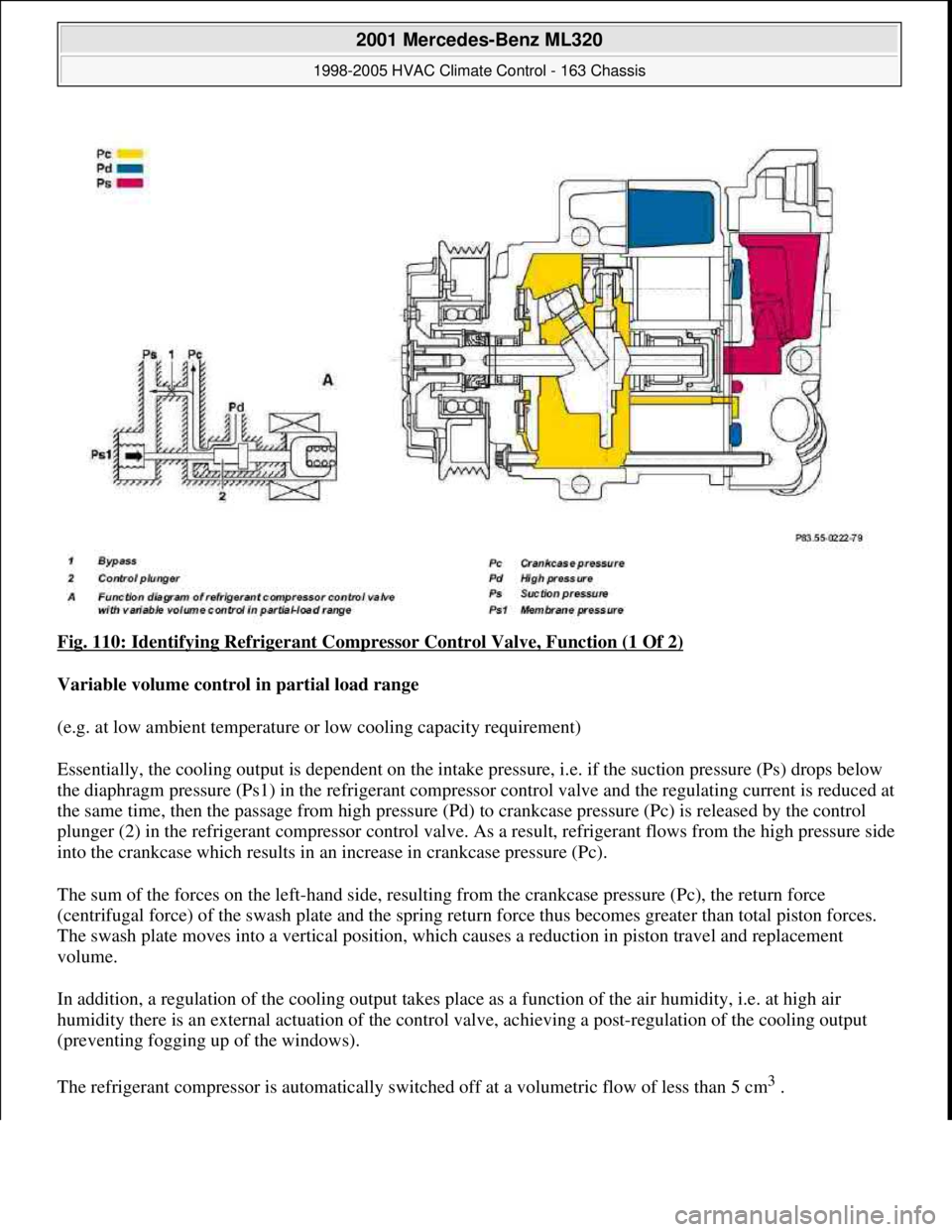

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 110: Identifying Refrigerant Compressor Control Valve, Function (1 Of 2) Variable volume control in partial load range (e.g. at low ambient temperature or low cooling capacity requirement) Es

Page 3376 of 4133

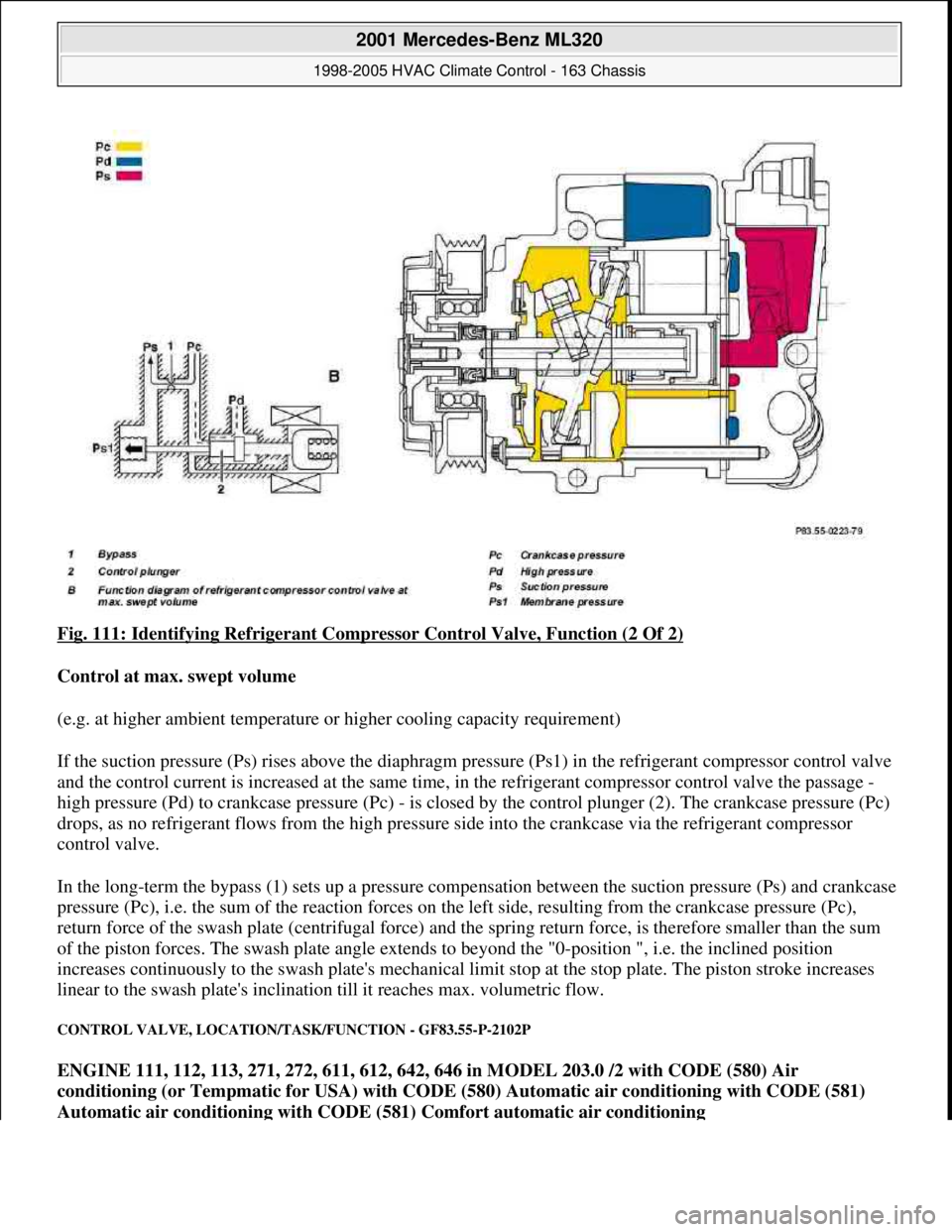

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 111: Identifying Refrigerant Compressor Control Valve, Function (2 Of 2) Control at max. swept volume (e.g. at higher ambient temperature or higher cooling capacity requirement) If the suctio
