Page 1401 of 4133

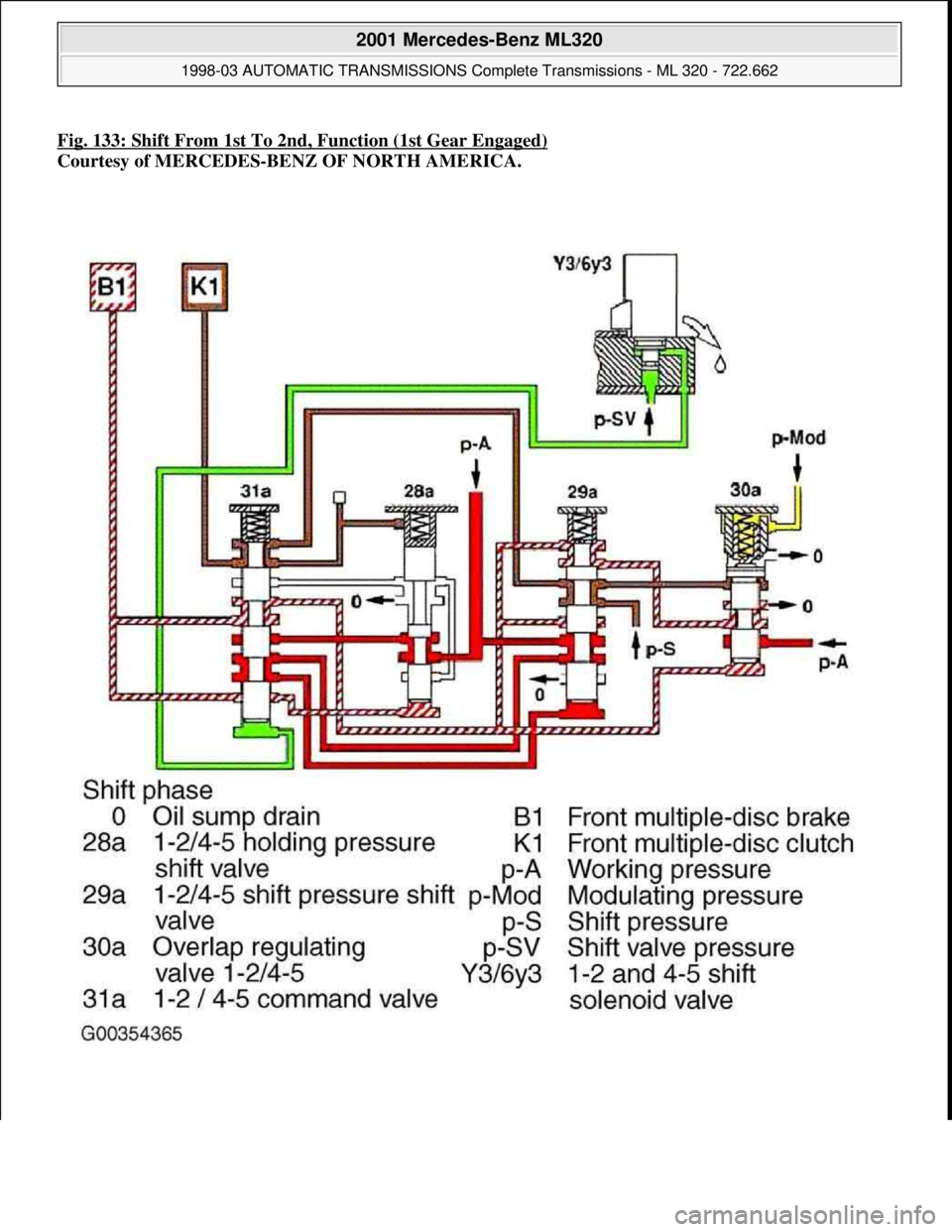

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 133: Shift From 1st To 2nd, Function (1st Gear Engaged)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 -

Page 1402 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 134: Shift From 1st To 2nd, Function (Shift Phase)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.66

Page 1403 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual
2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 234 © 2006 Mitchell Repair Information Company,

Page 1404 of 4133

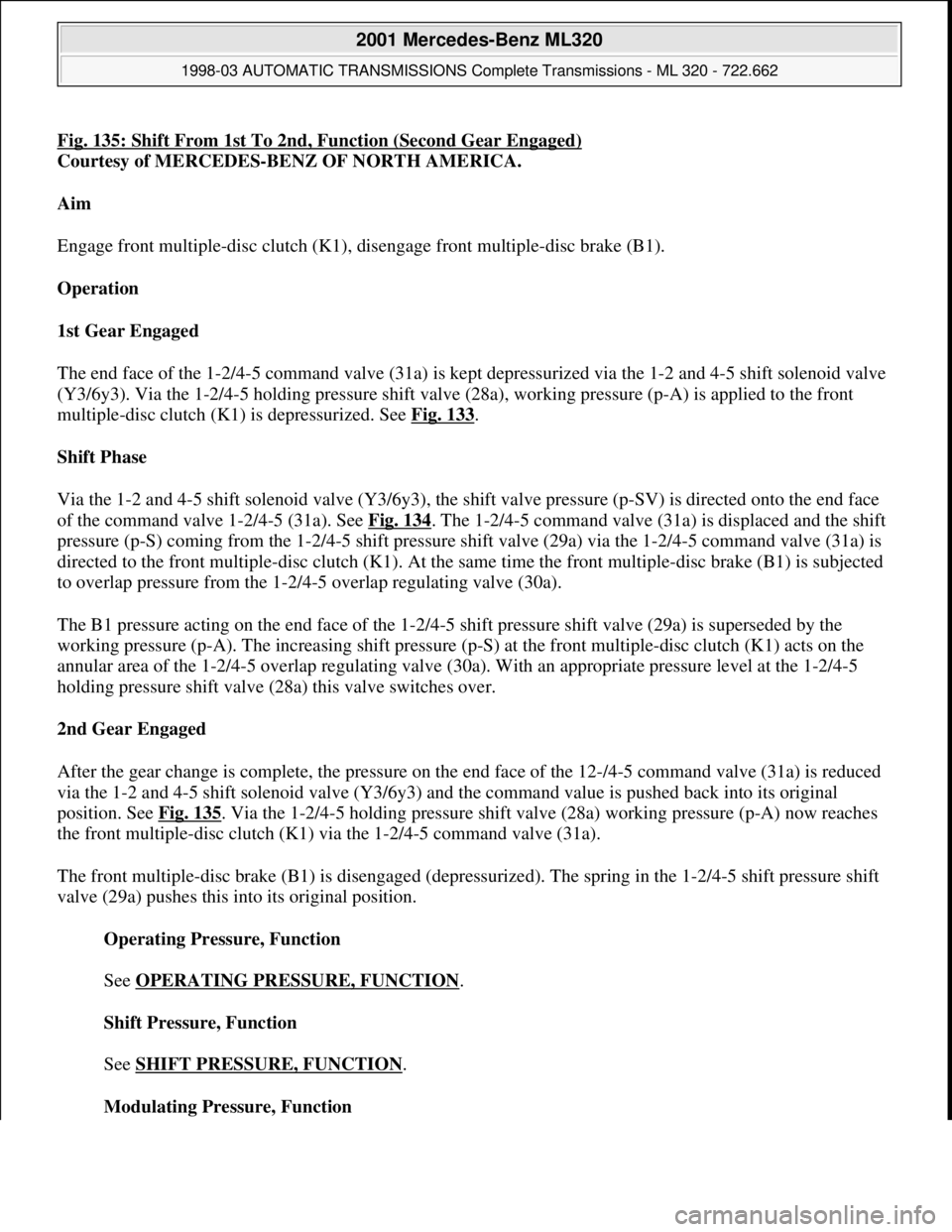

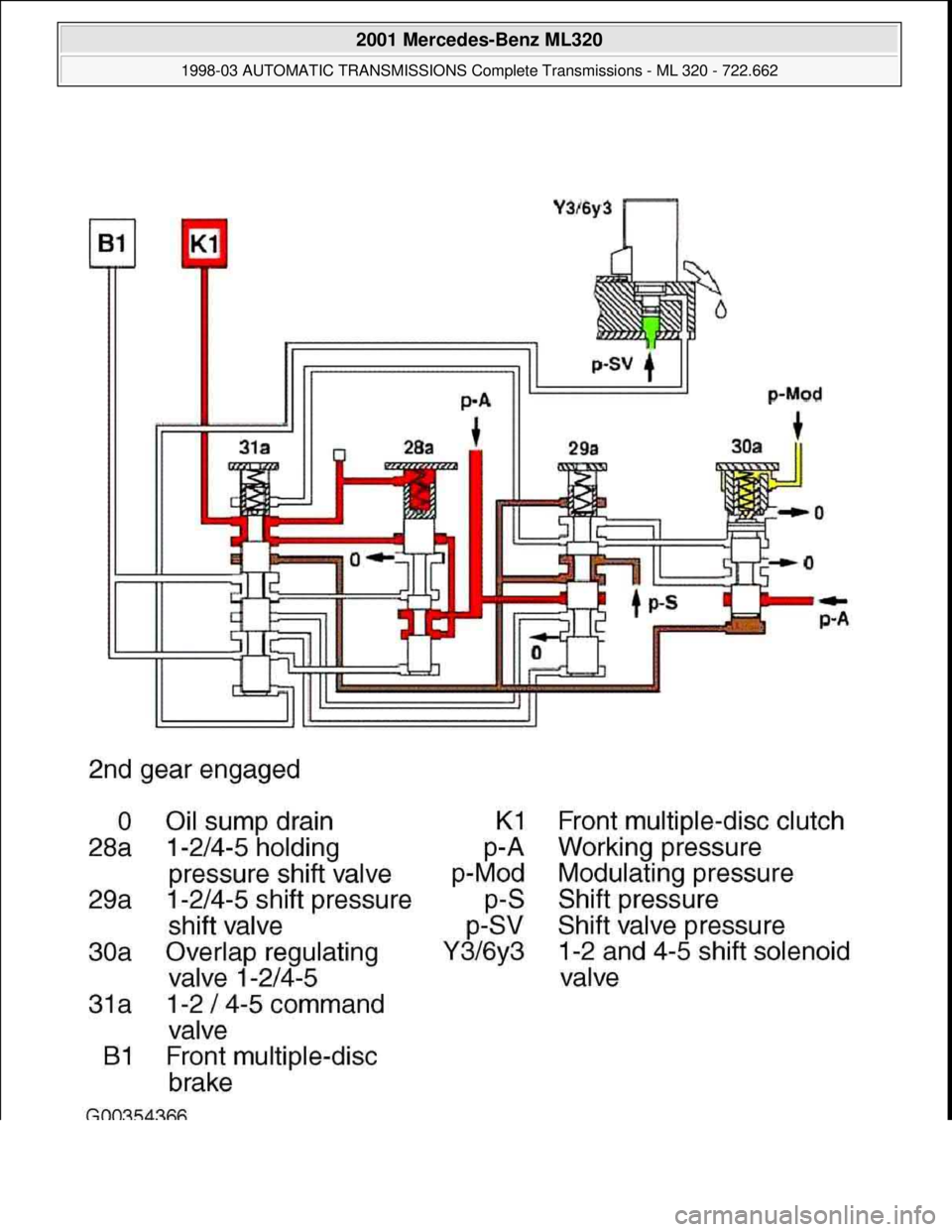

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 135: Shift From 1st To 2nd, Function (Second Gear Engaged)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Aim
Engage front multiple-disc clutch (K1), disengage front multiple-disc brake (B1).
Op

Fig. 135: Shift From 1st To 2nd, Function (Second Gear Engaged)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Aim
Engage front multiple-disc clutch (K1), disengage front multiple-disc brake (B1).
Operation
1st Gear Engaged
The end face of the 1-2/4-5 command valve (31a) is kept depressurized via the 1-2 and 4-5 shift solenoid valve
(Y3/6y3). Via the 1-2/4-5 holding pressure shift valve (28a), working pressure (p-A) is applied to the front
multiple-disc clutch (K1) is depressurized. See Fig. 133
.
Shift Phase
Via the 1-2 and 4-5 shift solenoid valve (Y3/6y3), the shift valve pressure (p-SV) is directed onto the end face
of the command valve 1-2/4-5 (31a). See Fig. 134
. The 1-2/4-5 command valve (31a) is displaced and the shift
pressure (p-S) coming from the 1-2/4-5 shift pressure shift valve (29a) via the 1-2/4-5 command valve (31a) is
directed to the front multiple-disc clutch (K1). At the same time the front multiple-disc brake (B1) is subjected
to overlap pressure from the 1-2/4-5 overlap regulating valve (30a).
The B1 pressure acting on the end face of the 1-2/4-5 shift pressure shift valve (29a) is superseded by the
working pressure (p-A). The increasing shift pressure (p-S) at the front multiple-disc clutch (K1) acts on the
annular area of the 1-2/4-5 overlap regulating valve (30a). With an appropriate pressure level at the 1-2/4-5
holding pressure shift valve (28a) this valve switches over.
2nd Gear Engaged
After the gear change is complete, the pressure on the end face of the 12-/4-5 command valve (31a) is reduced
via the 1-2 and 4-5 shift solenoid valve (Y3/6y3) and the command value is pushed back into its original
position. See Fig. 135. Via the 1-2/4-5 holding pressure shift valve (28a) working pressure (p-A) now reaches
the front multiple-disc clutch (K1) via the 1-2/4-5 command valve (31a).
The front multiple-disc brake (B1) is disengaged (depressurized). The spring in the 1-2/4-5 shift pressure shift
valve (29a) pushes this into its original position.
Operating Pressure, Function

See OPERATING PRESSURE, FUNCTION
.
Shift Pressure, Function

See SHIFT PRESSURE, FUNCTION
.
Modulating Pressure, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:29 PMPage 235 © 2006 Mitchell Repair Information Company, LLC.

Page 1405 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual

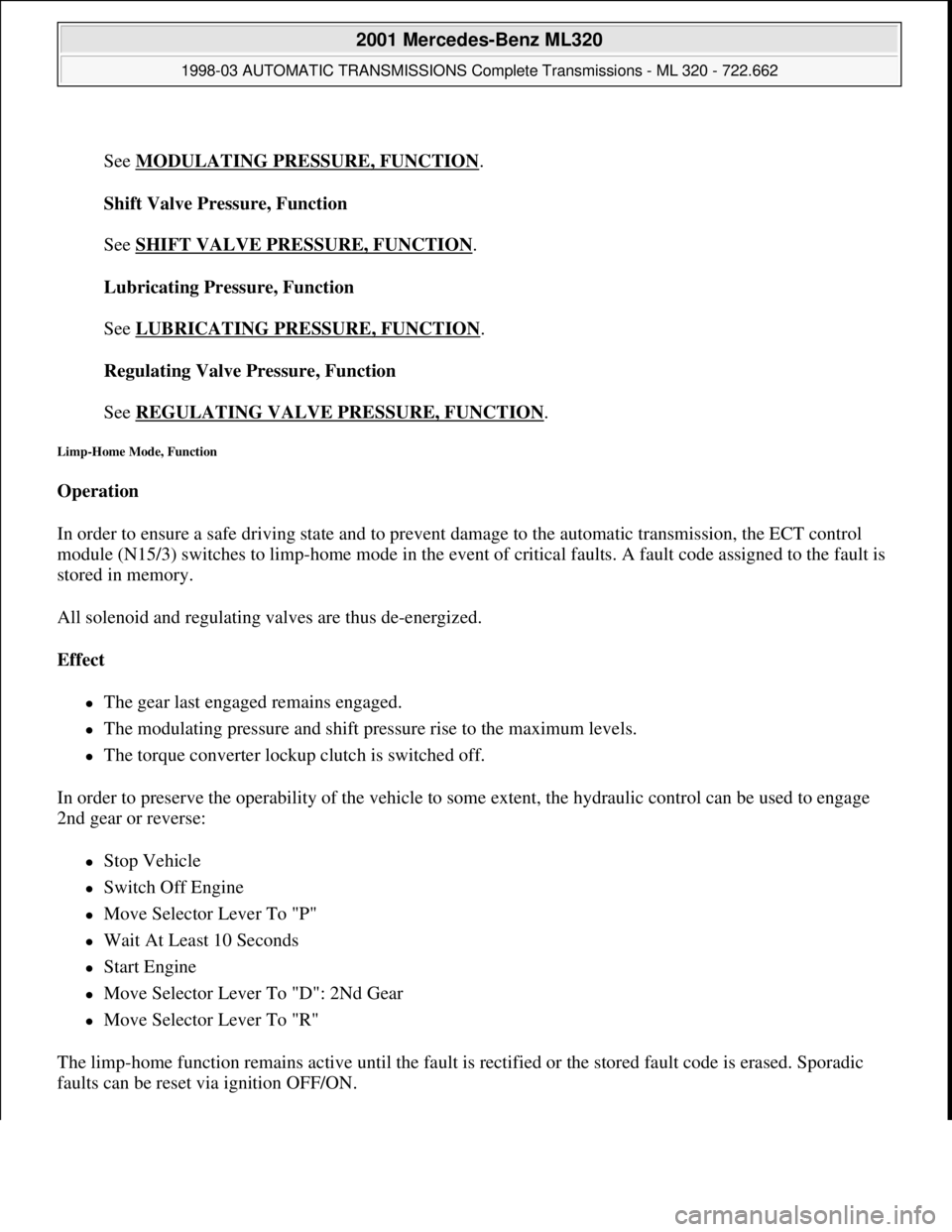

See MODULATING PRESSURE, FUNCTION
.
Shift Valve Pressure, Function

See SHIFT VALVE PRESSURE, FUNCTION
.
Lubricating Pressure, Function

See LUBRICATING PRESSURE, FUNCTION
.
Regulating Valve

Page 1406 of 4133

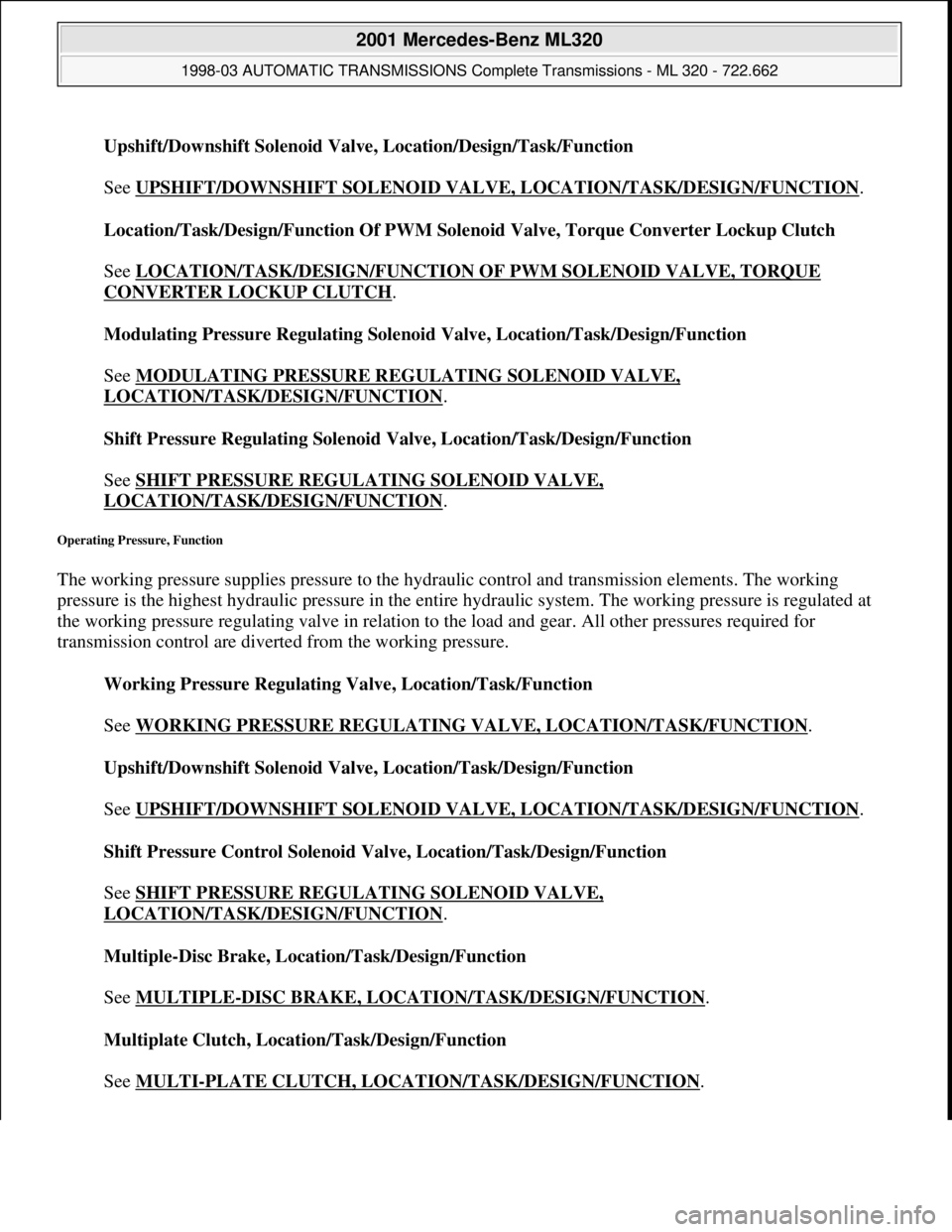

MERCEDES-BENZ ML350 1997 Complete Repair Manual Upshift/Downshift Solenoid Valve, Location/Design/Task/Function

See UPSHIFT/DOWNSHIFT SOLENOID VALVE, LOCATION/TASK/DESIGN/FUNCTION
.
Location/Task/Design/Function Of PWM Solenoid Valve, Torque Co

Page 1407 of 4133

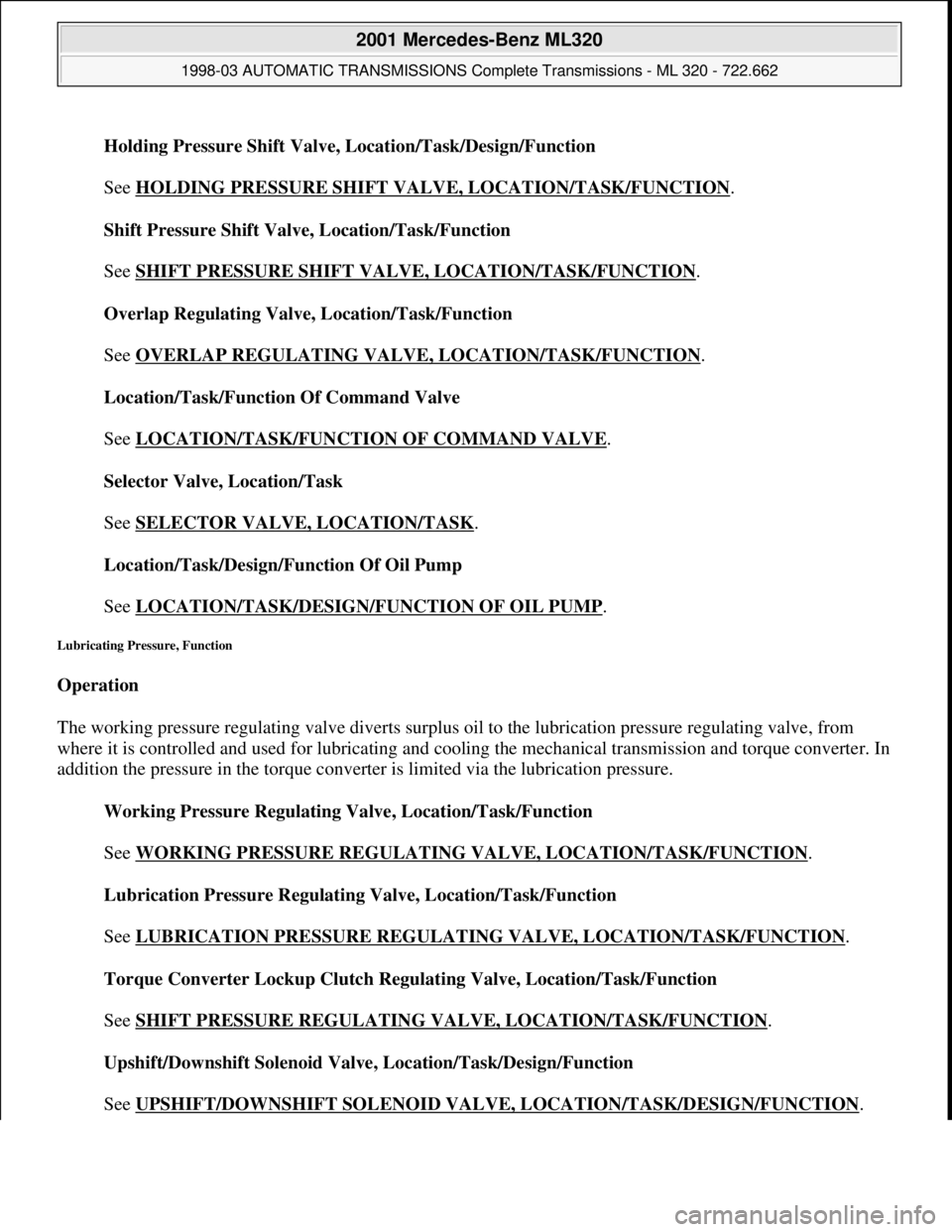

MERCEDES-BENZ ML350 1997 Complete Repair Manual Holding Pressure Shift Valve, Location/Task/Design/Function

See HOLDING PRESSURE SHIFT VALVE, LOCATION/TASK/FUNCTION
.
Shift Pressure Shift Valve, Location/Task/Function

See SHIFT PRESSURE SHIF

Page 1408 of 4133

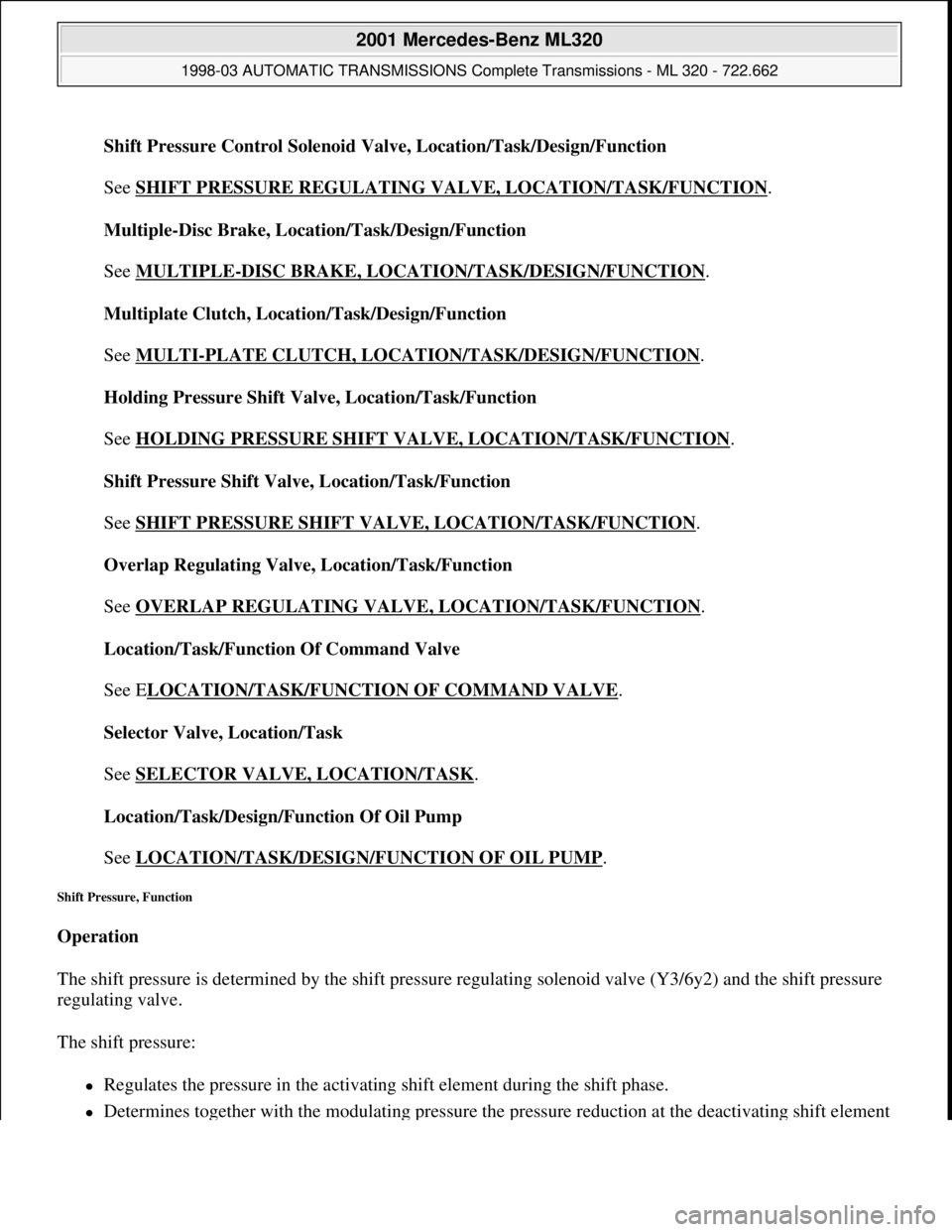

MERCEDES-BENZ ML350 1997 Complete Repair Manual Shift Pressure Control Solenoid Valve, Location/Task/Design/Function

See SHIFT PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION
.
Multiple-Disc Brake, Location/Task/Design/Function

See MULTIPL
