Page 2017 of 2158

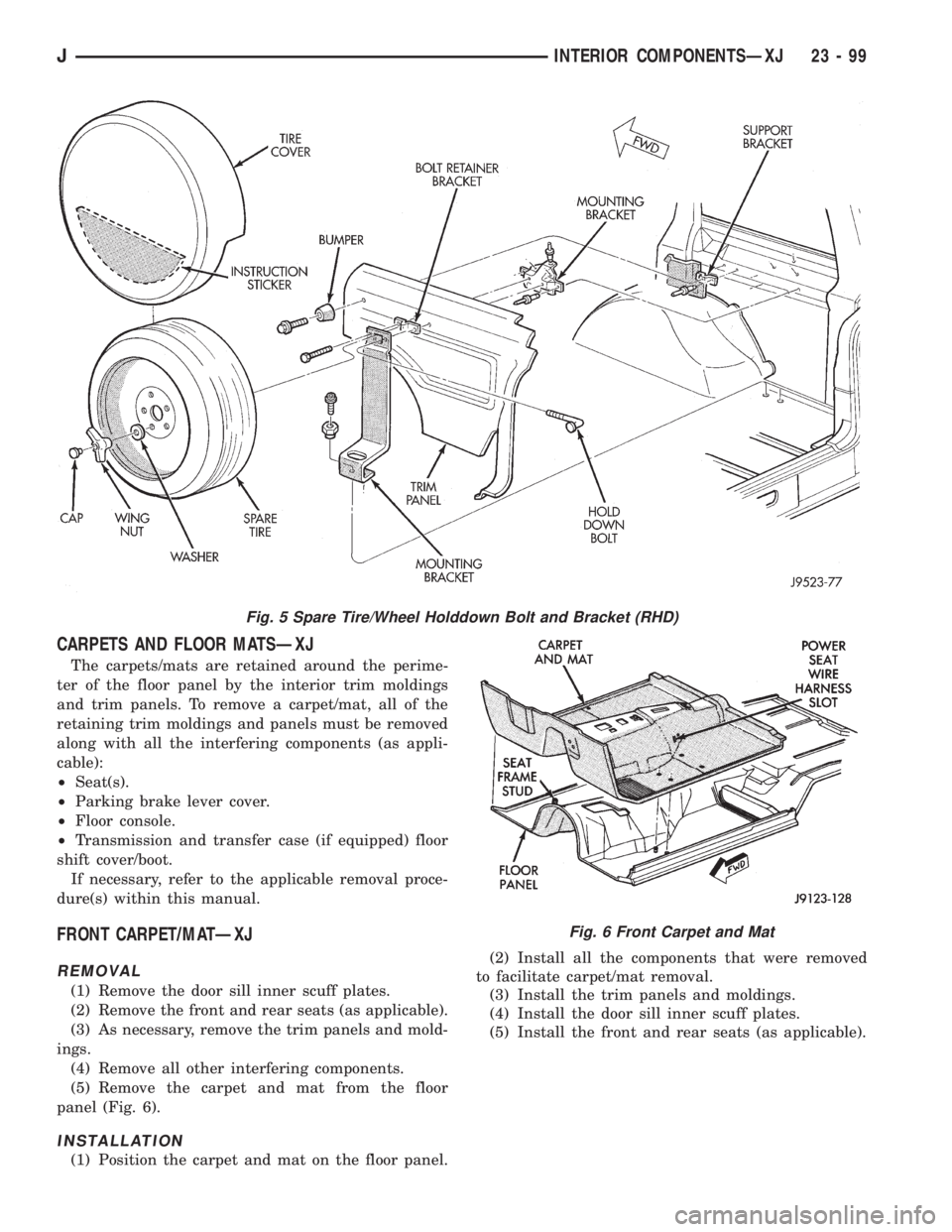

JEEP YJ 1995 Service And Repair Manual CARPETS AND FLOOR MATSÐXJ The carpets/mats are retained around the perime- ter of the floor panel by the interior trim moldings and trim panels. To remove a carpet/mat, all of the retaining trim mold

Page 2018 of 2158

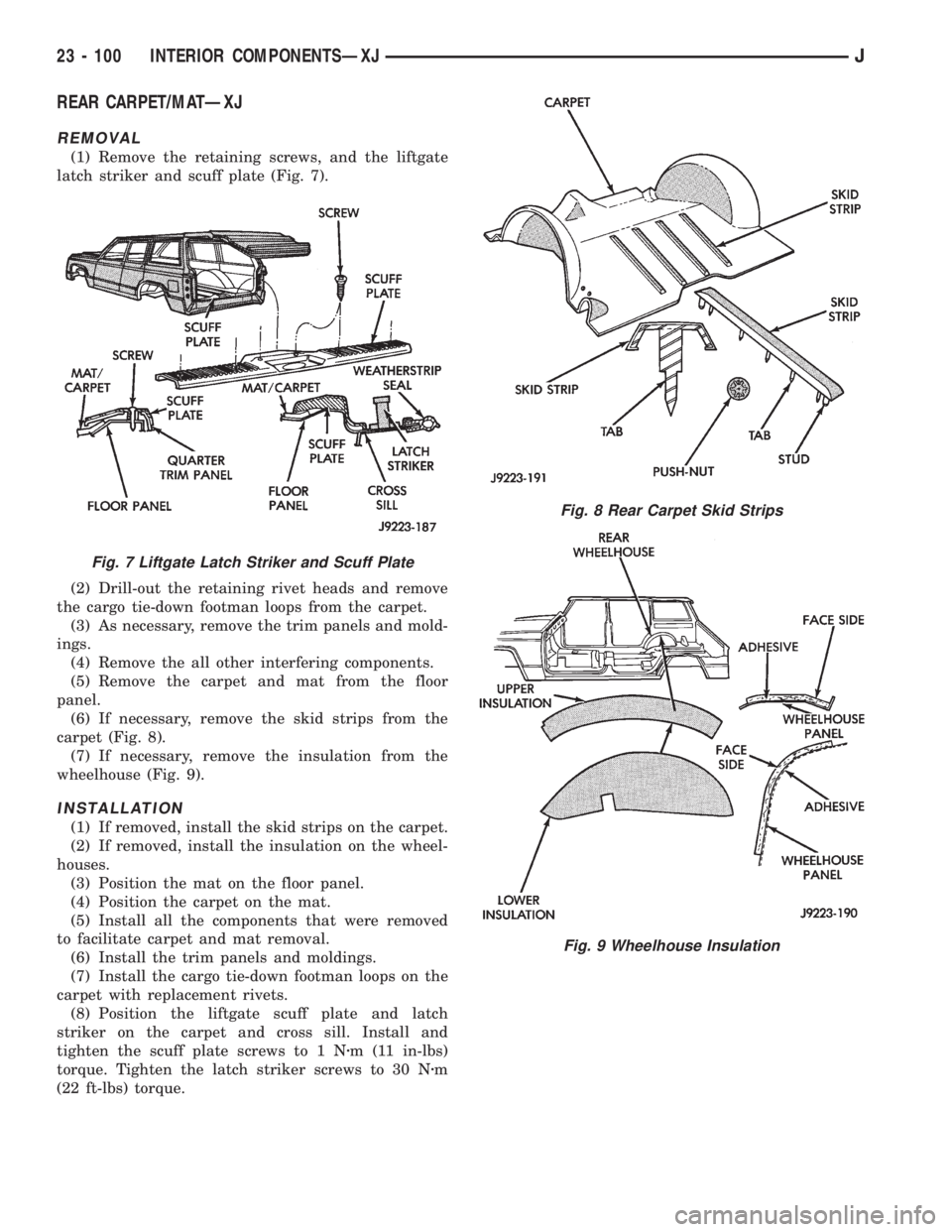

JEEP YJ 1995 Service And Repair Manual REAR CARPET/MATÐXJ REMOVAL (1) Remove the retaining screws, and the liftgate latch striker and scuff plate (Fig. 7). (2) Drill-out the retaining rivet heads and remove the cargo tie-down footman loop

Page 2019 of 2158

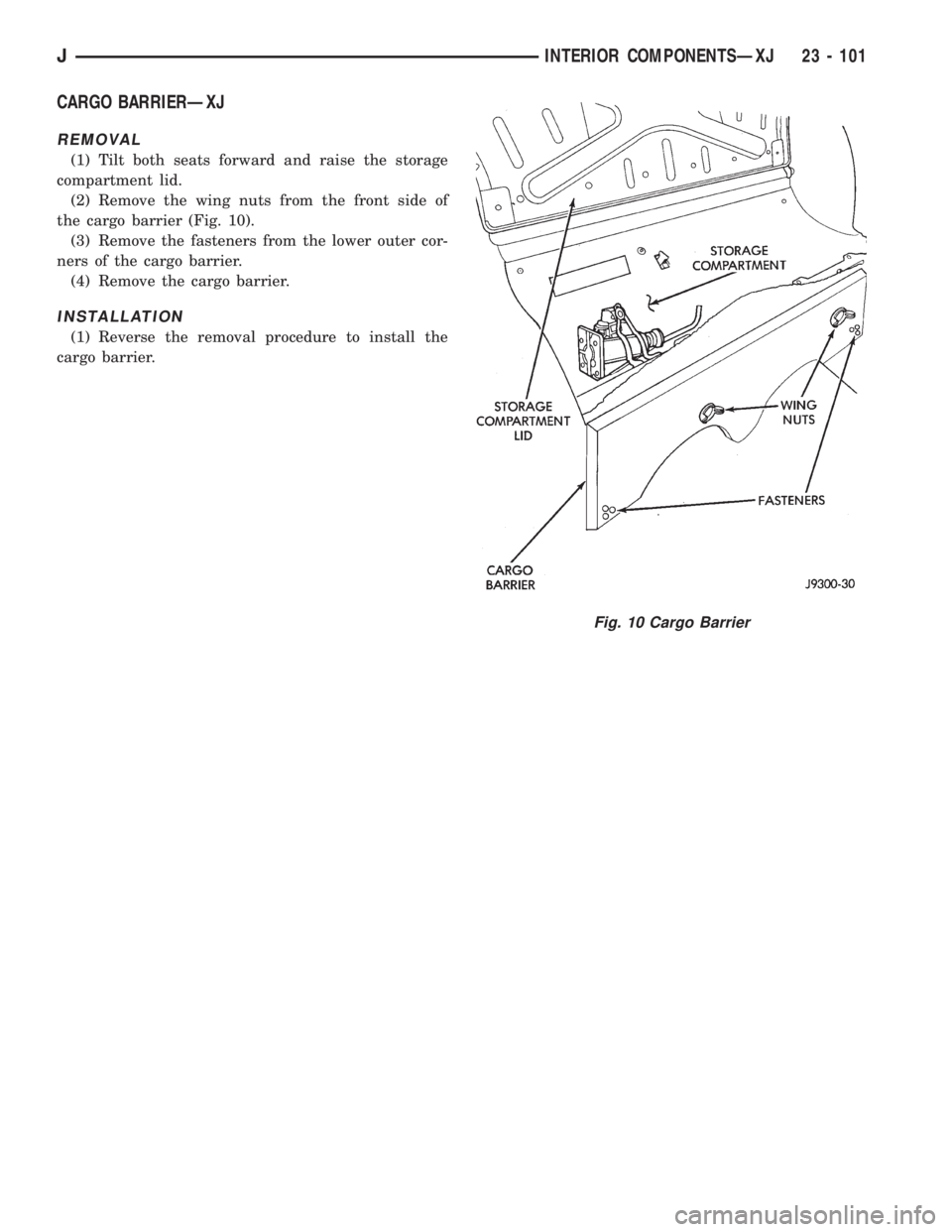

JEEP YJ 1995 Service And Repair Manual CARGO BARRIERÐXJ REMOVAL (1) Tilt both seats forward and raise the storage compartment lid. (2) Remove the wing nuts from the front side of the cargo barrier (Fig. 10). (3) Remove the fasteners from

Page 2020 of 2158

JEEP YJ 1995 Service And Repair Manual BODY COMPONENTSÐYJ VEHICLES CONTENTS page page DOORS............................... 134 EXTERIOR COMPONENTS................ 104 GENERAL SERVICE INFORMATION......... 102INTERIOR COMPONENTS............

Page 2021 of 2158

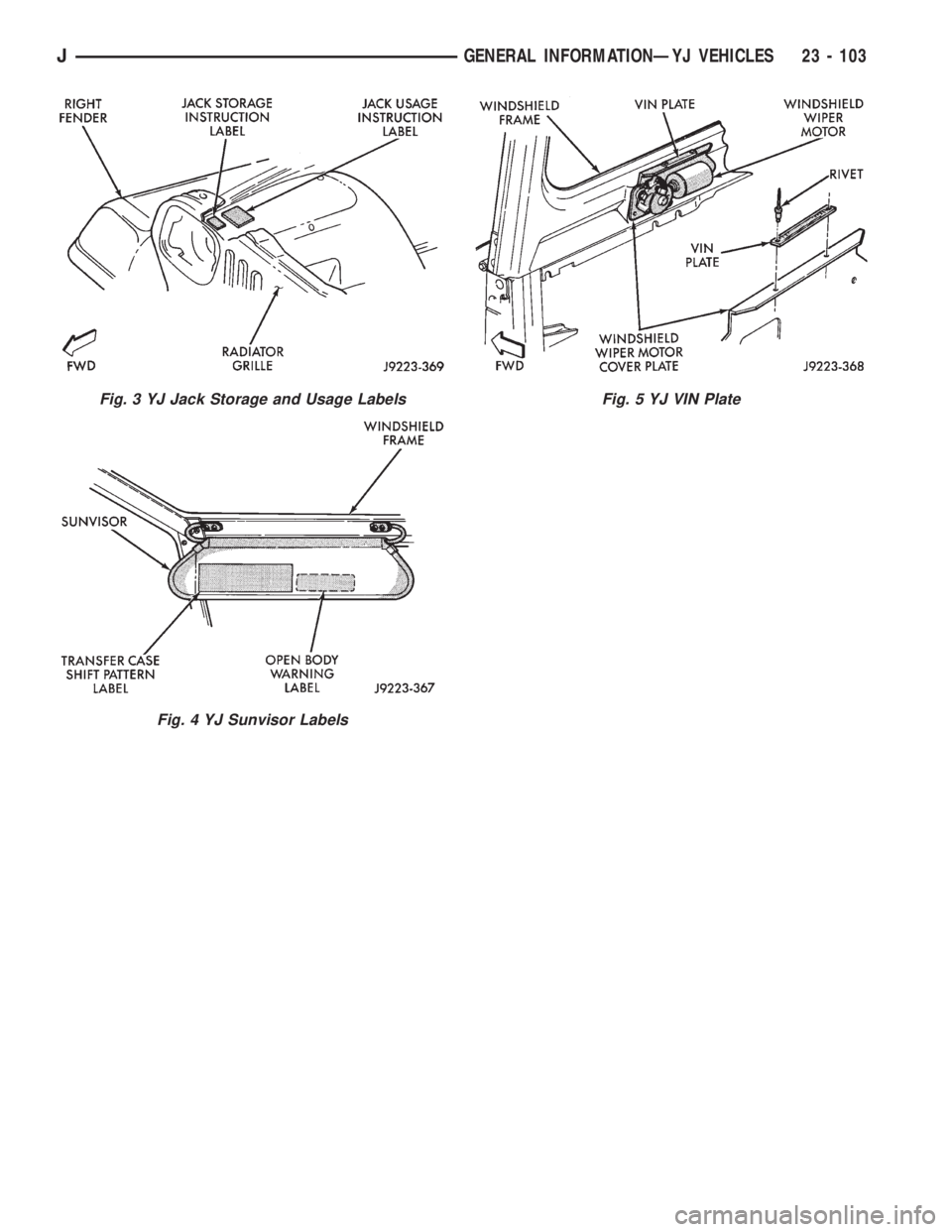

JEEP YJ 1995 Service And Repair Manual Fig. 3 YJ Jack Storage and Usage Labels Fig. 4 YJ Sunvisor Labels Fig. 5 YJ VIN Plate JGENERAL INFORMATIONÐYJ VEHICLES 23 - 103

Page 2022 of 2158

JEEP YJ 1995 Service And Repair Manual EXTERIOR COMPONENTS INDEX page page Battery TrayÐYJ......................... 110 Body Side Step MoldingÐYJ................ 115 Body Stripes/DecalsÐYJ................... 116 Cowl Grille and ScreenÐ

Page 2023 of 2158

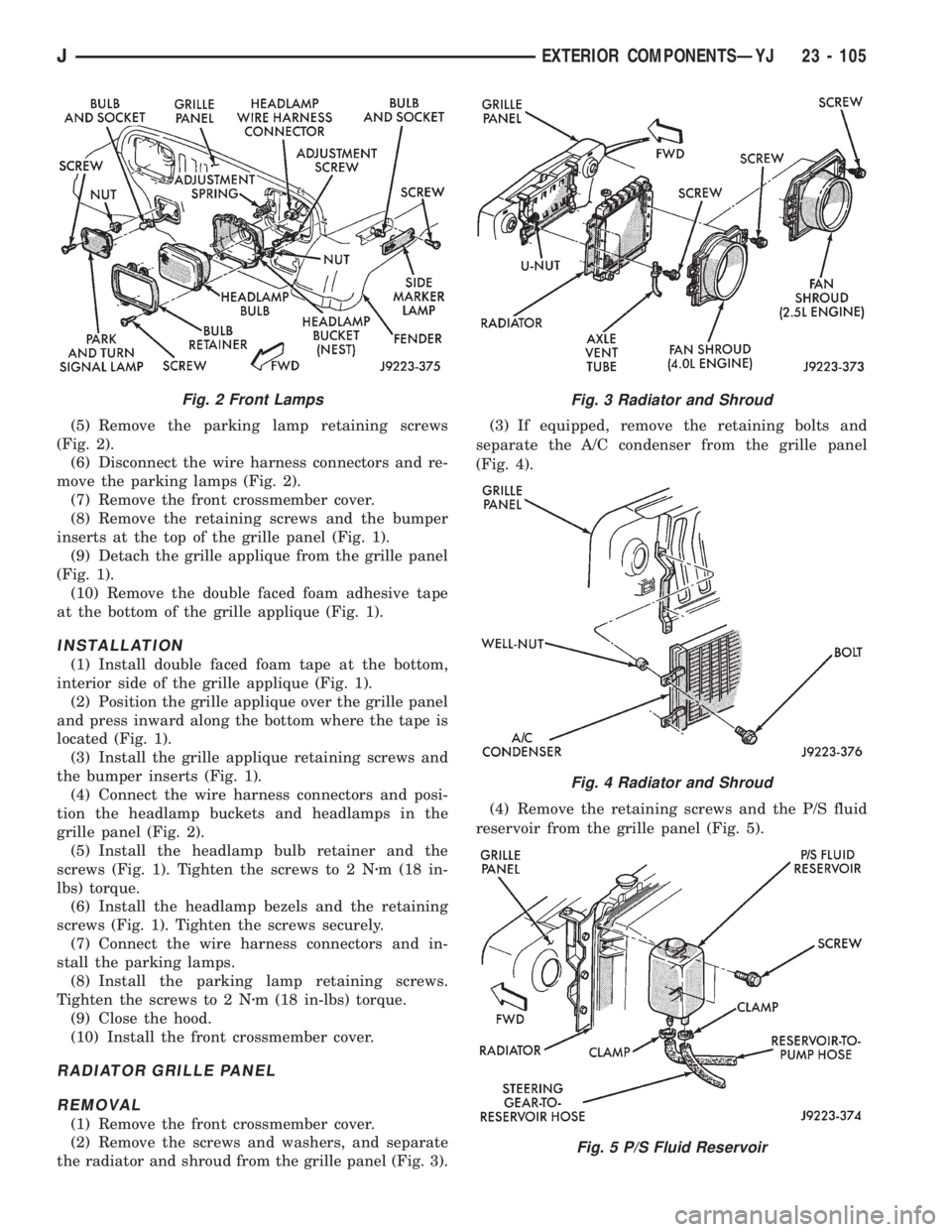

JEEP YJ 1995 Service And Repair Manual (5) Remove the parking lamp retaining screws (Fig. 2). (6) Disconnect the wire harness connectors and re- move the parking lamps (Fig. 2). (7) Remove the front crossmember cover. (8) Remove the retain

Page 2024 of 2158

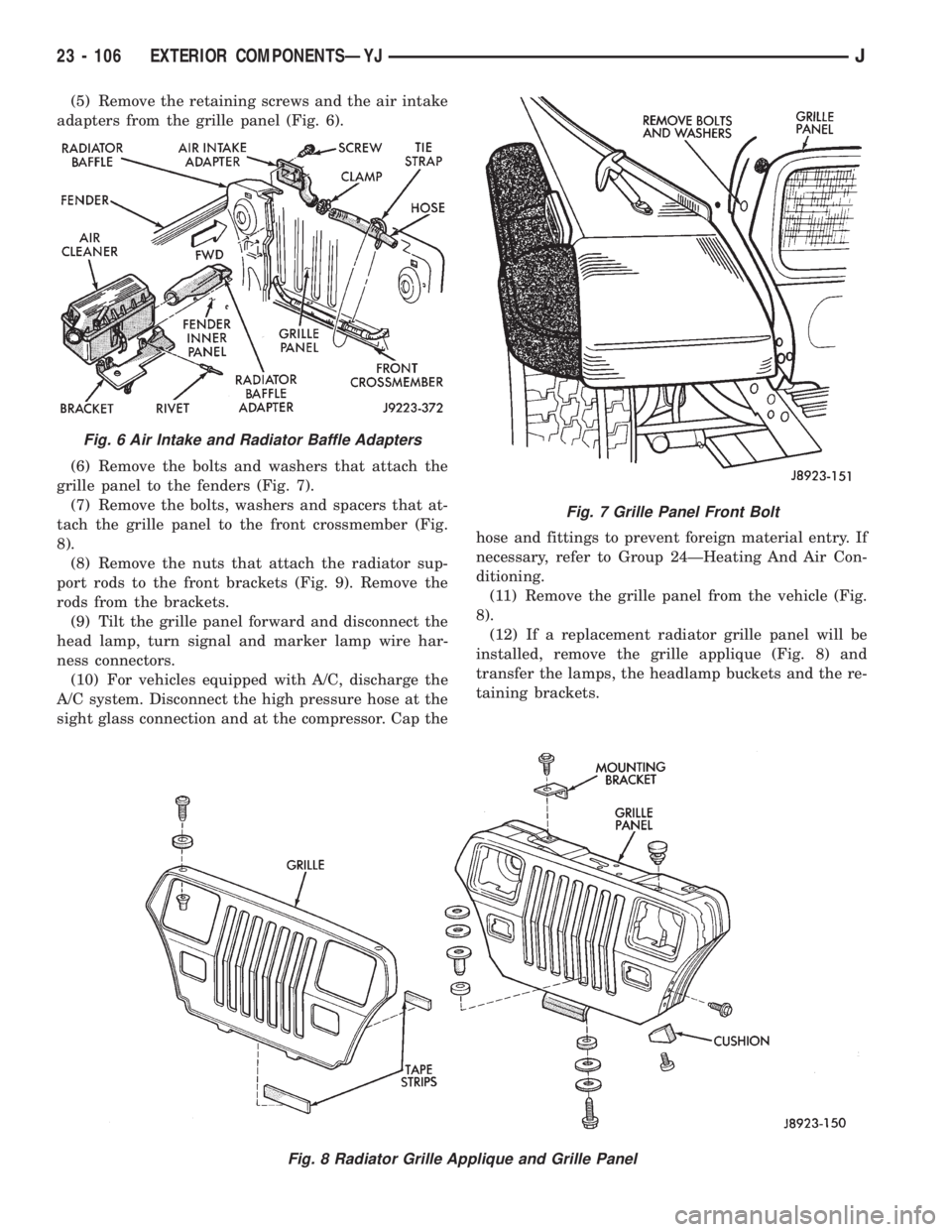

JEEP YJ 1995 Service And Repair Manual (5) Remove the retaining screws and the air intake adapters from the grille panel (Fig. 6). (6) Remove the bolts and washers that attach the grille panel to the fenders (Fig. 7). (7) Remove the bolts,
