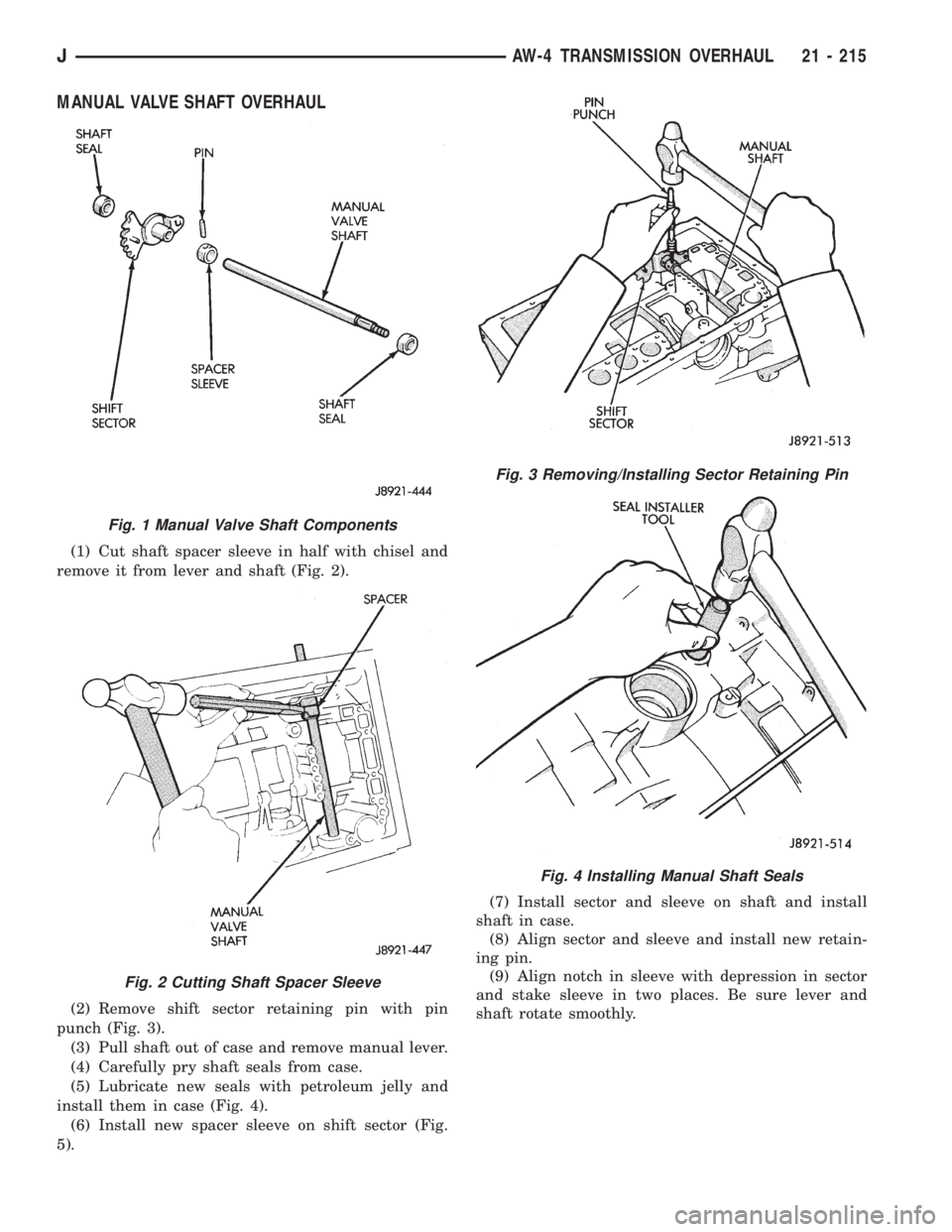

Page 1777 of 2158
MANUAL VALVE SHAFT OVERHAUL
(1) Cut shaft spacer sleeve in half with chisel and
remove it from lever and shaft (Fig. 2).
(2) Remove shift sector retaining pin with pin
punch (Fig. 3).
(3) Pull shaft out of case and remove manual lever.
(4) Carefully pry shaft seals from case.
(5) Lubricate new seals with petroleum jelly and
install them in case (Fig. 4).
(6) Install new spacer sleeve on shift sector (Fig.
5).(7) Install sector and sleeve on shaft and install
shaft in case.
(8) Align sector and sleeve and install new retain-
ing pin.
(9) Align notch in sleeve with depression in sector
and stake sleeve in two places. Be sure lever and
shaft rotate smoothly.
Fig. 1 Manual Valve Shaft Components
Fig. 2 Cutting Shaft Spacer Sleeve
Fig. 3 Removing/Installing Sector Retaining Pin
Fig. 4 Installing Manual Shaft Seals
JAW-4 TRANSMISSION OVERHAUL 21 - 215

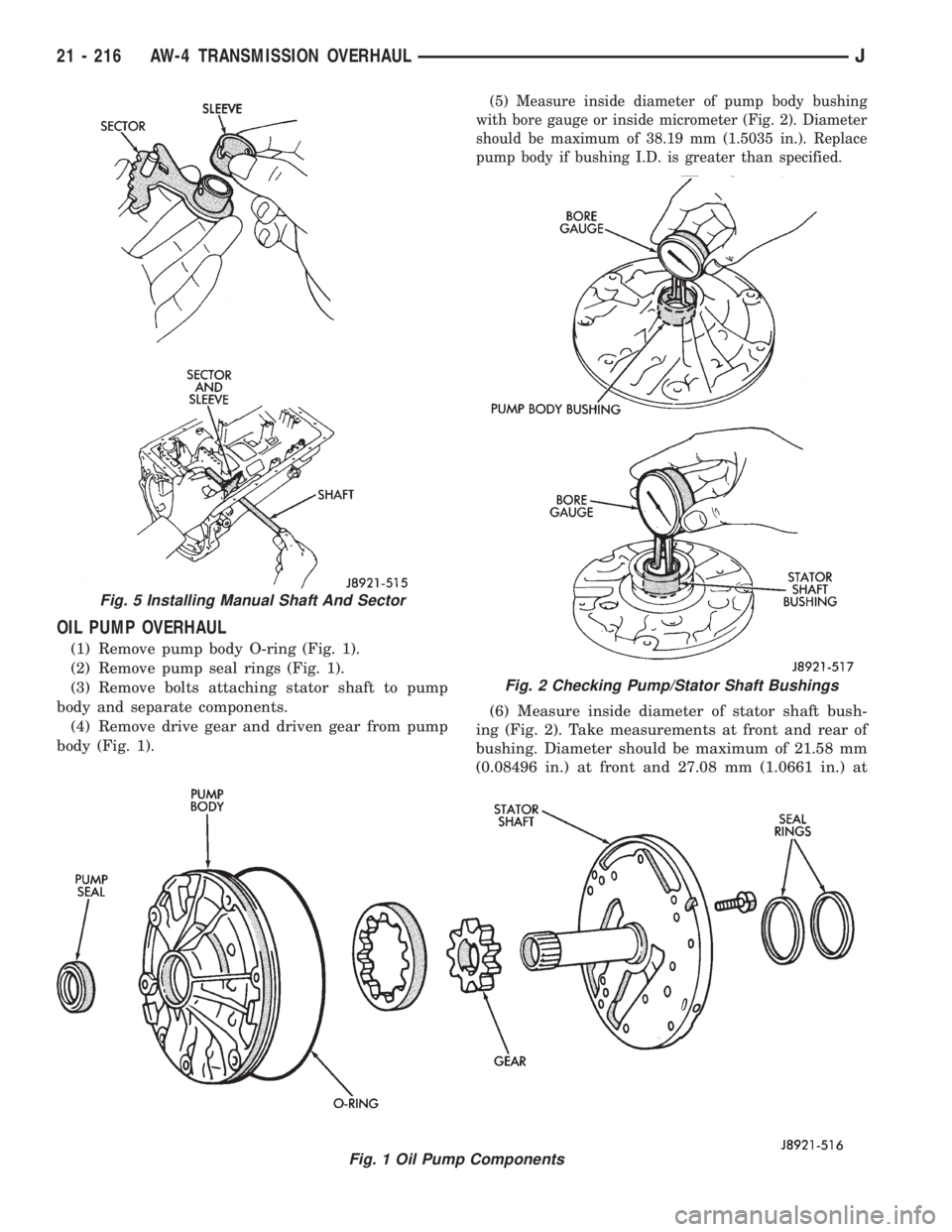

Page 1778 of 2158
OIL PUMP OVERHAUL
(1) Remove pump body O-ring (Fig. 1).
(2) Remove pump seal rings (Fig. 1).
(3) Remove bolts attaching stator shaft to pump
body and separate components.
(4) Remove drive gear and driven gear from pump
body (Fig. 1).
(5) Measure inside diameter of pump body bushing
with bore gauge or inside micrometer (Fig. 2). Diameter
should be maximum of 38.19 mm (1.5035 in.). Replace
pump body if bushing I.D. is greater than specified.
(6) Measure inside diameter of stator shaft bush-
ing (Fig. 2). Take measurements at front and rear of
bushing. Diameter should be maximum of 21.58 mm
(0.08496 in.) at front and 27.08 mm (1.0661 in.) at
Fig. 1 Oil Pump Components
Fig. 5 Installing Manual Shaft And Sector
Fig. 2 Checking Pump/Stator Shaft Bushings
21 - 216 AW-4 TRANSMISSION OVERHAULJ

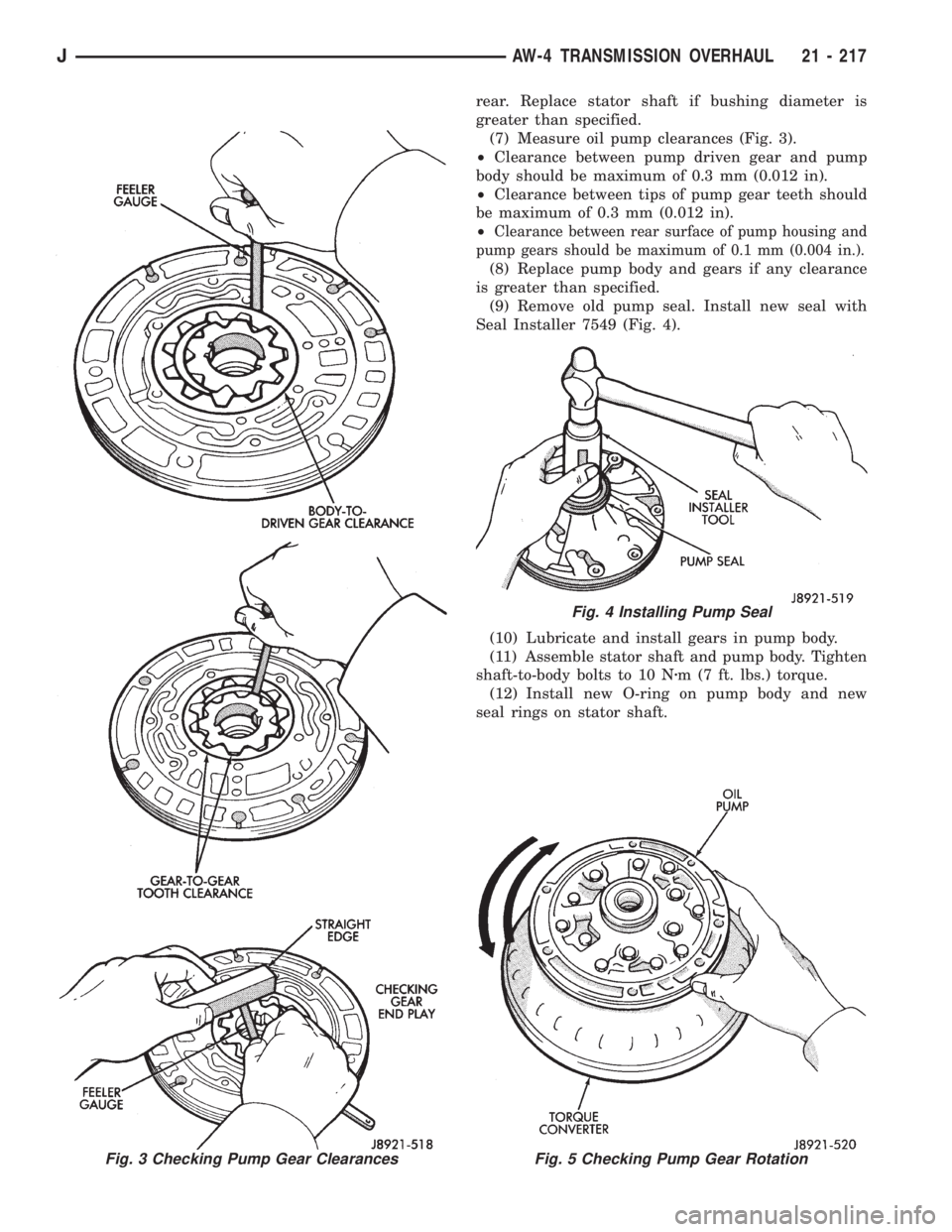

Page 1779 of 2158
rear. Replace stator shaft if bushing diameter is
greater than specified.
(7) Measure oil pump clearances (Fig. 3).
²Clearance between pump driven gear and pump
body should be maximum of 0.3 mm (0.012 in).
²Clearance between tips of pump gear teeth should
be maximum of 0.3 mm (0.012 in).
²
Clearance between rear surface of pump housing and
pump gears should be maximum of 0.1 mm (0.004 in.).
(8) Replace pump body and gears if any clearance
is greater than specified.
(9) Remove old pump seal. Install new seal with
Seal Installer 7549 (Fig. 4).
(10) Lubricate and install gears in pump body.
(11) Assemble stator shaft and pump body. Tighten
shaft-to-body bolts to 10 Nzm (7 ft. lbs.) torque.
(12) Install new O-ring on pump body and new
seal rings on stator shaft.
Fig. 3 Checking Pump Gear ClearancesFig. 5 Checking Pump Gear Rotation
Fig. 4 Installing Pump Seal
JAW-4 TRANSMISSION OVERHAUL 21 - 217

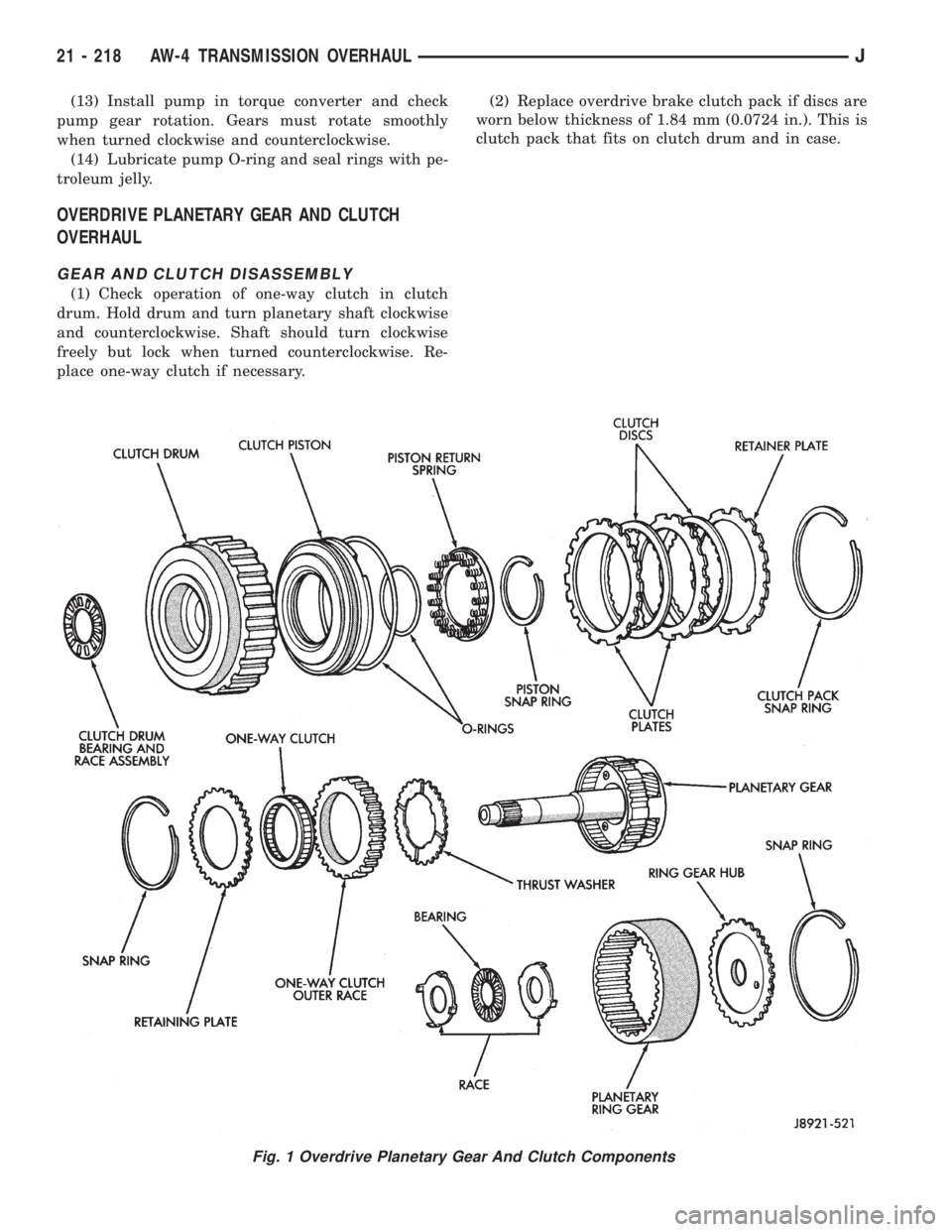

Page 1780 of 2158
(13) Install pump in torque converter and check
pump gear rotation. Gears must rotate smoothly
when turned clockwise and counterclockwise.
(14) Lubricate pump O-ring and seal rings with pe-
troleum jelly.
OVERDRIVE PLANETARY GEAR AND CLUTCH
OVERHAUL
GEAR AND CLUTCH DISASSEMBLY
(1) Check operation of one-way clutch in clutch
drum. Hold drum and turn planetary shaft clockwise
and counterclockwise. Shaft should turn clockwise
freely but lock when turned counterclockwise. Re-
place one-way clutch if necessary.(2) Replace overdrive brake clutch pack if discs are
worn below thickness of 1.84 mm (0.0724 in.). This is
clutch pack that fits on clutch drum and in case.
Fig. 1 Overdrive Planetary Gear And Clutch Components
21 - 218 AW-4 TRANSMISSION OVERHAULJ

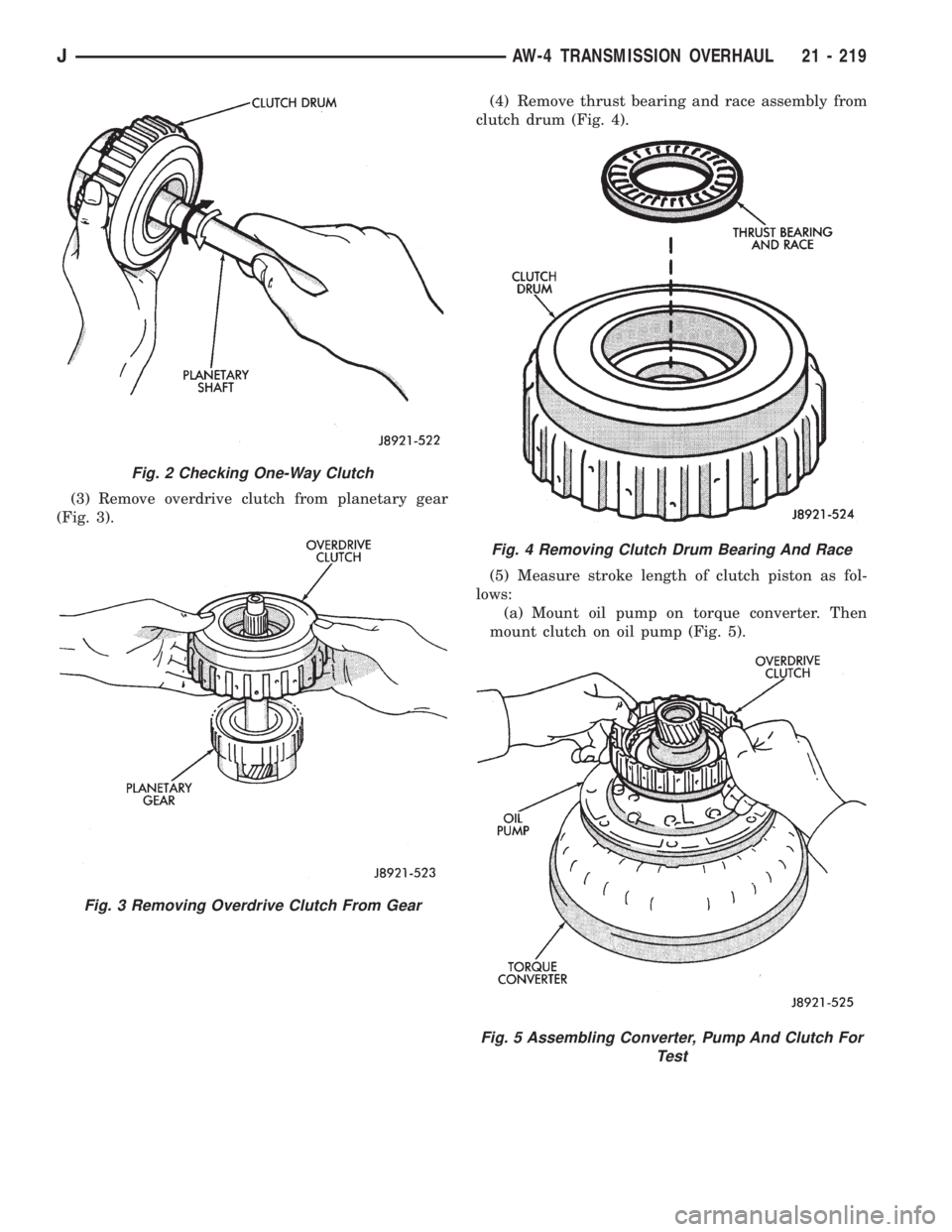

Page 1781 of 2158
(3) Remove overdrive clutch from planetary gear
(Fig. 3).(4) Remove thrust bearing and race assembly from
clutch drum (Fig. 4).
(5) Measure stroke length of clutch piston as fol-
lows:
(a) Mount oil pump on torque converter. Then
mount clutch on oil pump (Fig. 5).
Fig. 2 Checking One-Way Clutch
Fig. 3 Removing Overdrive Clutch From Gear
Fig. 4 Removing Clutch Drum Bearing And Race
Fig. 5 Assembling Converter, Pump And Clutch For
Test
JAW-4 TRANSMISSION OVERHAUL 21 - 219

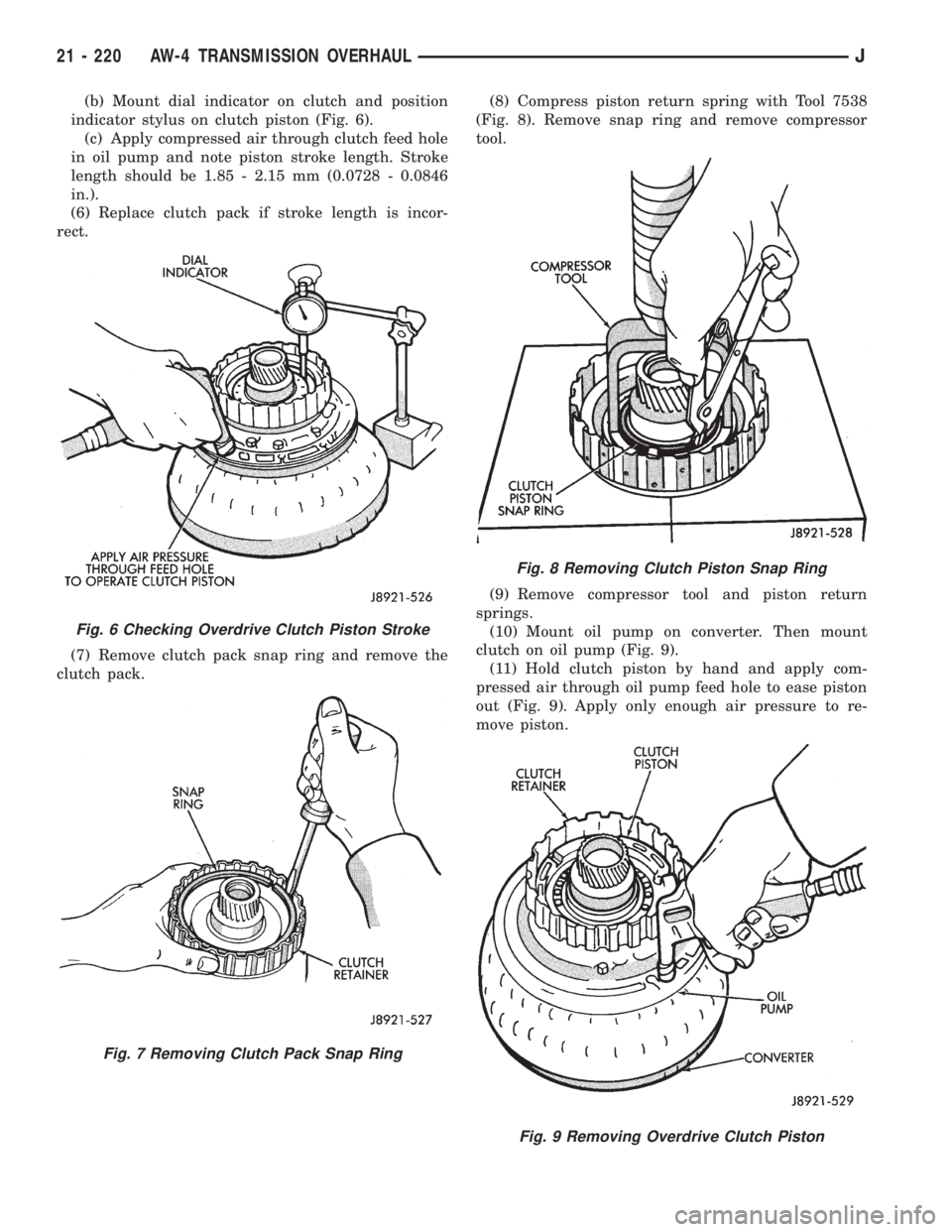

Page 1782 of 2158
(b) Mount dial indicator on clutch and position
indicator stylus on clutch piston (Fig. 6).
(c) Apply compressed air through clutch feed hole
in oil pump and note piston stroke length. Stroke
length should be 1.85 - 2.15 mm (0.0728 - 0.0846
in.).
(6) Replace clutch pack if stroke length is incor-
rect.
(7) Remove clutch pack snap ring and remove the
clutch pack.(8) Compress piston return spring with Tool 7538
(Fig. 8). Remove snap ring and remove compressor
tool.
(9) Remove compressor tool and piston return
springs.
(10) Mount oil pump on converter. Then mount
clutch on oil pump (Fig. 9).
(11) Hold clutch piston by hand and apply com-
pressed air through oil pump feed hole to ease piston
out (Fig. 9). Apply only enough air pressure to re-
move piston.
Fig. 6 Checking Overdrive Clutch Piston Stroke
Fig. 7 Removing Clutch Pack Snap Ring
Fig. 8 Removing Clutch Piston Snap Ring
Fig. 9 Removing Overdrive Clutch Piston
21 - 220 AW-4 TRANSMISSION OVERHAULJ

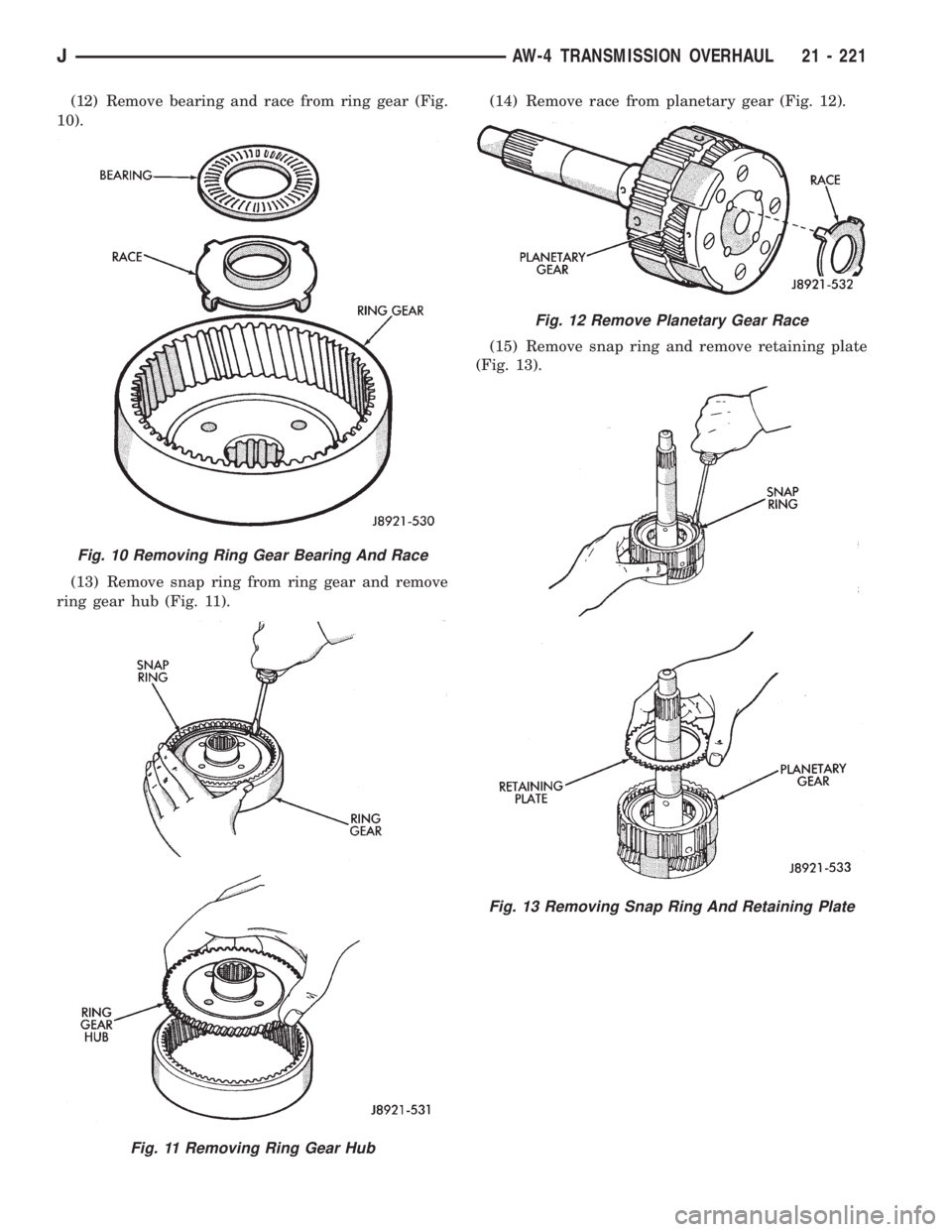

Page 1783 of 2158
(12) Remove bearing and race from ring gear (Fig.
10).
(13) Remove snap ring from ring gear and remove
ring gear hub (Fig. 11).(14) Remove race from planetary gear (Fig. 12).
(15) Remove snap ring and remove retaining plate
(Fig. 13).
Fig. 10 Removing Ring Gear Bearing And Race
Fig. 11 Removing Ring Gear Hub
Fig. 12 Remove Planetary Gear Race
Fig. 13 Removing Snap Ring And Retaining Plate
JAW-4 TRANSMISSION OVERHAUL 21 - 221

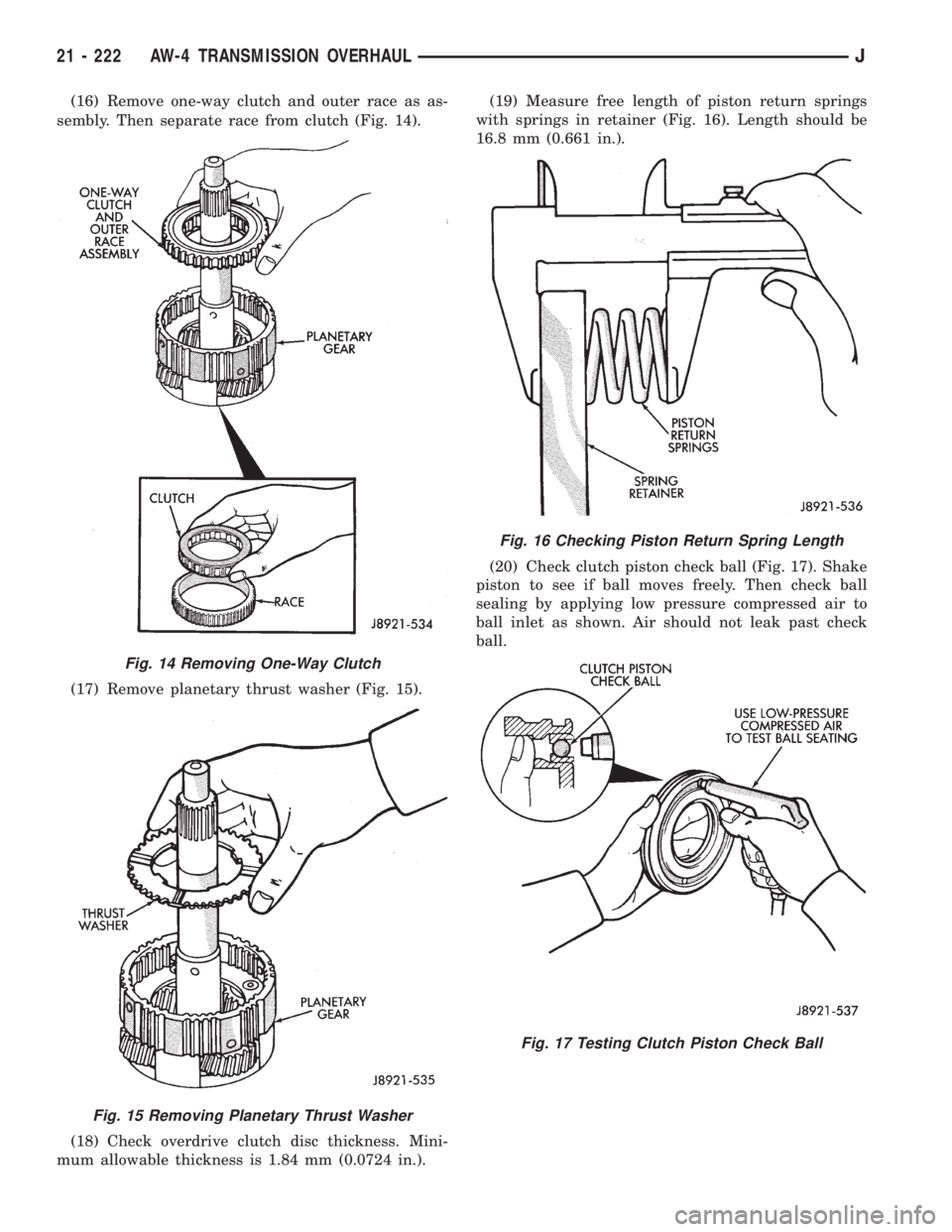

Page 1784 of 2158
(16) Remove one-way clutch and outer race as as-
sembly. Then separate race from clutch (Fig. 14).
(17) Remove planetary thrust washer (Fig. 15).
(18) Check overdrive clutch disc thickness. Mini-
mum allowable thickness is 1.84 mm (0.0724 in.).(19) Measure free length of piston return springs
with springs in retainer (Fig. 16). Length should be
16.8 mm (0.661 in.).
(20) Check clutch piston check ball (Fig. 17). Shake
piston to see if ball moves freely. Then check ball
sealing by applying low pressure compressed air to
ball inlet as shown. Air should not leak past check
ball.
Fig. 14 Removing One-Way Clutch
Fig. 15 Removing Planetary Thrust Washer
Fig. 16 Checking Piston Return Spring Length
Fig. 17 Testing Clutch Piston Check Ball
21 - 222 AW-4 TRANSMISSION OVERHAULJ
