1995 JEEP YJ Service And Repair Manual

Page 73 of 2158

JEEP YJ 1995  Service And Repair Manual SERVICE DIAGNOSIS (CONTD)
JFRONT SUSPENSION AND AXLE 2 - 21

Page 74 of 2158

JEEP YJ 1995  Service And Repair Manual MODEL 30 AXLE AND TUBE AXLE (2WD)
INDEX
page page
Axle Bushing Replacement.................. 34
Axle ShaftÐCardan U-Joint.................. 26
Backlash and Contact Pattern Analysis......... 45
Cleani

Page 75 of 2158

JEEP YJ 1995  Service And Repair Manual CAUTION: If axle is submerged in water, lubricant
must be replaced immediately to avoid possible
premature axle failure.
LUBRICANT CHANGE
The gear lubricant will drain quicker if the vehicle
has been

Page 76 of 2158

JEEP YJ 1995  Service And Repair Manual (6) Install the shock absorber and tighten the bolt
to 23 Nzm (17 ft. lbs.) torque.
(7) Install the stabilizer bar link to the axle
bracket. Tighten the nut to 95 Nzm (70 ft. lbs.)
torque.
(8) Install

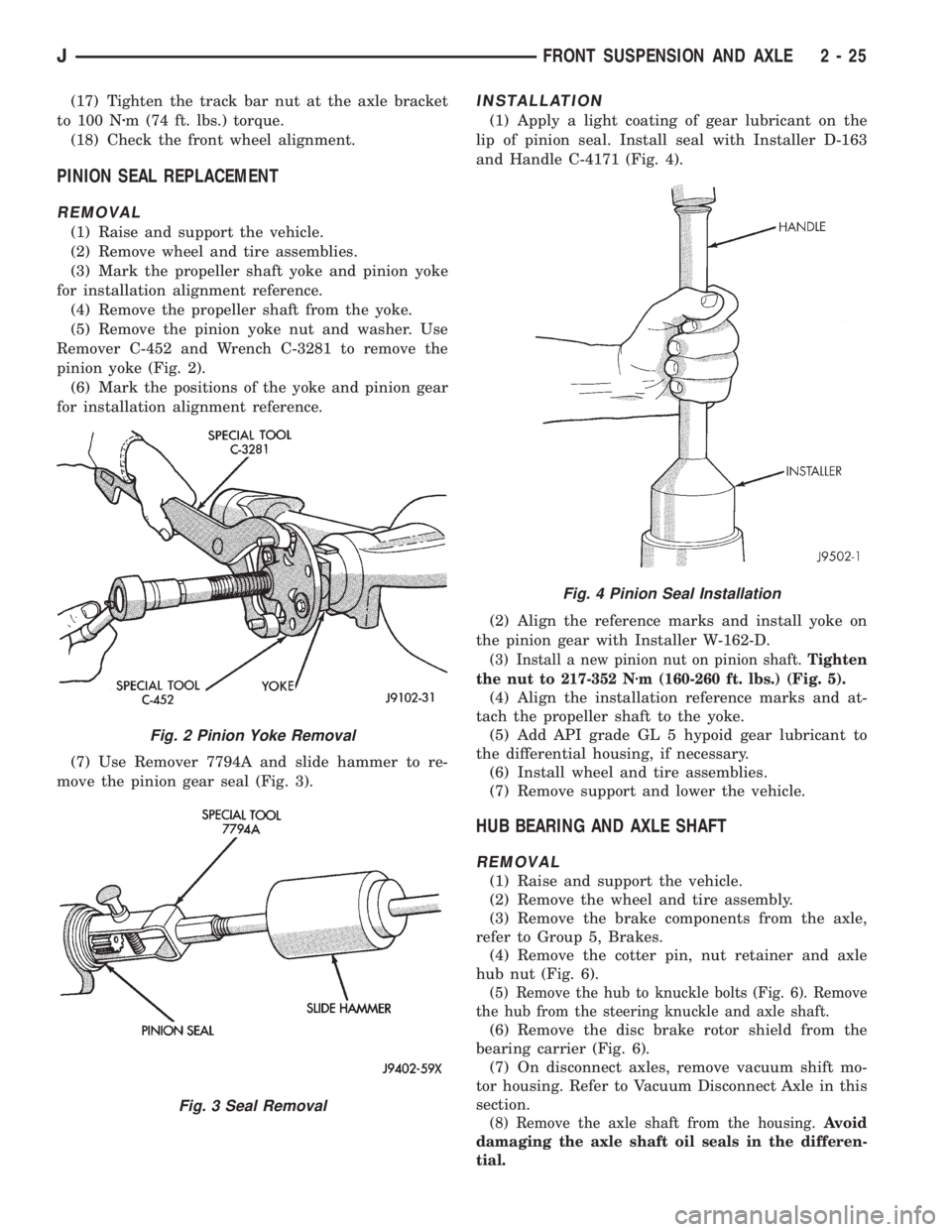

Page 77 of 2158

JEEP YJ 1995  Service And Repair Manual (17) Tighten the track bar nut at the axle bracket
to 100 Nzm (74 ft. lbs.) torque.
(18) Check the front wheel alignment.
PINION SEAL REPLACEMENT
REMOVAL
(1) Raise and support the vehicle.
(2) Remove

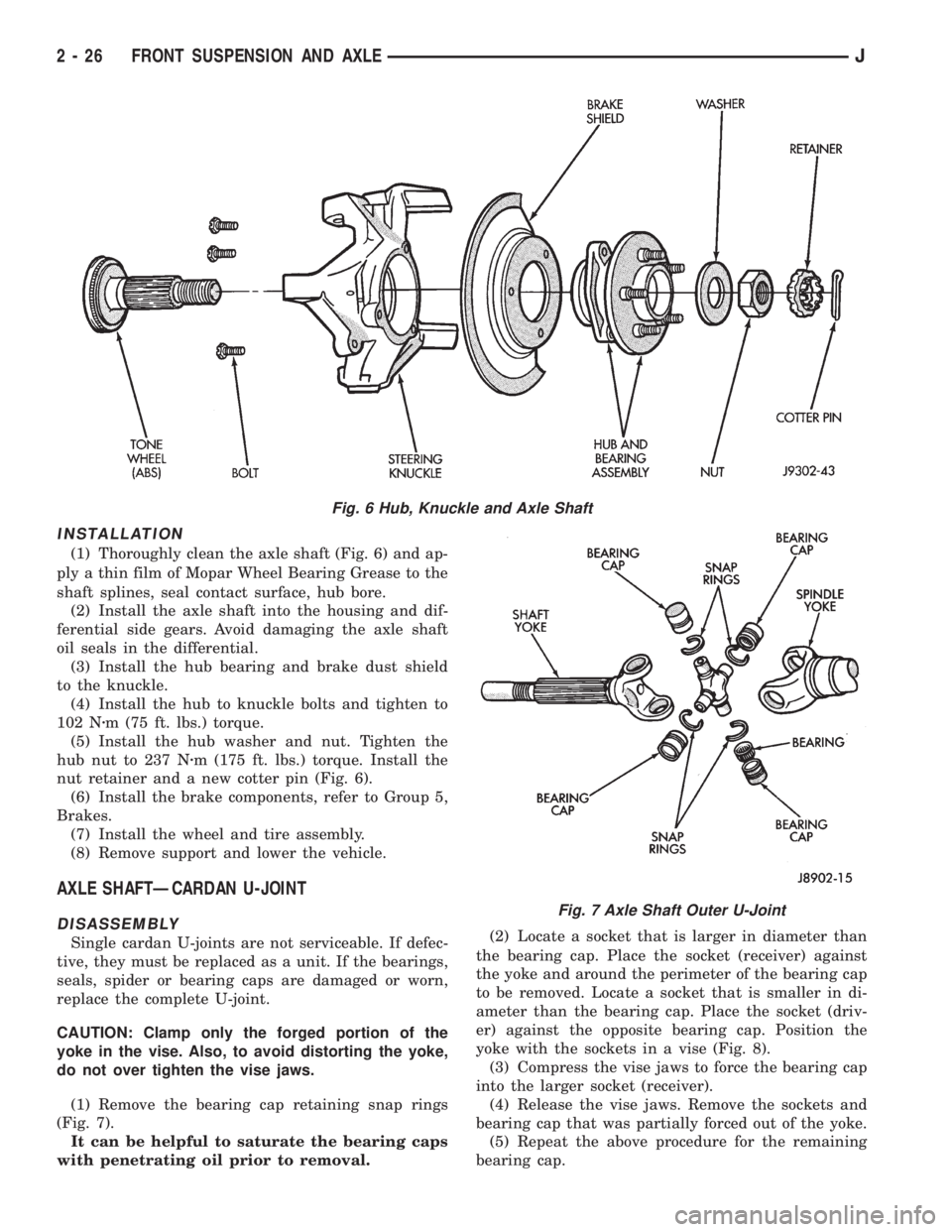

Page 78 of 2158

JEEP YJ 1995  Service And Repair Manual INSTALLATION
(1) Thoroughly clean the axle shaft (Fig. 6) and ap-
ply a thin film of Mopar Wheel Bearing Grease to the
shaft splines, seal contact surface, hub bore.
(2) Install the axle shaft into th

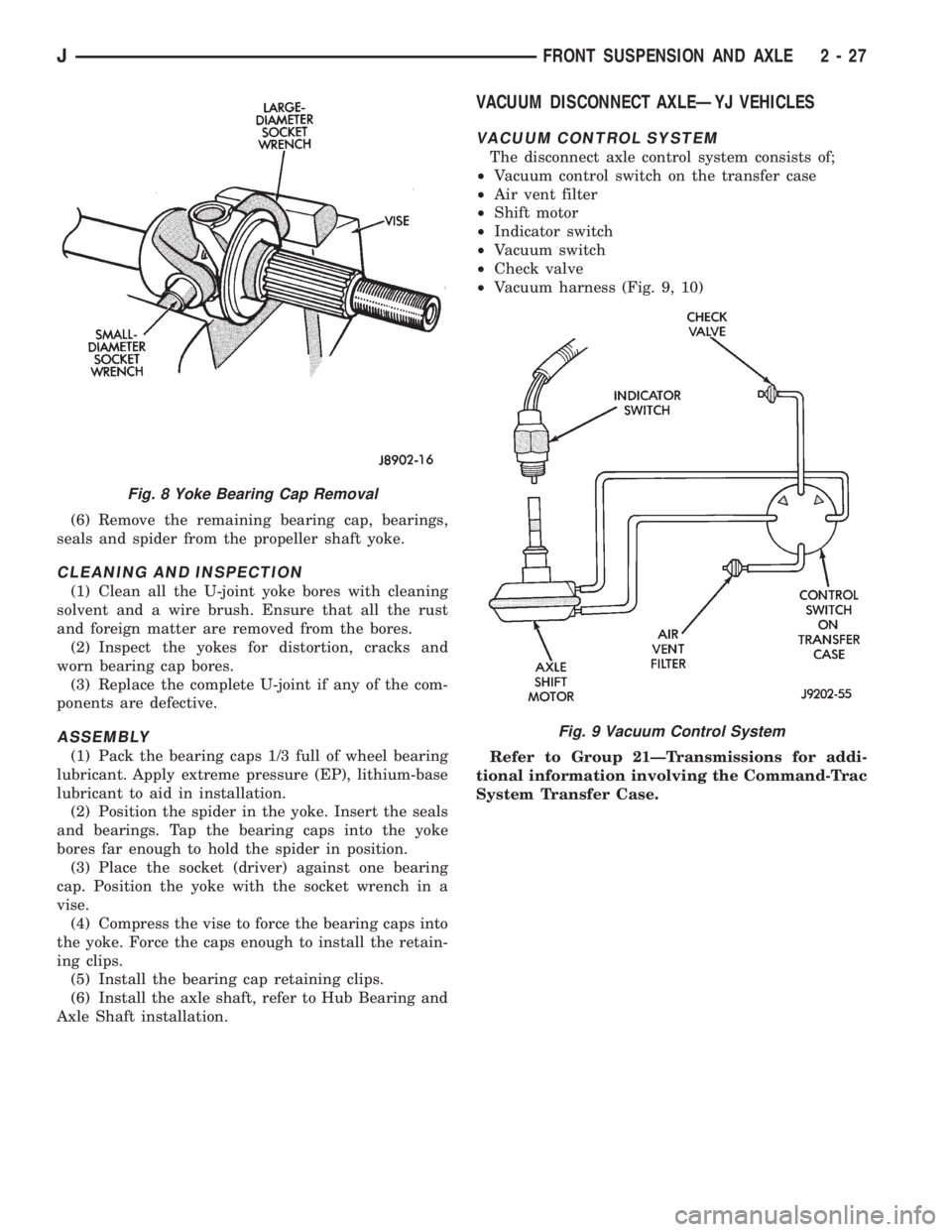

Page 79 of 2158

JEEP YJ 1995  Service And Repair Manual (6) Remove the remaining bearing cap, bearings,
seals and spider from the propeller shaft yoke.
CLEANING AND INSPECTION
(1) Clean all the U-joint yoke bores with cleaning
solvent and a wire brush. Ens

Page 80 of 2158

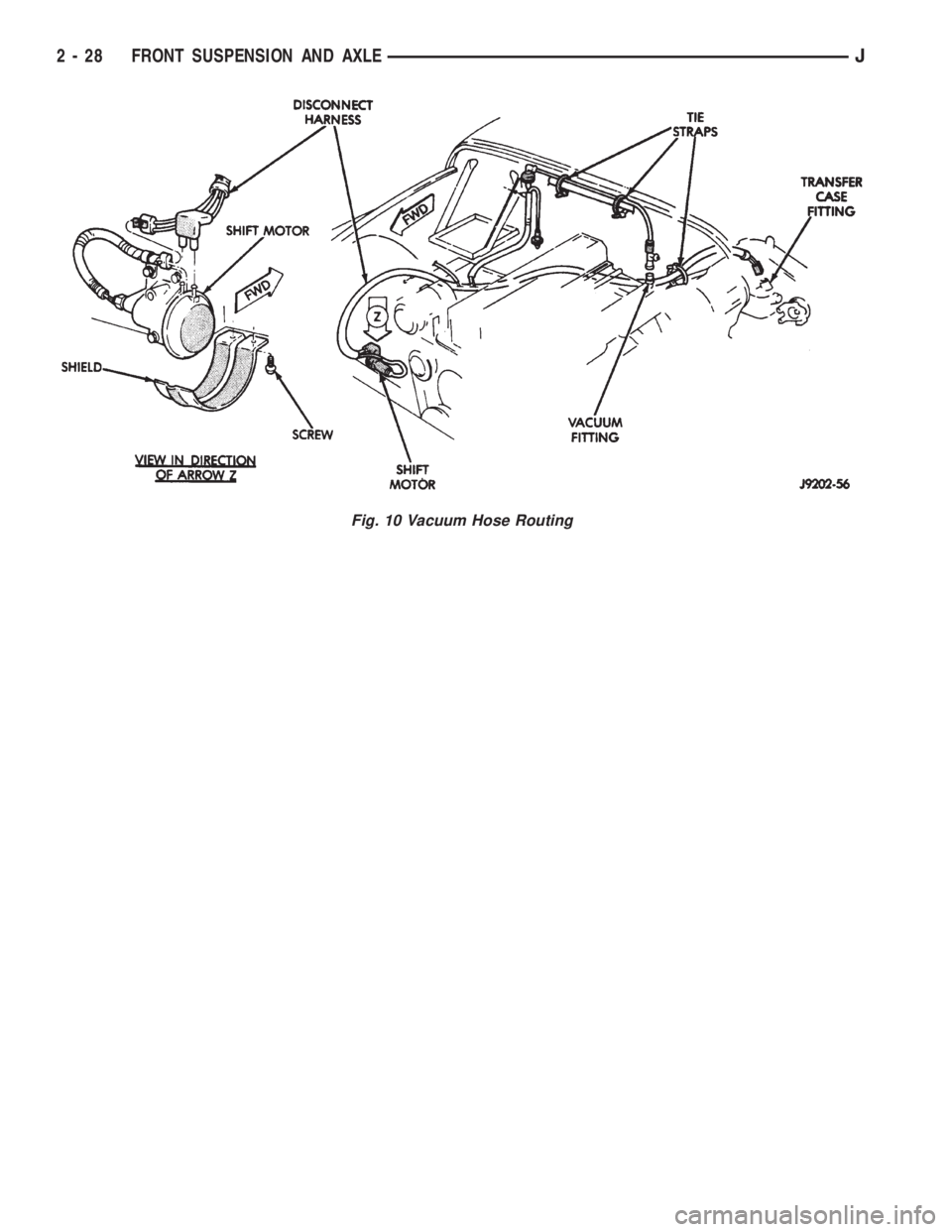

JEEP YJ 1995  Service And Repair Manual Fig. 10 Vacuum Hose Routing
2 - 28 FRONT SUSPENSION AND AXLEJ
