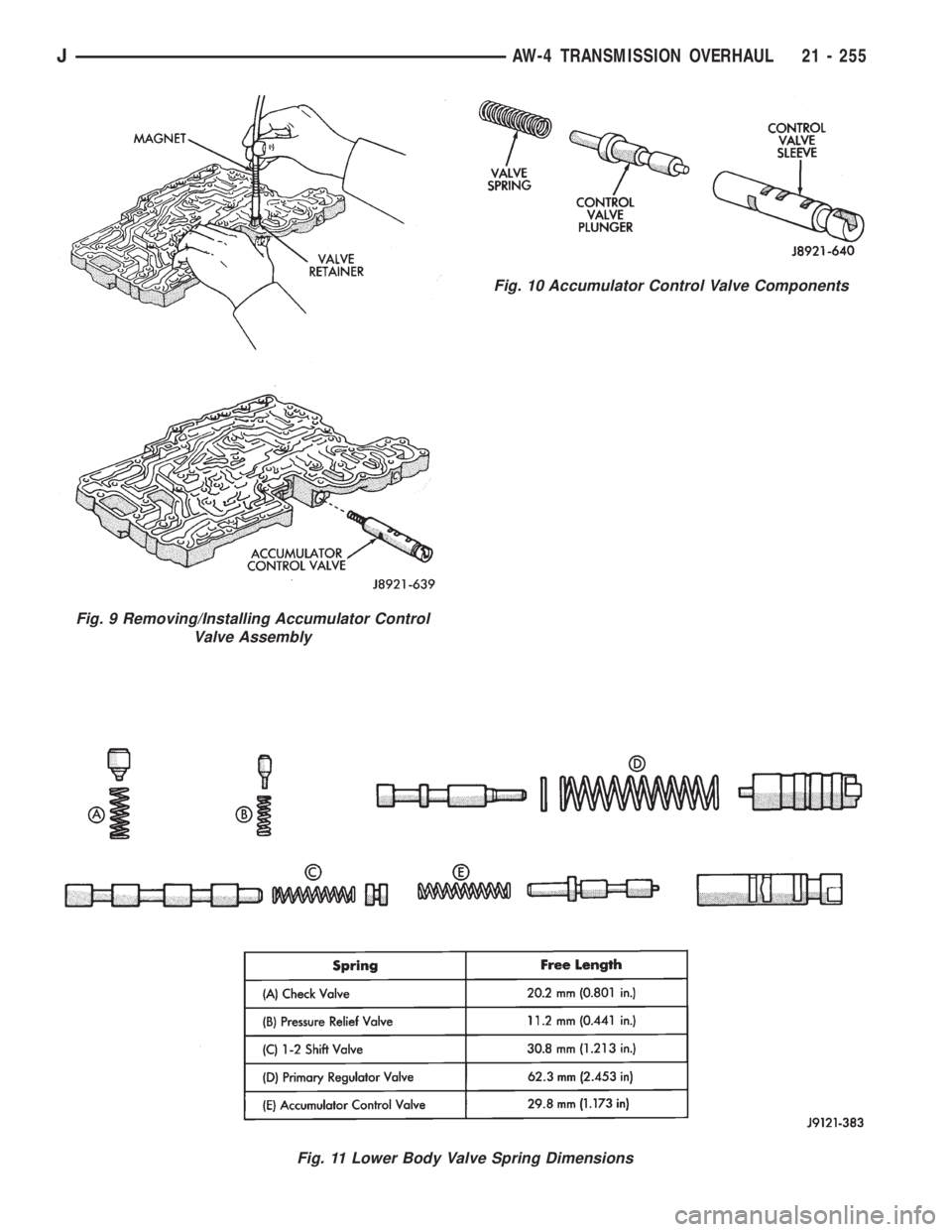

JEEP YJ 1995 Service And Repair Manual Fig. 10 Accumulator Control Valve Components Fig. 11 Lower Body Valve Spring Dimensions Fig. 9 Removing/Installing Accumulator Control Valve Assembly JAW-4 TRANSMISSION OVERHAUL 21 - 255

Page 1818 of 2158

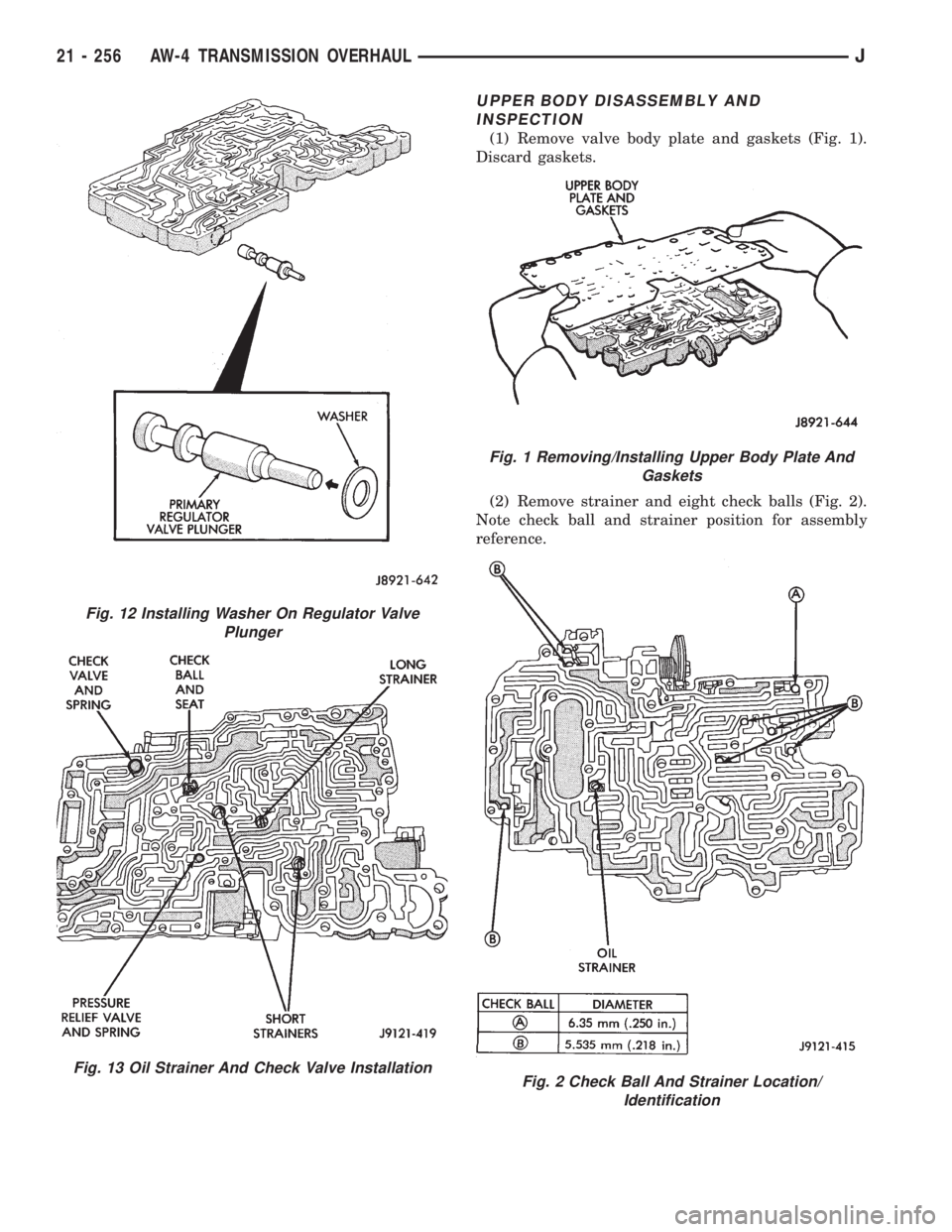

JEEP YJ 1995 Service And Repair Manual UPPER BODY DISASSEMBLY AND INSPECTION (1) Remove valve body plate and gaskets (Fig. 1). Discard gaskets. (2) Remove strainer and eight check balls (Fig. 2). Note check ball and strainer position for a

Page 1819 of 2158

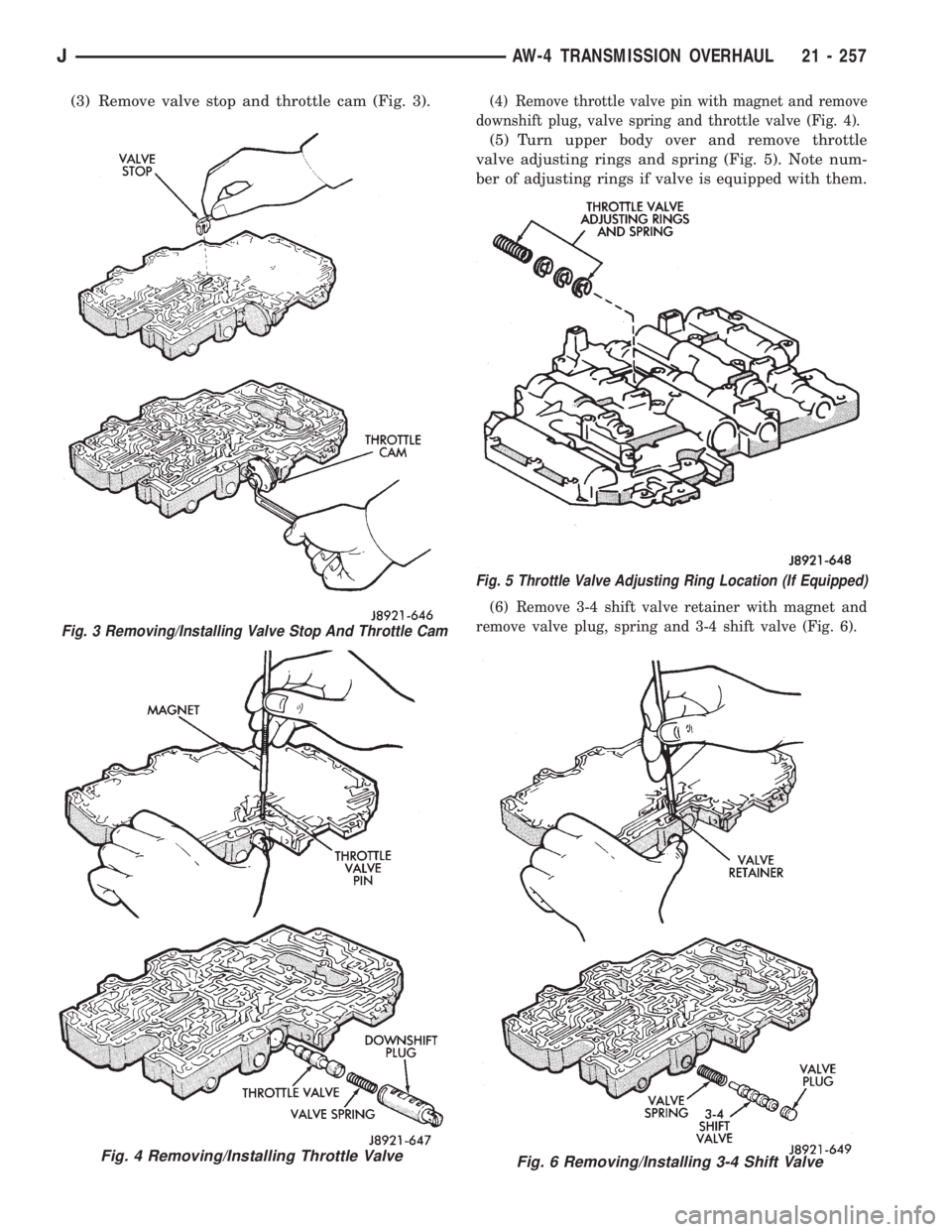

JEEP YJ 1995 Service And Repair Manual (3) Remove valve stop and throttle cam (Fig. 3).(4) Remove throttle valve pin with magnet and remove downshift plug, valve spring and throttle valve (Fig. 4). (5) Turn upper body over and remove throt

Page 1820 of 2158

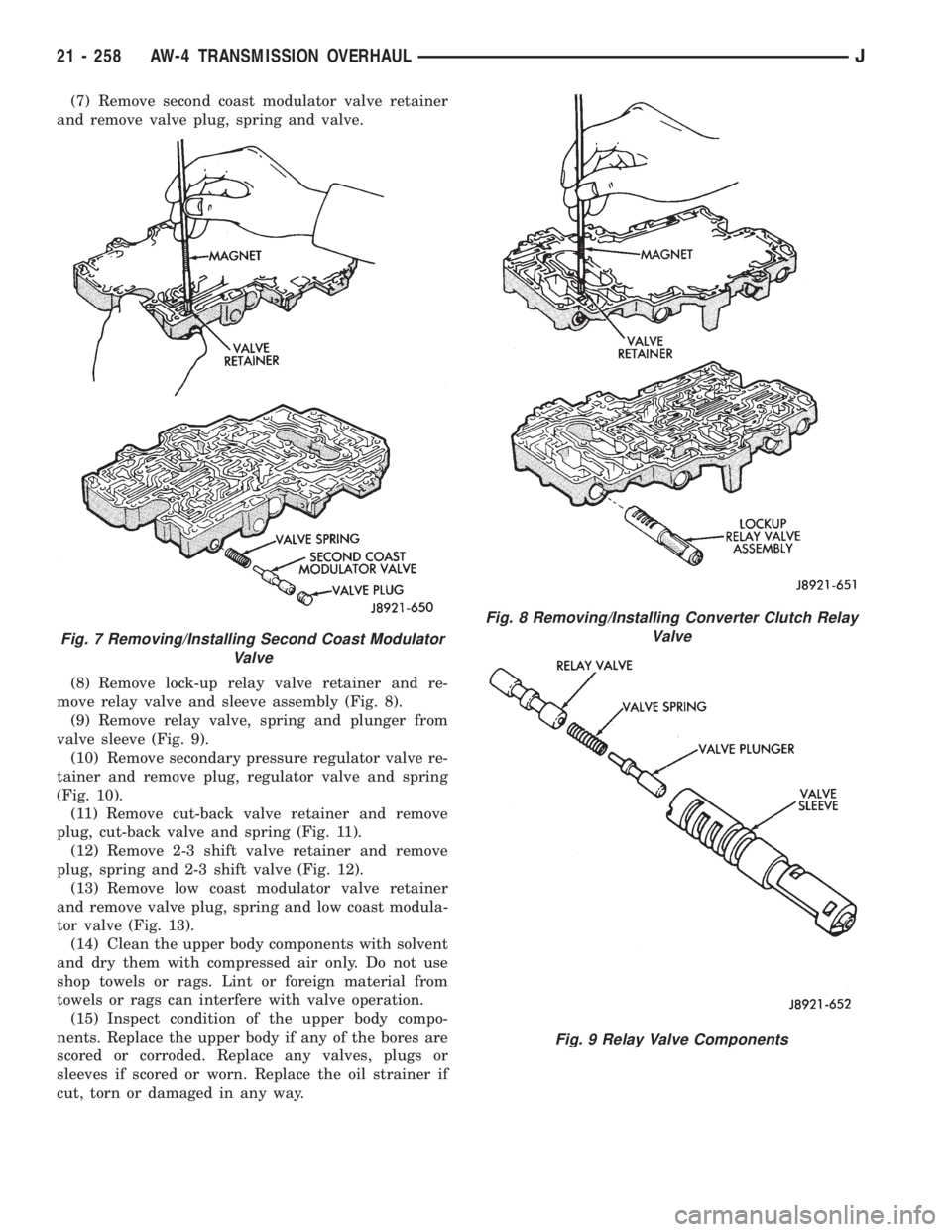

JEEP YJ 1995 Service And Repair Manual (7) Remove second coast modulator valve retainer and remove valve plug, spring and valve. (8) Remove lock-up relay valve retainer and re- move relay valve and sleeve assembly (Fig. 8). (9) Remove rela

Page 1821 of 2158

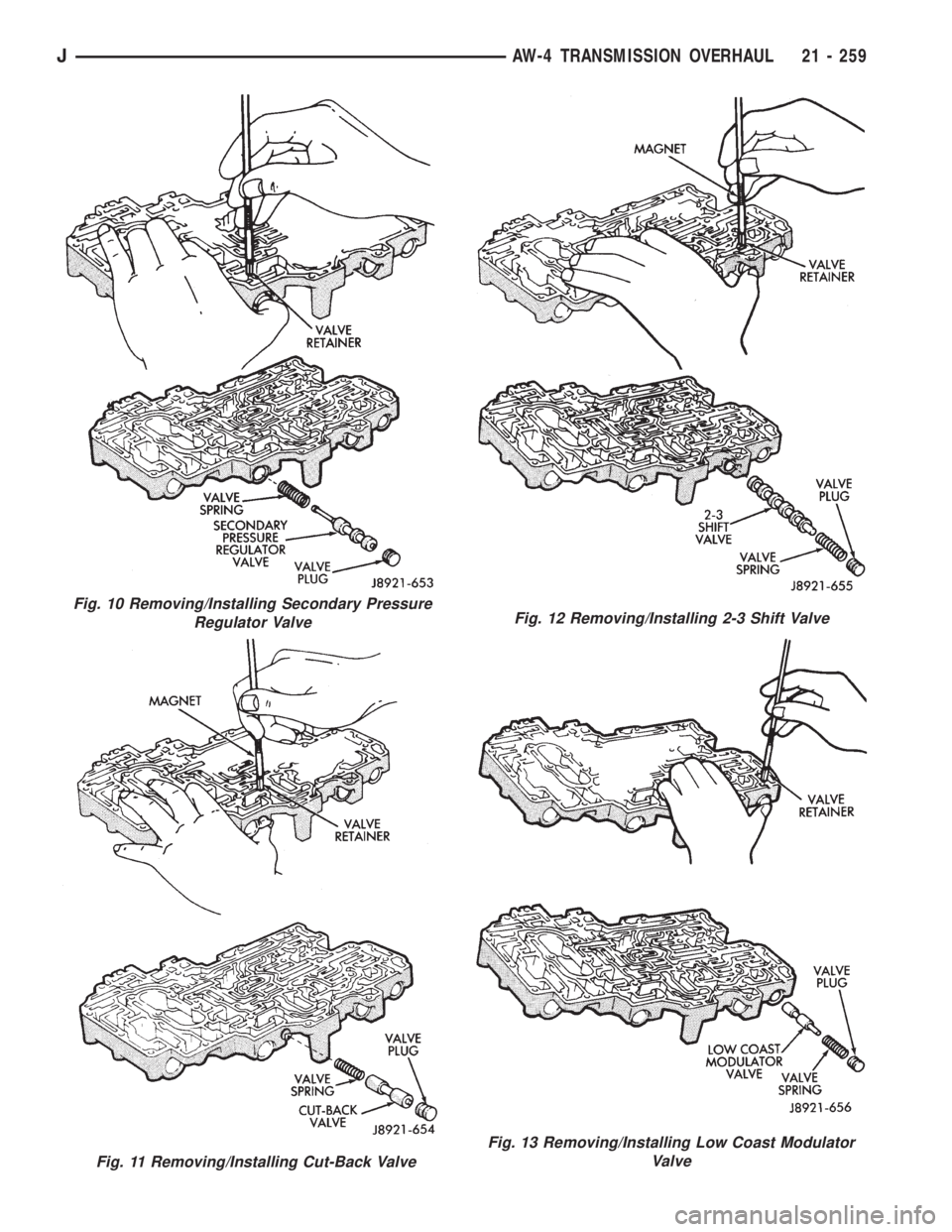

JEEP YJ 1995 Service And Repair Manual Fig. 10 Removing/Installing Secondary Pressure Regulator Valve Fig. 11 Removing/Installing Cut-Back Valve Fig. 12 Removing/Installing 2-3 Shift Valve Fig. 13 Removing/Installing Low Coast Modulator Va

Page 1822 of 2158

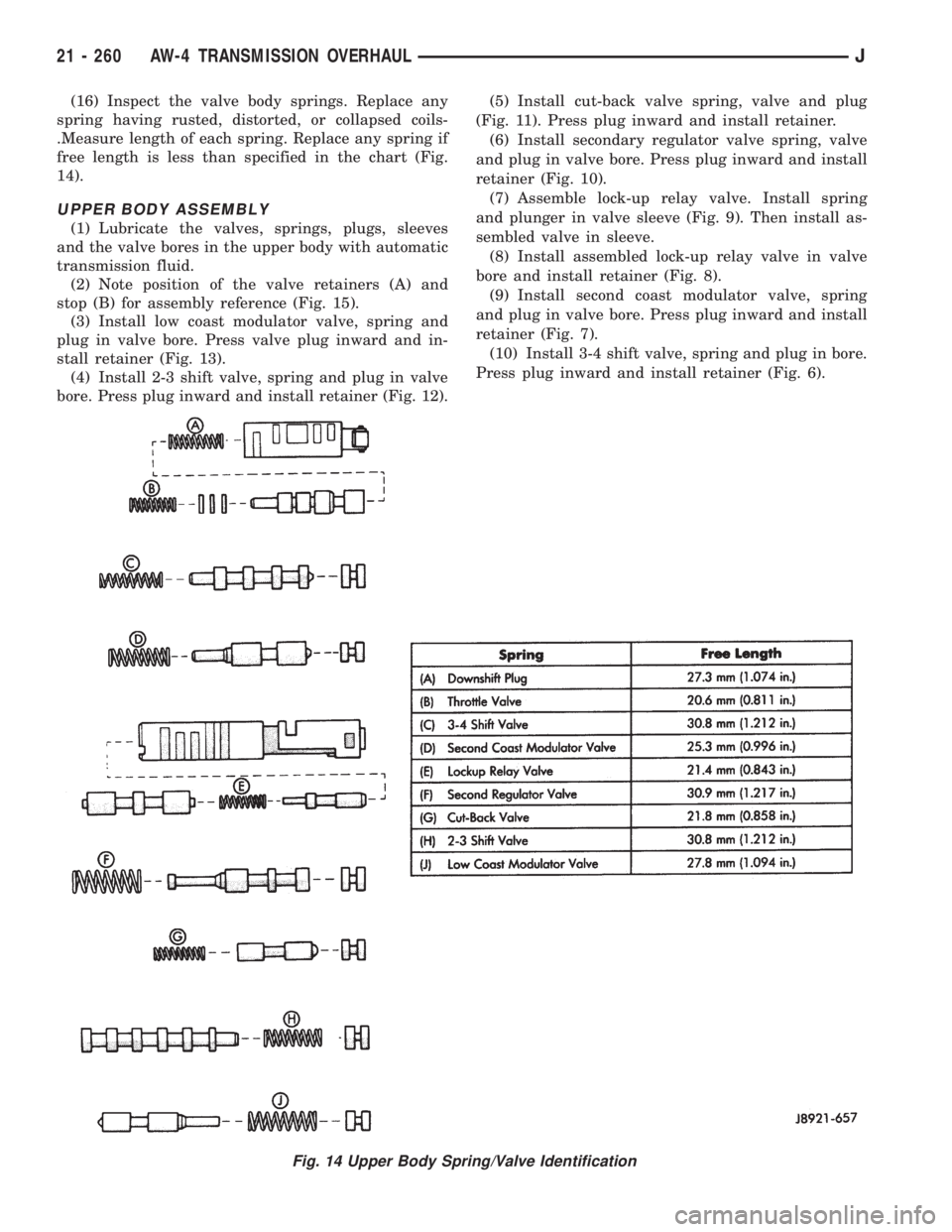

JEEP YJ 1995 Service And Repair Manual (16) Inspect the valve body springs. Replace any spring having rusted, distorted, or collapsed coils- .Measure length of each spring. Replace any spring if free length is less than specified in the ch

Page 1823 of 2158

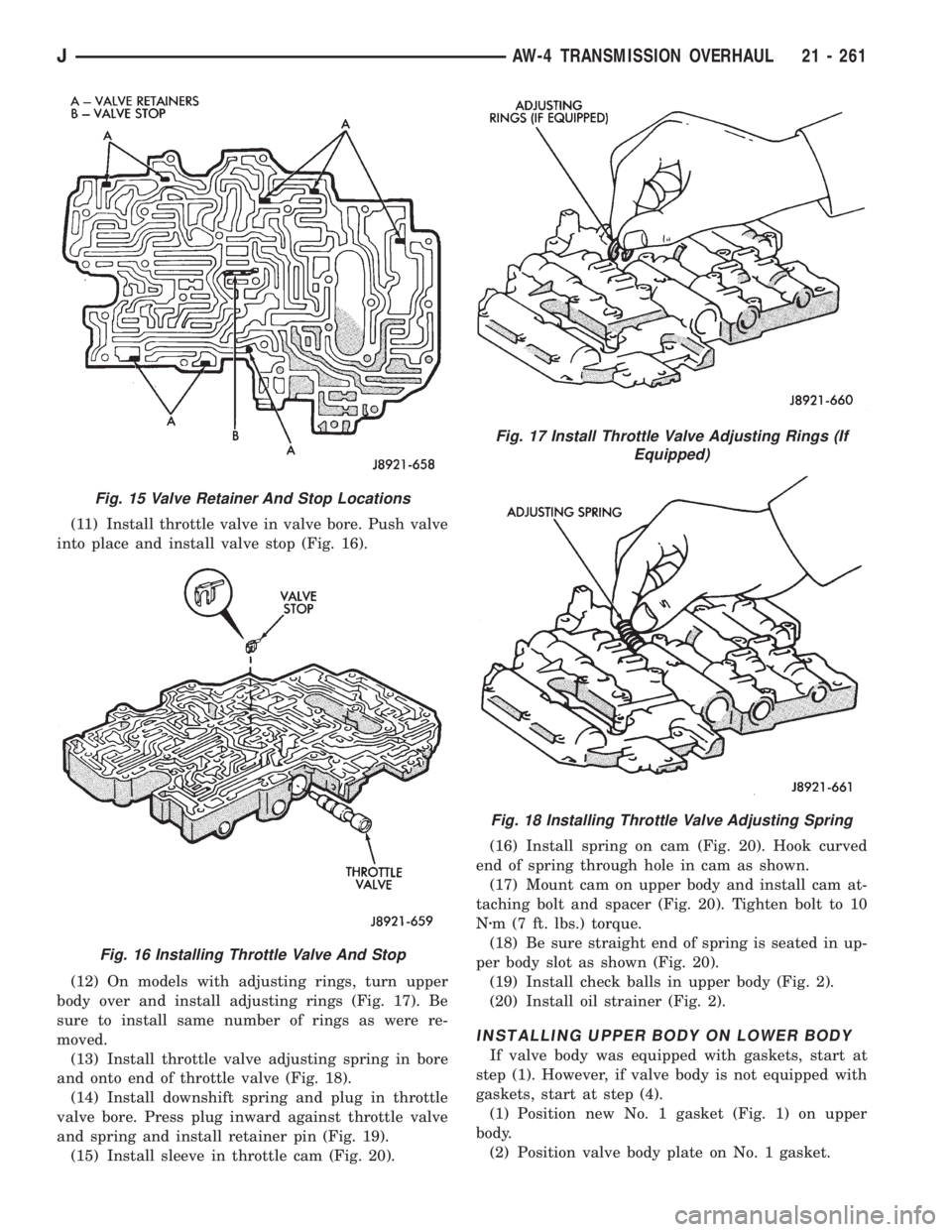

JEEP YJ 1995 Service And Repair Manual (11) Install throttle valve in valve bore. Push valve into place and install valve stop (Fig. 16). (12) On models with adjusting rings, turn upper body over and install adjusting rings (Fig. 17). Be s

Page 1824 of 2158

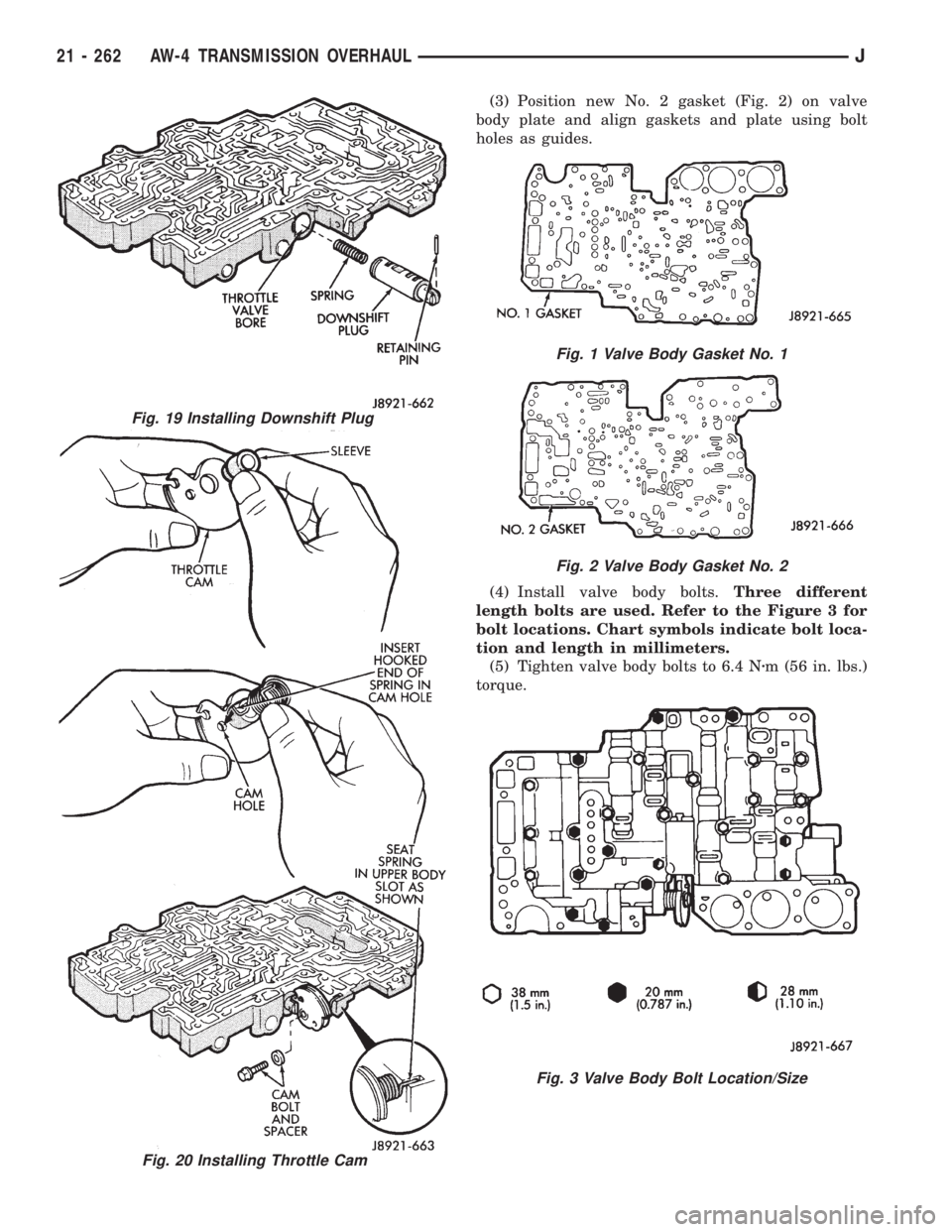

JEEP YJ 1995 Service And Repair Manual (3) Position new No. 2 gasket (Fig. 2) on valve body plate and align gaskets and plate using bolt holes as guides. (4) Install valve body bolts.Three different length bolts are used. Refer to the Figu
