Page 1961 of 2158

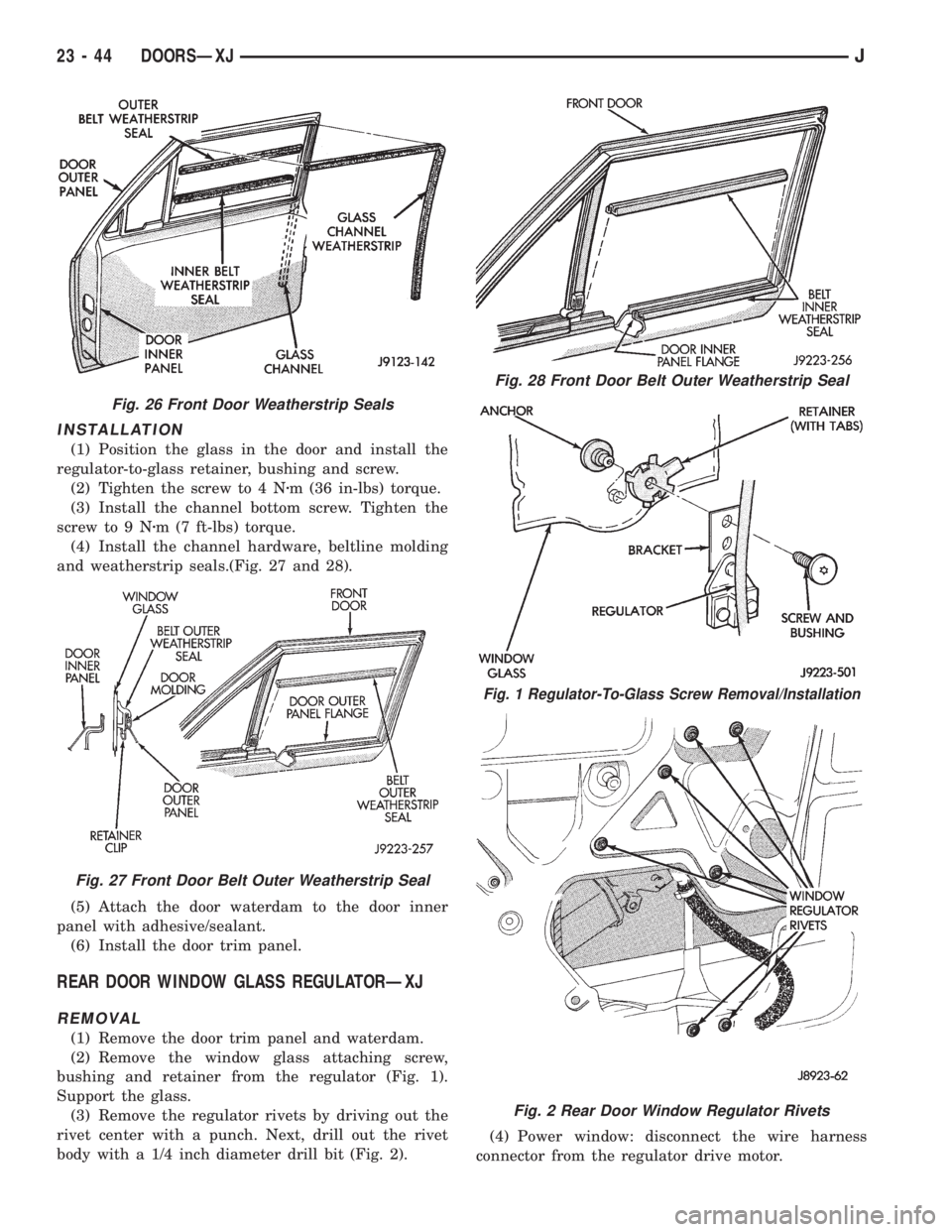

JEEP YJ 1995 Service And Repair Manual (4) Tighten the regulator-to-glass screw to 4 Nzm (36 in-lbs) torque. (5) Install the glass channel bottom screw (Fig. 17). Tighten screw to 9 Nzm (7 ft-lbs) torque.(6) Attach the door waterdam to the

Page 1962 of 2158

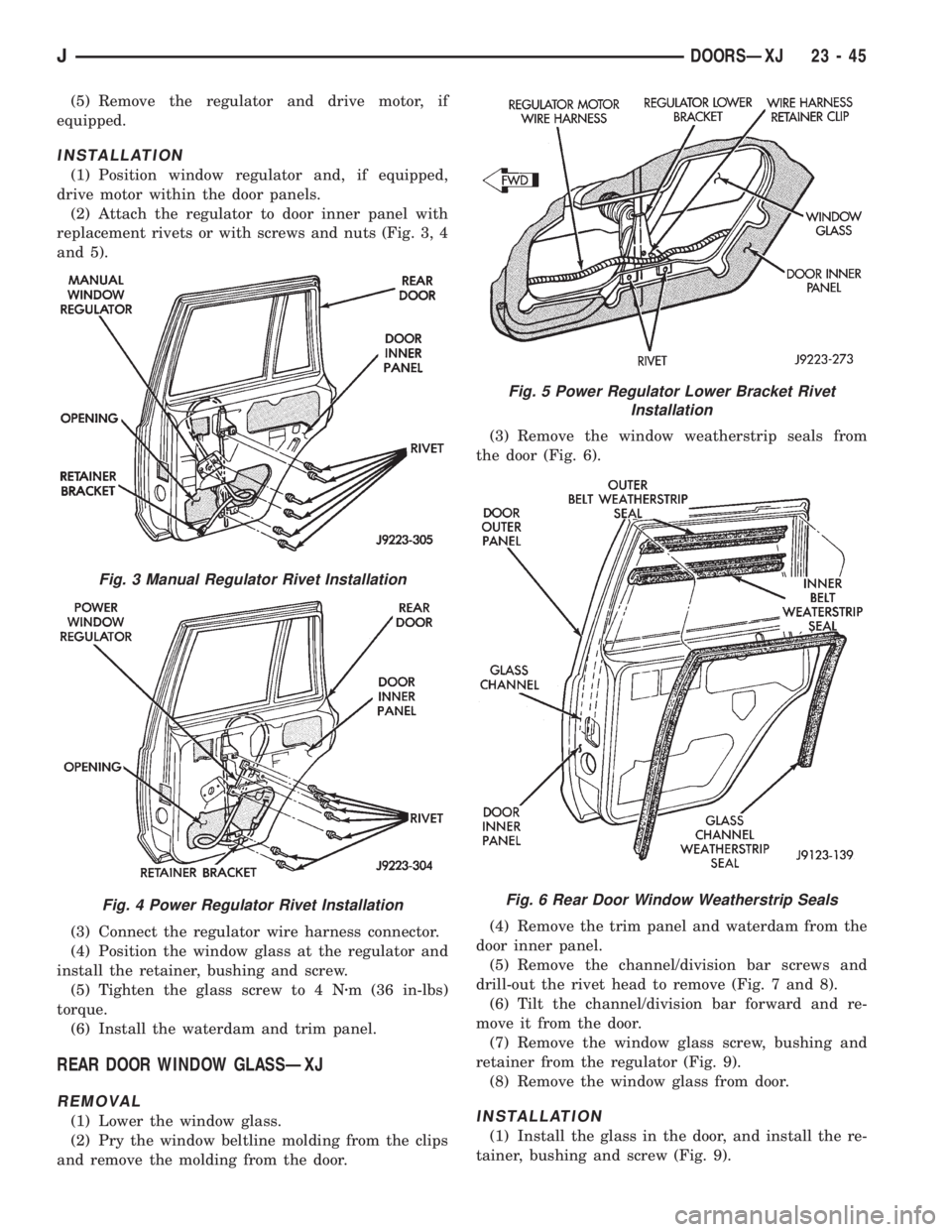

JEEP YJ 1995 Service And Repair Manual INSTALLATION (1) Position the glass in the door and install the regulator-to-glass retainer, bushing and screw. (2) Tighten the screw to 4 Nzm (36 in-lbs) torque. (3) Install the channel bottom screw.

Page 1963 of 2158

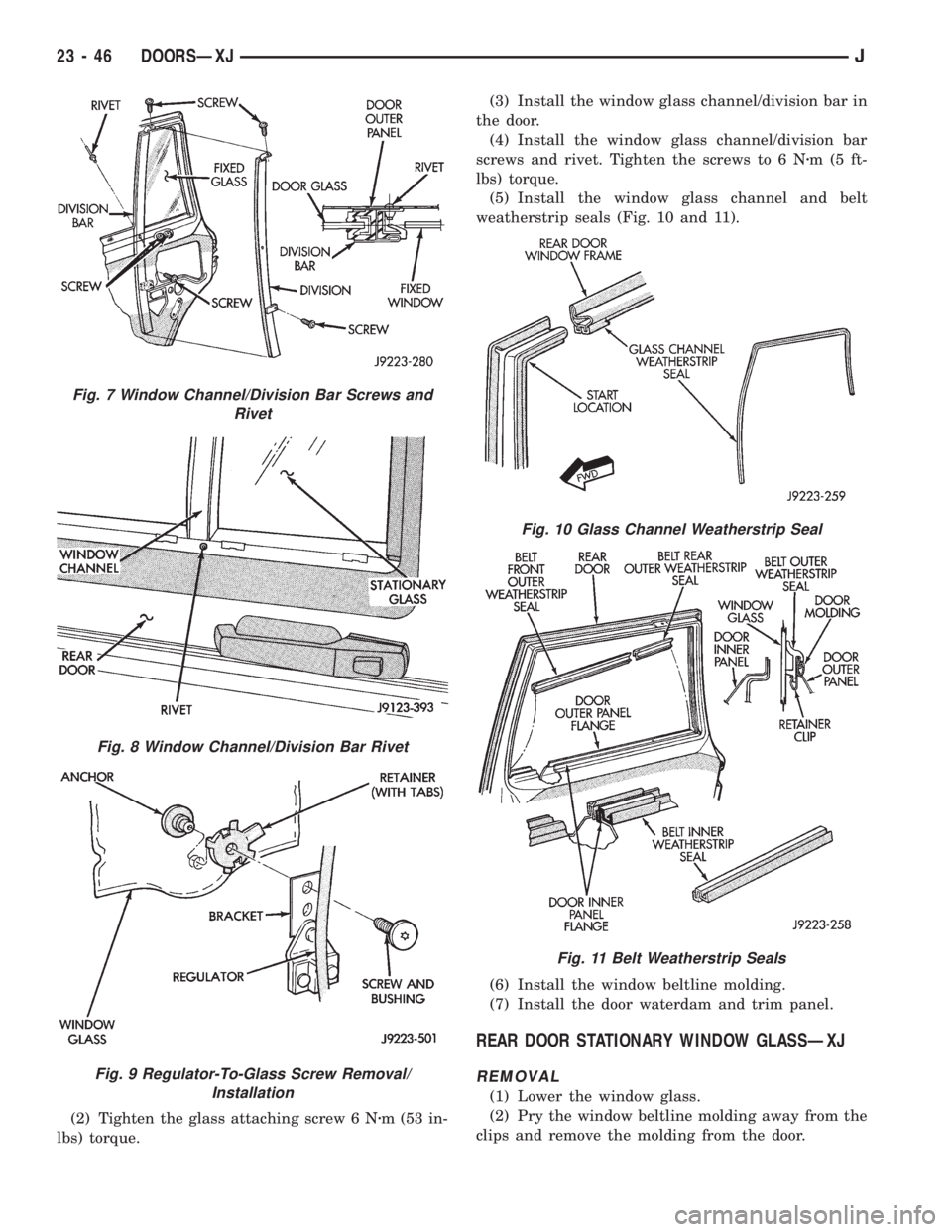

JEEP YJ 1995 Service And Repair Manual (5) Remove the regulator and drive motor, if equipped. INSTALLATION (1) Position window regulator and, if equipped, drive motor within the door panels. (2) Attach the regulator to door inner panel wit

Page 1964 of 2158

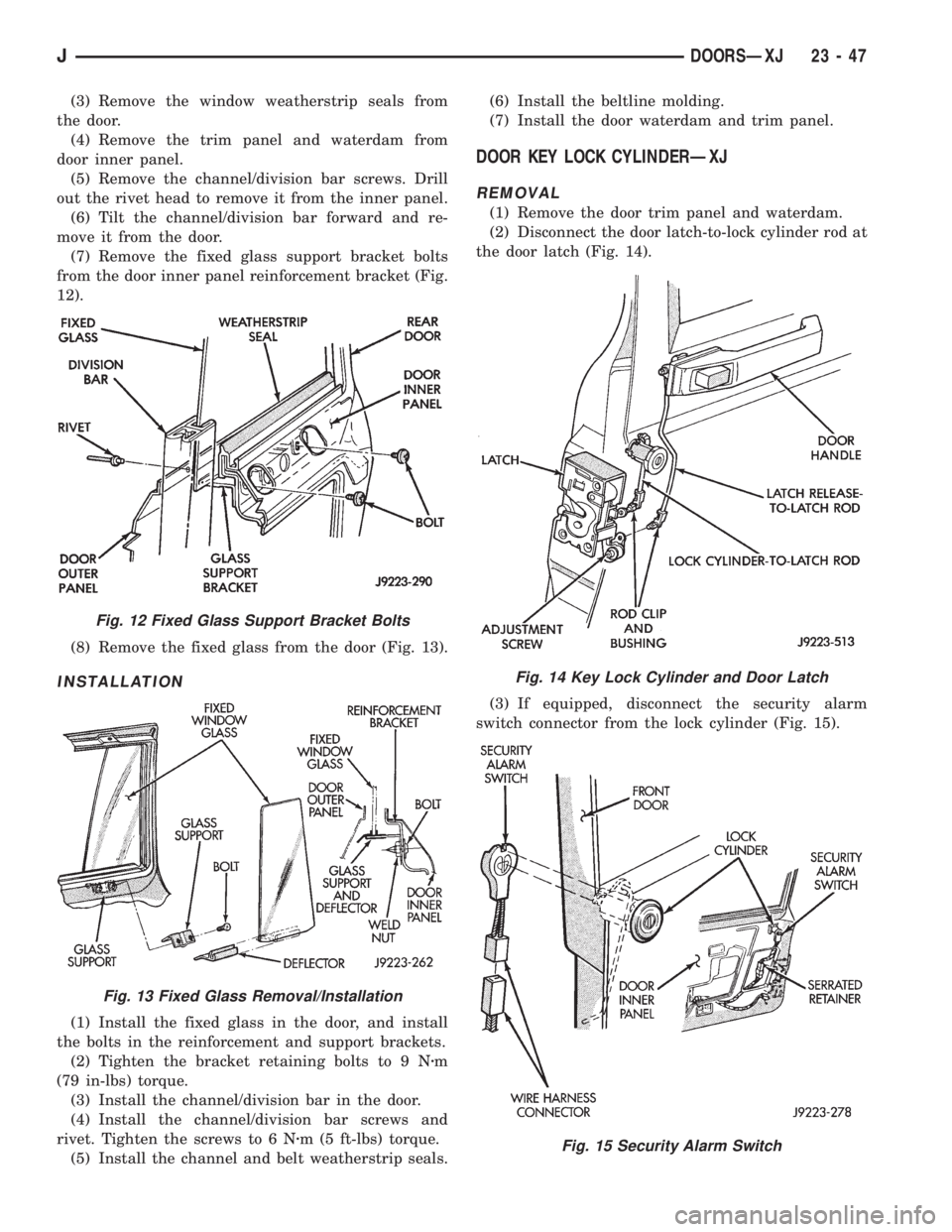

JEEP YJ 1995 Service And Repair Manual (2) Tighten the glass attaching screw 6 Nzm (53 in- lbs) torque.(3) Install the window glass channel/division bar in the door. (4) Install the window glass channel/division bar screws and rivet. Tight

Page 1965 of 2158

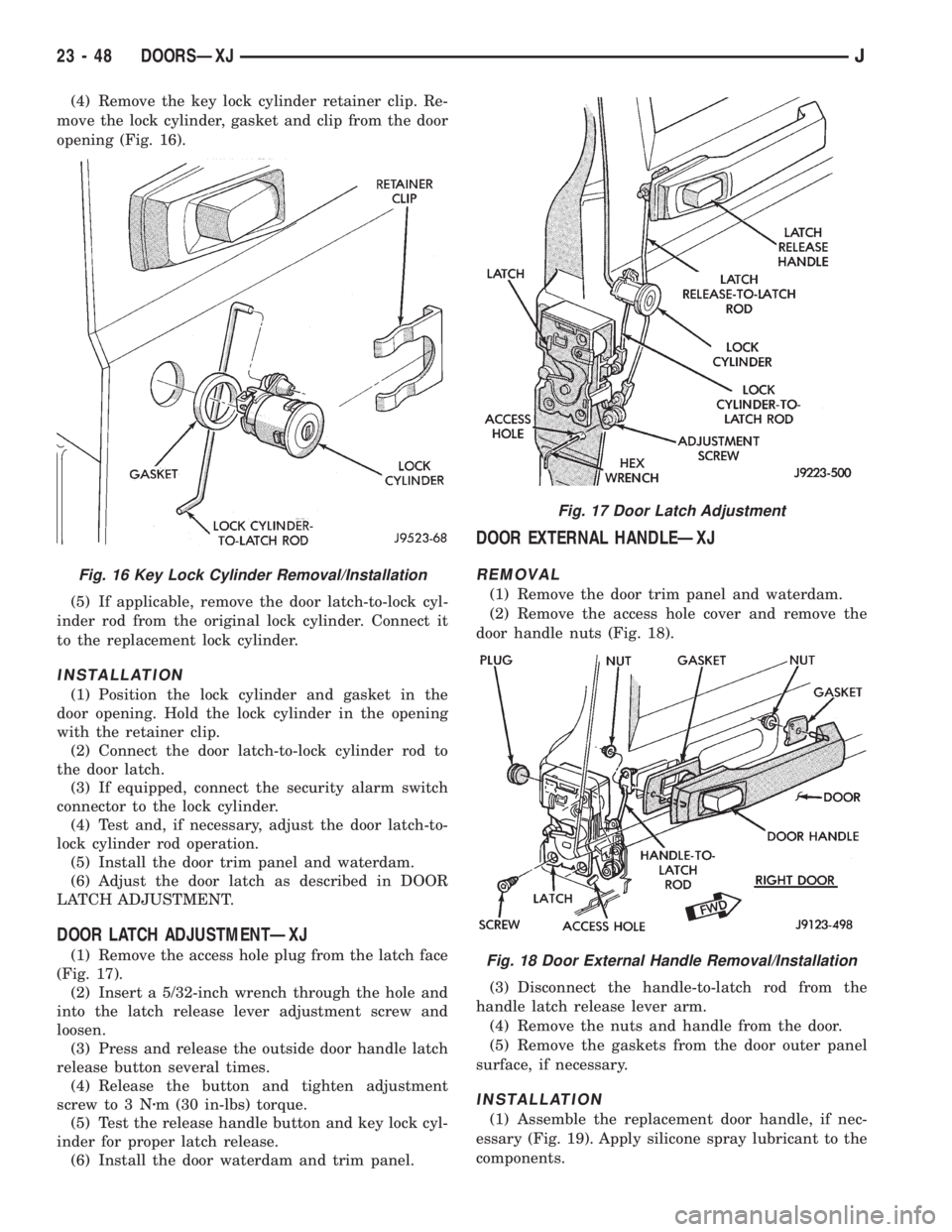

JEEP YJ 1995 Service And Repair Manual (3) Remove the window weatherstrip seals from the door. (4) Remove the trim panel and waterdam from door inner panel. (5) Remove the channel/division bar screws. Drill out the rivet head to remove it

Page 1966 of 2158

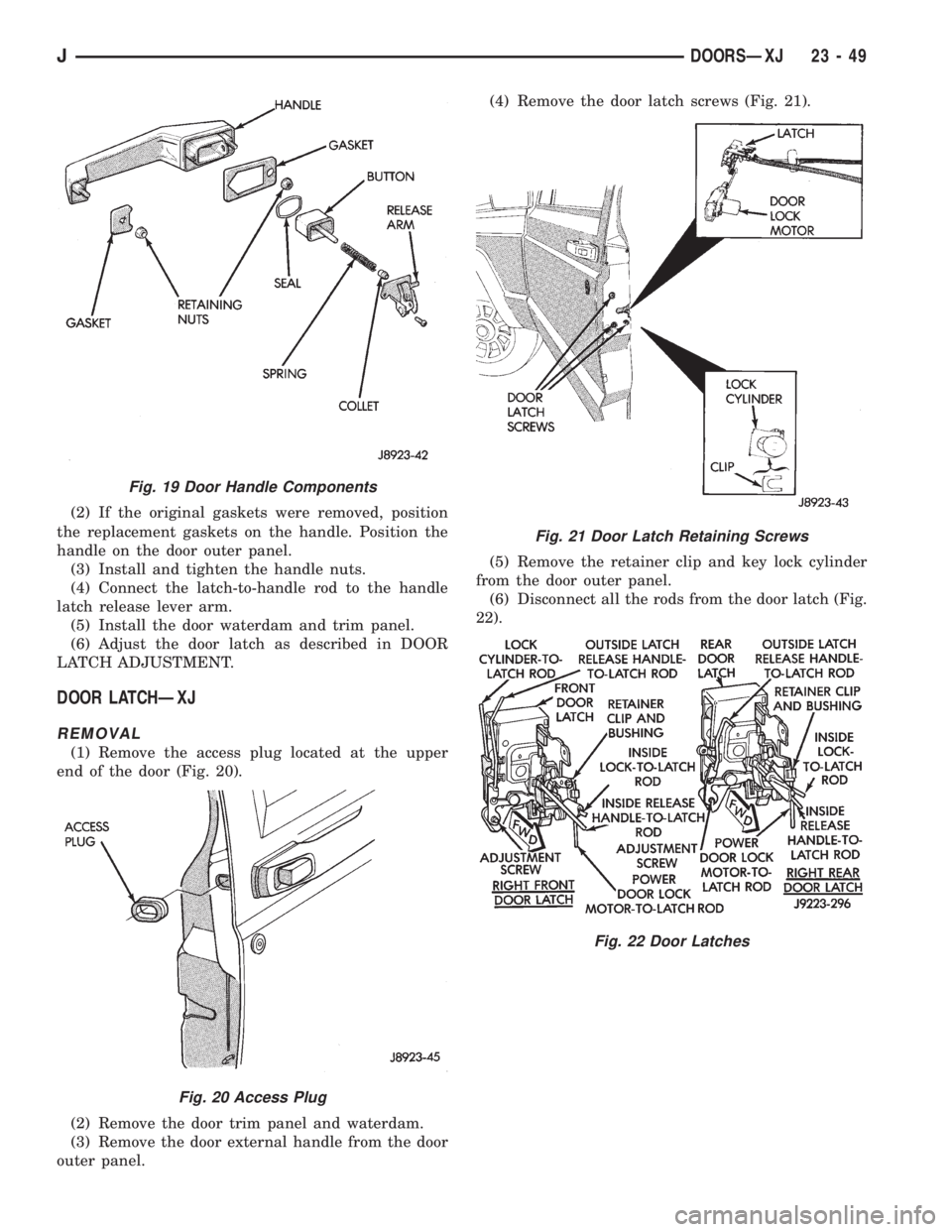

JEEP YJ 1995 Service And Repair Manual (4) Remove the key lock cylinder retainer clip. Re- move the lock cylinder, gasket and clip from the door opening (Fig. 16). (5) If applicable, remove the door latch-to-lock cyl- inder rod from the or

Page 1967 of 2158

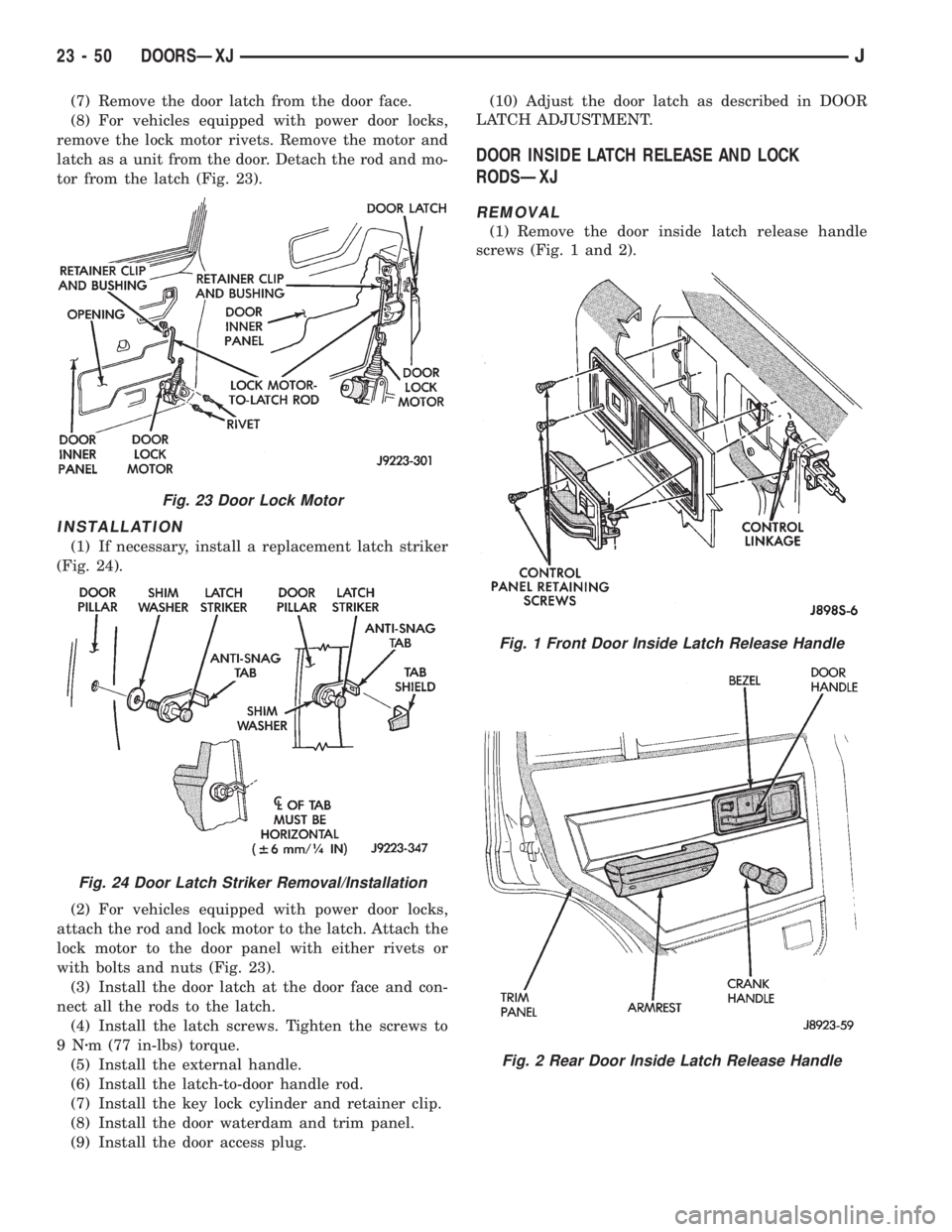

JEEP YJ 1995 Service And Repair Manual (2) If the original gaskets were removed, position the replacement gaskets on the handle. Position the handle on the door outer panel. (3) Install and tighten the handle nuts. (4) Connect the latch-to

Page 1968 of 2158

JEEP YJ 1995 Service And Repair Manual (7) Remove the door latch from the door face. (8) For vehicles equipped with power door locks, remove the lock motor rivets. Remove the motor and latch as a unit from the door. Detach the rod and mo-
