JEEP YJ 1995 Service And Repair Manual SPLICE LOCATIONS
GENERAL INFORMATION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
se

SPLICE LOCATIONS
GENERAL INFORMATION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
section for splice number identification. Refer to the
index for the proper splice number.
SPLICE LOCATIONS
Splice
NumberLocations Fig.
S101 Near Generator T/O..................4
S102 Near Bulkhead T/O...................2
S103 Near Bulkhead T/O...................2
S104 Near Bulkhead T/O...................2
S105 Near Bulkhead T/O...................2
S106 Near Bulkhead T/O...................1
S107 Near Wiper Motor T/O................1
S108 Near Wiper Motor T/O................1
S109 Near Wiper Motor T/O................1
S110 Center of Dash Panel Near Grommet.......1
S111 Near T/O for ABS Diode...............7
S112 Near T/O for Map Sensor..............1
S113 Near T/O for Injector #5 and #6..........4
S114 Near T/O for Injector #5 and #6..........4
S115 Near T/O for Injector #5 and #6..........4
S116 Near T/O for Injector #5 and #6..........4
S117 Near T/O for Map Sensor..............1
S118 Near T/O for Map Sensor..............1
S119 Near Distributor T/O..................1
S120 Between Distributor T/O and Underhood
Lamp T/O.......................1
S121 Between Distributor T/O and Underhood
Lamp T/O.......................1
S122 Between Distributor T/O and Underhood
Lamp T/O.......................1
S123 RT Side of Cowl Panel................1
S124 RT Side of Cowl Panel................1
S125 Near T/O for PDC...................1
S126 Near T/O for Oil Pressure Switch..........5
S127 Near Generator T/O..................5
S128 LT Side of Grille Panel................3
S129 LT Side of Grille Panel................3
S130 Center of Grille Panel.................3
S201 Near Body Harness Connector T/O.........6
S202 Near Body Harness Connector T/O.........6
S203 Near Body Harness Connector T/O.........6
S204 Near Relay Center...................6
S205 Near T/O for Headlamp Switch...........6Splice
NumberLocations Fig.
S206 Near T/O for Telltale..................6
S207 Near T/O for Cluster..................6
S208 Near T/O for Cluster..................6
S209 Right Side of Cluster.................6
S210 Right Side of Cluster.................6
S211 Near Instrument Panel Ground T/O........6
S212 Near Wiper Switch T/O................6
S213 Near Antenna T/O...................7
S214 Near Blower Resistor T/O..............7
S215 Right Side of Instrument Panel...........7
S301 In Left Rear Door T/O.................8
S302 Near Left C-Pillar....................8
S303 Near Left C-Pillar....................8
S304 Near Left C-Pillar....................8
S305 Near Left C-Pillar....................8
S306 Near Left C-Pillar....................8
S307 Left Rear Wheel Well................10
S308 Left Rear Wheel Well................10
S309 Near Left Rear Door T/O...............8
S310 Near Left Rear Door T/O...............8
S311 Left Side of Floor Tunnel...............9
S312 Top of Floor Tunnel..................9
S313 In Power Mirror Switch T/O.............9
S314 Right A- Pillar.....................11
S315 Near RT Vanity Mirror T/O.............11
S316 Near RT Vanity Mirror T/O.............11
S317 In Trailer Tow Harness Near Grommet......14
S318 In Trailer Tow Harness Near Grommet......14
S319 In Liftgate.......................13
S320 Right A-Pillar.....................11
S321 In Left Front Door..................12
S401 In Left Rear Tail Lamp..........Not Shown
S402 In Right Rear Tail Lamp.........Not Shown
S403 In Left Rear Tail Lamp..........Not Shown
S404 In Right Rear Tail Lamp.........Not Shown
J8W-95 SPLICE LOCATIONSÐXJ VEHICLES 8W - 95 - 1

Page 810 of 2158

JEEP YJ 1995 Service And Repair Manual Fig. 1 Engine Compartment Splices XJ
8W - 95 - 2 8W-95 SPLICE LOCATIONSÐXJ VEHICLESJ

Page 811 of 2158

JEEP YJ 1995 Service And Repair Manual Fig. 2 Engine Compartment Splices XJ
Fig. 3 Front End Splices XJ
J8W-95 SPLICE LOCATIONSÐXJ VEHICLES 8W - 95 - 3

Page 812 of 2158

JEEP YJ 1995 Service And Repair Manual Fig. 4 Engine Splices 4.0L XJ
8W - 95 - 4 8W-95 SPLICE LOCATIONSÐXJ VEHICLESJ

Page 813 of 2158

JEEP YJ 1995 Service And Repair Manual Fig. 5 Engine Splices 2.5L XJ
Fig. 6 Instrument Panel Splices XJ
J8W-95 SPLICE LOCATIONSÐXJ VEHICLES 8W - 95 - 5

Page 814 of 2158

JEEP YJ 1995 Service And Repair Manual Fig. 7 Instrument Panel Splices XJ
8W - 95 - 6 8W-95 SPLICE LOCATIONSÐXJ VEHICLESJ

Page 815 of 2158

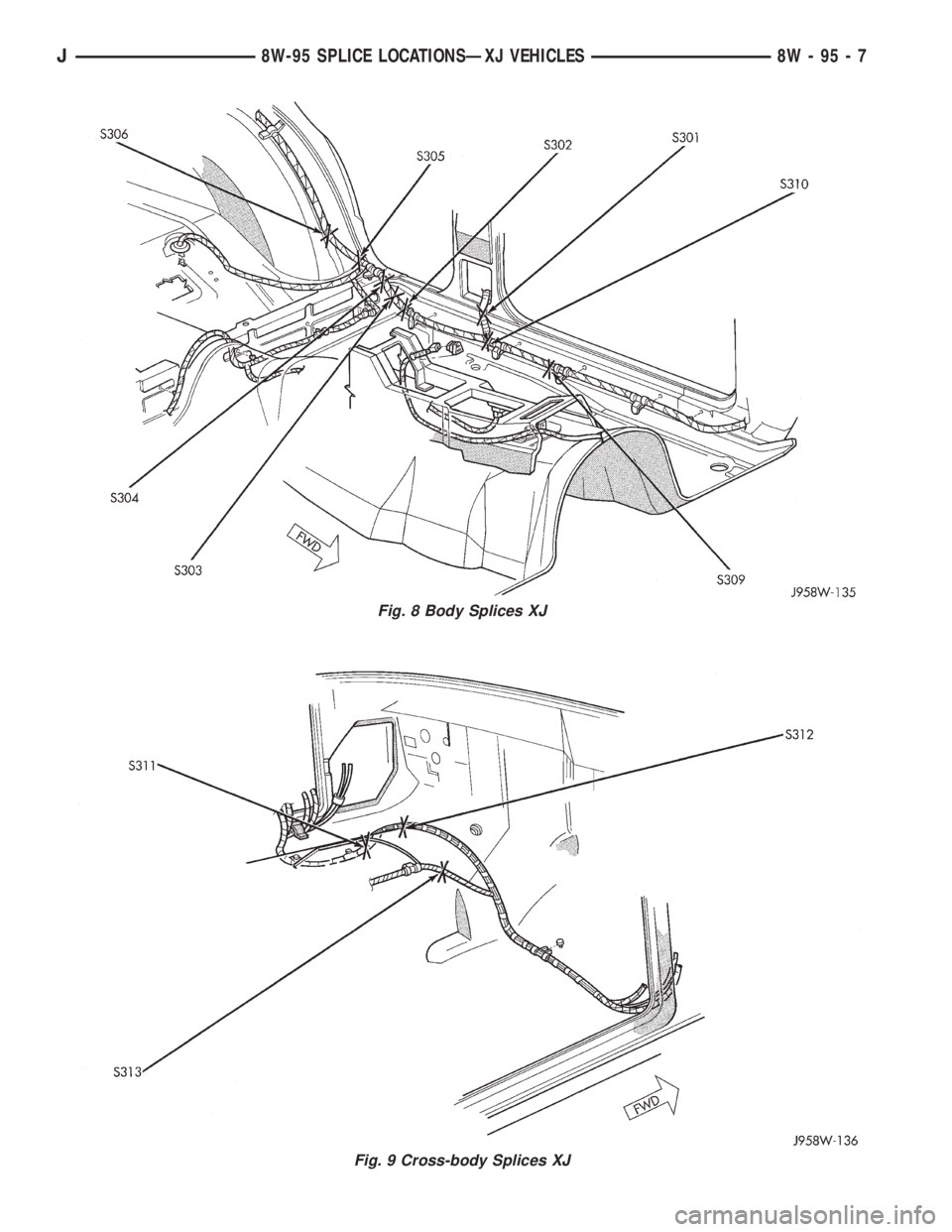

JEEP YJ 1995 Service And Repair Manual Fig. 8 Body Splices XJ
Fig. 9 Cross-body Splices XJ
J8W-95 SPLICE LOCATIONSÐXJ VEHICLES 8W - 95 - 7

Page 816 of 2158

JEEP YJ 1995 Service And Repair Manual Fig. 10 Body Splices XJ
Fig. 11 Roof Splices XJ
8W - 95 - 8 8W-95 SPLICE LOCATIONSÐXJ VEHICLESJ
