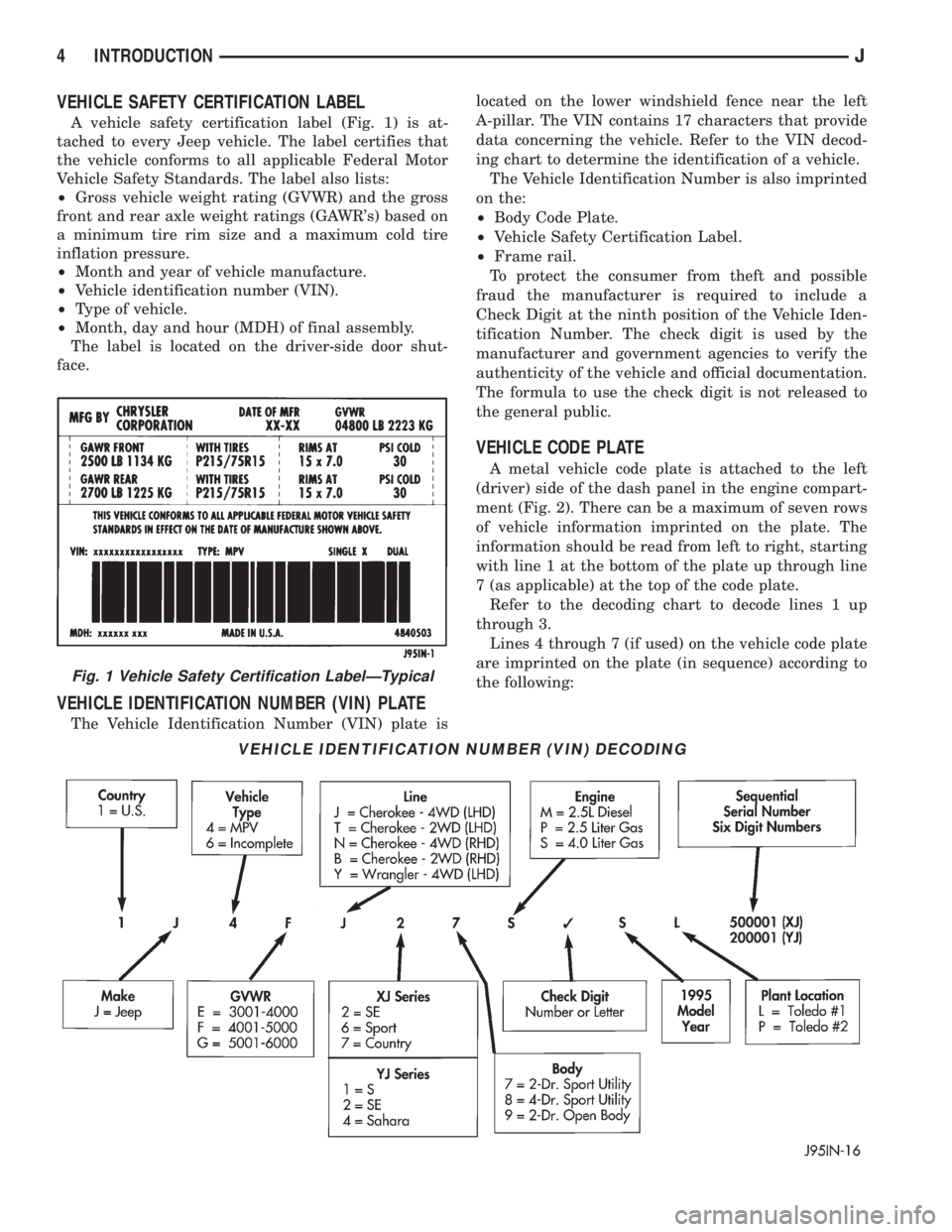

VEHICLE SAFETY CERTIFICATION LABEL
A vehicle safety certification label (Fig. 1) is at-
tached to every Jeep vehicle. The label certifies that
the vehicle conforms to all applicable Federal Motor
Vehicle Safety Standards. The label also lists:
²Gross vehicle weight rating (GVWR) and the gross
front and rear axle weight ratings (GAWR's) based on
a minimum tire rim size and a maximum cold tire
inflation pressure.
²Month and year of vehicle manufacture.
²Vehicle identification number (VIN).
²Type of vehicle.
²Month, day and hour (MDH) of final assembly.
The label is located on the driver-side door shut-
face.
VEHICLE IDENTIFICATION NUMBER (VIN) PLATE
The Vehicle Identification Number (VIN) plate islocated on the lower windshield fence near the left
A-pillar. The VIN contains 17 characters that provide
data concerning the vehicle. Refer to the VIN decod-
ing chart to determine the identification of a vehicle.
The Vehicle Identification Number is also imprinted
on the:
²Body Code Plate.
²Vehicle Safety Certification Label.
²Frame rail.
To protect the consumer from theft and possible
fraud the manufacturer is required to include a
Check Digit at the ninth position of the Vehicle Iden-
tification Number. The check digit is used by the
manufacturer and government agencies to verify the
authenticity of the vehicle and official documentation.
The formula to use the check digit is not released to
the general public.
VEHICLE CODE PLATE
A metal vehicle code plate is attached to the left
(driver) side of the dash panel in the engine compart-
ment (Fig. 2). There can be a maximum of seven rows
of vehicle information imprinted on the plate. The
information should be read from left to right, starting
with line 1 at the bottom of the plate up through line
7 (as applicable) at the top of the code plate.
Refer to the decoding chart to decode lines 1 up
through 3.
Lines 4 through 7 (if used) on the vehicle code plate
are imprinted on the plate (in sequence) according to
the following:
VEHICLE IDENTIFICATION NUMBER (VIN) DECODING
Fig. 1 Vehicle Safety Certification LabelÐTypical
4 INTRODUCTIONJ

(2) Note any indication of drum/rotor overheating,
wheel dragging or the vehicle pulling to one side
when the brakes are applied.
(3) Evaluate any performance complaints received
from the owner/operator.
(4) Repair the brake system as necessary. Refer to
Group, 5 Brakes for additional information and ser-
vice procedures.
TIRES
RECOMMENDED MAINTENANCE
The general condition of the tires and the inflation
pressures should be inspected at the same time the
engine oil is changed and the oil filter is replaced.
In addition, the tires/wheels should be rotated at
the intervals described in the Maintenance Schedules
section of this group.
INSPECTION
Inspect the tires for excessive wear, damage, etc.
Test the tires for the recommended inflation pres-sure. Refer to the tire inflation pressure decal located
on the inside of the glove box door, and also to Group
22, Tires And Wheels.
ROTATION
Refer to Group 22, Tires And Wheels for the recom-
mended method of tire/wheel rotation for a Jeep ve-
hicle.
BODY COMPONENTS
LUBRICATION REQUIREMENTS
All Jeep operating mechanisms and linkages
should be lubricated when necessary. The door
weatherstrip seals should be lubricated to prolong
their life as well as to improve door sealing.
LUBRICANT SPECIFICATIONS
All applicable exterior and interior vehicle operat-
ing mechanisms should be:
²Inspected
²Cleaned
²Pivot/sliding contact areas on the mechanisms
should then be lubricated.
Multi-purpose NLGI GC-LB MOPAR Multi-Mileage
Lubricant or an equivalent, should be used to lubri-
cate the mechanisms. The door weatherstrip seals
should be lubricated with silicone lubricant spray.
Refer to the Body Lubricant Specifications chart be-
low for additional lubricant applications.
LUBRICATION
All pivoting and sliding contact areas, should be lu-
bricated periodically to ensure quiet, easy operation
and to protect against wear and corrosion. Areas in-
clude:
²Seat tracks.
²Door hinges/latches/strikers.
²Liftgate/tailgate/hood hinges (Fig. 11).
(1) As required, lubricate the body components
with the specified lubricants.
(2) Apply silicone lubricant to a cloth and wipe it
on door seals to avoid over-spray that can soil pas-
senger clothing.
(3) Before applying lubricant, the component
should be wiped clean. After lubrication, any excess
lubricant should be removed.
(4) The door lock cylinders should be lubricated 2
times each year (preferably autumn and spring):
²Spray a small amount of lock cylinder lubricant di-
rectly into the lock cylinder.
²Apply a small amount to the key and insert it into
the lock cylinder.
²Rotate it to the locked position and then back to
the unlocked position several times.
²Remove the key. Wipe the lubricant from it with a
clean cloth to avoid soiling of clothing.
Fig. 9 Park Brake Equalizer (XJ)ÐTypical
Fig. 10 Park Brake Equalizer (YJ)ÐTypical
0 - 32 LUBRICATION AND MAINTENANCEJ

WHEELS AND TIRES
CONTENTS
page page
SPECIFICATIONS........................ 12
TIRES.................................. 1VEHICLE VIBRATION..................... 10
WHEELS................................ 6
TIRES
INDEX
page page
Cleaning of Tires.......................... 2
General Information........................ 1
Pressure Gauges.......................... 2
Repairing Leaks........................... 3
Replacement Tires......................... 2Rotation................................. 3
Tire Inflation Pressures...................... 2
Tire Noise or Vibration...................... 4
Tire Wear Patterns......................... 4
Tread Wear Indicators....................... 3
GENERAL INFORMATION
Tires are designed for each specific vehicle. They
provide the best overall performance for normal oper-
ation. The ride and handling characteristics match
the vehicle's requirements. With proper care they
will give excellent reliability, traction, skid resis-
tance, and tread life. These tires have specific load
carrying capacities. When correctly inflated, they will
operate properly.
Tires used in cool climates, and with light loads
will have a longer life than tires used in hot climates
with heavy loads. Abrasive road surfaces will acceler-
ate tire wear.
Driving habits have more effect on tire life than
any other factor. Careful drivers will obtain much
greater mileage than careless drivers.
Driving habits that shorten the life of any tire;
²Rapid acceleration and deceleration
²Severe application of brakes
²High-speed driving
²Taking turns at excessive speeds
²Striking curbs and other obstacles
It is very important to follow the tire rotation in-
terval
IDENTIFICATION
Tire type, size, aspect ratio and speed rating are
encoded in the letters and numbers imprinted on the
side wall of the tire. Refer to the chart to decipher
the tire identification code (Fig. 1).Performance tires will have a speed rating letter
after the aspect ratio number. The speed rating is not
always printed on the tire sidewall. The letterSin-
dicates that the tire is speed rated up to 112 mph.
²Qup to 100 mph
²Tup to 118 mph
²Uup to 124 mph
²Hup to 130 mph
²Vup to 149 mph
²Zmore than 149 mph (consult the tire manufac-
turer for the specific speed rating)
An All Season type tire will have eitherM+S,M
&SorMÐS(indicating mud and snow traction) im-
printed on the side wall.
RADIAL-PLY TIRES
Radial-ply tires improve handling, tread life, ride
quality and decrease rolling resistance.
Radial-ply tires must always be used in sets of
four. Under no circumstances should they be used on
the front only. They may be mixed with temporary
spare tires when necessary, but reduced speeds are
recommended.
Radial-ply tires have the same load-carrying capac-
ity as other types of tires of the same size. They use
the same recommended inflation pressures.
SPARE TIRE (TEMPORARY)
The compact spare tire is designed for emergency
use only. The original tire should be repaired and re-
installed at the first opportunity. Refer to Owner's
Manual for complete details.
JWHEELS AND TIRES 22 - 1

TIRE CHAINS
Tire snow chains may be used on certain models.
Refer to Owner's Manual for more information.
CLEANING OF TIRES
Steam cleaning may be used for cleaning.
DO NOT use gasoline or wire brush for cleaning.
DO NOT use mineral oil or an oil-based solvent.
PRESSURE GAUGES
High-quality, dial-type, air-pressure gauges are rec-
ommended. After checking with the gauge, replace
valve cap and finger tight.
TIRE INFLATION PRESSURES
Under inflation (Fig. 2) causes rapid shoulder wear
and tire flexing.
Over inflation (Fig. 3) causes rapid center wear and
loss of the tire's ability to cushion shocks.
Improper inflation can cause;
²Uneven wear patterns
²Reduced tread life
²Reduced fuel economy
²Unsatisfactory ride
²Cause the vehicle to drift
Refer to the Owner's Manual for information re-
garding proper tire inflation pressure.
This pressure has been carefully selected to provide
for safe vehicle operation. Tire pressure should becheckedcoldonce per month. Tire pressure de-
creases when the outside temperature drops.
Inflation pressures specified on the placards are al-
wayscold inflation pressure. Cold inflation pres-
sure is obtained after the vehicle has not been
operated for at least 3 hours. Tire inflation pressures
may increase from 2 to 6 pounds per square inch
(psi) during operation.Do notreduce this normal
pressure build-up.
Vehicles loaded to the maximum capacity should
not be driven at continuous speeds above 75 mph
(120 km/h).
WARNING: OVER OR UNDER INFLATED TIRES CAN
AFFECT VEHICLE HANDLING AND CAN FAIL SUD-
DENLY, RESULTING IN LOSS OF VEHICLE CON-
TROL.
REPLACEMENT TIRES
OEM tires provide a proper balance of many fea-
tures such as;
²Ride
Fig. 1 Tire Size Identification
Fig. 2 Under Inflation Wear
Fig. 3 Over Inflation Wear
22 - 2 WHEELS AND TIRESJ

INDEX, DIAGRAM; FRONT LIGHTING
(XJ).............................8W-50-2
INDEX, DIAGRAM; FRONT LIGHTING
(XJ-RHD).........................8W-50-3
INDEX, DIAGRAM; FRONT LIGHTING
(YJ).............................8W-50-2
INDEX, DIAGRAM; FUEL/IGNITION (YJ) . 8W-30-5
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(XJ).............................8W-10-1
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(XJ-RHD).........................8W-10-1
INDEX, DIAGRAM; FUSE/FUSE BLOCK
(YJ).............................8W-10-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (XJ)................8W-15-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (XJ-RHD)............8W-15-1
INDEX, DIAGRAM; GROUND
DISTRIBUTION (YJ)................8W-15-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (XJ).....................8W-48-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (XJ-RHD).................8W-48-1
INDEX, DIAGRAM; HEATED REAR
WINDOW (YJ).....................8W-48-1
INDEX, DIAGRAM; HORN/CIGAR
LIGHTER............................8E-1
INDEX, DIAGRAM; HORN/CIGAR
LIGHTER (YJ).....................8W-41-1
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (XJ).............8W-40-1,8W-40-3
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-3
INDEX, DIAGRAM; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(XJ).............................8W-44-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-2
INDEX, DIAGRAM; INTERIOR LIGHTING
(YJ).............................8W-44-2
INDEX, DIAGRAM; OVERHEAD CONSOLE
(XJ).............................8W-49-1
INDEX, DIAGRAM; OVERHEAD CONSOLE
(XJ-RHD).........................8W-49-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (XJ)................8W-11-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (XJ-RHD)............8W-11-1
INDEX, DIAGRAM; POWER
DISTRIBUTION (YJ)................8W-11-1
INDEX, DIAGRAM; POWER DOOR LOCKS
(XJ).............................8W-61-1
INDEX, DIAGRAM; POWER DOOR LOCKS
(XJ-RHD).........................8W-61-1
INDEX, DIAGRAM; POWER MIRRORS
(XJ).............................8W-62-1
INDEX, DIAGRAM; POWER MIRRORS
(XJ-RHD).........................8W-62-1
INDEX, DIAGRAM; POWER SEAT (XJ) . . 8W-63-1
INDEX, DIAGRAM; POWER SEAT
(XJ-RHD).........................8W-63-1
INDEX, DIAGRAM; POWER WINDOWS
(XJ).............................8W-60-2
INDEX, DIAGRAM; POWER WINDOWS
(XJ-RHD).........................8W-60-2
INDEX, DIAGRAM; REAR LIGHTING
(XJ).............................8W-51-1
INDEX, DIAGRAM; REAR LIGHTING
(XJ-RHD).........................8W-51-1
INDEX, DIAGRAM; REAR LIGHTING
(YJ).............................8W-51-1
INDEX, DIAGRAM; STARTING SYSTEM
(XJ).............................8W-21-1
INDEX, DIAGRAM; STARTING SYSTEM
(XJ-RHD).........................8W-21-1
INDEX, DIAGRAM; STARTING SYSTEM
(YJ).............................8W-21-1
INDEX, DIAGRAM; TRAILER TOW (XJ) . . 8W-54-1
INDEX, DIAGRAM; TRAILER TOW
(XJ-RHD)
.........................8W-54-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (XJ)
...................8W-31-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (XJ-RHD)
...............8W-31-1
INDEX, DIAGRAM; TRANSMISSION
CONTROLS (YJ)
...................8W-31-1
INDEX, DIAGRAM; TURN SIGNALS (XJ)
. 8W-52-1INDEX, DIAGRAM; TURN SIGNALS
(XJ-RHD).........................8W-52-1
INDEX, DIAGRAM; TURN SIGNALS (YJ) . 8W-52-1
INDEX, DIAGRAM; VEHICLE SPEED
CONTROL (XJ)....................8W-33-1
INDEX, DIAGRAM; VEHICLE SPEED
CONTROL (XJ-RHD)................8W-33-1
INDEX, DIAGRAM; WIPERS (XJ).......8W-53-2
INDEX, DIAGRAM; WIPERS (XJ-RHD) . . 8W-53-2
INDEX, DIAGRAM; WIPERS (YJ).......8W-53-2
INDEX, DIAGRAM; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
INDEX, GROUP; COOLING SYSTEM.......8E-1
INDEX, GROUP; INSTRUMENT PANEL
AND GAUGES........................8E-1
INDEX, SPLICE; SPLICE INFORMATION
(XJ).............................8W-70-1
INDEX, SPLICE; SPLICE INFORMATION
(XJ-RHD).........................8W-70-1
INDEX, SPLICE; SPLICE INFORMATION
(YJ).............................8W-70-1
INDEXÐ2.5L ENGINE, DIAGRAM......8W-30-6
INDEXÐ4.0L ENGINE, DIAGRAM......8W-30-6
INDICATOR LAMP, CHARGING SYSTEM . 8W-40-3
INDICATOR LAMP, HIGH-BEAM;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMP, HIGH-BEAM;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (XJ)................8W-30-5
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (YJ)................8W-30-5
INDICATOR LAMP (MIL), MALFUNCTION;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMP (MIL), MALFUNCTION;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-1
INDICATOR LAMP (MIL), MALFUNCTION;
FUEL/IGNITION (XJ-RHD)............8W-30-4
INDICATOR LAMPÐPCM OUTPUT,
MALFUNCTION......................14-28
INDICATOR LAMPS.....8E-12,8E-25,8E-32,8E-3
INDICATOR LAMPS, TURN SIGNAL;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR LAMPS, TURN SIGNAL;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATOR (SRI) LAMP, SERVICE
REMINDER..........................25-1
INDICATOR WARNING LAMP, SEAT BELT;
INSTRUMENT CLUSTER (XJ).........8W-40-2
INDICATOR WARNING LAMP, SEAT BELT;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
INDICATORÐPCM OUTPUT, SHIFT.......14-29
INDICATORS, TREAD WEAR.............22-3
INFLATION PRESSURES, TIRE...........22-2
INFORMATIONÐXJ, DOME/COURTESY
LAMP SERVICE......................8L-16
INFORMATIONÐXJ, UNDERHOOD LAMP
SERVICE...........................8L-12
INFORMATIONÐYJ, DOME/COURTESY
LAMP SERVICE......................8L-31
INFORMATIONÐYJ, SOFT TOP SERVICE . 23-127
INFORMATIONÐYJ, UNDERHOOD LAMP
SERVICE...........................8L-28
INITIALIZATION, ABS SYSTEM
POWER-UP..........................5-35
INJECTION (MFI)ÐCOMPONENT
DESCRIPTION/SYSTEM OPERATION,
MULTI-PORT FUEL...................14-19
INJECTION (MFI)ÐCOMPONENT
REMOVAL/INSTALLATION, MULTI-PORT
FUEL..............................14-58
INJECTION (MFI)ÐGENERAL
DIAGNOSIS, MULTI-PORT FUEL.........14-35
INJECTOR DIAGNOSISÐVEHICLE RUNS
ROUGH AND/OR HAS A MISS...........14-52
INJECTOR, FUEL.....................14-60
INJECTOR TEST, FUEL.................14-51
INJECTORS, FUEL; FUEL/IGNITION (XJ) . 8W-30-1
INJECTORS, FUEL; FUEL/IGNITION (YJ) . 8W-30-2
INJECTORS, FUEL; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
INJECTORSÐPCM OUTPUT, FUEL
.......14-27
IN-LINE FUSE
........................8F-1
INNER AXLE SHAFT OIL SEAL
REPLACEMENT
.......................2-35
INNER SCUFF PLATE/COWL SIDE TRIM
PANELÐXJ, FRONT
...................23-86
INNER SPLASH SHIELDSÐYJ, FENDER
. . 23-116INPUT, AIR CONDITIONING (A/C)
CONTROLSÐPCM....................14-21
INPUT, AUTOMATIC SHUTDOWN (ASD)
SENSEÐPCM.......................14-21
INPUT, BATTERY VOLTAGEÐPCM........14-21
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
INPUT, BRAKE SWITCH; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
INPUT, BRAKE SWITCH; FUEL/IGNITION
(XJ).............................8W-30-5
INPUT, BRAKE SWITCH; FUEL/IGNITION
(YJ).............................8W-30-5
INPUT, BRAKE SWITCH; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
INPUT, BRAKE SWITCHÐPCM..........14-22
INPUT, CAMSHAFT POSITION SENSORÐ
PCM...............................14-22
INPUT, CRANKSHAFT POSITION
SENSORÐPCM......................14-22
INPUT, DATA LINK CONNECTORÐPCM . . . 14-22
INPUT, ENGINE COOLANT
TEMPERATURE SENSORÐPCM.........14-23
INPUT, EXTENDED IDLE SWITCHÐPCM . . . 14-23
INPUT, IGNITION CIRCUIT SENSEÐPCM . . 14-23
INPUT, INTAKE MANIFOLD AIR
TEMPERATURE SENSORÐPCM.........14-22
INPUT, MANIFOLD ABSOLUTE
PRESSURE (MAP) SENSORÐPCM.......14-23
INPUT, OXYGEN (O2S) SENSORÐPCM.....14-24
INPUT, PARK/NEUTRAL SWITCHÐPCM . . . 14-24
INPUT, POWER STEERING PRESSURE
SWITCHÐPCM......................14-24
INPUT, SCI RECEIVEÐPCM............14-24
INPUT, SENSOR RETURNÐPCM.........14-25
INPUT SIGNALS, WHEEL/TIRE SIZE........5-3
INPUT, SPEED CONTROLÐPCM.........14-25
INPUT, THROTTLE POSITION SENSOR
(TPS)ÐPCM........................14-25
INPUT, VEHICLE SPEED SENSORÐPCM . . 14-25
INSERTÐXJ, REAR QUARTER WINDOW
GLASS/REAR QUARTER PLASTIC........23-73
INSIDE LATCH RELEASE AND LOCK
RODSÐXJ, DOOR....................23-50
INSIDE RELEASE AND LOCK HANDLEÐ
YJ, FULL-METAL DOOR LATCH.........23-137
INSPECTION AND ADJUSTMENT,
PRELIMINARY......................21-176
INSPECTION AND DIAGNOSIS CHARTS.....6-4
INSPECTION AND PARK LOCK
COMPONENT OVERHAUL, ADAPTER/
EXTENSION HOUSING................21-127
INSPECTION, CALIPER CLEANING........5-50
INSPECTION (ENGINE OIL LEAKS IN
GENERAL)............................9-6
INSPECTION, GEAR CLEANING..........19-42
INSPECTION, OVERHAUL CLEANING....21-294,
21-318
INSPECTION, PRE-ALIGNMENT............2-6
INSPECTION, RUBBER AND PLASTIC
COMPONENT.........................0-20
INSPECTION, TORQUE CONVERTER
STATOR CLUTCH....................21-199
INSPECTION, TRANSMISSION CASE
CLEANING.........................21-125
INSPECTION, VALVE BODY
DISASSEMBLY......................21-147
INSTALLATION, 30RH/32RH
TRANSMISSION REMOVAL............21-115
INSTALLATION, ACCELERATION SWITCH . . . 5-39
INSTALLATION AND ADJUSTMENT, REAR
WHEEL SENSOR......................5-38
INSTALLATION, AW-4 TRANSMISSION
REMOVAL.........................21-198
INSTALLATION, BRAKE PEDAL...........5-31
INSTALLATION, BRAKELIGHT SWITCH.....5-32
INSTALLATION, CALIPER................5-51
INSTALLATION, CLUTCH COVER AND
DISC...............................6-10
INSTALLATION, CLUTCH HYDRAULIC
LINKAGE
............................6-14
INSTALLATION, CLUTCH PEDAL
..........6-15
INSTALLATION, DIFFERENTIAL
...........2-44
INSTALLATION, DIFFERENTIAL
MEASUREMENT
.......................3-25
INSTALLATION, DISC BRAKESHOE
........5-47
14 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

POSITION SENSOR TEST, CRANKSHAFT;
FUEL SYSTEM.......................14-47
POSITION SENSOR TEST, CRANKSHAFT;
IGNITION SYSTEMS...................8D-7
POSITION SENSOR TEST, THROTTLE.....8D-15
POSITION SENSOR, THROTTLE;
FUEL/IGNITION (XJ)................8W-30-4
POSITION SENSOR, THROTTLE;
FUEL/IGNITION (YJ)................8W-30-4
POSITION SENSOR, THROTTLE;
IGNITION SYSTEMS...................8D-5
POSITION SENSOR, THROTTLE;
FUEL/IGNITION (XJ-RHD)............8W-30-4
POSITION SENSOR (TPS) SERVICE,
THROTTLE.........................21-193
POSITION SENSOR (TPS) TEST,
THROTTLE..........................14-48
POSITION SENSOR (TPS), THROTTLE;
FUEL SYSTEM.......................14-65
POSITION SENSOR (TPS), THROTTLE;
IGNITION SYSTEMS..................8D-25
POSITION SENSOR (TPS)ÐPCM INPUT,
THROTTLE..........................14-25
POSITION SENSORÐPCM INPUT,
CAMSHAFT.........................14-22
POSITION SENSORÐPCM INPUT,
CRANKSHAFT.......................14-22
POSITION SWITCH, PARK/NEUTRAL;
FUEL/IGNITION (XJ)................8W-30-4
POSITION SWITCH, PARK/NEUTRAL;
FUEL/IGNITION (YJ)................8W-30-4
POSITION SWITCH, PARK/NEUTRAL;
TRANSMISSION AND TRANSFER CASE . . 21-183
POSITION SWITCH, PARK/NEUTRAL;
FUEL/IGNITION (XJ-RHD)............8W-30-4
POSITION SWITCH SERVICE, PARK/
NEUTRAL..........................21-109
POSITIONS, TRANSMISSION RANGES
AND SHIFT LEVER...................21-166
POWER ANTENNA; RADIO (XJ-RHD) . . . 8W-47-1
POWER BOOSTER CHECK VALVE TEST.....5-9
POWER BOOSTER VACUUM TEST.........5-9
POWER BRAKE BOOSTER INSTALLATION
(XJ WITH ABS).......................5-27
POWER BRAKE BOOSTER INSTALLATION
(XJ WITHOUT ABS)....................5-30
POWER BRAKE BOOSTER INSTALLATION
(YJ)................................5-30
POWER BRAKE BOOSTER OPERATION.....5-23
POWER BRAKE BOOSTER REMOVAL (XJ
WITH ABS)..........................5-24
POWER BRAKE BOOSTER REMOVAL (XJ
WITHOUT ABS).......................5-29
POWER BRAKE BOOSTER REMOVAL (YJ) . . 5-30
POWER BRAKE BOOSTERÐBRAKE
PEDALÐBRAKELIGHT SWITCH..........5-22
POWER BRAKE SYSTEM................0-30
POWER (DEVICE) GROUND; FUEL/
IGNITION (XJ).....................8W-30-5
POWER (DEVICE) GROUND; FUEL/
IGNITION (YJ).....................8W-30-5
POWER (DEVICE) GROUND; FUEL/
IGNITION (XJ-RHD)................8W-30-5
POWER DOOR LOCKS; POWER DOOR
LOCKS (XJ).......................8W-61-1
POWER DOOR LOCKS; POWER DOOR
LOCKS (XJ-RHD)..................8W-61-1
POWER GROUND....................14-24
POWER LOCK MOTOR.............8P-1,8P-7
POWER LOCK MOTOR REMOVE/INSTALL
. . 8P-8
POWER LOCK SWITCH
.................8P-1
POWER LOCK SWITCH, PASSENGER'S
....8P-6
POWER LOCK SWITCH REMOVE/
INSTALL
............................8P-8
POWER LOCK SWITCHÐ2-DOOR (LHD),
DRIVER'S
...........................8P-3
POWER LOCK SWITCHÐ2-DOOR (RHD),
DRIVER'S
...........................8P-4
POWER LOCK SWITCHÐ4-DOOR,
DRIVER'S
...........................8P-5
POWER LOCK SYSTEM
.................8P-2
POWER LOCK/UNLOCK RELAY
REMOVE/INSTALL
....................8P-12
POWER LOCK/UNLOCK RELAYS
..........8P-1
POWER MIRROR
......................8T-1
POWER MIRROR REMOVE/INSTALL
.......8T-4
POWER MIRROR SWITCH
...........8T-1,8T-2POWER MIRROR SWITCH CONTINUITY
(LEFT POSITION)......................8T-3
POWER MIRROR SWITCH CONTINUITY
(RIGHT POSITION)....................8T-3
POWER MIRROR SWITCH REMOVE/
INSTALL.............................8T-4
POWER MIRROR SYSTEM..............8T-1
POWER MIRRORS; POWER MIRRORS
(XJ).............................8W-62-1
POWER MIRRORS; POWER MIRRORS
(XJ-RHD).........................8W-62-1
POWER RELAY, ABS; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
POWER RELAY, ABS; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
POWER RELAY, ABS; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
POWER SEAT; POWER SEAT (XJ)......8W-63-1
POWER SEAT; POWER SEAT (XJ-RHD) . 8W-63-1
POWER SEAT ADJUSTER/MOTORS . . . 8R-1,8R-2
POWER SEAT ADJUSTER/MOTORS
REMOVE/INSTALL.....................8R-3
POWER SEAT SWITCH.............8R-1,8R-2
POWER SEAT SWITCH CONTINUITY......8R-2
POWER SEAT SWITCH REMOVE/INSTALL . . 8R-3
POWER STEERING GEAR..............19-78
POWER STEERING GEAR,
RECIRCULATING BALL................19-21
POWER STEERING GEAR
SPECIFICATIONS.....................19-36
POWER STEERING GEARS,
RECIRCULATING-BALL................19-74
POWER STEERING PRESSURE SWITCH;
FUEL/IGNITION (XJ)................8W-30-5
POWER STEERING PRESSURE SWITCH;
FUEL/IGNITION (YJ)................8W-30-4
POWER STEERING PRESSURE
SWITCHÐ2.5L ENGINE ONLY...........14-63
POWER STEERING PRESSURE
SWITCHÐPCM INPUT................14-24
POWER STEERING PUMP....19-11,19-74,19-78
POWER STEERING PUMPÐINITIAL
OPERATION.........................19-15
POWER STEERING SYSTEM.............0-29
POWER STEERING SYSTEM DIAGNOSIS . . . 19-3,
19-4,19-5,19-6,19-7,19-8,19-9
POWER WINDOW MOTOR..........8S-1,8S-2
POWER WINDOW MOTOR REMOVE/
INSTALL............................8S-7
POWER WINDOW SWITCH..........8S-1,8S-2
POWER WINDOW SWITCH,
PASSENGER'S........................8S-6
POWER WINDOW SWITCH REMOVE/
INSTALL............................8S-7
POWER WINDOW SWITCHÐ2-DOOR
(LHD), DRIVER'S......................8S-4
POWER WINDOW SWITCHÐ2-DOOR
(RHD), DRIVER'S.....................8S-5
POWER WINDOW SWITCHÐ4-DOOR,
DRIVER'S...........................8S-3
POWER WINDOWS; POWER WINDOWS
(XJ).............................8W-60-1
POWER WINDOWS; POWER WINDOWS
(XJ-RHD).........................8W-60-1
POWERTRAIN CONTROL MODULE....8H-1,8H-7
POWERTRAIN CONTROL MODULE
(PCM); EMISSION CONTROL SYSTEMS....25-7
POWERTRAIN CONTROL MODULE
(PCM); FUEL SYSTEM............14-20,14-64
POWERTRAIN CONTROL MODULE
(PCM); IGNITION SYSTEMS . . . 8D-11,8D-23,8D-5
POWERTRAIN CONTROL MODULE (PCM)
60-WAY CONNECTOR.................14-40
POWER-UP AND INITIALIZATION, ABS
SYSTEM............................5-35
PRE-ALIGNMENT INSPECTION............2-6
PRECAUTIONS...................16-10,16-8
PRECAUTIONS AND WARNINGS, SAFETY . . 13-10
PRECAUTIONS, BRAKE SAFETY...........5-2
PRECAUTIONS, CLUTCH SAFETY.........6-10
PRECAUTIONS, REFRIGERANT
HOSES/TUBES
.......................24-10
PRELIMINARY BRAKE CHECK
.............5-4
PRESSURE AND RETURN HOSE
REPLACEMENT
......................19-11
PRESSURE CAP, RADIATOR
.............7-25
PRESSURE CHART, XJ PERFORMANCE
TEMPERATURE
......................24-13PRESSURE CHART, YJ PERFORMANCE
TEMPERATURE......................24-13
PRESSURE, ENGINE OIL.................9-7
PRESSURE GAUGE, OIL; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
PRESSURE LEAK DOWN TEST, FUEL......14-8
PRESSURE LEAKAGE TEST, CYLINDER
COMBUSTION.........................9-6
PRESSURE LEAKAGE TEST DIAGNOSIS,
CYLINDER COMBUSTION................9-7
PRESSURE (MAP) SENSOR, MANIFOLD
ABSOLUTE; FUEL SYSTEM.............14-63
PRESSURE (MAP) SENSOR, MANIFOLD
ABSOLUTE; FUEL/IGNITION (YJ)......8W-30-4
PRESSURE (MAP) SENSOR, MANIFOLD
ABSOLUTE; IGNITION SYSTEMS....8D-23,8D-5
PRESSURE (MAP) SENSOR TEST,
MANIFOLD ABSOLUTE; FUEL SYSTEM....14-47
PRESSURE (MAP) SENSOR TEST,
MANIFOLD ABSOLUTE; IGNITION
SYSTEMS..........................8D-11
PRESSURE (MAP) SENSORÐPCM
INPUT, MANIFOLD ABSOLUTE...........14-23
PRESSURE REGULATOR, FUEL.....14-33,14-61
PRESSURE RELEASE PROCEDURE, FUEL . . . 14-6
PRESSURE RELEASE PROCEDURE, FUEL
SYSTEM............................14-62
PRESSURE RELIEF/ROLLOVER VALVE . 25-6,25-7
PRESSURE RELIEF/ROLLOVER VALVE,
FUEL TANK....................14-16,14-62
PRESSURE SENSOR, MANIFOLD
ABSOLUTE; FUEL/IGNITION (XJ)......8W-30-4
PRESSURE SENSOR, MANIFOLD
ABSOLUTE; FUEL/IGNITION (XJ-RHD) . . 8W-30-4
PRESSURE SWITCH, POWER STEERING;
FUEL/IGNITION (XJ)................8W-30-5
PRESSURE SWITCH, POWER STEERING;
FUEL/IGNITION (YJ)................8W-30-4
PRESSURE SWITCHÐ2.5L ENGINE
ONLY, POWER STEERING..............14-63
PRESSURE SWITCHÐPCM INPUT,
POWER STEERING...................14-24
PRESSURE TEST, AIR.................21-74
PRESSURE TEST, CYLINDER
COMPRESSION........................9-5
PRESSURE TEST, FUEL SYSTEM....14-51,14-6
PRESSURE TEST SPECIFICATIONS,
30RH/32RH........................21-336
PRESSURE WARNING LAMP, OIL;
INSTRUMENT CLUSTER (XJ).........8W-40-2
PRESSURE WARNING LAMP, OIL;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-1
PRESSURES, TIRE INFLATION...........22-2
PRINTED CIRCUIT REMOVE/INSTALL....8E-19,
8E-40
PROBLEMS, TROUBLESHOOTING
WIRING; WIRING DIAGRAMSÐ
GENERAL INFORMATION (XJ)...........8W-5
PROBLEMS, WHEEL AND TIRE............5-7
PROCEDURESÐXJ, MULTI-FUNCTION
SWITCH TESTING.....................8L-4
PROPELLER SHAFTS...................16-1
PROPELLER SHAFTS AND U-JOINTS.....16-15
PROTECTOR STRIPÐXJ, DOOR EDGE
GUARD/EDGE.......................23-54
PROTECTOR/NOZZLEÐYJ, FUEL FILLER . 23-121
PULLEY REPLACEMENT, DRIVE.........19-13
PUMP CAPACITY TEST, FUEL............14-7
PUMP ELECTRICAL CONTROL, FUEL......14-5
PUMP LEAKAGE DIAGNOSIS............19-10
PUMP MODULE, FUEL; FUEL SYSTEM....14-61,
14-3
PUMP MODULE, FUEL; FUEL/IGNITION
(XJ).............................8W-30-2
PUMP MODULE, FUEL; FUEL/IGNITION
(YJ).............................8W-30-2
PUMP MODULE, FUEL; FUEL/IGNITION
(XJ-RHD).........................8W-30-2
PUMP MOTOR RELAY, ABS; ANTI-LOCK
BRAKES (XJ)
......................8W-32-1
PUMP MOTOR RELAY, ABS; ANTI-LOCK
BRAKES (XJ-RHD)
.................8W-32-1
PUMP MOTOR RELAY, ABS; ANTI-LOCK
BRAKES (YJ)
......................8W-32-1
PUMP MOTOR SPEED SENSOR;
ANTI-LOCK BRAKES (XJ)
............8W-32-2
PUMP MOTOR SPEED SENSOR;
ANTI-LOCK BRAKES (XJ-RHD)
........8W-32-2
JINDEX 21
Description Group-Page Description Group-Page Description Group-Page

TAILGATE LATCH STRIKERÐYJ........23-123
TAILGATE LOCK CYLINDERÐYJ........23-122
TAILGATE WEATHERSTRIP SEALÐYJ....23-123
TAILGATEÐYJ......................23-121
TAILPIPEÐXJ VEHICLES, MUFFLER AND
EXHAUST............................11-5
TAILPIPEÐYJ VEHICLES, MUFFLER AND
EXHAUST............................11-6
TAKE OUTS; WIRING DIAGRAMSÐ
GENERAL INFORMATION (XJ)...........8W-2
TANK CAPACITIES, FUEL..........14-13,14-67
TANK FILLER TUBE CAP, FUEL;
EMISSION CONTROL SYSTEMS......25-4,25-7
TANK FILLER TUBE CAP, FUEL; FUEL
SYSTEM............................14-13
TANK FILLER TUBE, NO-LEAD FUEL......14-13
TANK, FUEL.........................14-13
TANK PRESSURE RELIEF/ROLLOVER
VALVE, FUEL...................14-16,14-62
TANK SKID PLATE, FUEL...........13-15,13-3
TANK SUPPORT STRAP, FUEL............13-4
TANKS, FUEL...................14-13,14-62
TAPPETS, HYDRAULIC.............9-24,9-66
TELL-TALE CLUSTER (LHD)............8E-10
TEMPERATURE AND PRESSURE CHART,
XJ PERFORMANCE...................24-13
TEMPERATURE AND PRESSURE CHART,
YJ PERFORMANCE...................24-13
TEMPERATURE CONTROL THERMOSTAT . . 24-34
TEMPERATURE GAUGE, ENGINE
COOLANT; INSTRUMENT CLUSTER
(XJ).............................8W-40-1
TEMPERATURE SENSOR, COOLANT.......25-7
TEMPERATURE SENSOR, ENGINE
COOLANT; FUEL SYSTEM..............14-60
TEMPERATURE SENSOR, ENGINE
COOLANT; FUEL/IGNITION (XJ).......8W-30-3
TEMPERATURE SENSOR, ENGINE
COOLANT; FUEL/IGNITION (YJ).......8W-30-3
TEMPERATURE SENSOR, ENGINE
COOLANT; IGNITION SYSTEMS.....8D-19,8D-5
TEMPERATURE SENSOR, ENGINE
COOLANT; FUEL/IGNITION (XJ-RHD) . . . 8W-30-3
TEMPERATURE SENSOR, INTAKE AIR;
FUEL/IGNITION (XJ)................8W-30-4
TEMPERATURE SENSOR, INTAKE AIR;
FUEL/IGNITION (YJ)................8W-30-4
TEMPERATURE SENSOR, INTAKE AIR;
FUEL/IGNITION (XJ-RHD)............8W-30-4
TEMPERATURE SENSOR, INTAKE
MANIFOLD AIR; FUEL SYSTEM..........14-60
TEMPERATURE SENSOR, INTAKE
MANIFOLD AIR; IGNITION SYSTEMS . 8D-23,8D-5
TEMPERATURE, SENSOR RESISTANCE
(OHMS)ÐCOOLANT TEMPERATURE
SENSOR/MANIFOLD AIR...............14-46
TEMPERATURE SENSOR TEST, ENGINE
COOLANT; FUEL SYSTEM..............14-46
TEMPERATURE SENSOR TEST, ENGINE
COOLANT; IGNITION SYSTEMS..........8D-9
TEMPERATURE SENSOR TEST, INTAKE
MANIFOLD AIR; FUEL SYSTEM
..........14-46
TEMPERATURE SENSOR TEST, INTAKE
MANIFOLD AIR; IGNITION SYSTEMS
.....8D-11
TEMPERATURE SENSOR/MANIFOLD AIR
TEMPERATURE, SENSOR RESISTANCE
(OHMS)ÐCOOLANT
..................14-46
TEMPERATURE SENSORÐPCM INPUT,
ENGINE COOLANT
....................14-23
TEMPERATURE SENSORÐPCM INPUT,
INTAKE MANIFOLD AIR
................14-22
TEMPERATURE WARNING LAMP, ENGINE
COOLANT; INSTRUMENT CLUSTER
(XJ)
.............................8W-40-1
TEMPERATURE WARNING LAMP, ENGINE
COOLANT; INSTRUMENT CLUSTER
(XJ-RHD)
.........................8W-40-1
TENSION, DRIVE BELT
.................7-45
TENSION SPECIFICATIONS, BELT
.........7-38
TENSIONER ADJUSTMENT (XJ/YJ),
PARKING BRAKE CABLE
................5-69
TENSIONER REPLACEMENT (XJ),
PARKING BRAKE CABLE
................5-66
TENSIONERÐXJ MODELS WITH RIGHT
HAND DRIVE, AUTOMATIC BELT
..........7-42
TENSIONÐEXCEPT RIGHT HAND DRIVE
(RHD), BELT
.........................7-38TENSIONÐEXCEPT RIGHT HAND DRIVE
(RHD) MODELS, BELT..................7-45
TENSIONÐRIGHT HAND DRIVE (RHD),
BELT ...............................7-38
TERMINAL REPLACEMENT; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-8
TERMINAL REPLACEMENT, CONNECTOR;
WIRING DIAGRAMSÐGENERAL
INFORMATION (XJ)...................8W-7
TERMINAL/CONNECTOR REPAIRÐ
MOLEX CONNECTORS; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-6
TEST, AUTOMATIC SHUTDOWN (ASD)
RELAY..............................8D-6
TEST, CAMSHAFT POSITION SENSOR;
FUEL SYSTEM.......................14-46
TEST, CAMSHAFT POSITION SENSOR;
IGNITION SYSTEMS...................8D-6
TEST, COMPASS/DISPLAY SELF-
DIAGNOSTIC.........................8C-2
TEST, CONVERTER STALL..............21-74
TEST, CRANKSHAFT POSITION SENSOR;
FUEL SYSTEM.......................14-47
TEST, CRANKSHAFT POSITION SENSOR;
IGNITION SYSTEMS...................8D-7
TEST, CYLINDER COMBUSTION
PRESSURE LEAKAGE...................9-6
TEST, CYLINDER COMPRESSION
PRESSURE...........................9-5
TEST DIAGNOSIS, CYLINDER
COMBUSTION PRESSURE LEAKAGE........9-7
TEST, ENGINE COOLANT TEMPERATURE
SENSOR; FUEL SYSTEM................14-46
TEST, ENGINE COOLANT TEMPERATURE
SENSOR; IGNITION SYSTEMS...........8D-9
TEST, EXTENDED IDLE SWITCH.........14-48
TEST, FUEL INJECTOR.................14-51
TEST, FUEL PRESSURE LEAK DOWN......14-8
TEST, FUEL PUMP CAPACITY............14-7
TEST, FUEL SYSTEM PRESSURE....14-51,14-6
TEST, HYDRAULIC PRESSURE....21-177,21-72
TEST, IDLE AIR CONTROL MOTOR.......14-49
TEST, INTAKE MANIFOLD AIR
TEMPERATURE SENSOR; FUEL
SYSTEM............................14-46
TEST, INTAKE MANIFOLD AIR
TEMPERATURE SENSOR; IGNITION
SYSTEMS..........................8D-11
TEST, MANIFOLD ABSOLUTE PRESSURE
(MAP) SENSOR; FUEL SYSTEM.........14-47
TEST, MANIFOLD ABSOLUTE PRESSURE
(MAP) SENSOR; IGNITION SYSTEMS.....8D-11
TEST, MANUAL SHIFTING.............21-177
TEST, MASTER CYLINDER/POWER
BOOSTER............................5-8
TEST, OXYGEN SENSOR (O2S) HEATING
ELEMENT...........................14-48
TEST, POWER BOOSTER CHECK VALVE.....5-9
TEST, POWER BOOSTER VACUUM.........5-9
TEST PROCEDURES, HEATING AND AIR
CONDITIONING......................24-15
TEST, REFRIGERANT SERVICE AND
PERFORMANCE......................24-11
TEST, STARTER MOTOR RELAY.........14-51
TEST, THROTTLE POSITION SENSOR.....8D-15
TEST, THROTTLE POSITION SENSOR
(TPS)..............................14-48
TEST, TORQUE CONVERTER CLUTCH
RELAY
.............................14-48
TEST, TORQUE CONVERTER STALL
.....21-178
TEST, VACUUM SUPPLY
................8H-6
TEST, VEHICLE SPEED SENSOR
.........14-48
TESTING, AUTOMATIC SHUTDOWN
(ASD) RELAY
........................14-46
TESTING COOLING SYSTEM FOR LEAKS
. . . 7-22
TESTING, FUEL PUMP RELAY
...........14-47
TESTING, INTERMITTENT WIPE SWITCH
. . 8K-15
TESTING, NON-INTERMITTENT WIPE
SWITCH
............................8K-14
TESTING PROCEDURESÐXJ, MULTI-
FUNCTION SWITCH
....................8L-4
TESTING REFRIGERANT, LEAK
..........24-11
TESTING, ROAD
.......................5-5
TESTING SPECIFICATIONS, 2.5L
STARTER AND SOLENOID
..............8A-23TESTING SPECIFICATIONS, 4.0L
STARTER AND SOLENOID..............8A-23
TESTING, TRANSMISSION COOLER
FLOW.............................21-113
TESTS, AIR CONDITIONING
PERFORMANCE......................24-12
TESTS, IGNITION SWITCH CONTINUITY . . . 8D-30
TESTS, OXYGEN (O2S) SENSOR........8D-15
TESTS, SYSTEM......................8N-1
TESTS, TROUBLESHOOTING; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-4
TESTS, WATER PUMP..................7-13
THERMOMETER......................8C-1
THERMOMETER DIAGNOSIS.............8C-2
THERMOSTAT........................7-17
THERMOSTAT, TEMPERATURE CONTROL . . 24-34
THERMOSTATIC CONTROL.............24-16
THICKNESS, AW-4 CLUTCH DISC AND
PLATE ............................21-338
THICKNESS, DISC BRAKE ROTOR........5-52
THIS GROUP, HOW TO USE; WIRING
DIAGRAMS (XJ)......................8W-1
THIS GROUP, HOW TO USE; WIRING
DIAGRAMS (XJ-RHD)..................8W-1
THIS GROUP, HOW TO USE; WIRING
DIAGRAMS (YJ)......................8W-1
THREAD NOTATIONÐSAE AND METRIC . Intro.-13
THREADS, REPAIR DAMAGED OR WORN....9-4
THROTTLE BODY.................14-33,14-64
THROTTLE CABLE....................14-17
THROTTLE CABLE, ACCELERATOR
PEDAL........................14-17,14-58
THROTTLE CABLE ADJUSTMENT,
TRANSMISSION.....................21-194
THROTTLE CABLE REPLACEMENT,
TRANSMISSION.....................21-193
THROTTLE POSITION SENSOR;
FUEL/IGNITION (XJ)................8W-30-4
THROTTLE POSITION SENSOR;
FUEL/IGNITION (YJ)................8W-30-4
THROTTLE POSITION SENSOR; IGNITION
SYSTEMS...........................8D-5
THROTTLE POSITION SENSOR;
FUEL/IGNITION (XJ-RHD)............8W-30-4
THROTTLE POSITION SENSOR TEST.....8D-15
THROTTLE POSITION SENSOR (TPS);
FUEL SYSTEM.......................14-65
THROTTLE POSITION SENSOR (TPS);
IGNITION SYSTEMS..................8D-25
THROTTLE POSITION SENSOR (TPS)
SERVICE..........................21-193
THROTTLE POSITION SENSOR (TPS)
TEST..............................14-48
THROTTLE POSITION SENSOR
(TPS)ÐPCM INPUT...................14-25
THROTTLE VALVE CABLE ADJUSTMENT,
TRANSMISSION......................21-71
THROTTLE VALVE CABLE ADJUSTMENT
(XJ/YJ)............................21-101
THROUGH DEEP WATER PUDDLES,
BRAKES DO NOT HOLD AFTER
DRIVING.............................5-7
TIE ROD ......................19-16,19-19
TIGHTENING, WHEEL NUT..........5-54,5-59
TILT STEERING COLUMN..............19-66
TIME LAG TEST.....................21-178
TIME TABLE, BATTERY CHARGING........8A-8
TIMING CASE COVER..............9-31,9-72
TIMING CASE COVER OIL SEAL
REPLACEMENT...................9-30,9-73
TIMING CHAIN AND SPROCKETS.....9-31,9-73
TIMING, IGNITION....................8D-11
TIMING, VALVE...................9-30,9-71
TIPS, TRANSMISSION ASSEMBLY......21-155
TIRE AND WHEEL BALANCE.............22-6
TIRE AND WHEEL RUNOUT.............22-8
TIRE CARRIERÐYJ, EXTERNAL
SPARE/WHEEL......................23-133
TIRE INFLATION PRESSURES............22-2
TIRE NOISE OR VIBRATION.............22-4
TIRE PROBLEMS, WHEEL................5-7
TIRE WEAR PATTERNS
.................22-4
TIRES; LUBRICATION AND
MAINTENANCE
.......................0-32
TIRES; WHEELS AND TIRES
.............22-1
TIRES, CLEANING OF
..................22-2
TIRES, REPLACEMENT
.................22-2
JINDEX 29
Description Group-Page Description Group-Page Description Group-Page
