Page 1577 of 2158

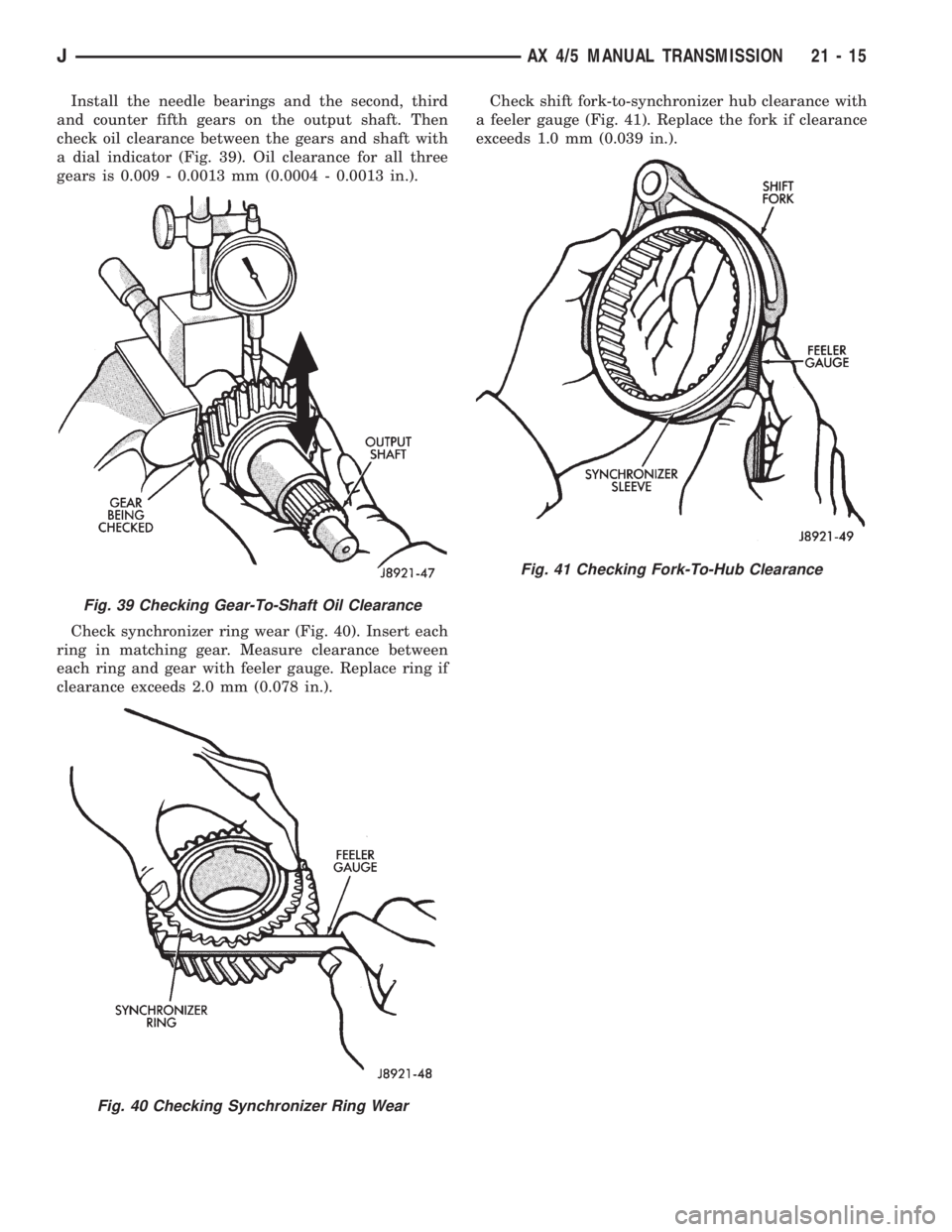

Install the needle bearings and the second, third
and counter fifth gears on the output shaft. Then
check oil clearance between the gears and shaft with
a dial indicator (Fig. 39). Oil clearance for all three
gears is 0.009 - 0.0013 mm (0.0004 - 0.0013 in.).
Check synchronizer ring wear (Fig. 40). Insert each
ring in matching gear. Measure clearance between
each ring and gear with feeler gauge. Replace ring if
clearance exceeds 2.0 mm (0.078 in.).Check shift fork-to-synchronizer hub clearance with
a feeler gauge (Fig. 41). Replace the fork if clearance
exceeds 1.0 mm (0.039 in.).
Fig. 39 Checking Gear-To-Shaft Oil Clearance
Fig. 40 Checking Synchronizer Ring Wear
Fig. 41 Checking Fork-To-Hub Clearance
JAX 4/5 MANUAL TRANSMISSION 21 - 15
Page 1578 of 2158

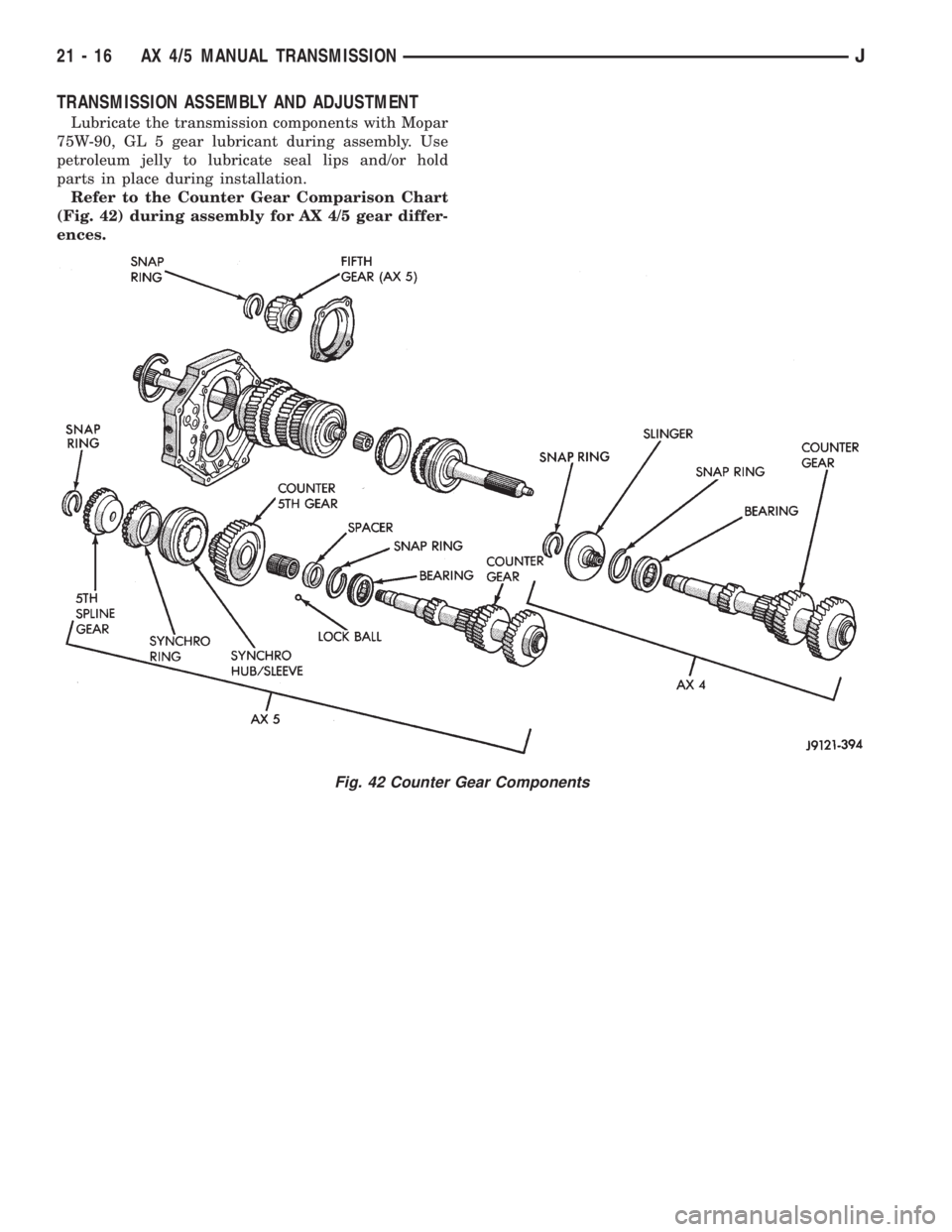

TRANSMISSION ASSEMBLY AND ADJUSTMENT
Lubricate the transmission components with Mopar
75W-90, GL 5 gear lubricant during assembly. Use
petroleum jelly to lubricate seal lips and/or hold
parts in place during installation.
Refer to the Counter Gear Comparison Chart
(Fig. 42) during assembly for AX 4/5 gear differ-
ences.
Fig. 42 Counter Gear Components
21 - 16 AX 4/5 MANUAL TRANSMISSIONJ
Page 1579 of 2158

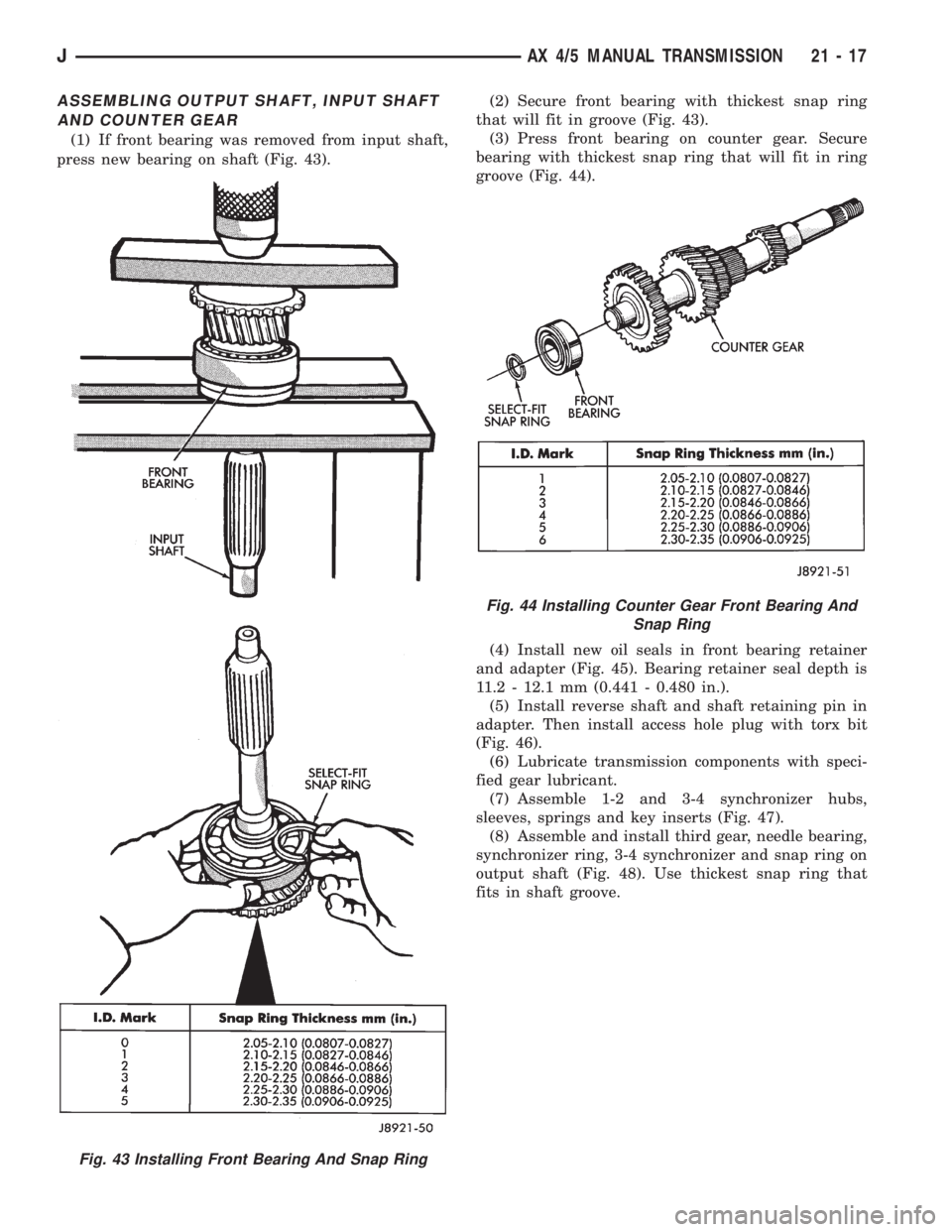

ASSEMBLING OUTPUT SHAFT, INPUT SHAFT
AND COUNTER GEAR
(1) If front bearing was removed from input shaft,
press new bearing on shaft (Fig. 43).(2) Secure front bearing with thickest snap ring
that will fit in groove (Fig. 43).
(3) Press front bearing on counter gear. Secure
bearing with thickest snap ring that will fit in ring
groove (Fig. 44).
(4) Install new oil seals in front bearing retainer
and adapter (Fig. 45). Bearing retainer seal depth is
11.2 - 12.1 mm (0.441 - 0.480 in.).
(5) Install reverse shaft and shaft retaining pin in
adapter. Then install access hole plug with torx bit
(Fig. 46).
(6) Lubricate transmission components with speci-
fied gear lubricant.
(7) Assemble 1-2 and 3-4 synchronizer hubs,
sleeves, springs and key inserts (Fig. 47).
(8) Assemble and install third gear, needle bearing,
synchronizer ring, 3-4 synchronizer and snap ring on
output shaft (Fig. 48). Use thickest snap ring that
fits in shaft groove.
Fig. 43 Installing Front Bearing And Snap Ring
Fig. 44 Installing Counter Gear Front Bearing And
Snap Ring
JAX 4/5 MANUAL TRANSMISSION 21 - 17
Page 1580 of 2158

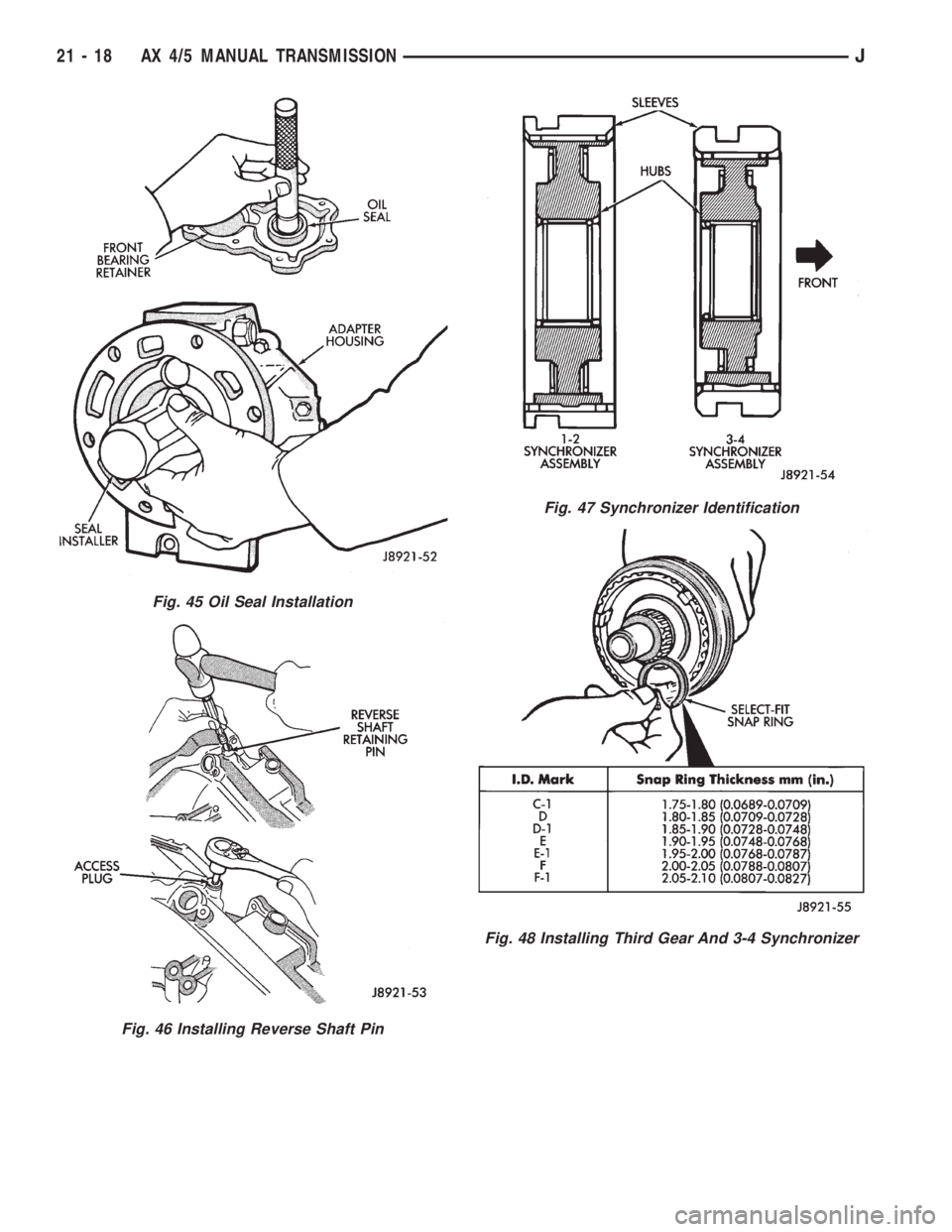

Fig. 45 Oil Seal Installation
Fig. 46 Installing Reverse Shaft Pin
Fig. 47 Synchronizer Identification
Fig. 48 Installing Third Gear And 3-4 Synchronizer
21 - 18 AX 4/5 MANUAL TRANSMISSIONJ
Page 1581 of 2158

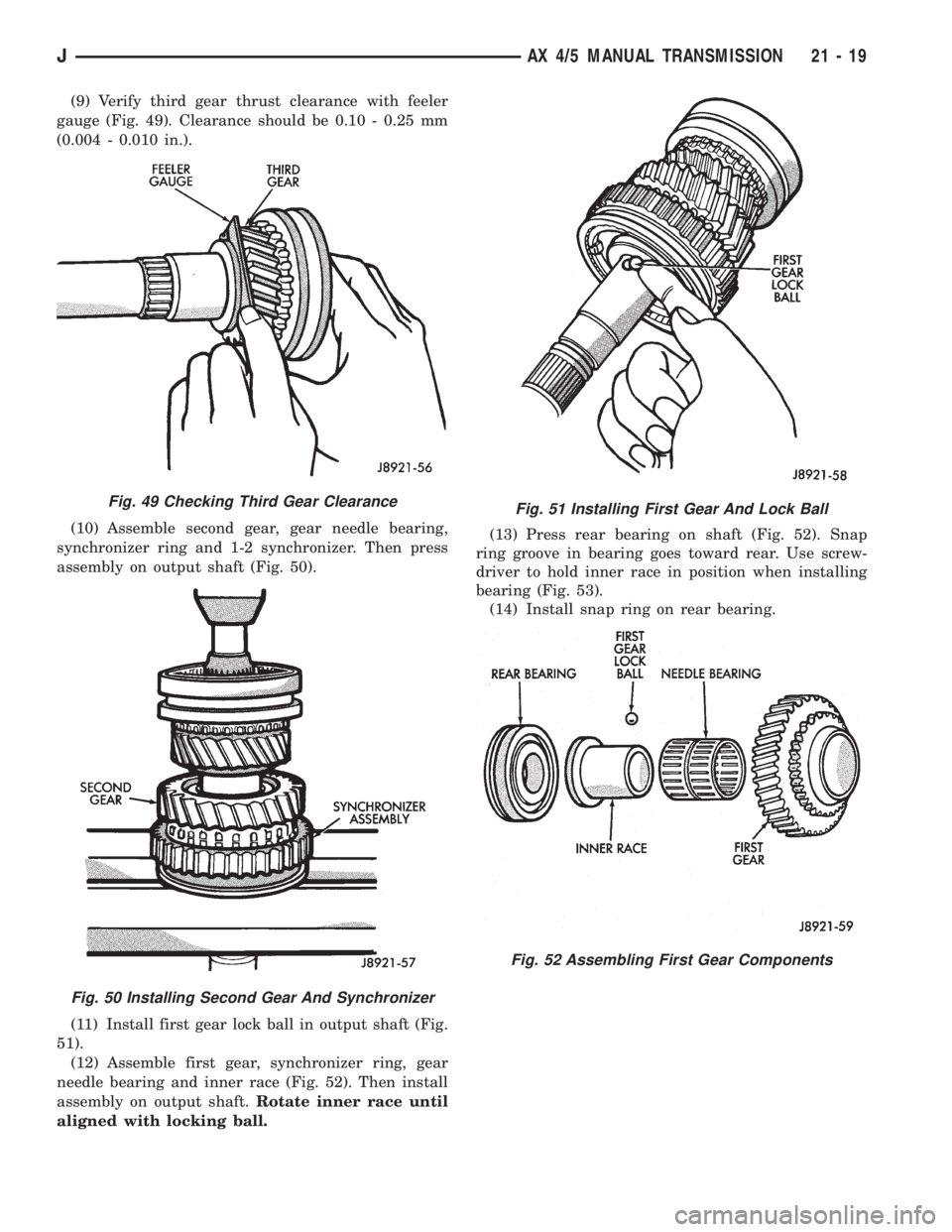

(9) Verify third gear thrust clearance with feeler
gauge (Fig. 49). Clearance should be 0.10 - 0.25 mm
(0.004 - 0.010 in.).
(10) Assemble second gear, gear needle bearing,
synchronizer ring and 1-2 synchronizer. Then press
assembly on output shaft (Fig. 50).
(11) Install first gear lock ball in output shaft (Fig.
51).
(12) Assemble first gear, synchronizer ring, gear
needle bearing and inner race (Fig. 52). Then install
assembly on output shaft.Rotate inner race until
aligned with locking ball.(13) Press rear bearing on shaft (Fig. 52). Snap
ring groove in bearing goes toward rear. Use screw-
driver to hold inner race in position when installing
bearing (Fig. 53).
(14) Install snap ring on rear bearing.
Fig. 49 Checking Third Gear Clearance
Fig. 50 Installing Second Gear And Synchronizer
Fig. 51 Installing First Gear And Lock Ball
Fig. 52 Assembling First Gear Components
JAX 4/5 MANUAL TRANSMISSION 21 - 19
Page 1582 of 2158

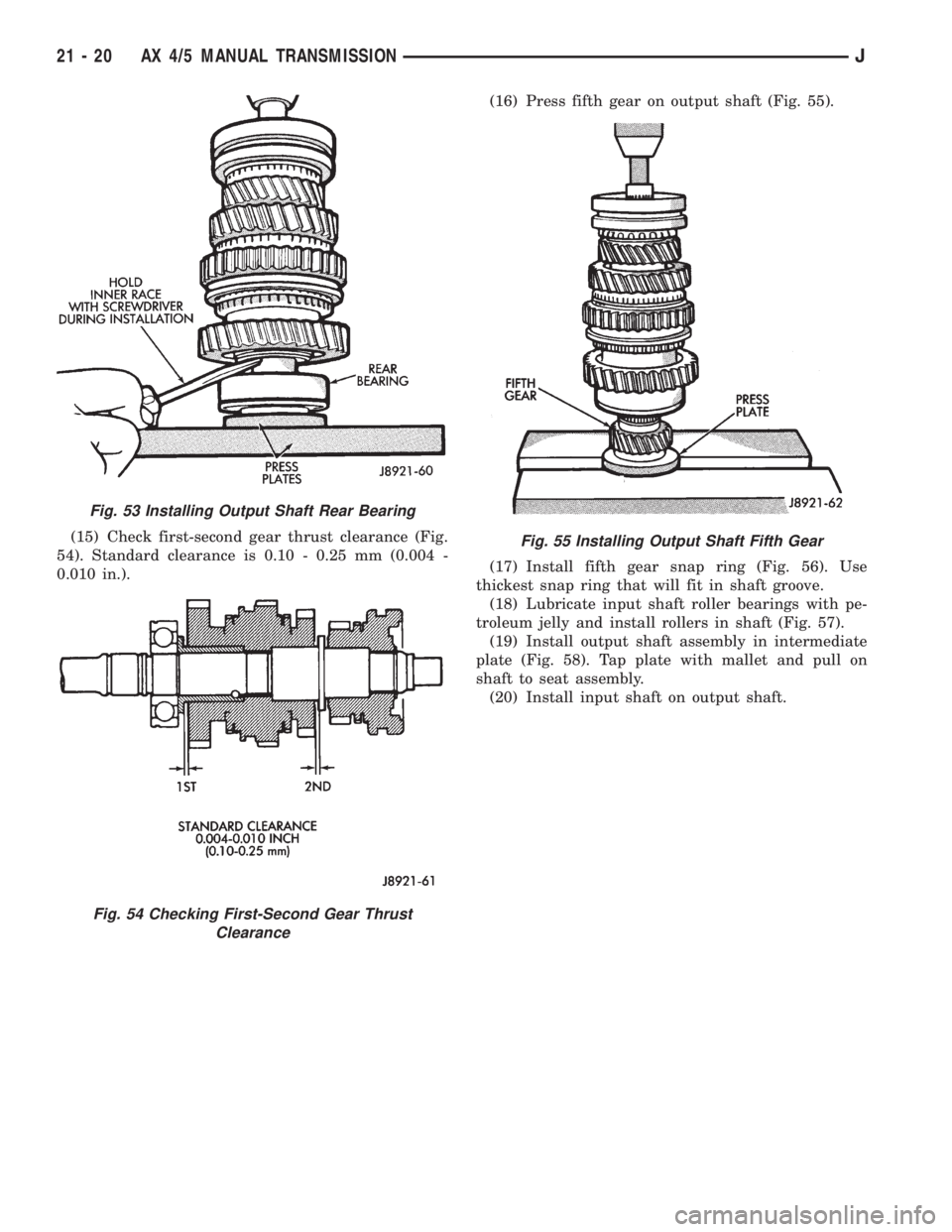

(15) Check first-second gear thrust clearance (Fig.
54). Standard clearance is 0.10 - 0.25 mm (0.004 -
0.010 in.).(16) Press fifth gear on output shaft (Fig. 55).
(17) Install fifth gear snap ring (Fig. 56). Use
thickest snap ring that will fit in shaft groove.
(18) Lubricate input shaft roller bearings with pe-
troleum jelly and install rollers in shaft (Fig. 57).
(19) Install output shaft assembly in intermediate
plate (Fig. 58). Tap plate with mallet and pull on
shaft to seat assembly.
(20) Install input shaft on output shaft.
Fig. 53 Installing Output Shaft Rear Bearing
Fig. 54 Checking First-Second Gear Thrust
Clearance
Fig. 55 Installing Output Shaft Fifth Gear
21 - 20 AX 4/5 MANUAL TRANSMISSIONJ
Page 1583 of 2158

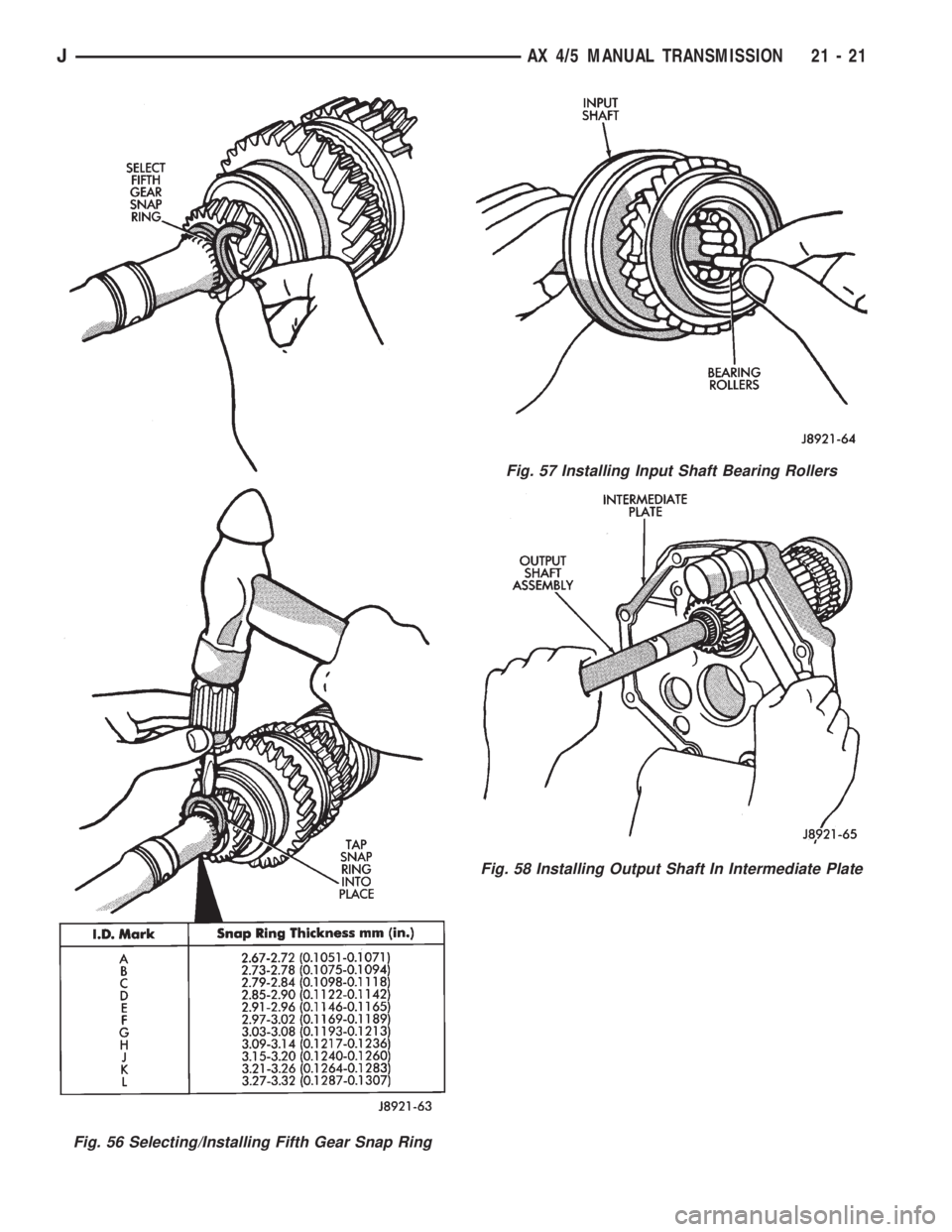

Fig. 56 Selecting/Installing Fifth Gear Snap Ring
Fig. 57 Installing Input Shaft Bearing Rollers
Fig. 58 Installing Output Shaft In Intermediate Plate
JAX 4/5 MANUAL TRANSMISSION 21 - 21
Page 1584 of 2158

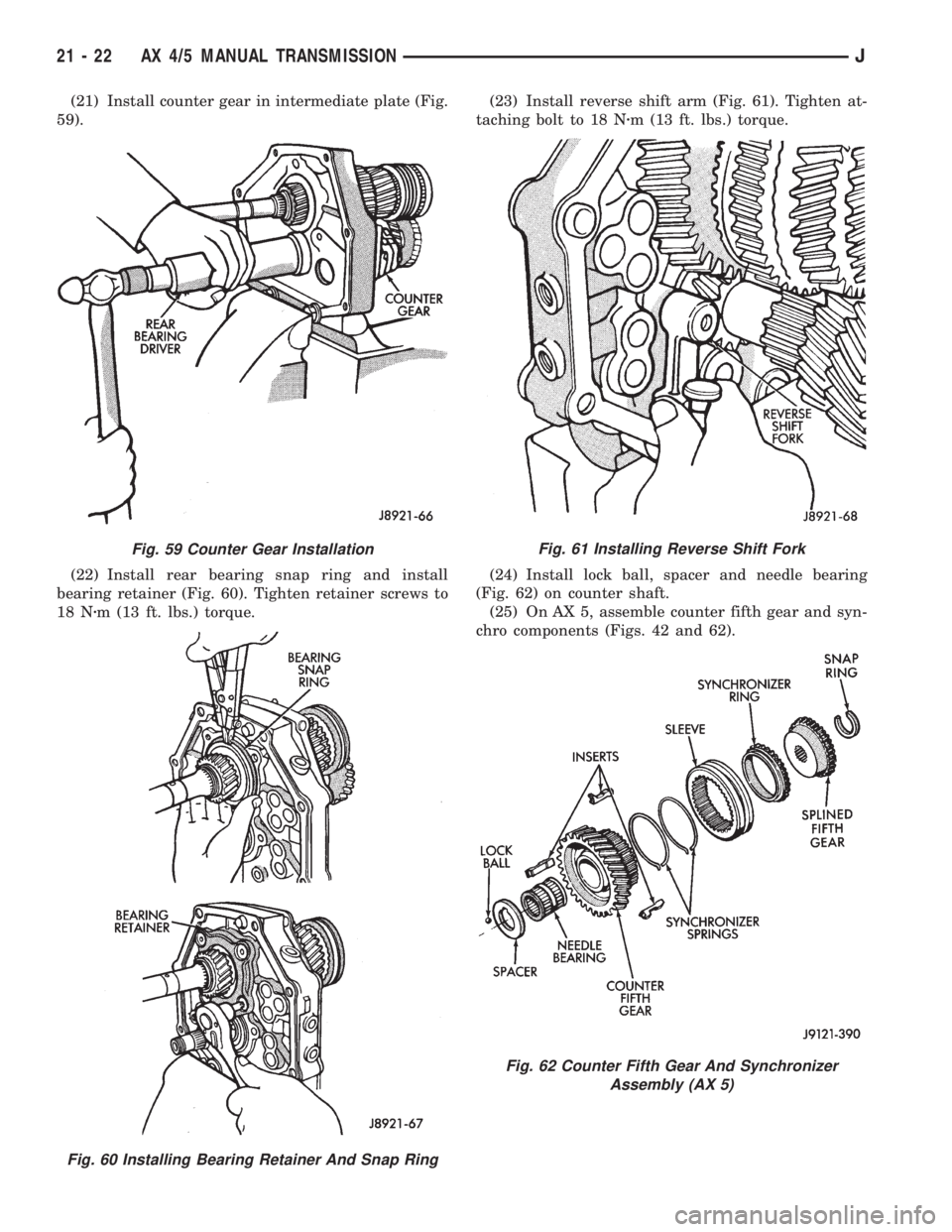

(21) Install counter gear in intermediate plate (Fig.
59).
(22) Install rear bearing snap ring and install
bearing retainer (Fig. 60). Tighten retainer screws to
18 Nzm (13 ft. lbs.) torque.(23) Install reverse shift arm (Fig. 61). Tighten at-
taching bolt to 18 Nzm (13 ft. lbs.) torque.
(24) Install lock ball, spacer and needle bearing
(Fig. 62) on counter shaft.
(25) On AX 5, assemble counter fifth gear and syn-
chro components (Figs. 42 and 62).
Fig. 59 Counter Gear Installation
Fig. 60 Installing Bearing Retainer And Snap Ring
Fig. 61 Installing Reverse Shift Fork
Fig. 62 Counter Fifth Gear And Synchronizer
Assembly (AX 5)
21 - 22 AX 4/5 MANUAL TRANSMISSIONJ
