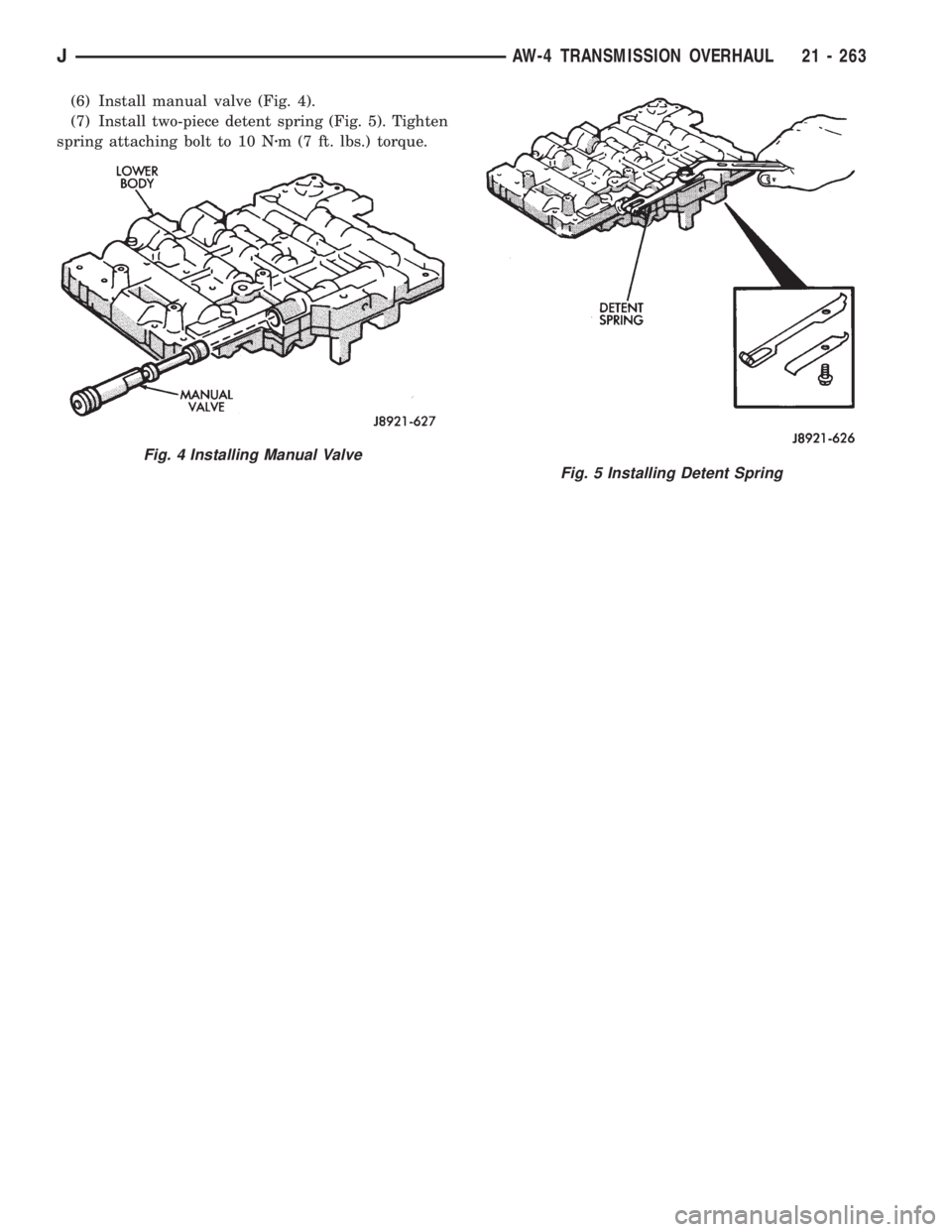

JEEP YJ 1995 Service And Repair Manual (6) Install manual valve (Fig. 4). (7) Install two-piece detent spring (Fig. 5). Tighten spring attaching bolt to 10 Nzm (7 ft. lbs.) torque. Fig. 4 Installing Manual Valve Fig. 5 Installing Detent Sp

Page 1826 of 2158

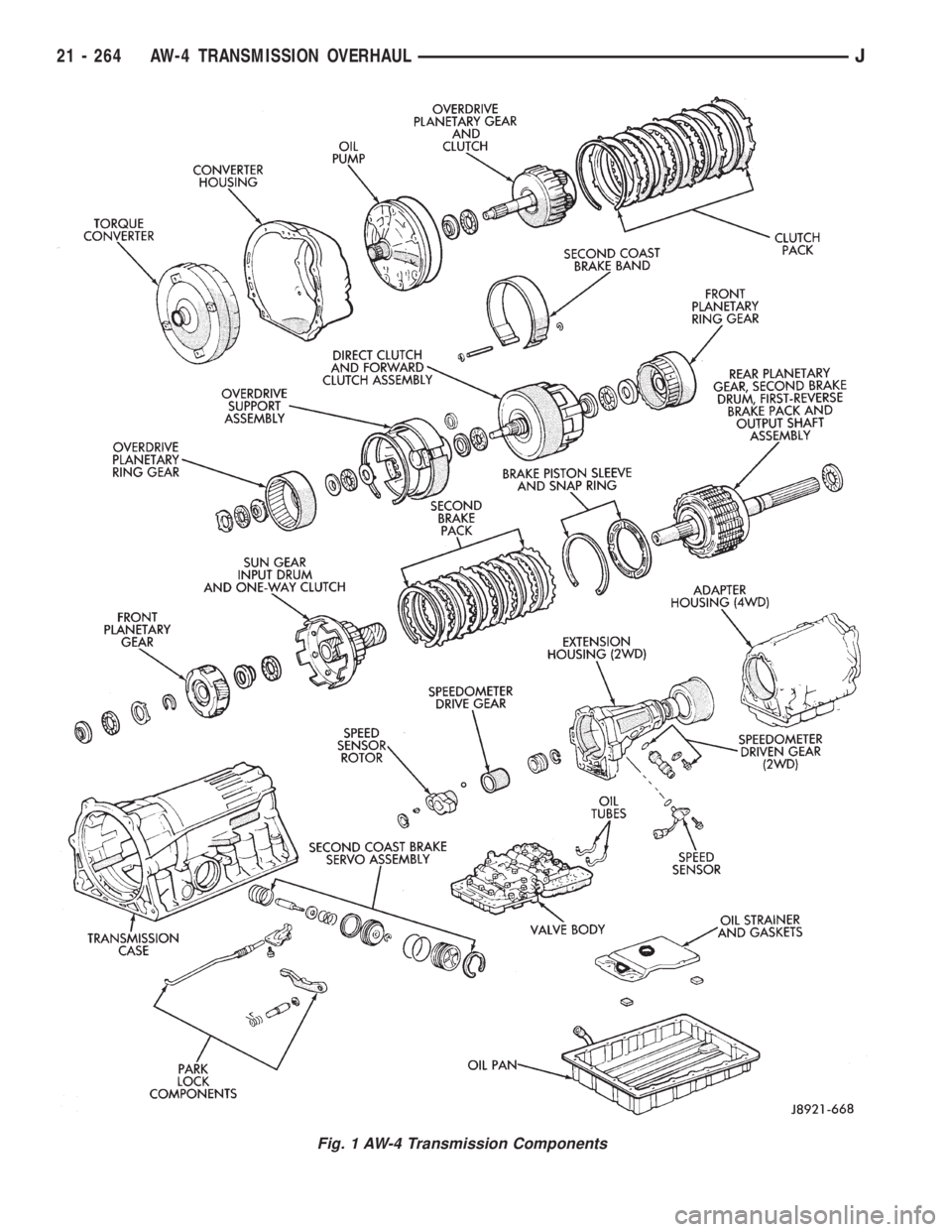

JEEP YJ 1995 Service And Repair Manual Fig. 1 AW-4 Transmission Components 21 - 264 AW-4 TRANSMISSION OVERHAULJ

Page 1827 of 2158

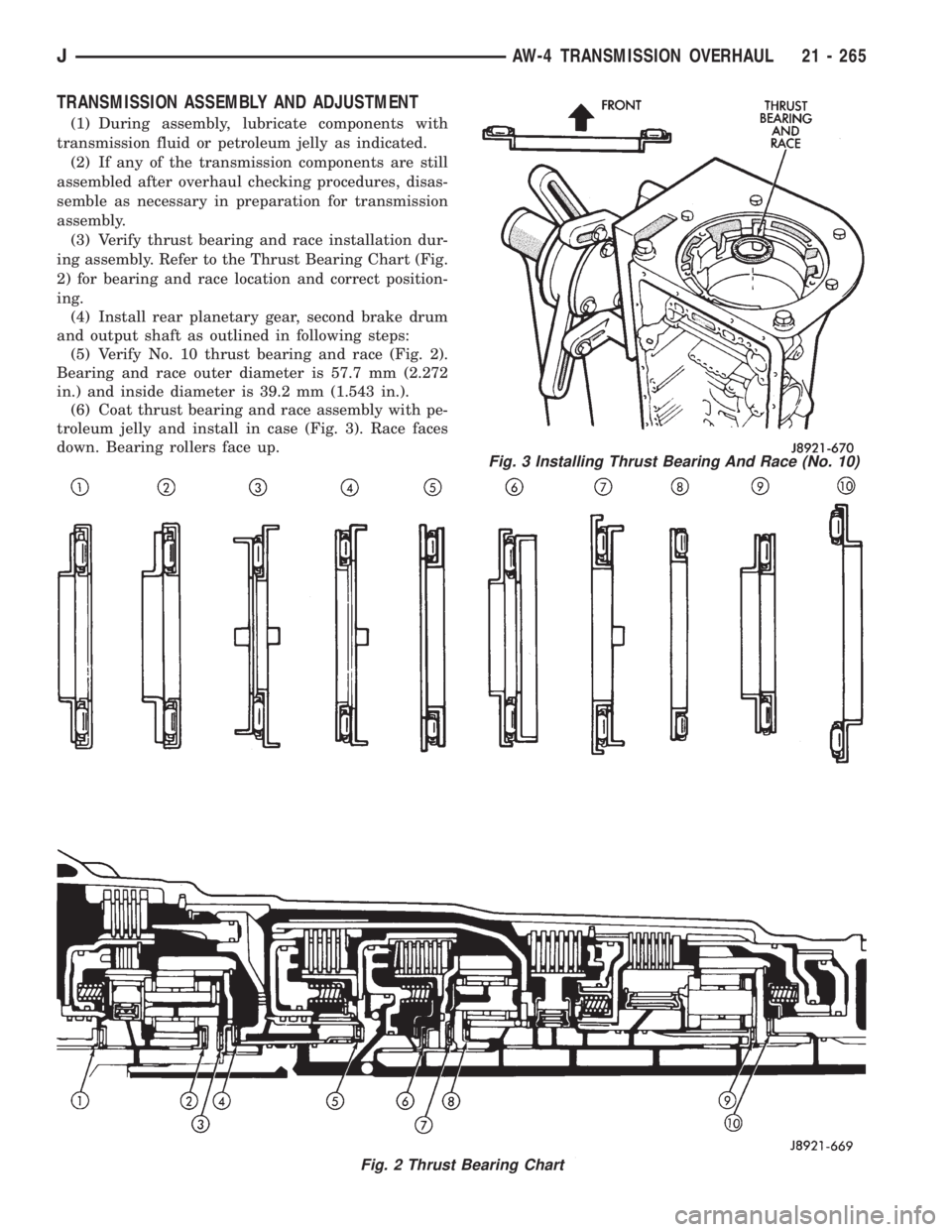

JEEP YJ 1995 Service And Repair Manual TRANSMISSION ASSEMBLY AND ADJUSTMENT (1) During assembly, lubricate components with transmission fluid or petroleum jelly as indicated. (2) If any of the transmission components are still assembled af

Page 1828 of 2158

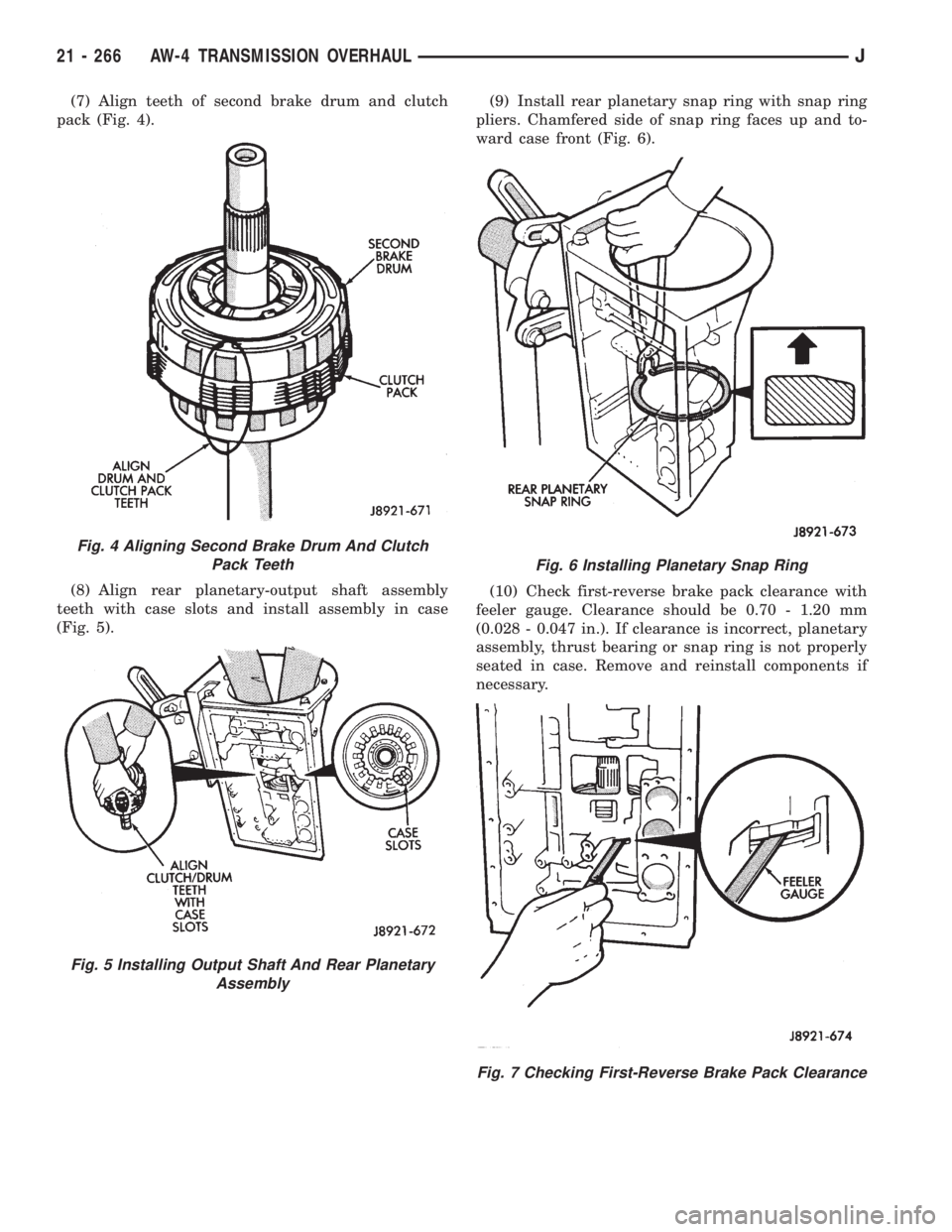

JEEP YJ 1995 Service And Repair Manual (7) Align teeth of second brake drum and clutch pack (Fig. 4). (8) Align rear planetary-output shaft assembly teeth with case slots and install assembly in case (Fig. 5).(9) Install rear planetary sna

Page 1829 of 2158

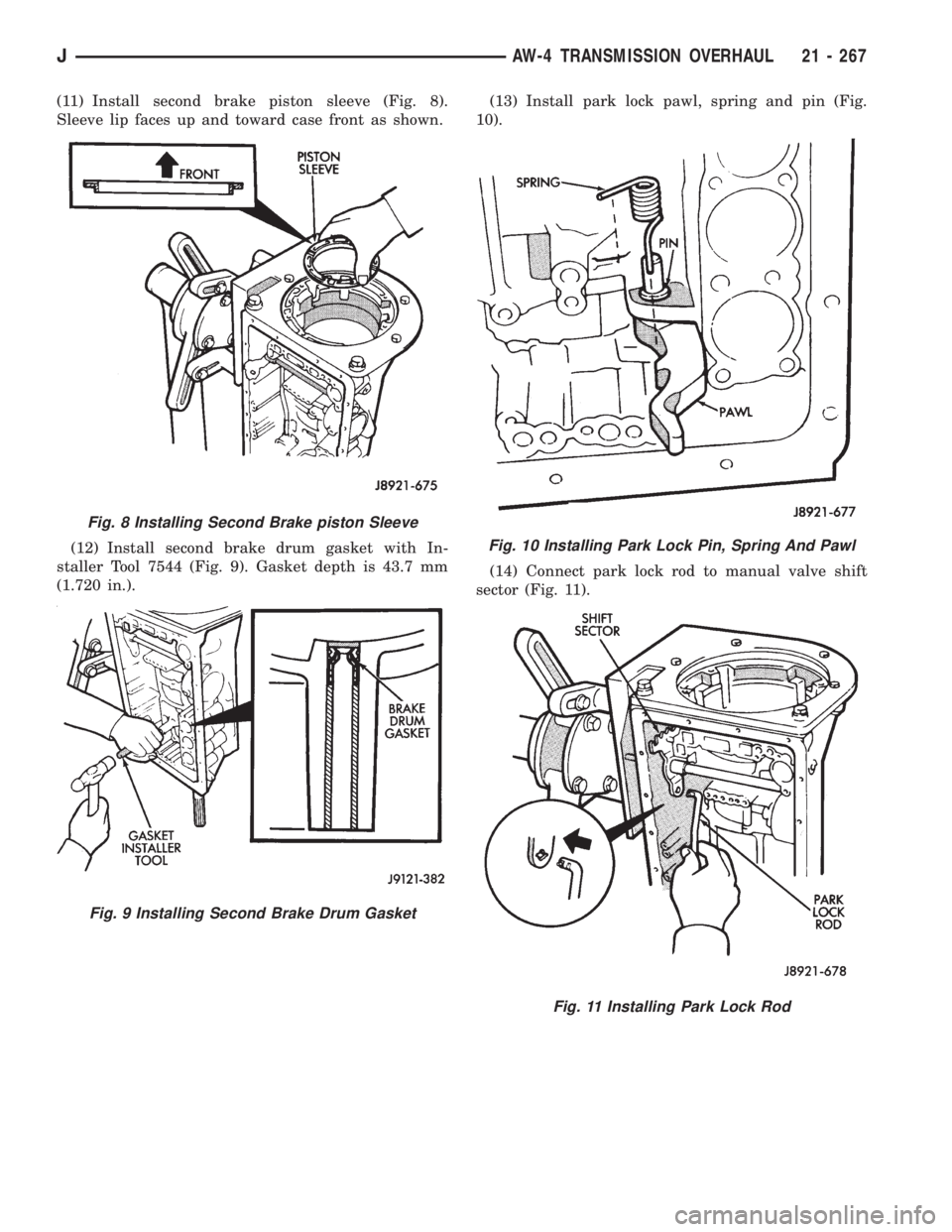

JEEP YJ 1995 Service And Repair Manual (11) Install second brake piston sleeve (Fig. 8). Sleeve lip faces up and toward case front as shown. (12) Install second brake drum gasket with In- staller Tool 7544 (Fig. 9). Gasket depth is 43.7 mm

Page 1830 of 2158

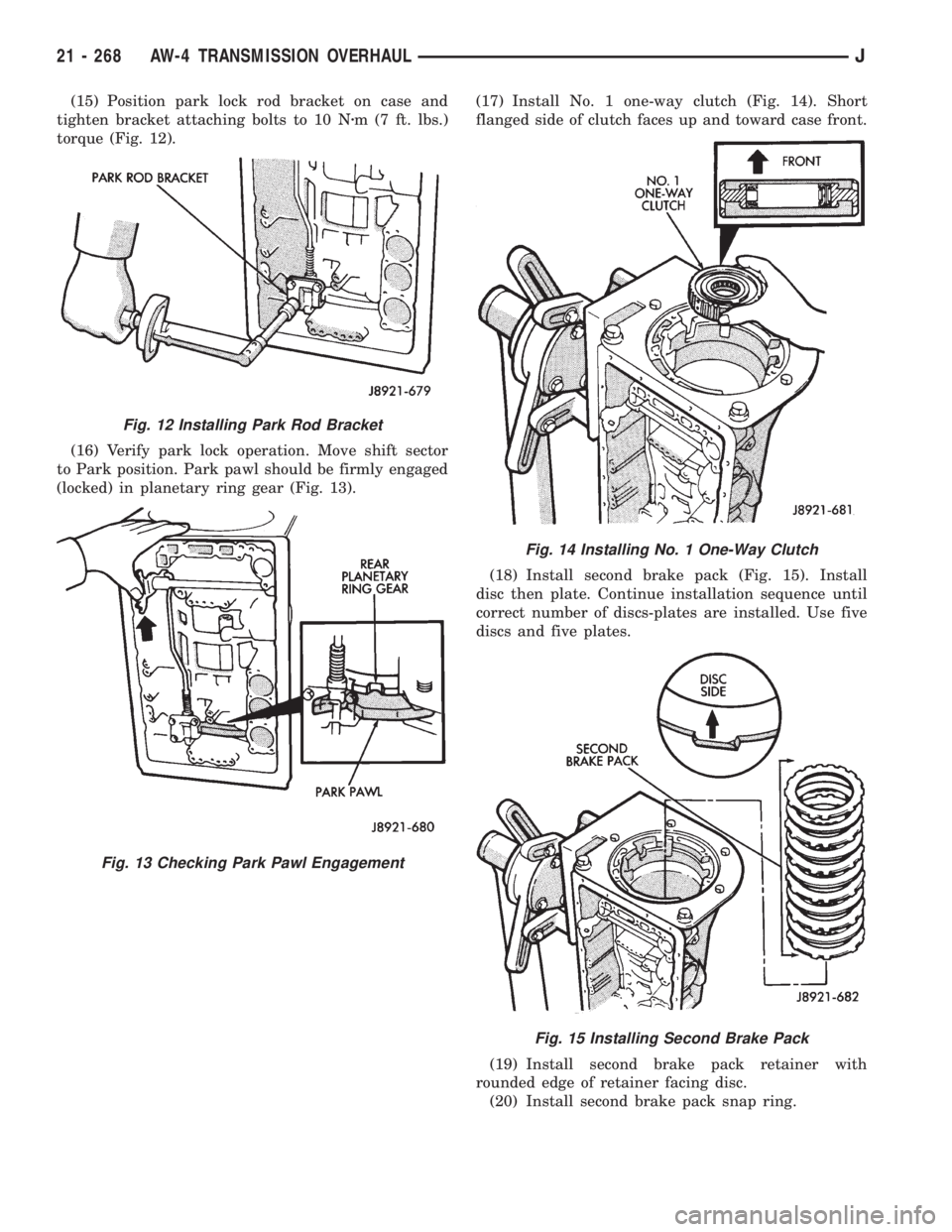

JEEP YJ 1995 Service And Repair Manual (15) Position park lock rod bracket on case and tighten bracket attaching bolts to 10 Nzm (7 ft. lbs.) torque (Fig. 12). (16) Verify park lock operation. Move shift sector to Park position. Park pawl

Page 1831 of 2158

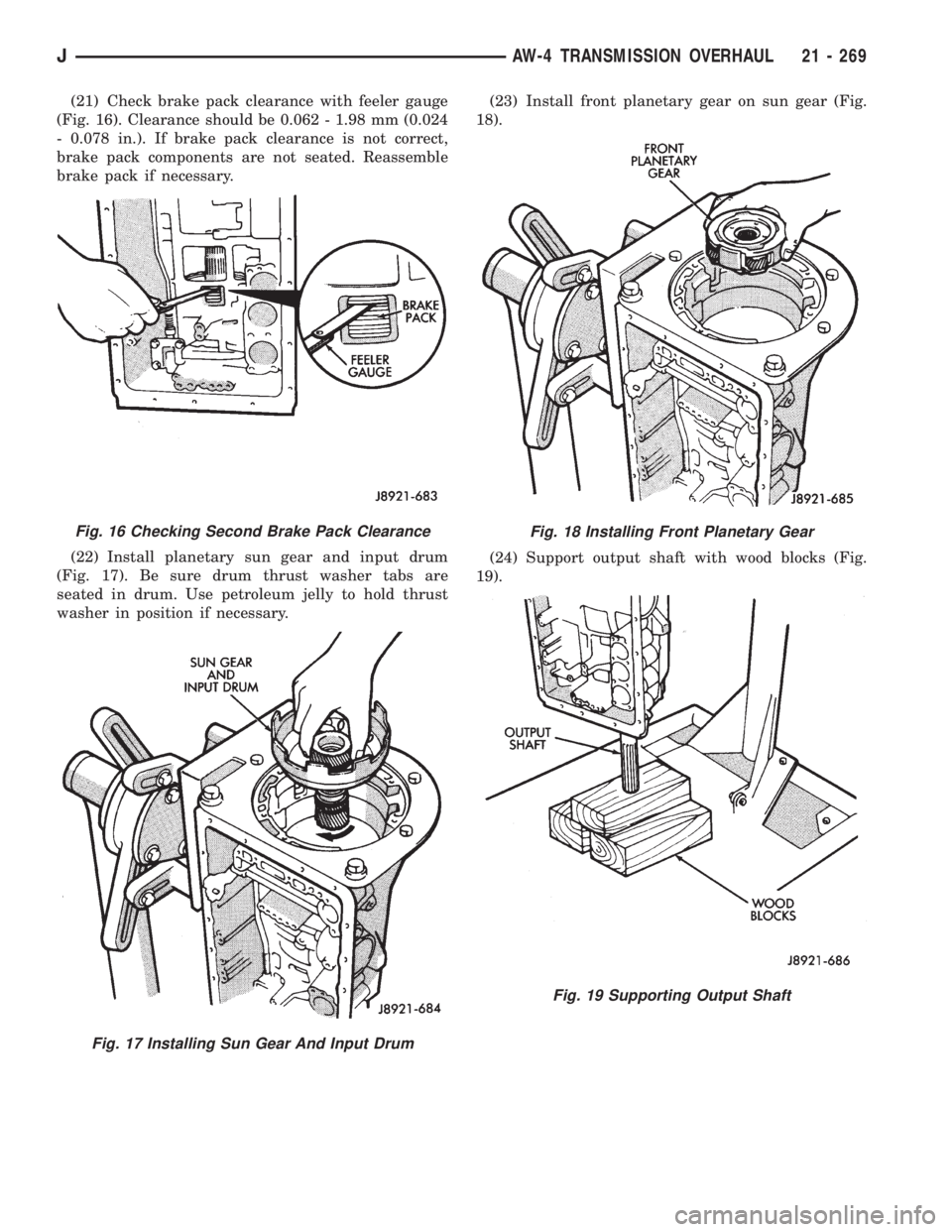

JEEP YJ 1995 Service And Repair Manual (21) Check brake pack clearance with feeler gauge (Fig. 16). Clearance should be 0.062 - 1.98 mm (0.024 - 0.078 in.). If brake pack clearance is not correct, brake pack components are not seated. Reas

Page 1832 of 2158

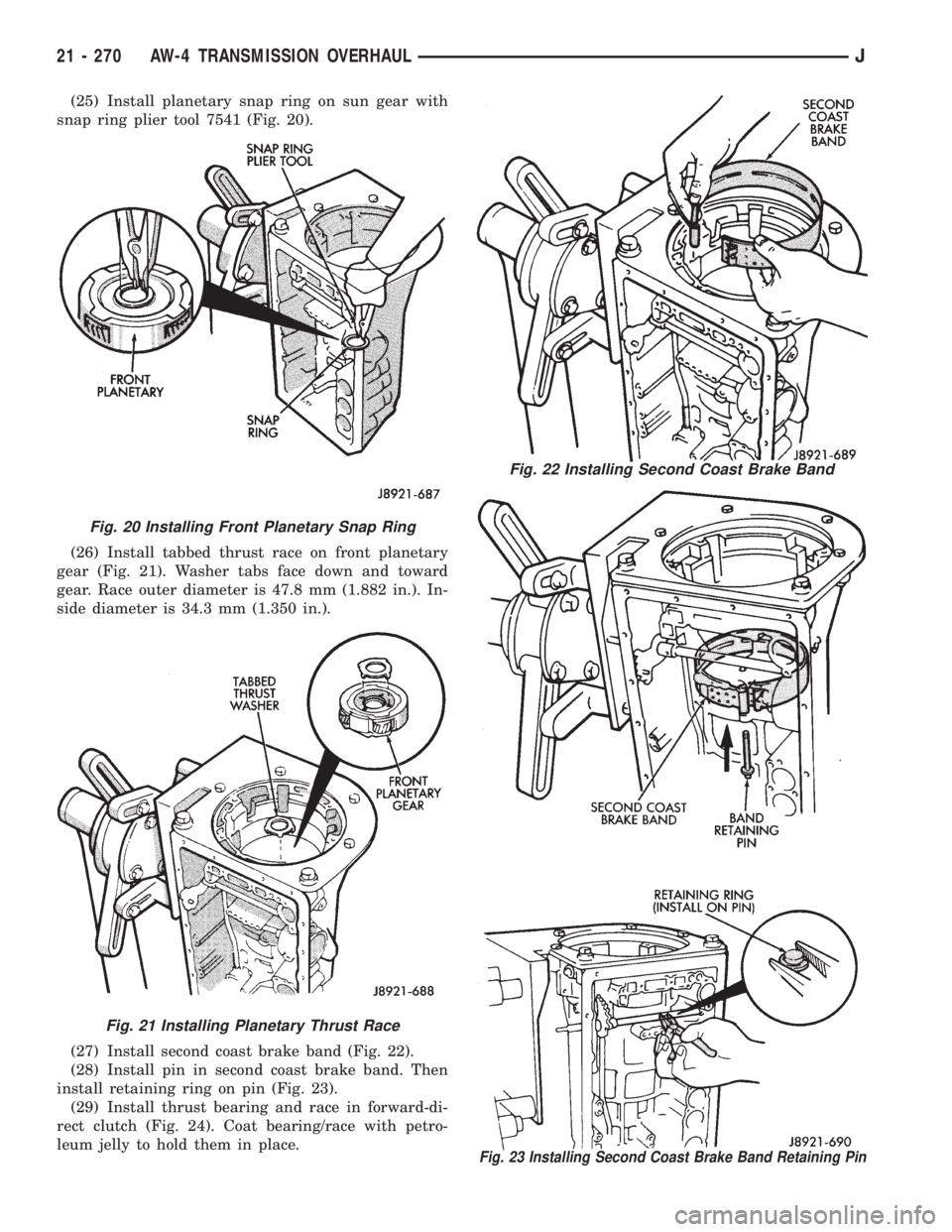

JEEP YJ 1995 Service And Repair Manual (25) Install planetary snap ring on sun gear with snap ring plier tool 7541 (Fig. 20). (26) Install tabbed thrust race on front planetary gear (Fig. 21). Washer tabs face down and toward gear. Race ou
