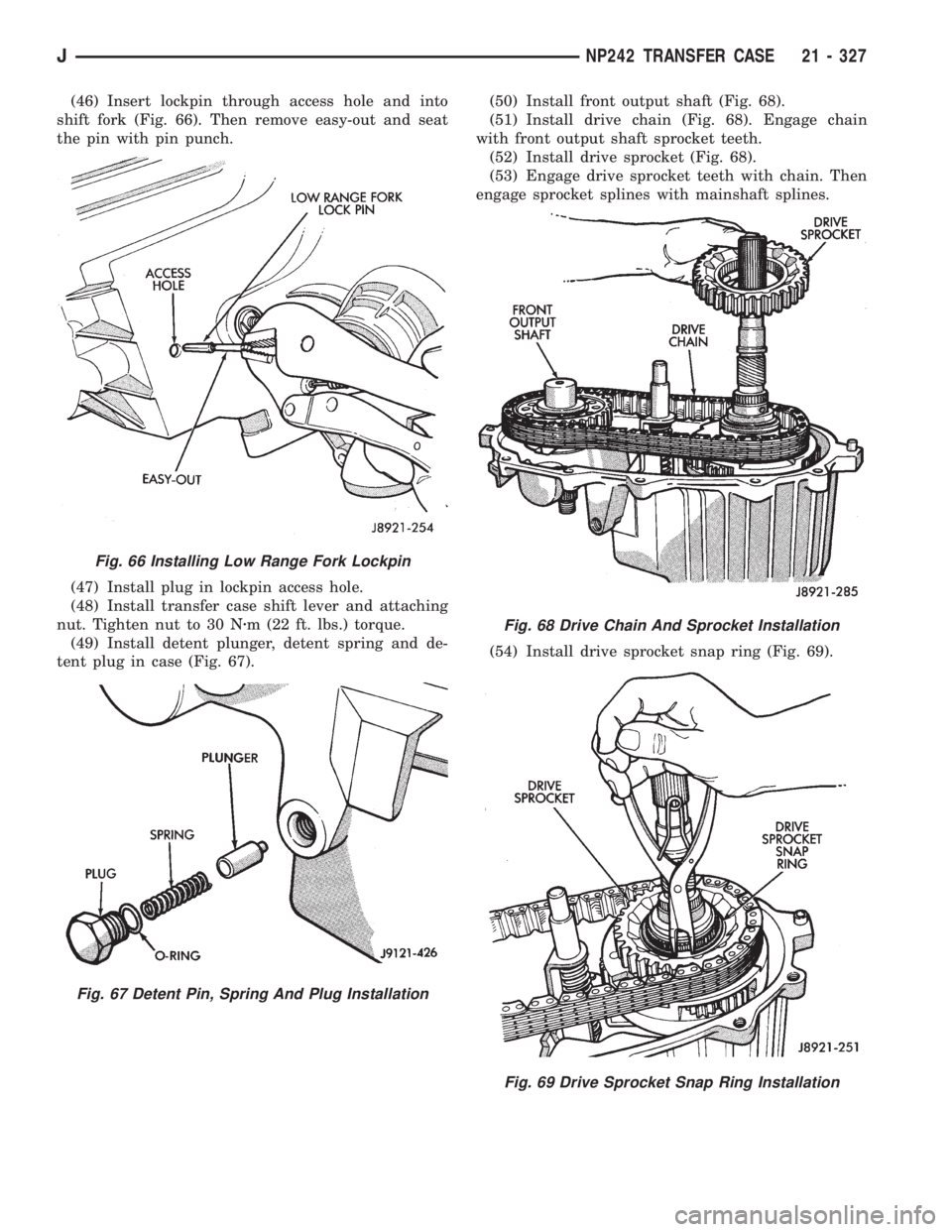

Page 1889 of 2158

JEEP YJ 1995 Service And Repair Manual (46) Insert lockpin through access hole and into shift fork (Fig. 66). Then remove easy-out and seat the pin with pin punch. (47) Install plug in lockpin access hole. (48) Install transfer case shift

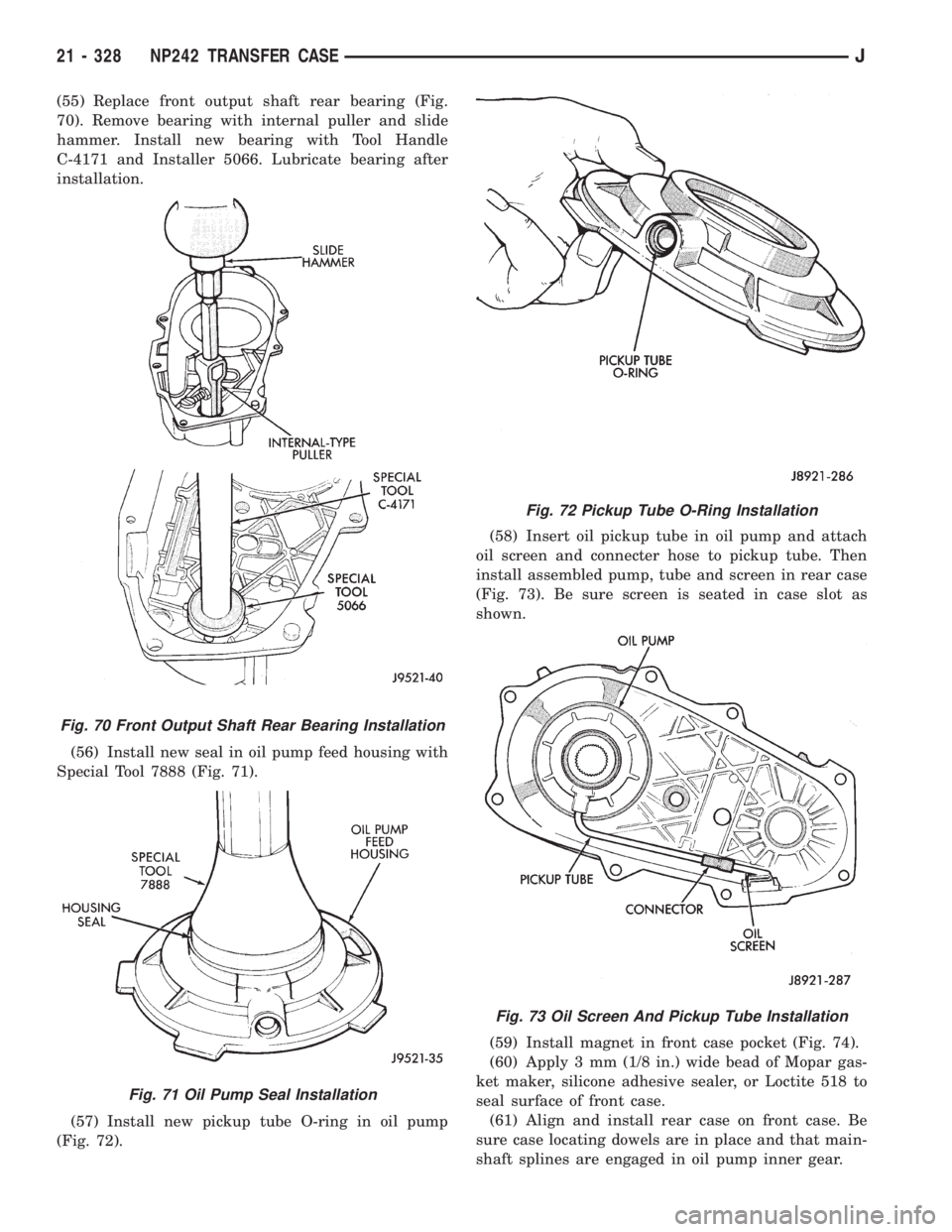

Page 1890 of 2158

JEEP YJ 1995 Service And Repair Manual (55) Replace front output shaft rear bearing (Fig. 70). Remove bearing with internal puller and slide hammer. Install new bearing with Tool Handle C-4171 and Installer 5066. Lubricate bearing after in

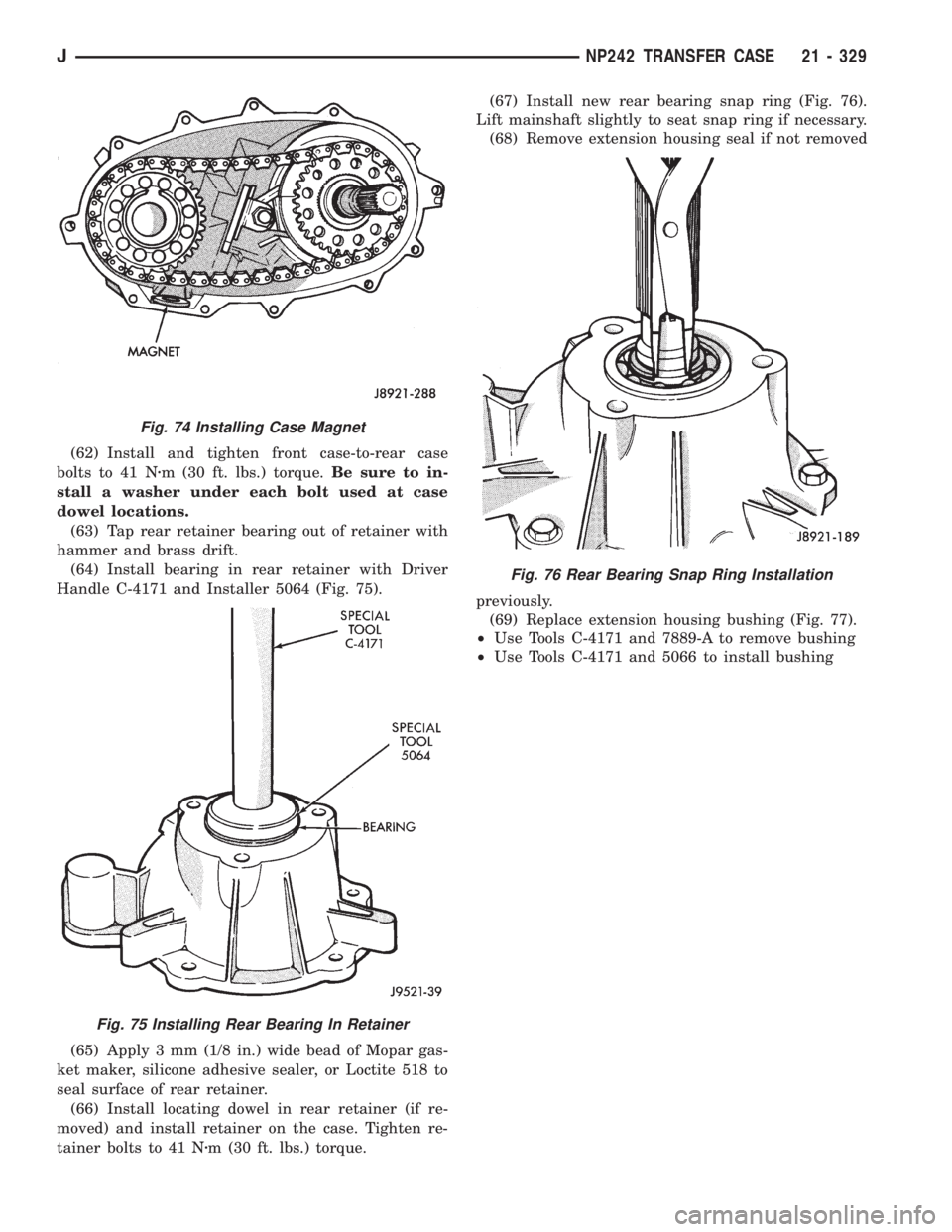

Page 1891 of 2158

JEEP YJ 1995 Service And Repair Manual (62) Install and tighten front case-to-rear case bolts to 41 Nzm (30 ft. lbs.) torque.Be sure to in- stall a washer under each bolt used at case dowel locations. (63) Tap rear retainer bearing out of

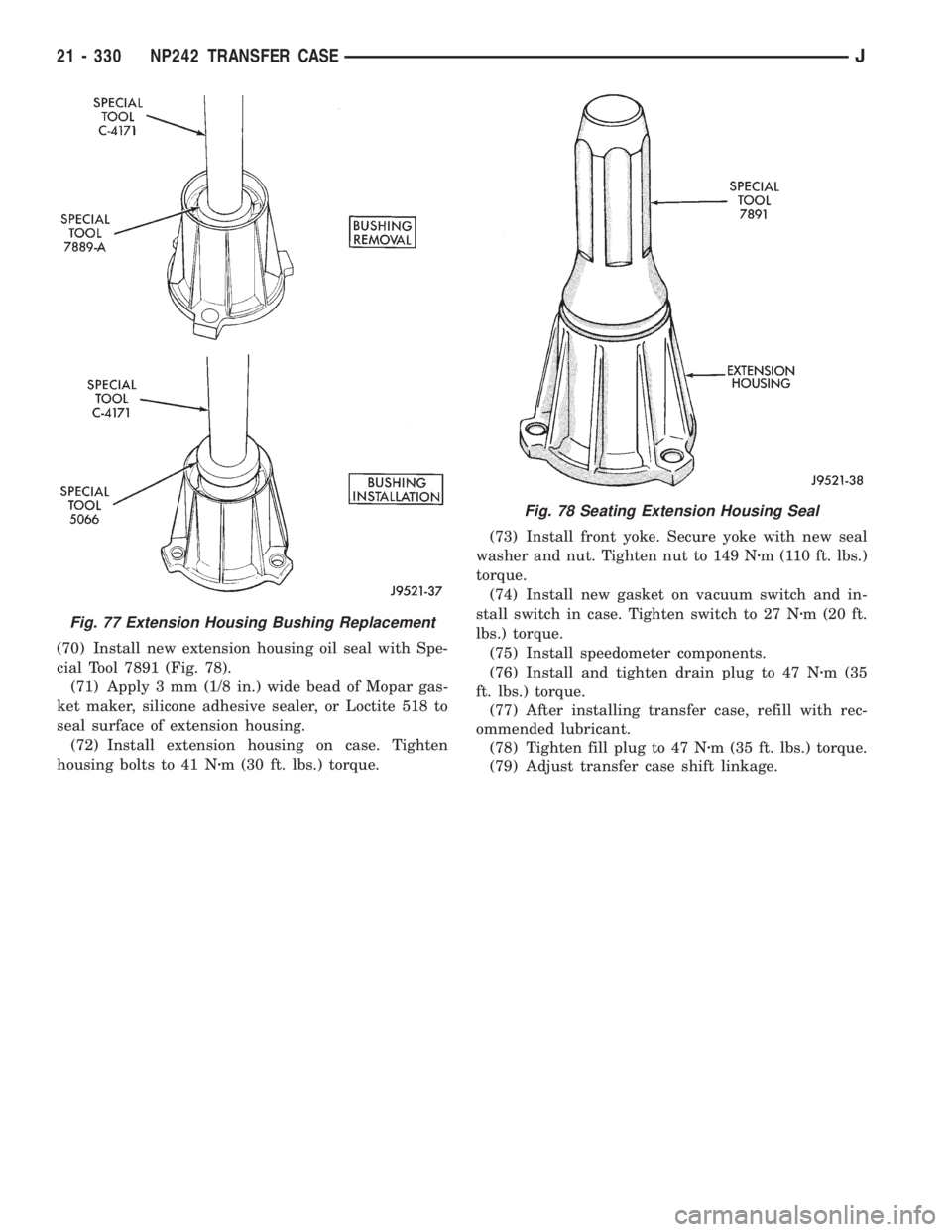

Page 1892 of 2158

JEEP YJ 1995 Service And Repair Manual (70) Install new extension housing oil seal with Spe- cial Tool 7891 (Fig. 78). (71) Apply 3 mm (1/8 in.) wide bead of Mopar gas- ket maker, silicone adhesive sealer, or Loctite 518 to seal surface of

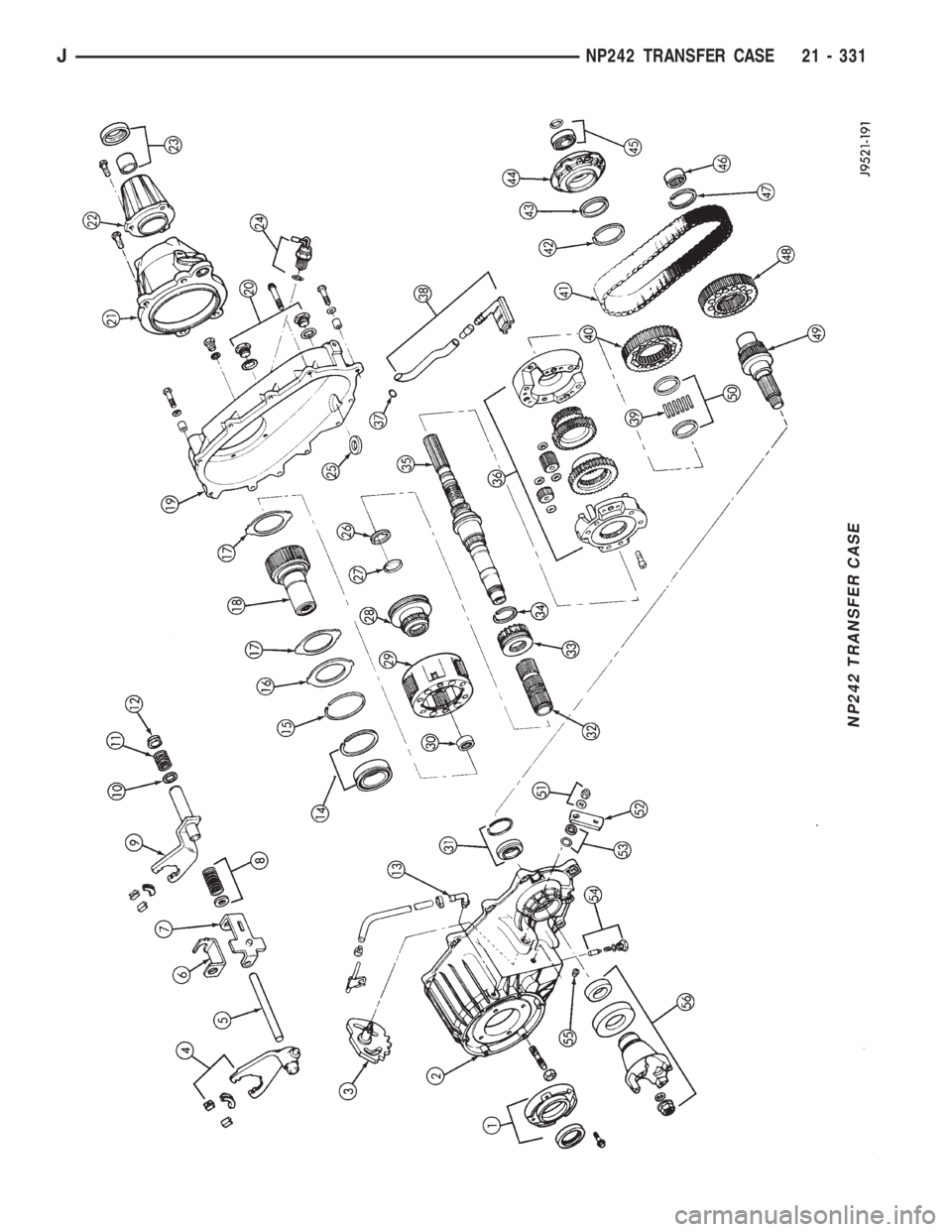

Page 1893 of 2158

JEEP YJ 1995 Service And Repair Manual NP242 TRANSFER CASE JNP242 TRANSFER CASE 21 - 331

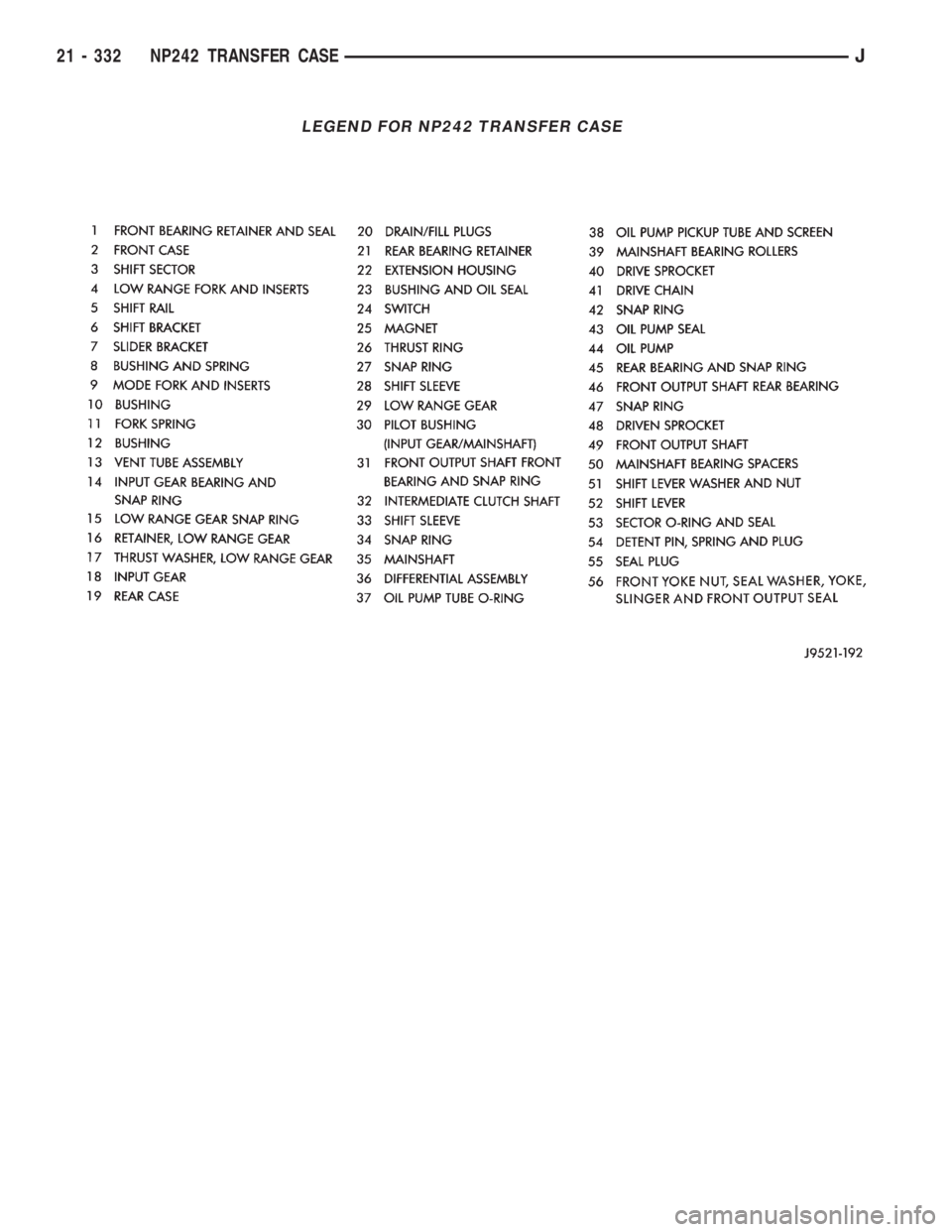

Page 1894 of 2158

JEEP YJ 1995 Service And Repair Manual LEGEND FOR NP242 TRANSFER CASE 21 - 332 NP242 TRANSFER CASEJ

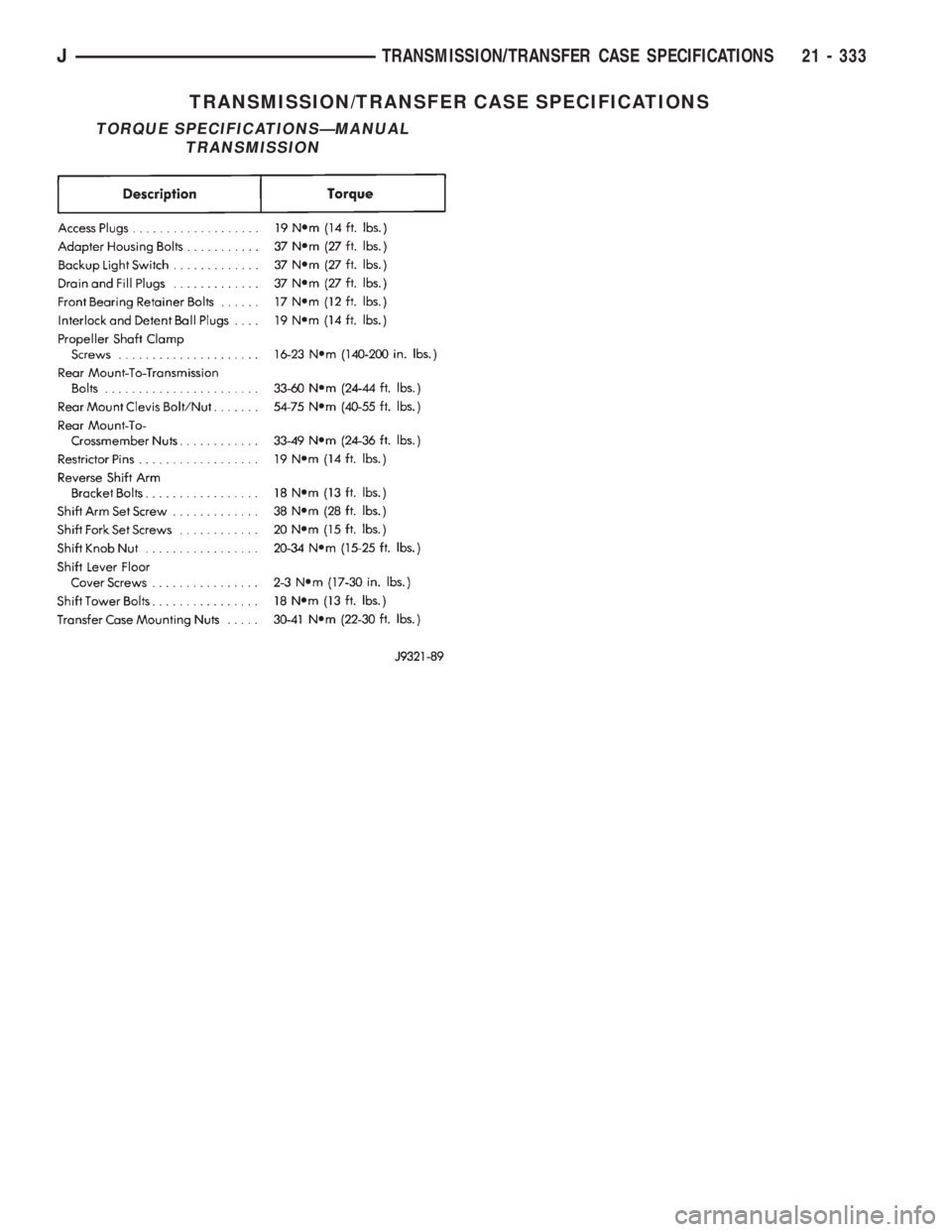

Page 1895 of 2158

JEEP YJ 1995 Service And Repair Manual TRANSMISSION/TRANSFER CASE SPECIFICATIONS TORQUE SPECIFICATIONSÐMANUAL TRANSMISSION JTRANSMISSION/TRANSFER CASE SPECIFICATIONS 21 - 333

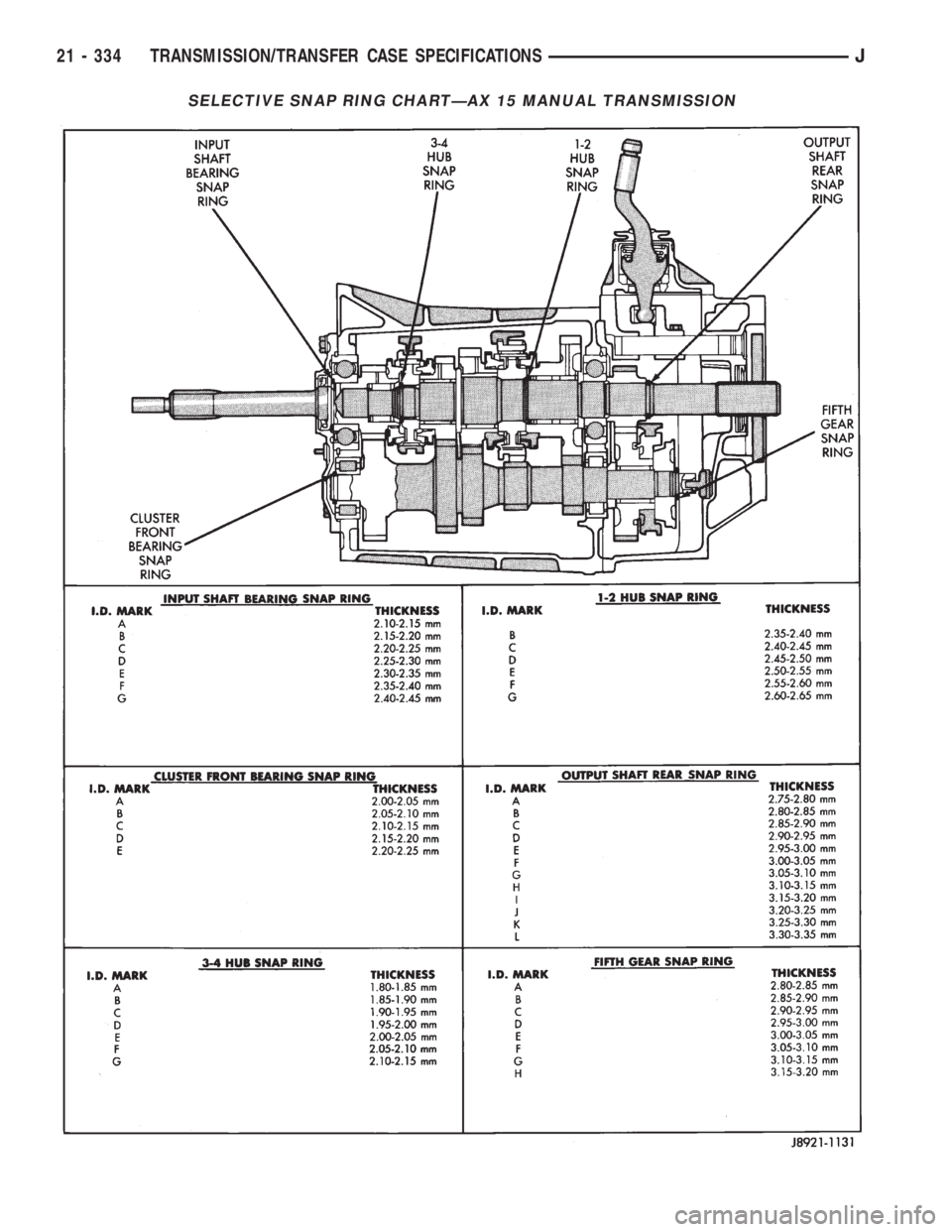

Page 1896 of 2158

JEEP YJ 1995 Service And Repair Manual SELECTIVE SNAP RING CHARTÐAX 15 MANUAL TRANSMISSION 21 - 334 TRANSMISSION/TRANSFER CASE SPECIFICATIONSJ
