1982 CHEVROLET CAMARO Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 217
FOG LIGHTS
REMOVAL & INSTALLATION
1. Remove the two screws attaching the lamp assembly to the front impact
bar.
2. Remove the lamp assembly from the impact bar.
3. Disconnect the electrical connector.
4. Remove the two lens attaching screws.
5. Remove the bulb.
6. Installation is the reverse of removal.

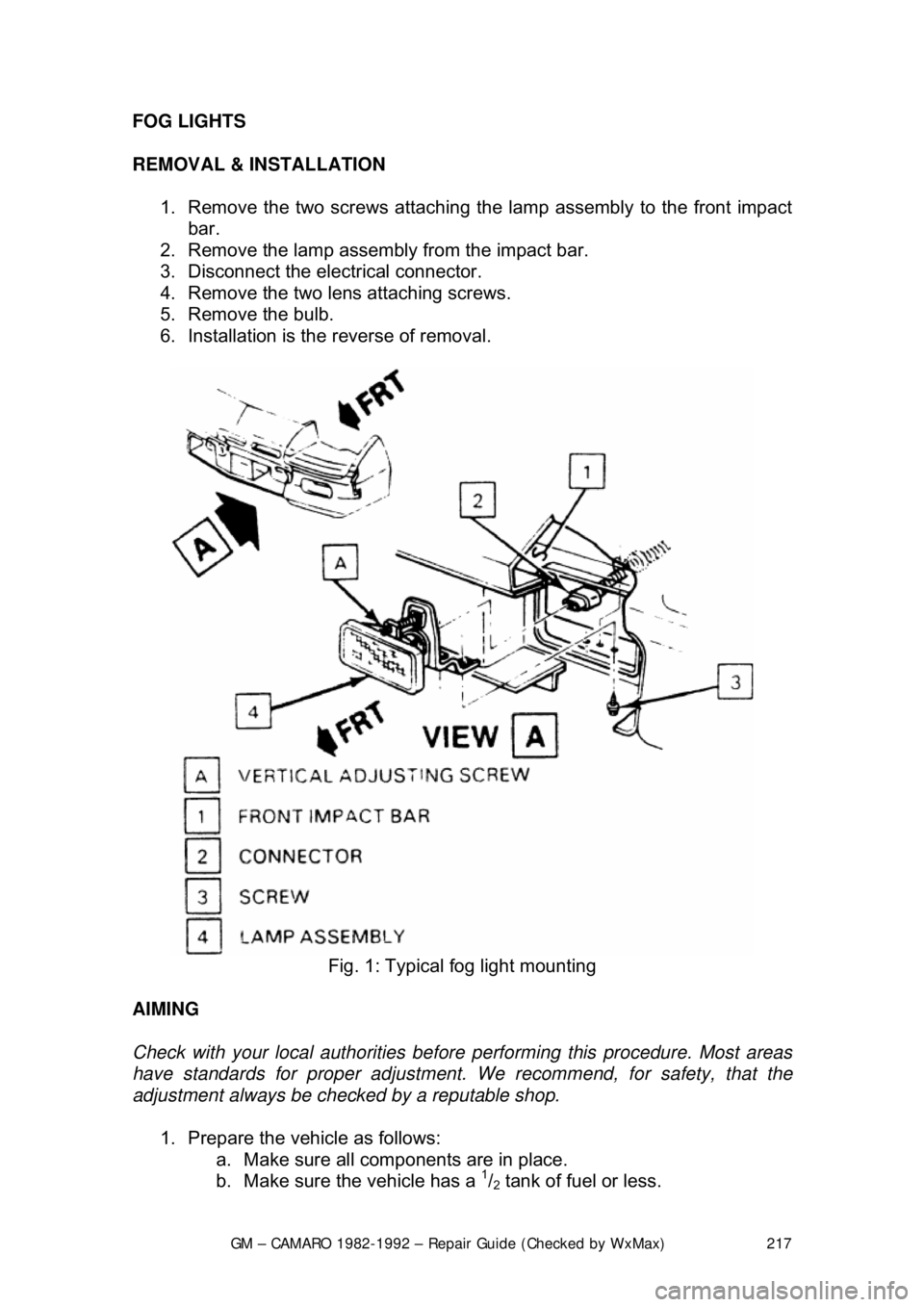

Fig. 1: Typical fog light mounting
AIMING
Check with your local authorities before performing this procedure. Most areas
have standards for proper adjustment. We recommend, for safety, that the
adjustment always be checked by a reputable shop.
1. Prepare the vehicle as follows: a. Make sure all com ponents are in place.
b. Make sure the vehicle has a
1/2 tank of fuel or less.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 218
c. Move the vehicle to
a level area and park 25 feet (7.6 m) away
from a target screen.
2. With the fog lamps on, measure from the center of the fog lamp
assembly to the ground line.
3. Top edge of the high intensity zone should be 4 inches (102 mm) below
the centerline of the fog lamp assembly.
4. Adjust if necessary.

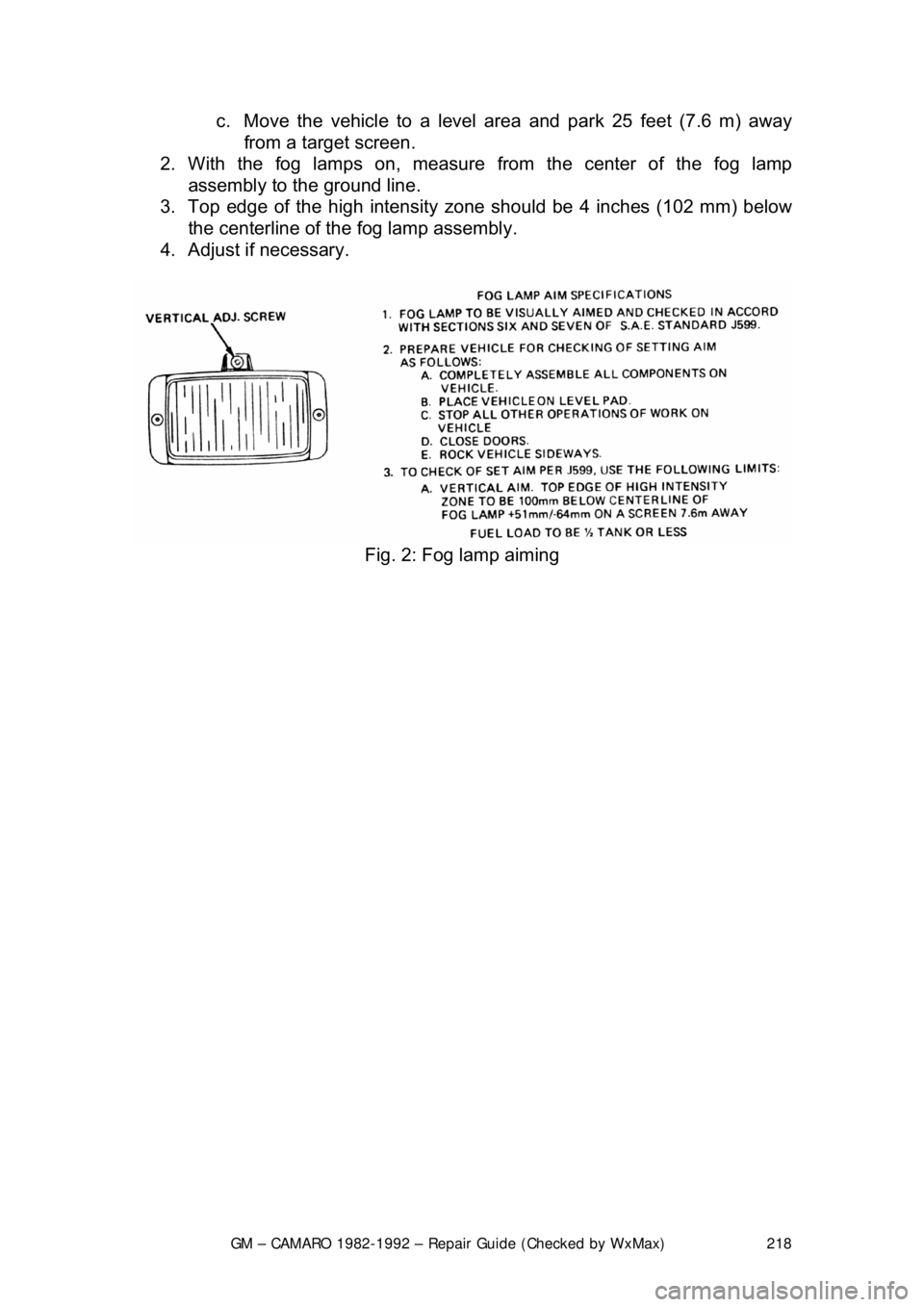

Fig. 2: Fog lamp aiming

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 219
FUSE BLOCK
The fuse block on some models is loca
ted under the instrument panel next to
the steering wheel an d is a swing down unit. Other models have the fuse block
located on the left side of the dash.
Each fuse block uses miniature fuse s which are designed for increased circuit
protection and greater reliabi lity. The compact fuse is a blade terminal design
which allows easy pull-out/push- in removal and replacement.
Although the fuses are interchangeable , the amperage values are not. The
values are usually molded in bold, color coded, easy to read numbers on the
fuse body. Use only fuses of equal replacement valve.
A blown fuse can easily be checked by visual inspection or by continuity
checking.

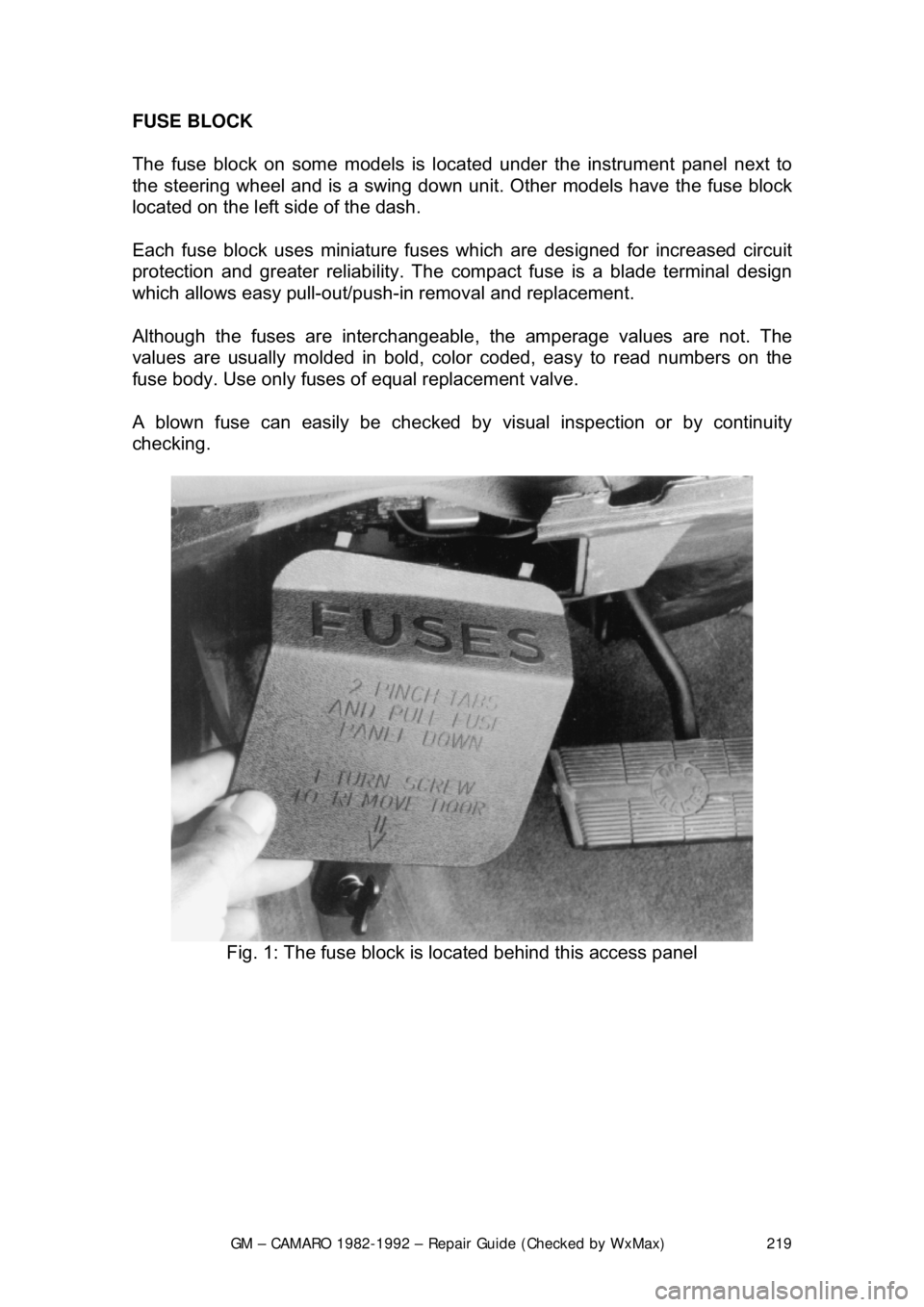

Fig. 1: The fuse block is located behind this access panel

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 220

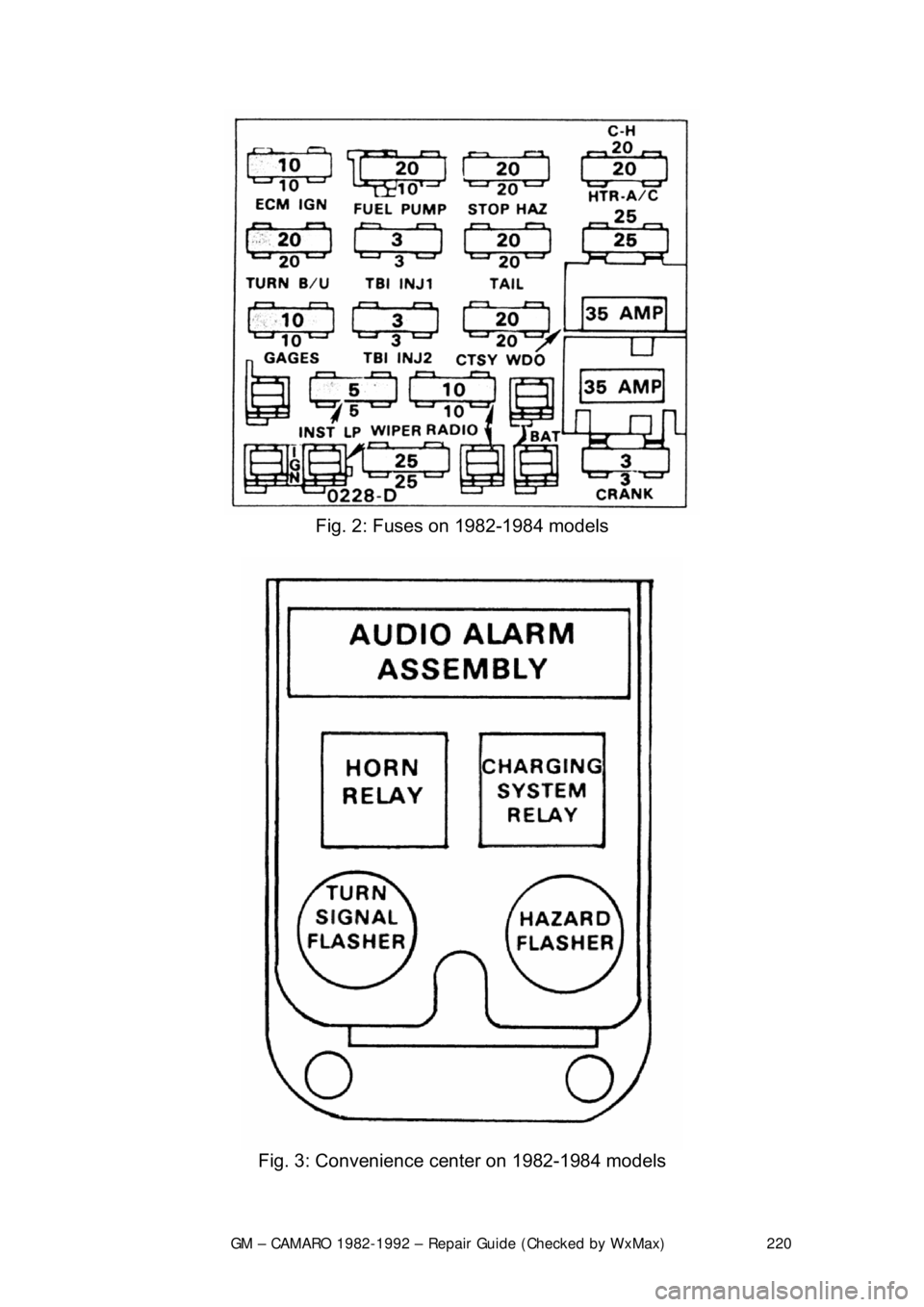

Fig. 2: Fuses on 1982-1984 models

Fig. 3: Convenience center on 1982-1984 models

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 221

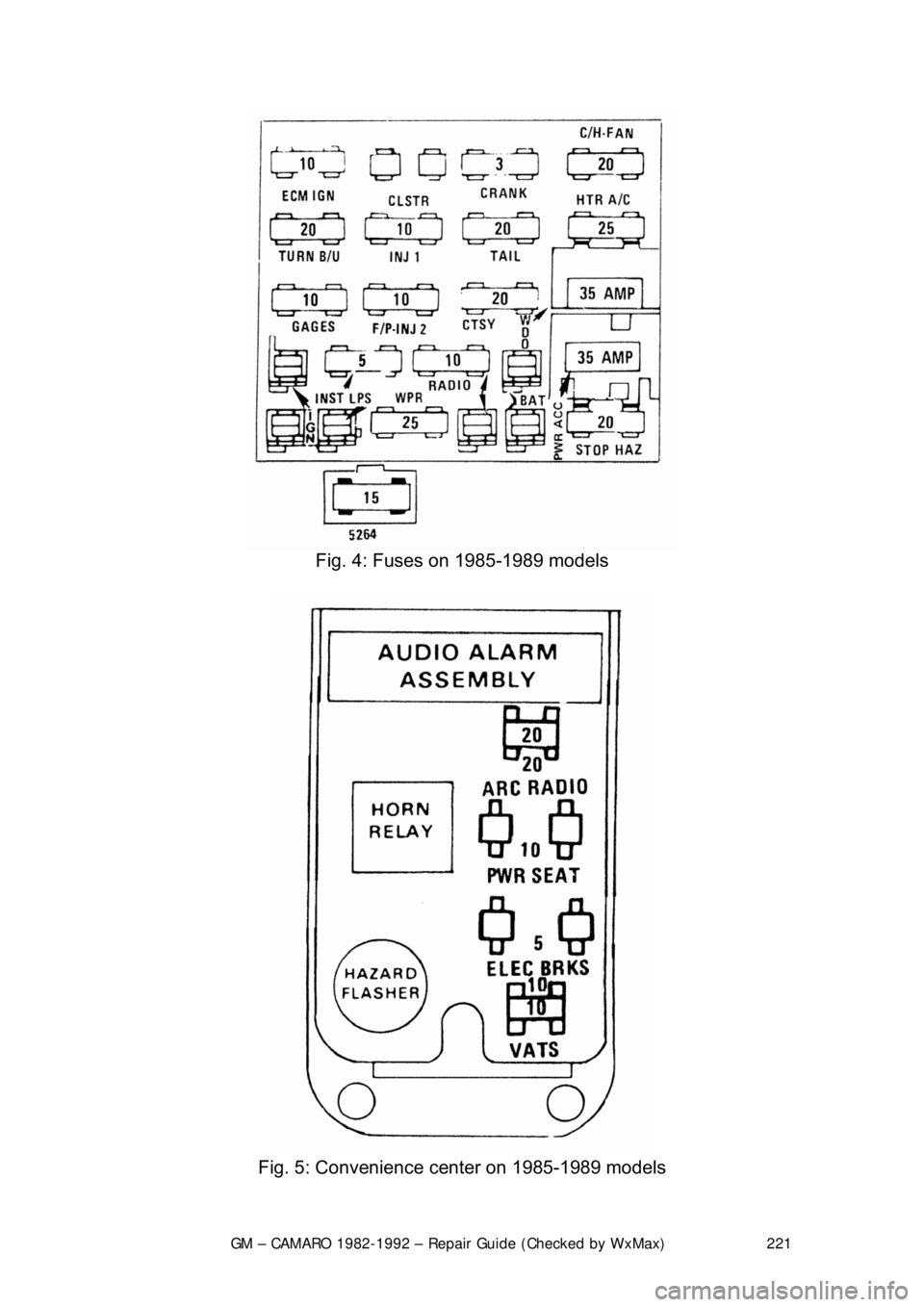

Fig. 4: Fuses on 1985-1989 models

Fig. 5: Convenience center on 1985-1989 models

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 222

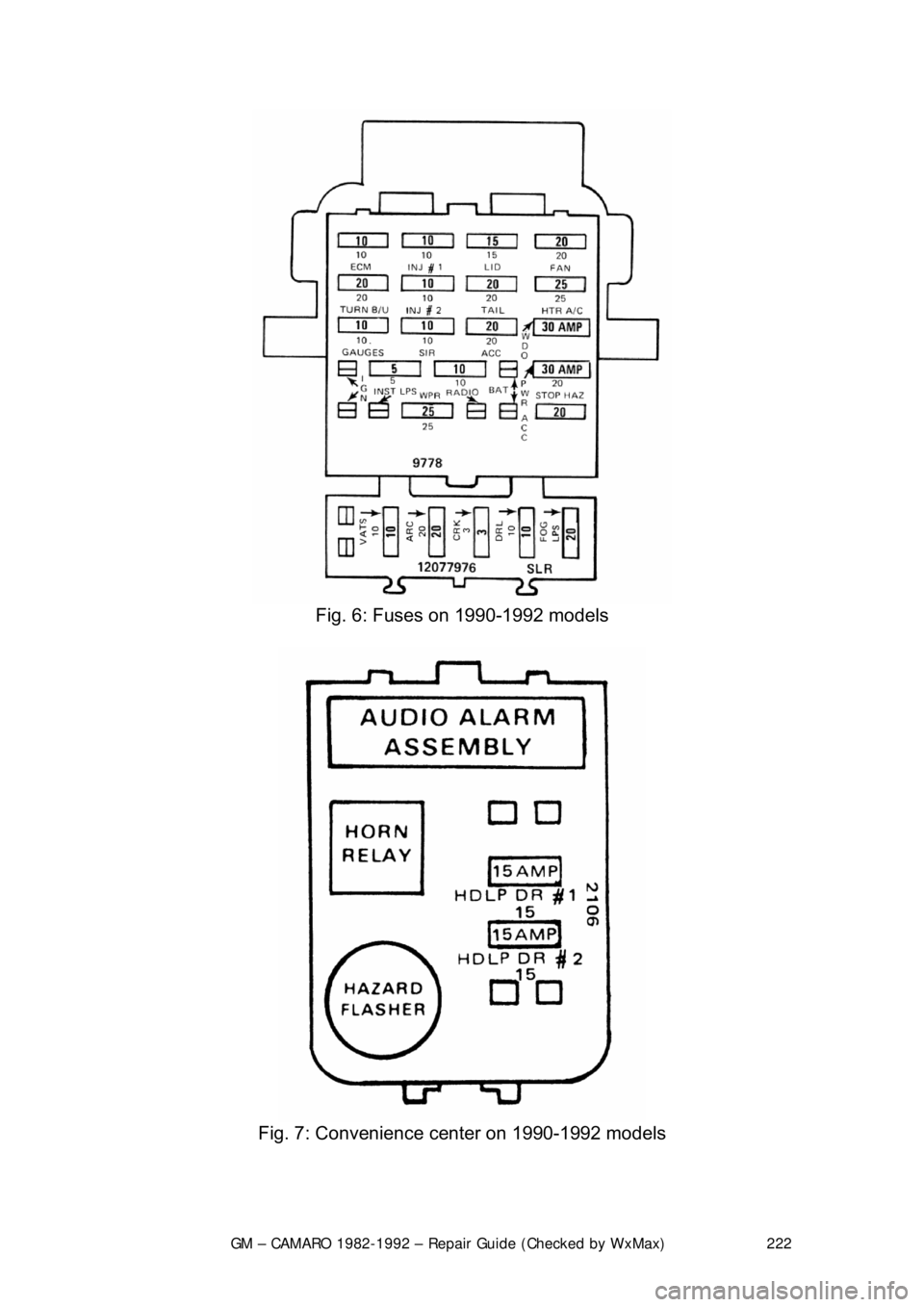

Fig. 6: Fuses on 1990-1992 models

Fig. 7: Convenience center on 1990-1992 models

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 223
FUSIBLE LINKS
In addition to circuit breakers and fuses,
the wiring harness incorporates fusible
links to protect the wiring. Links are used rather than a fuse, in wiring circuits
that are not normally fused, such as th e ignition circuit. The fusible links are
color coded red in the charging and load circuits to match the color coding of
the circuits they protect. Each link is four gauges smaller than the cable it
protects, and is marked on the insulation with the gauge size because the
insulation makes it appear heavier than it really is. The engine compartment
wiring harness has several fusible links. The same size wire with a special
Hypalon insulation must be used w hen replacing a fusible link.
For more details, see the information on fusible links at the beginning of this
section.
The links are located in the following areas:
1. A molded splice at the starter solenoid Bat terminal, a 14 gauge red wire.
2. A 16 gauge red fusible link at the j unction block to protect the unfused
wiring of 12 gauge or larger wire. This link stops at the bulkhead
connector.
3. The alternator warning light and fiel d circuitry is protected by a 20 gauge
red wire fusible link used in the batte ry feed-to-voltage regulator number
3 terminal. The link is installed as a molded splice in the circuit at the
junction block.
4. The ammeter circuit is protected by two 20 gauge fusible links installed
as molded splices in the circuit at t he junction block and battery to starter
circuit.
REPLACEMENT 1. Determine the circuit that is damaged.
2. Disconnect the negative battery terminal.
3. Cut the damaged fuse link from the harness and discard it.
4. Identify and procure the proper fuse link and butt connectors.
5. Strip the wire about
1/2 in. (13mm) on each end.
6. Connect the fusible link and crimp the butt connectors making sure that the wires are secure.
7. Solder each connection with resin core solder, and wrap the connections
with plastic electrical tape.
8. Reinstall the wir e in the harness.
9. Connect the negative battery terminal and test the system for proper
operation.
CIRCUIT BREAKERS

Various circuit breakers are located under the instrument panel. In order to gain
access to these components, it may be ne cessary to first remove the under
dash padding. Most of the circuit breakers are located in the convenience
center or the fuse panel.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 224
BUZZERS, RELAYS, AND FLASHERS
The electrical protection dev
ices are located in the convenience center, which is
a swing down unit located under the inst rument panel. All units are serviced by
plug-in replacements.
TURN SIGNAL FLASHER
The turn signal flasher is located inside th e convenience center. In order to gain
access to the turn signal flasher, it ma y be necessary to first remove the under
dash padding.
HAZARD FLASHER
The hazard flasher is located inside the convenience center. In order to gain
access to the turn signal flasher, it ma y be necessary to first remove the under
dash padding.
