1982 CHEVROLET CAMARO Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 601

COMPONENT LOCATION - 1985-1987 2.8L FUEL INJECTED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 602

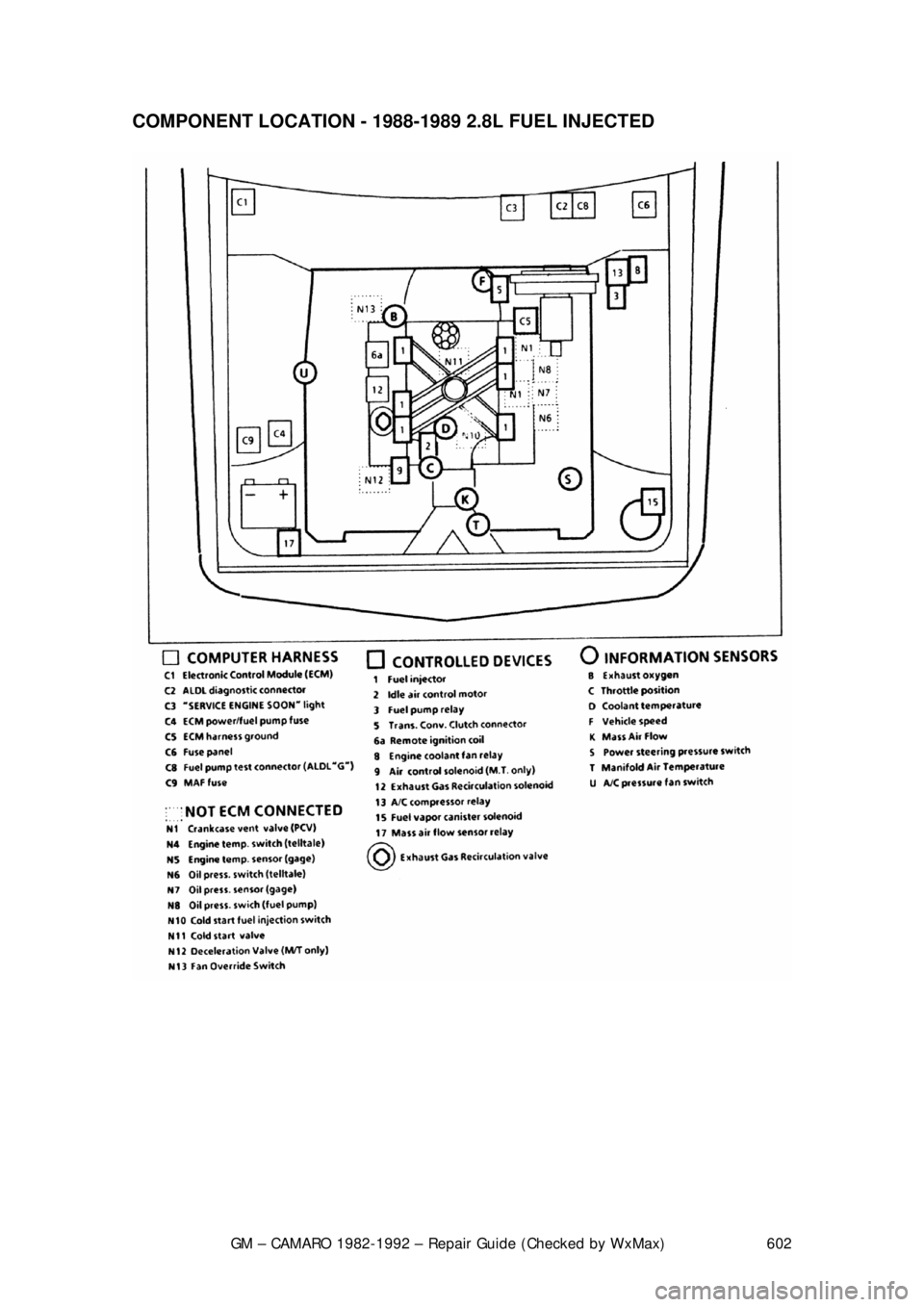

COMPONENT LOCATION - 1988-1989 2.8L FUEL INJECTED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 603
COMPONENT LOCATION - 1990-1992 3.1L

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 604

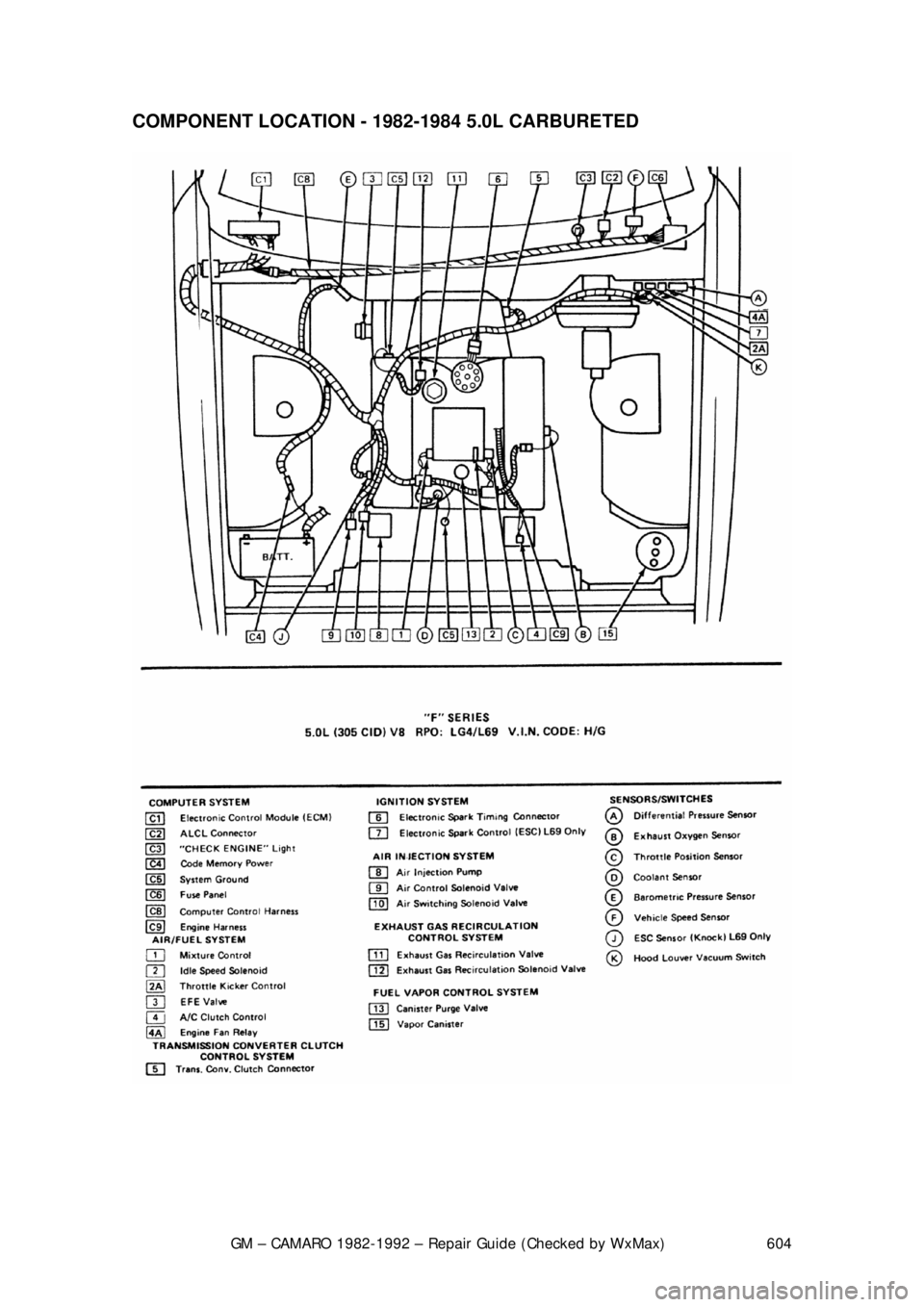

COMPONENT LOCATION - 1982-1984 5.0L CARBURETED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 605

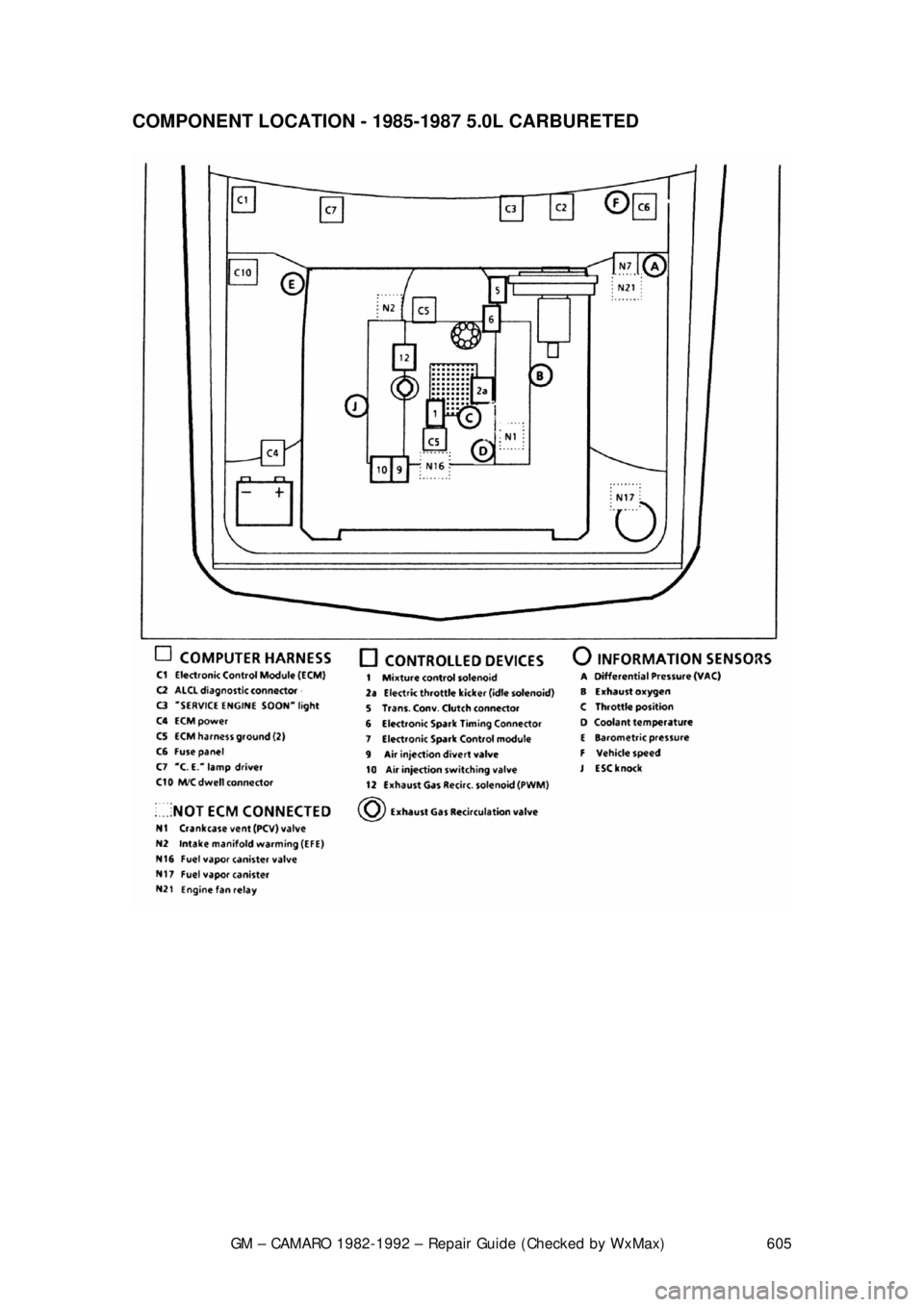

COMPONENT LOCATION - 1985-1987 5.0L CARBURETED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 606

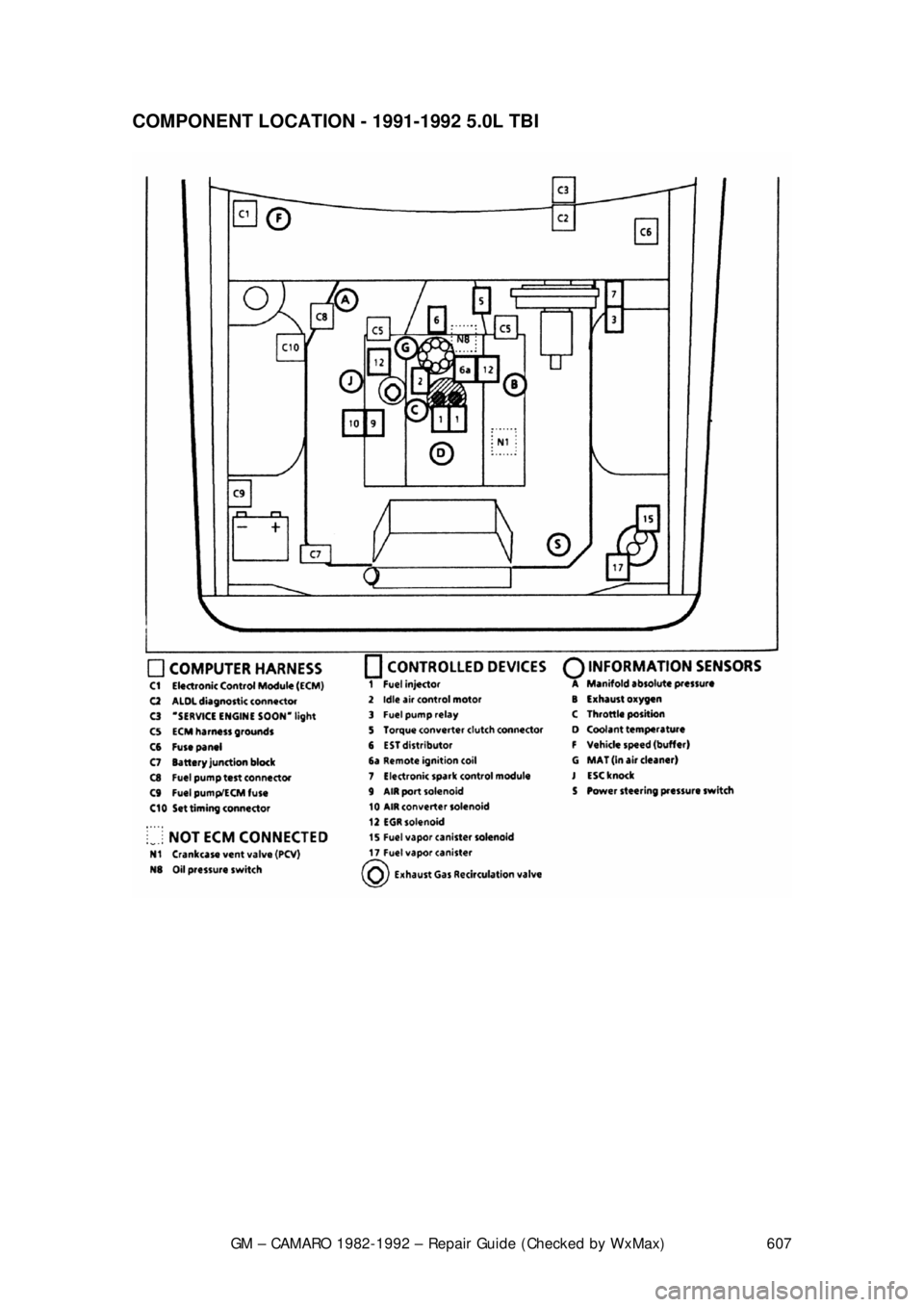

COMPONENT LOCATION - 1988-1990 5.0L TBI

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 607

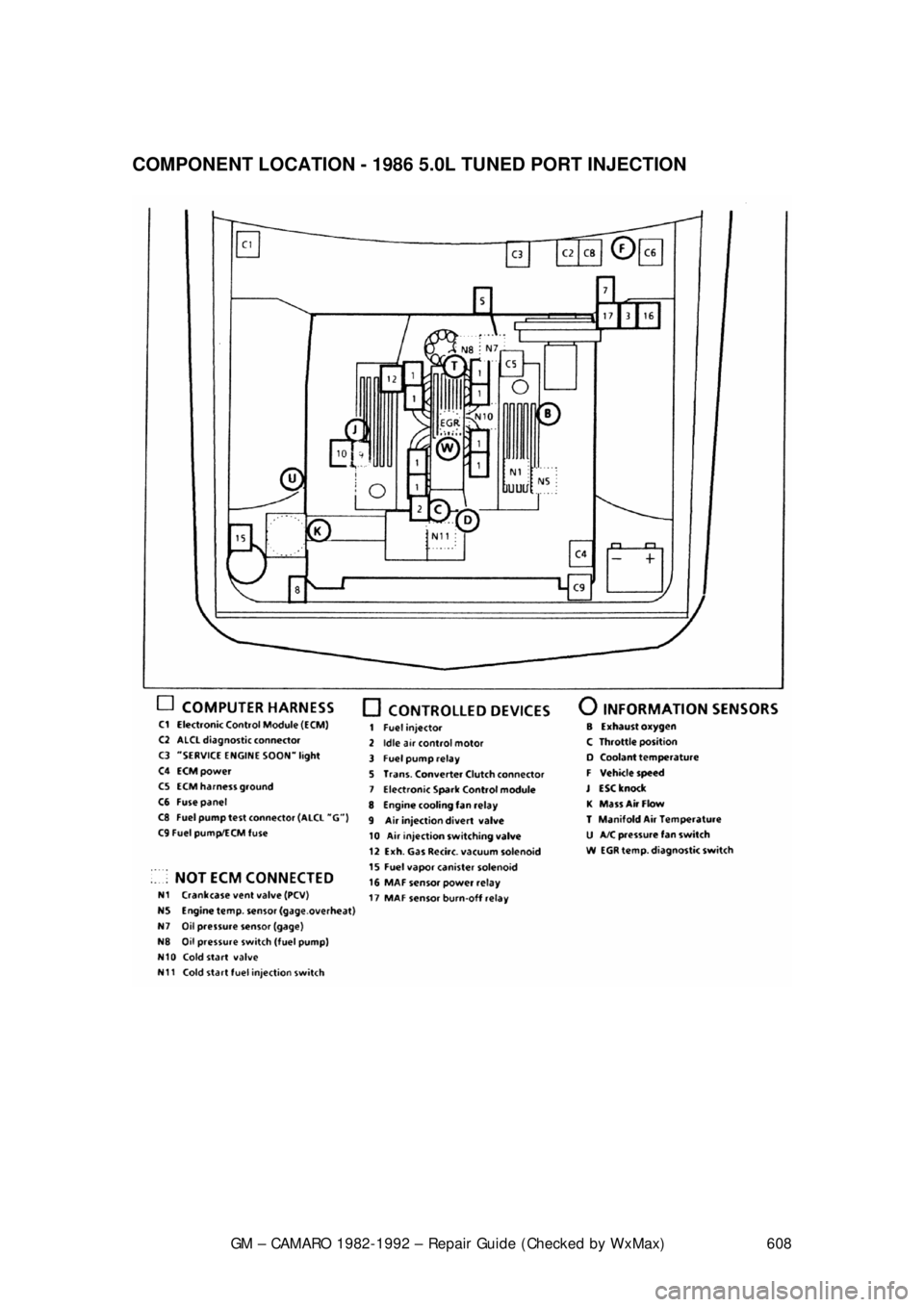

COMPONENT LOCATION - 1991-1992 5.0L TBI

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 608

COMPONENT LOCATION - 1986 5.0L TUNED PORT INJECTION
