1982 CHEVROLET CAMARO Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 225
WIRING DIAGRAMS

WIRING DIAGRAMS

The following wiring diagrams are provi
ded to help troubleshoot electrical
problems and as a an additi onal source to help understand the complex wiring
utilized by these vehicles. No attempt has been made to illustrate most
components as they physica lly appear, instead, represent ations are used to
simplify the diagram. When working on a system, locate the component and use
the wire color codes to help trace the circuit.

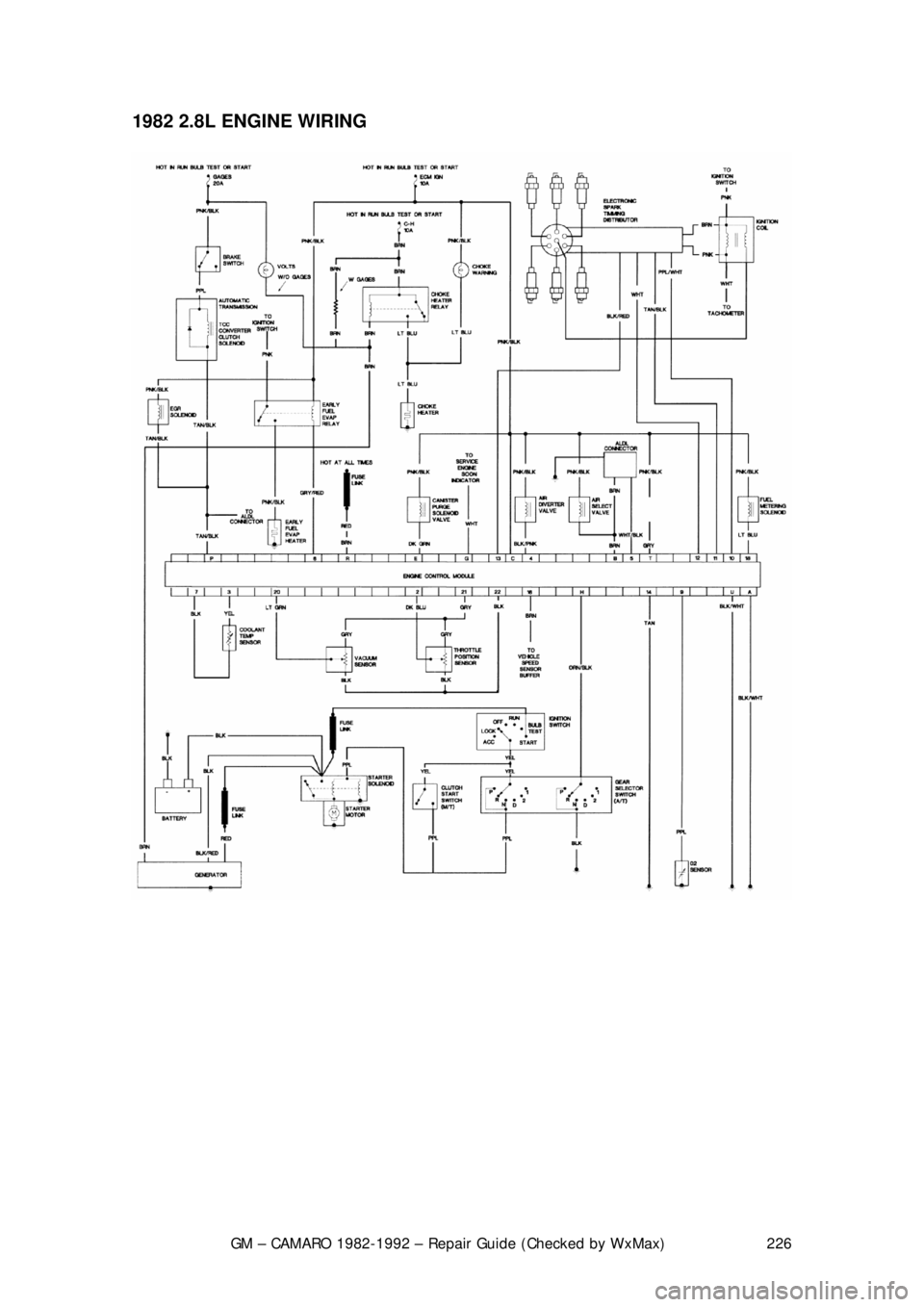

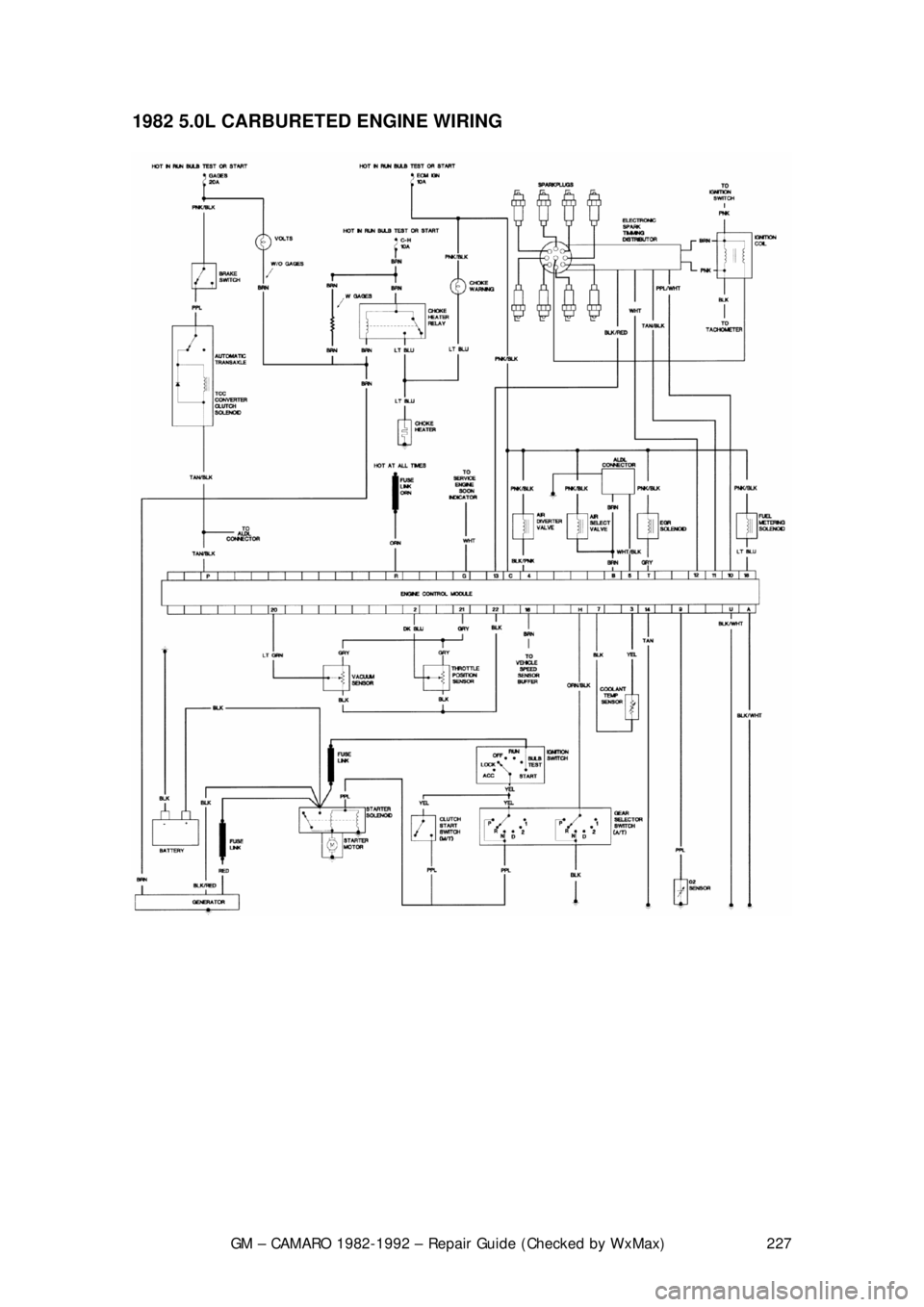

1982 2.5L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 226

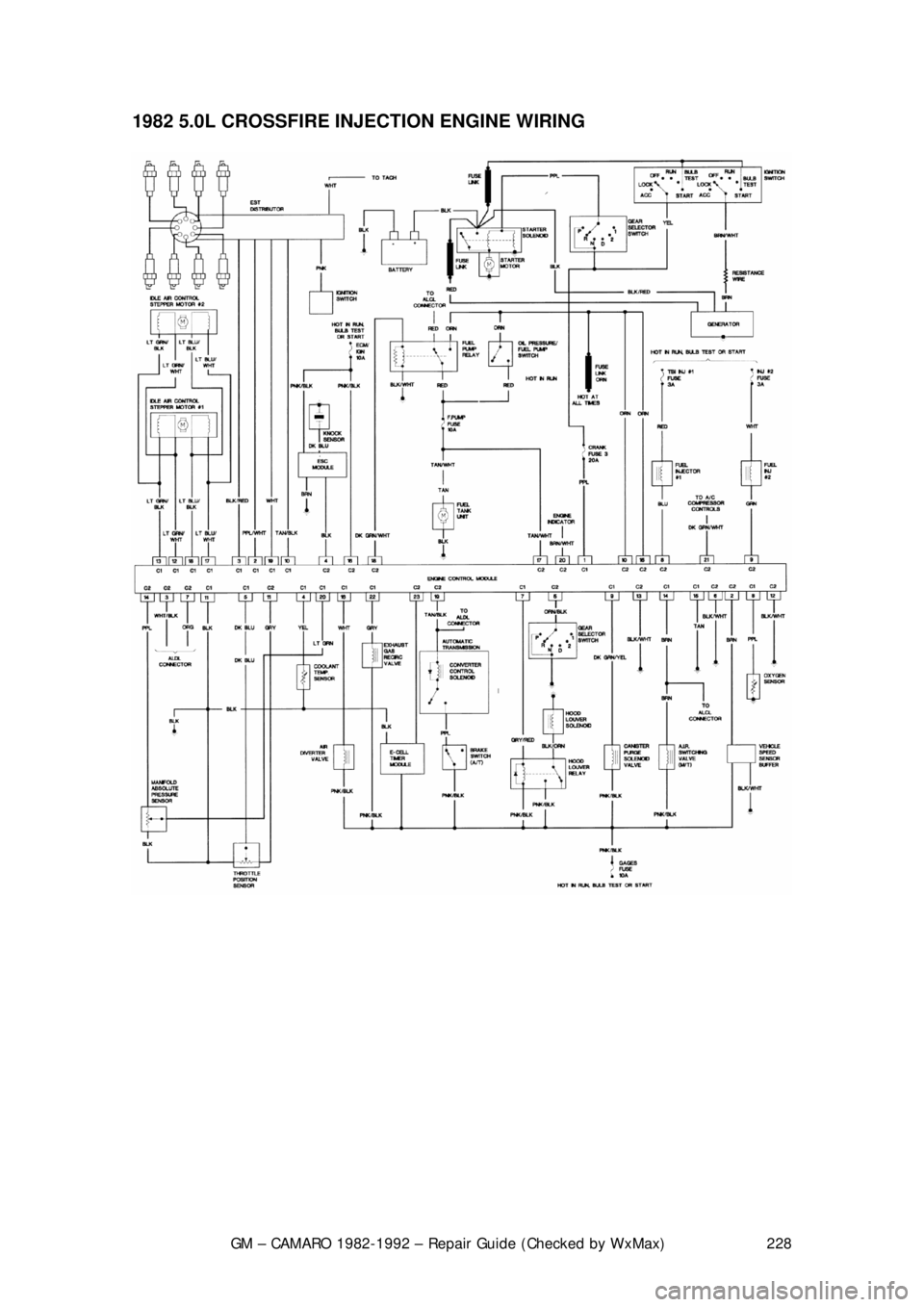

1982 2.8L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 227

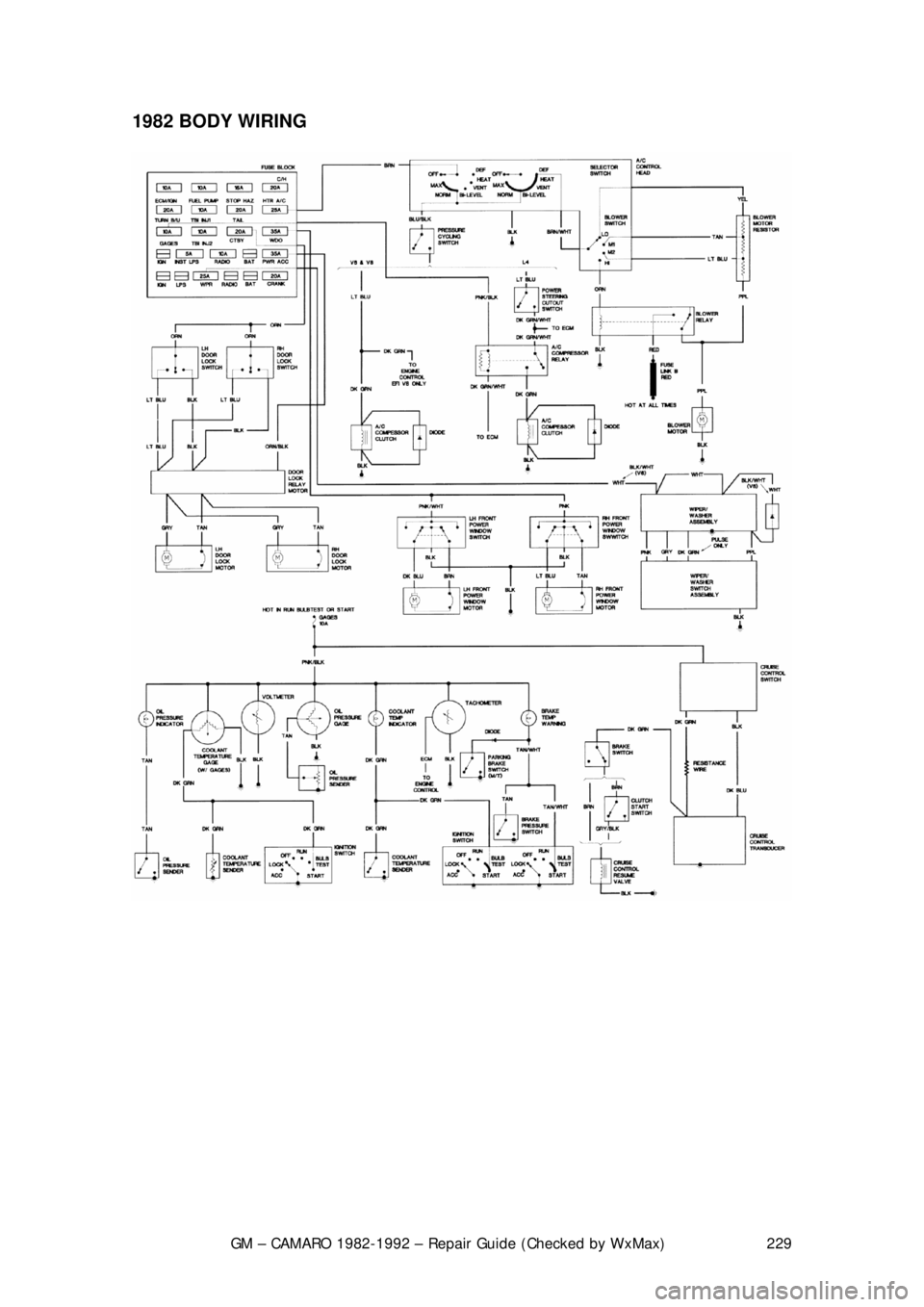

1982 5.0L CARBURETED
ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 228

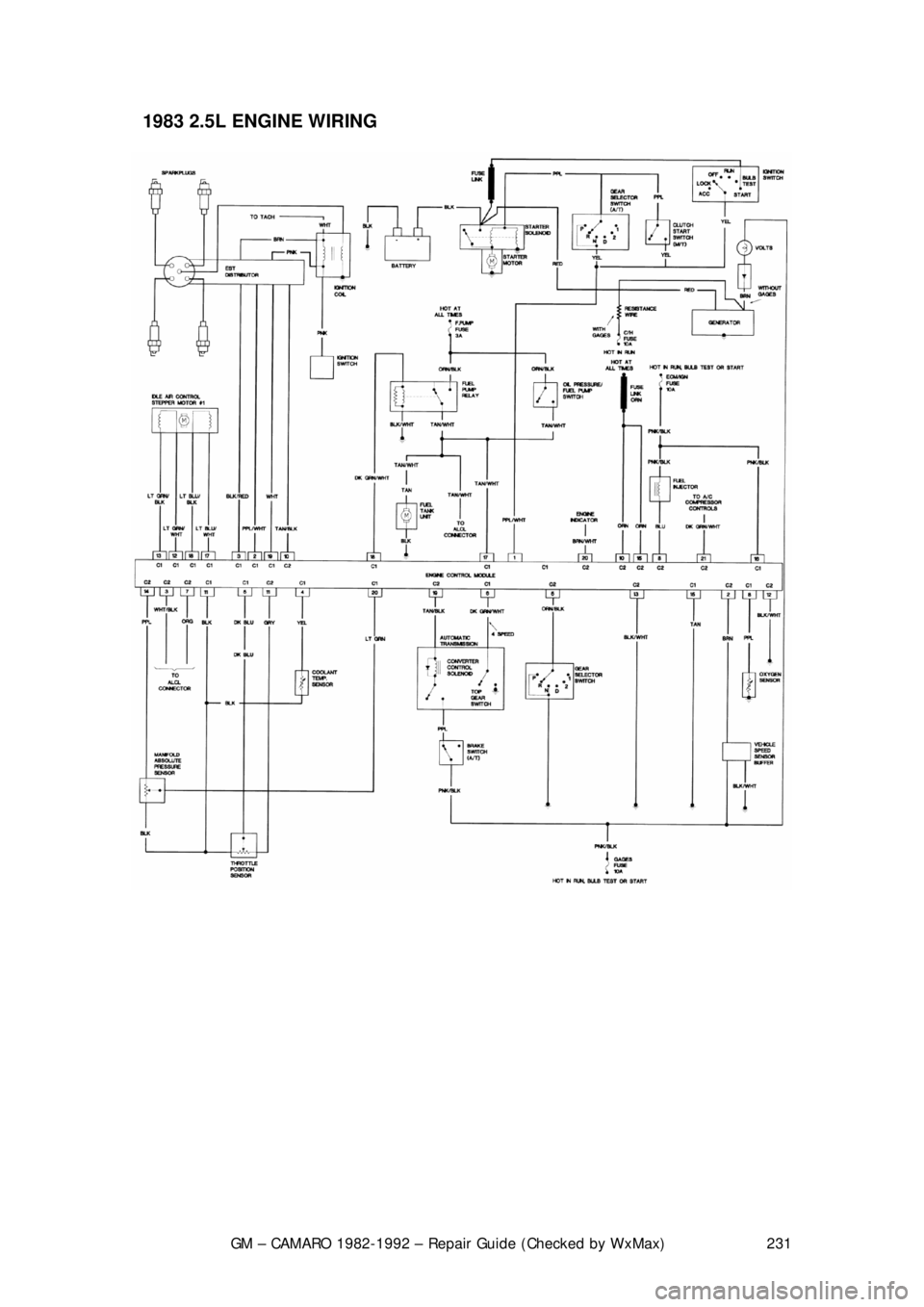

1982 5.0L CROSSFIRE INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 229

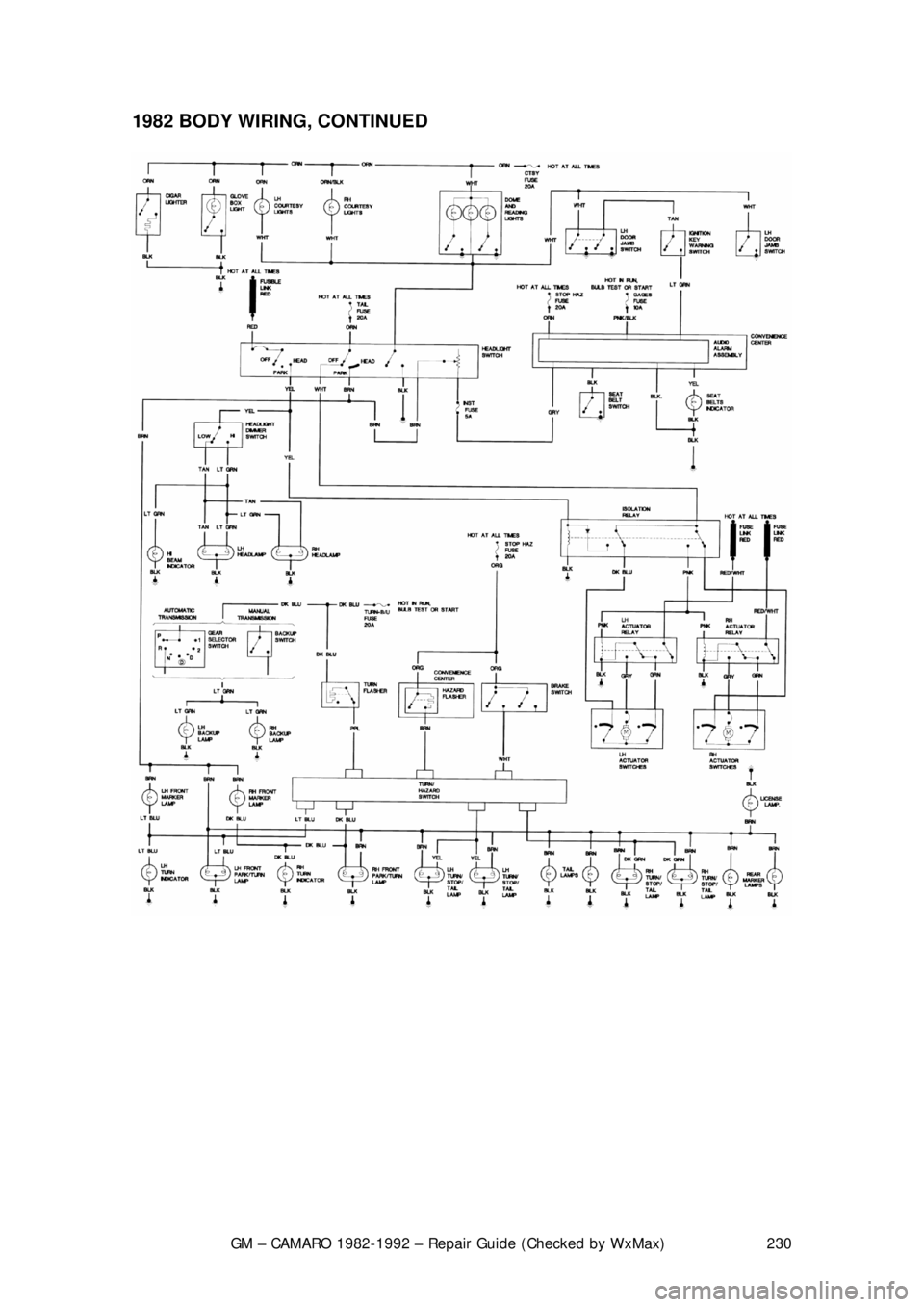

1982 BODY WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 230

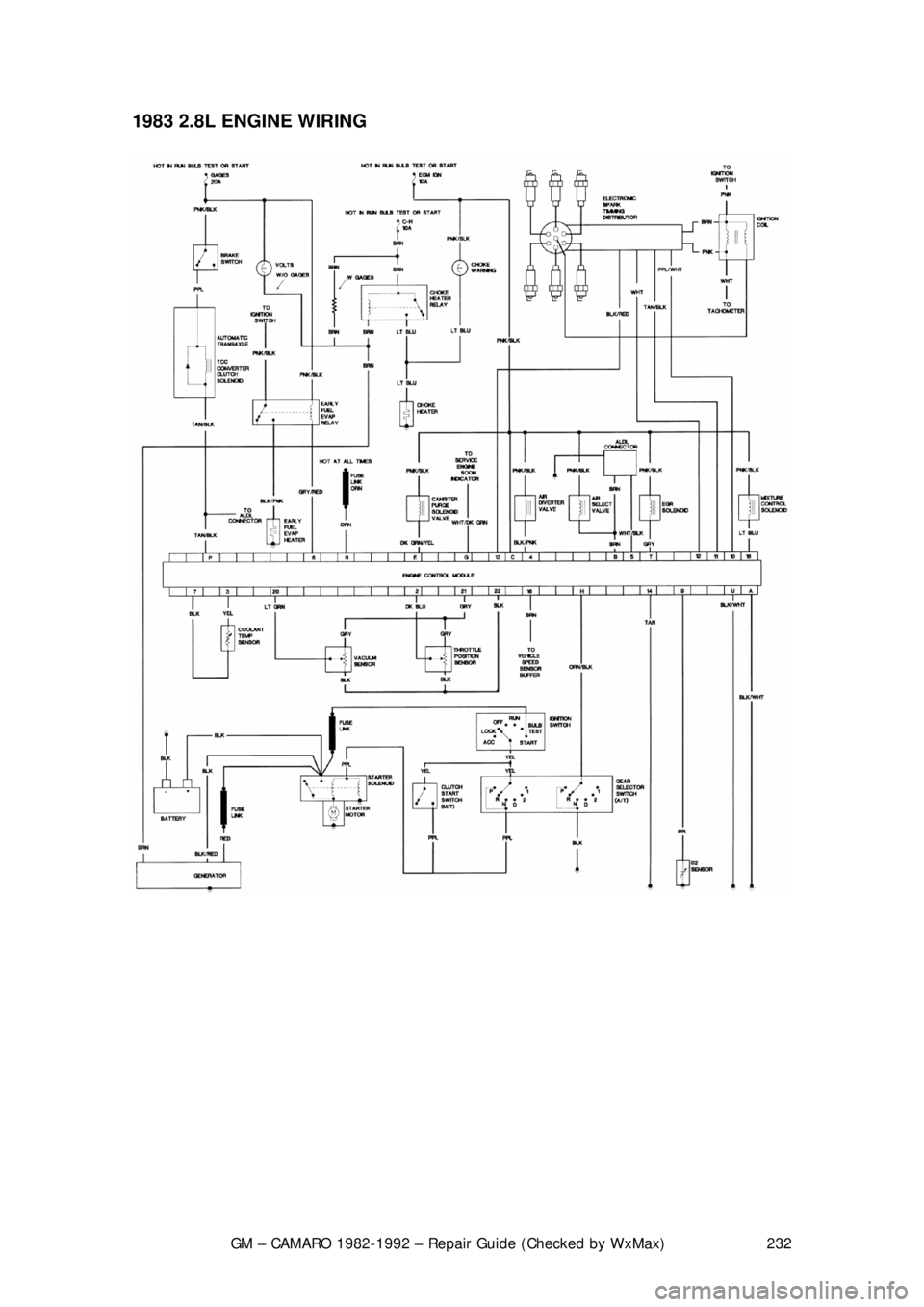

1982 BODY WIRING, CONTINUED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 231

1983 2.5L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 232
1983 2.8L ENGINE WIRING
