1982 CHEVROLET CAMARO Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 257

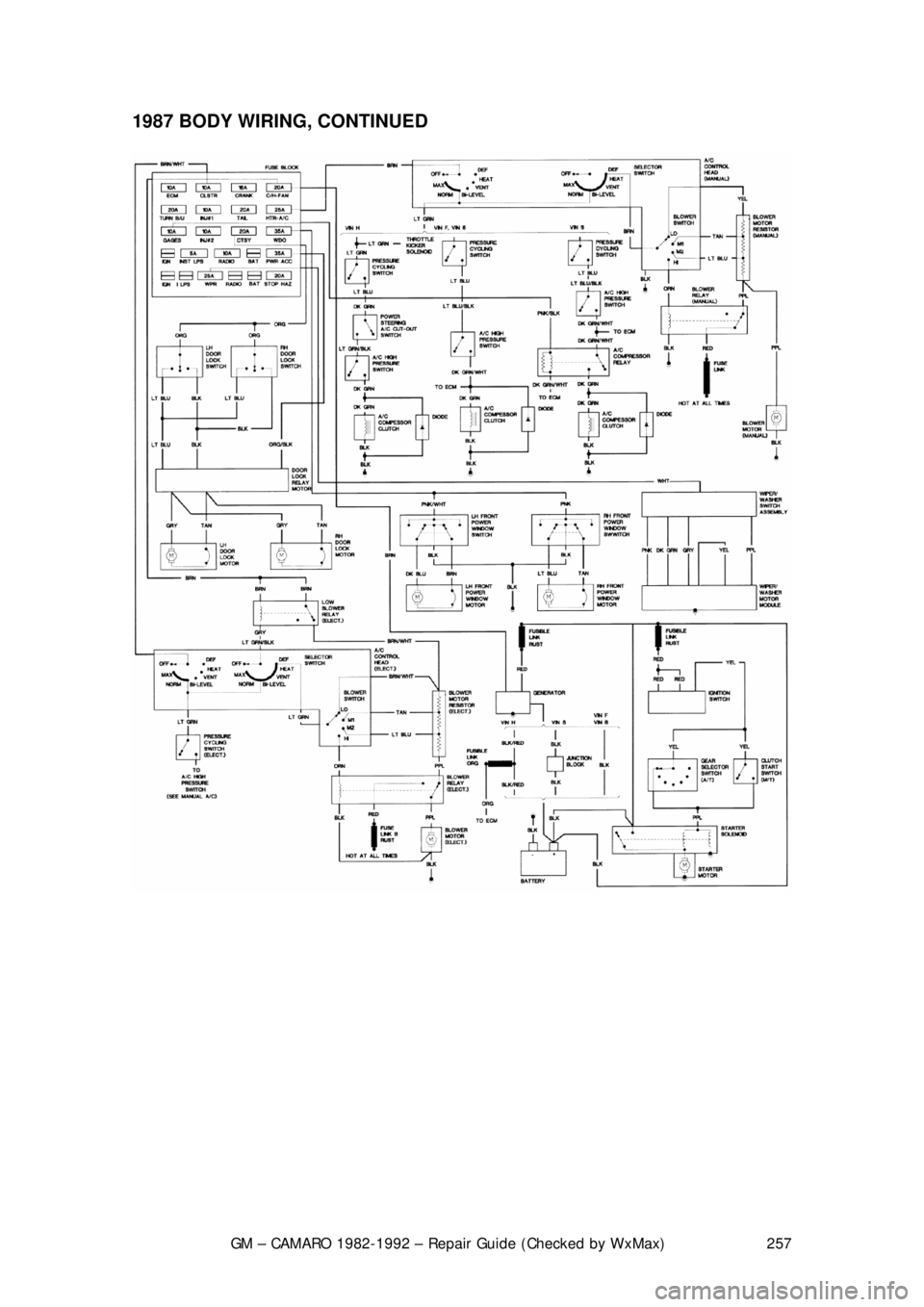

1987 BODY WIRING, CONTINUED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 258

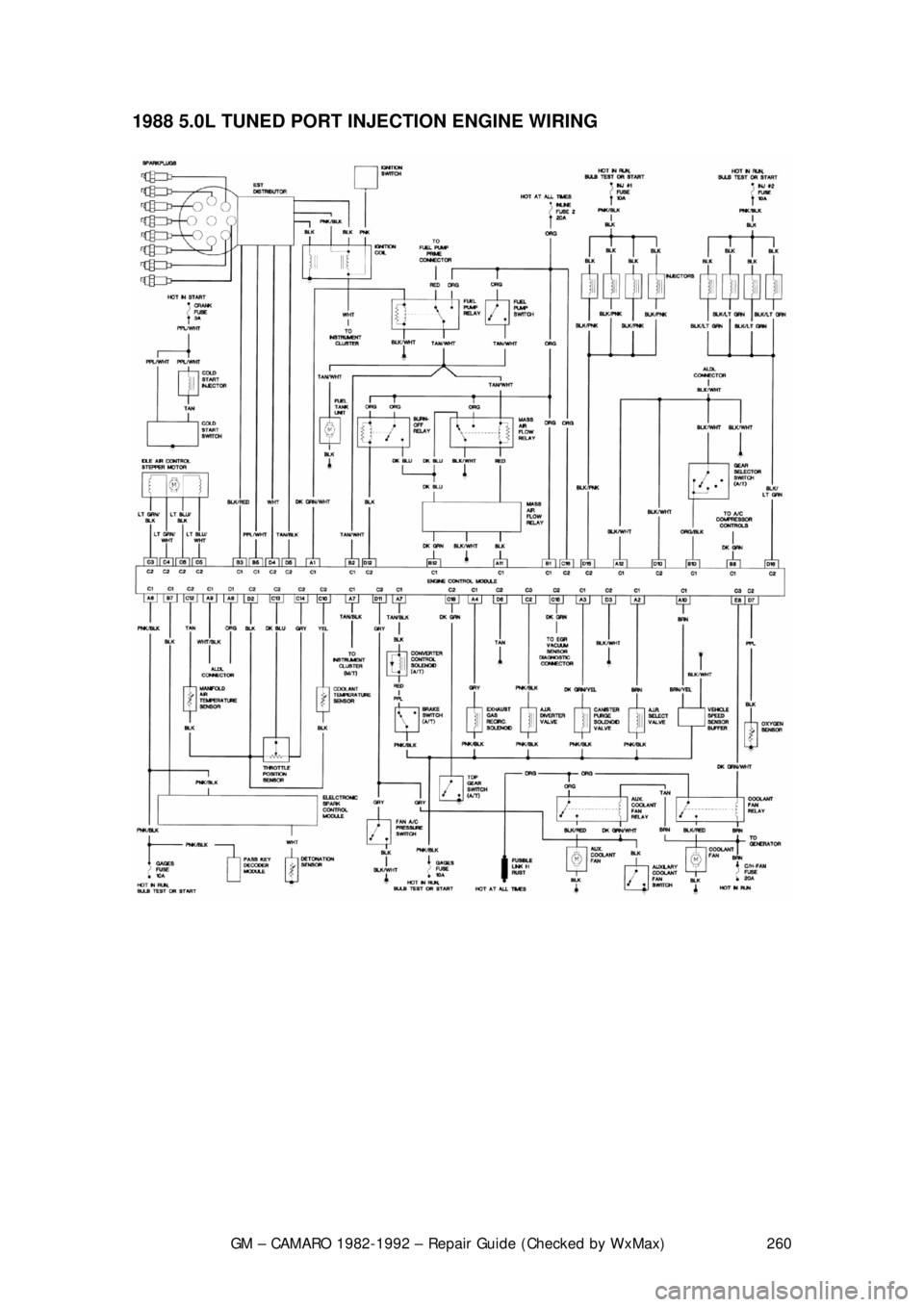

1988 2.8L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 259

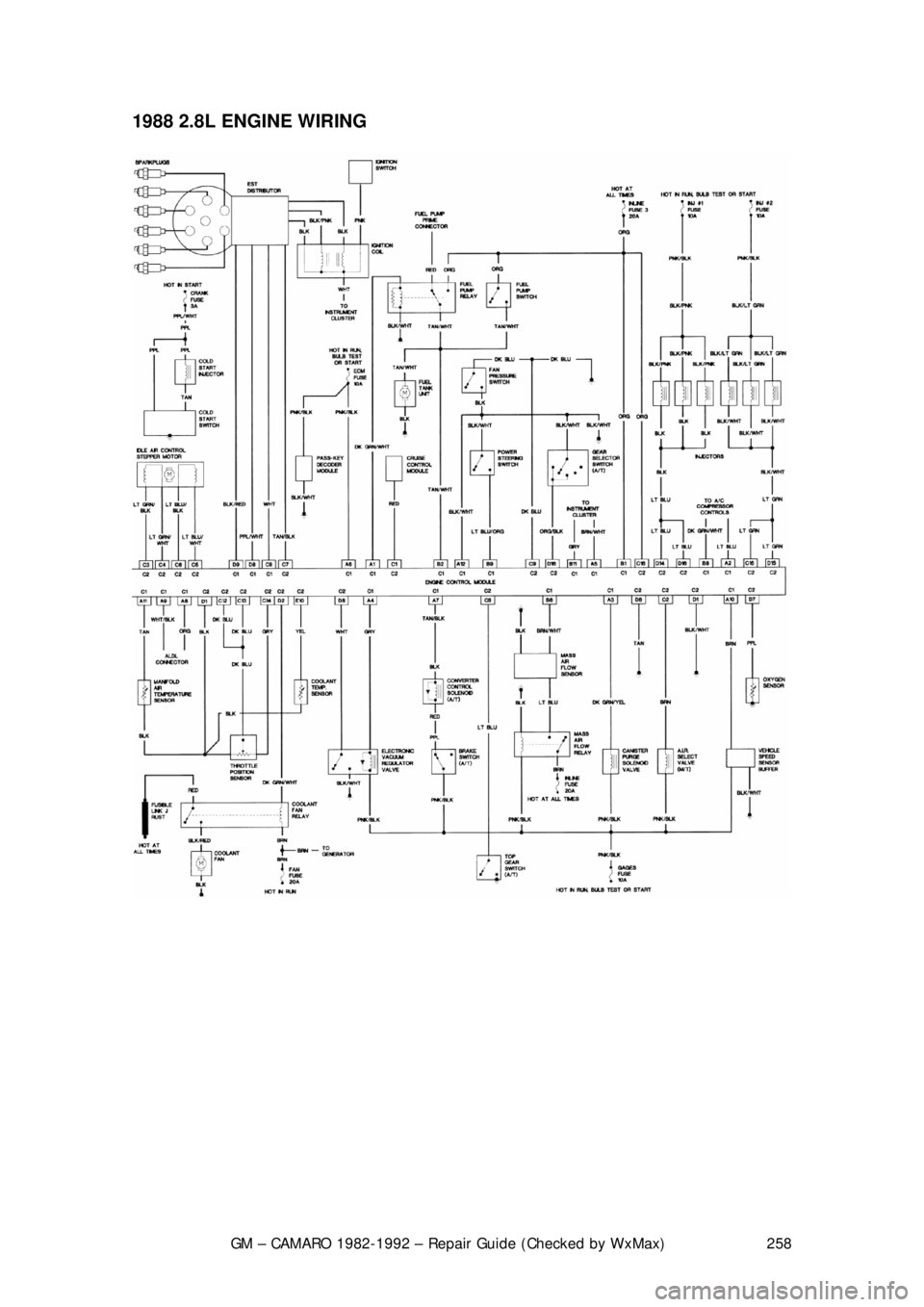

1988 5.0L THROTTLE BODY FUEL INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 260

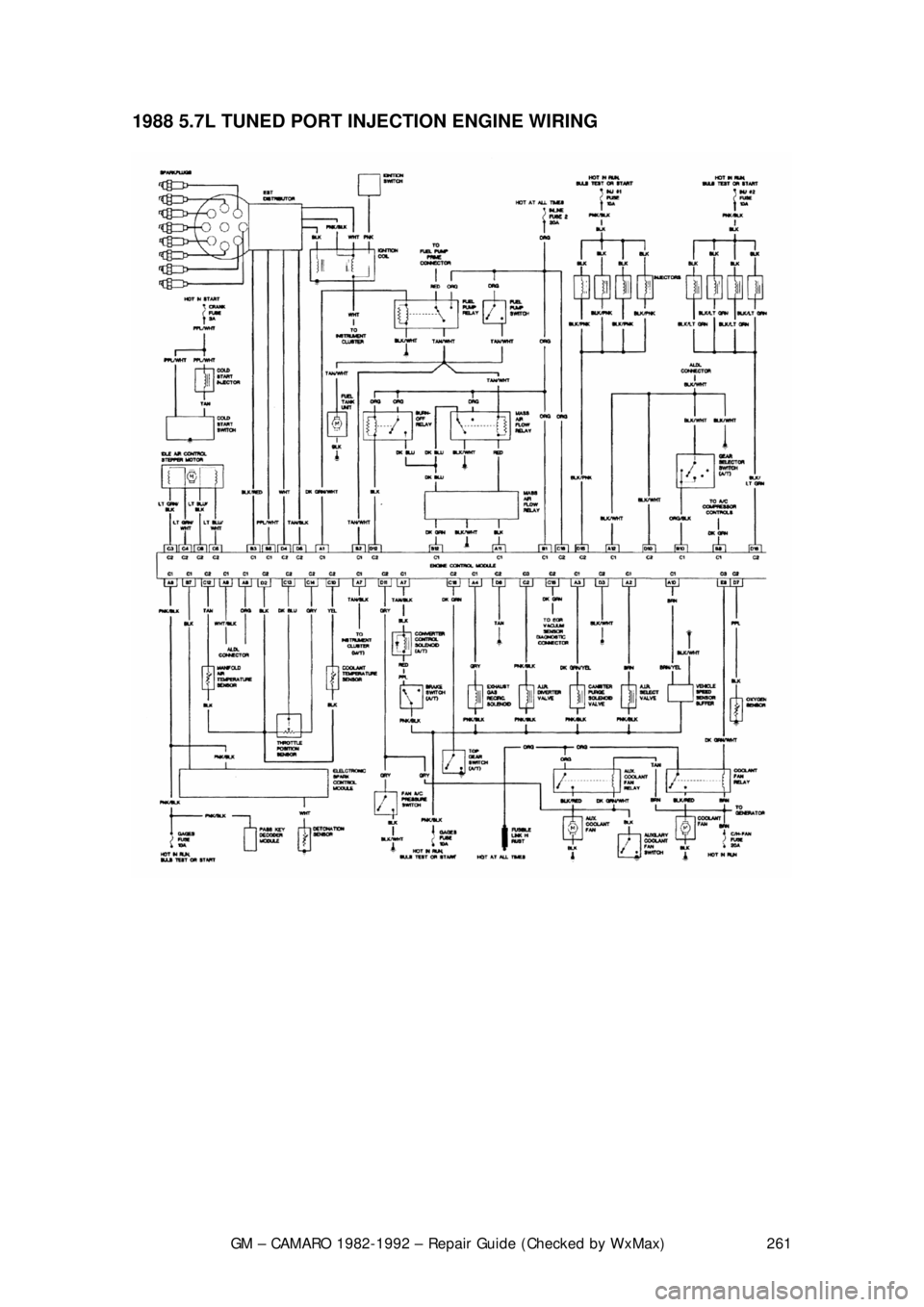

1988 5.0L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 261

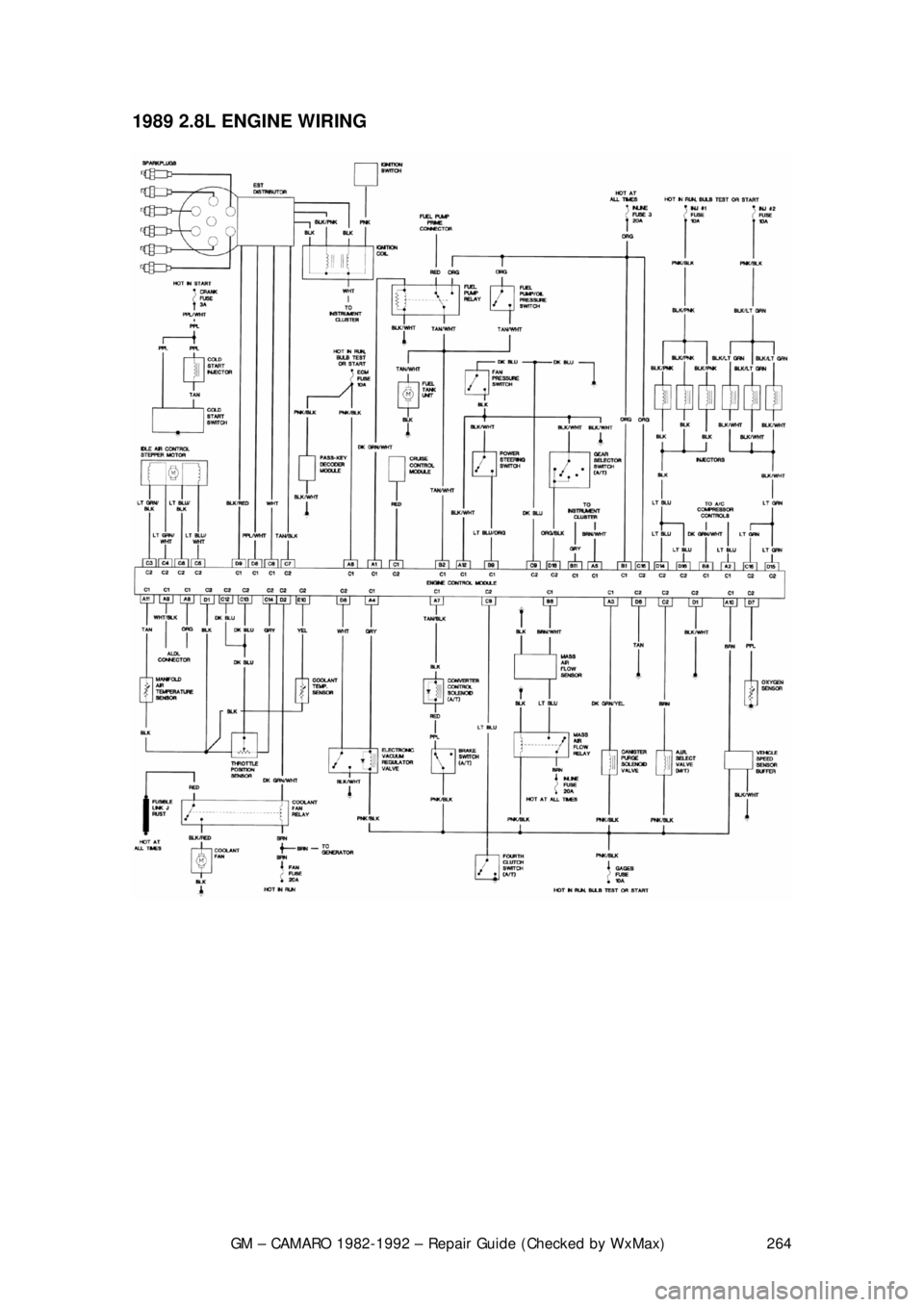

1988 5.7L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 262

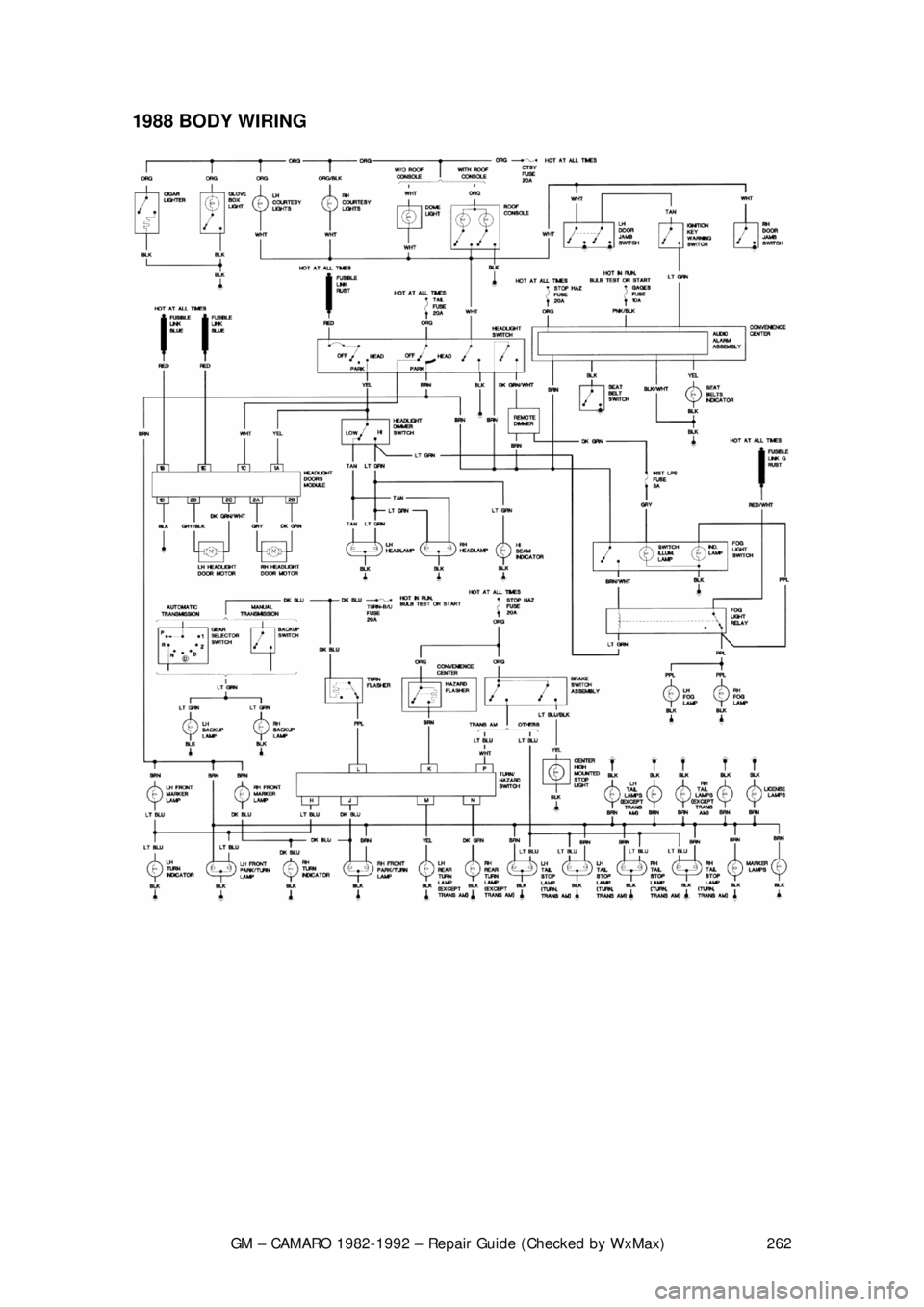

1988 BODY WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 263
1988 BODY WIRING, CONTINUED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 264
1989 2.8L ENGINE WIRING
