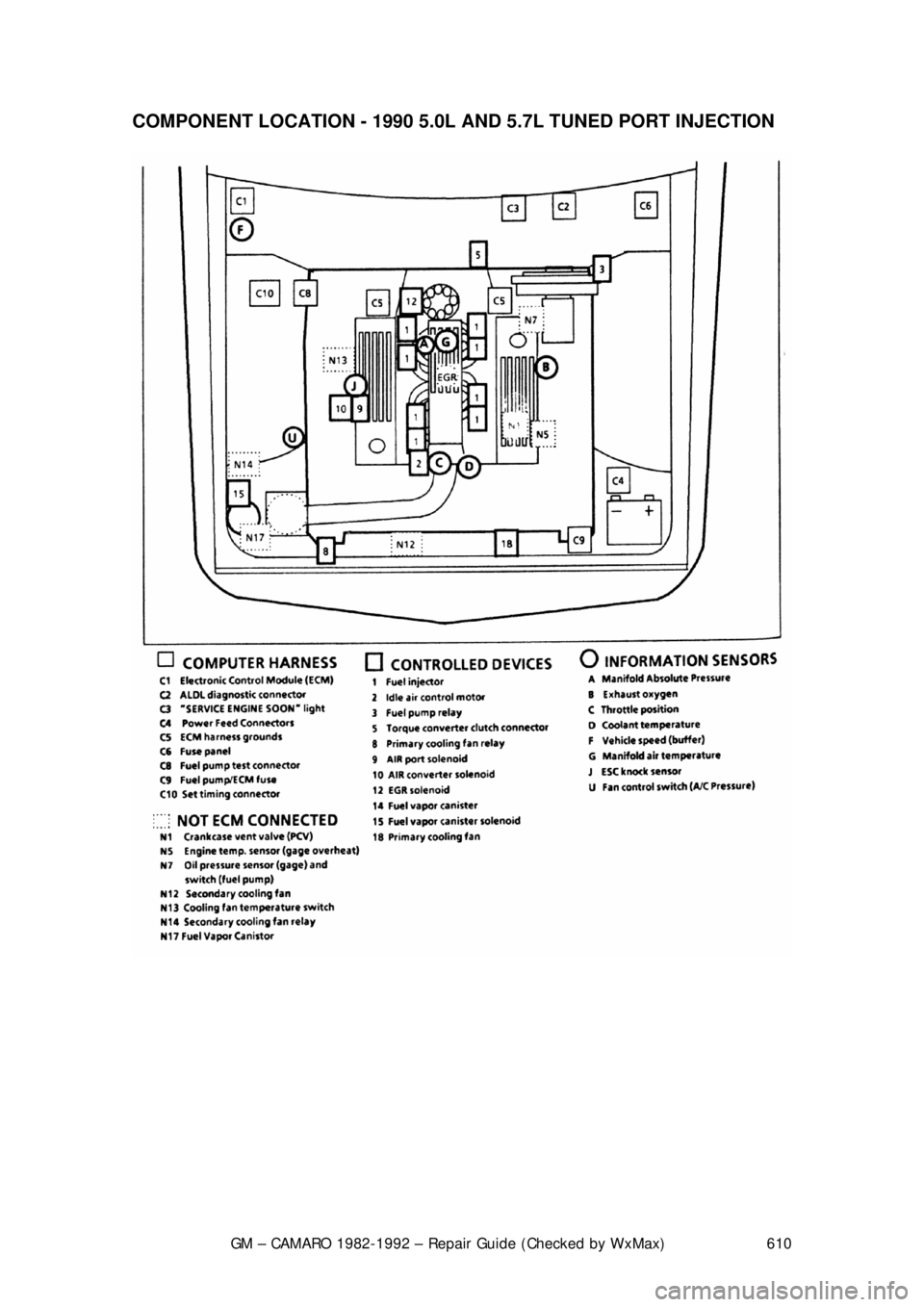

COMPONENT LOCATION - 1987-1989
5.0L AND 5.7L TUNED PORT
INJECTION

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 610

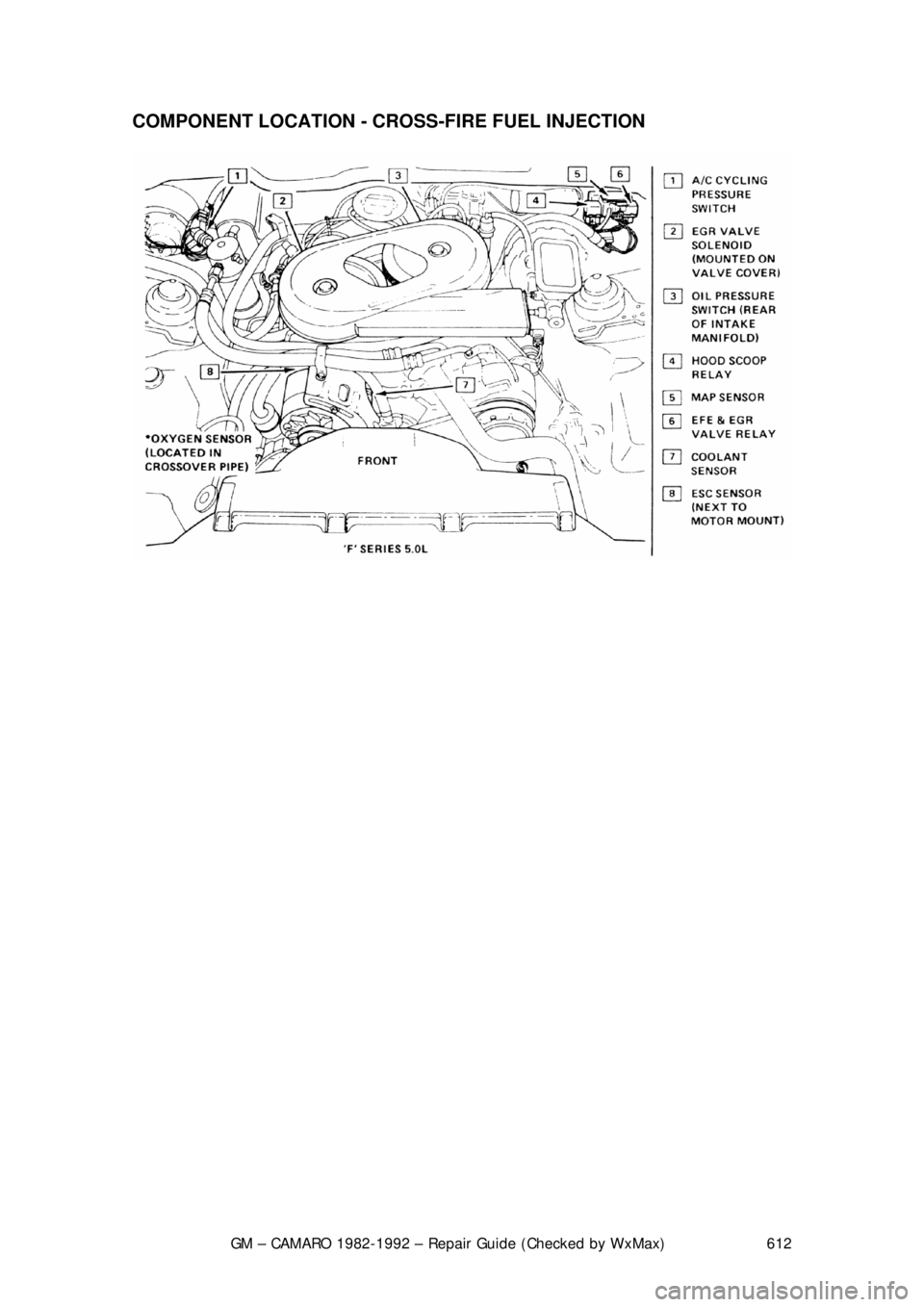

COMPONENT LOCATION - 1990 5.0L AND 5.7L TUNED PORT INJECTION

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 611

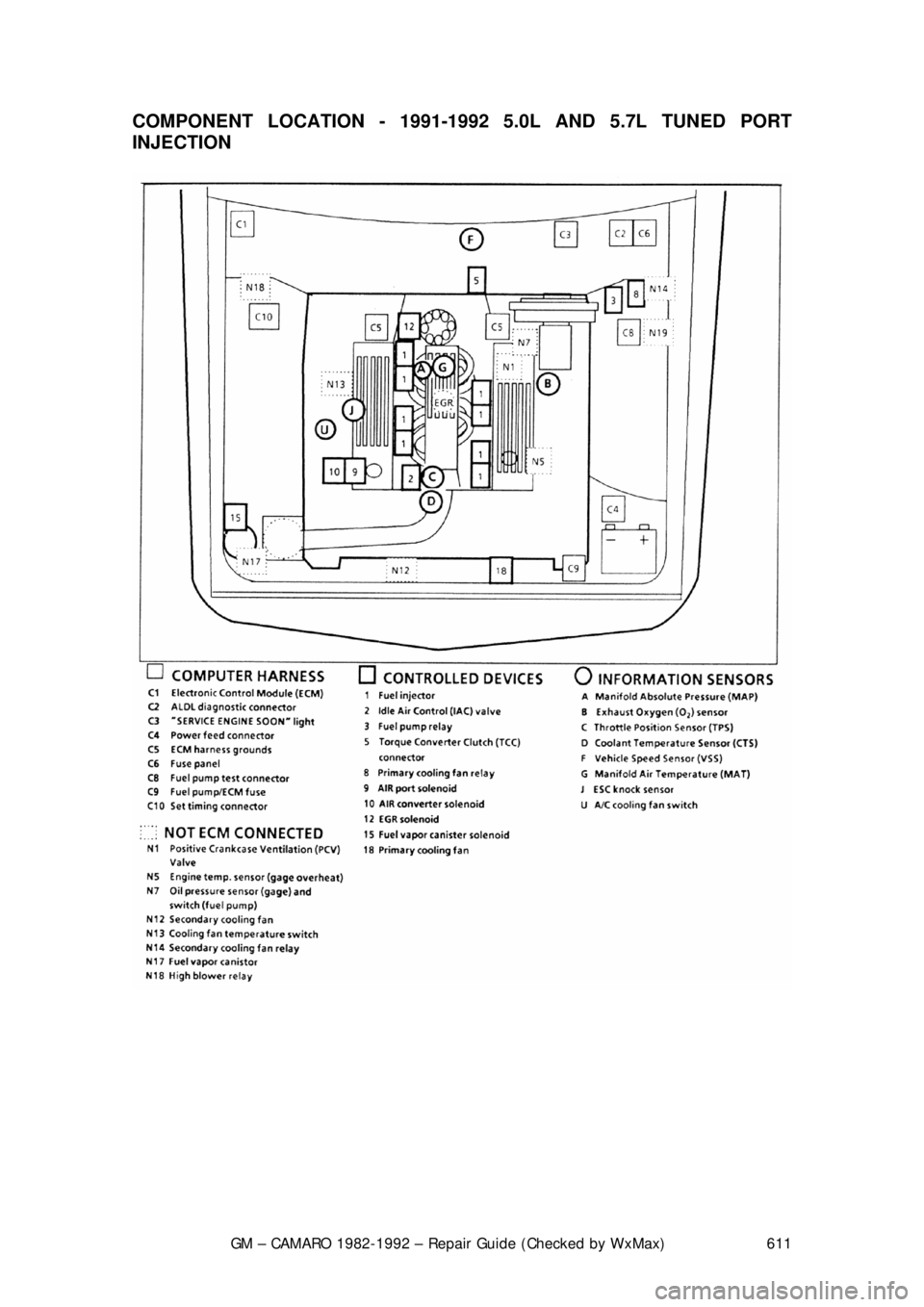

COMPONENT LOCATION - 1991-1992
5.0L AND 5.7L TUNED PORT
INJECTION

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 612

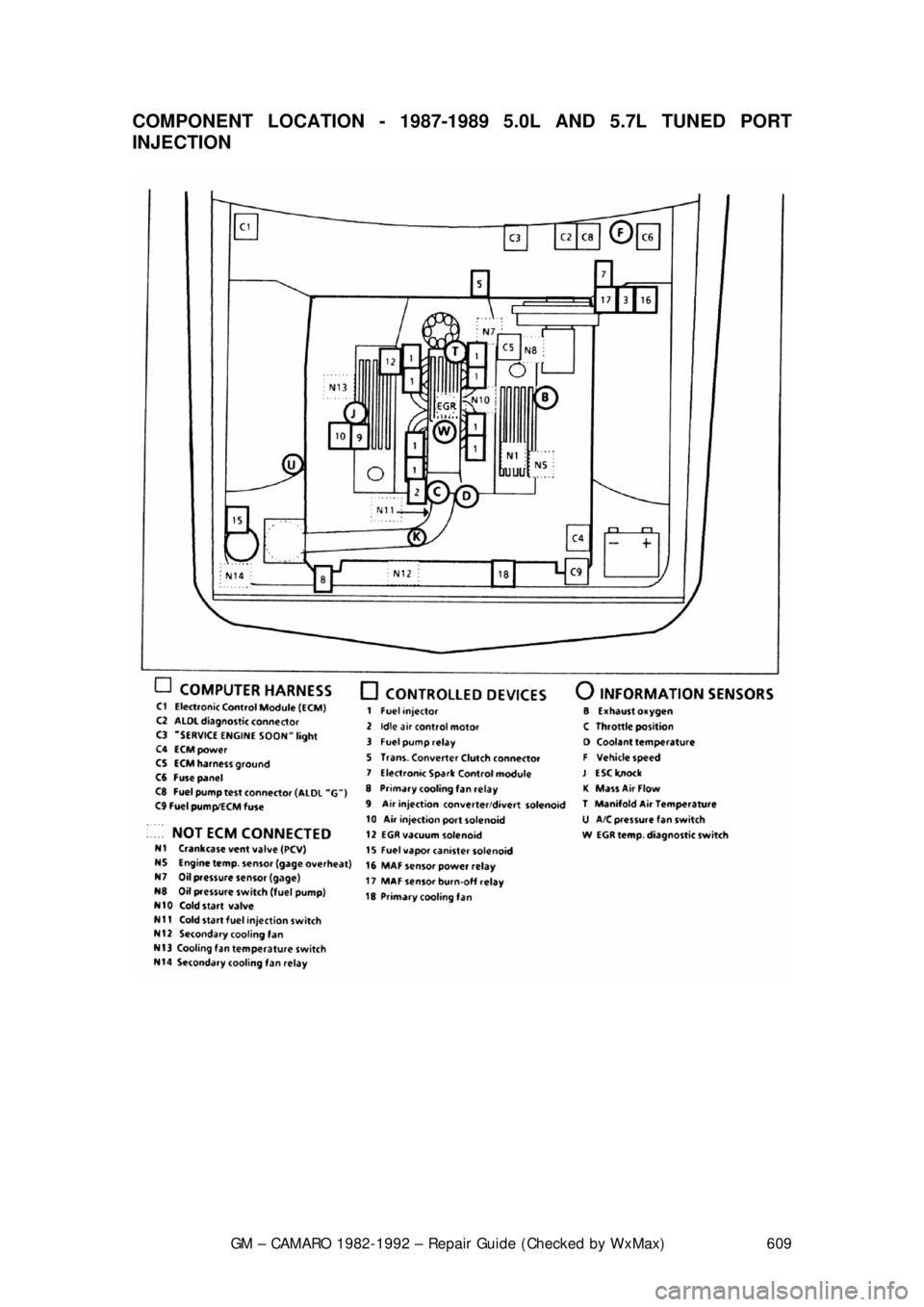

COMPONENT LOCATION - CROSS-FIRE FUEL INJECTION

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 613
VACUUM DIAGRAMS

Following are vacuum diagrams for mo
st of the engine and emissions package
combinations covered by this informati on. Because vacuum circuits will vary
based on various engine and v ehicle options, always refer first to the vehicle
emission control information label, if present. Should the label be missing, or
should vehicle be equipped with a different engine from the vehicle's original
equipment, refer to the diagrams below for the same or similar configuration.
If you wish to obtain a replacement emi ssions label, most manufacturers make
the labels available for purc hase. The labels can usually be ordered from a local
dealer.

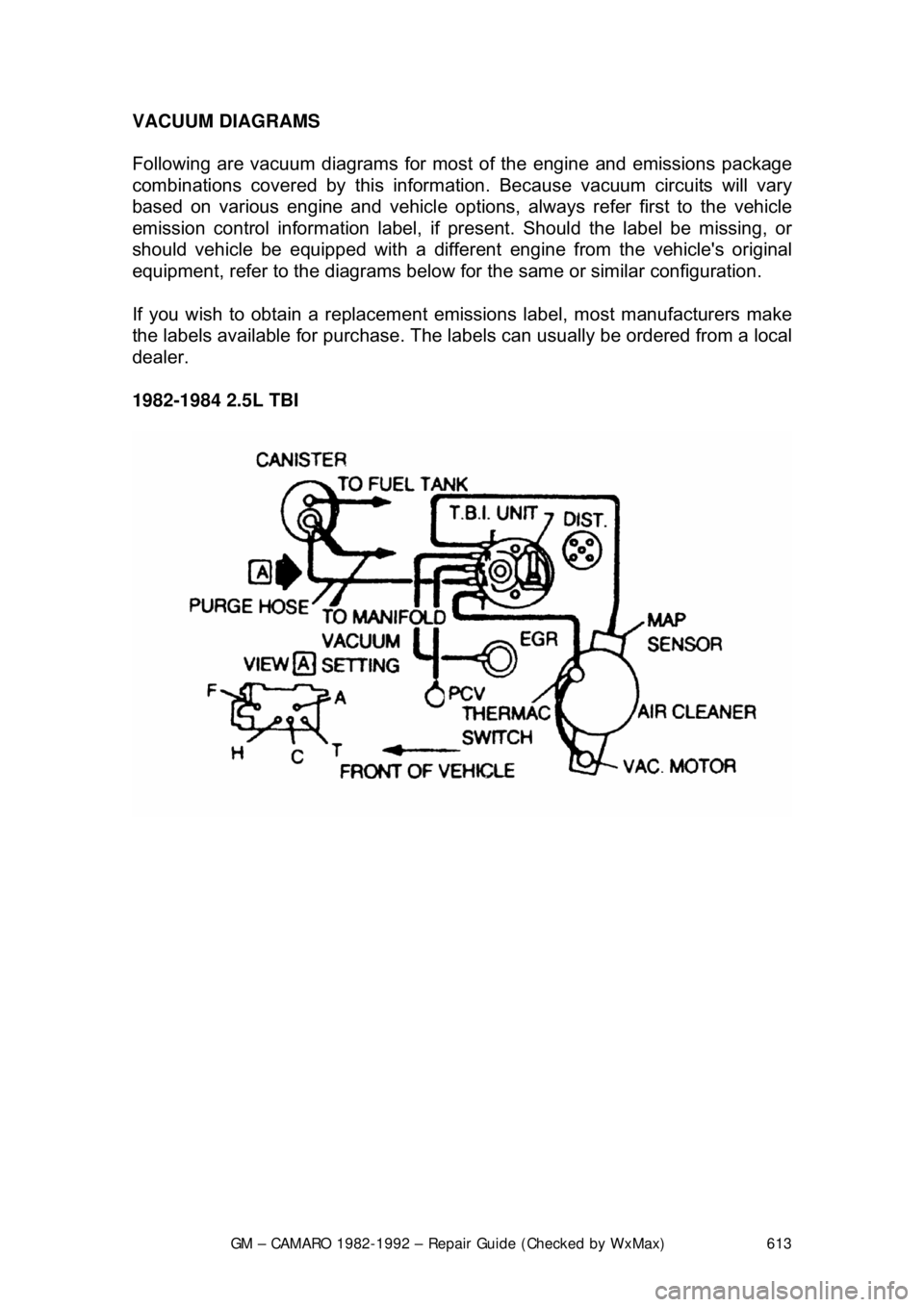

1982-1984 2.5L TBI

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 614

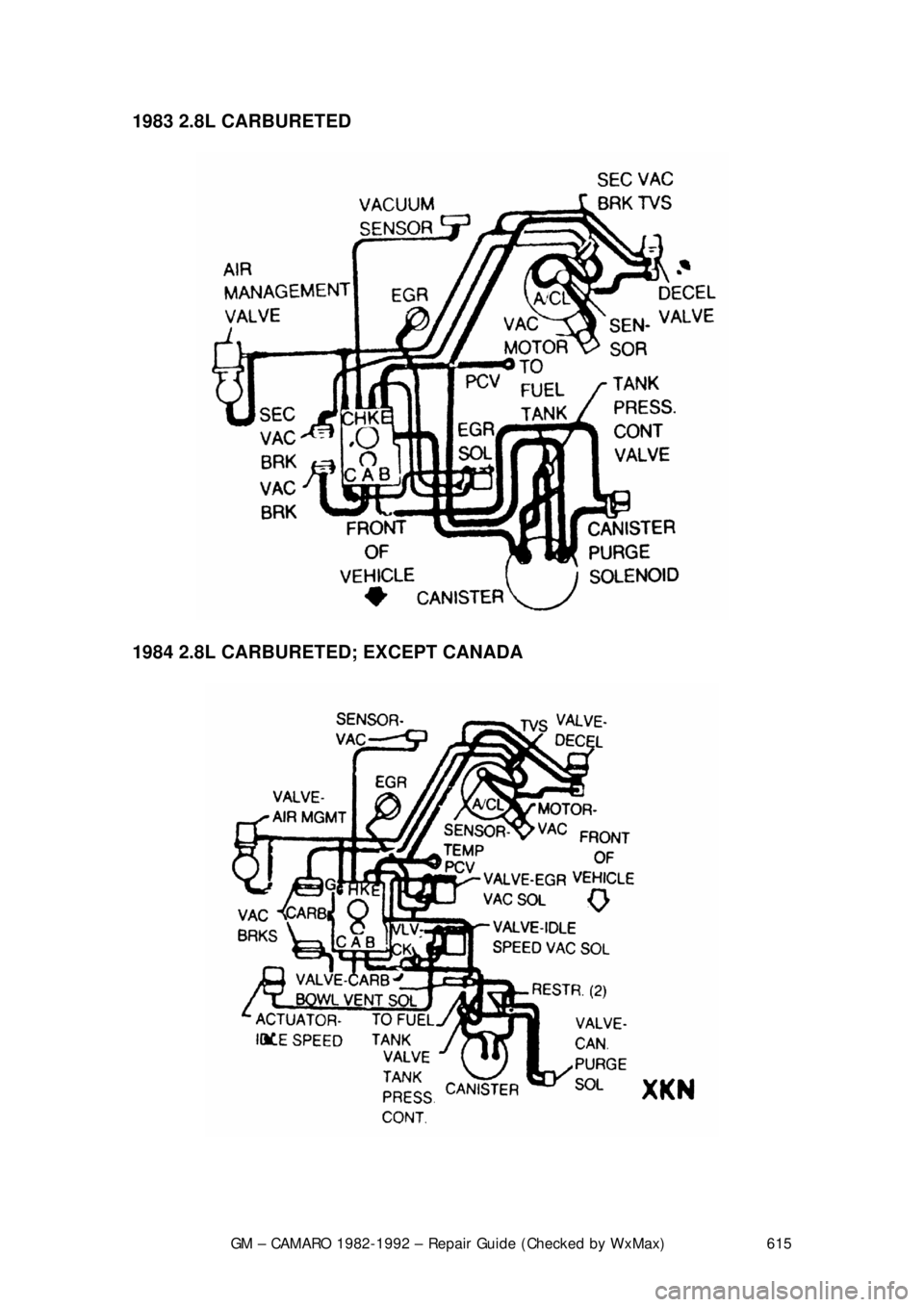

1985-1986 2.5L TBI

1982 2.8L CARBURETED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 615

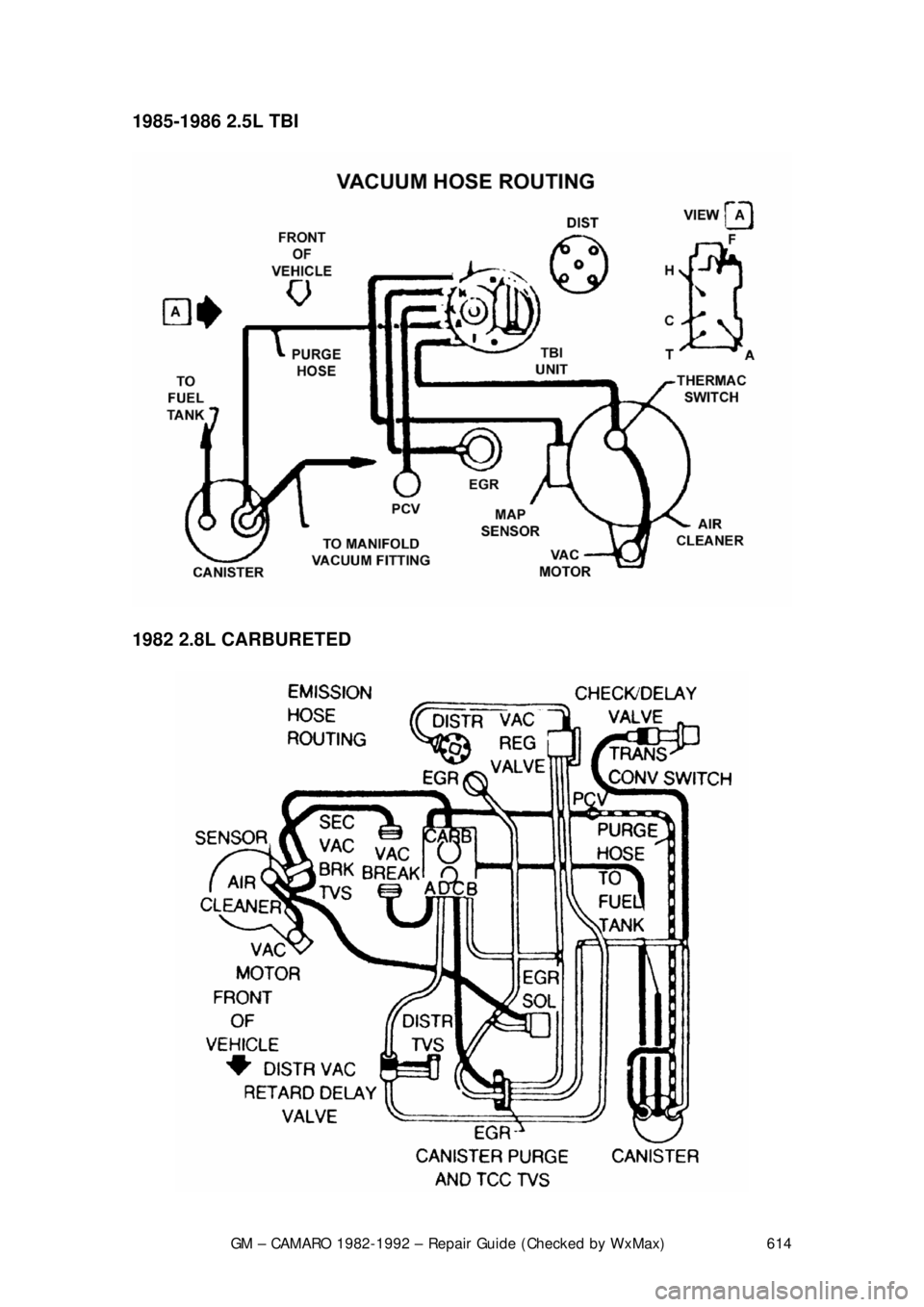

1983 2.8L CARBURETED

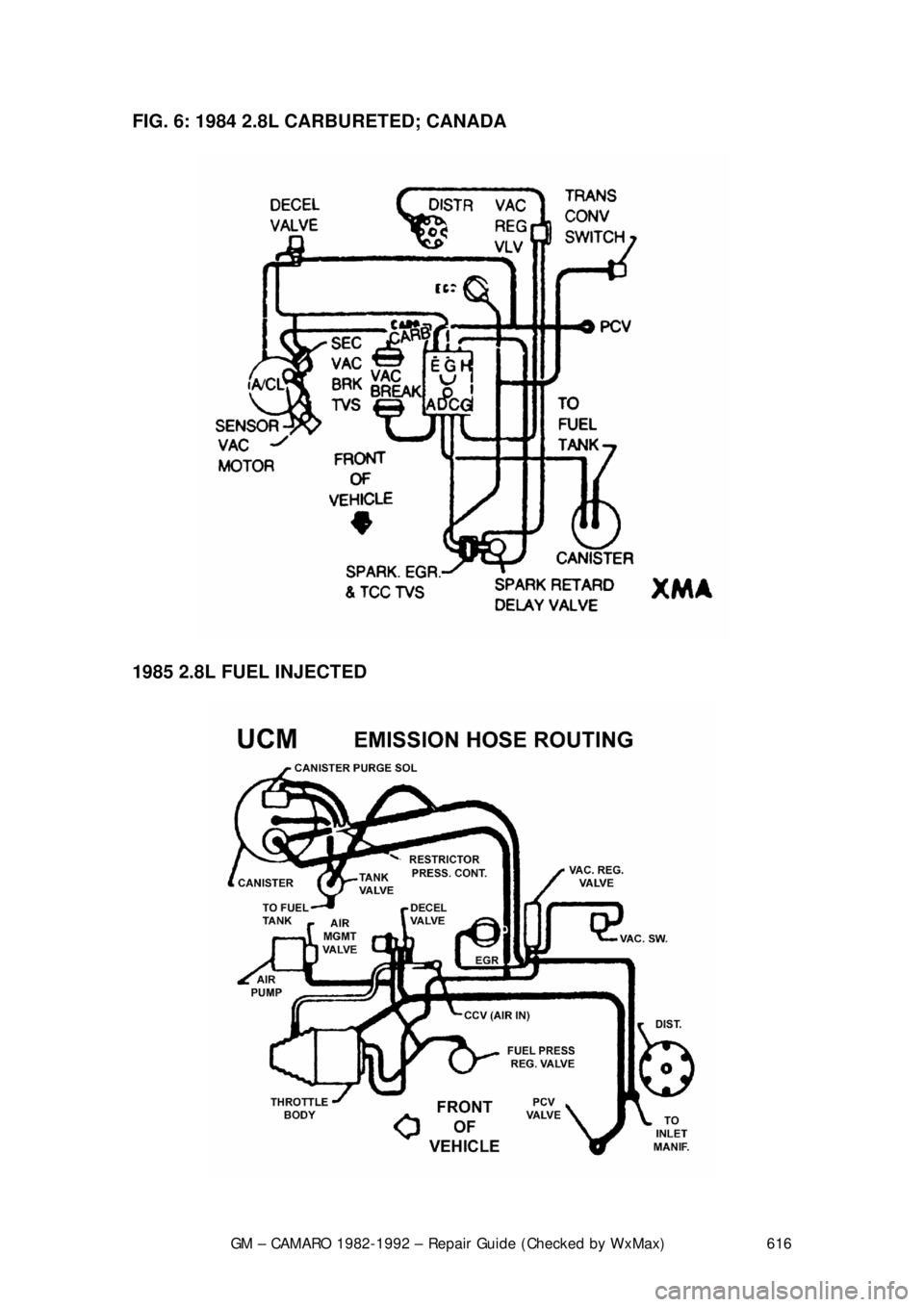

1984 2.8L CARBURETED; EXCEPT CANADA

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 616
FIG. 6: 1984 2.8L CARBURETED; CANADA

1985 2.8L FUEL INJECTED
