REPAIRING DAMAGED THREADS

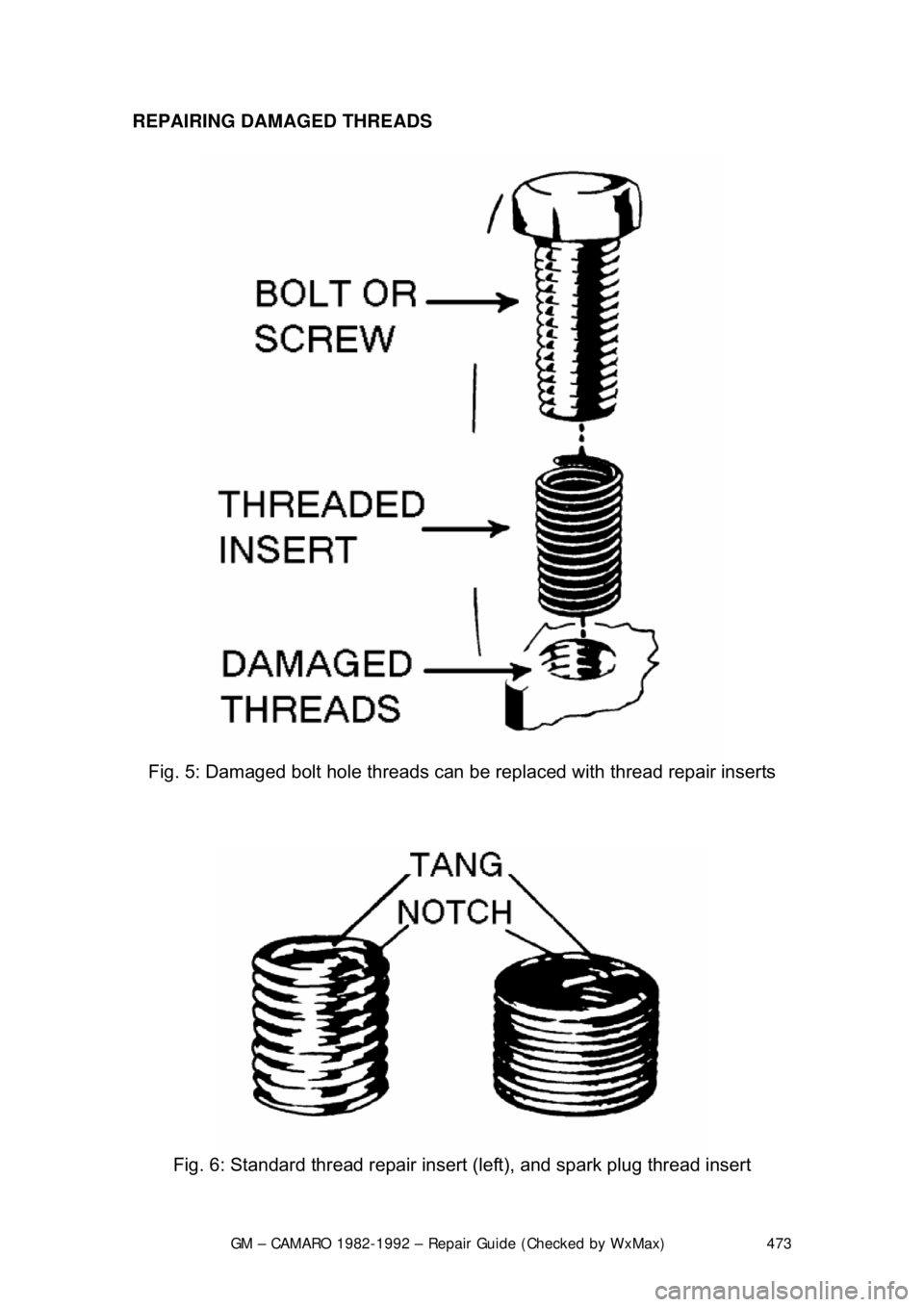

Fig. 5: Damaged bolt hole threads can be replaced with thread repair inserts


Fig. 6: Standard thread repair insert (left), and spark plug thread insert

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 474

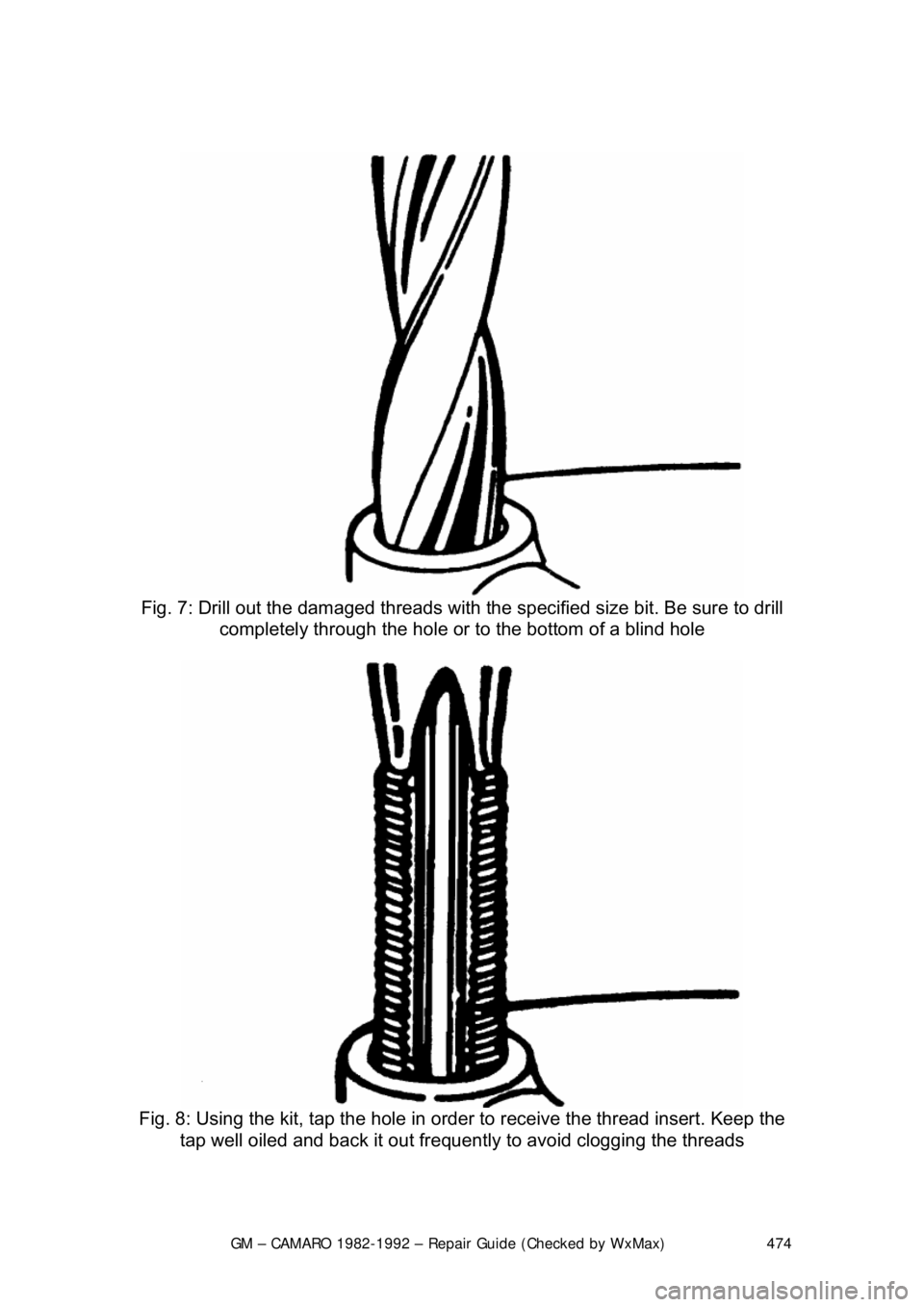

Fig. 7: Drill out the damaged threads with t he specified size bit. Be sure to drill
completely through the hole or to the bottom of a blind hole

Fig. 8: Using the kit, tap the hole in or der to receive the thread insert. Keep the
tap well oiled and back it out frequently to avoid clogging the threads

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 475

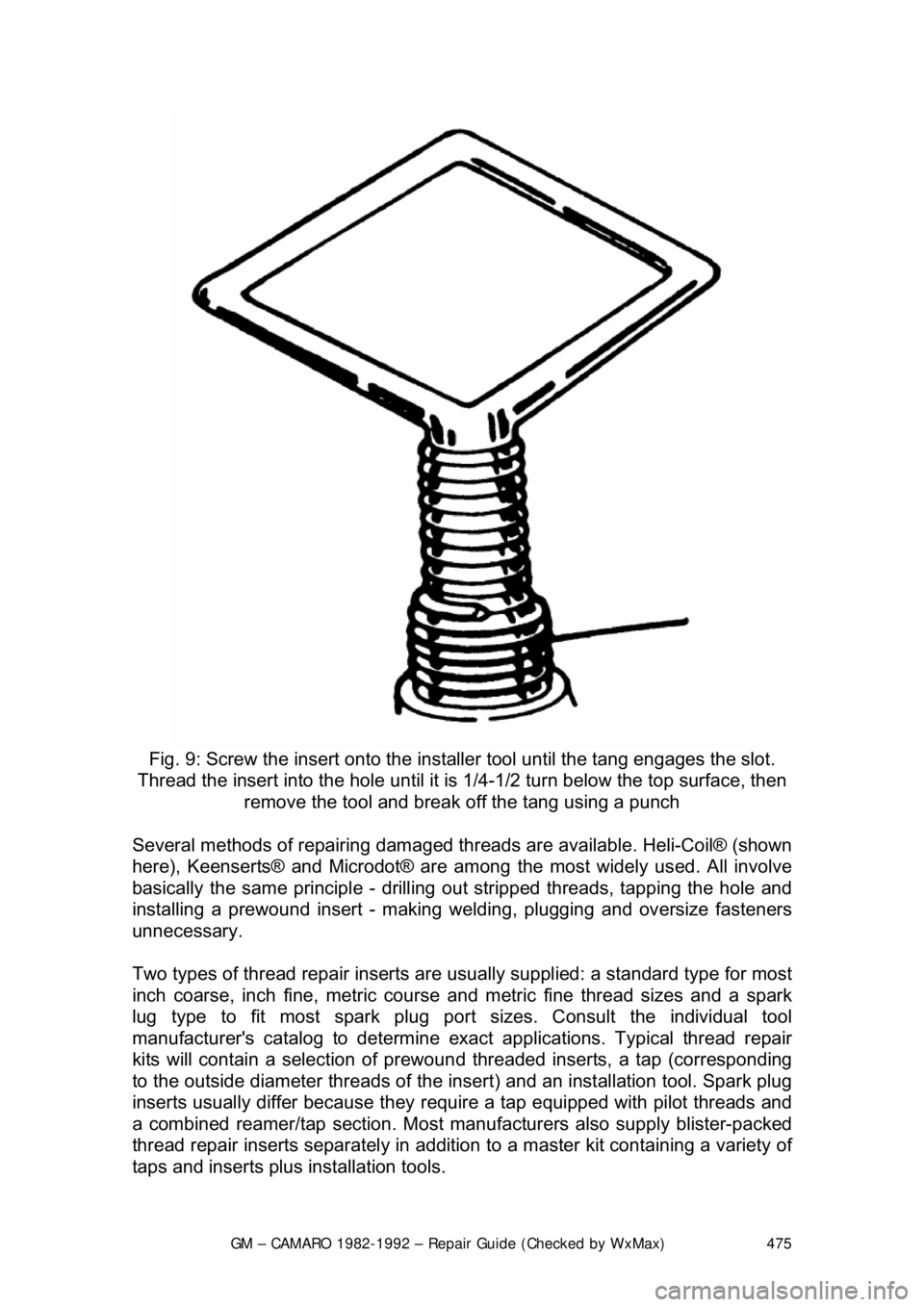

Fig. 9: Screw the insert onto the inst aller tool until the tang engages the slot.
Thread the insert into the hole until it is 1/4-1/2 turn below the top surface, then
remove the tool and break off the tang using a punch
Several methods of repairi ng damaged threads are availa ble. Heli-Coil® (shown
here), Keenserts® and Microdot® are among the most widely used. All involve
basically the same principl e - drilling out stripped thread s, tapping the hole and
installing a prewound insert - making we lding, plugging and oversize fasteners
unnecessary.
Two types of thread repair inserts are us ually supplied: a standard type for most
inch coarse, inch fine, metric course and metric fine thread sizes and a spark
lug type to fit most spark plug port si zes. Consult the individual tool
manufacturer's catalog to determine exac t applications. Typical thread repair
kits will contain a selection of prewoun d threaded inserts, a tap (corresponding
to the outside diameter thr eads of the insert) and an installation tool. Spark plug
inserts usually differ because they requi re a tap equipped with pilot threads and
a combined reamer/tap section. Most ma nufacturers also supply blister-packed
thread repair inserts separately in addition to a master kit containing a variety of
taps and inserts plus installation tools.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 476
Before attempting to repair a threaded
hole, remove any snapped, broken or
damaged bolts or studs. Penetrating oil ca n be used to free frozen threads. The
offending item can usually be removed with locking pliers or using a screw/stud
extractor. After the hole is clear, the thread can be repaired, as shown in the
series of accompanying illustrations and in the kit manufacturer's instructions.
ENGINE PREPARATION
To properly rebuild an engine, you must fi rst remove it from the vehicle, then
disassemble and diagnose it. Ideally you should place your engine on an engine
stand. This affords you the best access to the engine components. Follow the
manufacturer's directions for using the stand with your particular engine.
Remove the flywheel or fl explate before installing the engine to the stand.
Now that you have the engine on a stand, and assuming that you have drained
the oil and coolant from the engine, it's ti me to strip it of all but the necessary
components. Before you start disassembli ng the engine, you may want to take
a moment to draw some pictures, or fabr icate some labels or containers to mark
the locations of various components and the bolts and/or studs which fasten
them. Modern day engines use a lot of littl e brackets and clips which hold wiring
harnesses and such, and these holders are often mounted on studs and/or bolts
that can be easily mixed up. The manufacturer spent a lot of time and money
designing your vehicle, and they wouldn't have wasted any of it by haphazardly
placing brackets, clips or fasteners on t he vehicle. If it's present when you
disassemble it, put it back when you asse mble, you will regret not remembering
that little bracket which holds a wire har ness out of the path of a rotating part.
You should begin by unbolting any accessories still attached to the engine, such
as the water pump, power steering pump, alternator, etc. Then, unfasten any
manifolds (intake or exhaust) which were not removed during the engine
removal procedure. Finally, remove any covers remaining on the engine such
as the rocker arm, front or timing cove r and oil pan. Some front covers may
require the vibration dam per and/or crank pulley to be removed beforehand.
The idea is to reduce the engine to the bar e necessities (cylinder head(s), valve
train, engine block, crankshaft, pistons and connecting rods), plus any other 'in
block' components such as oil pumps, balance shafts and auxiliary shafts.
Finally, remove the cylinder head(s) from the engine block and carefully place
on a bench. Disassembly instructions fo r each component follow later in this
section.
CYLINDER HEAD
There are two basic types of cylinder heads used on today’s automobiles:
the Overhead Valve (OHV) and the Over head Camshaft (OHC). The latter can
also be broken down into two subgr oups: the Single Overhead Camshaft
(SOHC) and the Dual Overhead Camshaft (DO HC). Generally, if there is only a
single camshaft on a head, it is just referred to as an OHC head. Also, an
engine with a OHV cylinder head is also known as a pushrod engine.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 477
Most cylinder heads these days are made of
an aluminum alloy due to its light
weight, durability and heat transfer qualit ies. However, cast iron was the
material of choice in the past, and is st ill used on many vehicles today. Whether
made from aluminum or iron, all cylinder heads hav e valves and seats. Some
use two valves per cylinder, while the more hi-tech engines will utilize a multi-
valve configuration using 3, 4 and
even 5 valves per cylinder. When the va lve contacts the seat, it does so on
precision machined surfaces, which seal s the combustion chamber. All cylinder
heads have a valve guide for each valve. The guide centers the valve to the
seat and allows it to move up and down within it. The clearance between the
valve and guide can be critical. Too much clearance and the engine may
consume oil, lose vacuum and/or damage the seat. Too little, and the valve can
stick in the guide causing t he engine to run poorly if at all, and possibly causing
severe damage. The last component all cylinder heads have are valve springs.
The spring holds the valve against its s eat. It also returns the valve to this
position when the valve has been opened by the valve train or camshaft. The
spring is fastened to the valve by a retainer and valve locks (sometime\
s called
keepers). Aluminum heads will also have a valve spring shim to keep the spring
from wearing away the aluminum.
An ideal method of rebuilding the cylin der head would involve replacing all of
the valves, guides, seats, springs, et c. with new ones. However, depending on
how the engine was maintained, often this is not necessary. A major cause of
valve, guide and seat wear is an improperly tuned engine. An engine that is
running too rich, will often wash the lubric ating oil out of the guide with gasoline,
causing it to wear rapidly. Conversely, an engine which is running too lean will
place higher combustion temperatures on the valves and seats allowing them to
wear or even burn. Springs fall victim to the driving habits of the individual. A
driver who often runs the engine rpm to the redline will wear out or break the
springs faster then one that stays well below it. Unfortunately, mileage takes it
toll on all of the parts. G enerally, the valves, guides, springs and seats in a
cylinder head can be machined and re-used, saving you money. However, if a
valve is burnt, it may be wise to replace all of the valves, since they were all
operating in the same environment. The same goes for any other component\
on
the cylinder head. Think of it as an insurance policy against future problems
related to that component.
Unfortunately, the only way to find out wh ich components need replacing, is to
disassemble and carefully check each piece. After the cylinder head(s) are
disassembled, thoroughly clean all of the components.
DISASSEMBLY
Before disassembling the cylinder head, you may want to fabricate some
containers to hold the various parts, as some of them can be quite small (such
as keepers) and easily lost. Also keeping yourself and the components
organized will aid in assembly and reduce confusion. Where possible, try to
maintain a components original location; th is is especially important if there is
not going to be any machine work performed on the components.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 478
1. If you haven’t already removed t
he rocker arms and/or shafts, do so
now.
2. Position the head so that the springs are easily accessed.

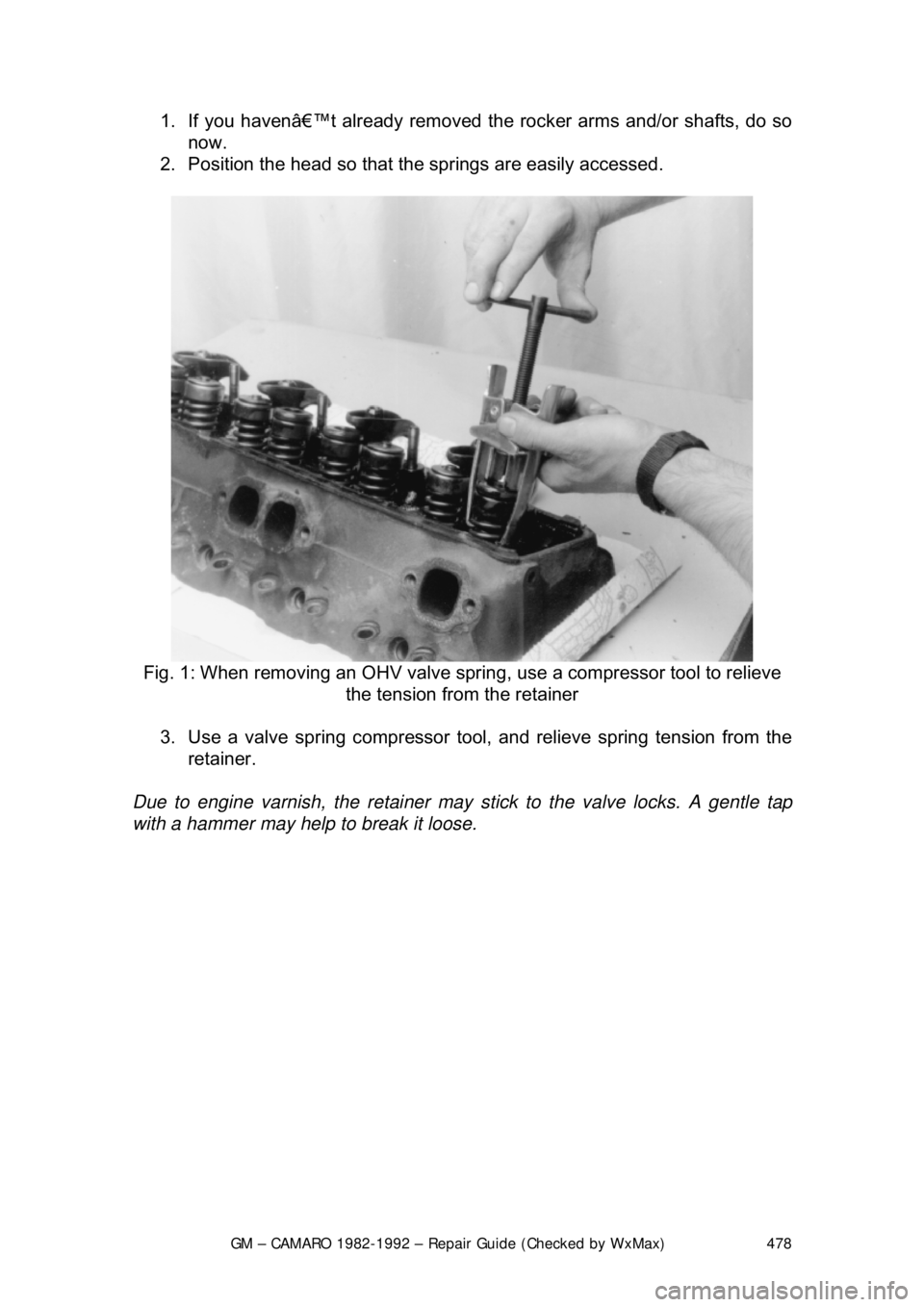

Fig. 1: When removing an OHV valve spring, use a compressor tool to relieve
the tension from the retainer
3. Use a valve spring compressor tool, and relieve spring tension from the retainer.
Due to engine varnish, the retainer may stick to the valve locks. A gentle tap
with a hammer may help to break it loose.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 479

Fig. 2: A small magn et will help in removal of the valve locks

Fig. 3: Be careful not to lose the small valve locks (keepers)

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 480
4. Remove the valve locks from the
valve tip and/or retainer. A small
magnet may help in removing the locks.
5. Lift the valve spring, tool and all, off of the valve stem.

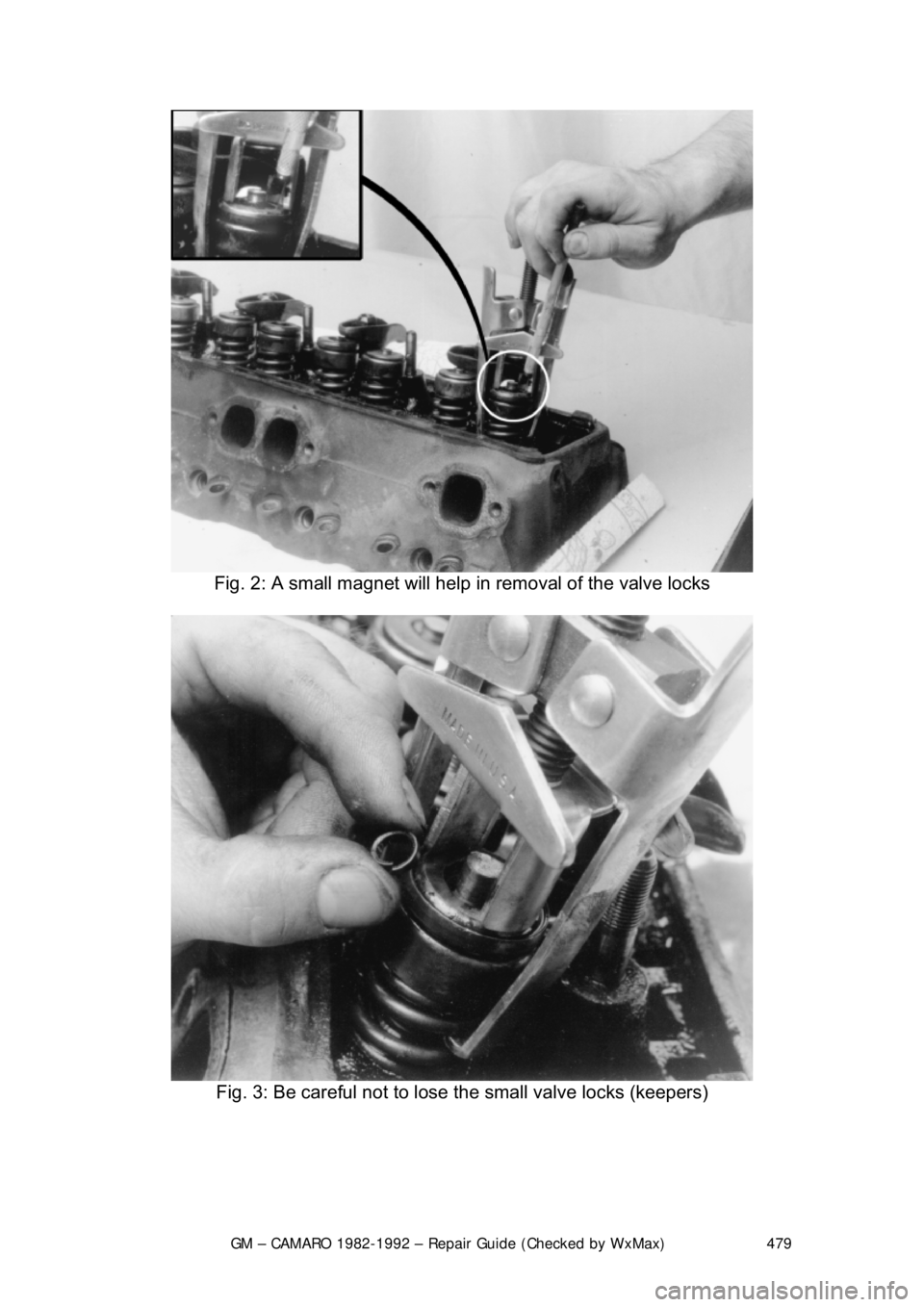

Fig. 4: Remove the valve seal from the valve stem - O-ring type seal shown

Fig. 5: Removing an umbrella/positive type seal
