1982 CHEVROLET CAMARO Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 681
ROCHESTER E4ME AND E4MC
1. If the choke cover plate is riveted, drill out the rivets and remove the plate assembly.
2. Place the fast idle cam follower on t he high step of the fast idle cam.
3. Lift up on the choke lever to close the choke valve and insert a 0.120 i\
n. (3mm) plug gauge into the choke housi ng hole. The choke lever should
just touch the gauge.
4. To adjust, bend the choke rod.
5. To replace the cover plate, rivet in place.

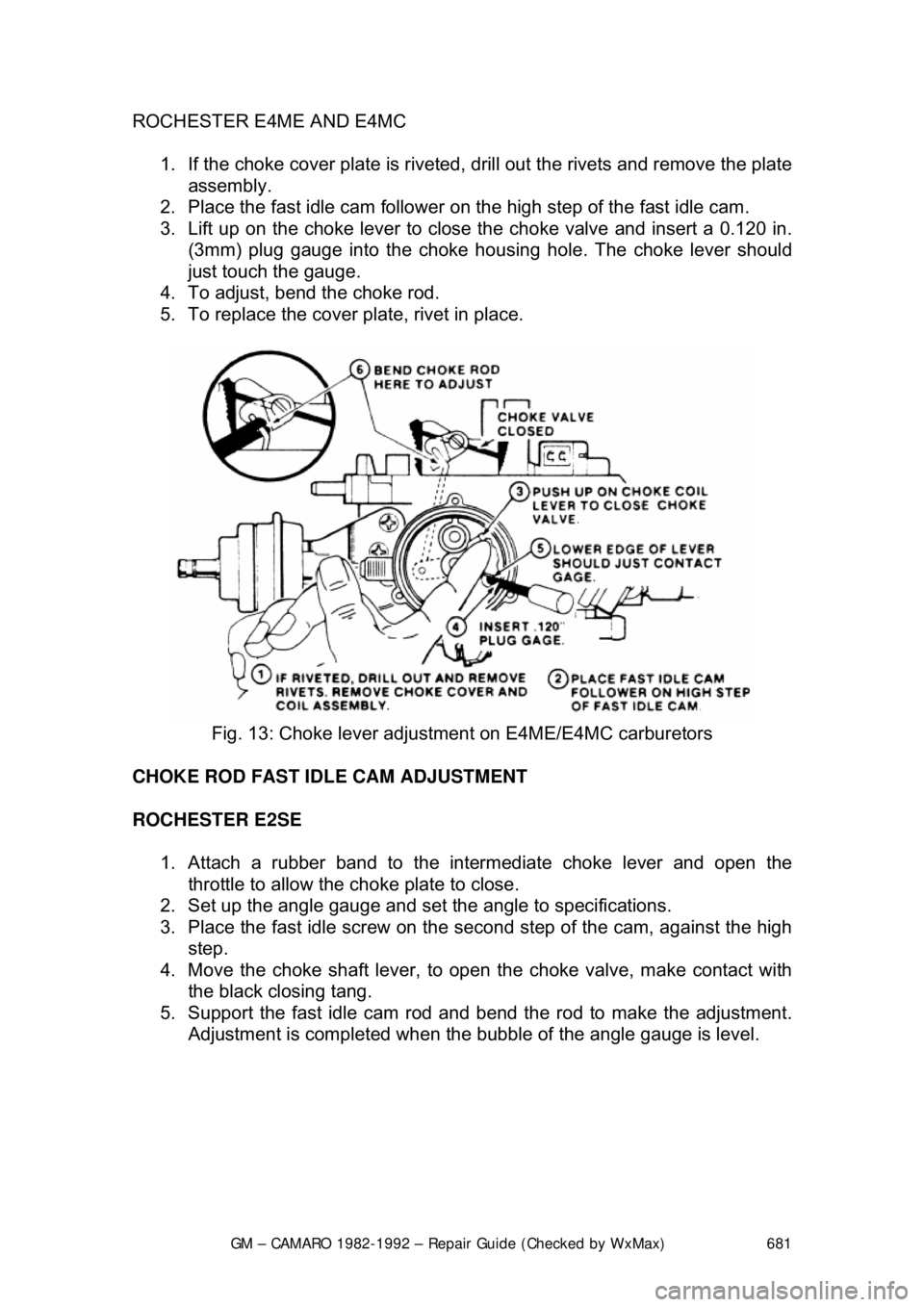

Fig. 13: Choke lever adjustm ent on E4ME/E4MC carburetors
CHOKE ROD FAST IDLE CAM ADJUSTMENT
ROCHESTER E2SE 1. Attach a rubber band to the intermediate choke lever and open the
throttle to allow the choke plate to close.
2. Set up the angle gauge and set the angle to specifications.
3. Place the fast idle screw on the se cond step of the cam, against the high
step.
4. Move the choke shaft lever, to open the choke valve, make contact with
the black closing tang.
5. Support the fast idle cam rod and bend the rod to make the adjustment.
Adjustment is completed when the bubble of the angle gauge is level.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 682

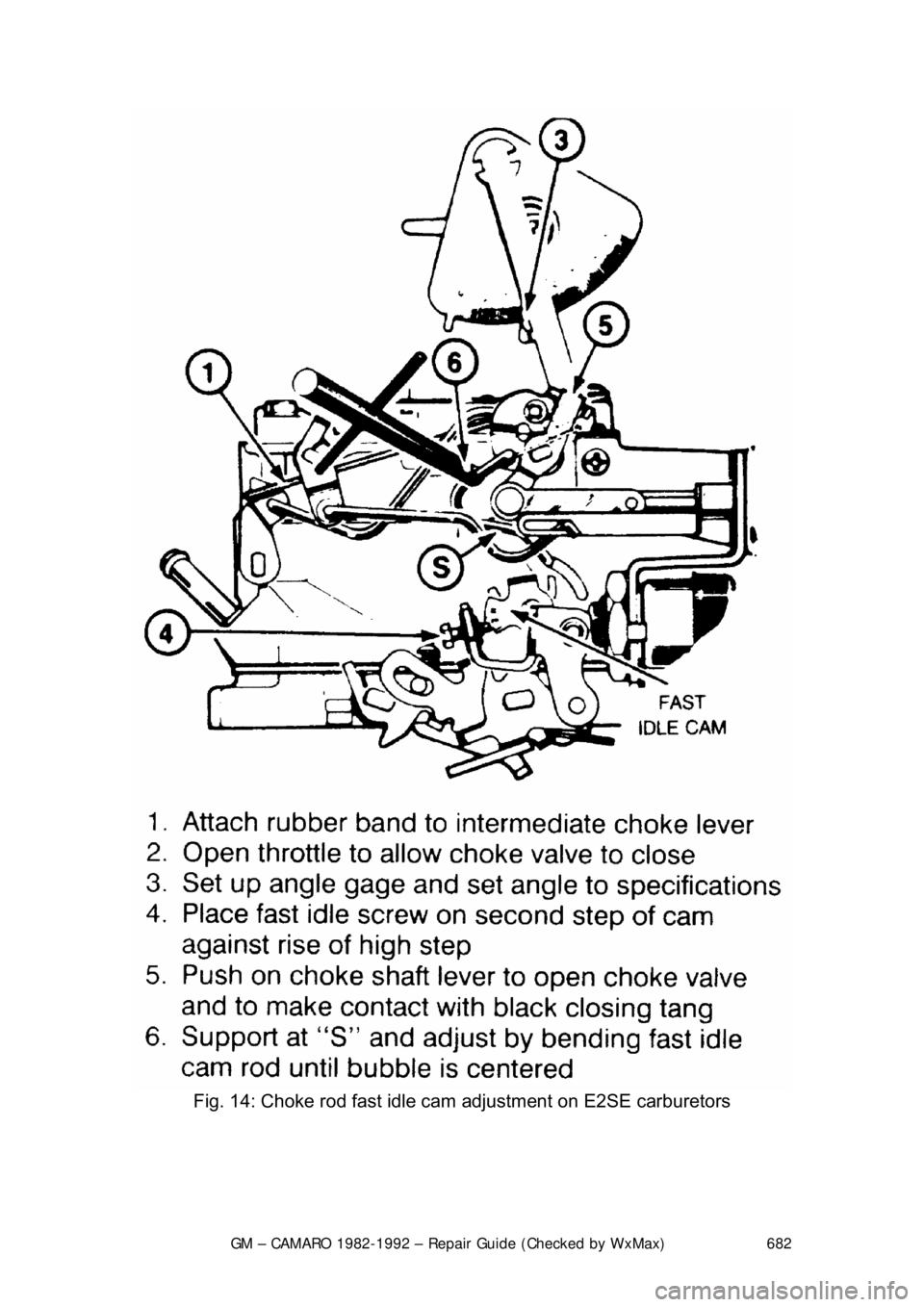

Fig. 14: Choke rod fast idle cam adjustment on E2SE carburetors

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 683
ROCHESTER E4ME AND E4MC
1. Connect a rubber band to the green tang of the intermediate choke shaft.
2. Open the throttle to allow the choke valve to close.
3. Set up the angle gauge and set the angle to specifications.
4. Place the cam follower on the second step of the fast idle cam, against
the rise of the first step. If the ca m follower does not contact the cam,
turn the fast idle screw additional turns.
5. To adjust, bend the tang of the fast idle cam until the gauge bubble is
centered.
The final fast idle speed adjustment must be performed according to the
emission control label.

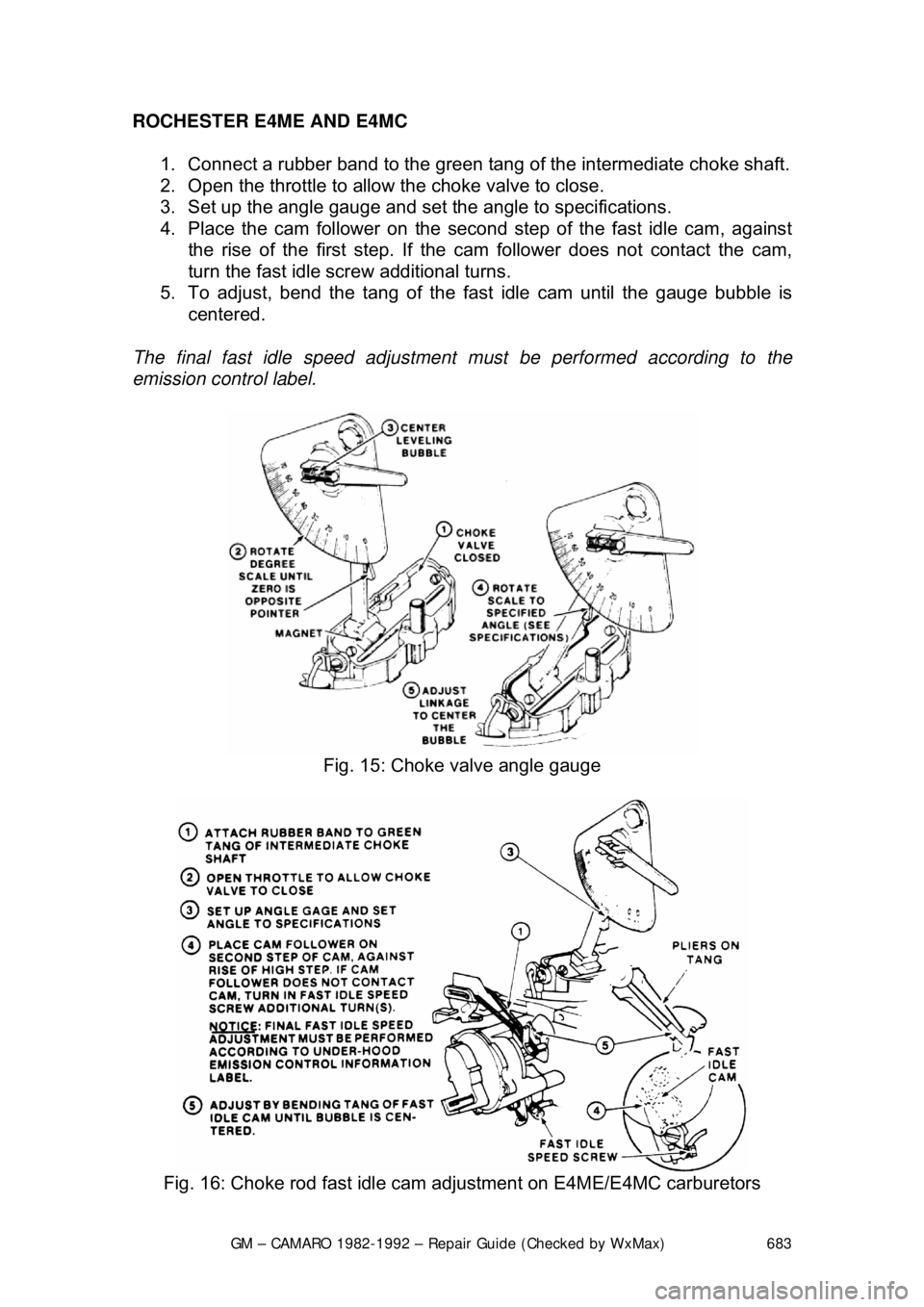

Fig. 15: Choke valve angle gauge

Fig. 16: Choke rod fast idle cam adjustment on E4ME/E4MC carburetors

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 684
UNLOADER ADJUSTMENT
ROCHESTER E2SE
1. Connect a rubber band to the inte rmediate choke lever and open throttle
to allow the choke to close.
2. Set up the angle gauge and set the angle to specifications.
3. Hold the throttle leve r in wide-open position and push on the choke lever
to open the choke, making contact with the black closing tang.
4. To adjust, bend the tang until the bubble of the angle gauge is centered.

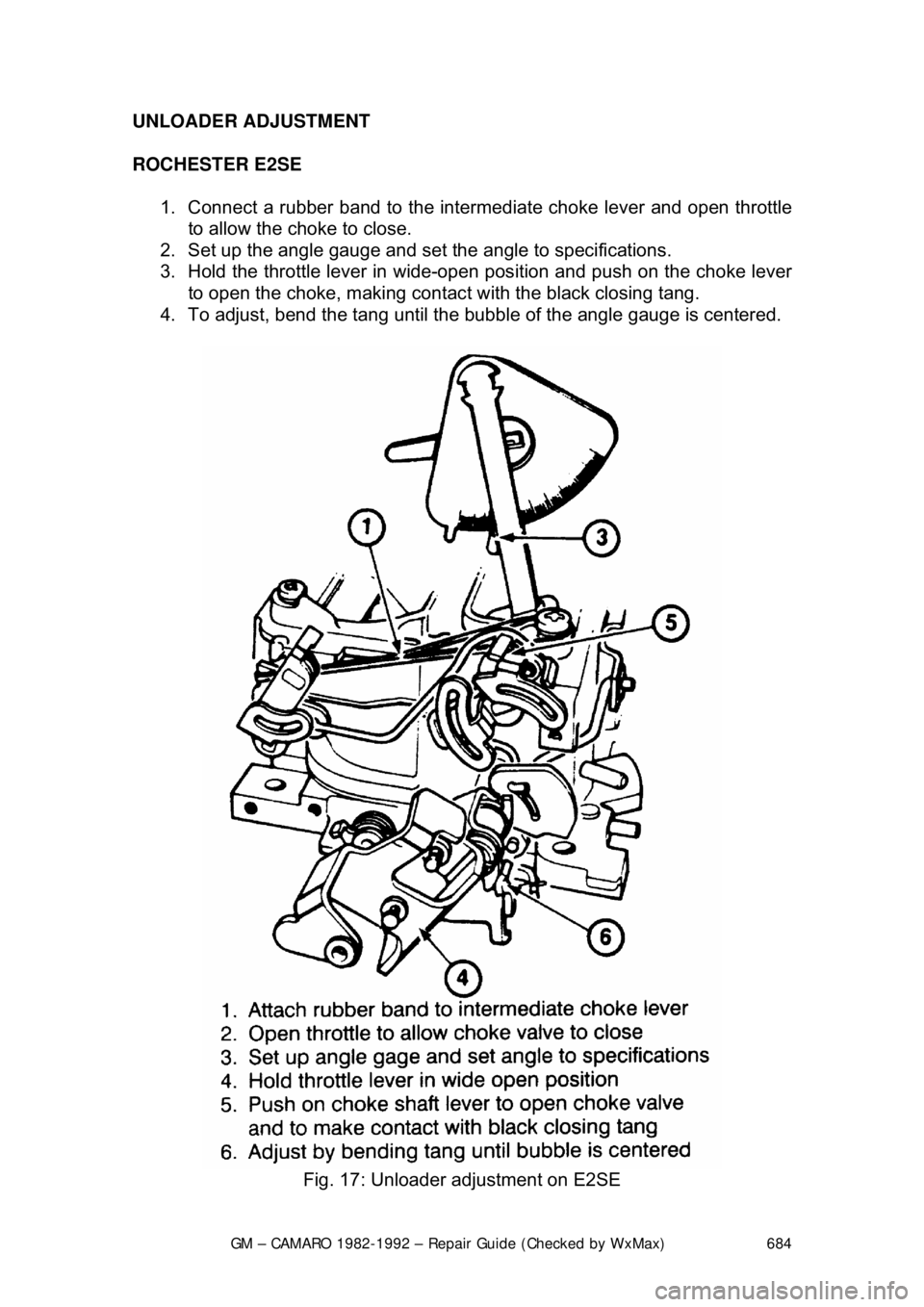

Fig. 17: Unloader adjustment on E2SE

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 685
ROCHESTER E4ME AND E4MC
1. Connect a rubber band to the green tang of the intermediate shaft.
2. Open the throttle to allow the choke valve to close.
3. Set up the angle gauge and set the angle to specification.
4. Hold the secondary lockout lever away from the pin.
5. Hold the throttle lever in the wide-open position.
6. To adjust, bend the tang of the fast id le lever until the bubble of the angle
gauge is centered.

Fig. 18: Unloader adj ustment on E4ME/E4MC
SECONDARY LOCKOUT ADJUSTMENT
ROCHESTER E2SE 1. Push down on the inte rmediate choke lever to hold the choke valve wide-
open.
2. Open the throttle leve r until the end of the secondary actuating lever is
opposite the toe of t he lockout lever.
3. Insert a 0.025 in. (0.635mm) plug gauge.
4. To adjust, bend the lockout lever tang into contact with the fast idle cam.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 686

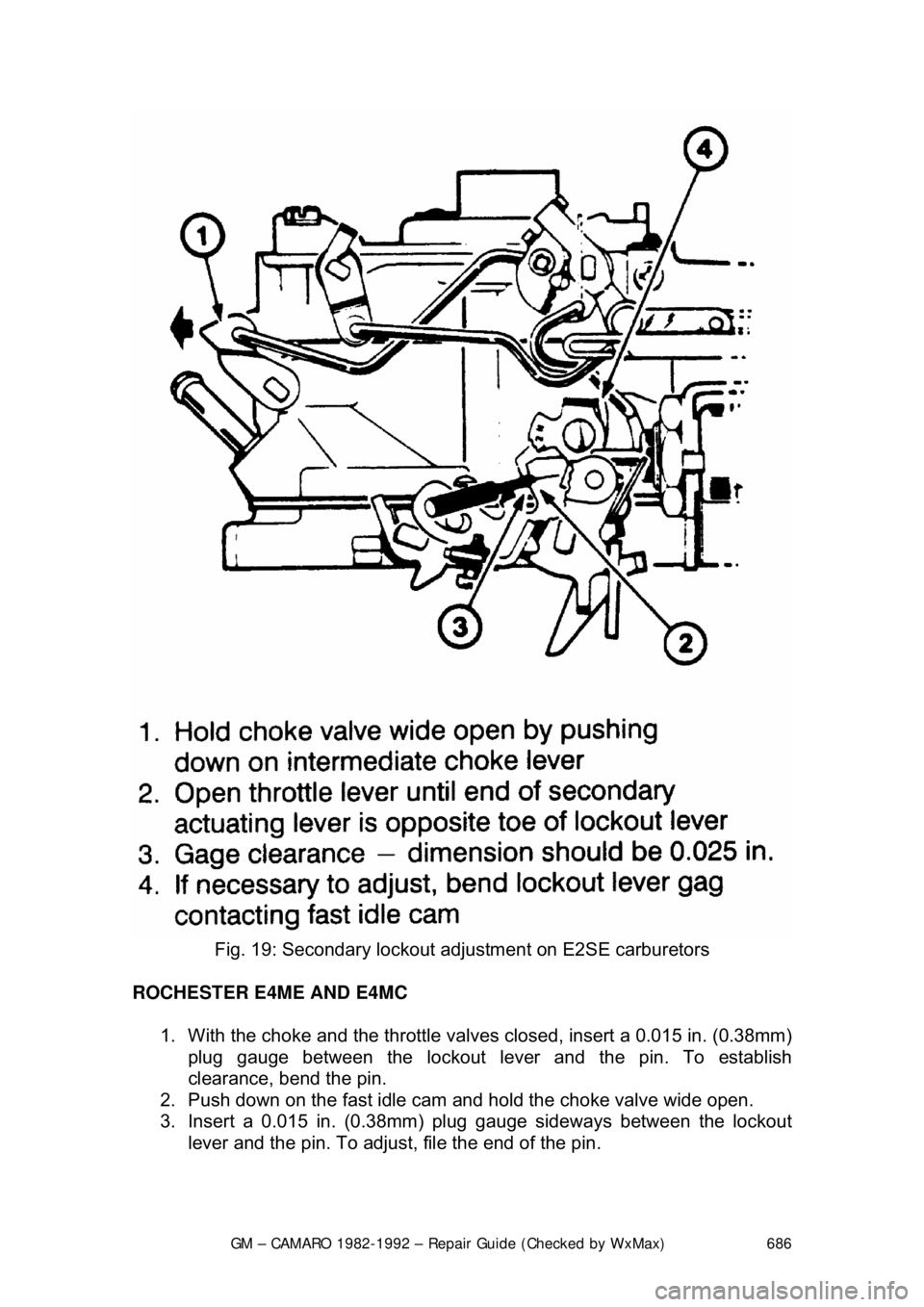

Fig. 19: Secondary lockout adj ustment on E2SE carburetors
ROCHESTER E4ME AND E4MC 1. With the choke and the throttle valves closed, insert a 0.015 in. (0.38mm) plug gauge between the lockout lever and the pin. To establish
clearance, bend the pin.
2. Push down on the fast idle cam and hold the choke valve wide open.
3. Insert a 0.015 in. (0.38mm) pl ug gauge sideways between the lockout
lever and the pin. To adjust, file the end of the pin.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 687

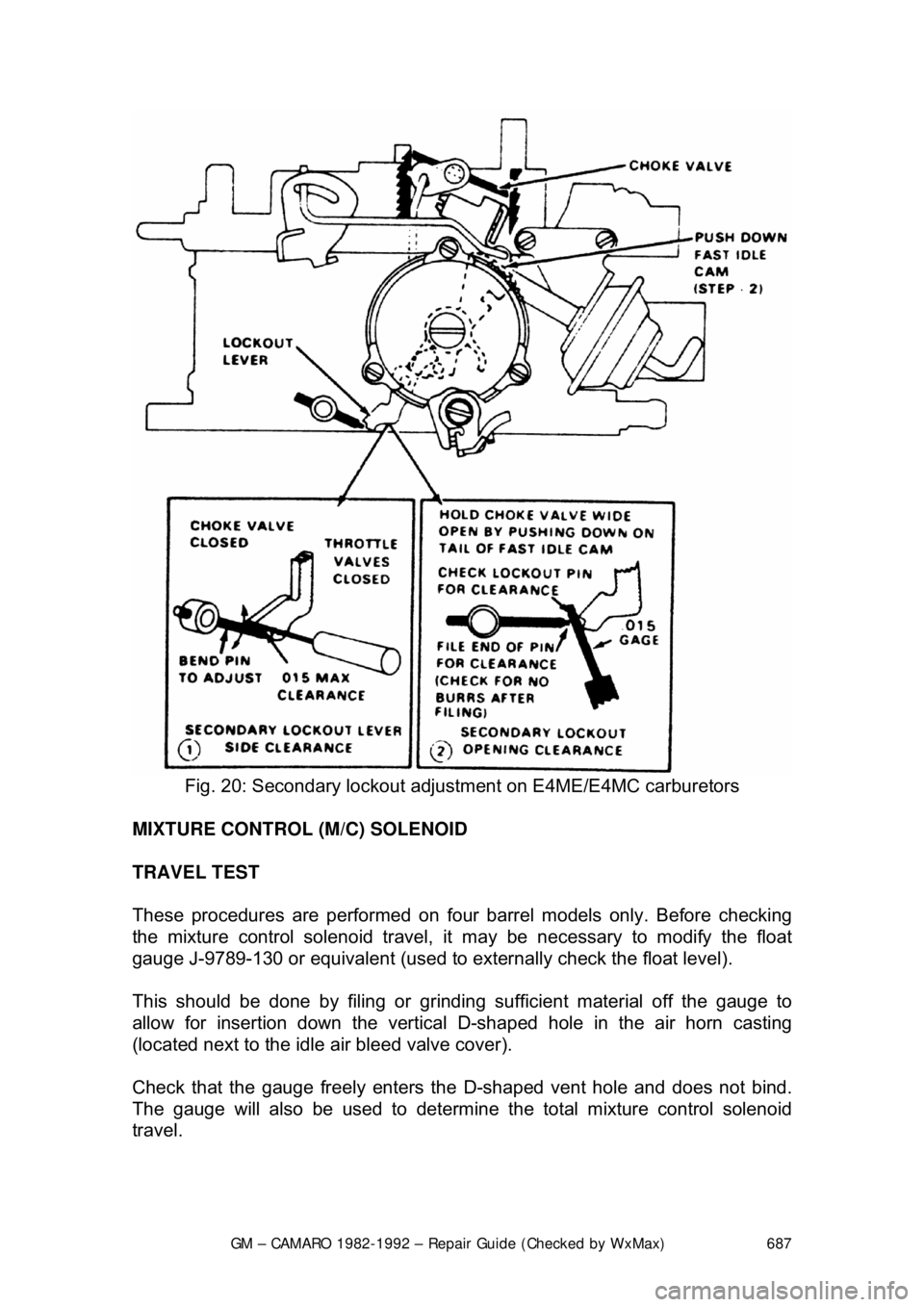

Fig. 20: Secondary lockout adjus tment on E4ME/E4MC carburetors
MIXTURE CONTROL (M/C) SOLENOID
TRAVEL TEST
These procedures are performed on four barrel models only. Before checking
the mixture control solenoid travel, it may be necessary to modify the float
gauge J-9789-130 or equivalent (used to ex ternally check the float level).
This should be done by filing or grinding sufficient material off the gauge to
allow for insertion down the vertical D-shaped hole in the air horn casting
(located next to the idle air bleed valve cover).
Check that the gauge freely enters the D-shaped vent hole and does not bind.
The gauge will also be used to determine t he total mixture control solenoid
travel.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 688
With the engine OFF and the air cleaner re
moved, measure the control solenoid
travel as follows:
1. Insert a modified float gauge J- 9789-130 or equivalent down the D-
shaped vent hole. Press down on the gauge and release it.
2. Observe that the gauge moves freel y and does not bind. With the gauge
released (solenoid in the up position), be sure to read it at eye level and
record the mark on the gauge (in inc hes/millimeters) that lines up with
the top of the air hor n casting (upper edge).
3. Lightly press down on the gauge until bottomed (solenoid in the down
position). Record (in inches/millimeters) the mark on the gauge that lines
up with the top of the air horn casting.
4. Subtract the gauge up dimension from gauge dimension. Record the
difference (in inches/millimet ers). This difference is total solenoid travel.
5. If total solenoid travel is not within
3/32-5/32 in. (2.4-3.9mm), perform the
mixture control solenoid adjustment s. If the difference is within
specifications, proceed to the id le air bleed valve adjustment.
If adjustment is required, it will be necessary to remove the air horn and drive
out the mixture control solenoid screw pl ug from the under side of the air horn.

Fig. 21: Checking the solenoid plunger travel
ADJUSTMENTS
Before making adjustment to mixture cont rol solenoid, verify that the plunger
travel is not correct.
1. Remove air horn, mixture control solenoid plunger, air horn gasket and
plastic filler block, using normal service procedures.
2. Check carburetor for caus e of incorrect mixture:
a. M/C solenoid bore or plunger worn or sticking
b. Metering rods for incorrect part number, sticking or rods or springs
not installed properly
