1982 CHEVROLET CAMARO Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 513
1. Connect the vehicle battery.
2. Start the engine. Keep y
our eye on your oil pressure indicator; if it does
not indicate oil pressure within 10 se conds of starting, turn the vehicle
off.
WARNING - Damage to the engine can result if it is allowed to run with no oil
pressure. Check the engine oil level to make sure that it is full. Check for any
leaks and if found, repair the leaks be fore continuing. If there is still no
indication of oil pressure, y ou may need to prime the system.
3. Confirm that there are no fluid leaks (oil or other).
4. Allow the engine to reach nor mal operating temperature (the upper
radiator hose will be hot to the touch).
5. If necessary, set the ignition timing.
6. Install any remaining components such as the air cleaner (if removed for
ignition timing) or body panels which were removed.
BREAKING IT IN
Make the first miles on the new engine , easy ones. Vary the speed but do not
accelerate hard. Most importantly, do not lug the engine, and avoid sustained
high speeds until at least 100 miles. Ch eck the engine oil and coolant levels
frequently. Expect the engine to use a littl e oil until the rings seat. Change the
oil and filter at 500 miles, 1500 mile s, then every 3000 miles past that.
KEEP IT MAINTAINED
Now that you have just gone through all of that hard work, keep yourself from
doing it all over again by thoroughly maintaining it. Not that you may not have
maintained it before, heck you c ould have had one to two hundred thousand
miles on it before doing this. However, you may have bought the vehicle used,
and the previous owner did not keep up on maintenance. Which is why you just
went through all of that hard work. See?

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 514

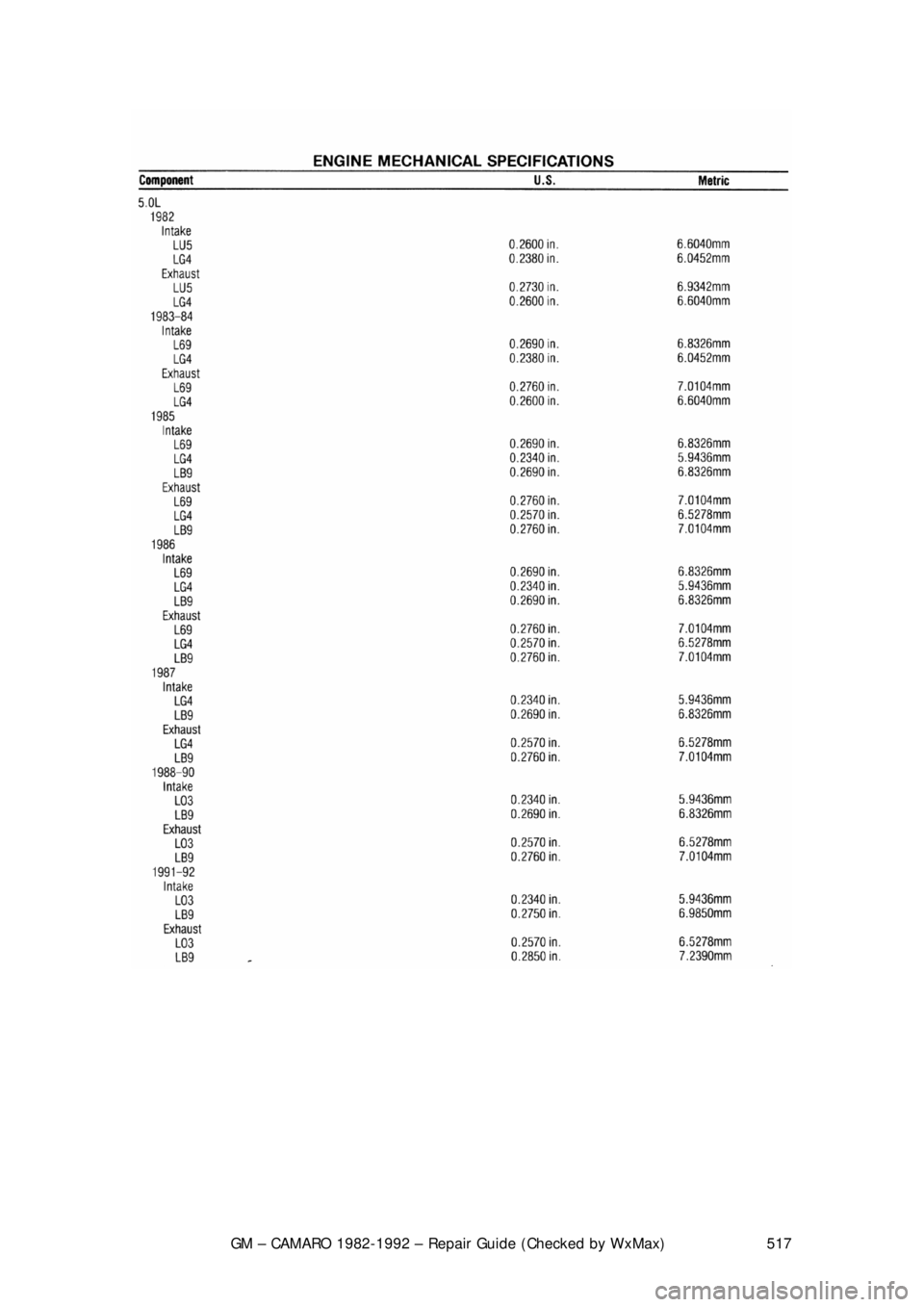

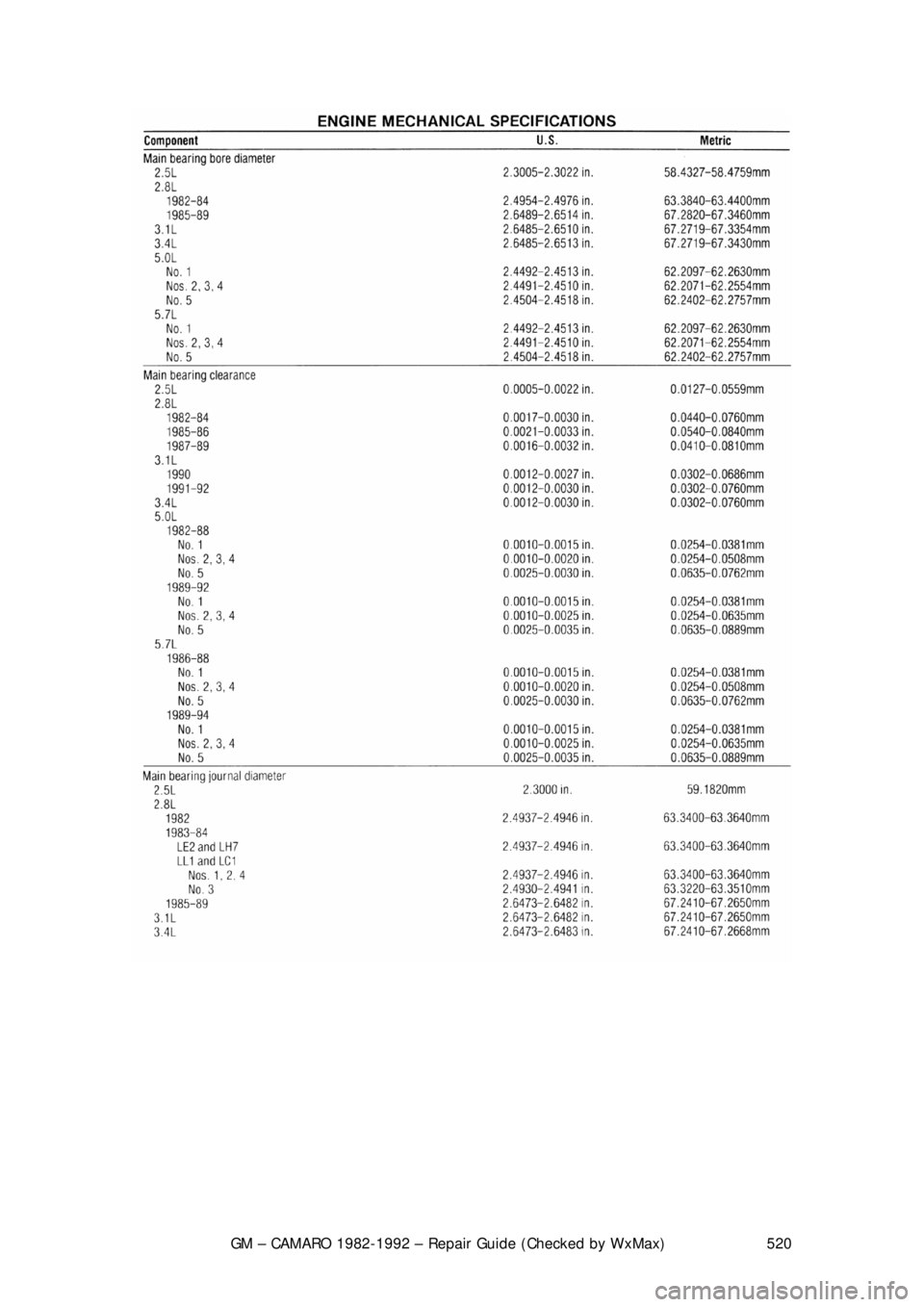

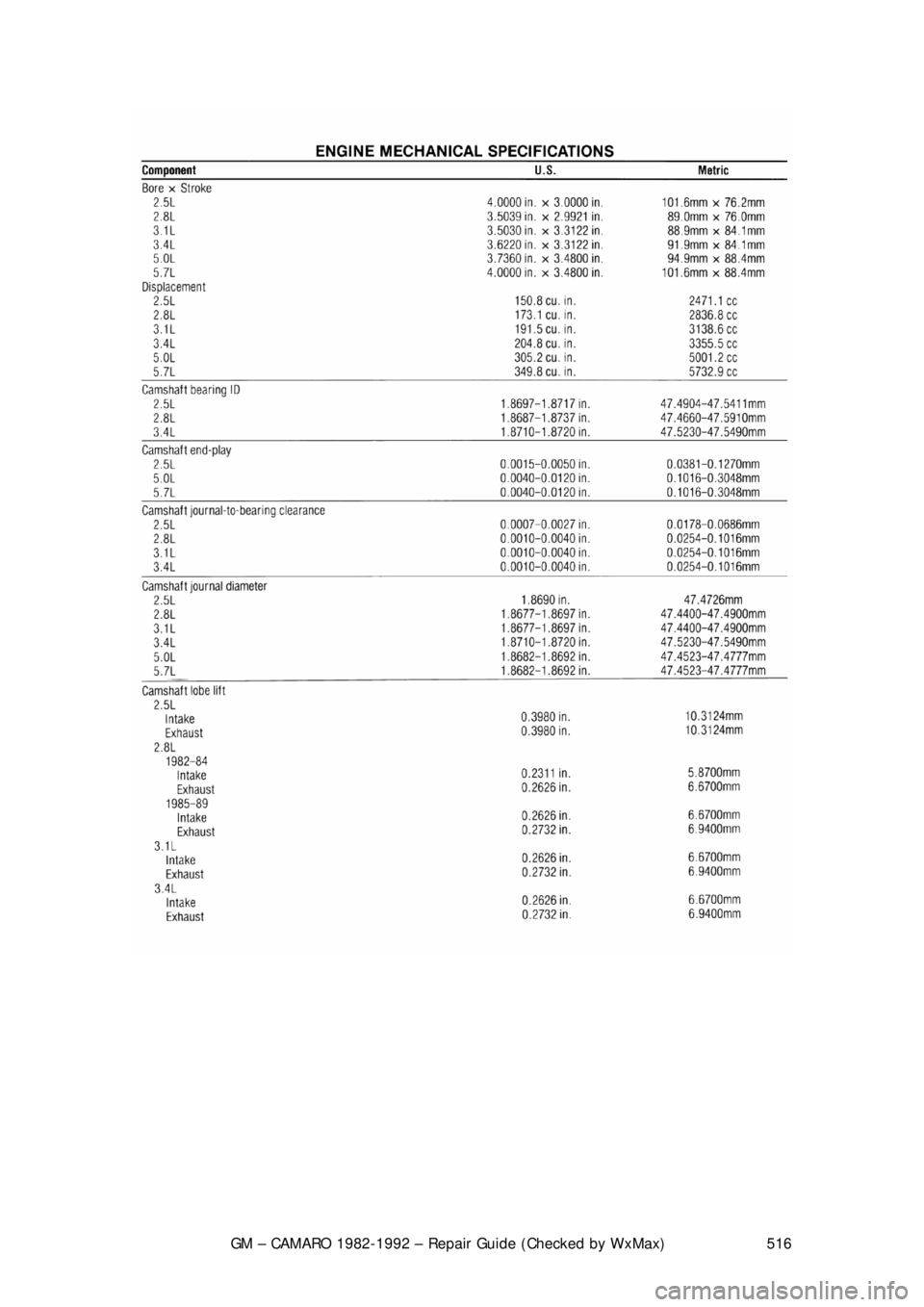

SPECIFICATIONS CHARTS

SPECIFICATIONS CHARTS

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 515

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 516

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 517

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 518

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 519

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 520
