MANIFOLD ABSOLUTE PRESSURE SENSOR
OPERATION
The MAP sensor measures the changes in
intake manifold pressure, which
result from engine load/ speed changes and converts this information to a
voltage output. The MAP sensor reading is the opposite of a vacuum gauge
reading: when manifold pressu re is high, MAP sensor value is high and vacuum
is low. A MAP sensor will produce a low output on engine coast-down with a
closed throttle while a wide open throttle will produce a high output. The high
output is produced because the pressure inside the manifold is the same as
outside the manifold, so 100 percent of t he outside air pressure is measured.
The MAP sensor is also used to meas ure barometric pressure under certain
conditions, which allows the ECM to autom atically adjust for different altitudes.
The MAP sensor changes the 5 volt signal supplied by the ECM, which reads
the change and uses the information to cont rol fuel delivery and ignition timing.

Fig. 1: MAP sensor
REMOVAL & INSTALLATION 1. Disconnect the negative battery cable.
2. Disconnect the vacuum connection.
3. Release the electrical wiring lo cking tab and disconnect the connector.
4. Remove the bolts or release the MAP sensor locking tabs and remove
the sensor.
To install: 5. Install the bolts or snap sensor onto the bracket.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 586
6. Connect the MAP sensor
electrical wiring.
7. Connect the MAP sensor vacuum harness connector.
8. Connect the negative battery cable.

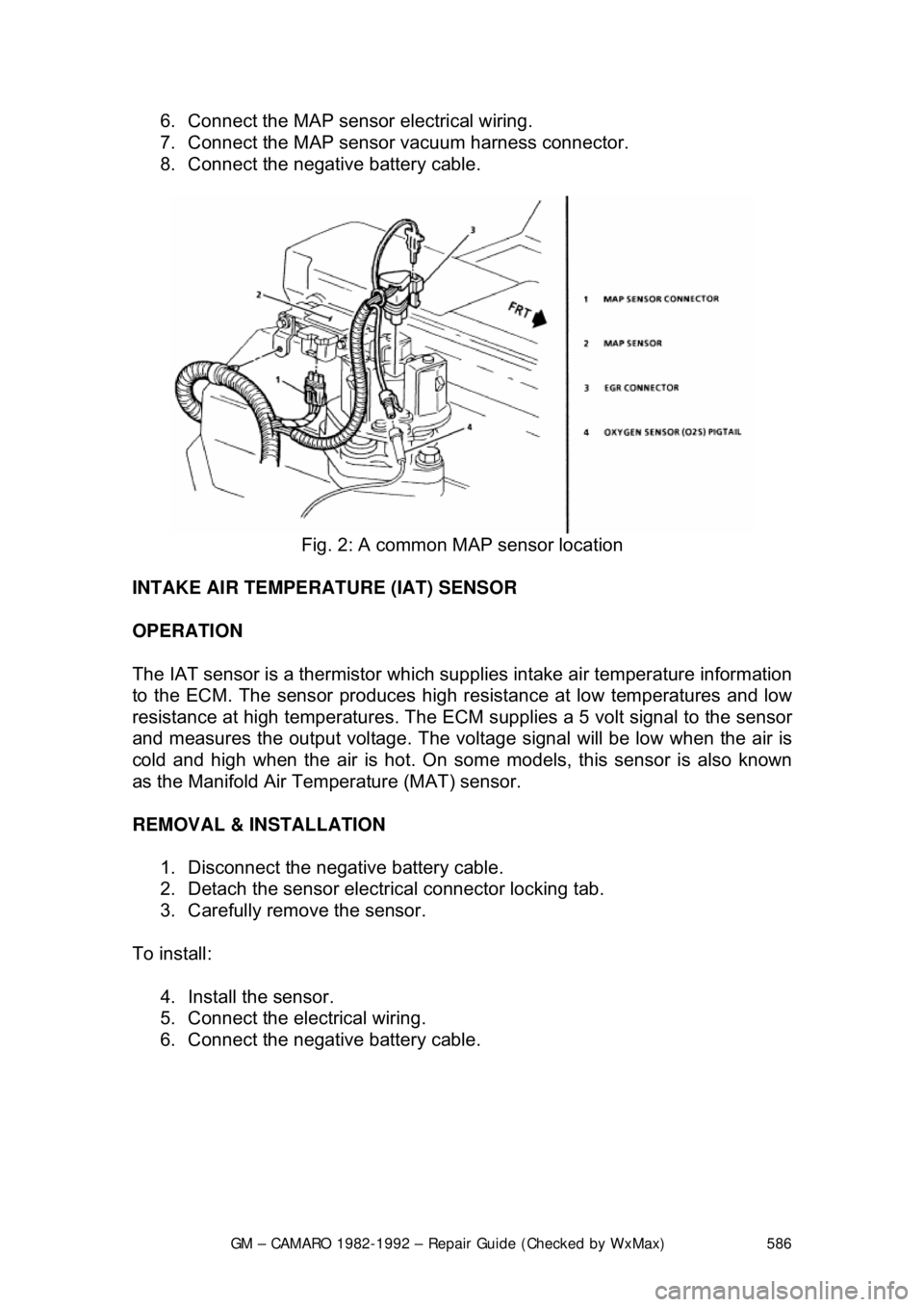

Fig. 2: A common MAP sensor location
INTAKE AIR TEMPERATURE (IAT) SENSOR
OPERATION
The IAT sensor is a thermistor which su pplies intake air temperature information
to the ECM. The sensor produces high re sistance at low temperatures and low
resistance at high temperatures. The ECM supplies a 5 volt signal to the sensor
and measures the output voltage. The vo ltage signal will be low when the air is
cold and high when the air is hot. On so me models, this sensor is also known
as the Manifold Air Tem perature (MAT) sensor.
REMOVAL & INSTALLATION 1. Disconnect the negative battery cable.
2. Detach the sensor electr ical connector locking tab.
3. Carefully remove the sensor.
To install: 4. Install the sensor.
5. Connect the electrical wiring.
6. Connect the negative battery cable.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 587

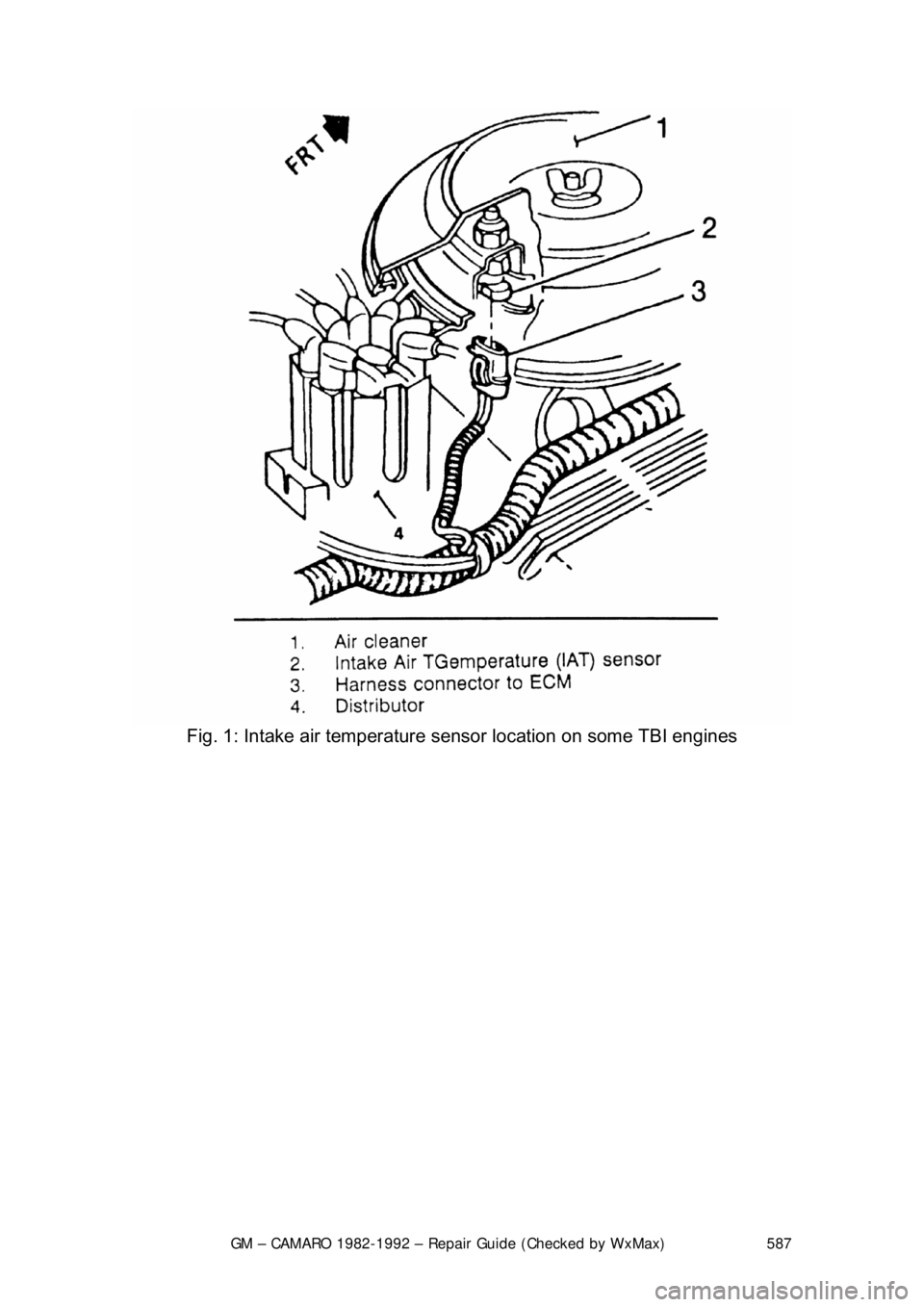

Fig. 1: Intake air te mperature sensor location on some TBI engines

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 588

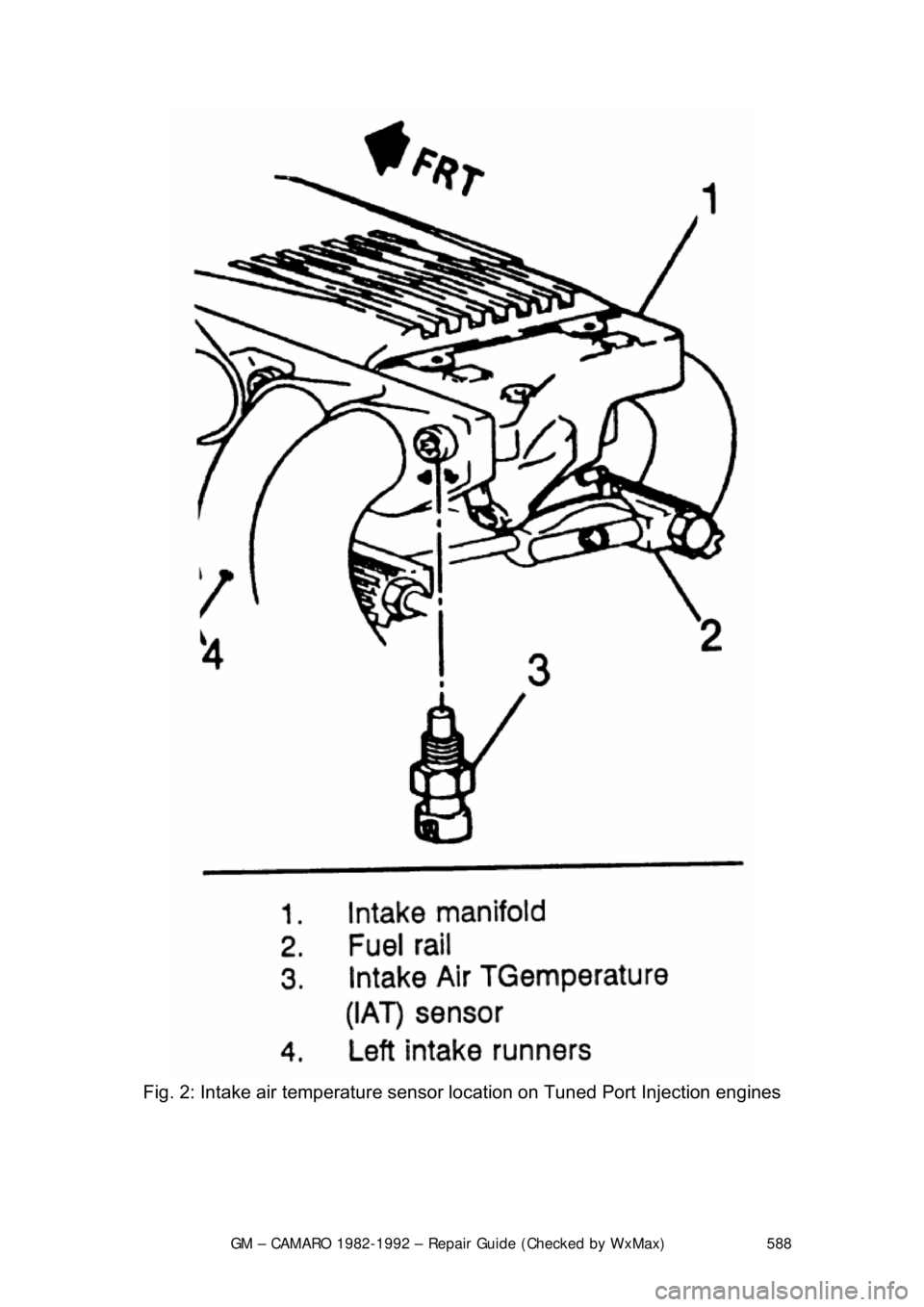

Fig. 2: Intake air temperature sensor location on Tuned Port Injection engines

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 589

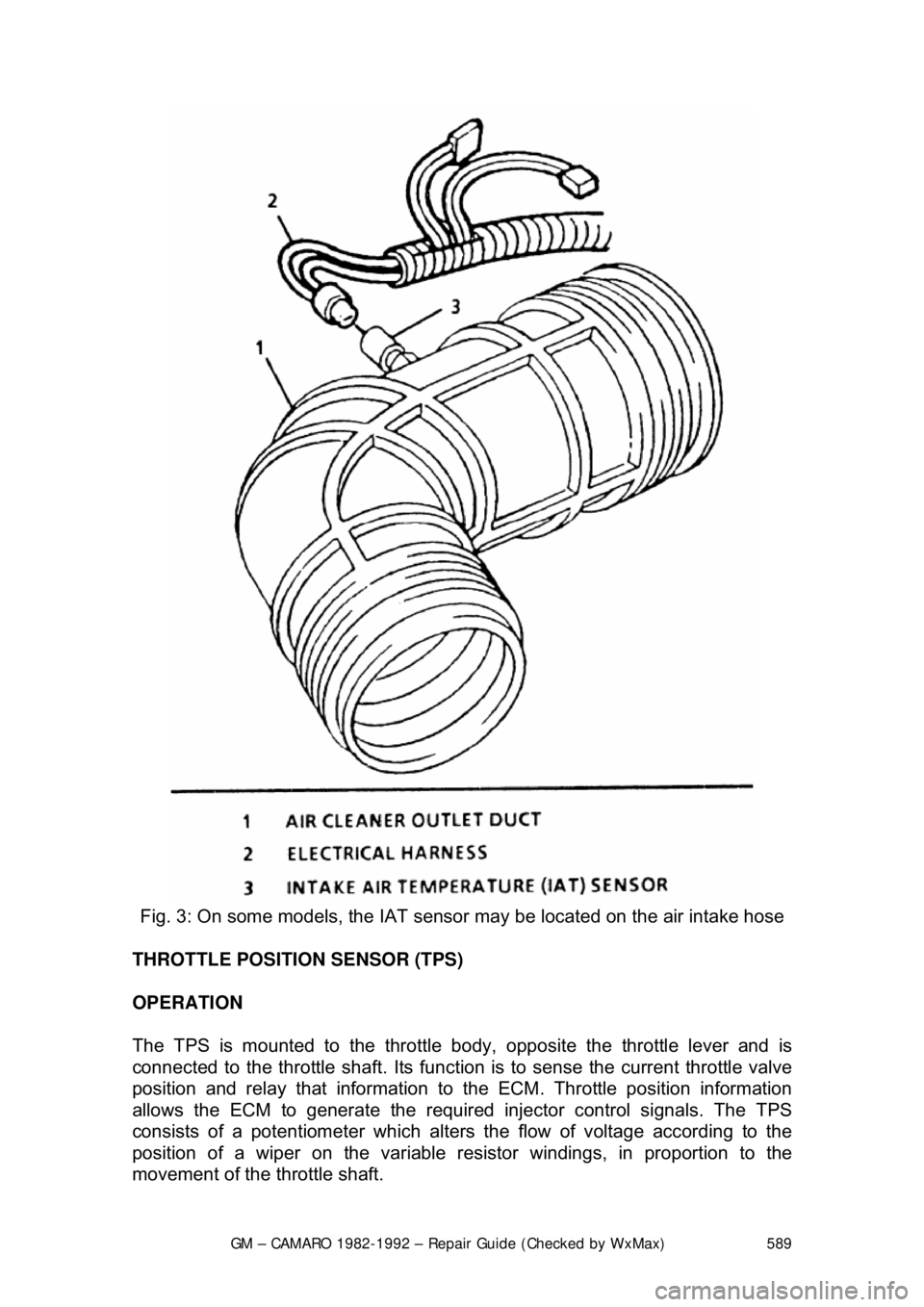

Fig. 3: On some models, the IAT sens or may be located on the air intake hose
THROTTLE POSITION SENSOR (TPS)
OPERATION
The TPS is mounted to the throttle body, opposite the throttle lever and is
connected to the throttle shaft. Its functi on is to sense the current throttle valve
position and relay that information to the ECM. Throttle position information
allows the ECM to generate the required injector control signals. The TPS
consists of a potentiometer which alters the flow of voltage according to the
position of a wiper on the variable resi stor windings, in proportion to the
movement of the throttle shaft.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 590
REMOVAL & INSTALLATION
1. Disconnect the negative battery cable.
2. Disconnect the TPS electrical wiring.
3. Remove the mounting screws.
4. Remove the TPS and, if equipped, s ensor seal from the throttle body.
To install: 5. Place the TPS in positi on. Align the TPS lever with the sensor drive lever
on the throttle body.
6. Install the TPS mounting screws.
7. Connect the electrical wiring.
8. Connect the negative battery cable.

Fig. 1: Exploded view of a common TPS assembly
MASS AIR FLOW (MAF) SENSOR
OPERATION
The Mass Air Flow (MAF) sensor, found on some fuel injected engines,
measures the amount of air passing through it. The ECM uses this information
to determine the operating cond ition of the engine, to control fuel delivery. A
large quantity of air indicates acceleration, while a small quantity indicates
deceleration or idle.
The MAF sensor used on these vehicles is of the hot-wire type. Current is
supplied to the sensing wire to maintain a calibrated temperature, and as air
flow increases or decreases the current will vary. This varying current is directly
proportional to air mass.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 591

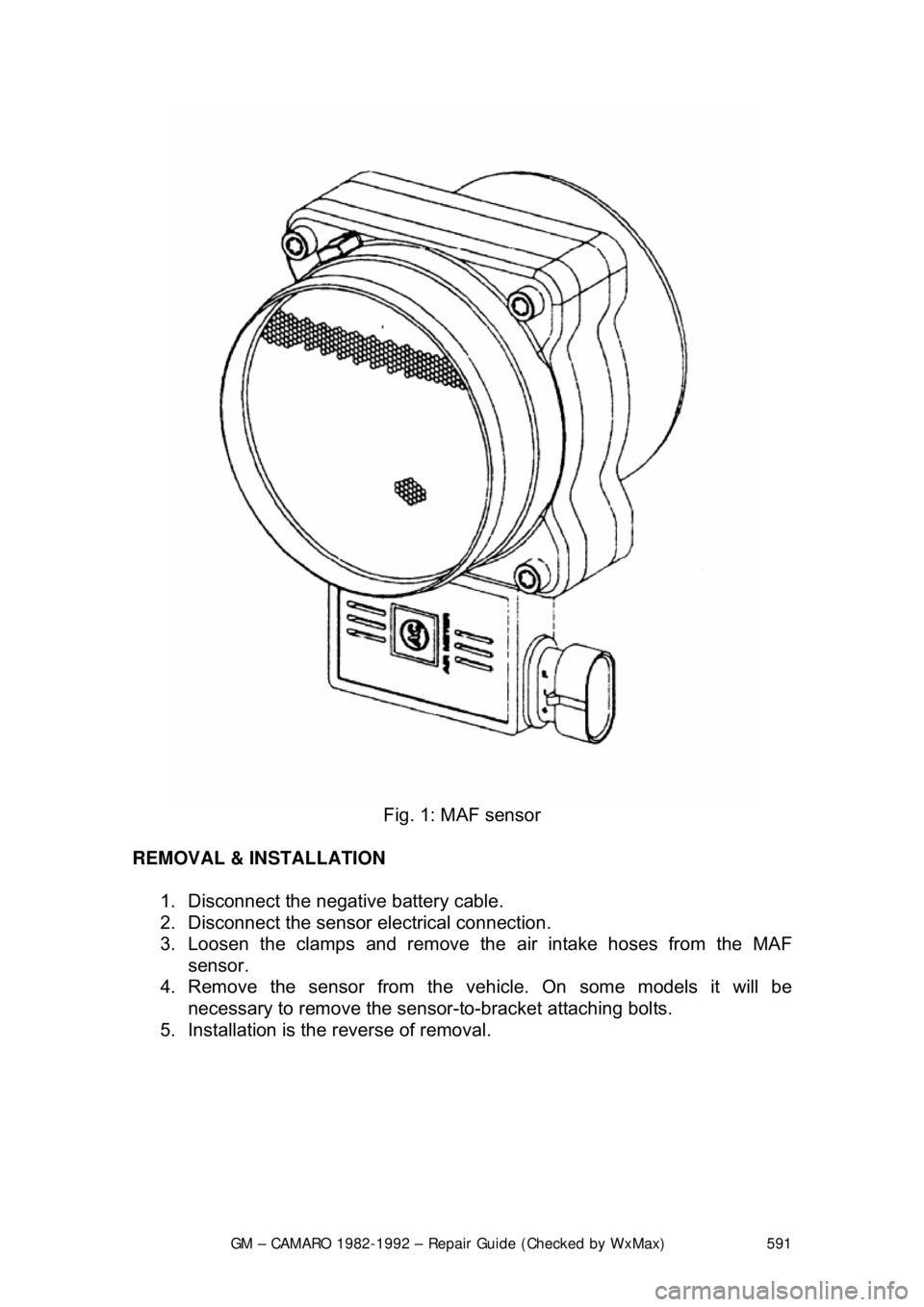

Fig. 1: MAF sensor
REMOVAL & INSTALLATION 1. Disconnect the negative battery cable.
2. Disconnect the sensor electrical connection.
3. Loosen the clamps and remove the air intake hoses from the MAF
sensor.
4. Remove the sensor from the v ehicle. On some models it will be
necessary to remove the senso r-to-bracket attaching bolts.
5. Installation is the reverse of removal.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 592

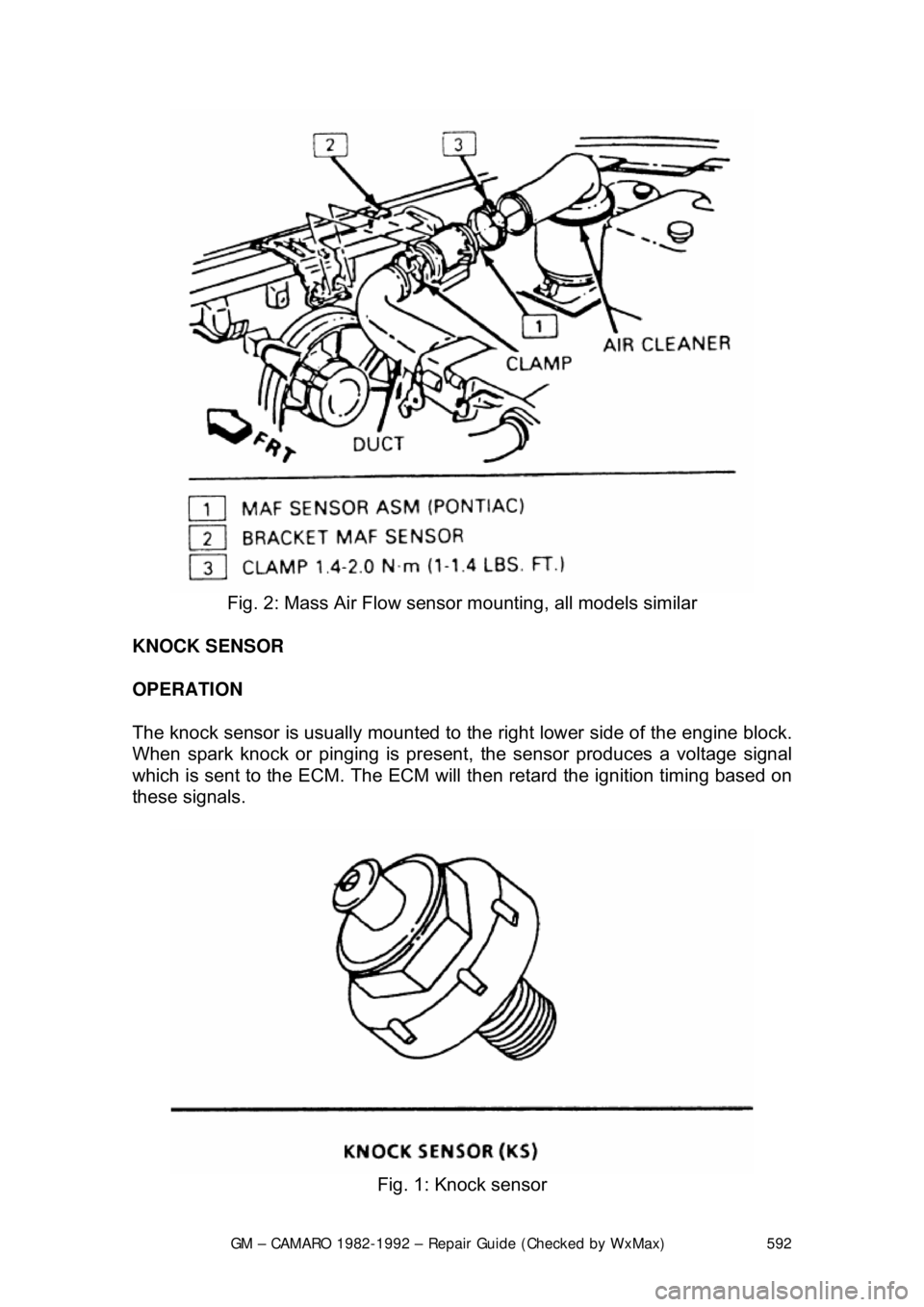

Fig. 2: Mass Air Flow sensor mounting, all models similar
KNOCK SENSOR
OPERATION
The knock sensor is usually mounted to the right lower side of the engine block.
When spark knock or pinging is present, the sensor produces a voltage signal
which is sent to the ECM. The ECM will then retard the ignition timing based on
these signals.

Fig. 1: Knock sensor
