2012 TOYOTA LAND CRUISER Owners Manual

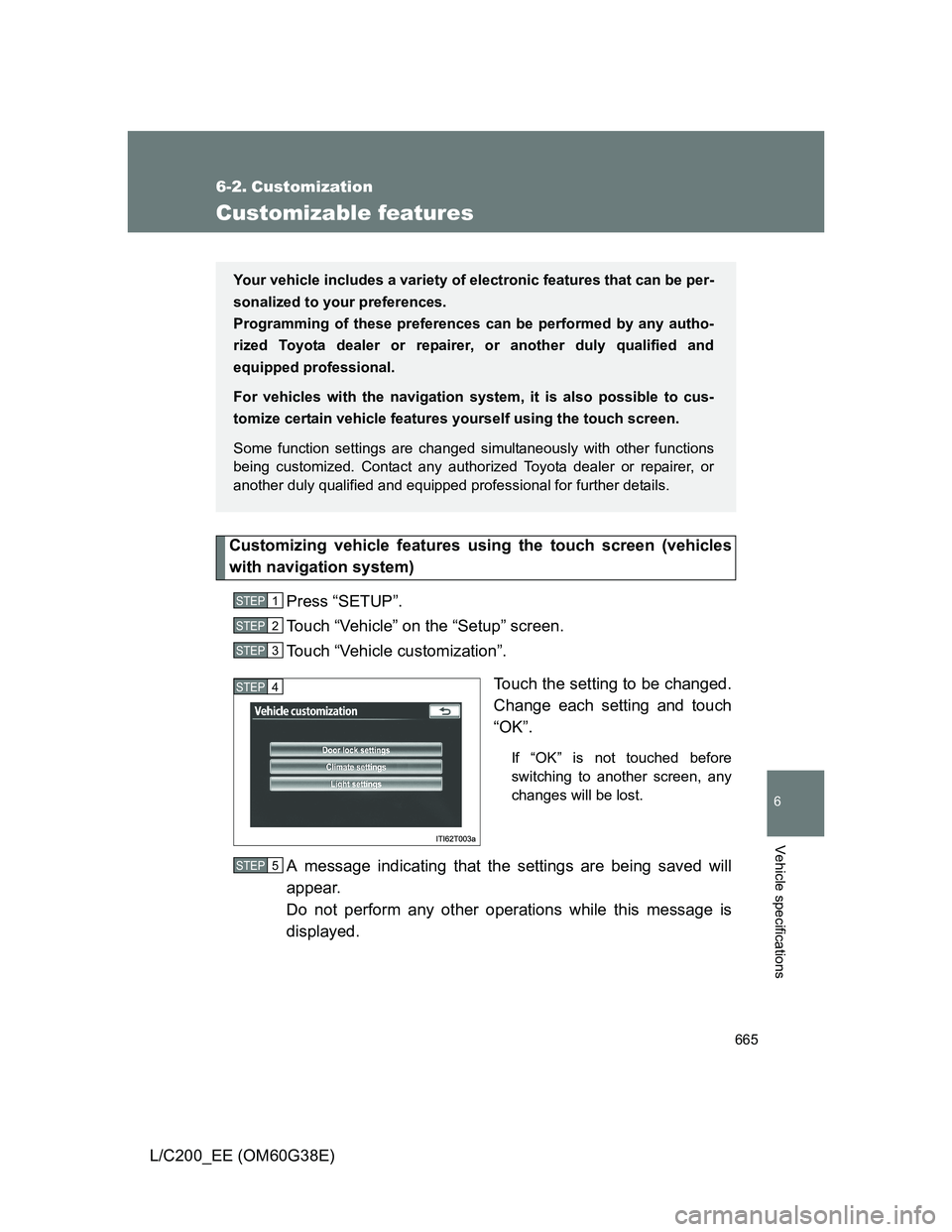

665
6
Vehicle specifications
L/C200_EE (OM60G38E)
6-2. Customization
Customizable features
Customizing vehicle features using the touch screen (vehicles
with navigation system)
Press “SETUP”.
Touch “Vehicle” on the “Setup” screen.
Touch “Vehicle customization”.
Touch the setting to be changed.
Change each setting and touch
“OK”.
If “OK” is not touched before
switching to another screen, any
changes will be lost.
A message indicating that the settings are being saved will
appear.
Do not perform any other operations while this message is
displayed.
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences.
Programming of these preferences can be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
For vehicles with the navigation system, it is also possible to cus-
tomize certain vehicle features yourself using the touch screen.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for further details.
STEP1
STEP2
STEP3
STEP4
STEP5

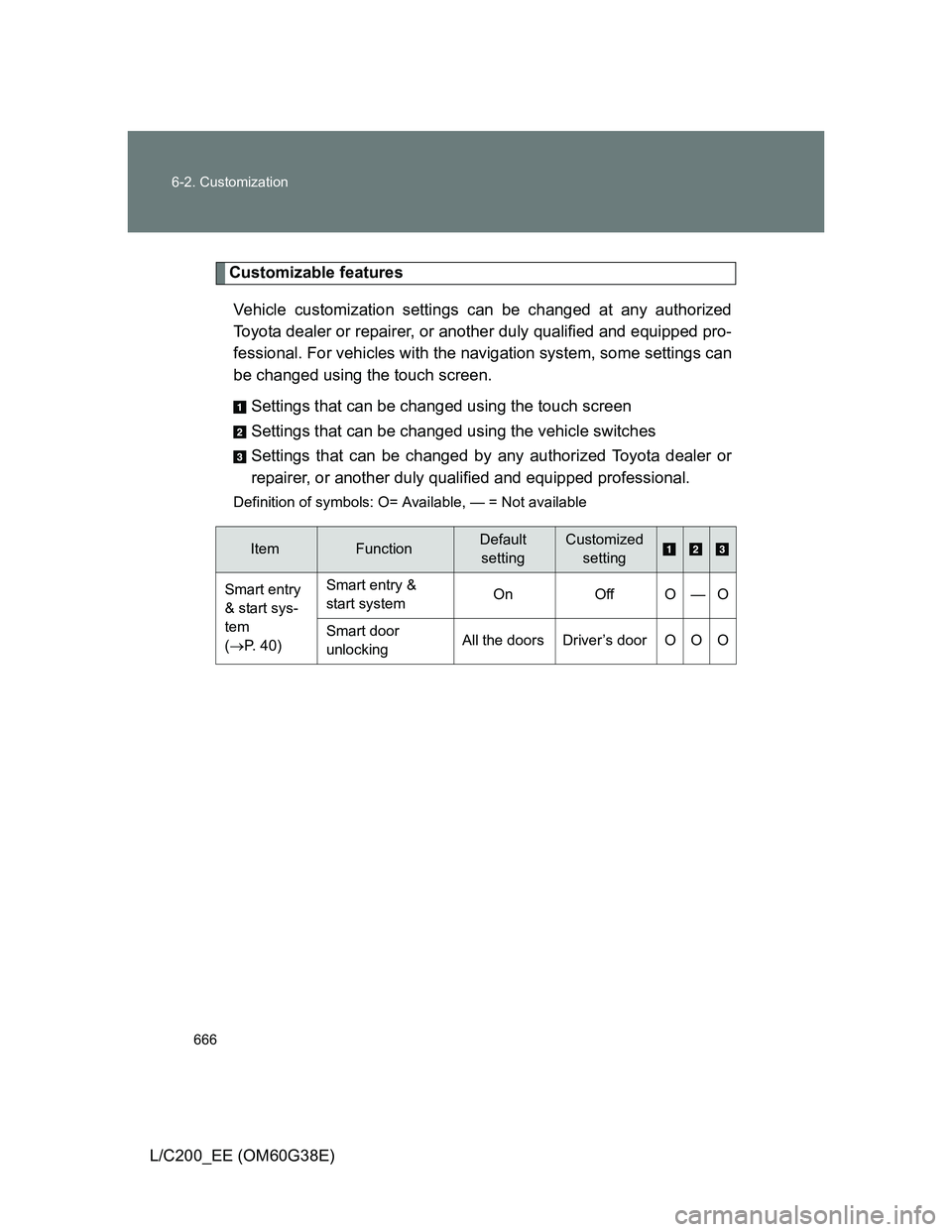

666 6-2. Customization
L/C200_EE (OM60G38E)
Customizable features
Vehicle customization settings can be changed at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional. For vehicles with the navigation system, some settings can
be changed using the touch screen.
Settings that can be changed using the touch screen
Settings that can be changed using the vehicle switches
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Definition of symbols: O= Available, — = Not available
ItemFunctionDefault
settingCustomized
setting
Smart entry
& start sys-
tem
(P. 40)Smart entry &
start systemOn Off O — O
Smart door
unlockingAll the doors Driver’s door O O O

667 6-2. Customization
6
Vehicle specifications
L/C200_EE (OM60G38E)
Wireless
remote
control
(P. 55)Wireless remote
controlOn Off — — O
Open door warn-
ing function
(when locking the
vehicle)On Off — — O
Unlocking opera-
tionAll doors
unlocked in
one stepDriver’s door
unlocked in
one step, all
doors
unlocked in
two stepsO—O
Power back door
operationPush and
holdOne short
push
——O
Push twice
Off
Smart entry
& start sys-
tem
(P. 40)
and
wireless
remote
control
(P. 55) Operation signal
(Emergency
flashers)On Off O — O
Door lock
(P. 60)Unlocking using a
keyAll doors
unlocked in
one stepDriver’s door
unlocked in
one step, all
doors
unlocked in
two stepsO—O
ItemFunctionDefault
settingCustomized
setting

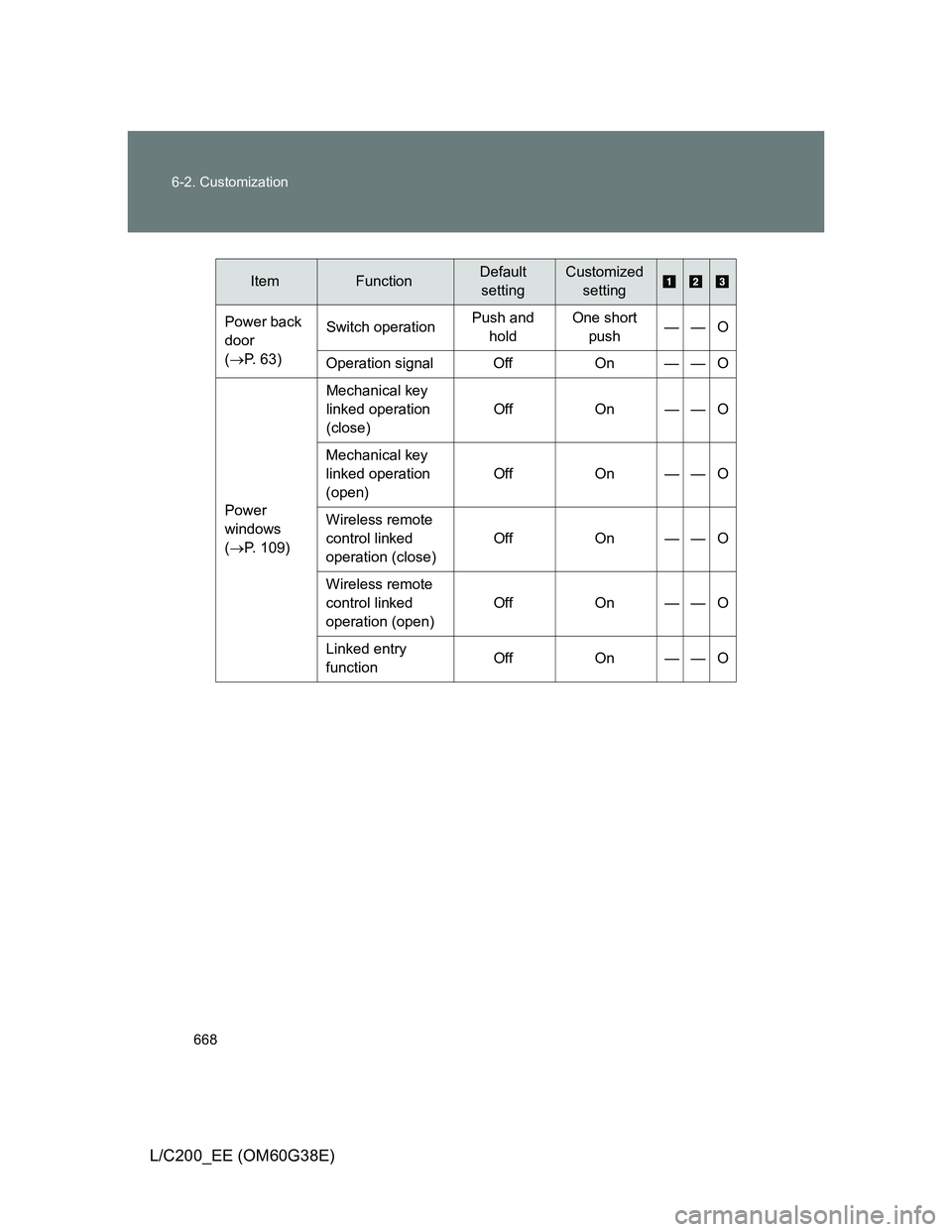

668 6-2. Customization
L/C200_EE (OM60G38E)
Power back
door
(P. 63)Switch operationPush and
holdOne short
push——O
Operation signal Off On — — O
Power
windows
(P. 109)Mechanical key
linked operation
(close)Off On — — O
Mechanical key
linked operation
(open)Off On — — O
Wireless remote
control linked
operation (close)Off On — — O
Wireless remote
control linked
operation (open)Off On — — O
Linked entry
functionOff On — — O
ItemFunctionDefault
settingCustomized
setting

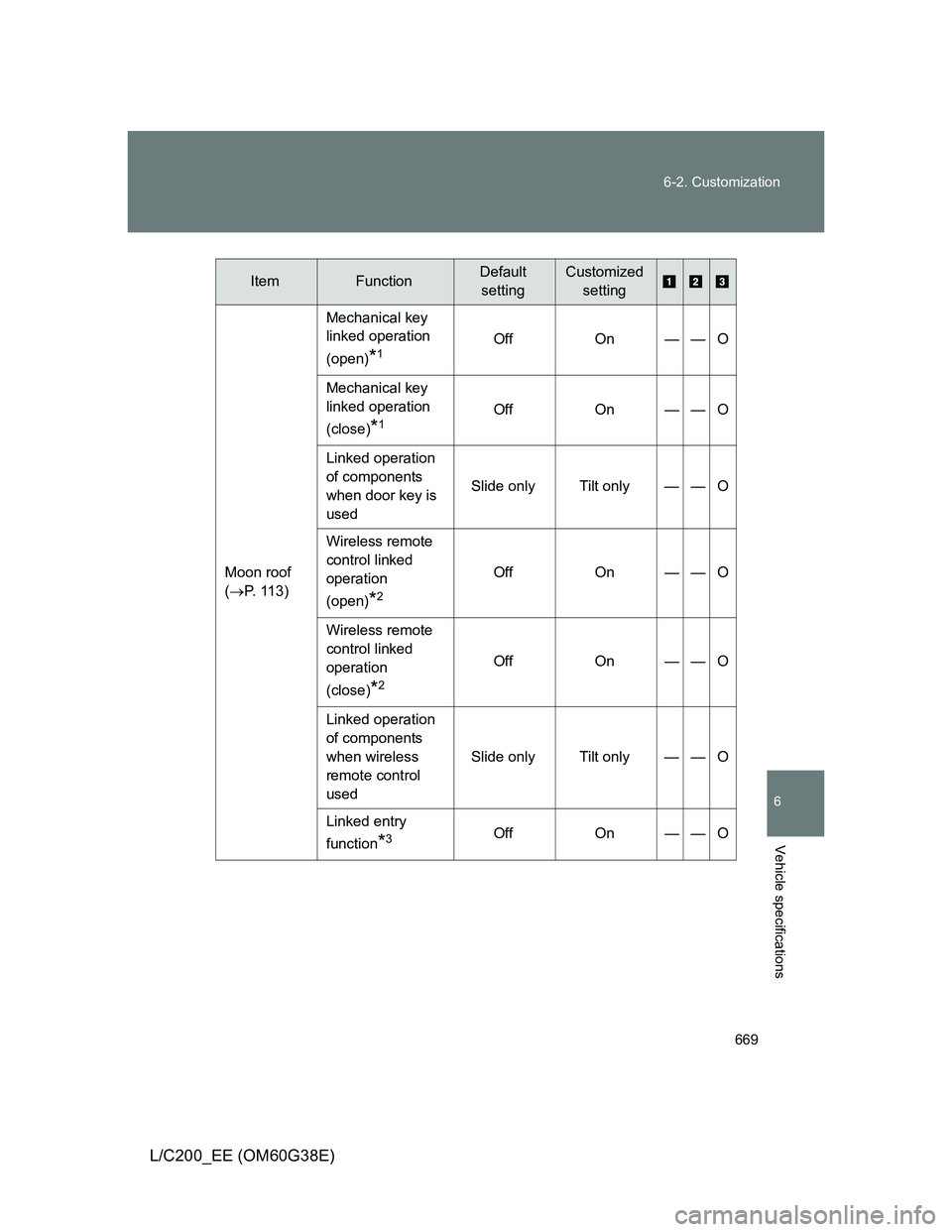

669 6-2. Customization
6
Vehicle specifications
L/C200_EE (OM60G38E)
Moon roof
(P. 113)Mechanical key
linked operation
(open)
*1Off On — — O
Mechanical key
linked operation
(close)
*1Off On — — O
Linked operation
of components
when door key is
usedSlide only Tilt only — — O
Wireless remote
control linked
operation
(open)
*2
Off On — — O
Wireless remote
control linked
operation
(close)
*2
Off On — — O
Linked operation
of components
when wireless
remote control
usedSlide only Tilt only — — O
Linked entry
function
*3Off On — — O
ItemFunctionDefault
settingCustomized
setting

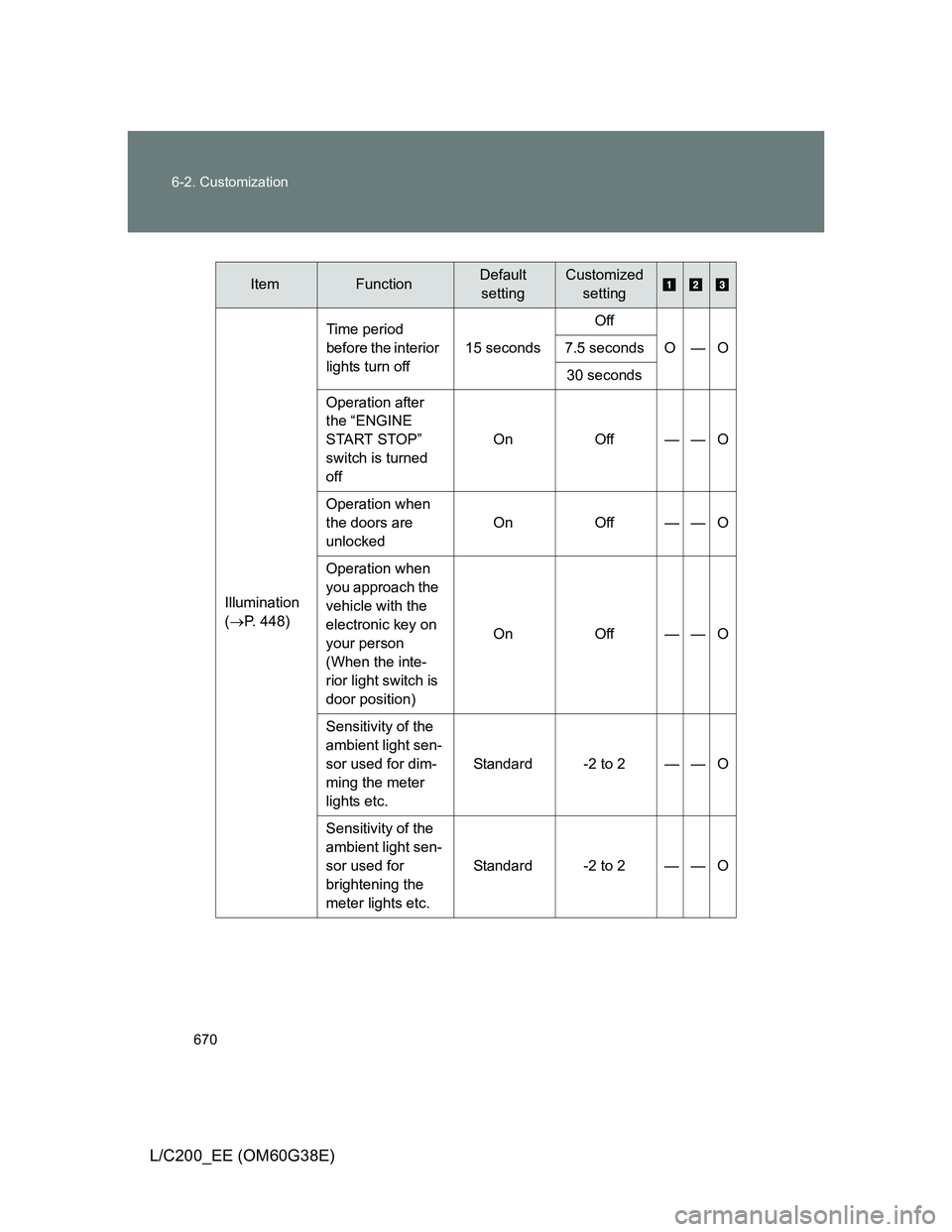

670 6-2. Customization
L/C200_EE (OM60G38E)
ItemFunctionDefault
settingCustomized
setting
Illumination
(P. 448)Time period
before the interior
lights turn off15 secondsOff
O—O 7.5 seconds
30 seconds
Operation after
the “ENGINE
START STOP”
switch is turned
offOn Off — — O
Operation when
the doors are
unlockedOn Off — — O
Operation when
you approach the
vehicle with the
electronic key on
your person
(When the inte-
rior light switch is
door position)On Off — — O
Sensitivity of the
ambient light sen-
sor used for dim-
ming the meter
lights etc.Standard -2 to 2 — — O
Sensitivity of the
ambient light sen-
sor used for
brightening the
meter lights etc.Standard -2 to 2 — — O

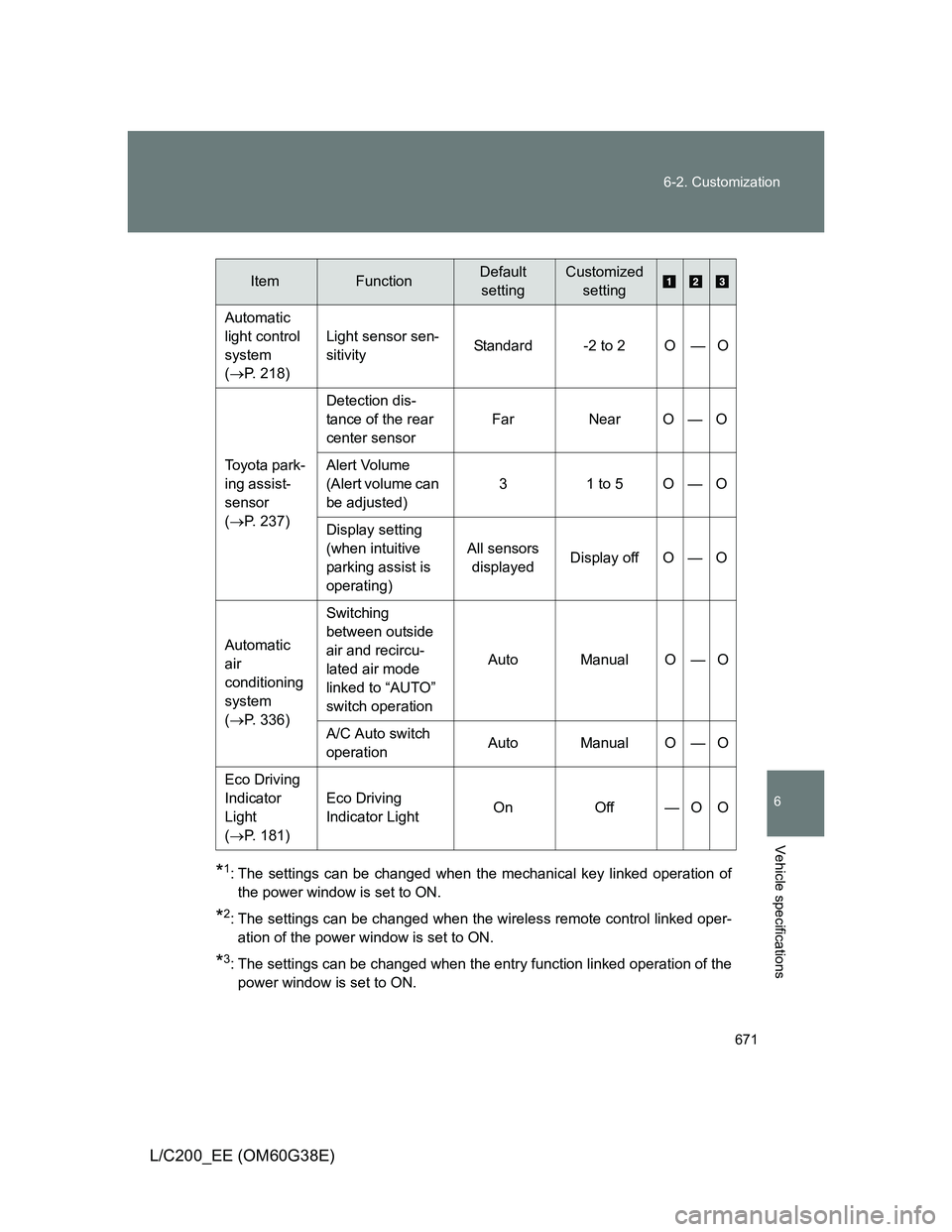

671 6-2. Customization
6
Vehicle specifications
L/C200_EE (OM60G38E)
*1: The settings can be changed when the mechanical key linked operation of
the power window is set to ON.
*2: The settings can be changed when the wireless remote control linked oper-
ation of the power window is set to ON.
*3: The settings can be changed when the entry function linked operation of the
power window is set to ON. Automatic
light control
system
(P. 218)Light sensor sen-
sitivityStandard -2 to 2 O — O
Toyota park-
ing assist-
sensor
(P. 237)Detection dis-
tance of the rear
center sensorFar Near O — O
Alert Volume
(Alert volume can
be adjusted)3 1 to 5 O — O
Display setting
(when intuitive
parking assist is
operating)All sensors
displayedDisplay off O — O
Automatic
air
conditioning
system
(P. 336)Switching
between outside
air and recircu-
lated air mode
linked to “AUTO”
switch operationAuto Manual O — O
A/C Auto switch
operationAuto Manual O — O
Eco Driving
Indicator
Light
(P. 181)Eco Driving
Indicator LightOn Off — O O
ItemFunctionDefault
settingCustomized
setting

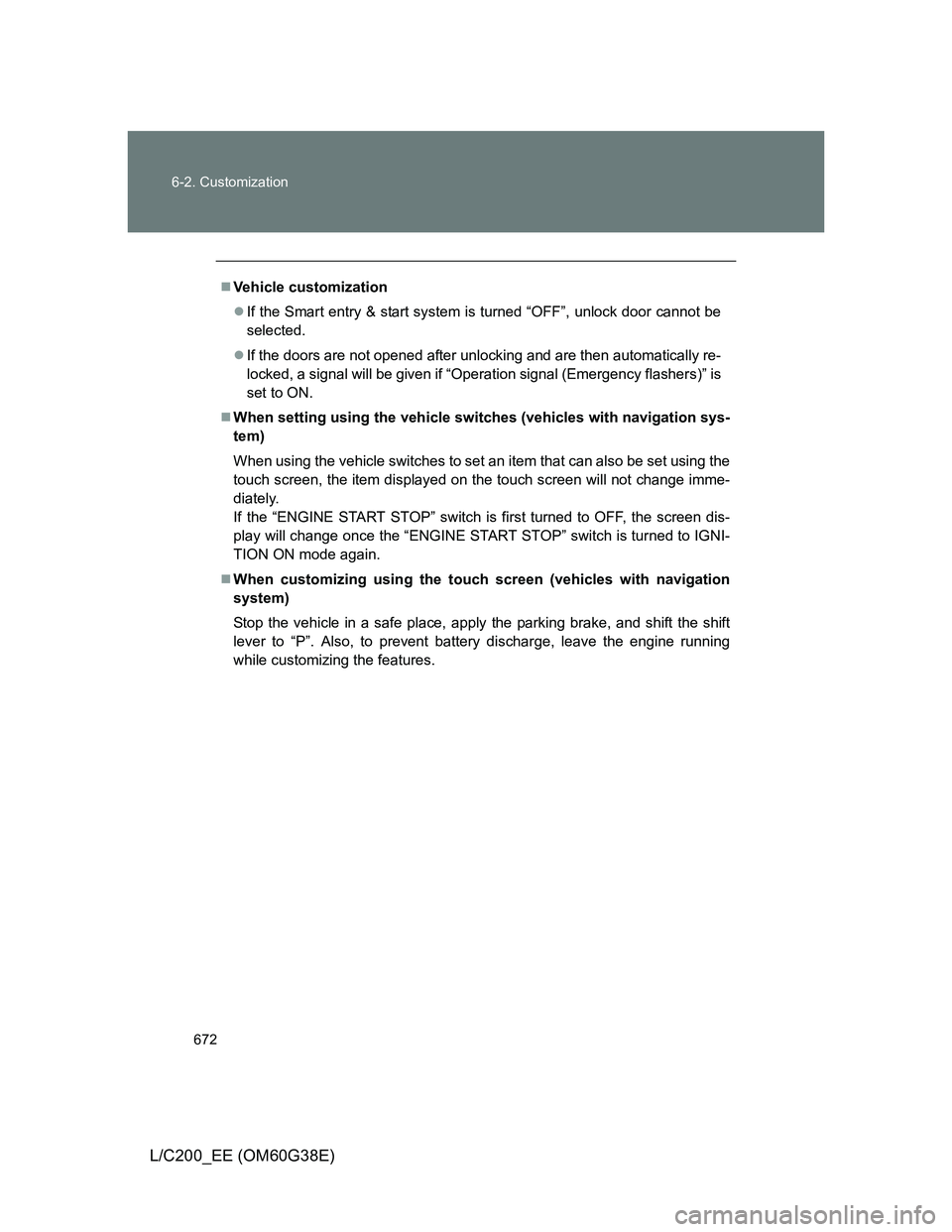

672 6-2. Customization
L/C200_EE (OM60G38E)
Vehicle customization
If the Smart entry & start system is turned “OFF”, unlock door cannot be
selected.
If the doors are not opened after unlocking and are then automatically re-
locked, a signal will be given if “Operation signal (Emergency flashers)” is
set to ON.
When setting using the vehicle switches (vehicles with navigation sys-
tem)
When using the vehicle switches to set an item that can also be set using the
touch screen, the item displayed on the touch screen will not change imme-
diately.
If the “ENGINE START STOP” switch is first turned to OFF, the screen dis-
play will change once the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode again.
When customizing using the touch screen (vehicles with navigation
system)
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to “P”. Also, to prevent battery discharge, leave the engine running
while customizing the features.
