If the electronic key battery is discharged
The following symptoms may occur.
The smart entry & start system and wireless remote control will not func-
tion properly.
The operational range is reduced.
Use a CR1632 lithium battery
Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, jewelers, or camera
stores.
Replace only with the same or equivalent type recommended by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Dispose of used batteries according to the local laws.

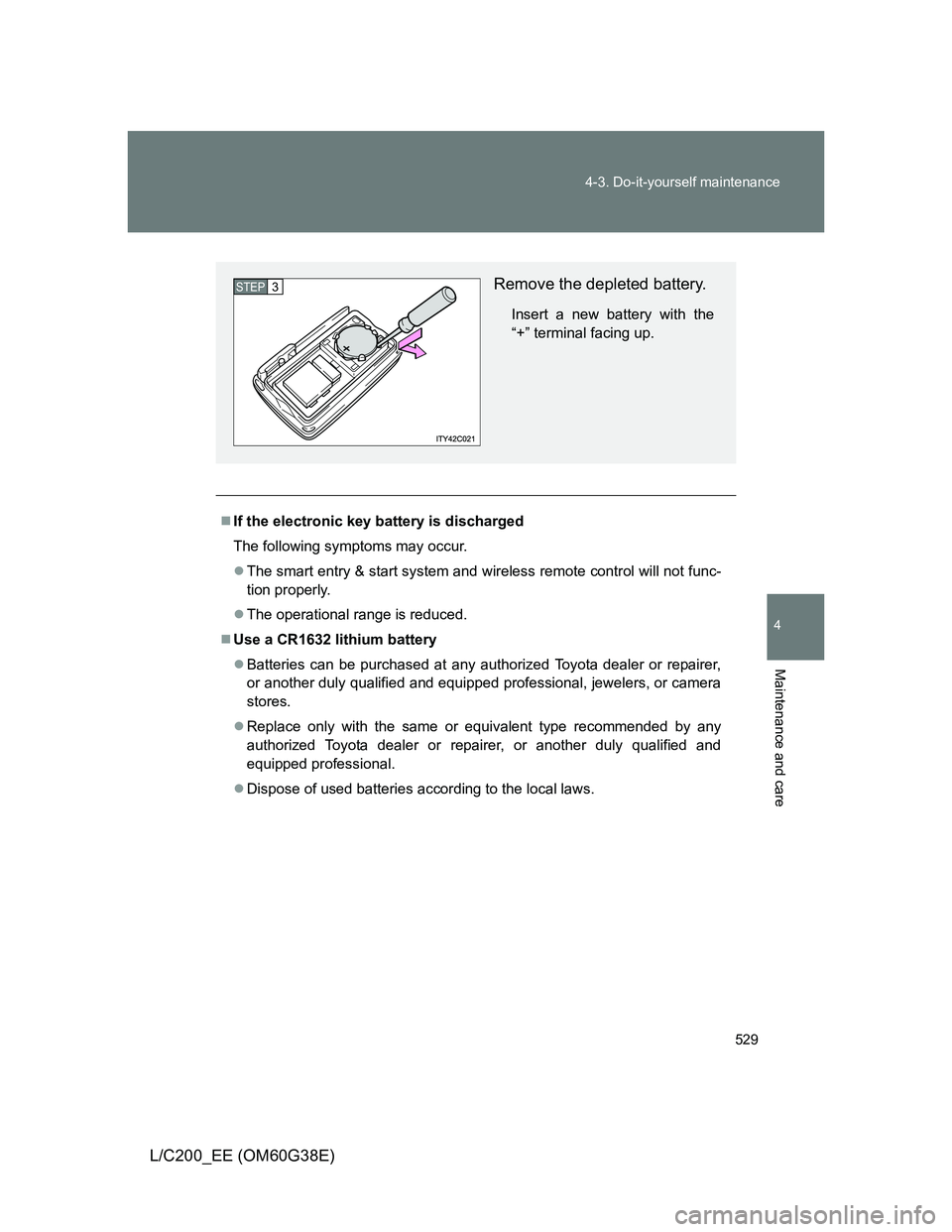

Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

530 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)
CAUTION
Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
Certification for the smart entry & start system
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS.
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other components inside the electronic key.
Do not bend the battery terminals.

531
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)

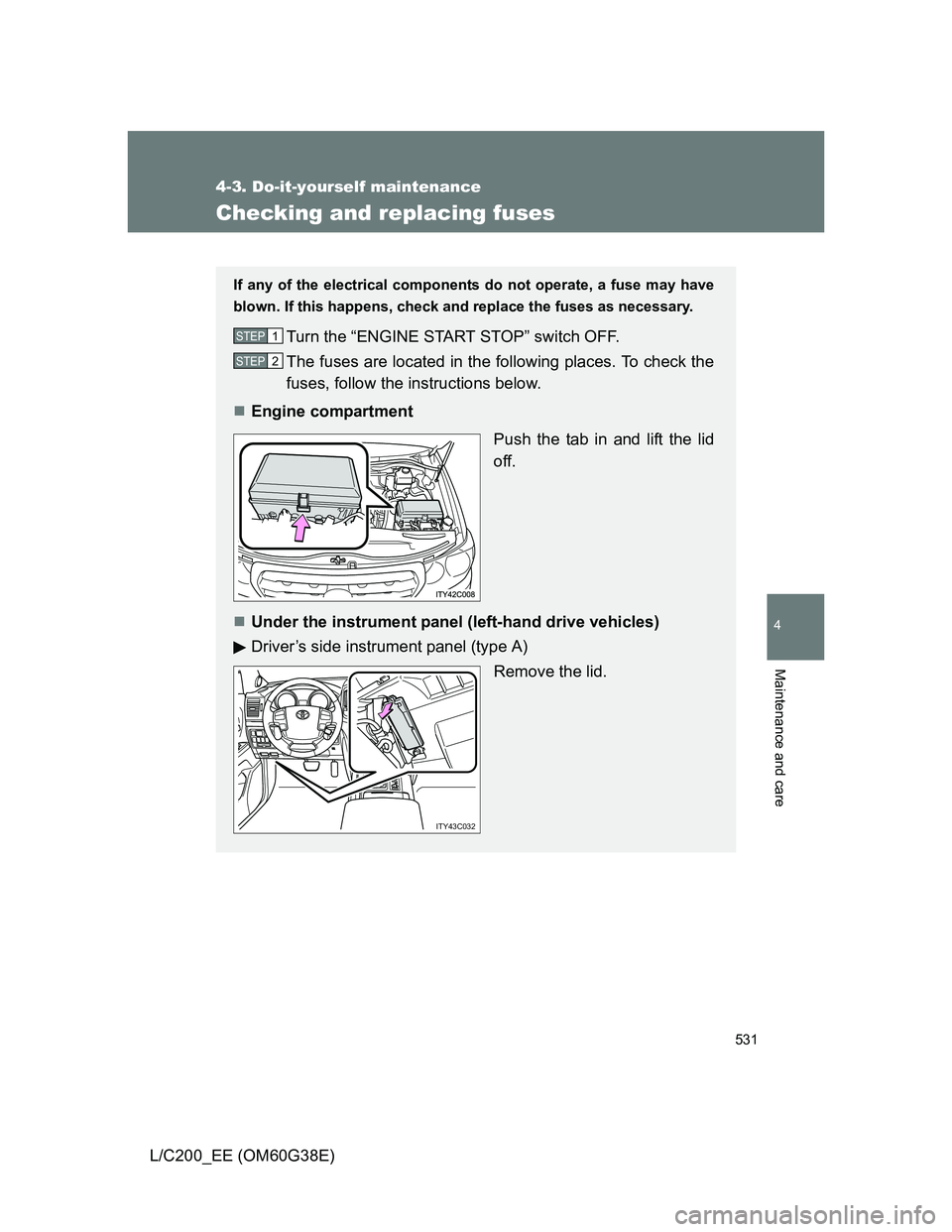

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel (left-hand drive vehicles)
Driver’s side instrument panel (type A)
Remove the lid.
STEP1
STEP2
ITY43C032

532 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)

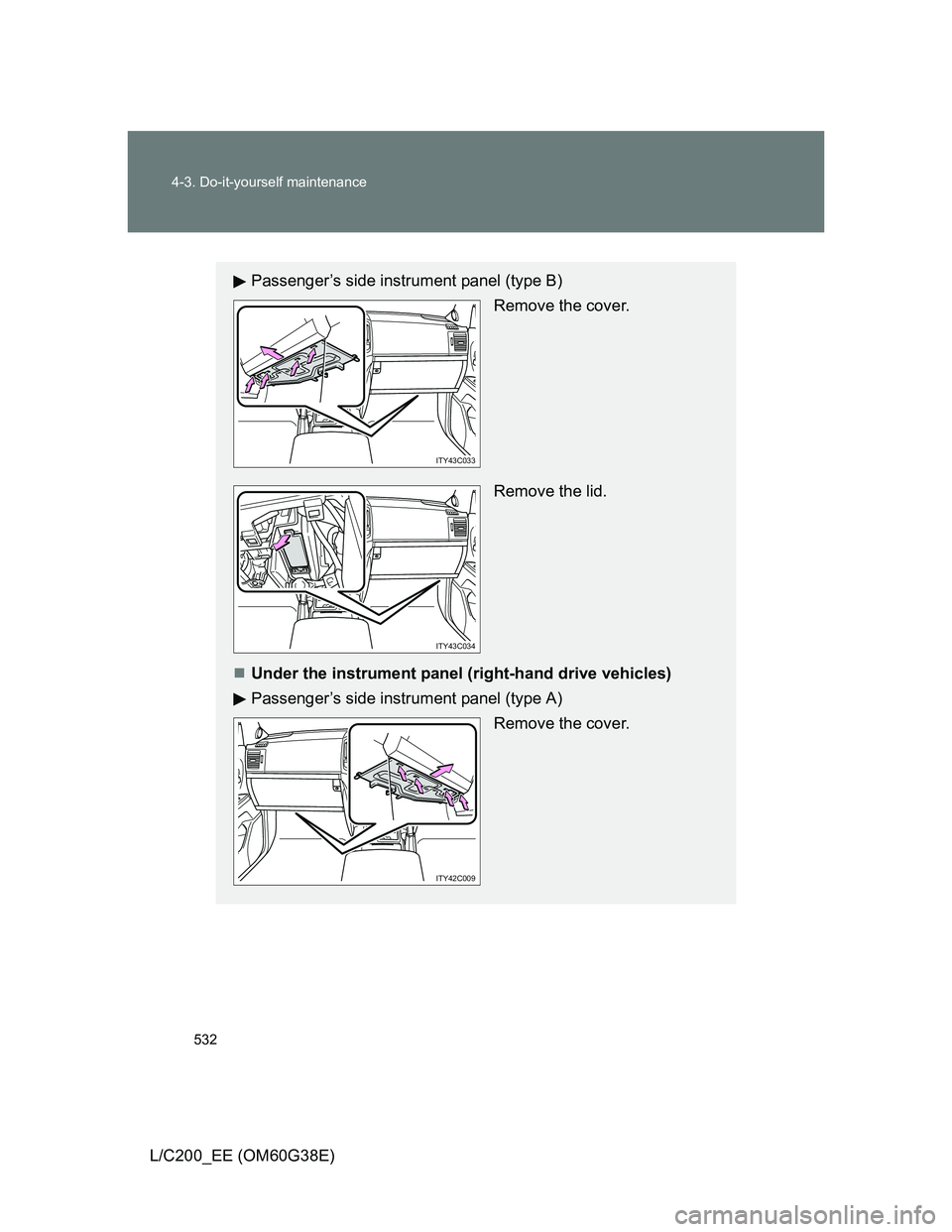

Passenger’s side instrument panel (type B) Remove the cover.
Remove the lid.
Under the instrument panel (right-hand drive vehicles)
Passenger’s side instrument panel (type A)
Remove the cover.
ITY43C033
ITY43C034
ITY42C009

533 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)

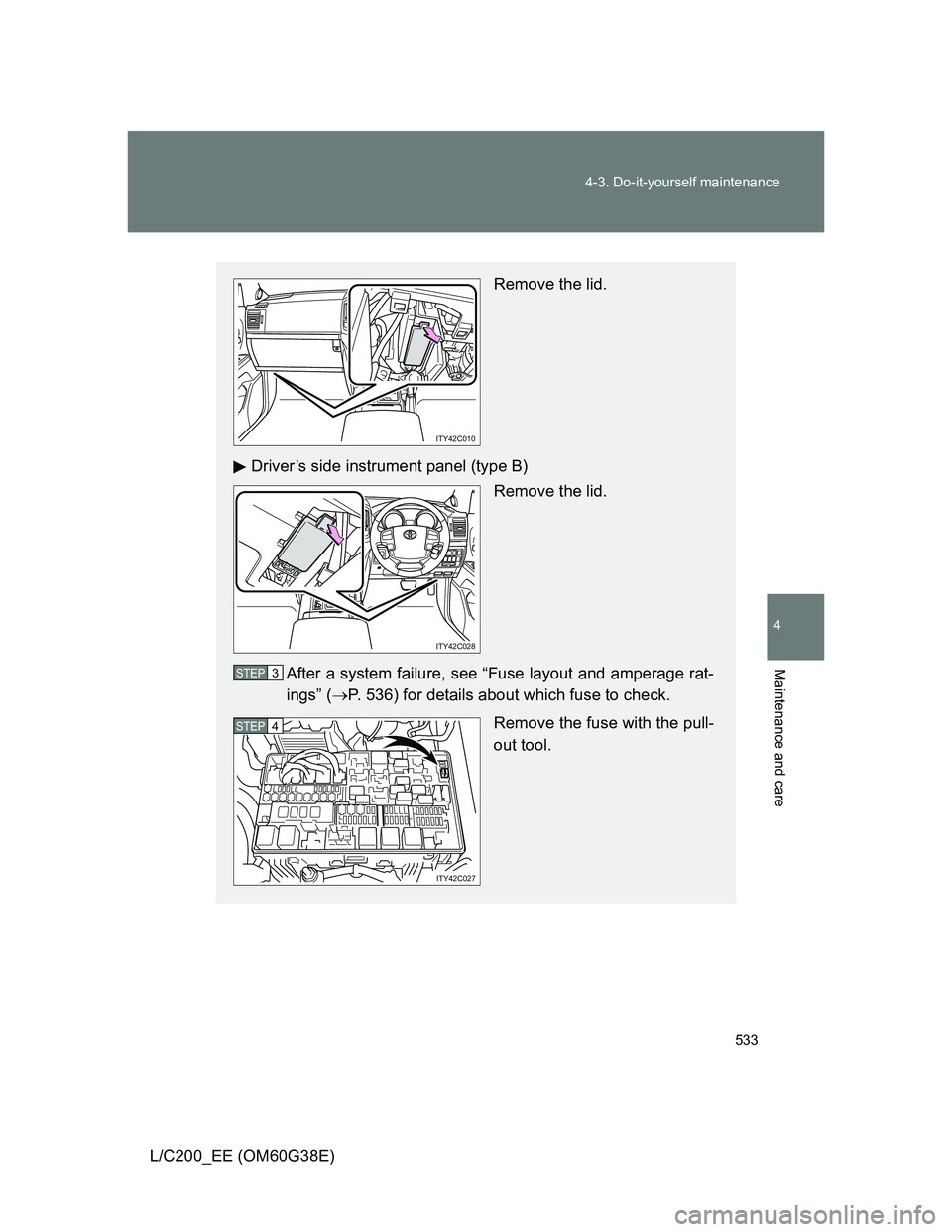

Remove the lid.
Driver’s side instrument panel (type B)
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 536) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
ITY42C010
ITY42C028
STEP3
ITY42C027
STEP4

534 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)
Check if the fuse has blown.
Type A and B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP5
12
ITY42C012
Ty p e A
12
ITY42C013
Ty p e B

535 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)

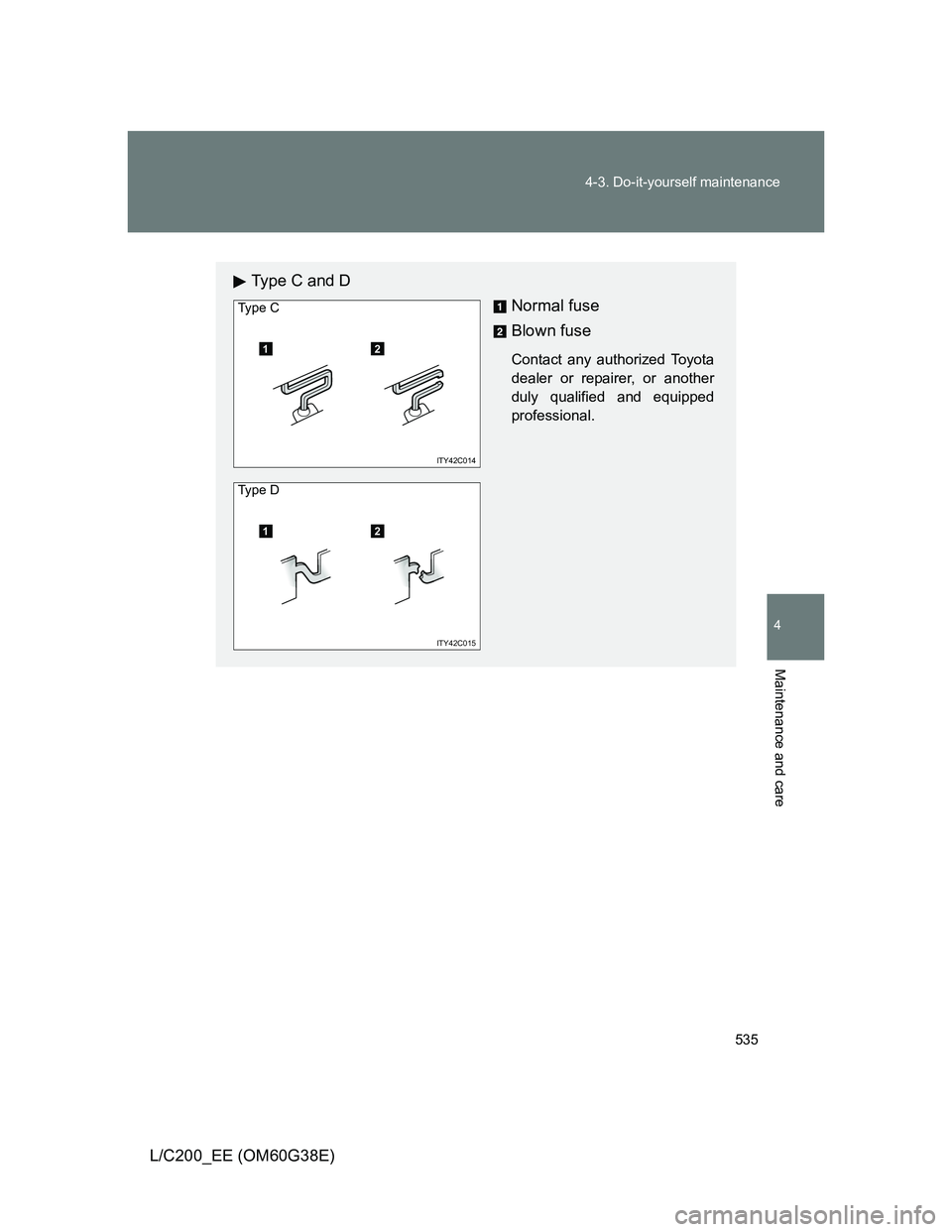

Type C and D
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.12
ITY42C014
Ty p e C
12
ITY42C015
Ty p e D

536 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)

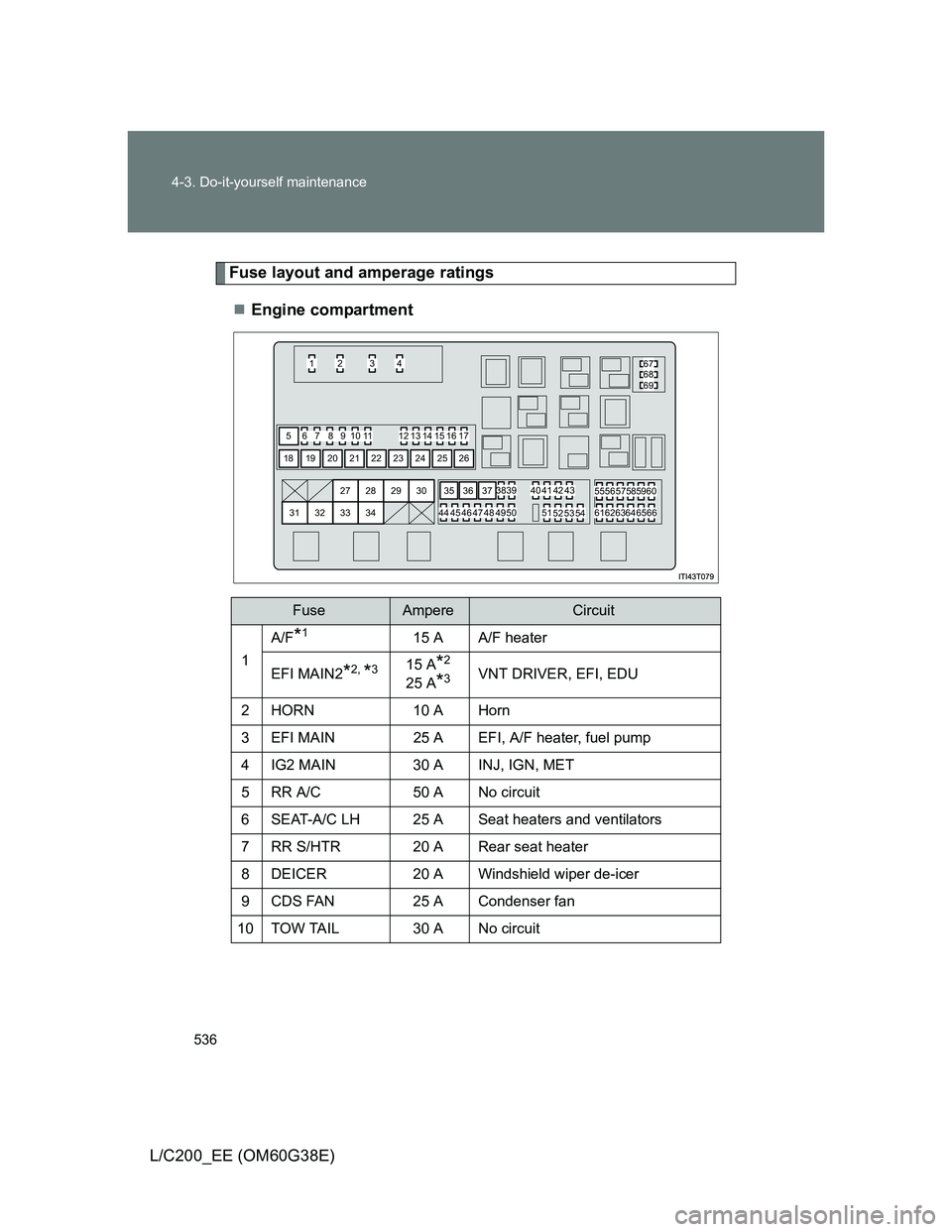

Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1
A/F*115 A A/F heater
EFI MAIN2*2, *315 A*2
25 A*3VNT DRIVER, EFI, EDU
2HORN10 A Horn
3 EFI MAIN 25 A EFI, A/F heater, fuel pump
4 IG2 MAIN 30 A INJ, IGN, MET
5 RR A/C 50 A No circuit
6 SEAT-A/C LH 25 A Seat heaters and ventilators
7 RR S/HTR 20 A Rear seat heater
8 DEICER 20 A Windshield wiper de-icer
9 CDS FAN 25 A Condenser fan
10 TOW TAIL 30 A No circuit
12 34
5
39 18 19 20 21 22 23 24 25 26
40 41 42 43
44 45 46 47
48 27 28
33 34 31 3229 30 35 36 37
52 53 5455
49 50 515667
68
69
57585960
616263646566 6 7 8 9 10 11 12 13 14 15 16 17
