2012 TOYOTA LAND CRUISER Owners Manual

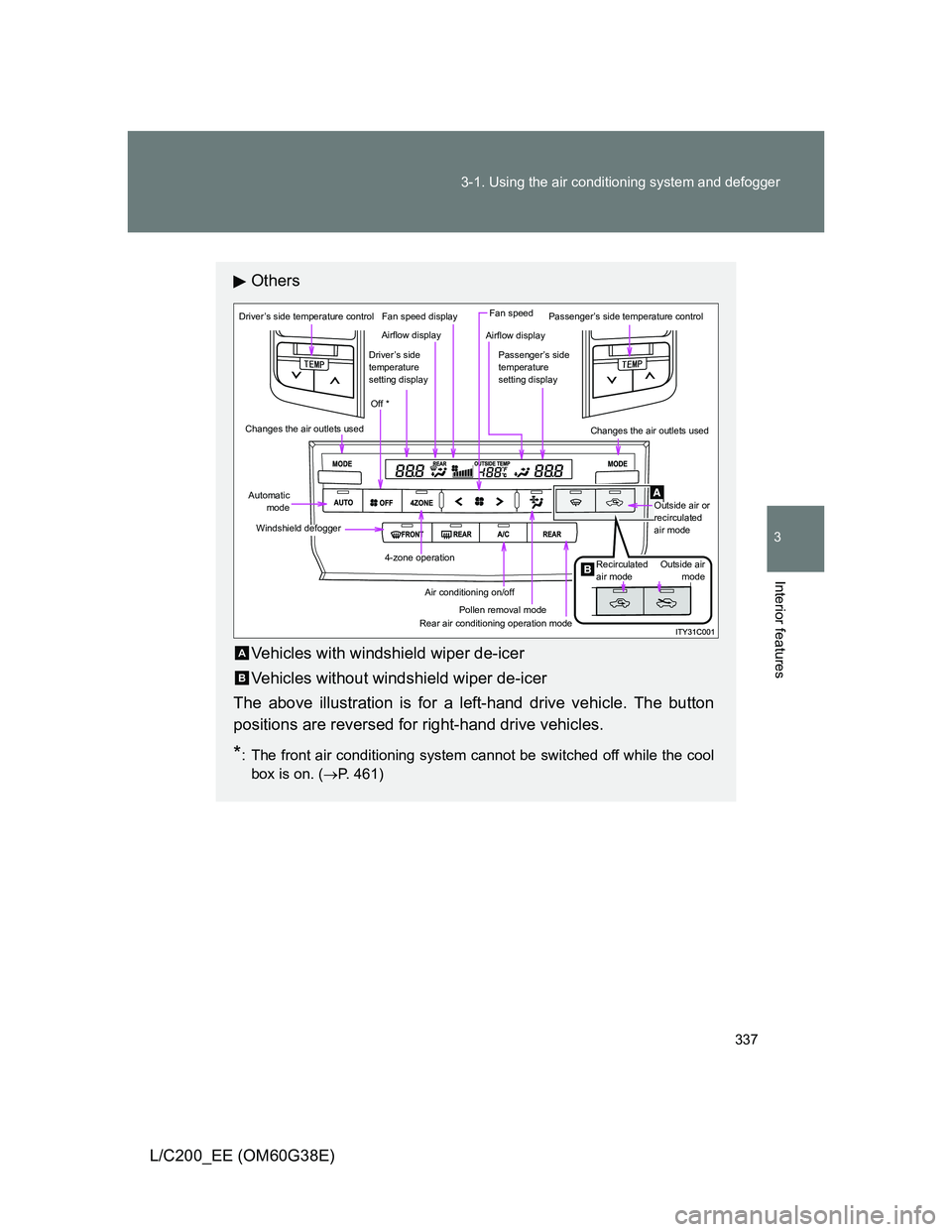

337 3-1. Using the air conditioning system and defogger
3
Interior features
L/C200_EE (OM60G38E)
Others
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
The above illustration is for a left-hand drive vehicle. The button
positions are reversed for right-hand drive vehicles.
*: The front air conditioning system cannot be switched off while the cool
box is on. (P. 461)
Driver’s side temperature control
Changes the air outlets used
Automatic
mode
Windshield defogger
4-zone operation
Air conditioning on/off
Pollen removal mode
Off *
Driver’s side
temperature
setting display
Airflow display
Fan speed displayFan speed
Passenger’s side
temperature
setting display
Passenger’s side temperature control
Outside air or
recirculated
air mode
Outside air
mode Recirculated
air mode
Airflow display
Changes the air outlets used
Rear air conditioning operation mode
A
B

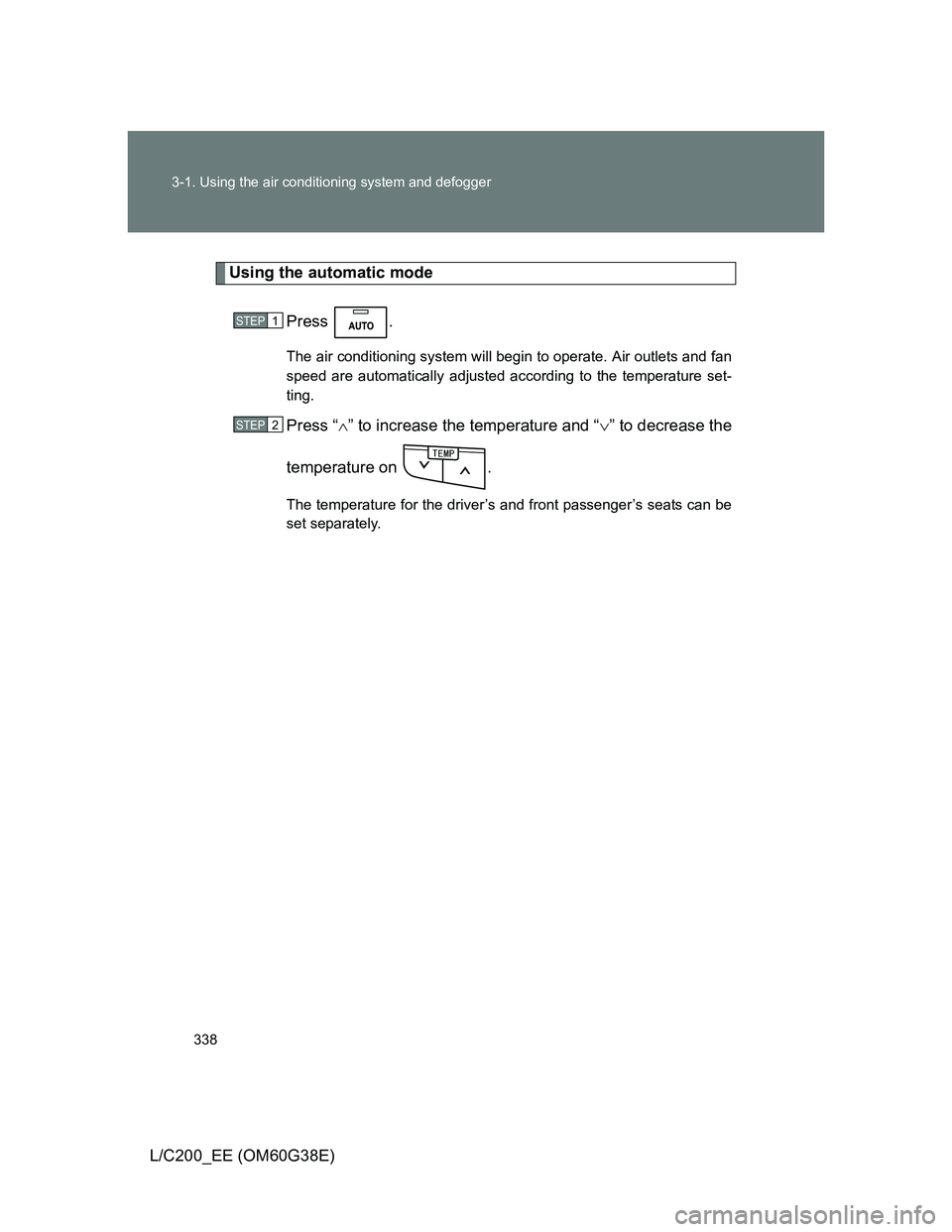

338 3-1. Using the air conditioning system and defogger
L/C200_EE (OM60G38E)
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “” to decrease the
temperature on .
The temperature for the driver’s and front passenger’s seats can be
set separately.
STEP1
STEP2
6'/2

339 3-1. Using the air conditioning system and defogger
3
Interior features
L/C200_EE (OM60G38E)
Adjusting the settings
Adjusting the temperature setting (with rear air conditioning
system)
Press “” to increase the temperature and “” to decrease the tem-
perature on .
The air conditioning system switches between individual and simultane-
ous modes each time is pressed.
Individual mode (the indicator on is on.): The temperature for the
driver’s, front passenger’s and rear seats (P. 344) can be adjusted
separately. Operating the passenger’s side or rear temperature control
will enter individual mode.
Simultaneous mode (the indicator on is off.): Only
(driver’s side) can be used to adjust the temperature for all seats.
6'/2
6'/2

340 3-1. Using the air conditioning system and defogger
L/C200_EE (OM60G38E)Adjusting the temperature setting (without rear air condition-
ing system)
Press “” to increase the temperature and “” to decrease the tem-
perature on .
The air conditioning system switches between dual and simultaneous
modes each time is pressed.
Dual mode (the indicator on is on.): The temperature for the
driver’s seat and front passenger’s seat can be adjusted separately.
Operating the passenger’s side temperature control will enter dual
mode.
Simultaneous mode (the indicator on is off.): Only
(driver’s side) can be used to adjust the temperature for all seats.
Adjusting the fan speed
Press “” (increase) or “” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
6'/2
6'/2

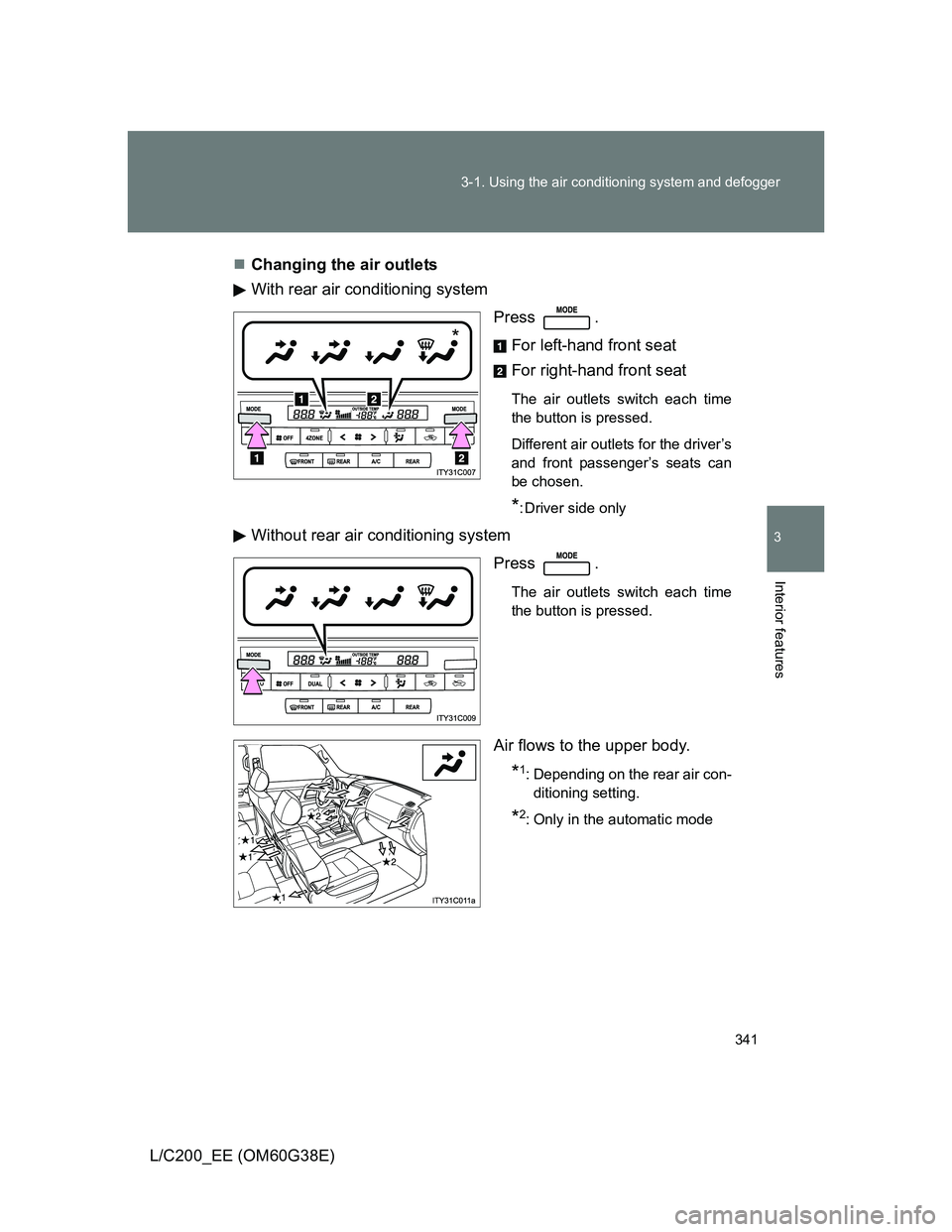

341 3-1. Using the air conditioning system and defogger
3
Interior features
L/C200_EE (OM60G38E)Changing the air outlets
With rear air conditioning system
Press .
For left-hand front seat
For right-hand front seat
The air outlets switch each time
the button is pressed.
Different air outlets for the driver’s
and front passenger’s seats can
be chosen.
*: Driver side only
Without rear air conditioning system
Press .
The air outlets switch each time
the button is pressed.
Air flows to the upper body.
*1: Depending on the rear air con-
ditioning setting.
*2: Only in the automatic mode
*

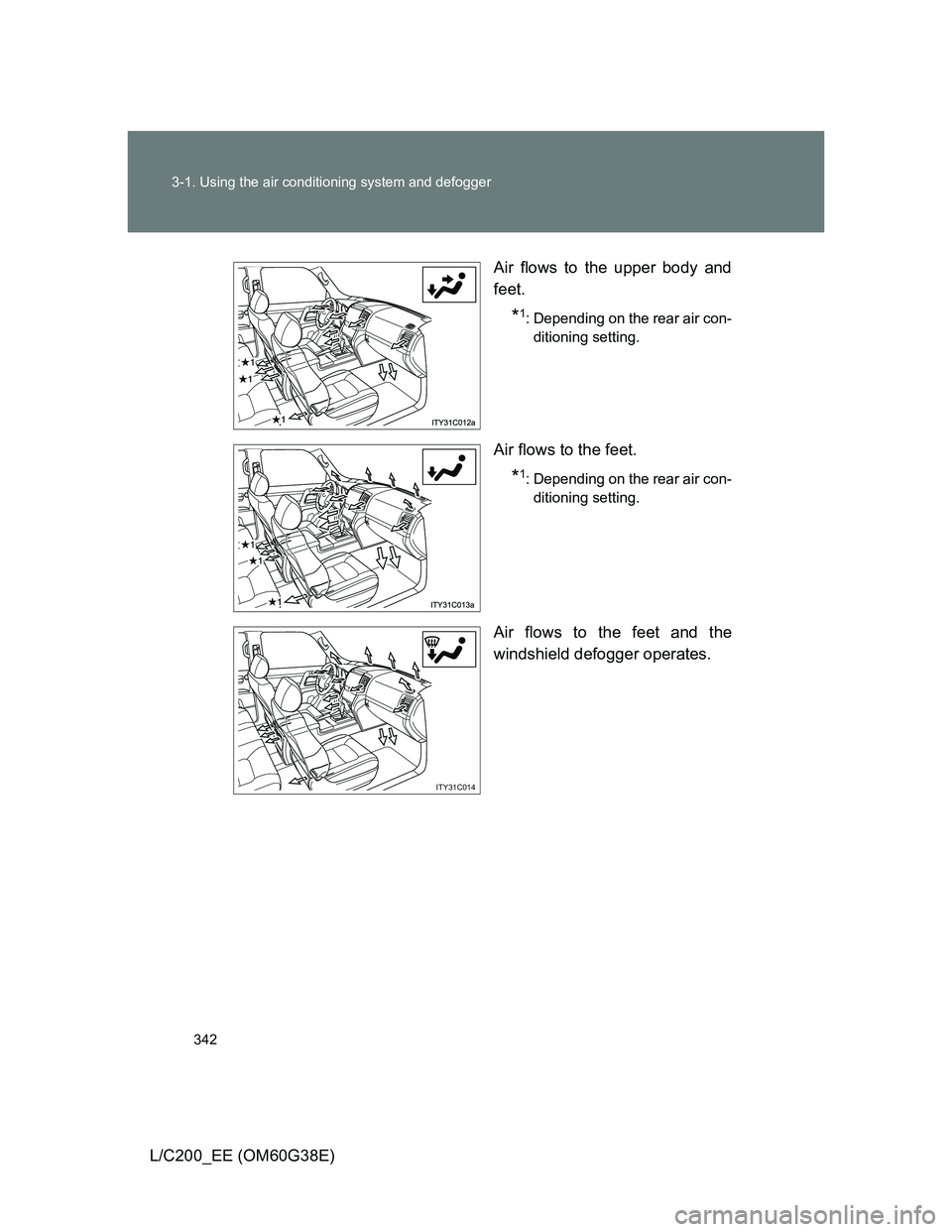

342 3-1. Using the air conditioning system and defogger
L/C200_EE (OM60G38E)Air flows to the upper body and
feet.
*1: Depending on the rear air con-
ditioning setting.
Air flows to the feet.
*1: Depending on the rear air con-
ditioning setting.
Air flows to the feet and the
windshield defogger operates.
ITY31C014

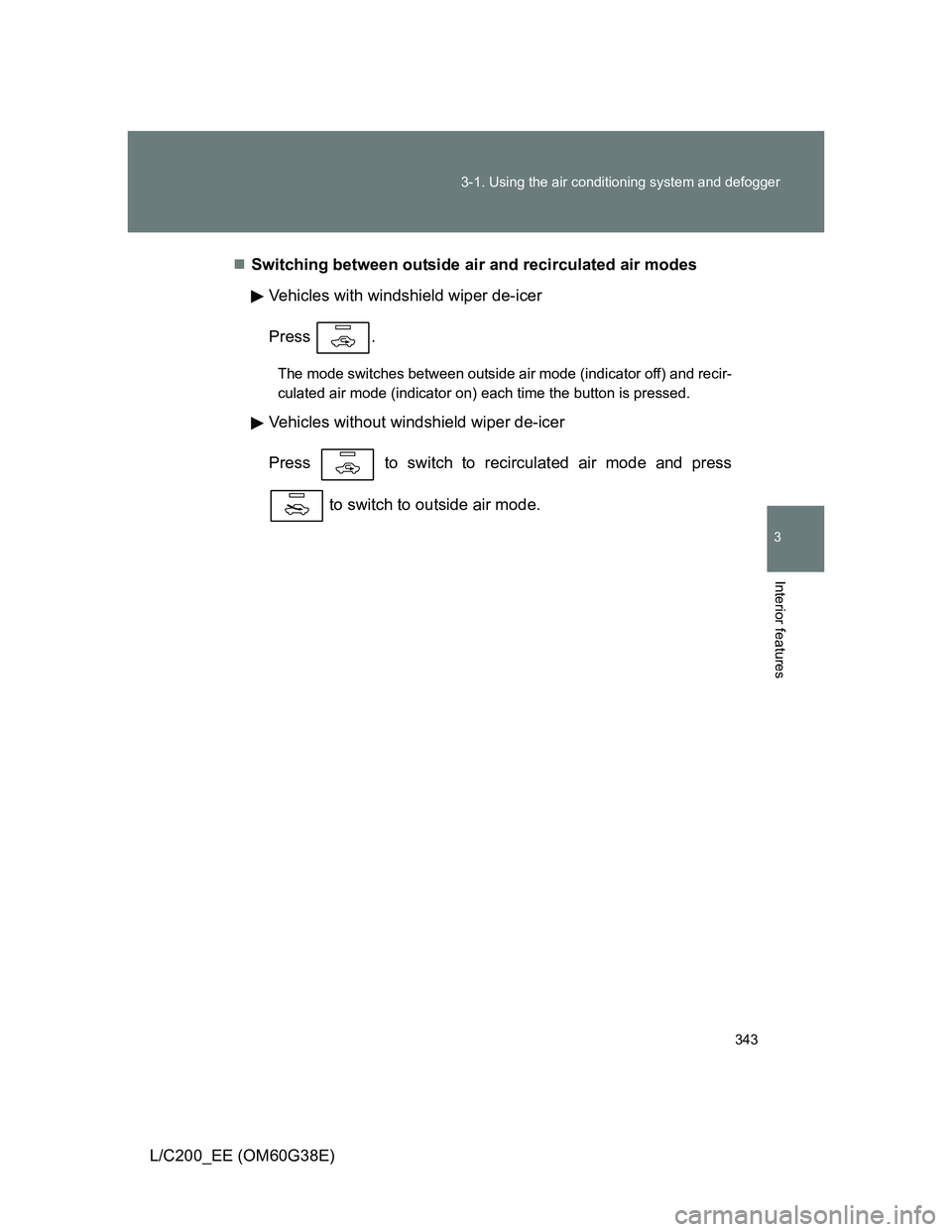

343 3-1. Using the air conditioning system and defogger
3
Interior features
L/C200_EE (OM60G38E)Switching between outside air and recirculated air modes
Vehicles with windshield wiper de-icer
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time the button is pressed.
Vehicles without windshield wiper de-icer
Press to switch to recirculated air mode and press
to switch to outside air mode.

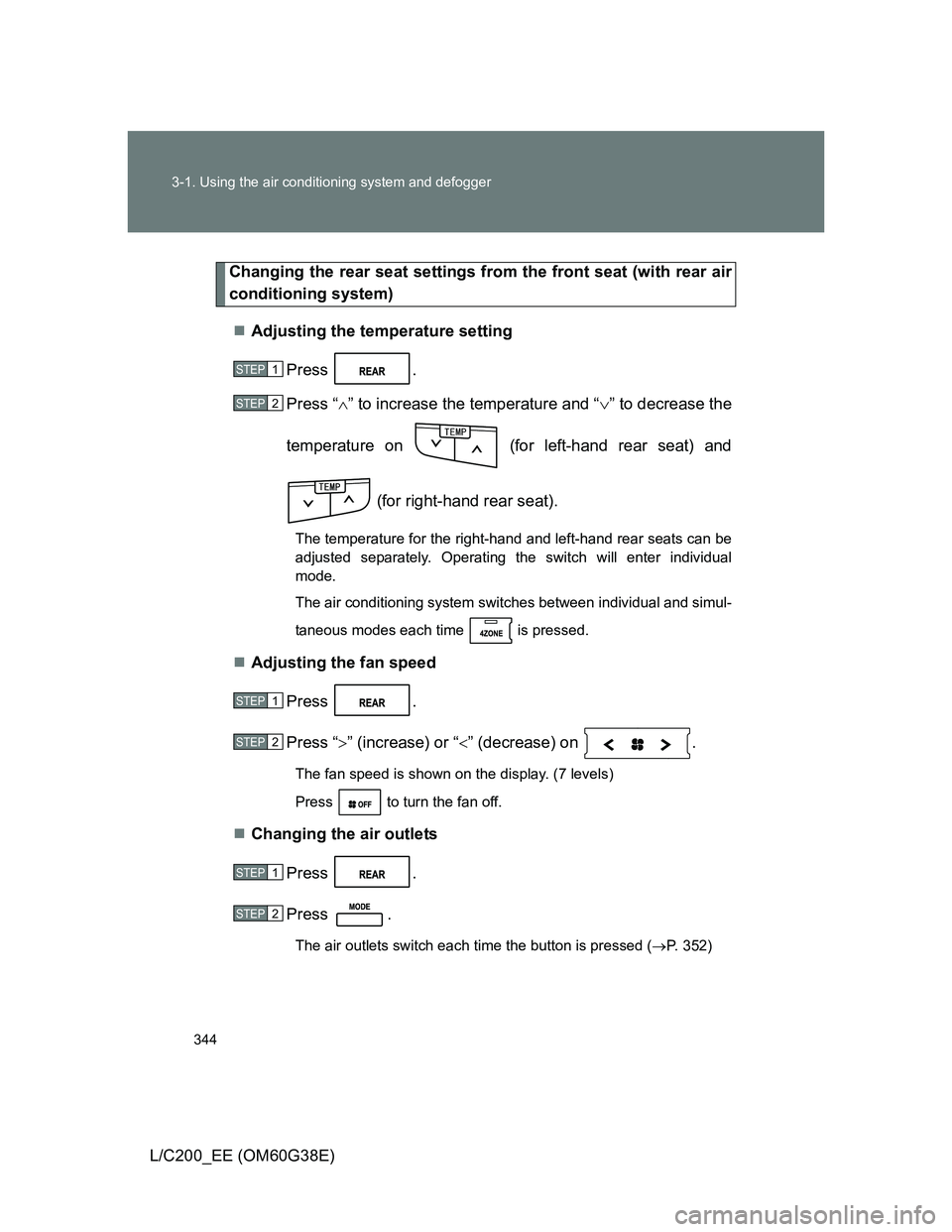

344 3-1. Using the air conditioning system and defogger
L/C200_EE (OM60G38E)
Changing the rear seat settings from the front seat (with rear air
conditioning system)
Adjusting the temperature setting
Press .
Press “” to increase the temperature and “” to decrease the
temperature on (for left-hand rear seat) and
(for right-hand rear seat).
The temperature for the right-hand and left-hand rear seats can be
adjusted separately. Operating the switch will enter individual
mode.
The air conditioning system switches between individual and simul-
taneous modes each time is pressed.
Adjusting the fan speed
Press .
Press “” (increase) or “” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
Changing the air outlets
Press .
Press .
The air outlets switch each time the button is pressed (P. 352)
STEP1
STEP2
6'/2
STEP1
STEP2
STEP1
STEP2
