2012 TOYOTA LAND CRUISER Owners Manual

409 3-3. Using the Bluetooth
® audio system
3
Interior features
L/C200_EE (OM60G38E)

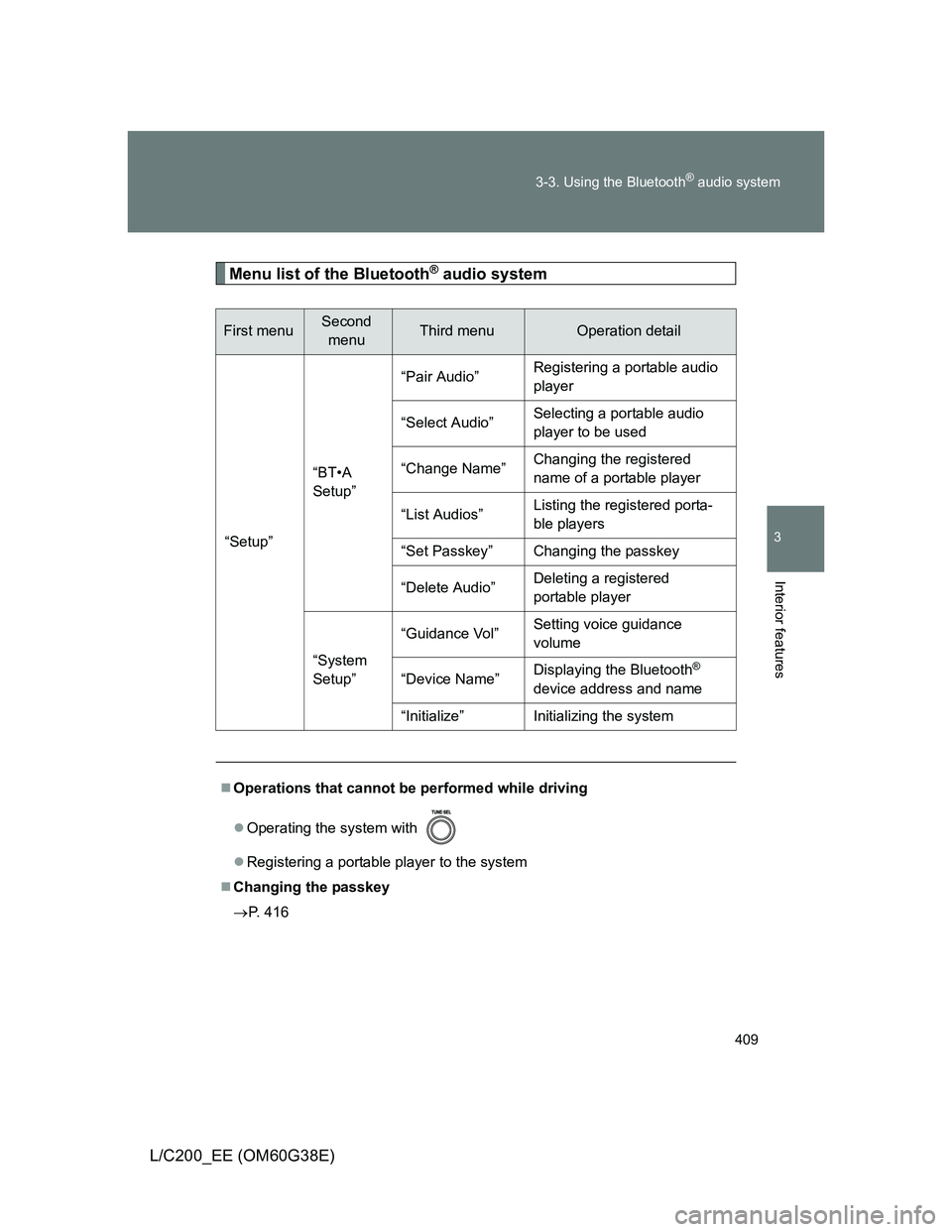

Menu list of the Bluetooth® audio system
First menuSecond
menuThird menuOperation detail
“Setup”“BT•A
Setup”“Pair Audio”Registering a portable audio
player
“Select Audio”Selecting a portable audio
player to be used
“Change Name”Changing the registered
name of a portable player
“List Audios”Listing the registered porta-
ble players
“Set Passkey” Changing the passkey
“Delete Audio”Deleting a registered
portable player
“System
Setup”“Guidance Vol”Setting voice guidance
volume
“Device Name”Displaying the Bluetooth
®
device address and name
“Initialize” Initializing the system
Operations that cannot be performed while driving
Operating the system with
Registering a portable player to the system
Changing the passkey
P. 416

410
3-3. Using the Bluetooth® audio system
L/C200_EE (OM60G38E)

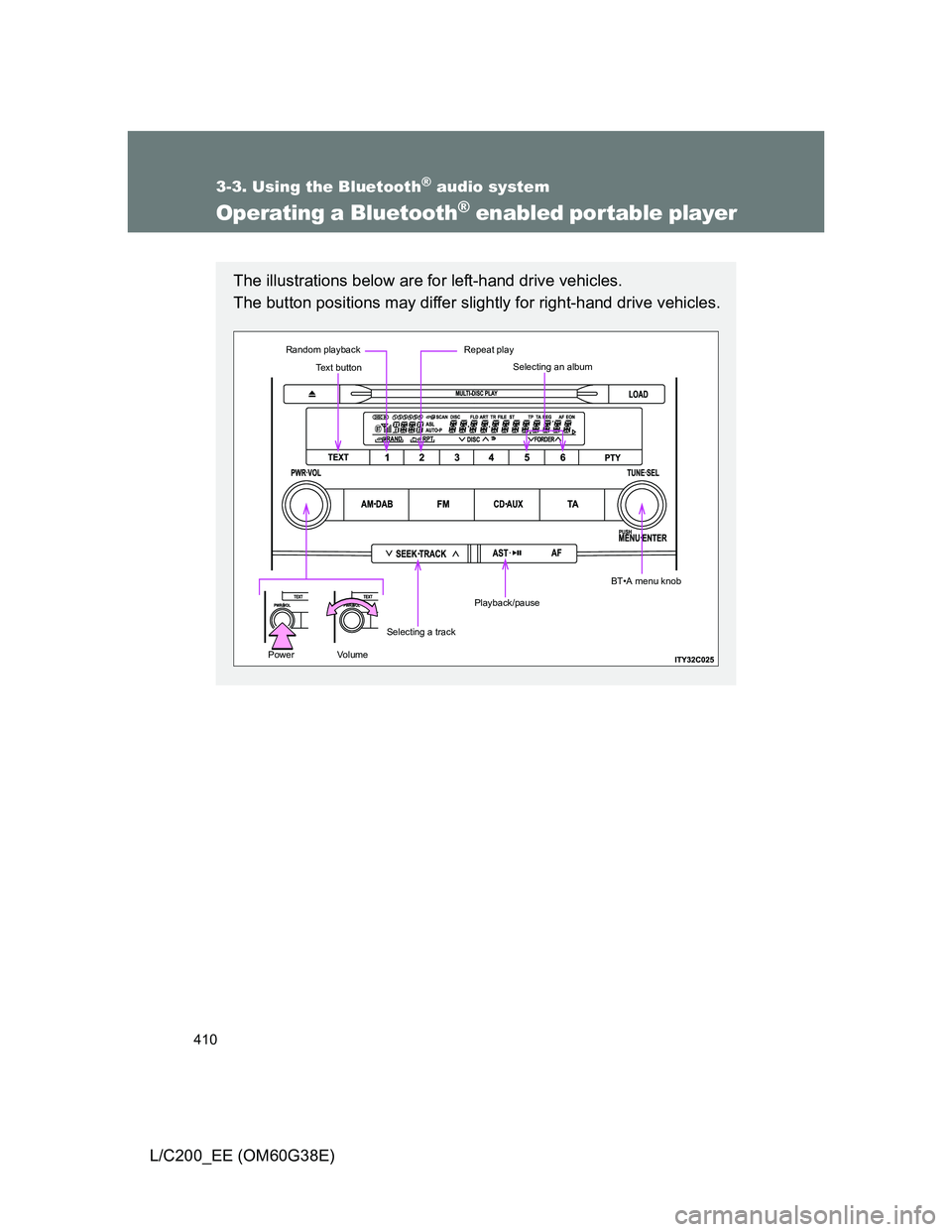

Operating a Bluetooth® enabled por table player
The illustrations below are for left-hand drive vehicles.
The button positions may differ slightly for right-hand drive vehicles.

Text button
Repeat play
Selecting a track
Playback/pause
Random playback
PowerVo l u m e
Selecting an album
BT•A menu knob

411 3-3. Using the Bluetooth
® audio system
3
Interior features
L/C200_EE (OM60G38E)

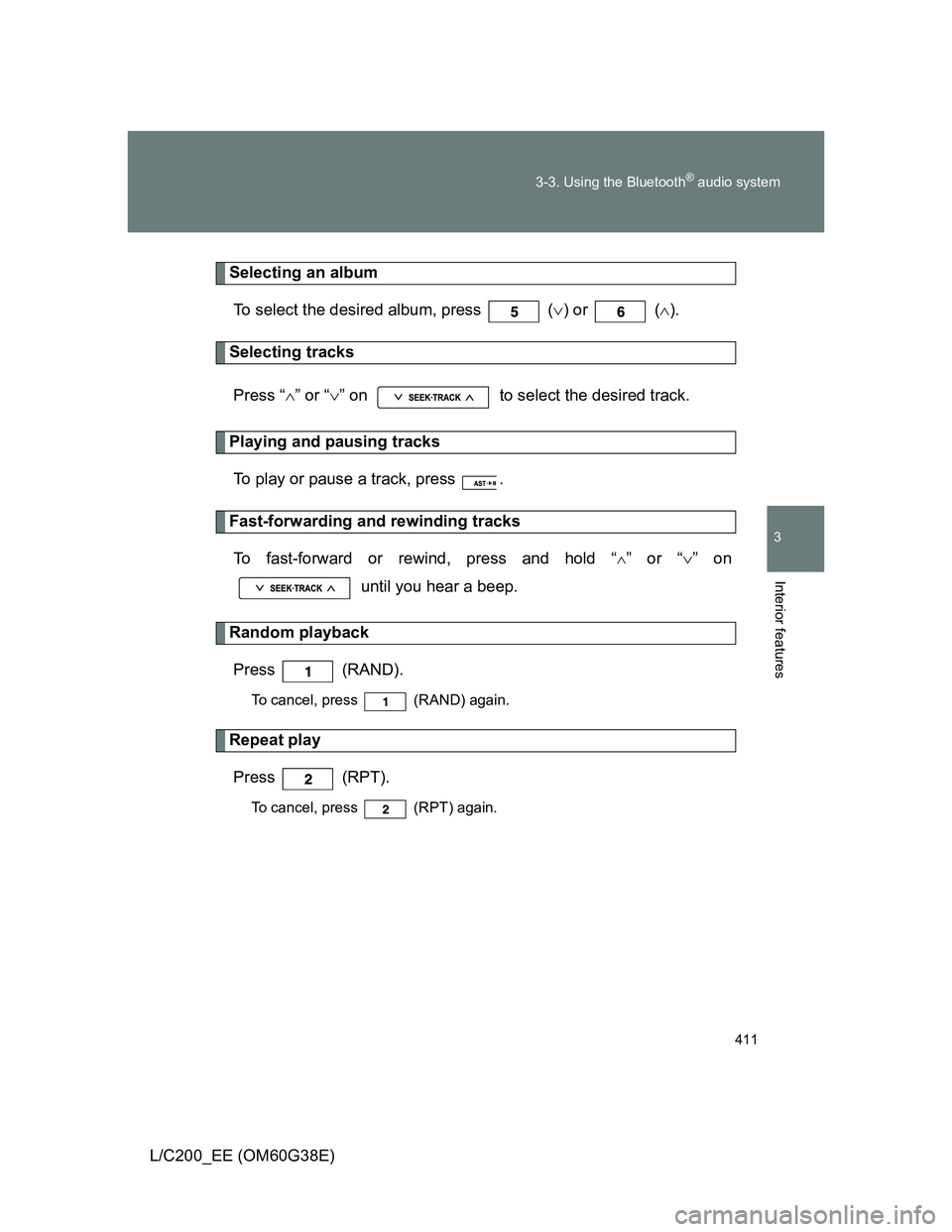

Selecting an album
To select the desired album, press () or ().
Selecting tracks
Press “” or “” on to select the desired track.
Playing and pausing tracks
To play or pause a track, press .
Fast-forwarding and rewinding tracks
To fast-forward or rewind, press and hold “
” or “” on
until you hear a beep.
Random playback
Press (RAND).
To cancel, press (RAND) again.
Repeat play
Press (RPT).
To cancel, press (RPT) again.

412 3-3. Using the Bluetooth
® audio system
L/C200_EE (OM60G38E)

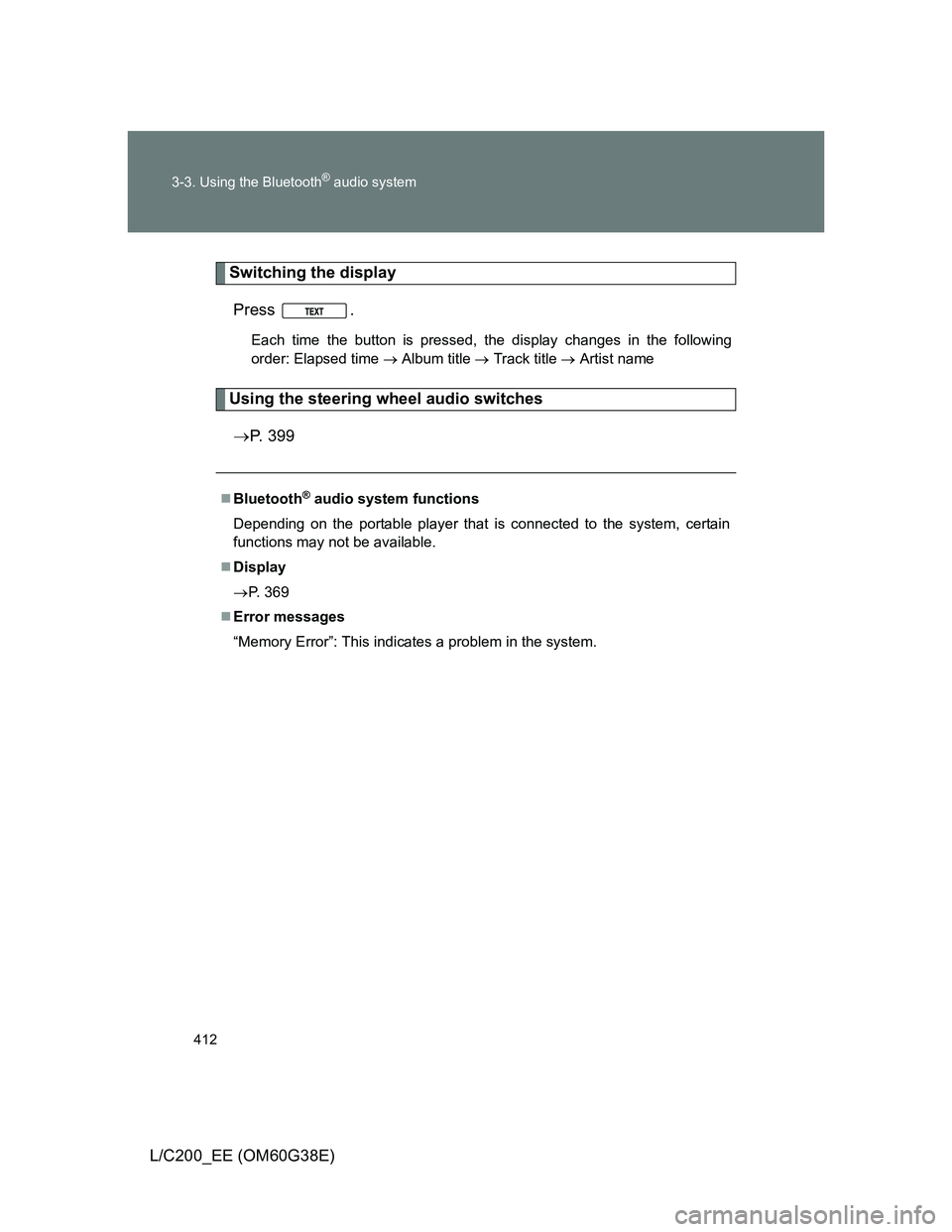

Switching the display
Press .
Each time the button is pressed, the display changes in the following
order: Elapsed time  Album title  Track title  Artist name
Using the steering wheel audio switches
P. 399
Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Display
P. 369
Error messages
“Memory Error”: This indicates a problem in the system.

413
3-3. Using the Bluetooth® audio system
3
Interior features
L/C200_EE (OM60G38E)

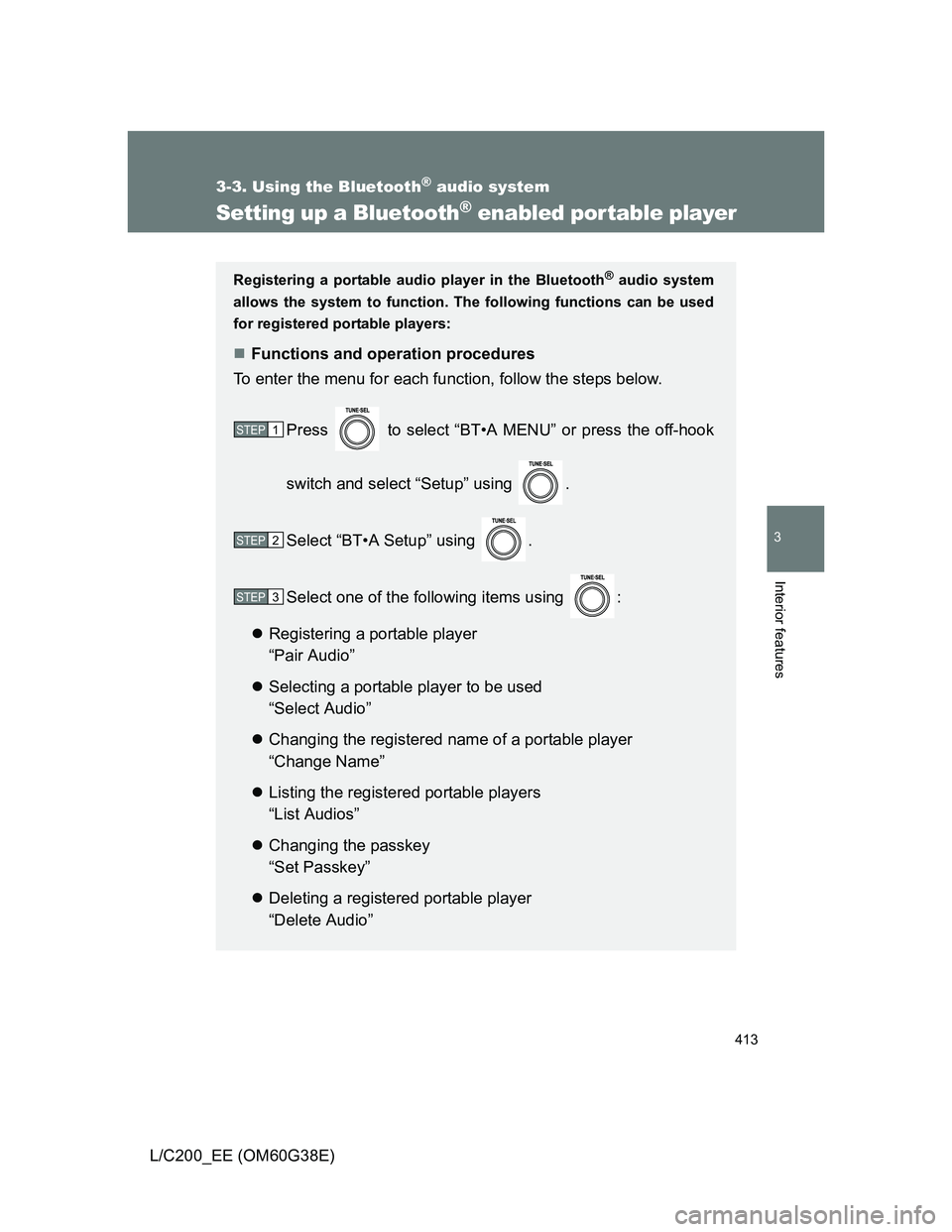

Setting up a Bluetooth® enabled portable player
Registering a portable audio player in the Bluetooth® audio system
allows the system to function. The following functions can be used
for registered portable players:
Functions and operation procedures
To enter the menu for each function, follow the steps below.
Press to select “BT•A MENU” or press the off-hook
switch and select “Setup” using .
Select “BT•A Setup” using .
Select one of the following items using :
Registering a portable player
“Pair Audio”
Selecting a portable player to be used
“Select Audio”
Changing the registered name of a portable player
“Change Name”
Listing the registered portable players
“List Audios”
Changing the passkey
“Set Passkey”
Deleting a registered portable player
“Delete Audio”
STEP1
STEP2
STEP3

414 3-3. Using the Bluetooth
® audio system
L/C200_EE (OM60G38E)

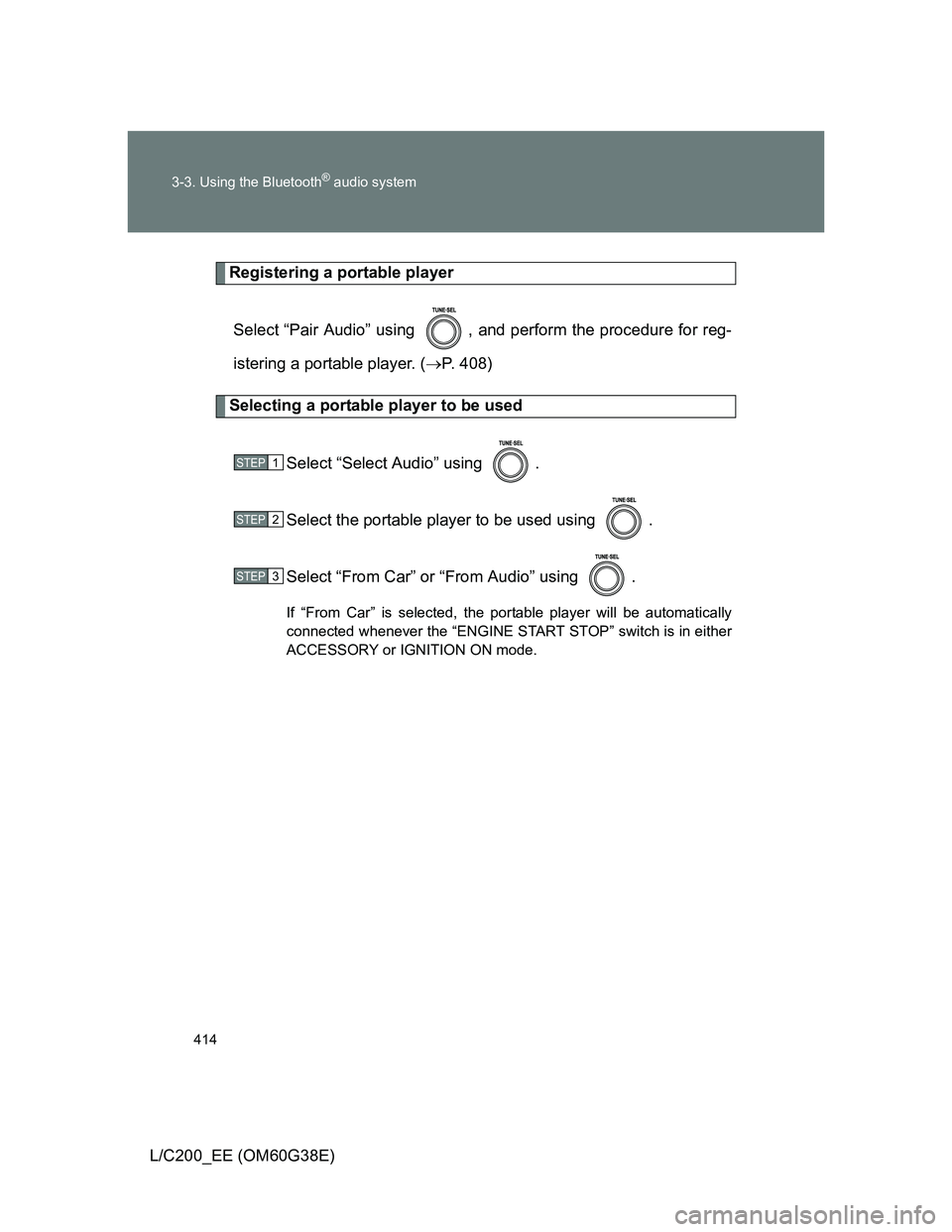

Registering a portable player
Select “Pair Audio” using , and perform the procedure for reg-
istering a portable player. (P. 408)
Selecting a portable player to be used
Select “Select Audio” using .
Select the portable player to be used using .
Select “From Car” or “From Audio” using .
If “From Car” is selected, the portable player will be automatically
connected whenever the “ENGINE START STOP” switch is in either
ACCESSORY or IGNITION ON mode.
STEP1
STEP2
STEP3

415 3-3. Using the Bluetooth
® audio system
3
Interior features
L/C200_EE (OM60G38E)

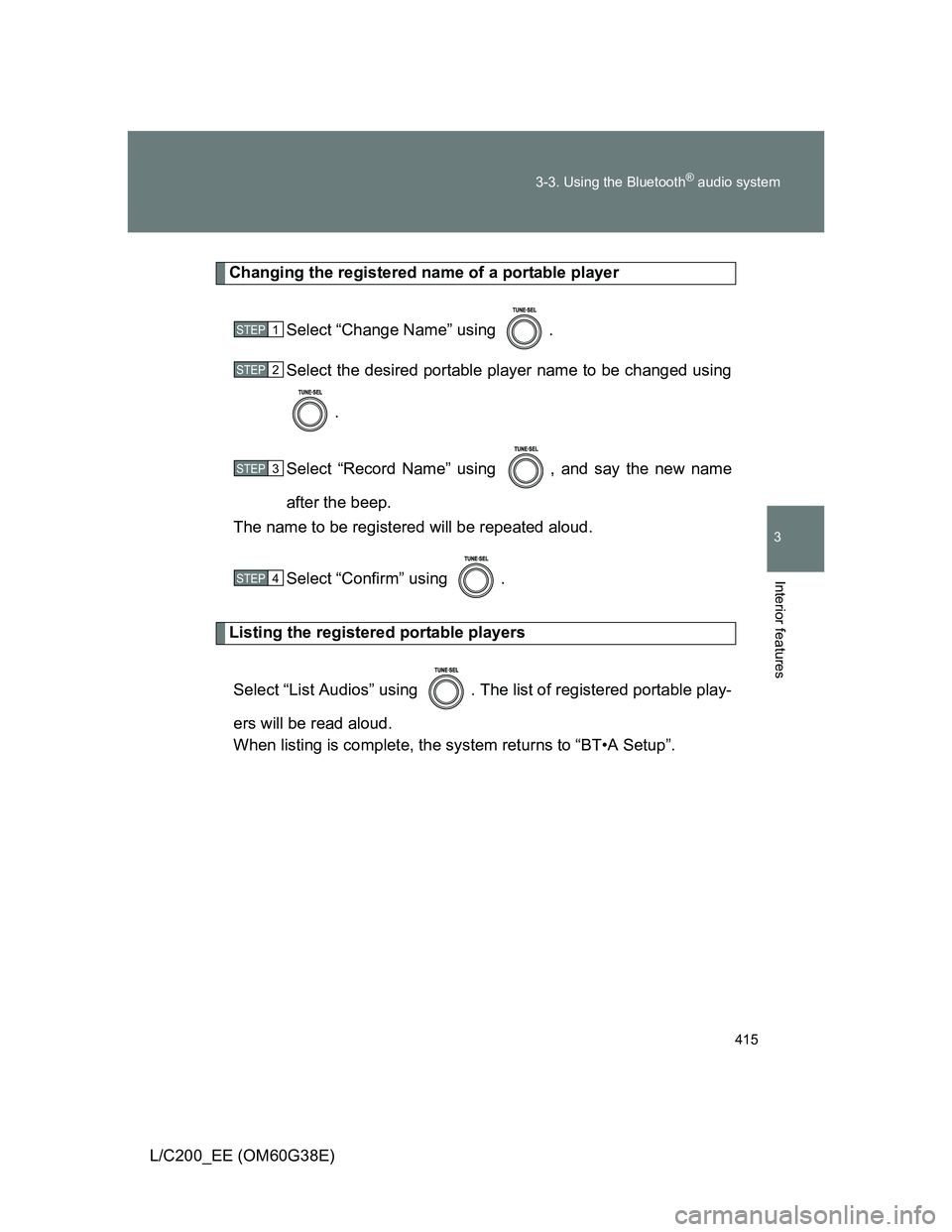

Changing the registered name of a portable player
Select “Change Name” using .
Select the desired portable player name to be changed using
.
Select “Record Name” using , and say the new name
after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
Listing the registered portable players
Select “List Audios” using . The list of registered portable play-
ers will be read aloud.
When listing is complete, the system returns to “BT•A Setup”.
STEP1
STEP2
STEP3
STEP4

416 3-3. Using the Bluetooth
® audio system
L/C200_EE (OM60G38E)
Changing the passkey
Select “Set Passkey” using .
Select a 4 to 8-digit number using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the number to be registered has 8 digits, pressing of the knob is
not necessary.
Deleting a registered portable player
Select “Delete Audio” using .
Select the desired portable player to be deleted using .
If the portable player to be deleted is paired as a Bluetooth
® phone,
the registration of the mobile phone can be deleted at the same time.
When “Del Phone?” is displayed, select “Yes” or “No” using
. (Bluetooth
® phone P. 421)
The number of portable players that can be registered
Up to 2 portable players can be registered in the system.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
