2012 TOYOTA LAND CRUISER Owners Manual

657 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)
Transfer
*: Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the
factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or an
equivalent of matching quality to satisfy the above specification. Please con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for further details.
Brakes
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Oil capacity1.45 L (1.53 qt., 1.28 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or
equivalent
Recommended oil viscositySAE 75W
Pedal clearance*1
Left-hand drive
Right-hand drive92 mm (3.6 in.) Min.
93 mm (3.7 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*25  7 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3

658 6-1. Specifications
L/C200_EE (OM60G38E)

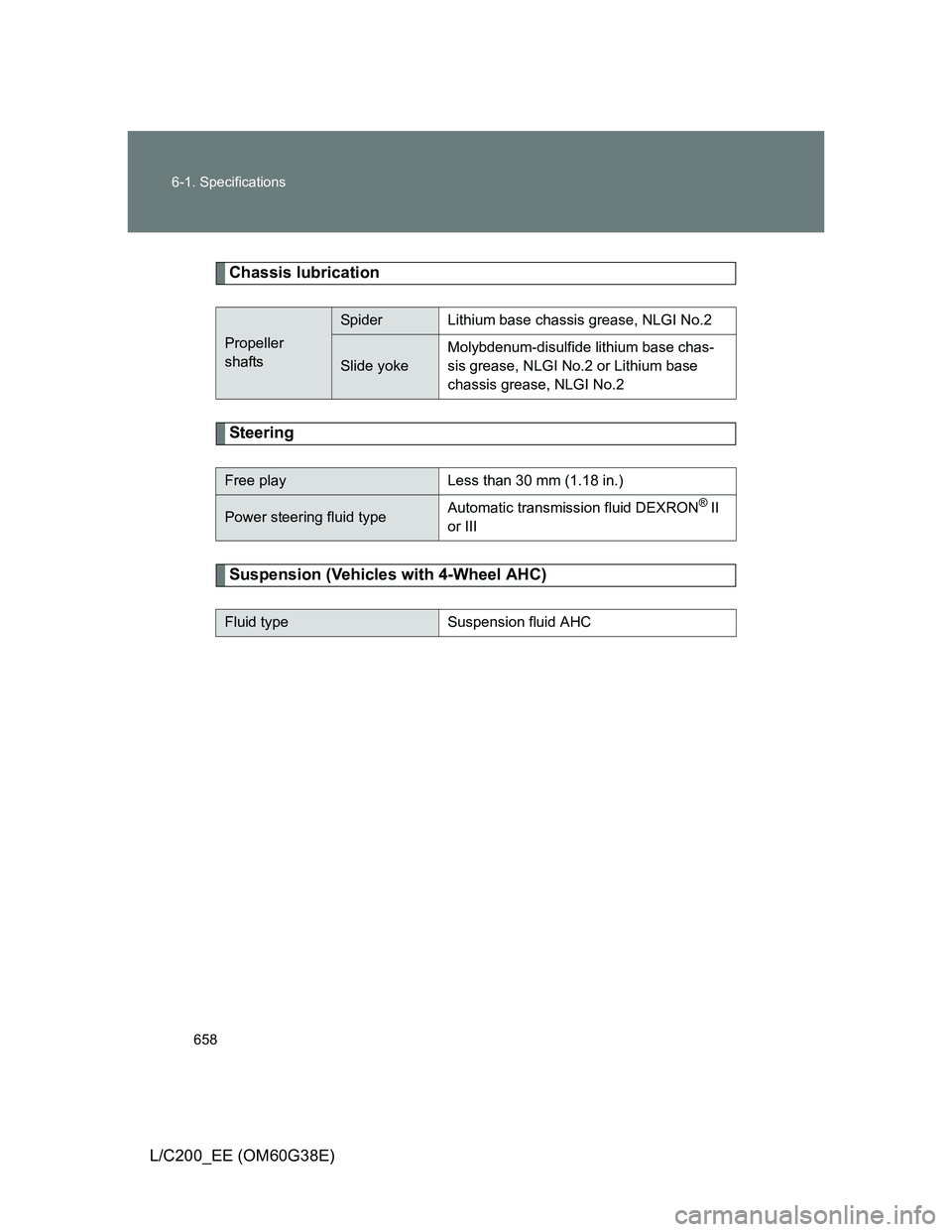

Chassis lubrication
Steering
Suspension (Vehicles with 4-Wheel AHC)
Propeller
shafts
SpiderLithium base chassis grease, NLGI No.2
Slide yoke
Molybdenum-disulfide lithium base chas-
sis grease, NLGI No.2 or Lithium base
chassis grease, NLGI No.2
Free playLess than 30 mm (1.18 in.)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III
Fluid typeSuspension fluid AHC

659 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

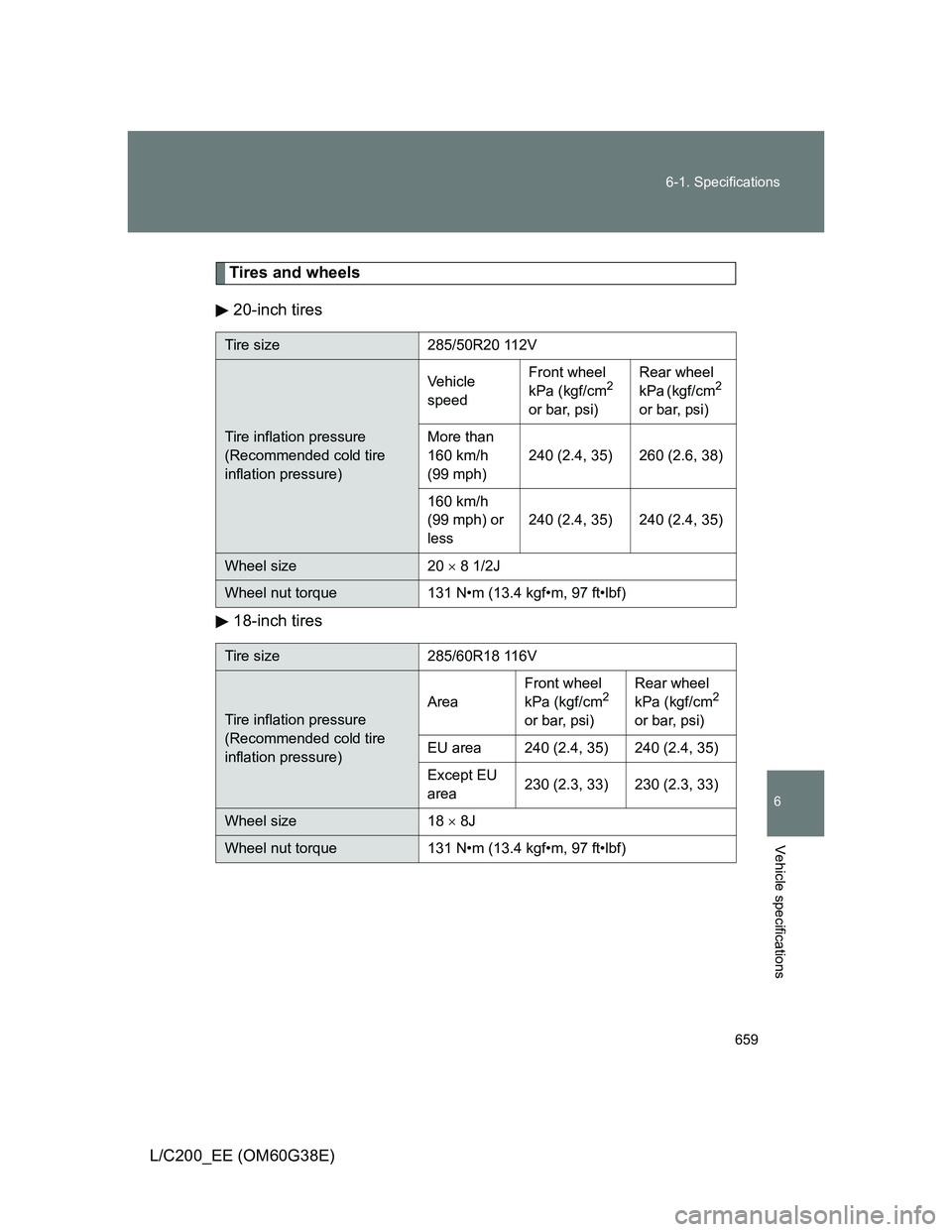

Tires and wheels
20-inch tires
18-inch tires
Tire size 285/50R20 112V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)240 (2.4, 35) 260 (2.6, 38)
160 km/h
(99 mph) or
less240 (2.4, 35) 240 (2.4, 35)
Wheel size 20  8 1/2J
Wheel nut torque 131 N•m (13.4 kgf•m, 97 ft•lbf)
Tire size 285/60R18 116V
Tire inflation pressure
(Recommended cold tire
inflation pressure)AreaFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
EU area 240 (2.4, 35) 240 (2.4, 35)
Except EU
area230 (2.3, 33) 230 (2.3, 33)
Wheel size 18  8J
Wheel nut torque 131 N•m (13.4 kgf•m, 97 ft•lbf)

660 6-1. Specifications

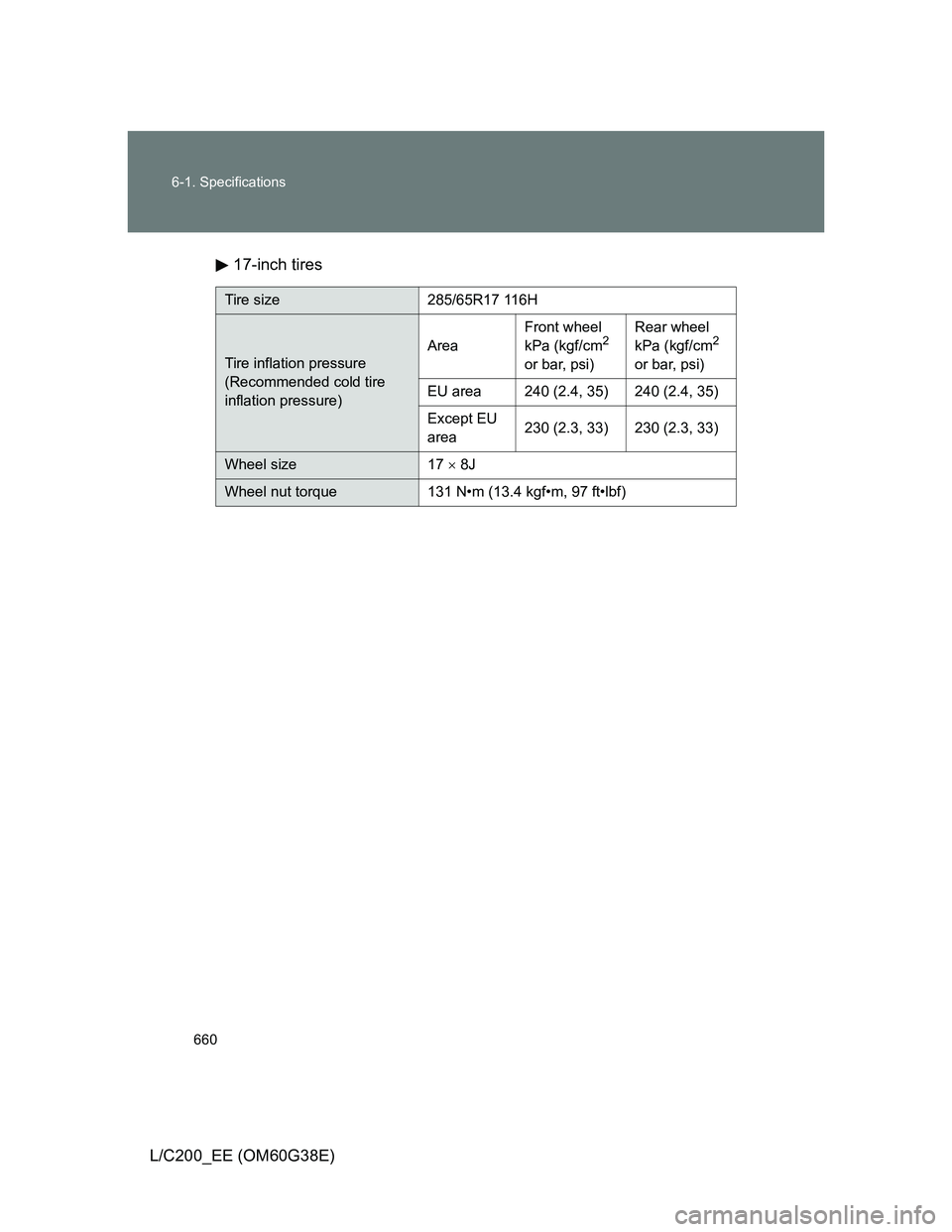

L/C200_EE (OM60G38E)17-inch tires
Tire size 285/65R17 116H
Tire inflation pressure
(Recommended cold tire
inflation pressure)AreaFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
EU area 240 (2.4, 35) 240 (2.4, 35)
Except EU
area230 (2.3, 33) 230 (2.3, 33)
Wheel size 17  8J
Wheel nut torque 131 N•m (13.4 kgf•m, 97 ft•lbf)

661 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

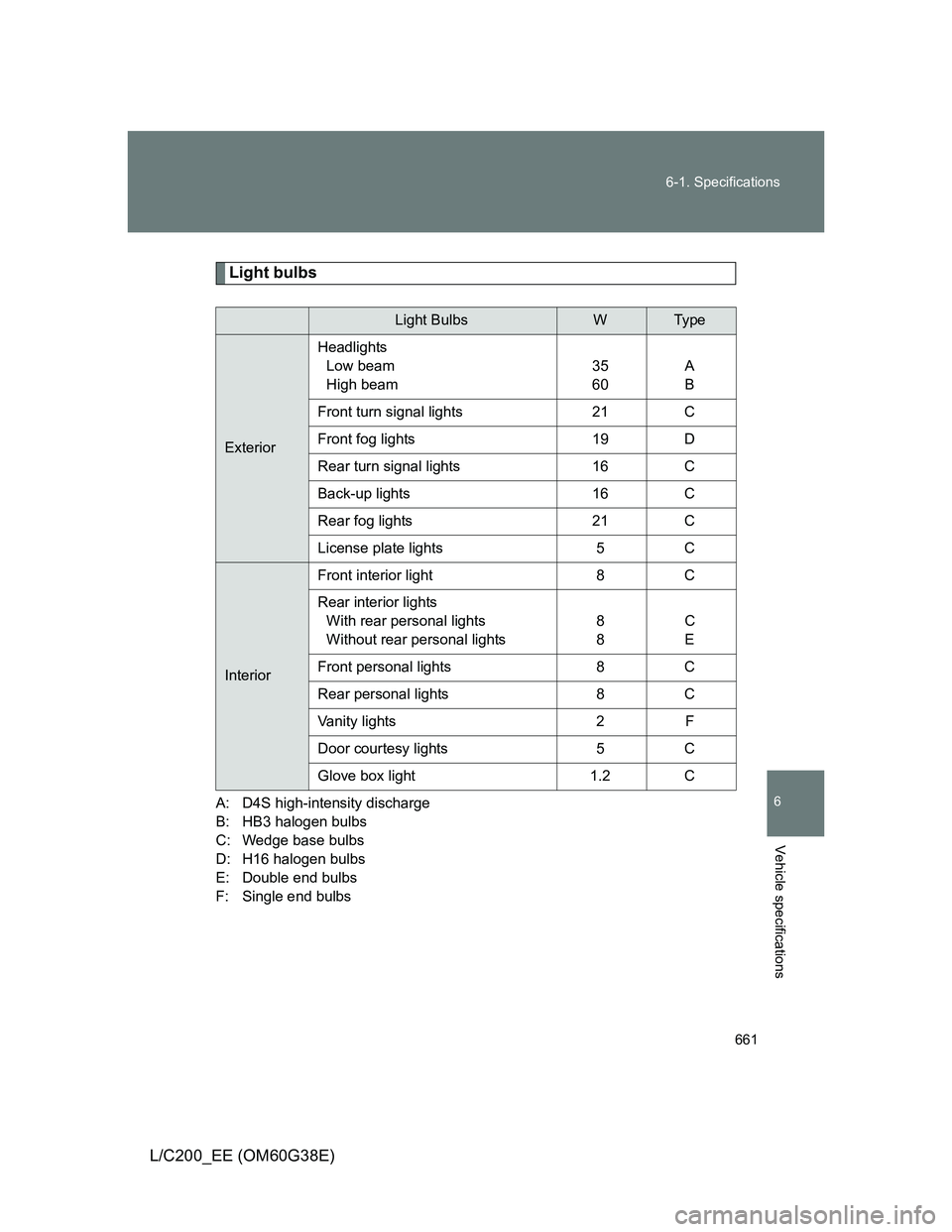

Light bulbs
A: D4S high-intensity discharge
B: HB3 halogen bulbs
C: Wedge base bulbs
D: H16 halogen bulbs
E: Double end bulbs
F: Single end bulbs
Light BulbsWTy p e
ExteriorHeadlights
Low beam
High beam35
60A
B
Front turn signal lights 21 C
Front fog lights 19 D
Rear turn signal lights 16 C
Back-up lights 16 C
Rear fog lights 21 C
License plate lights 5 C
InteriorFront interior light 8 C
Rear interior lights
With rear personal lights
Without rear personal lights8
8C
E
Front personal lights 8 C
Rear personal lights 8 C
Vanity lights 2 F
Door courtesy lights 5 C
Glove box light 1.2 C

662
6-1. Specifications
L/C200_EE (OM60G38E)

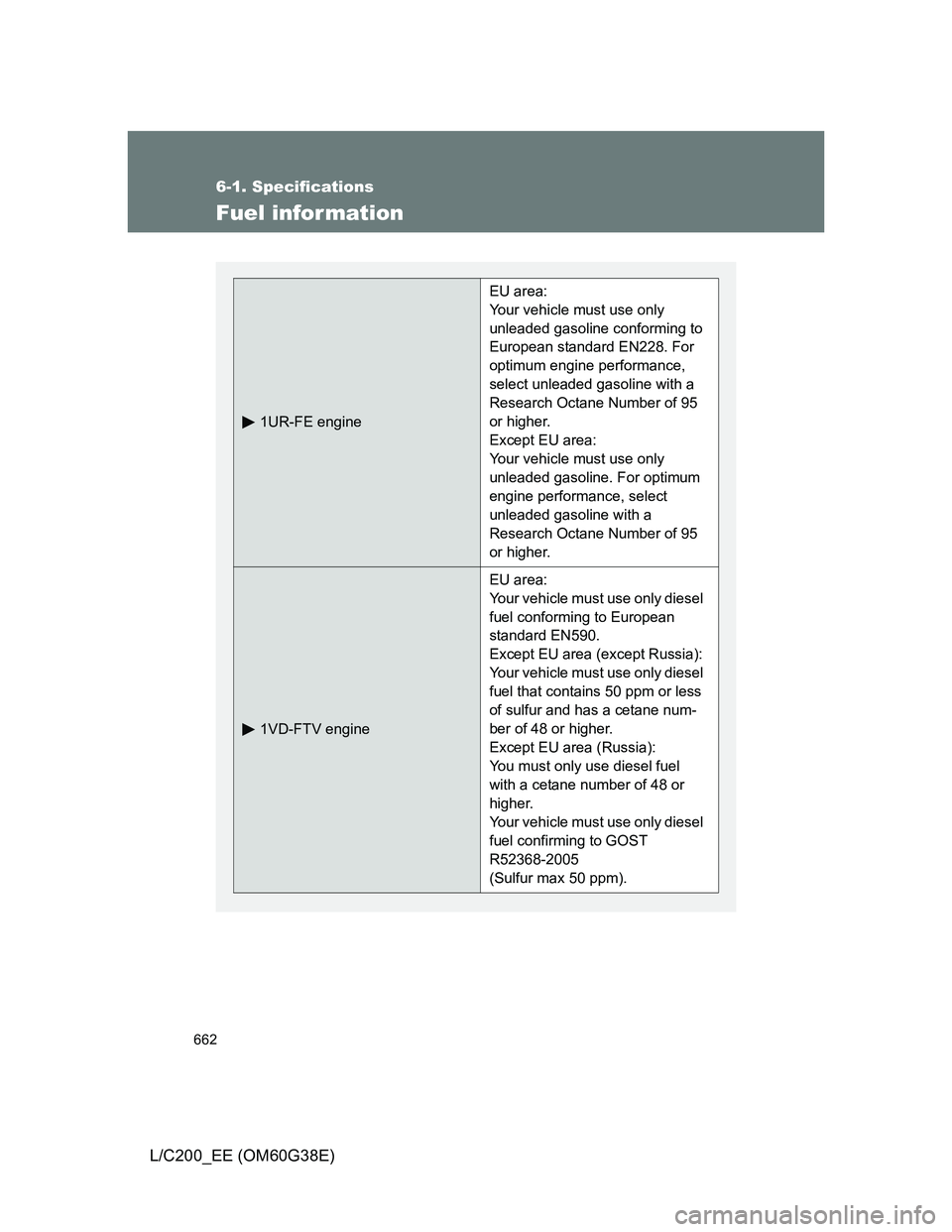

Fuel infor mation
1UR-FE engine
EU area:
Your vehicle must use only
unleaded gasoline conforming to
European standard EN228. For
optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95
or higher.
Except EU area:
Your vehicle must use only
unleaded gasoline. For optimum
engine performance, select
unleaded gasoline with a
Research Octane Number of 95
or higher.
1VD-FTV engine
EU area:
Your vehicle must use only diesel
fuel conforming to European
standard EN590.
Except EU area (except Russia):
Your vehicle must use only diesel
fuel that contains 50 ppm or less
of sulfur and has a cetane num-
ber of 48 or higher.
Except EU area (Russia):
You must only use diesel fuel
with a cetane number of 48 or
higher.
Your vehicle must use only diesel
fuel confirming to GOST
R52368-2005
(Sulfur max 50 ppm).

663 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

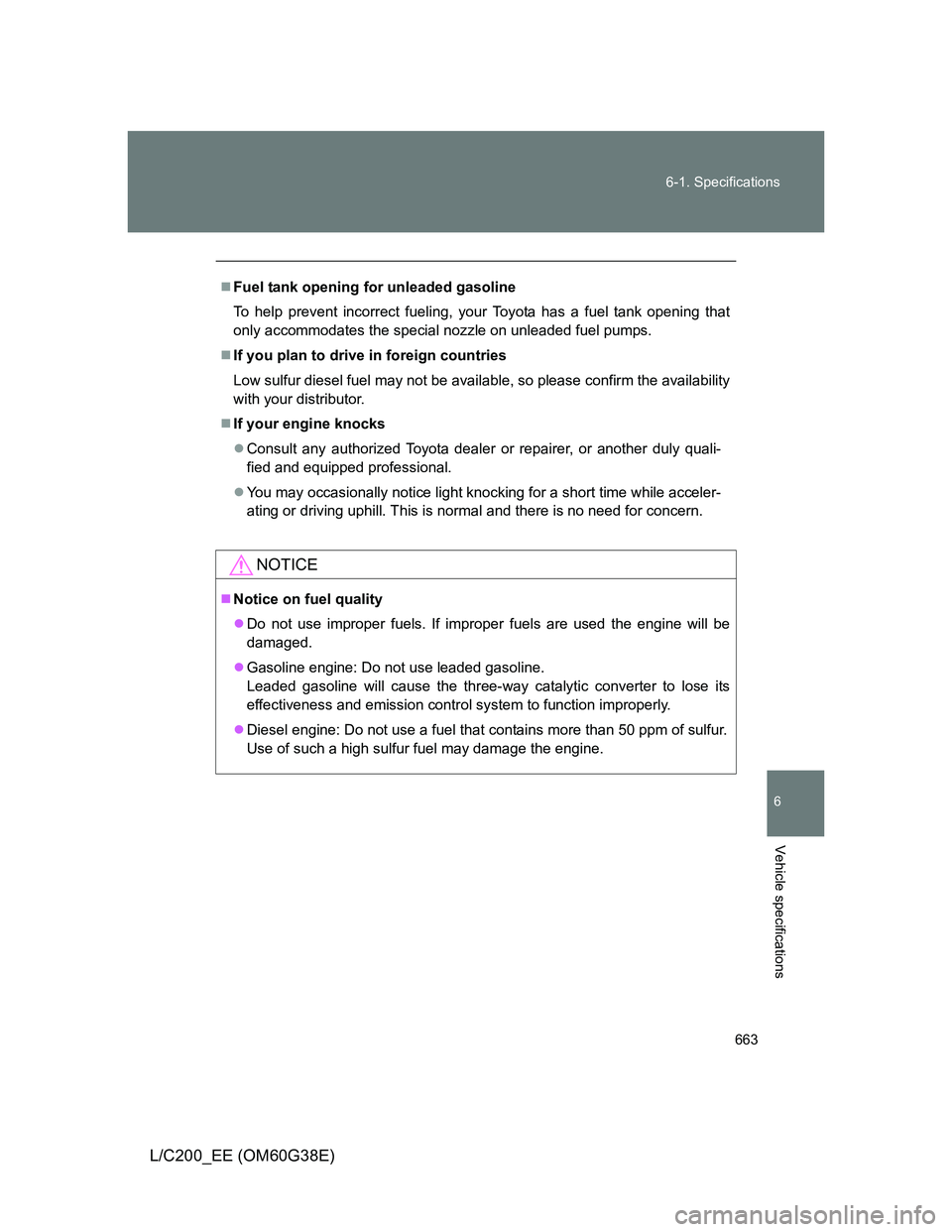

Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be
damaged.
Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and emission control system to function improperly.
Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.

664 6-1. Specifications
L/C200_EE (OM60G38E)
NOTICE
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10 % max ethanol. The
use of fuel with more than 10 % ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Diesel engine (except EU area [except Russia]): FAME (Fatty Acid Methyl
Ester) fuel sold under names such as “B30” or “B100” and fuel containing
a large amount of FAME should not be used. Your vehicle can use diesel
mixed with 5 % max biodiesel FAME (B5). The use of fuel with more than
5 % FAME content (B5) will damage the vehicle’s fuel system. You must
ensure that refueling is carried out only from a source where fuel specifica-
tion and quality can be guaranteed. In case of any doubt, ask any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Diesel engine (except EU area [Russia]): FAME (Fatty Acid Methyl Ester)
fuel sold under name such as “B30” or “B100” and fuel containing a large
amount of FAME should not be used.
The use of these fuels will damage the vehicle’s fuel system. In case of
any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
