2012 TOYOTA LAND CRUISER Owners Manual

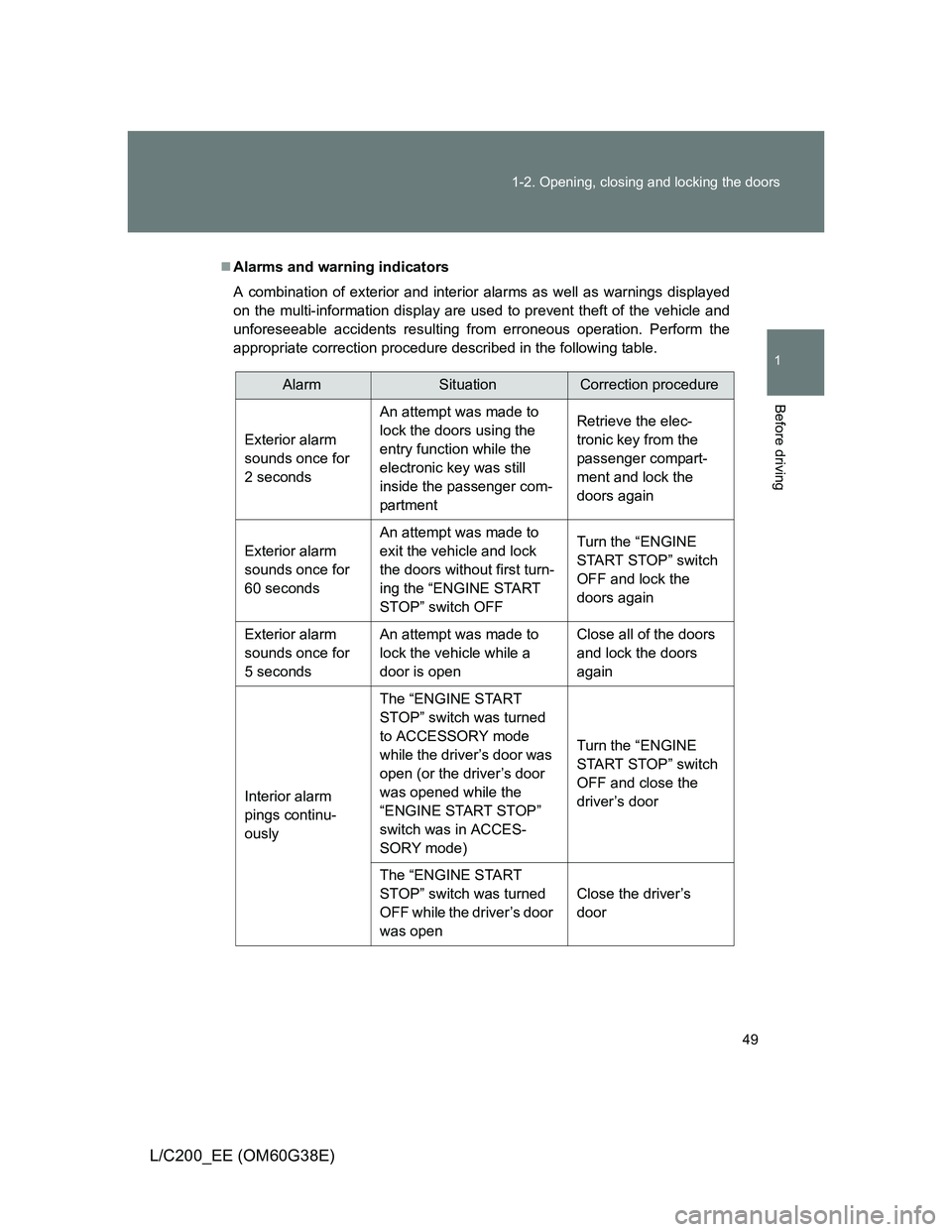

49 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)
Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed
on the multi-information display are used to prevent theft of the vehicle and
unforeseeable accidents resulting from erroneous operation. Perform the
appropriate correction procedure described in the following table.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
2 secondsAn attempt was made to
lock the doors using the
entry function while the
electronic key was still
inside the passenger com-
partmentRetrieve the elec-
tronic key from the
passenger compart-
ment and lock the
doors again
Exterior alarm
sounds once for
60 secondsAn attempt was made to
exit the vehicle and lock
the doors without first turn-
ing the “ENGINE START
STOP” switch OFFTurn the “ENGINE
START STOP” switch
OFF and lock the
doors again
Exterior alarm
sounds once for
5 secondsAn attempt was made to
lock the vehicle while a
door is openClose all of the doors
and lock the doors
again
Interior alarm
pings continu-
ouslyThe “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver’s door was
open (or the driver’s door
was opened while the
“ENGINE START STOP”
switch was in ACCES-
SORY mode)Turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door
The “ENGINE START
STOP” switch was turned
OFF while the driver’s door
was openClose the driver’s
door

50 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)
AlarmSituationCorrection procedure
Interior alarm
sounds continu-
ously
*1
When the “ENGINE
START STOP” switch is in
IGNITION ON or ACCES-
SORY mode, an attempt
was made to open the
door and exit the vehicle,
and the shift lever was not
in “P”Shift the shift lever to
“P” and turn the
“ENGINE START
STOP” switch OFF
Interior and exte-
rior alarms sound
continuously
*1
When the “ENGINE
START STOP” switch is in
IGNITION ON or ACCES-
SORY mode, the driver’s
door was closed after the
key was carried outside
the vehicle, and the shift
lever not in “P”Shift the shift lever to
“P”, turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again
Interior alarm
pings once
*1
The electronic key has a
low batteryReplace the electronic
key battery
An attempt was made to
start the engine without the
electronic key being pres-
ent, or the electronic key
was not functioning nor-
mallyStart the engine with
the electronic key
present
*2

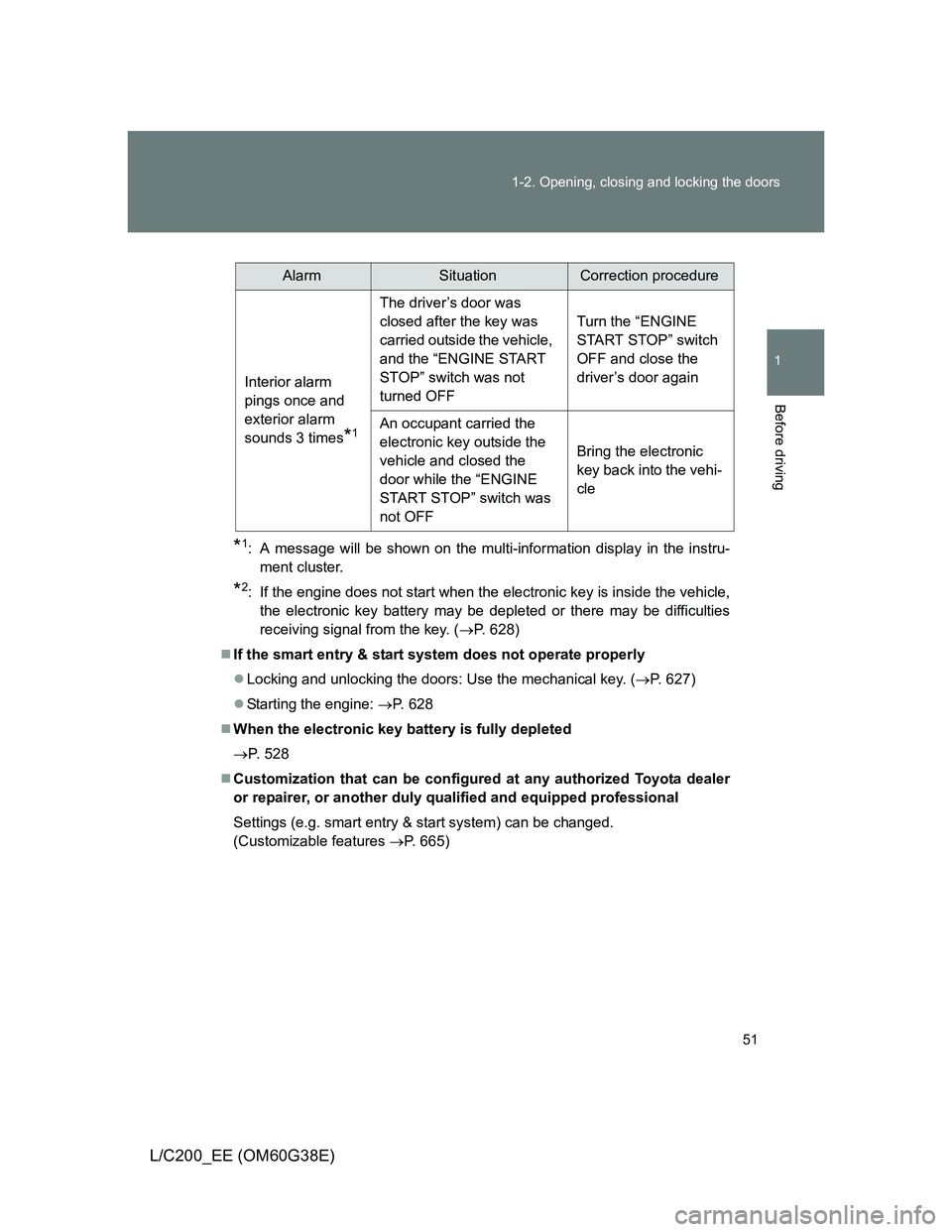

51 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)
*1: A message will be shown on the multi-information display in the instru-
ment cluster.
*2: If the engine does not start when the electronic key is inside the vehicle,
the electronic key battery may be depleted or there may be difficulties
receiving signal from the key. (P. 628)
If the smart entry & start system does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 627)
Starting the engine: P. 628
When the electronic key battery is fully depleted
P. 528
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. smart entry & start system) can be changed.
(Customizable features P. 665)
AlarmSituationCorrection procedure
Interior alarm
pings once and
exterior alarm
sounds 3 times
*1
The driver’s door was
closed after the key was
carried outside the vehicle,
and the “ENGINE START
STOP” switch was not
turned OFFTurn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the
door while the “ENGINE
START STOP” switch was
not OFFBring the electronic
key back into the vehi-
cle

52 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)

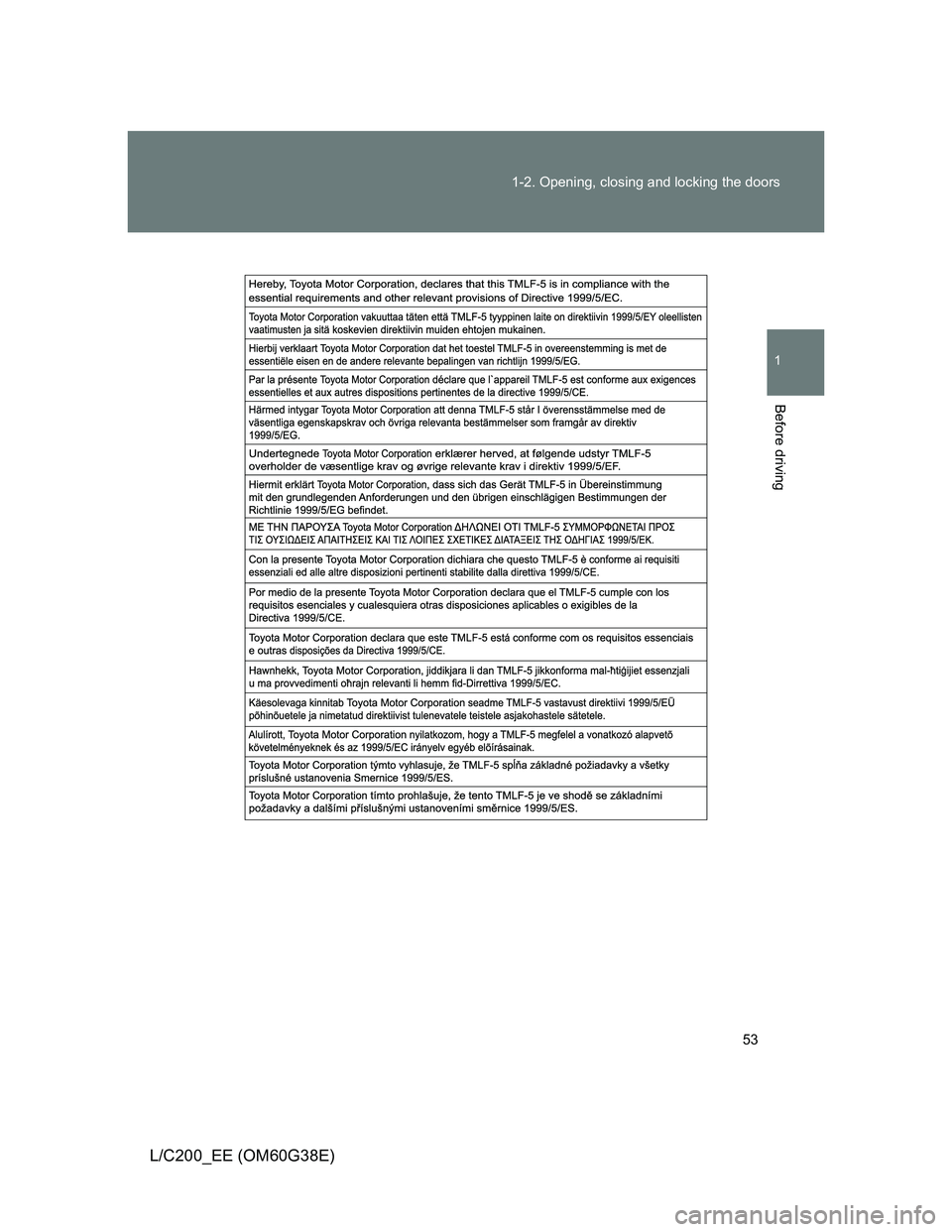

Certification for the smart entry & start system
Hereby, Toyota Motor Corporation, declares that this TMLF-5 is in
compliance with the essential requirements and other relevant pro-
visions of Directive 1999/5/EC.

53 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)

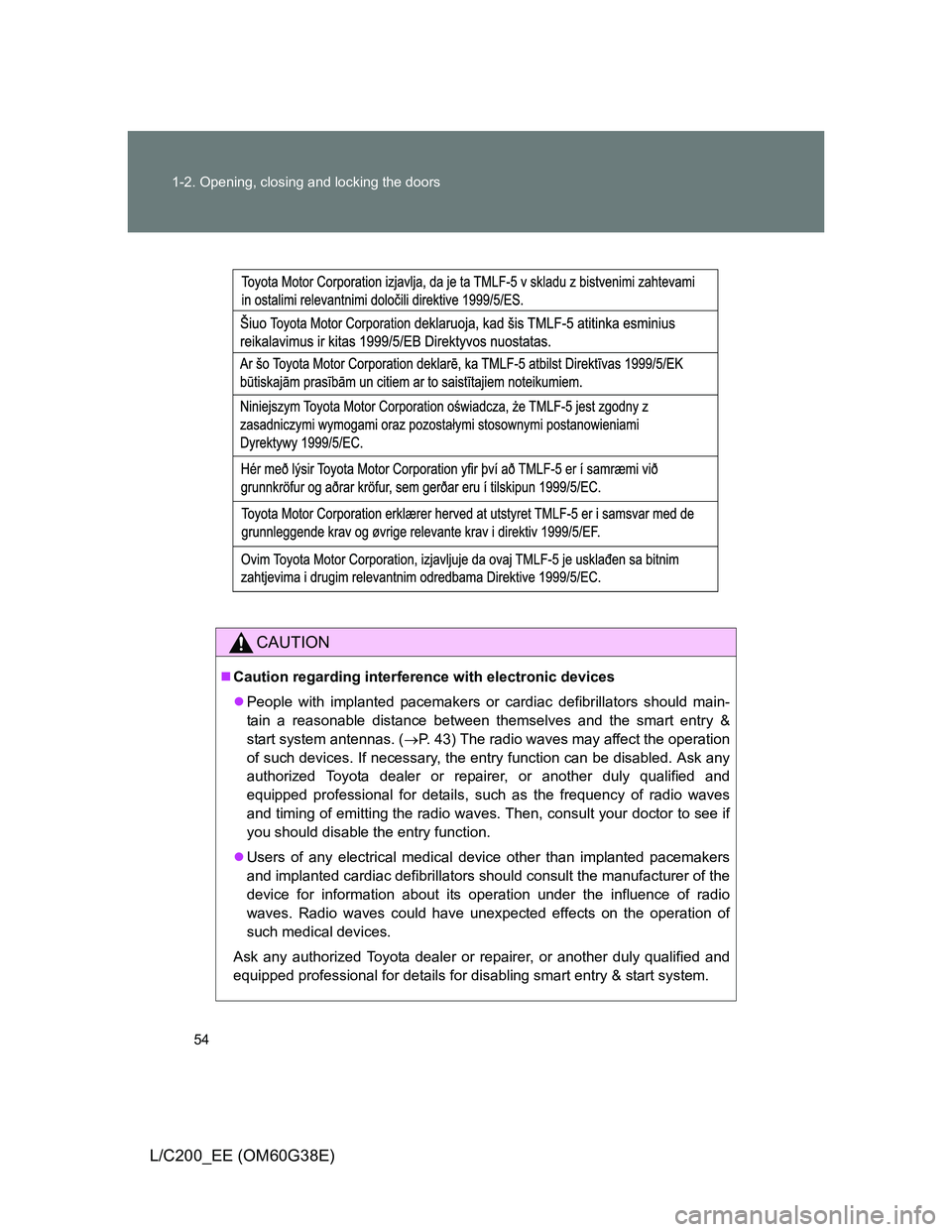

54 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)
CAUTION
Caution regarding interference with electronic devices
People with implanted pacemakers or cardiac defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (P. 43) The radio waves may affect the operation
of such devices. If necessary, the entry function can be disabled. Ask any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details, such as the frequency of radio waves
and timing of emitting the radio waves. Then, consult your doctor to see if
you should disable the entry function.
Users of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of
such medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling smart entry & start system.

55
1
1-2. Opening, closing and locking the doors
Before driving
L/C200_EE (OM60G38E)
Wireless remote control
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Operating conditions
The wireless remote control will not operate when the “ENGINE START
STOP” switch is in any position other than OFF.
The wireless remote control can be used to lock and unlock the vehi-
cle from outside the vehicle.
Locks all doors
Closes the windows and
moon roof (press and
hold)
*1
Unlocks all doors
Opens the windows and
moon roof (press and
hold)
*1
Opens/closes the back door
(press and hold)
*2
*1: This setting must be custom-
ized at any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
*2: If equipped

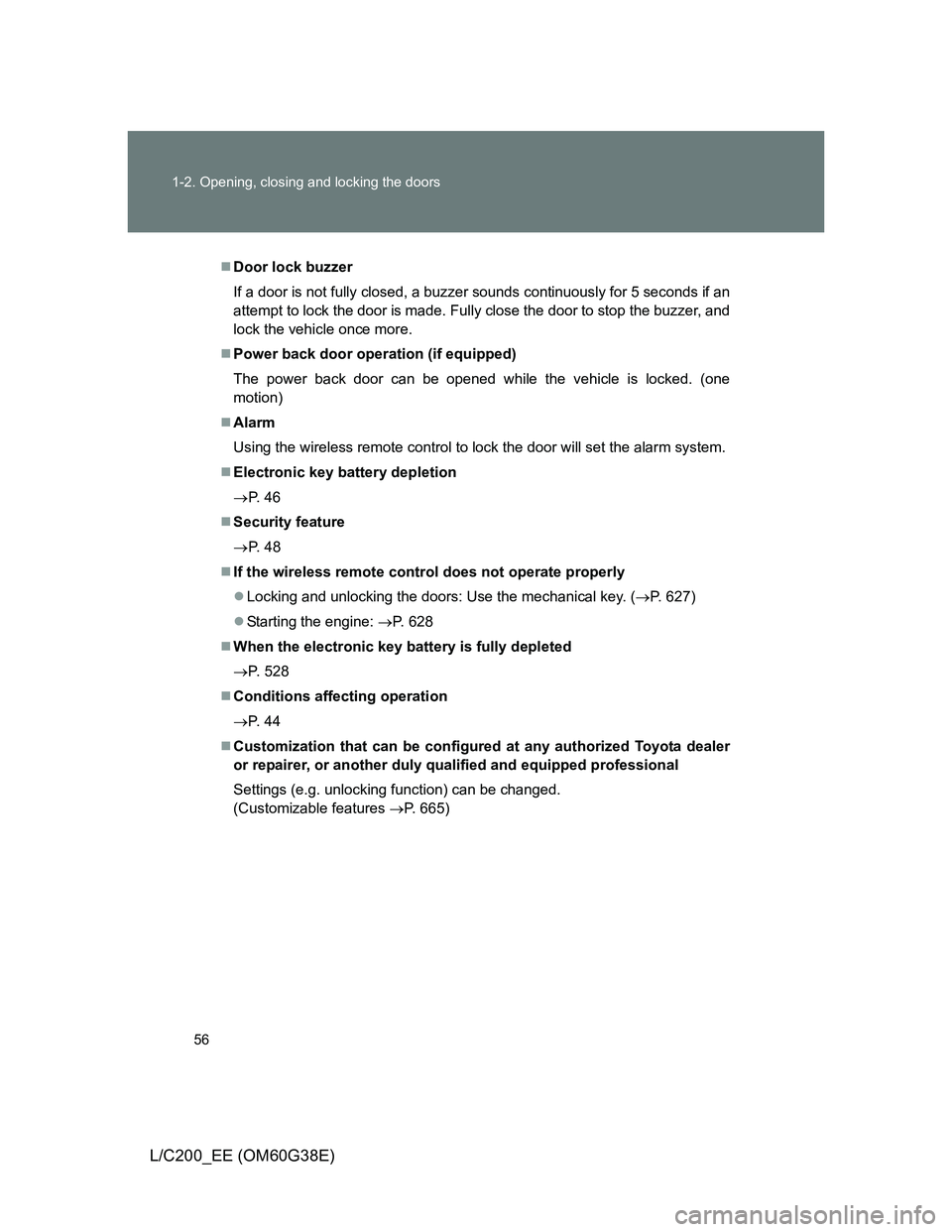

56 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)
Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously for 5 seconds if an
attempt to lock the door is made. Fully close the door to stop the buzzer, and
lock the vehicle once more.
Power back door operation (if equipped)
The power back door can be opened while the vehicle is locked. (one
motion)
Alarm
Using the wireless remote control to lock the door will set the alarm system.
Electronic key battery depletion
P. 4 6
Security feature
P. 4 8
If the wireless remote control does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 627)
Starting the engine: P. 628
When the electronic key battery is fully depleted
P. 528
Conditions affecting operation
P. 4 4
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. unlocking function) can be changed.
(Customizable features P. 665)
