2012 TOYOTA LAND CRUISER Owners Manual

473 3-7. Other interior features
3
Interior features
L/C200_EE (OM60G38E)

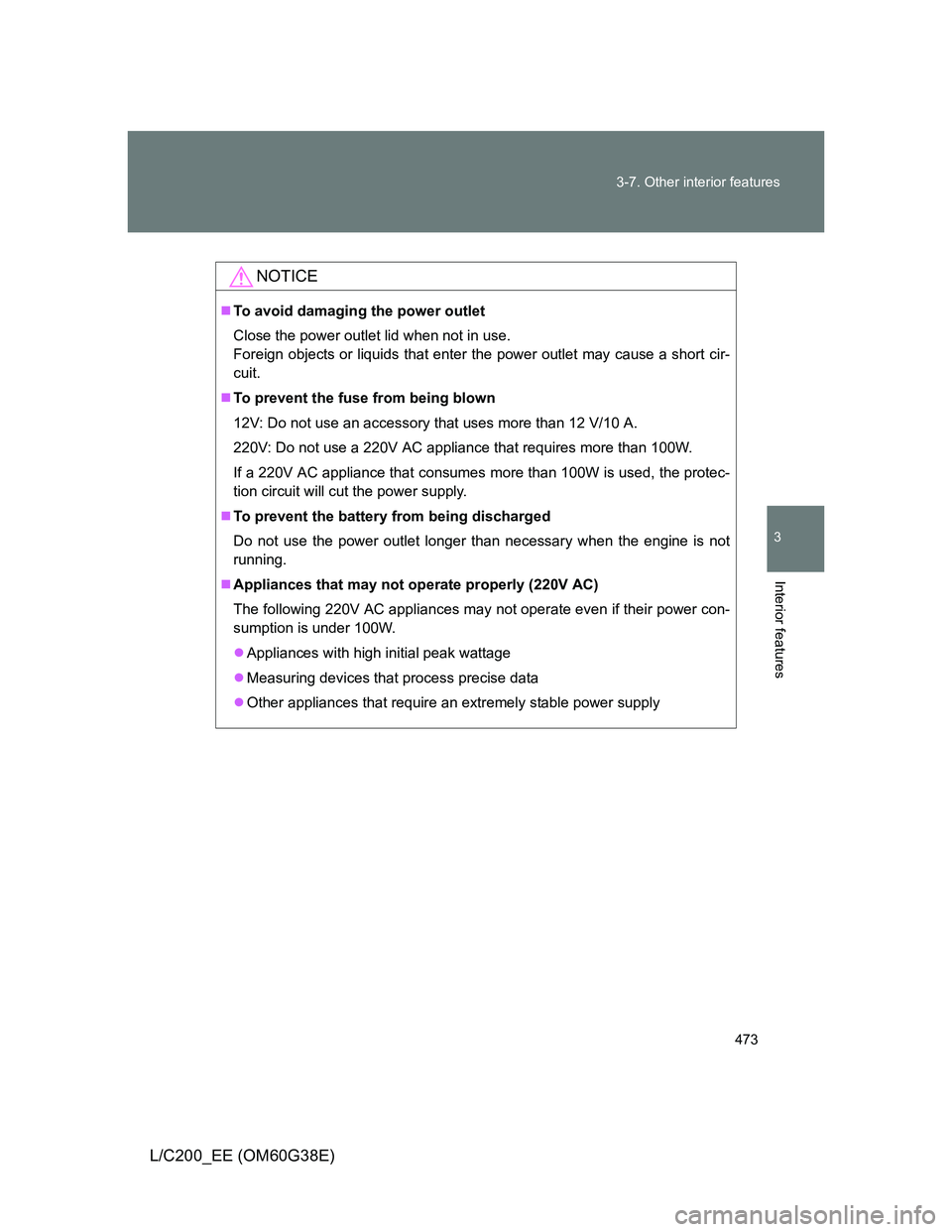

NOTICE
To avoid damaging the power outlet
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent the fuse from being blown
12V: Do not use an accessory that uses more than 12 V/10 A.
220V: Do not use a 220V AC appliance that requires more than 100W.
If a 220V AC appliance that consumes more than 100W is used, the protec-
tion circuit will cut the power supply.
To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not
running.
Appliances that may not operate properly (220V AC)
The following 220V AC appliances may not operate even if their power con-
sumption is under 100W.
Appliances with high initial peak wattage
Measuring devices that process precise data
Other appliances that require an extremely stable power supply

474
3-7. Other interior features
L/C200_EE (OM60G38E)

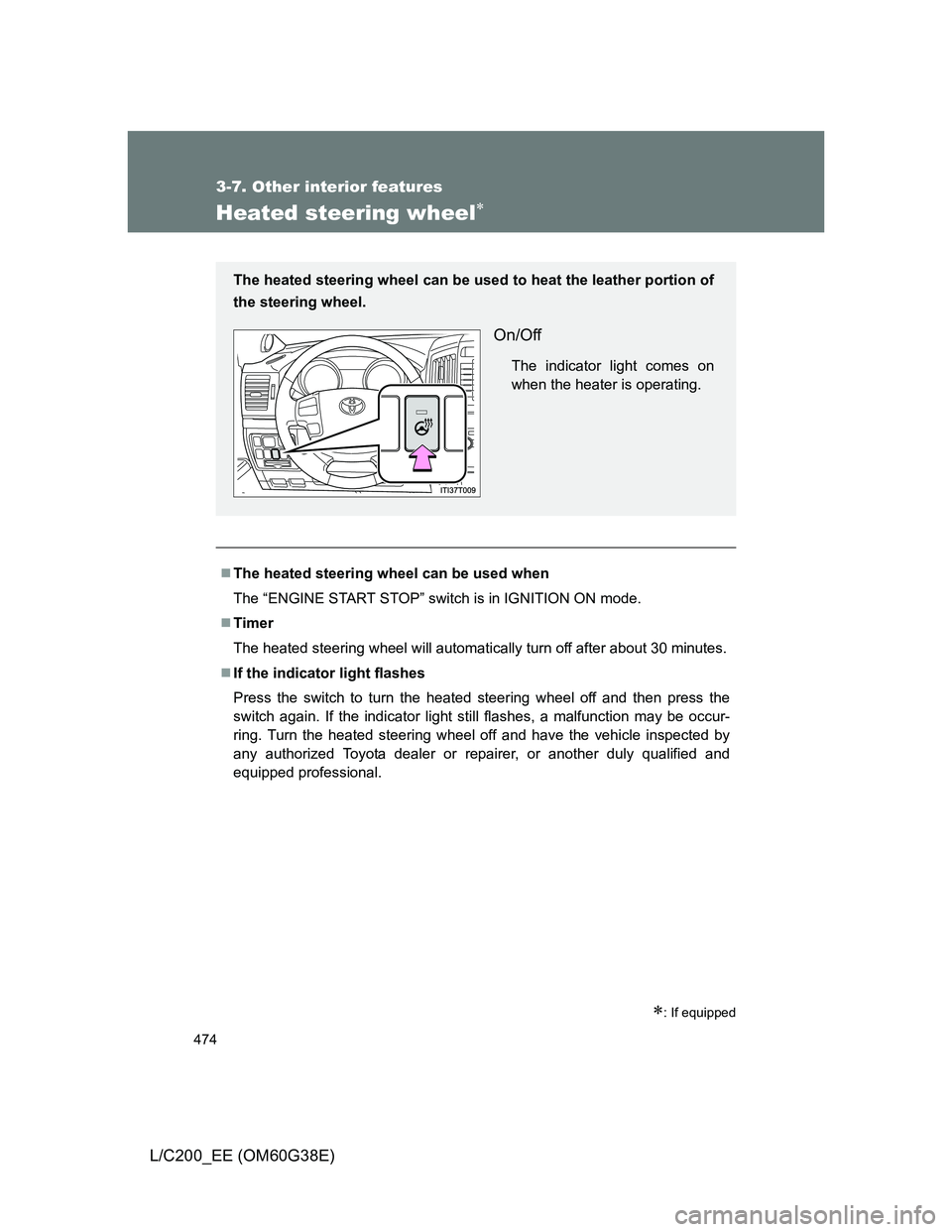

Heated steering wheel
: If equipped
The heated steering wheel can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
Timer
The heated steering wheel will automatically turn off after about 30 minutes.
If the indicator light flashes
Press the switch to turn the heated steering wheel off and then press the
switch again. If the indicator light still flashes, a malfunction may be occur-
ring. Turn the heated steering wheel off and have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
The heated steering wheel can be used to heat the leather portion of
the steering wheel.
On/Off
The indicator light comes on
when the heater is operating.

475 3-7. Other interior features
3
Interior features
L/C200_EE (OM60G38E)

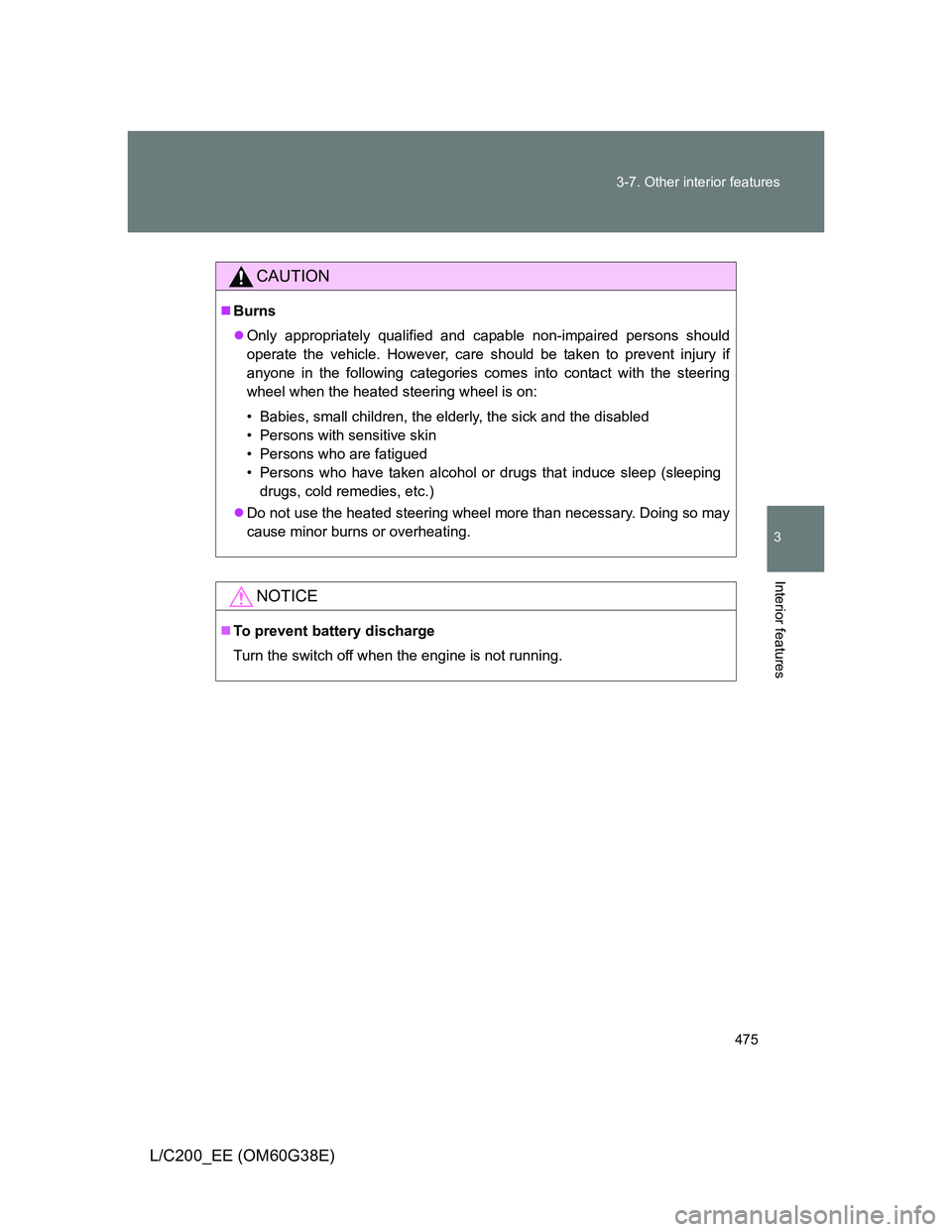

CAUTION
Burns
Only appropriately qualified and capable non-impaired persons should
operate the vehicle. However, care should be taken to prevent injury if
anyone in the following categories comes into contact with the steering
wheel when the heated steering wheel is on:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not use the heated steering wheel more than necessary. Doing so may
cause minor burns or overheating.
NOTICE
To prevent battery discharge
Turn the switch off when the engine is not running.

476
3-7. Other interior features
L/C200_EE (OM60G38E)

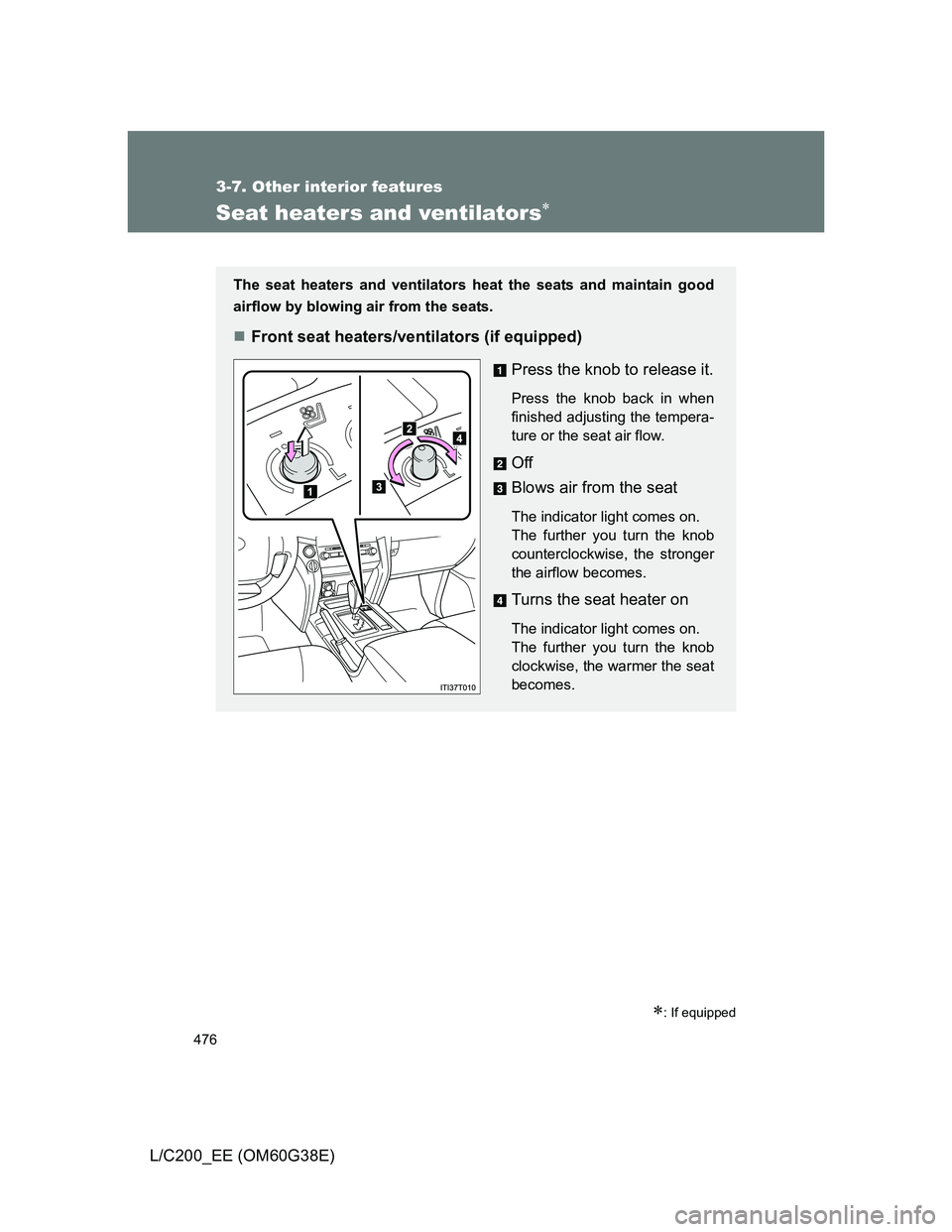

Seat heaters and ventilators
: If equipped
The seat heaters and ventilators heat the seats and maintain good
airflow by blowing air from the seats.
Front seat heaters/ventilators (if equipped)
Press the knob to release it.
Press the knob back in when
finished adjusting the tempera-
ture or the seat air flow.
Off
Blows air from the seat
The indicator light comes on.
The further you turn the knob
counterclockwise, the stronger
the airflow becomes.
Turns the seat heater on
The indicator light comes on.
The further you turn the knob
clockwise, the warmer the seat
becomes.

477 3-7. Other interior features
3
Interior features
L/C200_EE (OM60G38E)

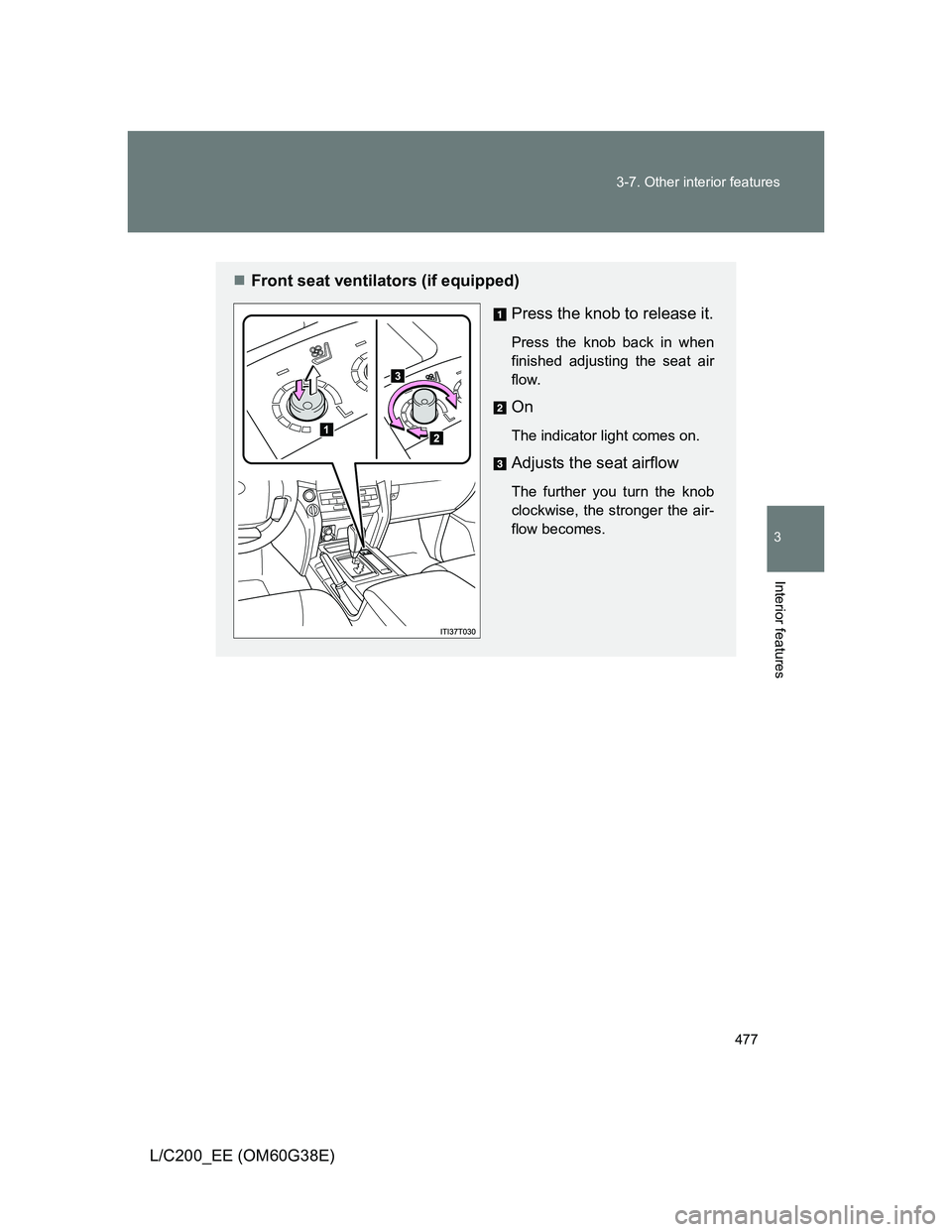

Front seat ventilators (if equipped)
Press the knob to release it.
Press the knob back in when
finished adjusting the seat air
flow.
On
The indicator light comes on.
Adjusts the seat airflow
The further you turn the knob
clockwise, the stronger the air-
flow becomes.

478 3-7. Other interior features
L/C200_EE (OM60G38E)
The seat heaters and ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
Replacing the air filters
Filters are installed in the seat ventilators. For replacement of the filters, con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.

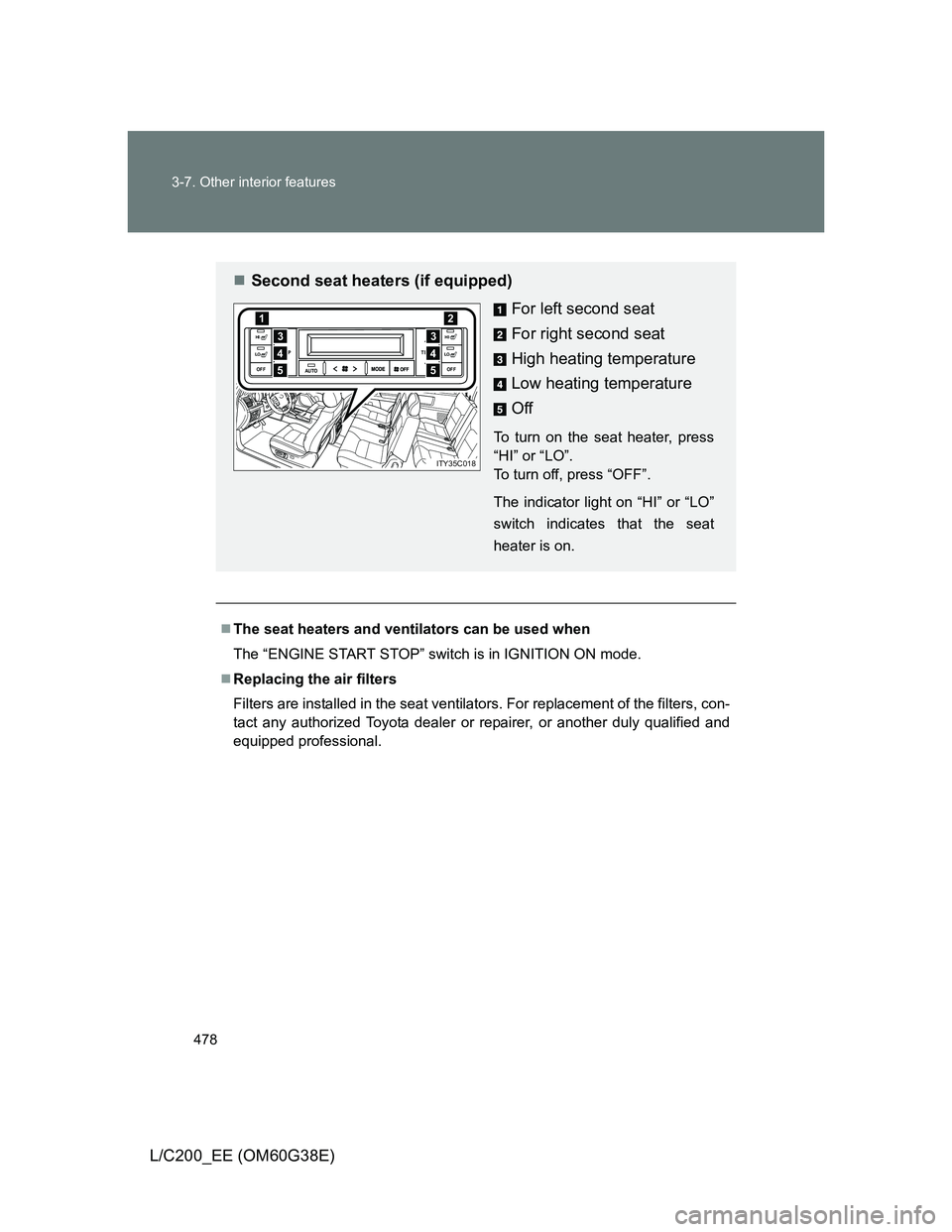

Second seat heaters (if equipped)
For left second seat
For right second seat
High heating temperature
Low heating temperature
Off
To turn on the seat heater, press
“HI” or “LO”.
To turn off, press “OFF”.
The indicator light on “HI” or “LO”
switch indicates that the seat
heater is on.
AUTO TEMP
OFFTEMP
HI
LOOFF
HI
LO4
12
3
5
4
3
5
ITY35C018

479 3-7. Other interior features
3
Interior features
L/C200_EE (OM60G38E)

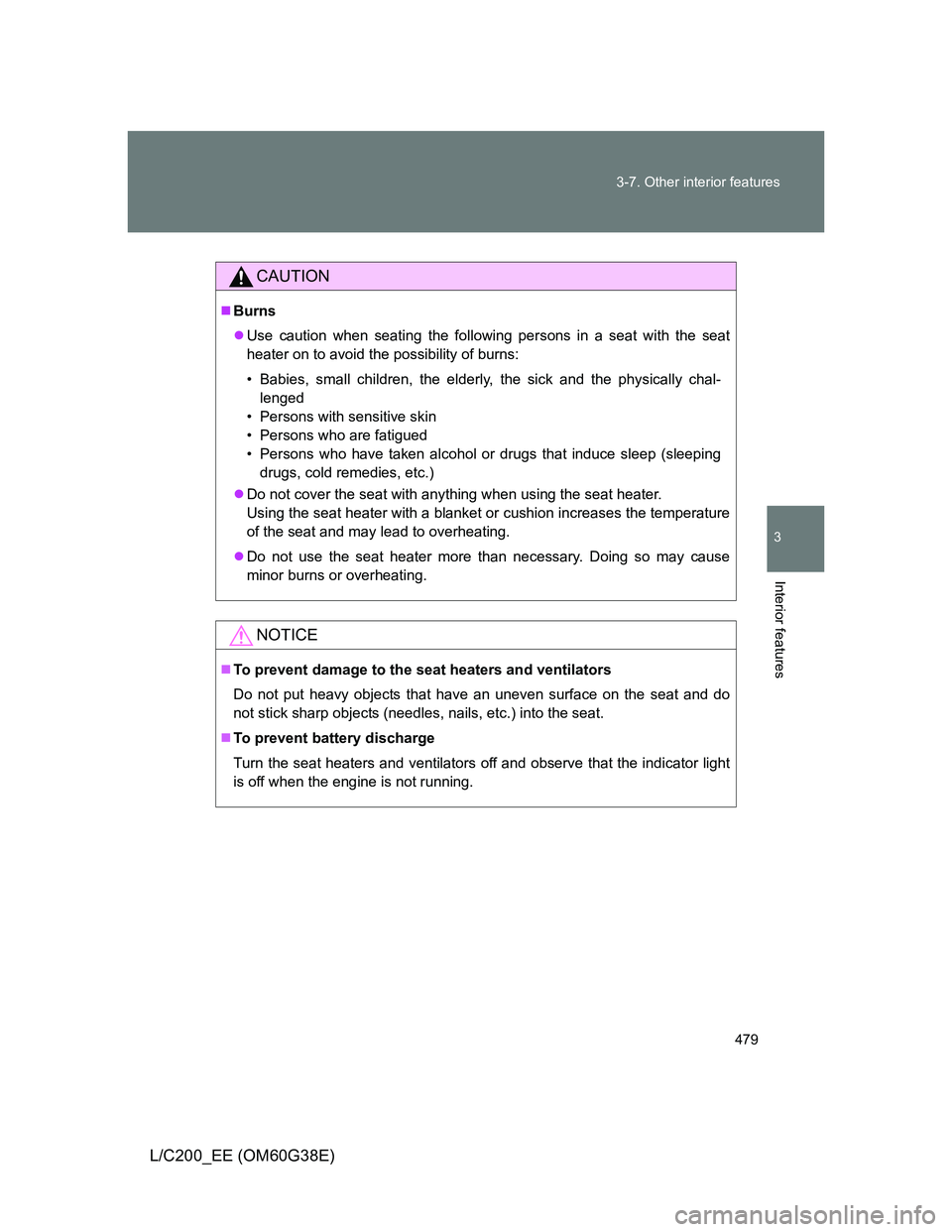

CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
To prevent damage to the seat heaters and ventilators
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge
Turn the seat heaters and ventilators off and observe that the indicator light
is off when the engine is not running.

480
3-7. Other interior features
L/C200_EE (OM60G38E)

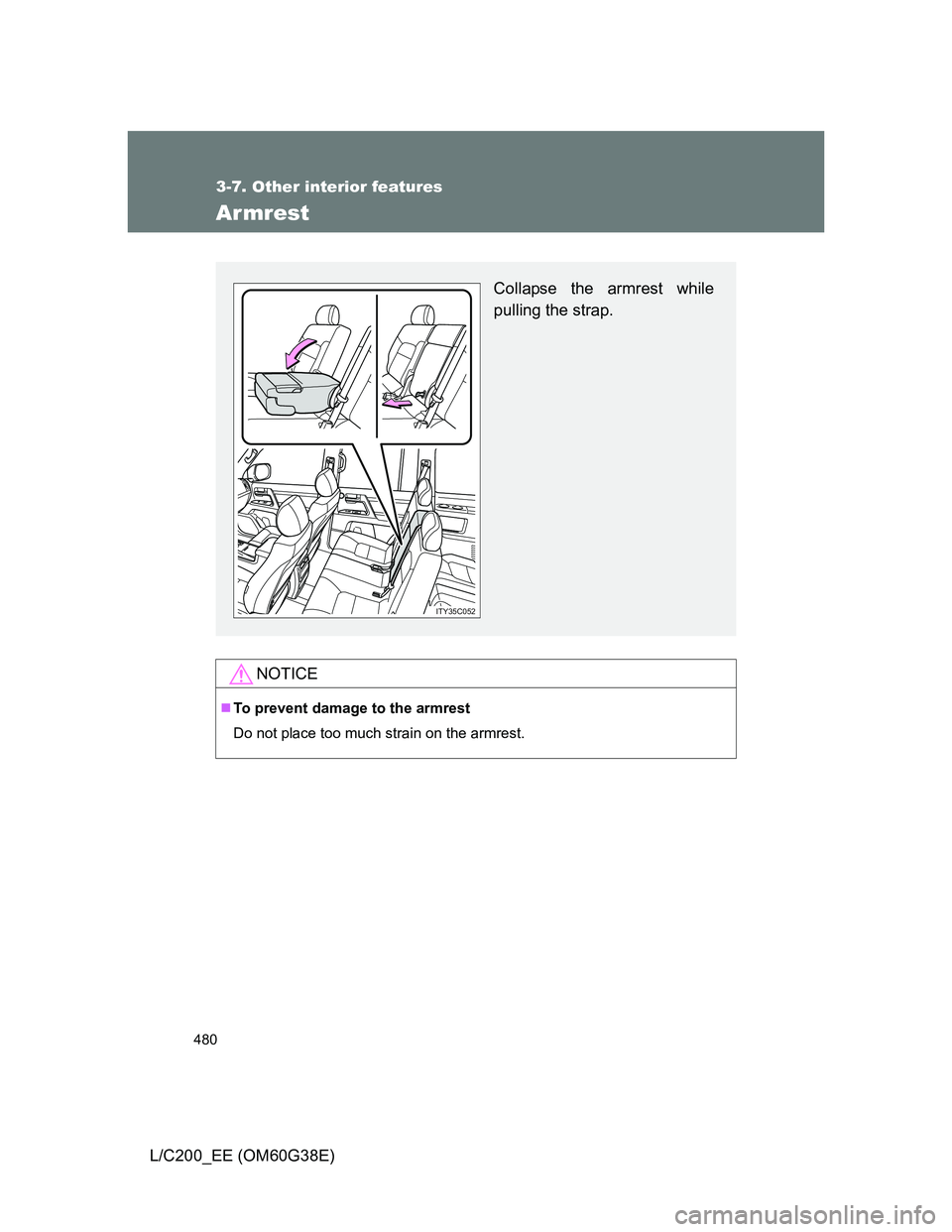

Armrest
NOTICE
To prevent damage to the armrest
Do not place too much strain on the armrest.
Collapse the armrest while
pulling the strap.
ITY35C052
