2012 TOYOTA LAND CRUISER Owners Manual

217 2-2. Instrument cluster
2
When driving
L/C200_EE (OM60G38E)

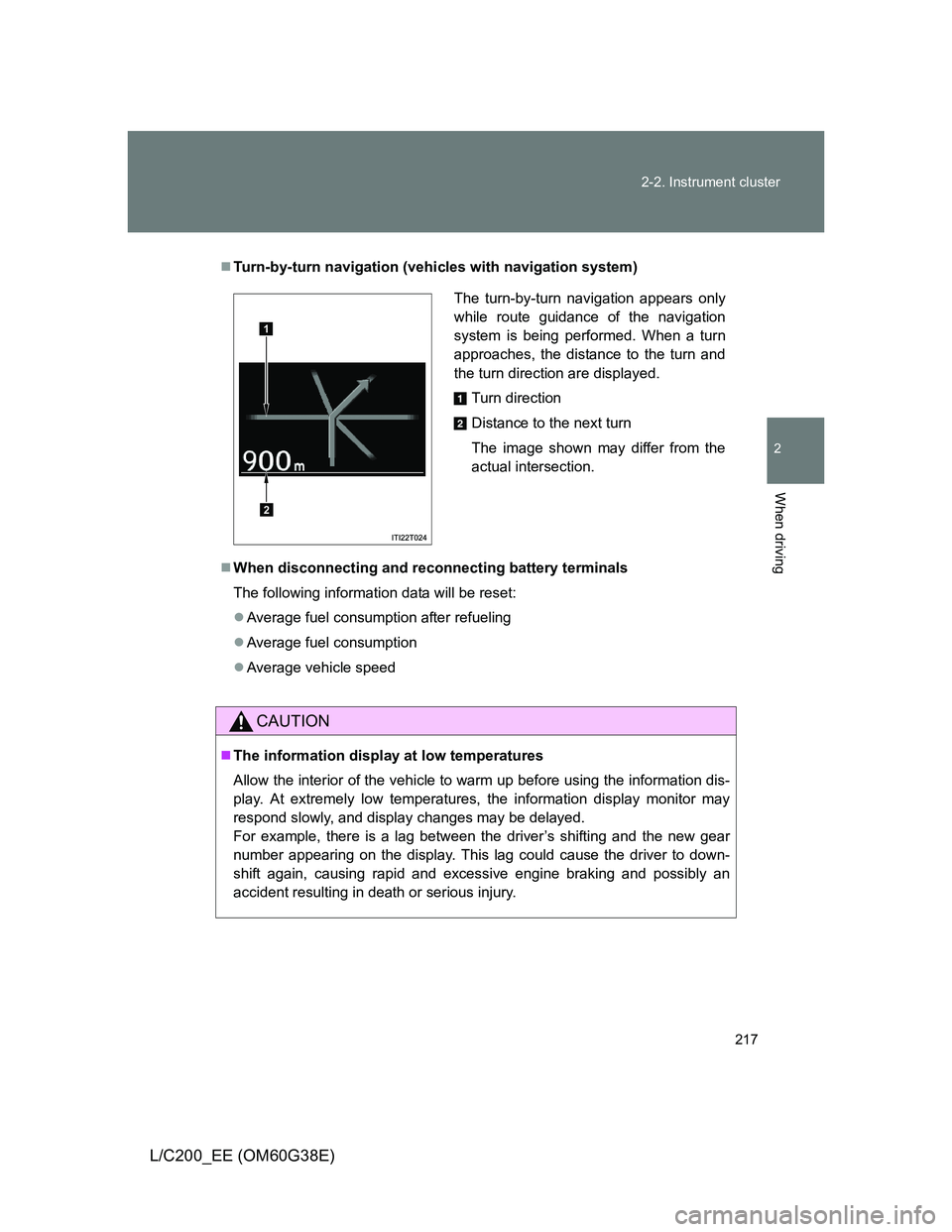

Turn-by-turn navigation (vehicles with navigation system)
When disconnecting and reconnecting battery terminals
The following information data will be reset:
Average fuel consumption after refueling
Average fuel consumption
Average vehicle speed
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the information dis-
play. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or serious injury.
The turn-by-turn navigation appears only
while route guidance of the navigation
system is being performed. When a turn
approaches, the distance to the turn and
the turn direction are displayed.
Turn direction
Distance to the next turn
The image shown may differ from the
actual intersection.
1
2

218
L/C200_EE (OM60G38E)
2-3. Operating the lights and wipers

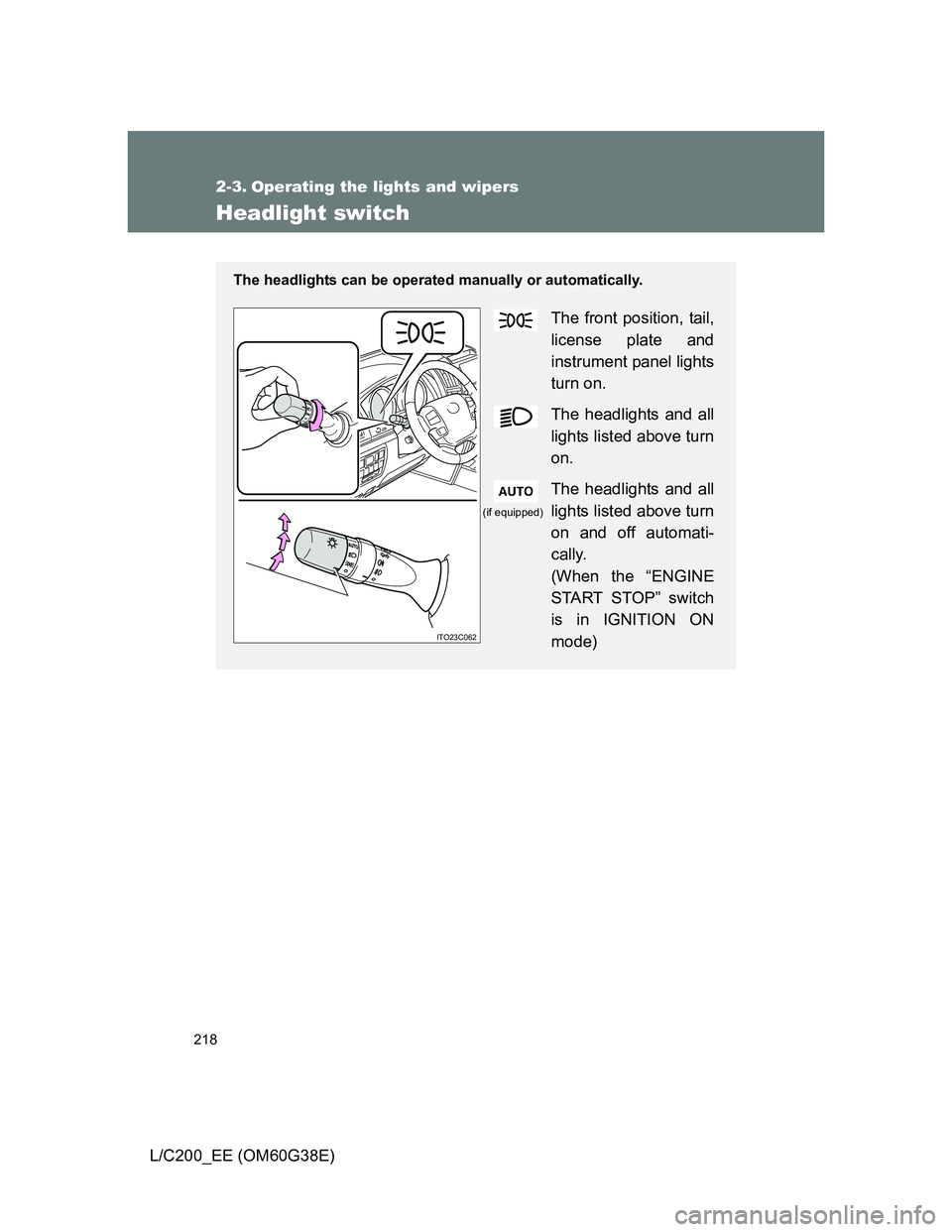

Headlight switch
The headlights can be operated manually or automatically.
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
lights listed above turn
on and off automati-
cally.
(When the “ENGINE
START STOP” switch
is in IGNITION ON
mode)
ITO23C062
(if equipped)

219 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
ITO23C065
Daytime running light system
To make your vehicle more visible to other drivers, the front position
lights turn on automatically (at an increased intensity) whenever the
engine is started and the parking brake is released. Daytime running
lights are not designed for use at night.
Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.

220 2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)
Headlight control sensor (if equipped)
Automatic light off system
Vehicles without a headlight control sensor
Opening the driver’s door with the “ENGINE START STOP” switch in
ACCESSORY or OFF mode will turn the headlights and tail lights off.
To turn the lights on again, turn the “ENGINE START STOP” switch to
IGNITION ON mode, or turn the headlight switch off once and then back
to or .
Vehicles with a headlight control sensor
When the light switch is in the
position: The headlights turn off
automatically if the “ENGINE START STOP” switch is turned to ACCES-
SORY or OFF mode.
When the light switch is in the
AUTO position: The headlights and all
lights turn off automatically if the “ENGINE START STOP” switch is
turned to ACCESSORY or OFF mode and the driver’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to the

or position.
Light reminder buzzer
A buzzer sounds when the “ENGINE START STOP” switch is turned to
ACCESSORY or OFF mode and the driver’s door is opened while the lights
are turned on.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

221 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)

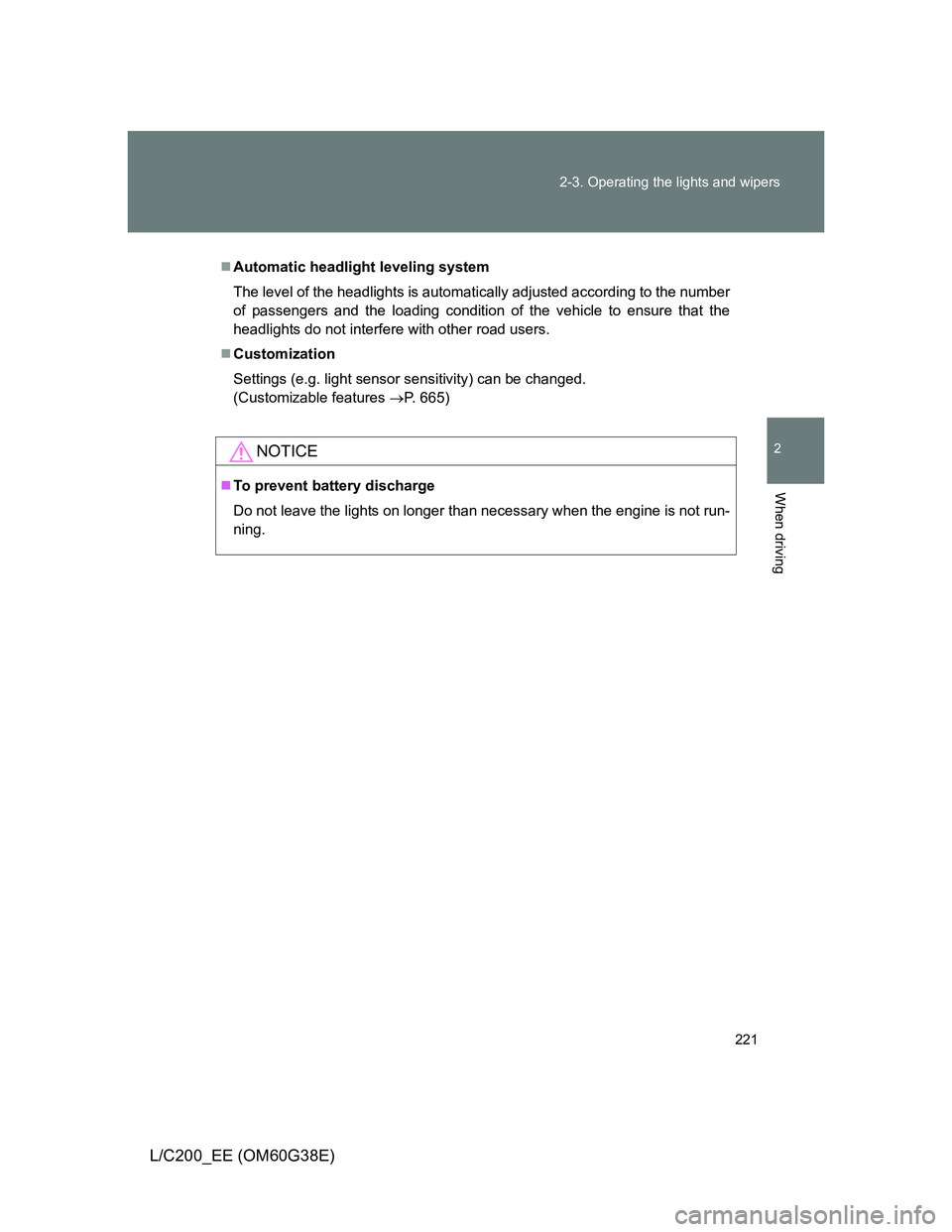

Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 665)
NOTICE
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

222
2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)

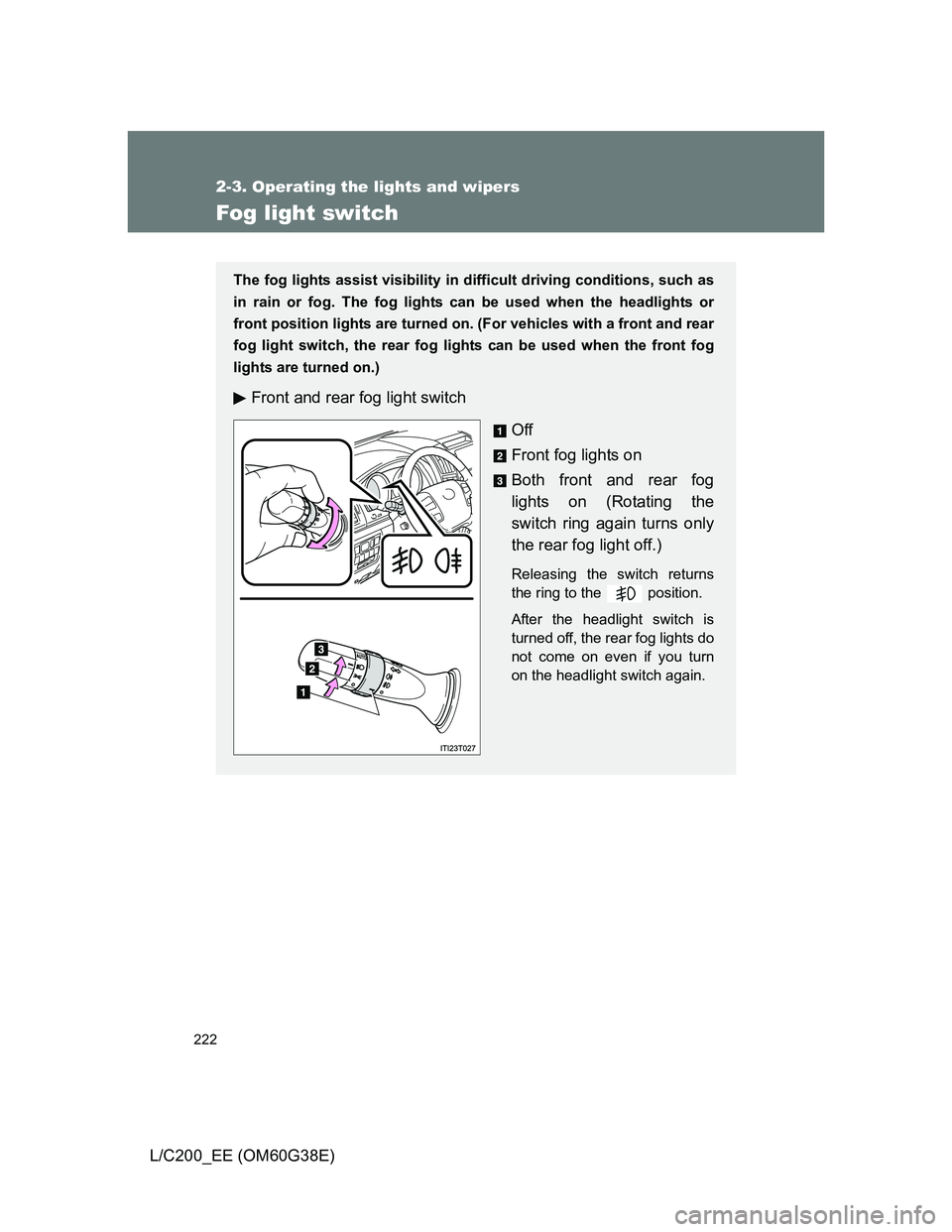

Fog light switch
The fog lights assist visibility in difficult driving conditions, such as
in rain or fog. The fog lights can be used when the headlights or
front position lights are turned on. (For vehicles with a front and rear
fog light switch, the rear fog lights can be used when the front fog
lights are turned on.)
Front and rear fog light switch
Off
Front fog lights on
Both front and rear fog
lights on (Rotating the
switch ring again turns only
the rear fog light off.)
Releasing the switch returns
the ring to the position.
After the headlight switch is
turned off, the rear fog lights do
not come on even if you turn
on the headlight switch again.

223 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)

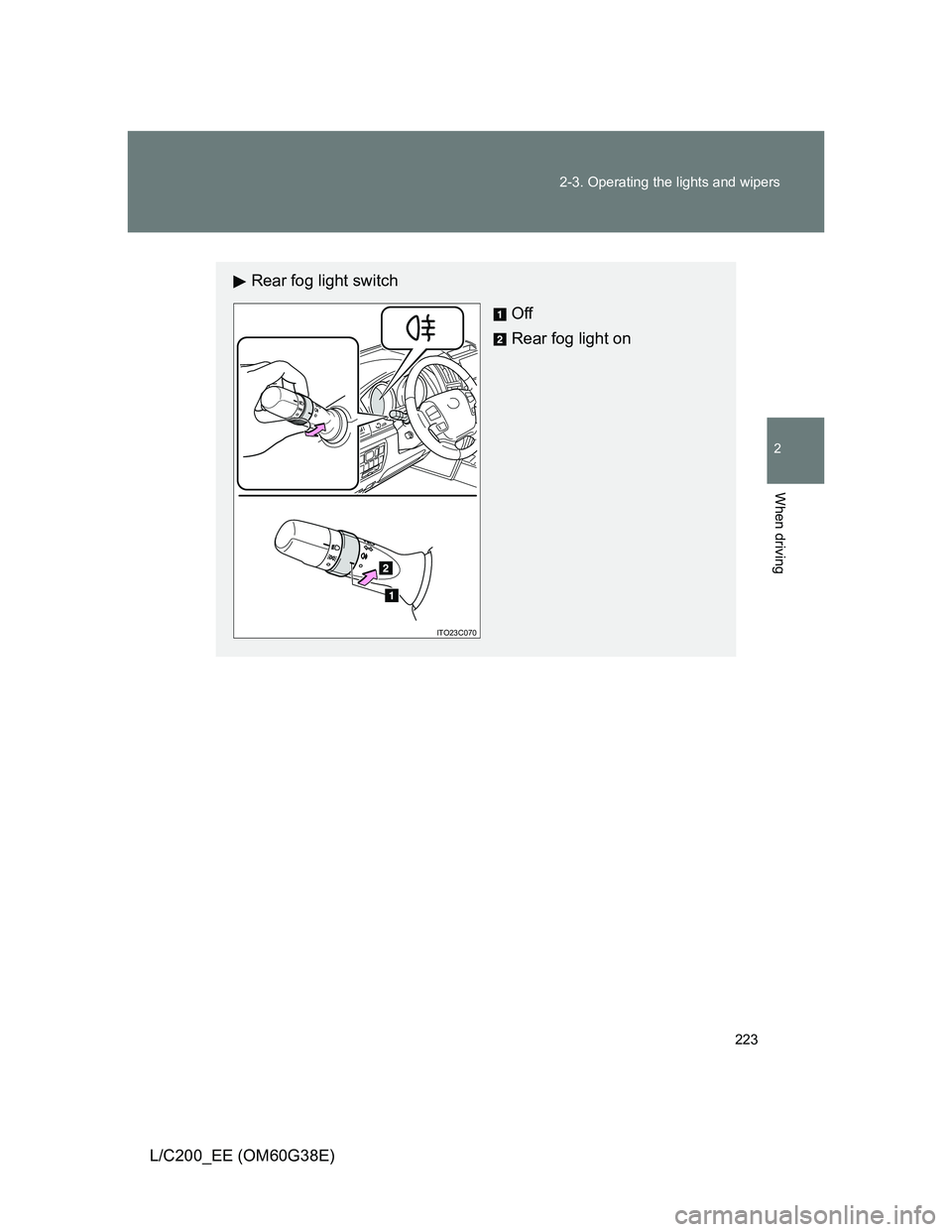

Rear fog light switch
Off
Rear fog light on
ITO23C070

224
2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)

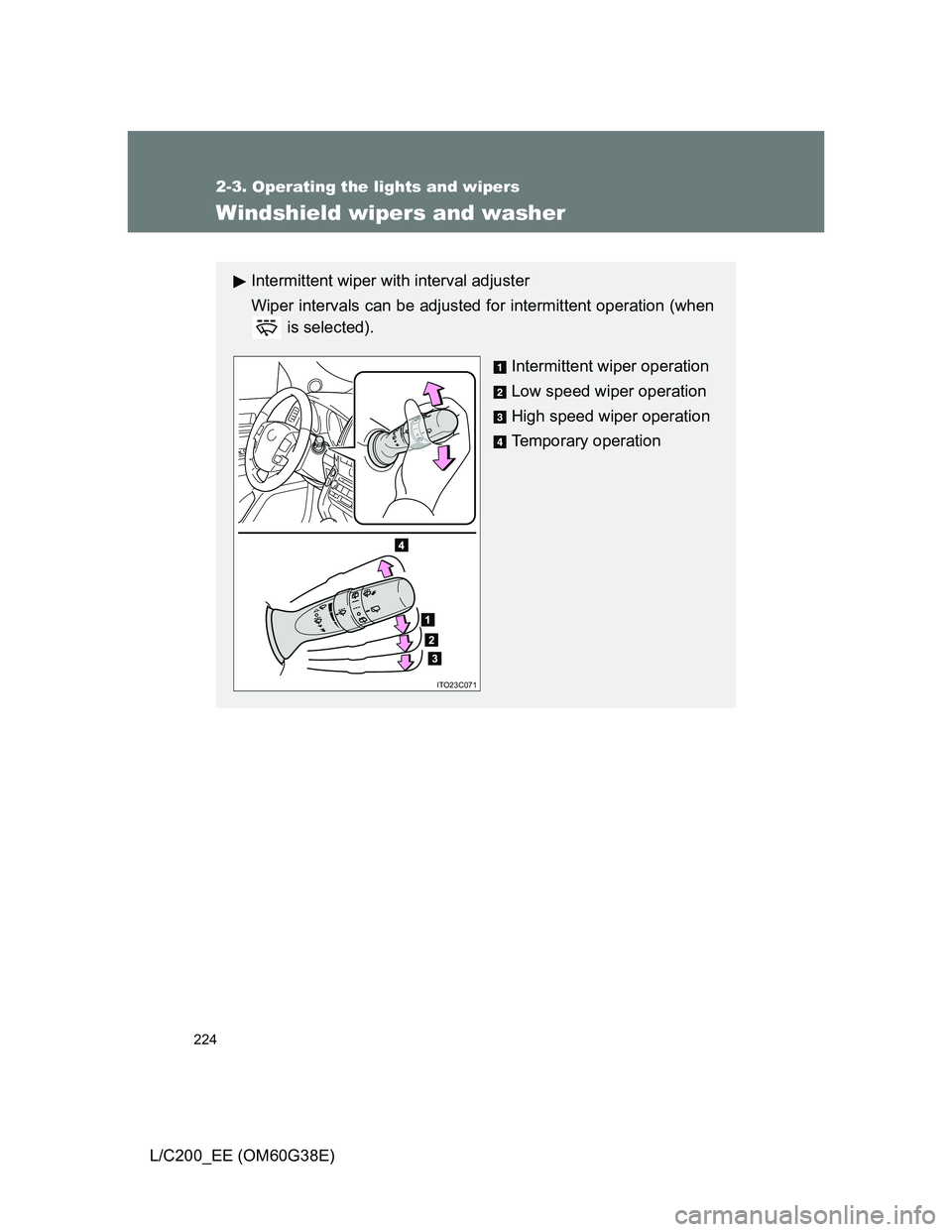

Windshield wipers and washer
Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
ITO23C071
