2012 TOYOTA LAND CRUISER Owners Manual

25
L/C200_EE (OM60G38E)

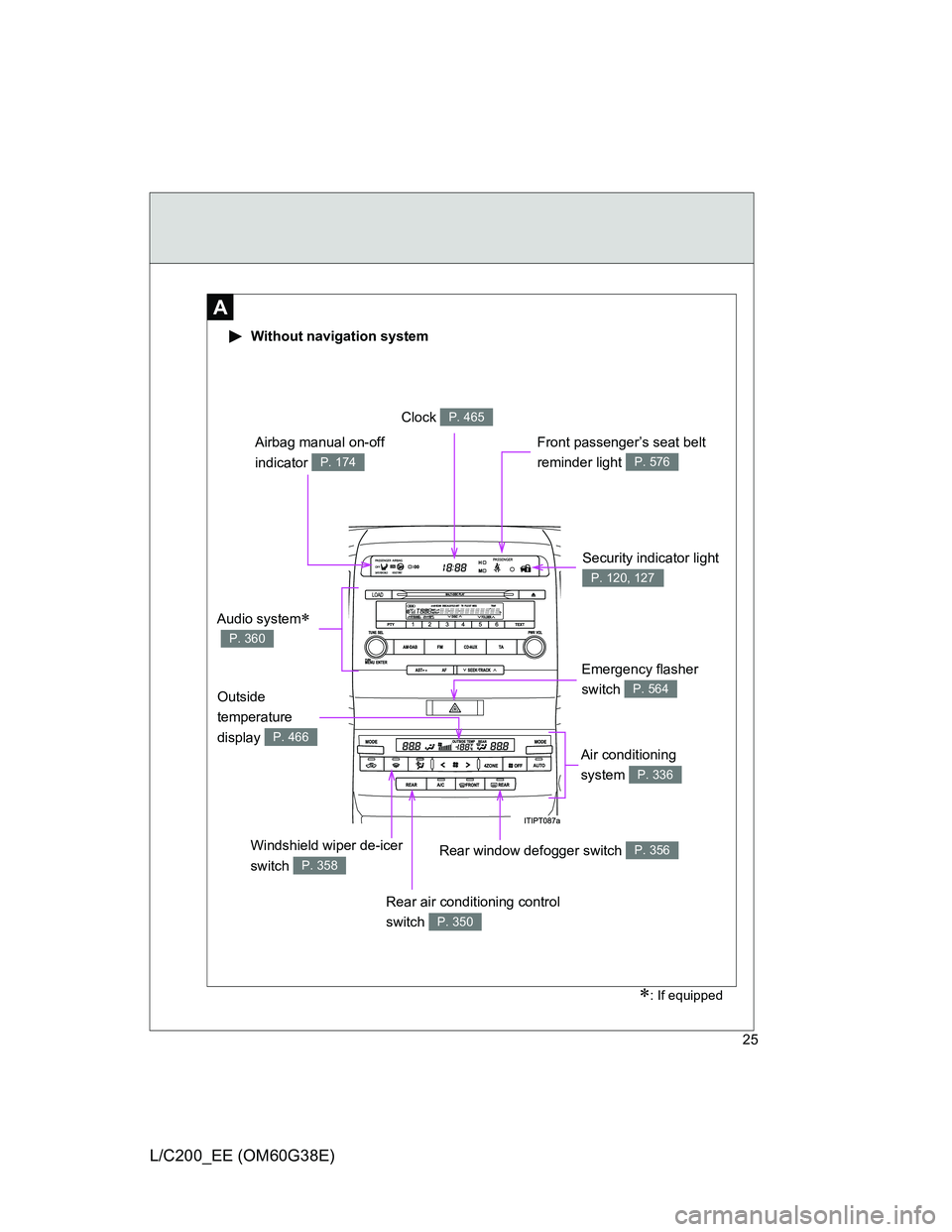

Security indicator light
P. 120, 127
A
Without navigation system
Clock P. 465
Air conditioning
system
P. 336
Front passenger’s seat belt
reminder light
P. 576
Emergency flasher
switch
P. 564
Airbag manual on-off
indicator
P. 174
Audio system
P. 360
Windshield wiper de-icer
switch
P. 358
Rear air conditioning control
switch
P. 350
Outside
temperature
display
P. 466
Rear window defogger switch P. 356
: If equipped

26
L/C200_EE (OM60G38E)

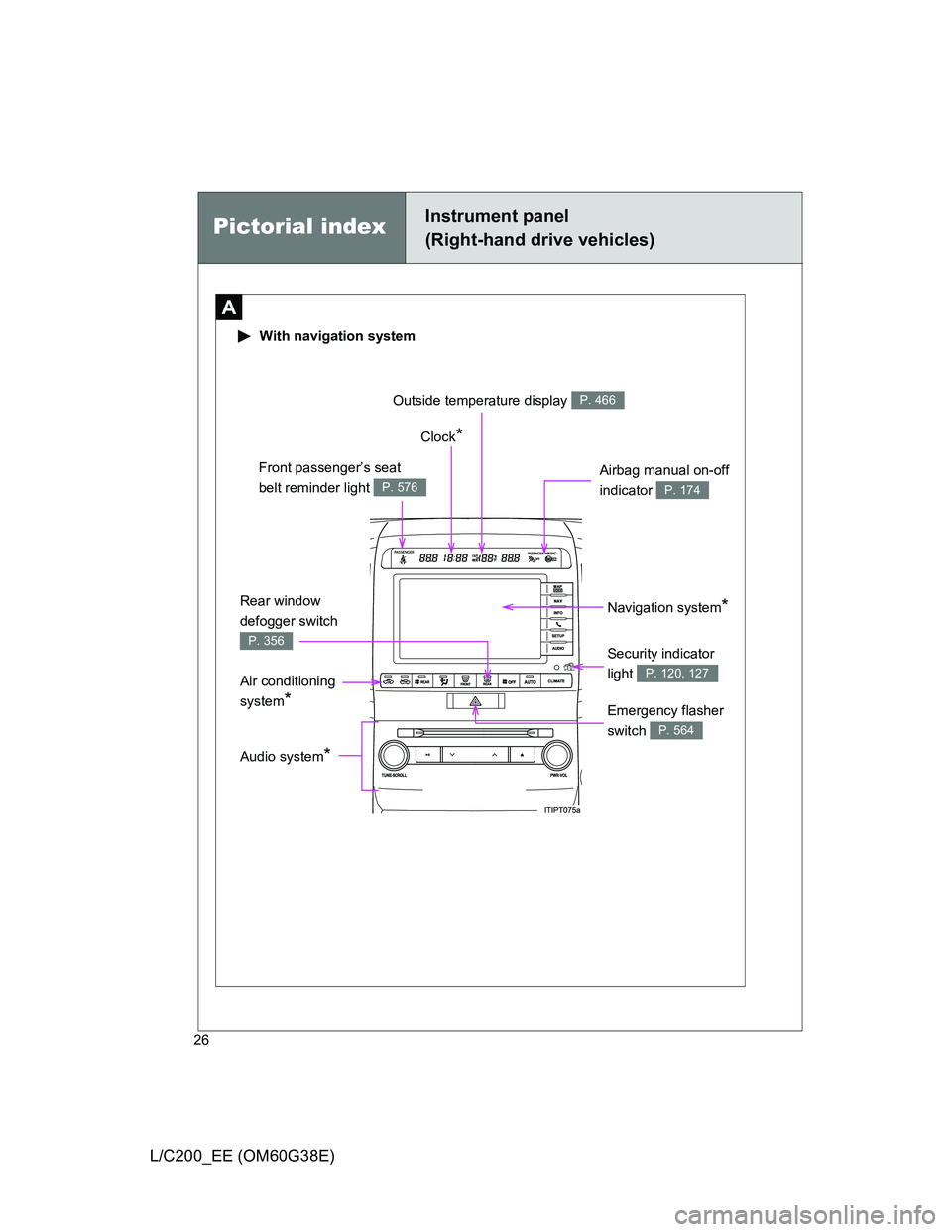

Pictorial indexInstrument panel
(Right-hand drive vehicles)
A
With navigation system
Navigation system* Clock
*
Front passenger’s seat
belt reminder light
P. 576
Audio system*
Air conditioning
system
*Emergency flasher
switch
P. 564
Security indicator
light
P. 120, 127
Outside temperature display P. 466
Rear window
defogger switch
P. 356
Airbag manual on-off
indicator
P. 174

27
L/C200_EE (OM60G38E)
B
: If equipped
*: Refer to “Navigation System Owner’s Manual”.

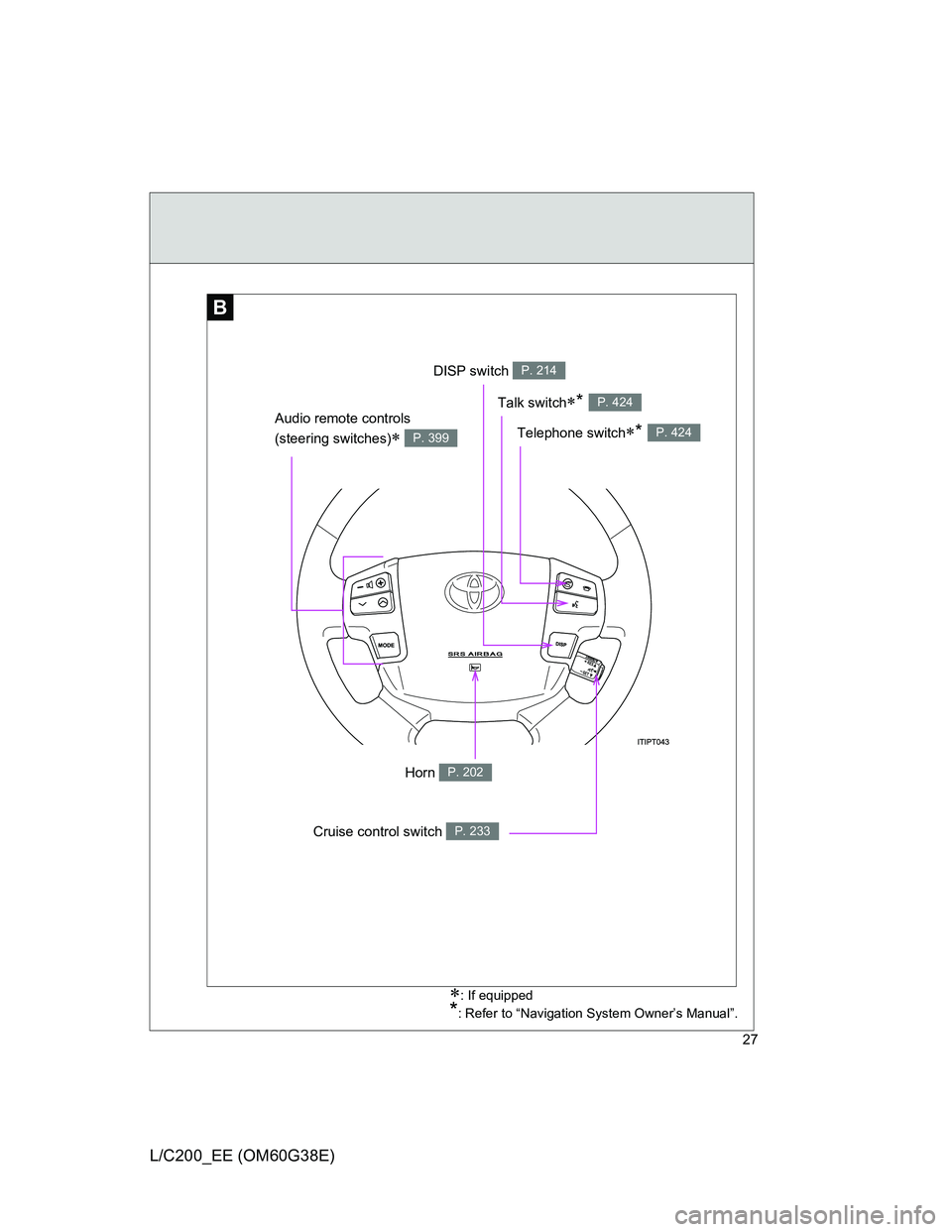

DISP switch P. 214
Telephone switch* P. 424
Talk switch* P. 424
Audio remote controls
(steering switches)
 P. 399
Cruise control switch P. 233
Horn P. 202

28
L/C200_EE (OM60G38E)
H4
L4

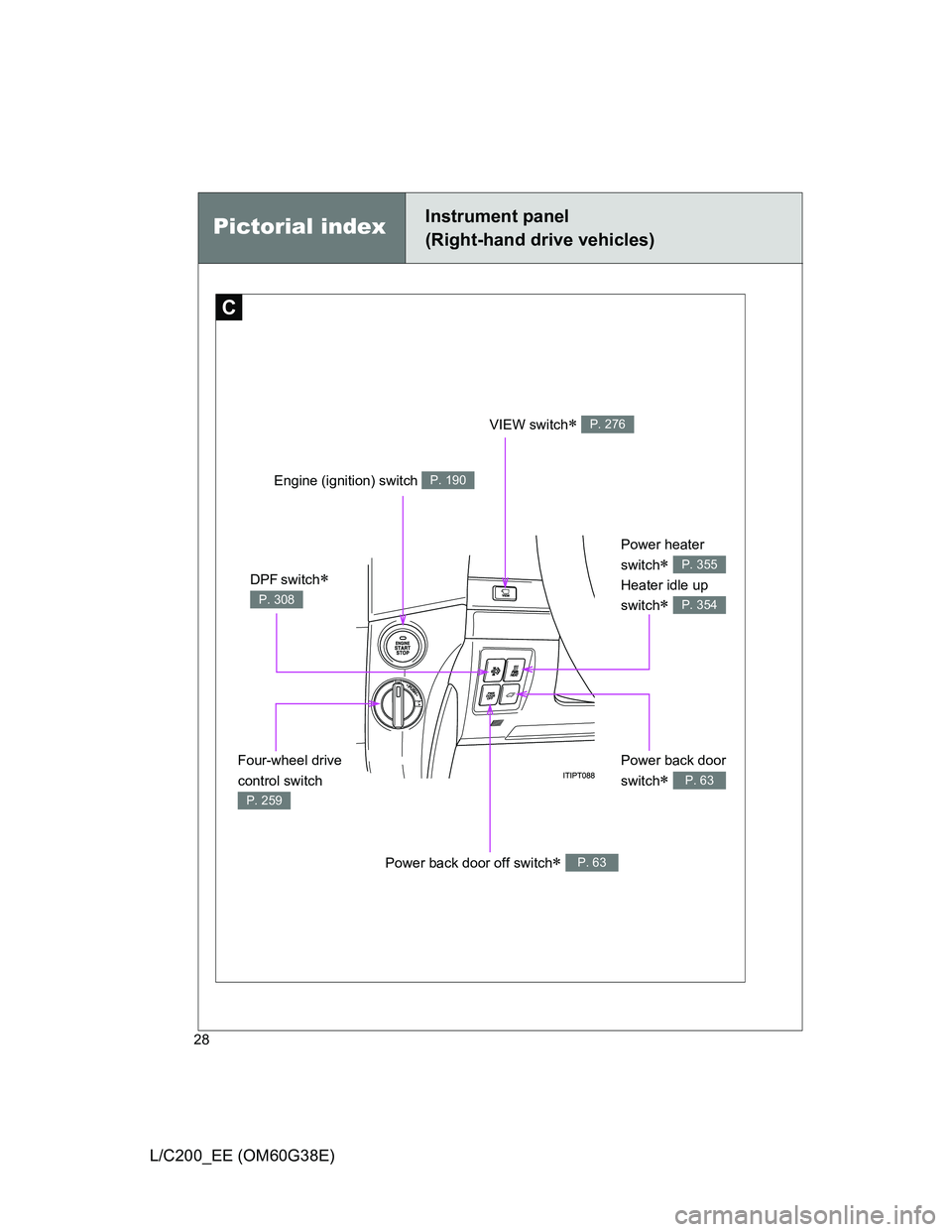

Pictorial indexInstrument panel
(Right-hand drive vehicles)
C
Engine (ignition) switch P. 190
Four-wheel drive
control switch
P. 259
Power heater
switch

Heater idle up
switch

P. 355
P. 354
VIEW switch P. 276
Power back door
switch
 P. 63
Power back door off switch P. 63
DPF switch
P. 308

29
L/C200_EE (OM60G38E)
D
: If equipped

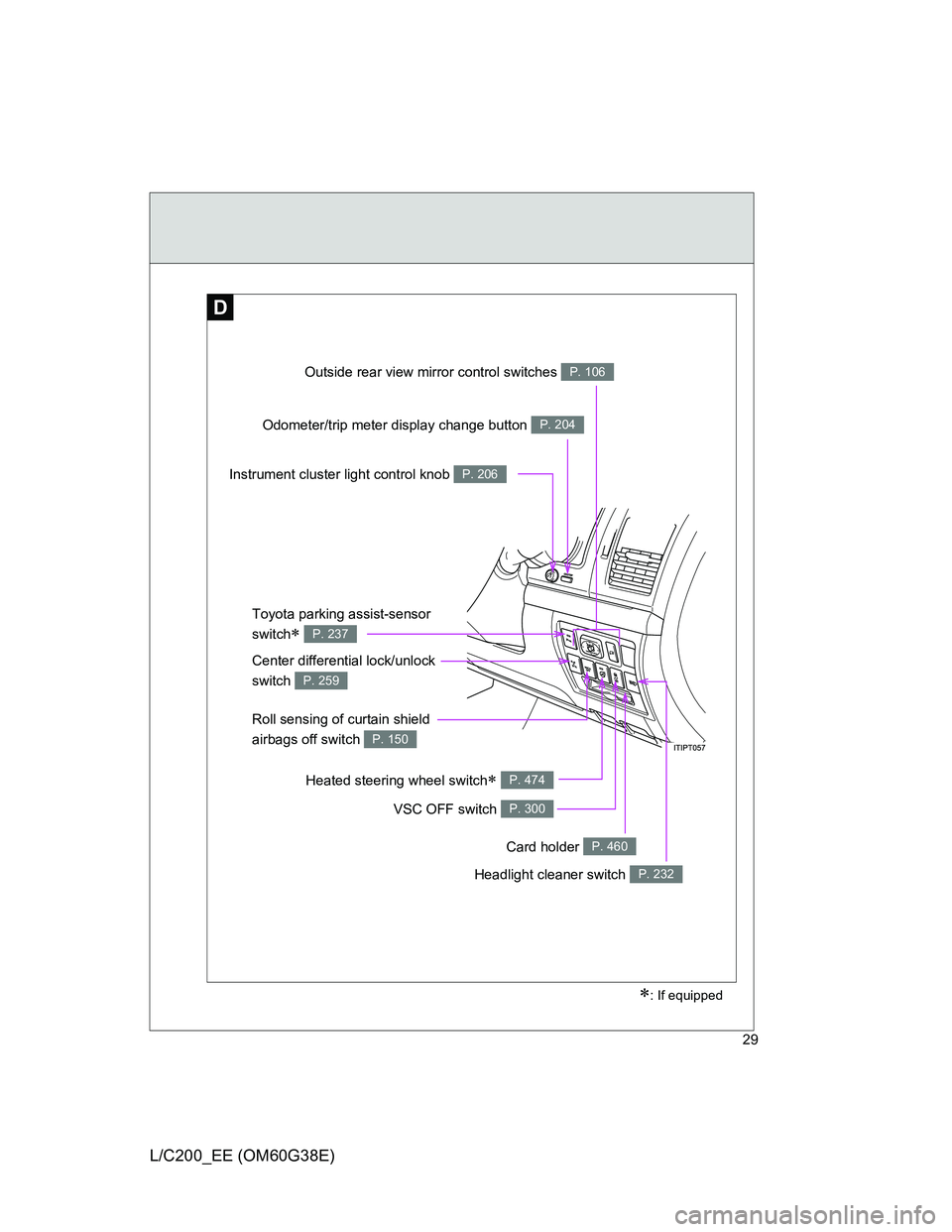

Outside rear view mirror control switches P. 106
Headlight cleaner switch P. 232
Roll sensing of curtain shield
airbags off switch
P. 150
Odometer/trip meter display change button P. 204
Instrument cluster light control knob P. 206
Card holder P. 460
Toyota parking assist-sensor
switch
 P. 237
Center differential lock/unlock
switch
P. 259
VSC OFF switch P. 300
Heated steering wheel switch P. 474

30
L/C200_EE (OM60G38E)

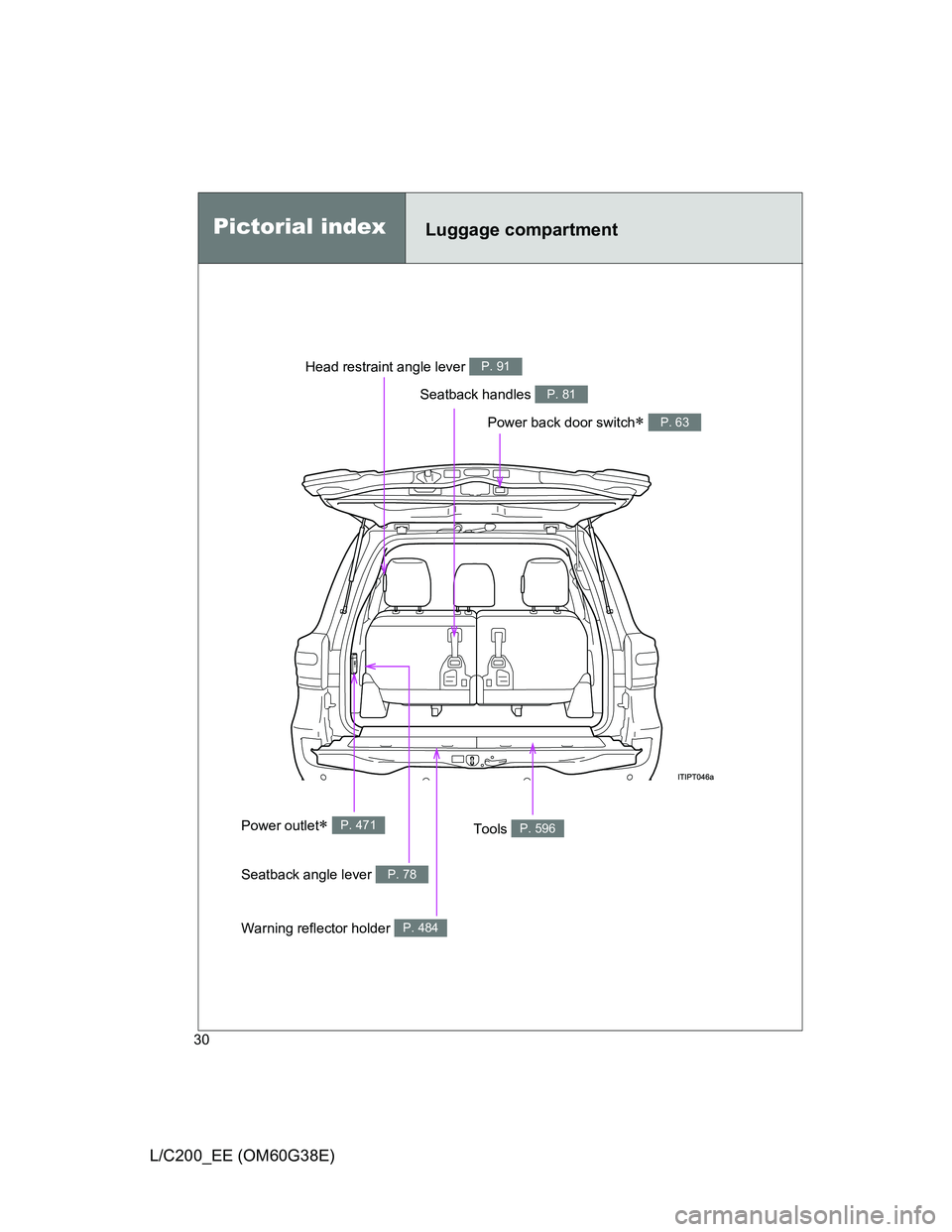

Pictorial indexLuggage compartment
Power back door switch P. 63
Tools P. 596Power outlet P. 471
Seatback angle lever P. 78
Warning reflector holder P. 484
Head restraint angle lever P. 91
Seatback handles P. 81

31
L/C200_EE (OM60G38E)
: If equipped

32
L/C200_EE (OM60G38E)

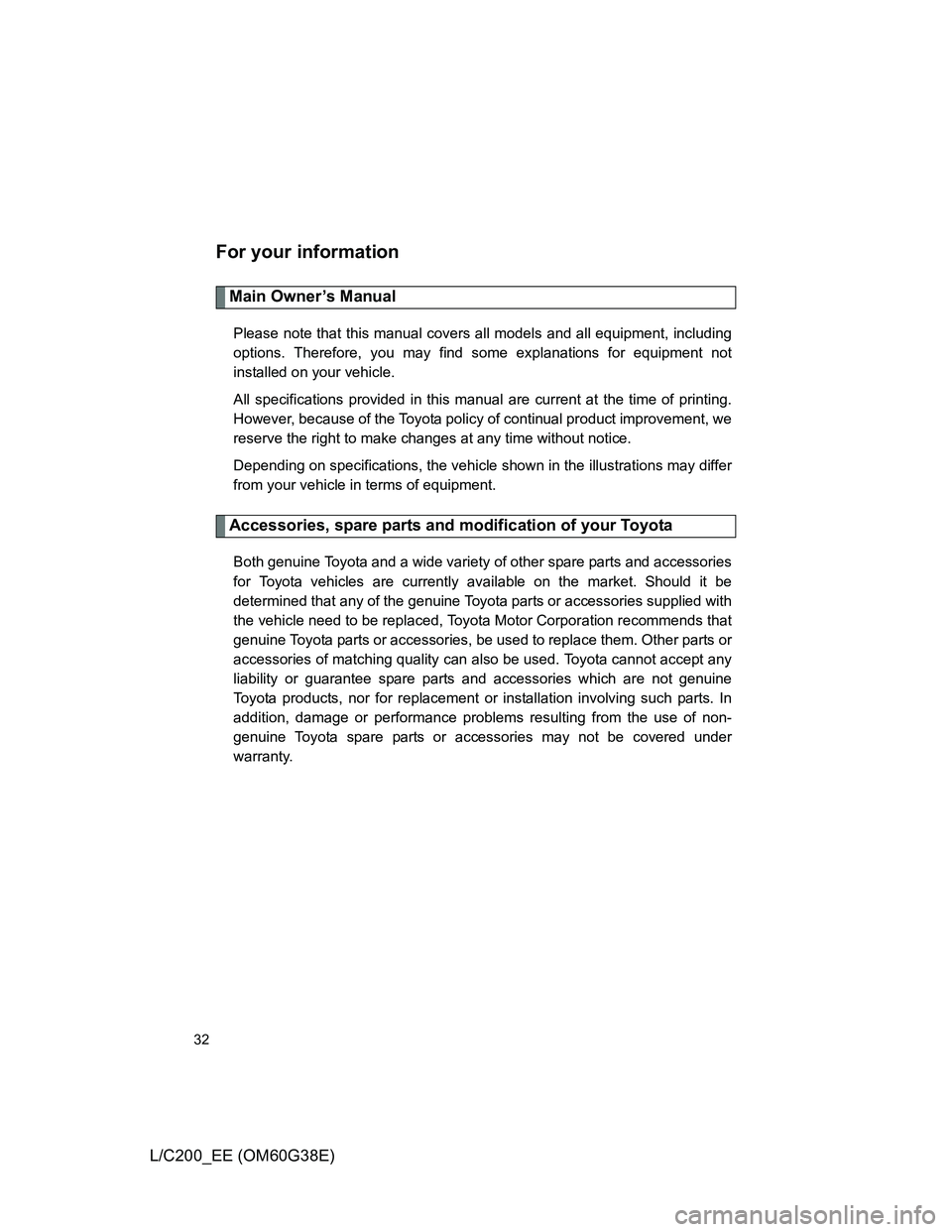

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problems resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under
warranty.
