2012 TOYOTA LAND CRUISER Owners Manual

5
625
5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

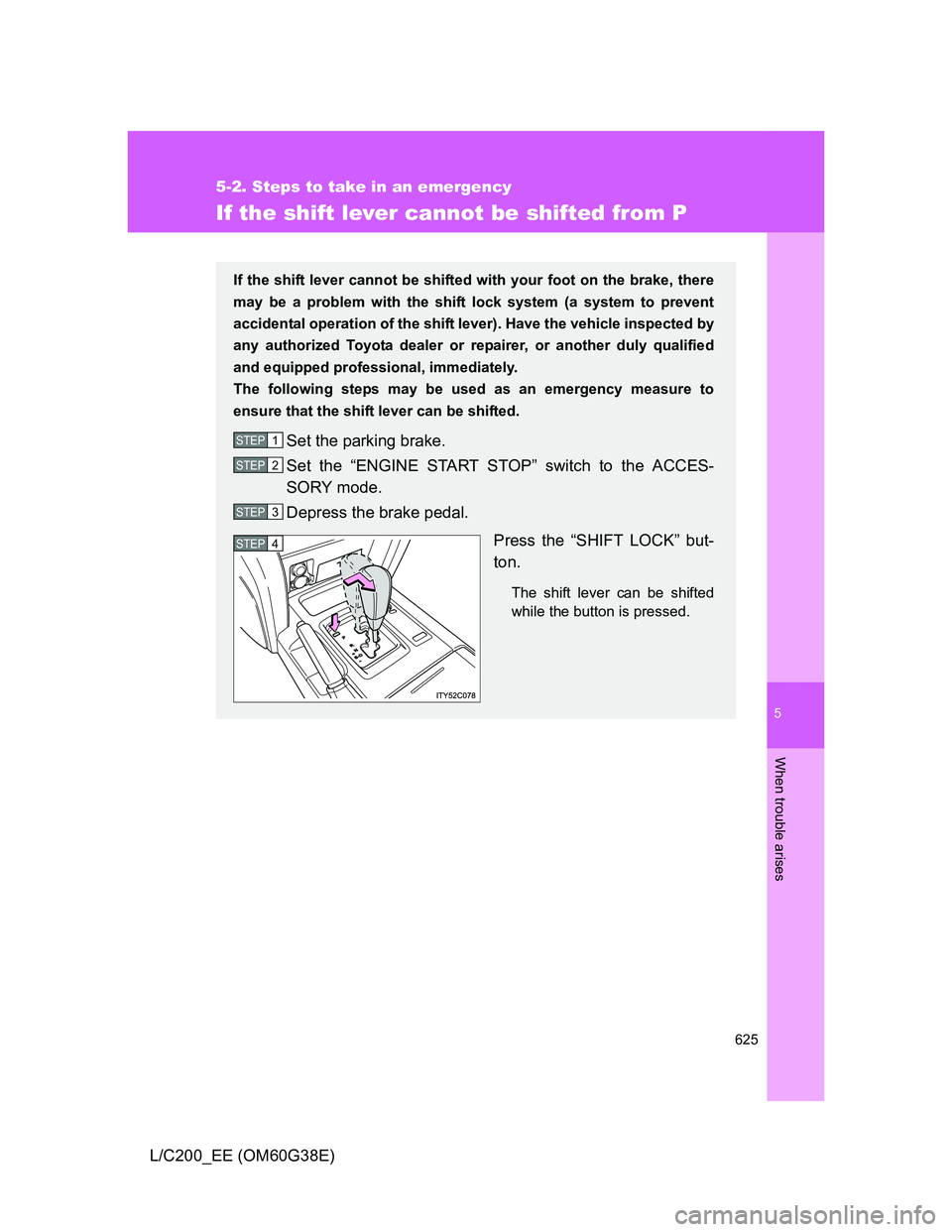

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Set the “ENGINE START STOP” switch to the ACCES-
SORY mode.
Depress the brake pedal.
Press the “SHIFT LOCK” but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4

626
5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

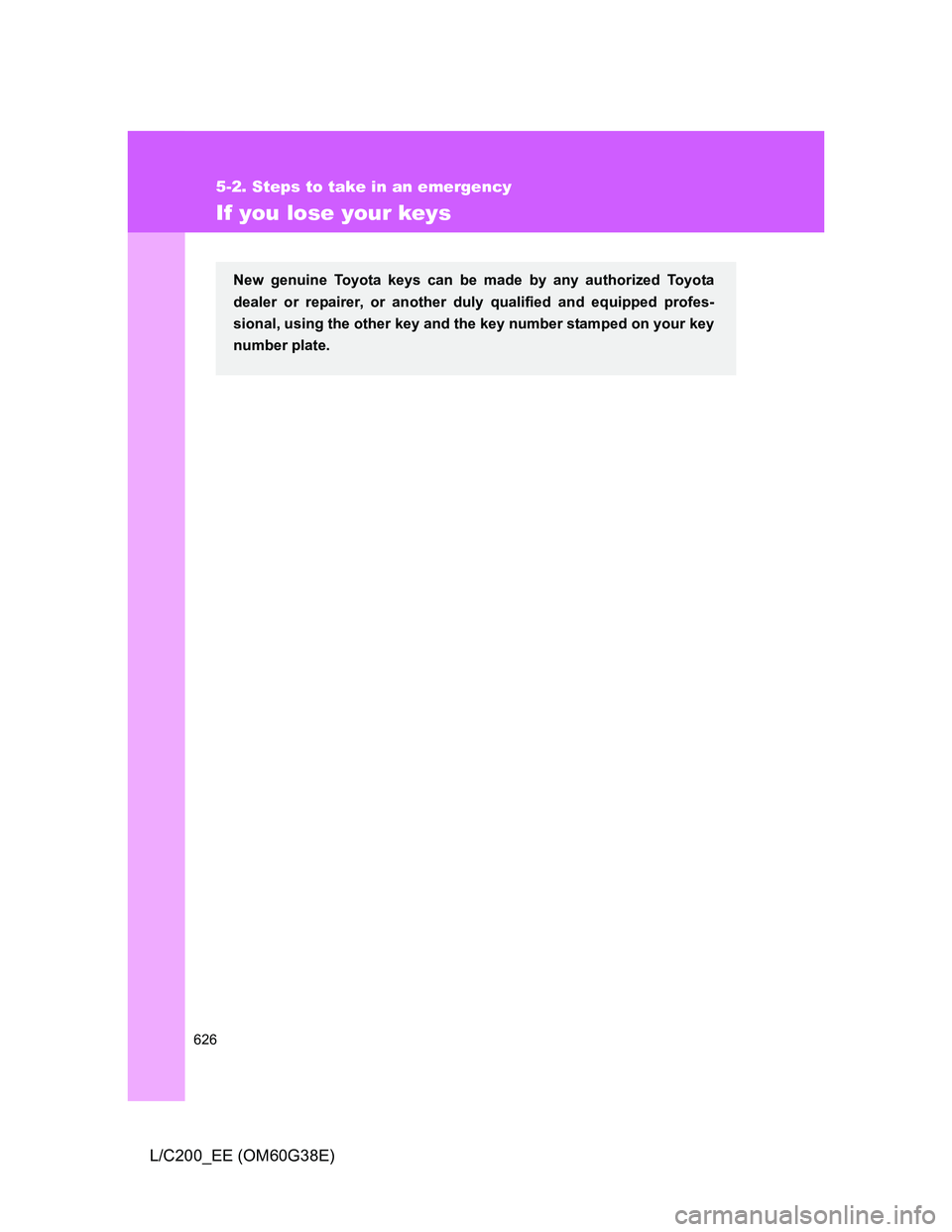

If you lose your keys
New genuine Toyota keys can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional, using the other key and the key number stamped on your key
number plate.

5
627
5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

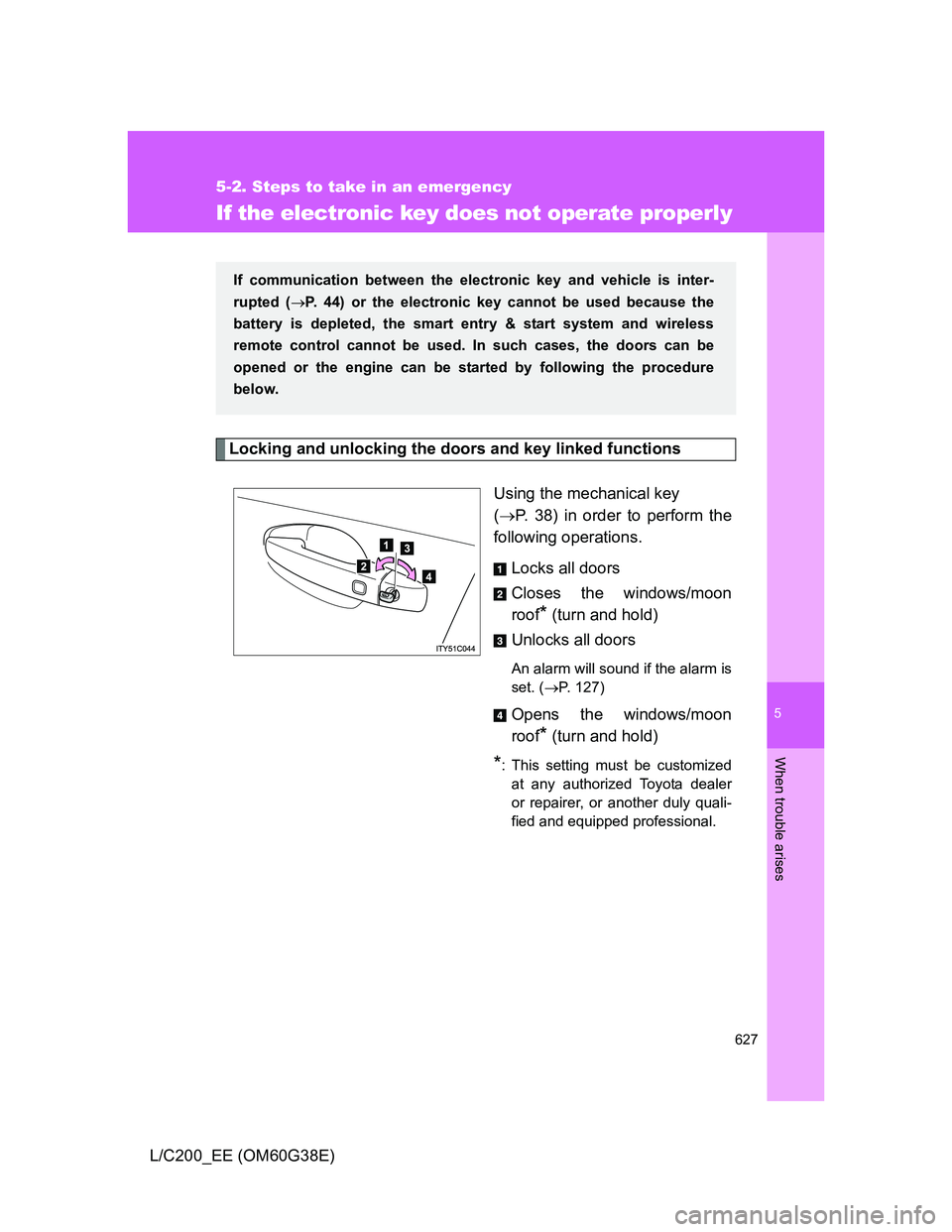

If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Using the mechanical key
(P. 38) in order to perform the
following operations.
Locks all doors
Closes the windows/moon
roof
* (turn and hold)
Unlocks all doors
An alarm will sound if the alarm is
set. (P. 127)
Opens the windows/moon
roof
* (turn and hold)
*: This setting must be customized
at any authorized Toyota dealer
or repairer, or another duly quali-
fied and equipped professional.
If communication between the electronic key and vehicle is inter-
rupted (P. 44) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireless
remote control cannot be used. In such cases, the doors can be
opened or the engine can be started by following the procedure
below.

628 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

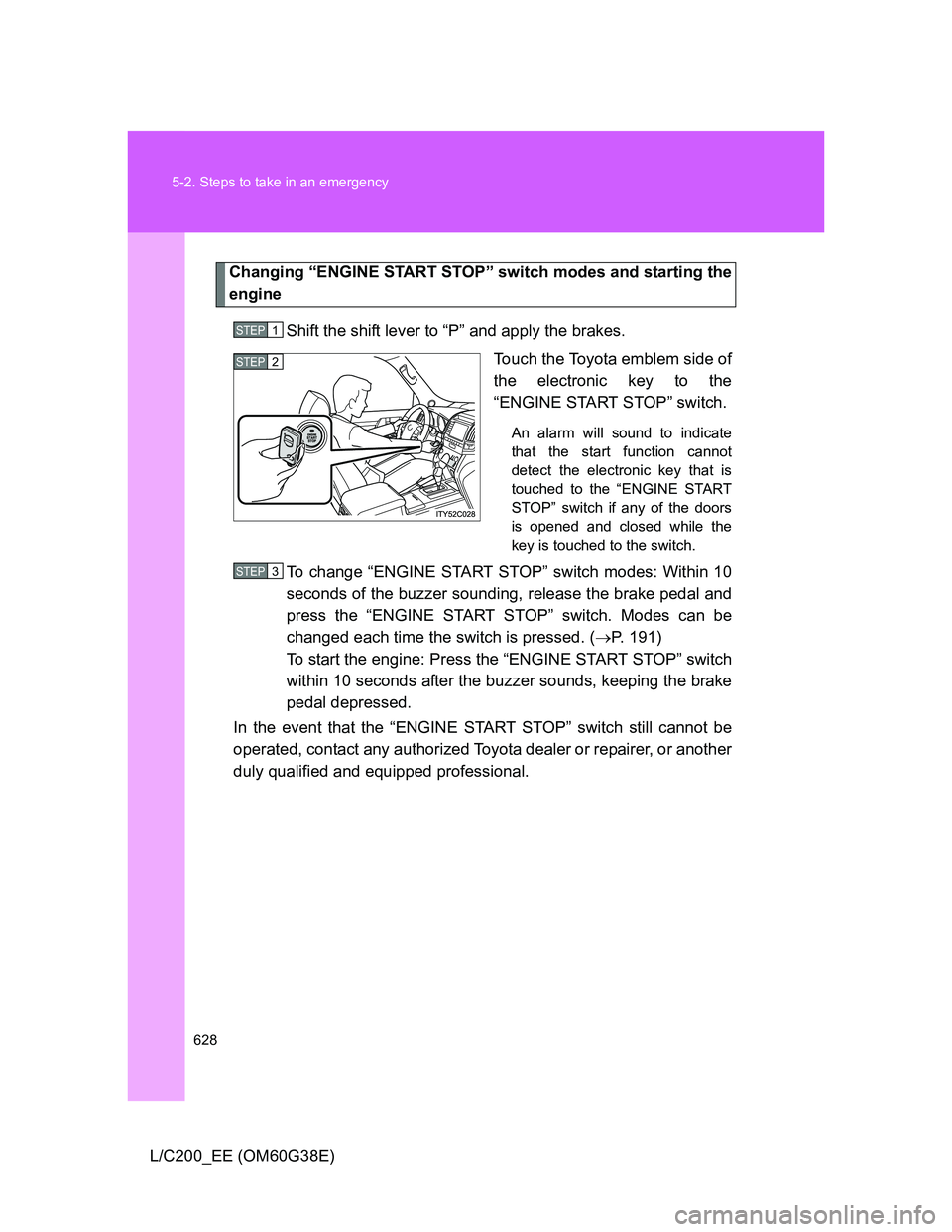

Changing “ENGINE START STOP” switch modes and starting the
engine
Shift the shift lever to “P” and apply the brakes.
Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “ENGINE START
STOP” switch if any of the doors
is opened and closed while the
key is touched to the switch.
To change “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the switch is pressed. (P. 191)
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds, keeping the brake
pedal depressed.
In the event that the “ENGINE START STOP” switch still cannot be
operated, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
STEP1
STEP2
STEP3

5
629 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
Stopping the engine
Shift the shift lever to “P” and press the “ENGINE START STOP” switch as
you normally do when stopping the engine.
Replacing the key battery
As this above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(P. 528)
Alarm
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (P. 127)

630
5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

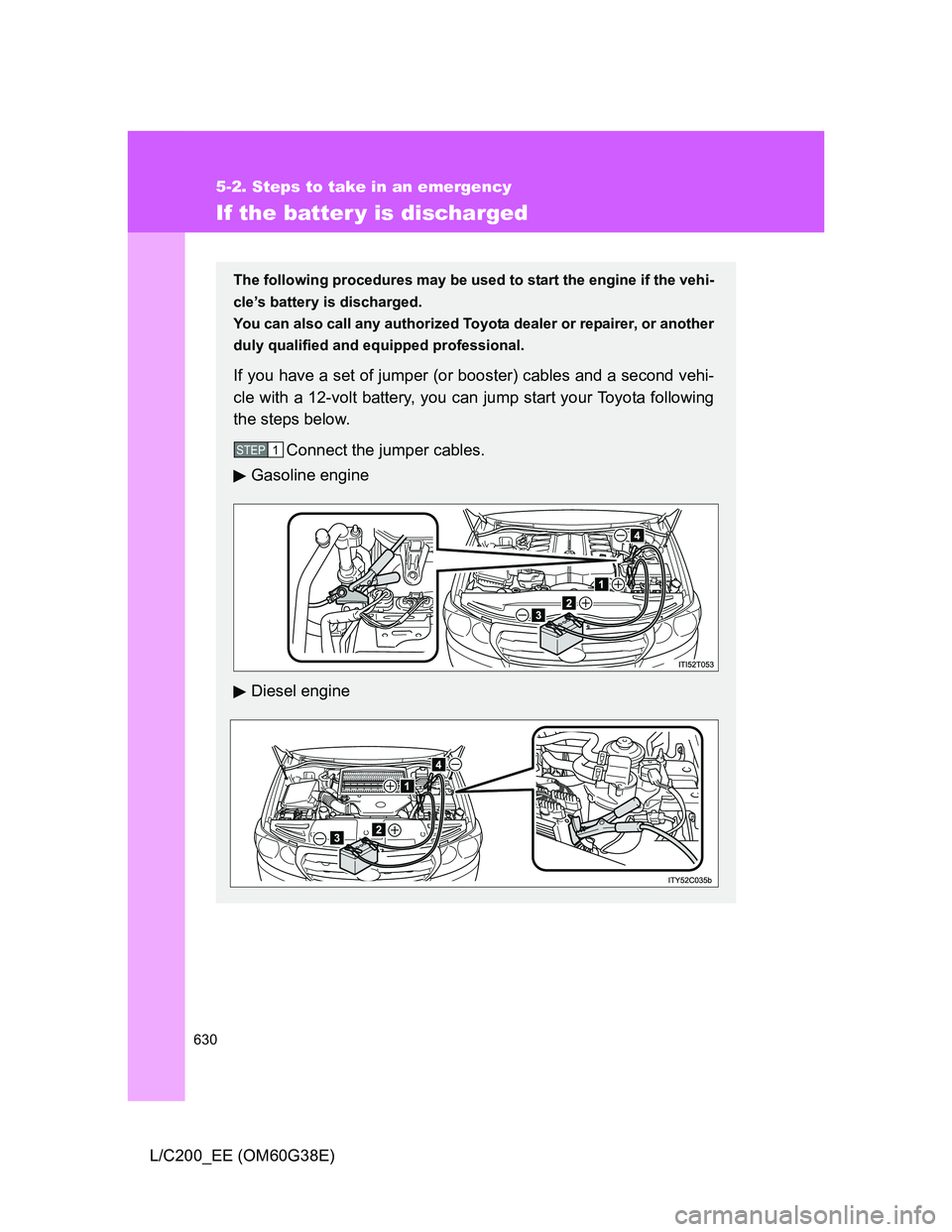

If the batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle’s battery is discharged.
You can also call any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your Toyota following
the steps below.
Connect the jumper cables.
Gasoline engine
Diesel engine
STEP1

5
631 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

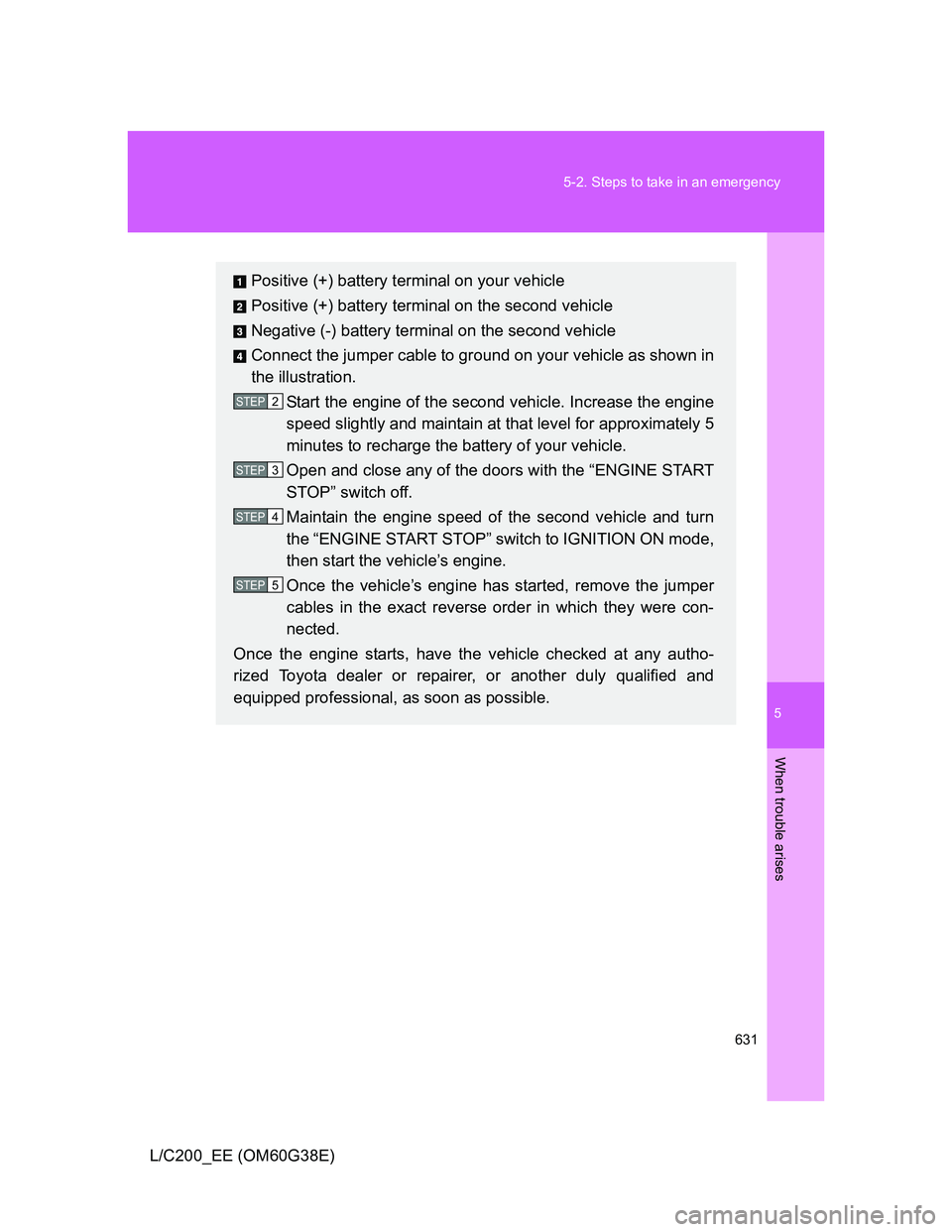

Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Open and close any of the doors with the “ENGINE START
STOP” switch off.
Maintain the engine speed of the second vehicle and turn
the “ENGINE START STOP” switch to IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional, as soon as possible.
STEP2
STEP3
STEP4
STEP5

632 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

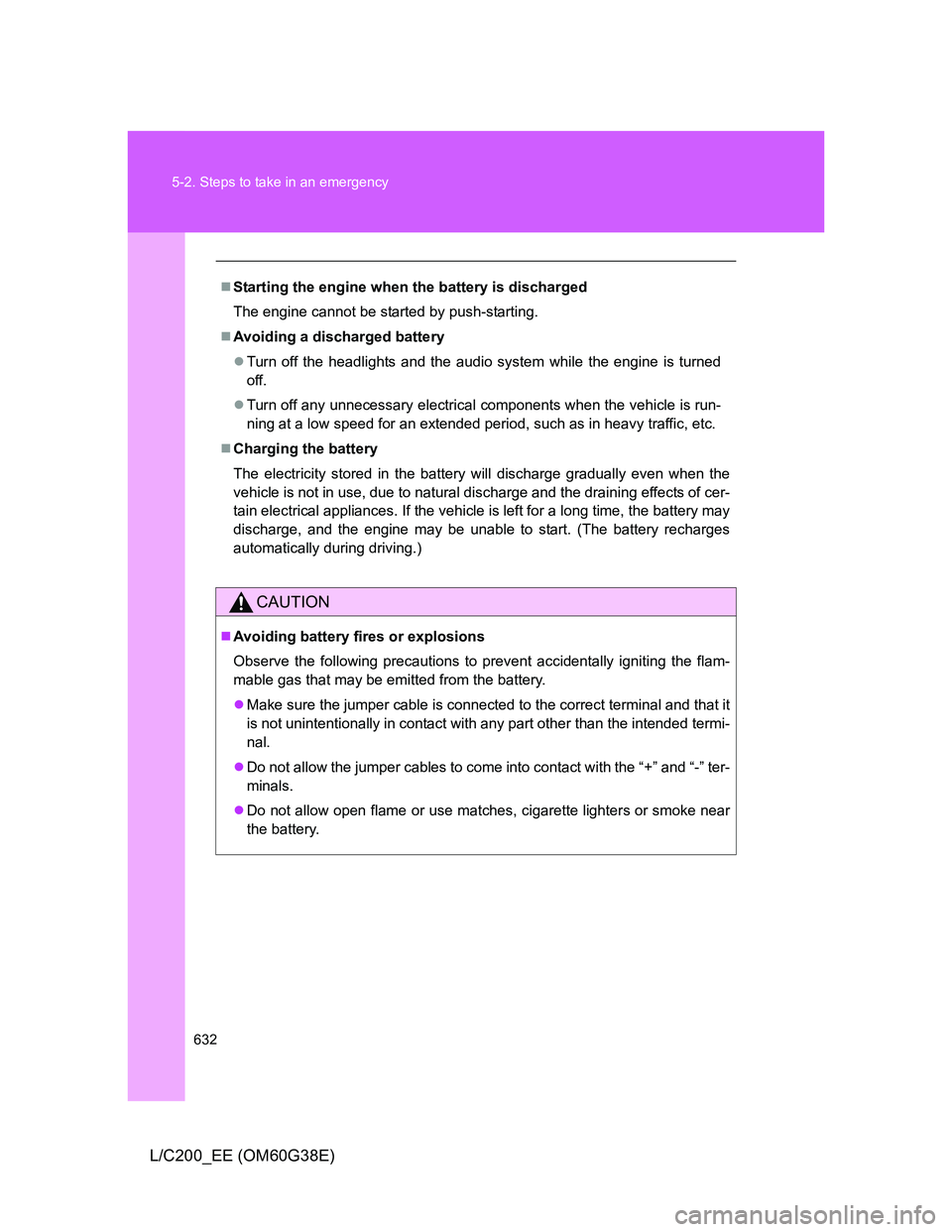

Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
Avoiding a discharged battery
Turn off the headlights and the audio system while the engine is turned
off.
Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
CAUTION
Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery.
Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended termi-
nal.
Do not allow the jumper cables to come into contact with the “+” and “-” ter-
minals.
Do not allow open flame or use matches, cigarette lighters or smoke near
the battery.
