2012 TOYOTA LAND CRUISER Owners Manual

417
3-3. Using the Bluetooth® audio system
3
Interior features
L/C200_EE (OM60G38E)
Bluetooth® audio system setup
System setup items and operation procedures
To enter the menu of each setting, follow the steps below.
Press to select “BT•A MENU” or press the off-hook
switch and select “Setup” using .
Select “System Setup” using .
Select one of the following items using :
Setting voice guidance volume
“Guidance Vol” (P. 440)
Displaying the Bluetooth
® device address and name
“Device Name” (P. 440)
Initializing the system
“Initialize” (P. 440)
STEP1
STEP2
STEP3

418
L/C200_EE (OM60G38E)
3-4. Using the hands-free system (for cellular phone)

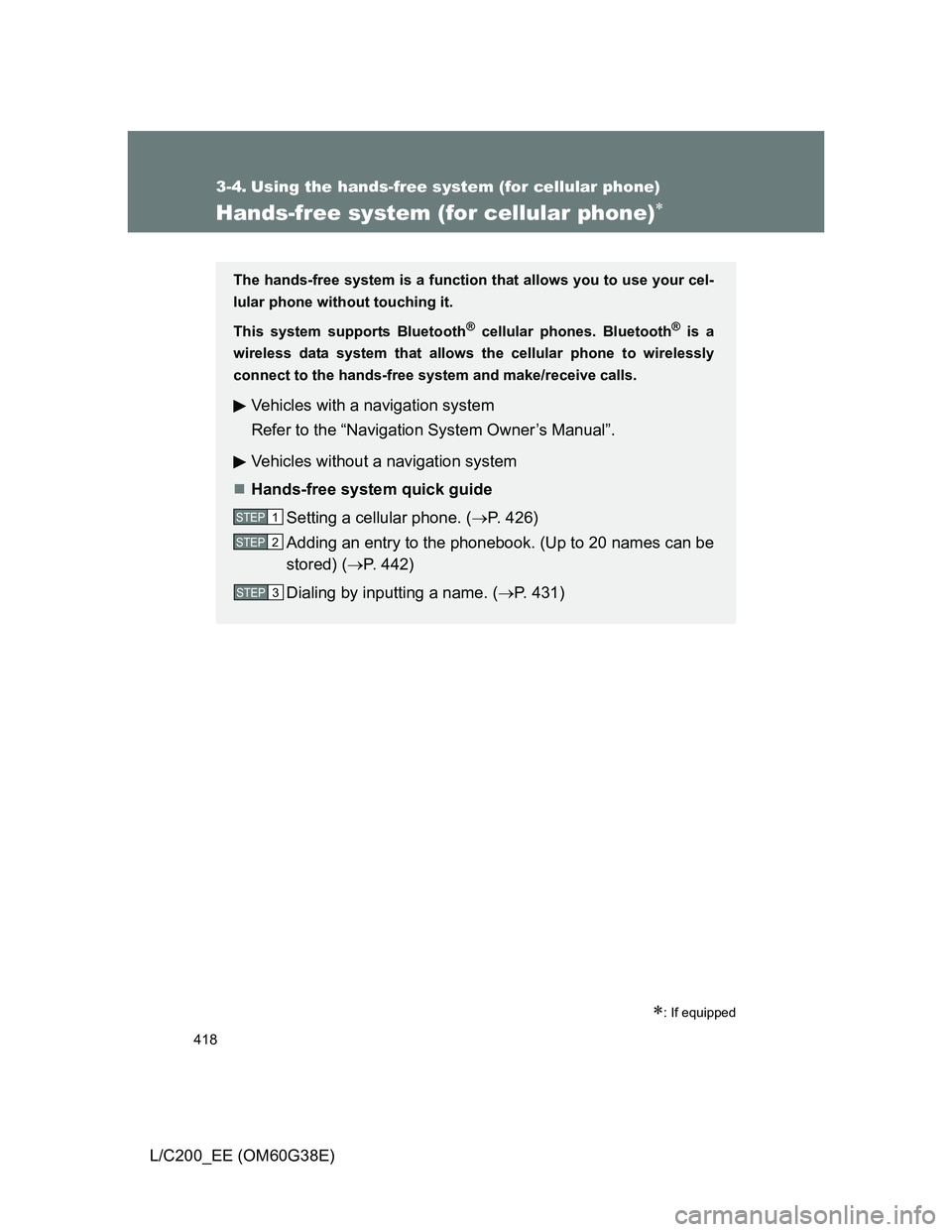

Hands-free system (for cellular phone)
: If equipped
The hands-free system is a function that allows you to use your cel-
lular phone without touching it.
This system supports Bluetooth
® cellular phones. Bluetooth® is a
wireless data system that allows the cellular phone to wirelessly
connect to the hands-free system and make/receive calls.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
Hands-free system quick guide
Setting a cellular phone. (P. 426)
Adding an entry to the phonebook. (Up to 20 names can be
stored) (P. 442)
Dialing by inputting a name. (P. 431)
STEP1
STEP2
STEP3

419 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)

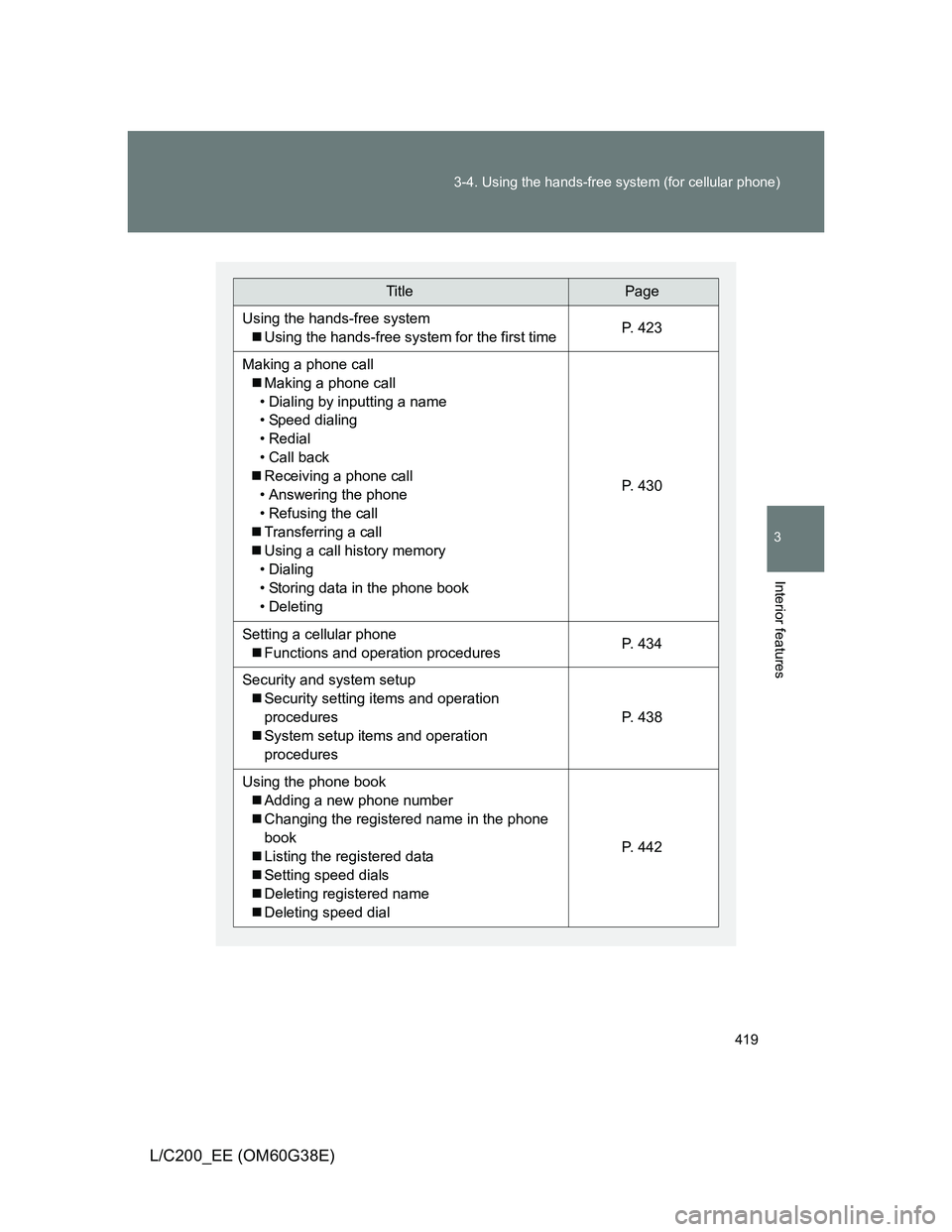

TitlePage
Using the hands-free system
Using the hands-free system for the first timeP. 4 2 3
Making a phone call
Making a phone call
• Dialing by inputting a name
• Speed dialing
• Redial
• Call back
Receiving a phone call
• Answering the phone
• Refusing the call
Transferring a call
Using a call history memory
• Dialing
• Storing data in the phone book
• Deleting
P. 4 3 0
Setting a cellular phone
Functions and operation proceduresP. 4 3 4
Security and system setup
Security setting items and operation
procedures
System setup items and operation
procedures
P. 4 3 8
Using the phone book
Adding a new phone number
Changing the registered name in the phone
book
Listing the registered data
Setting speed dials
Deleting registered name
Deleting speed dial
P. 4 4 2

420 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)

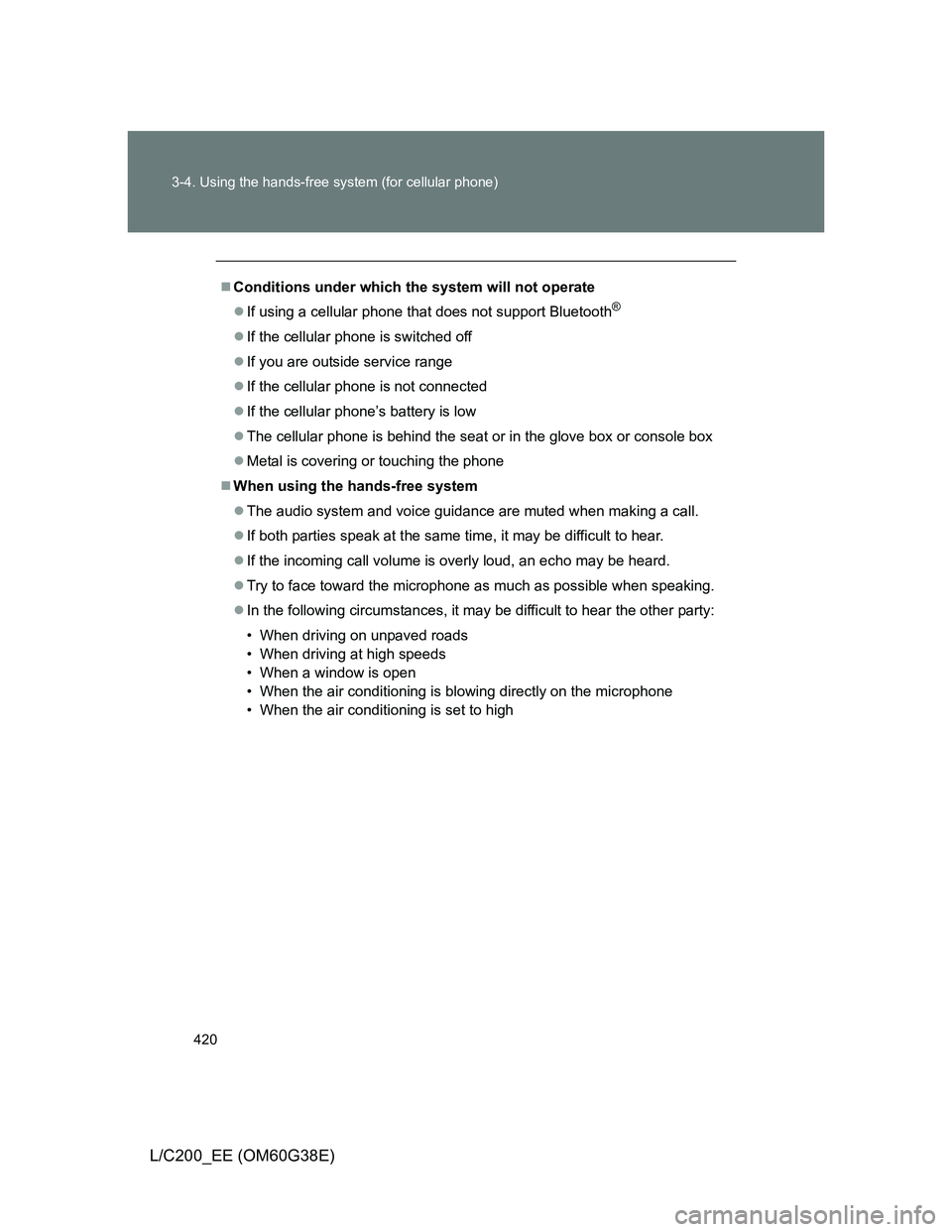

Conditions under which the system will not operate
If using a cellular phone that does not support Bluetooth
®
If the cellular phone is switched off
If you are outside service range
If the cellular phone is not connected
If the cellular phone’s battery is low
The cellular phone is behind the seat or in the glove box or console box
Metal is covering or touching the phone
When using the hands-free system
The audio system and voice guidance are muted when making a call.
If both parties speak at the same time, it may be difficult to hear.
If the incoming call volume is overly loud, an echo may be heard.
Try to face toward the microphone as much as possible when speaking.
In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• When a window is open
• When the air conditioning is blowing directly on the microphone
• When the air conditioning is set to high

421 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)

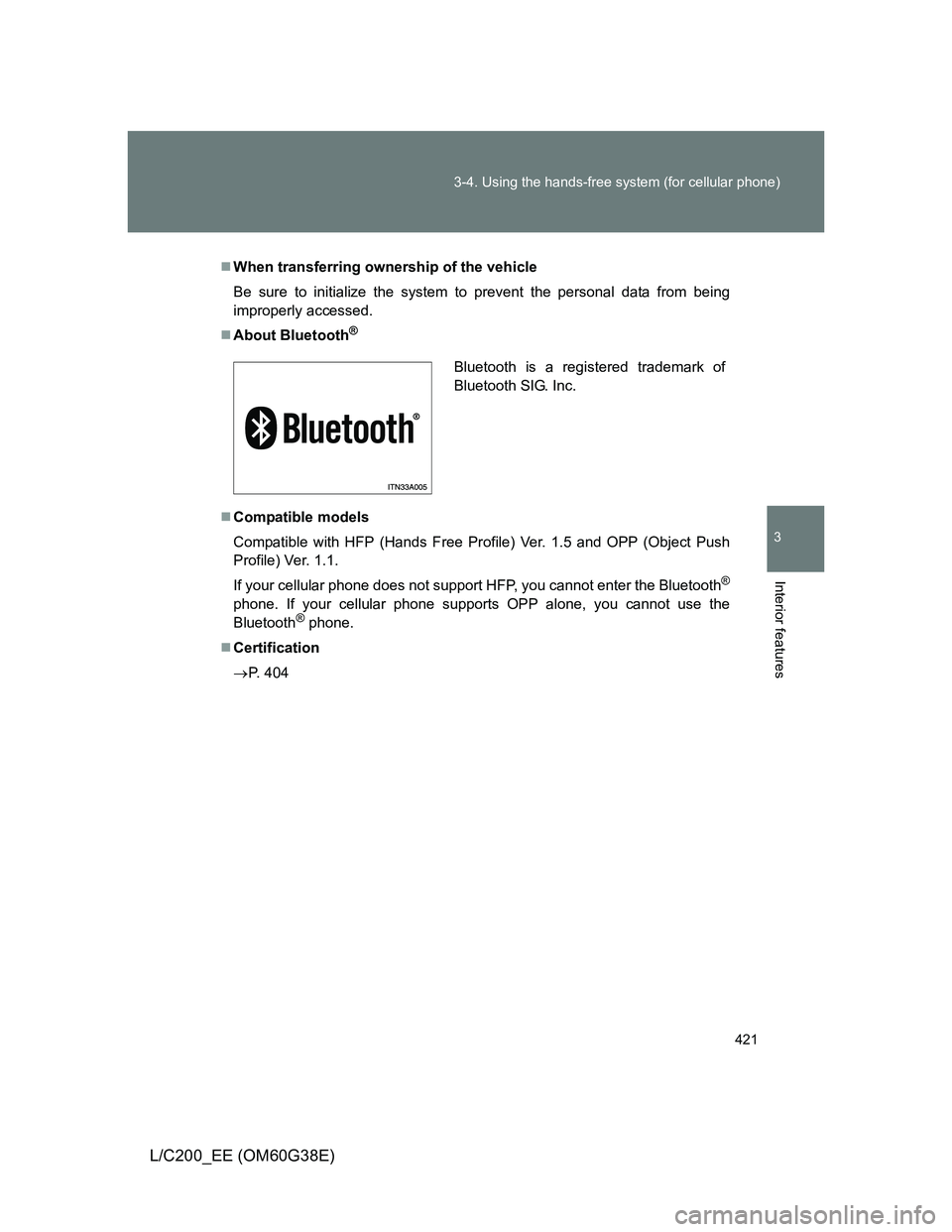

When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.
About Bluetooth
®
Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.5 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone. If your cellular phone supports OPP alone, you cannot use the
Bluetooth® phone.
Certification
P. 404
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

422 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)

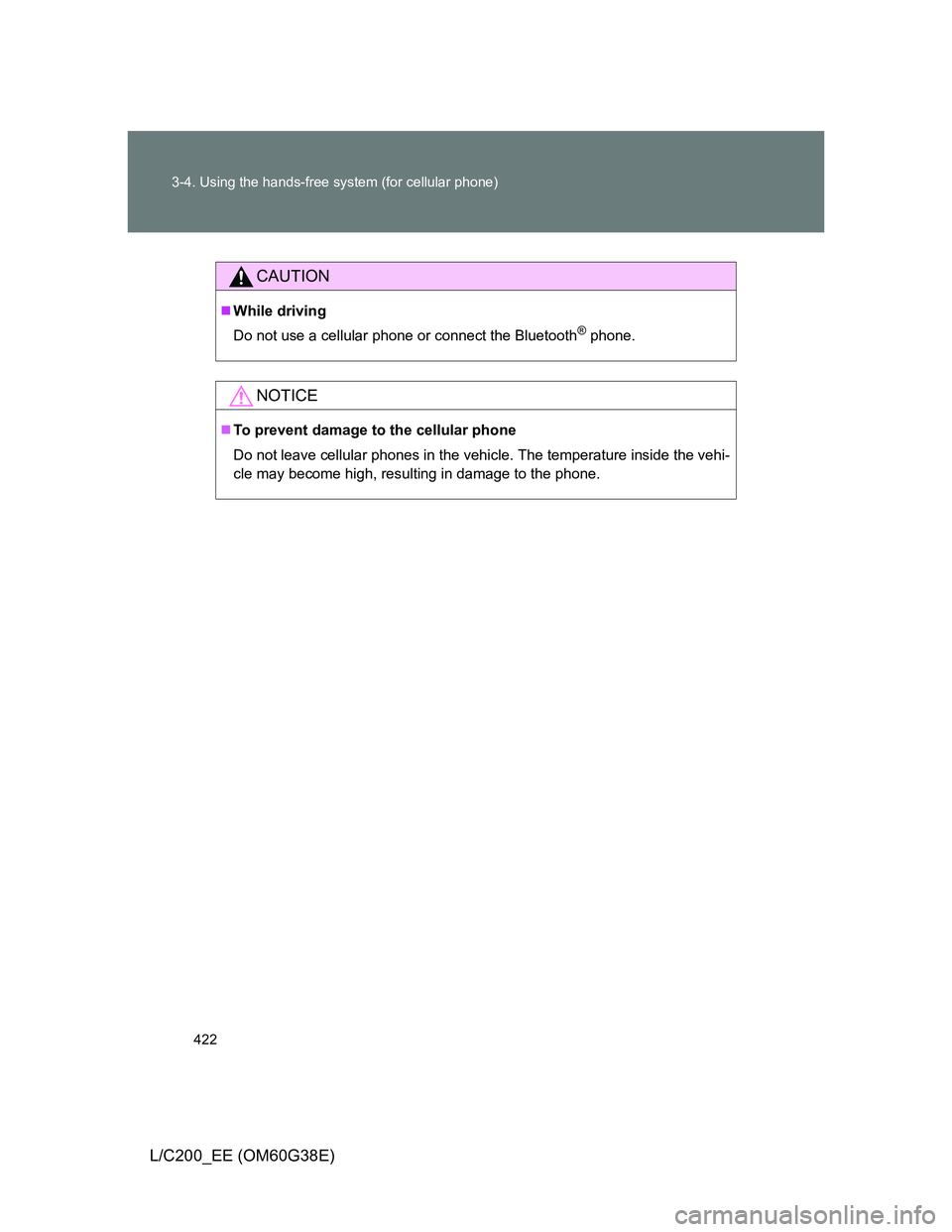

CAUTION
While driving
Do not use a cellular phone or connect the Bluetooth
® phone.
NOTICE
To prevent damage to the cellular phone
Do not leave cellular phones in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the phone.

423
3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)

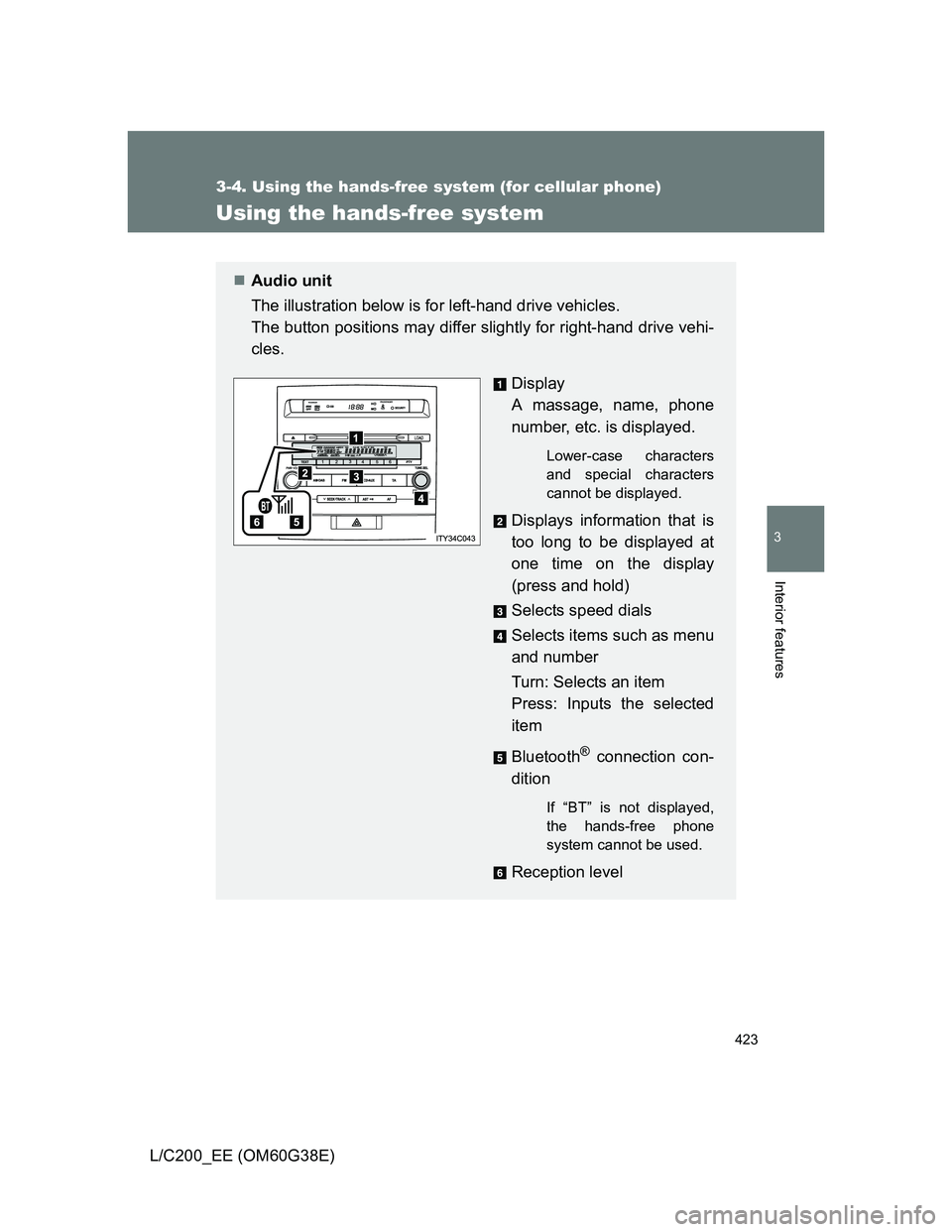

Using the hands-free system
Audio unit
The illustration below is for left-hand drive vehicles.
The button positions may differ slightly for right-hand drive vehi-
cles.
Display
A massage, name, phone
number, etc. is displayed.
Lower-case characters
and special characters
cannot be displayed.
Displays information that is
too long to be displayed at
one time on the display
(press and hold)
Selects speed dials
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition
If “BT” is not displayed,
the hands-free phone
system cannot be used.
Reception level

424 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)

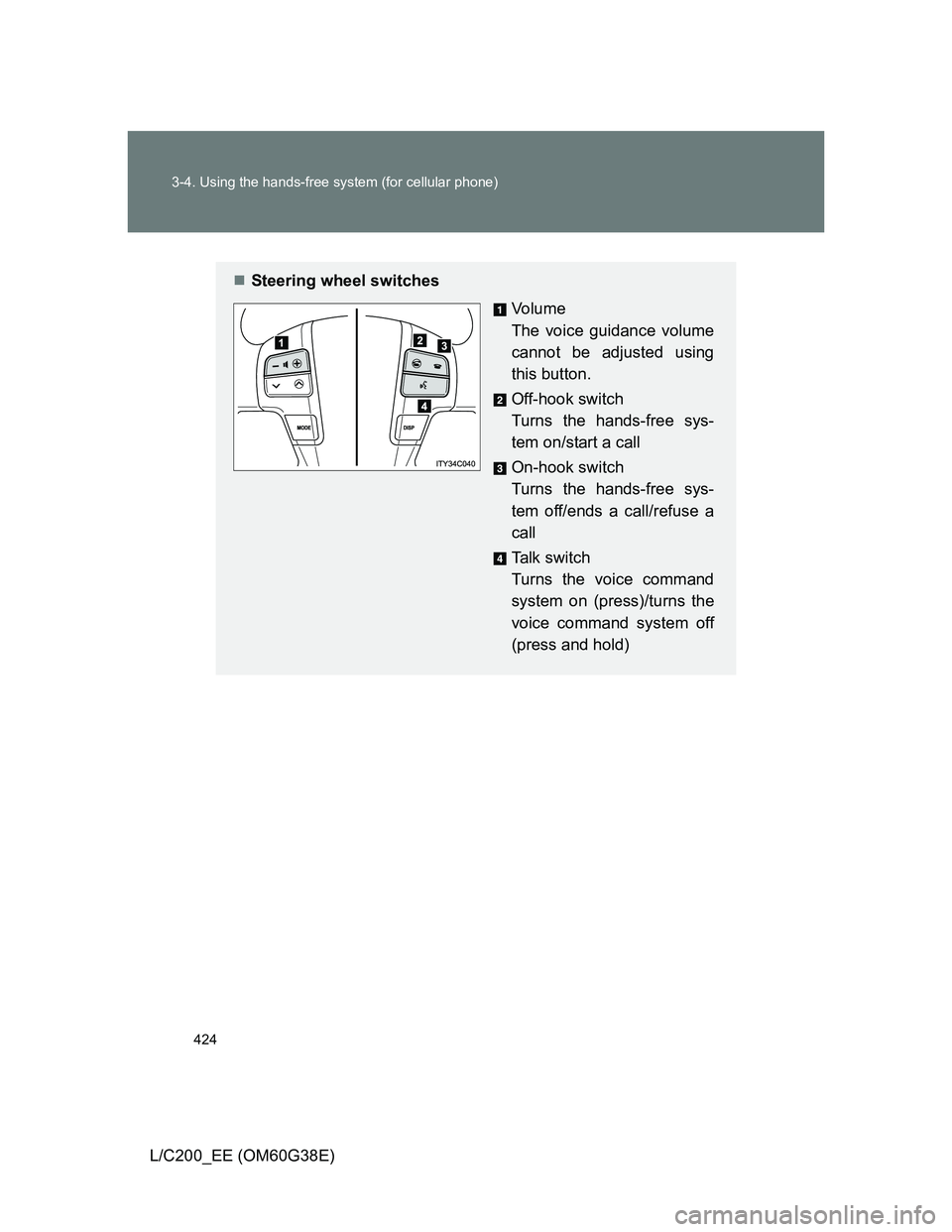

Steering wheel switches
Vo l u m e
The voice guidance volume
cannot be adjusted using
this button.
Off-hook switch
Turns the hands-free sys-
tem on/start a call
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuse a
call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
