2012 TOYOTA LAND CRUISER Owners Manual

121 1-6. Theft deterrent system
1
Before driving
L/C200_EE (OM60G38E)

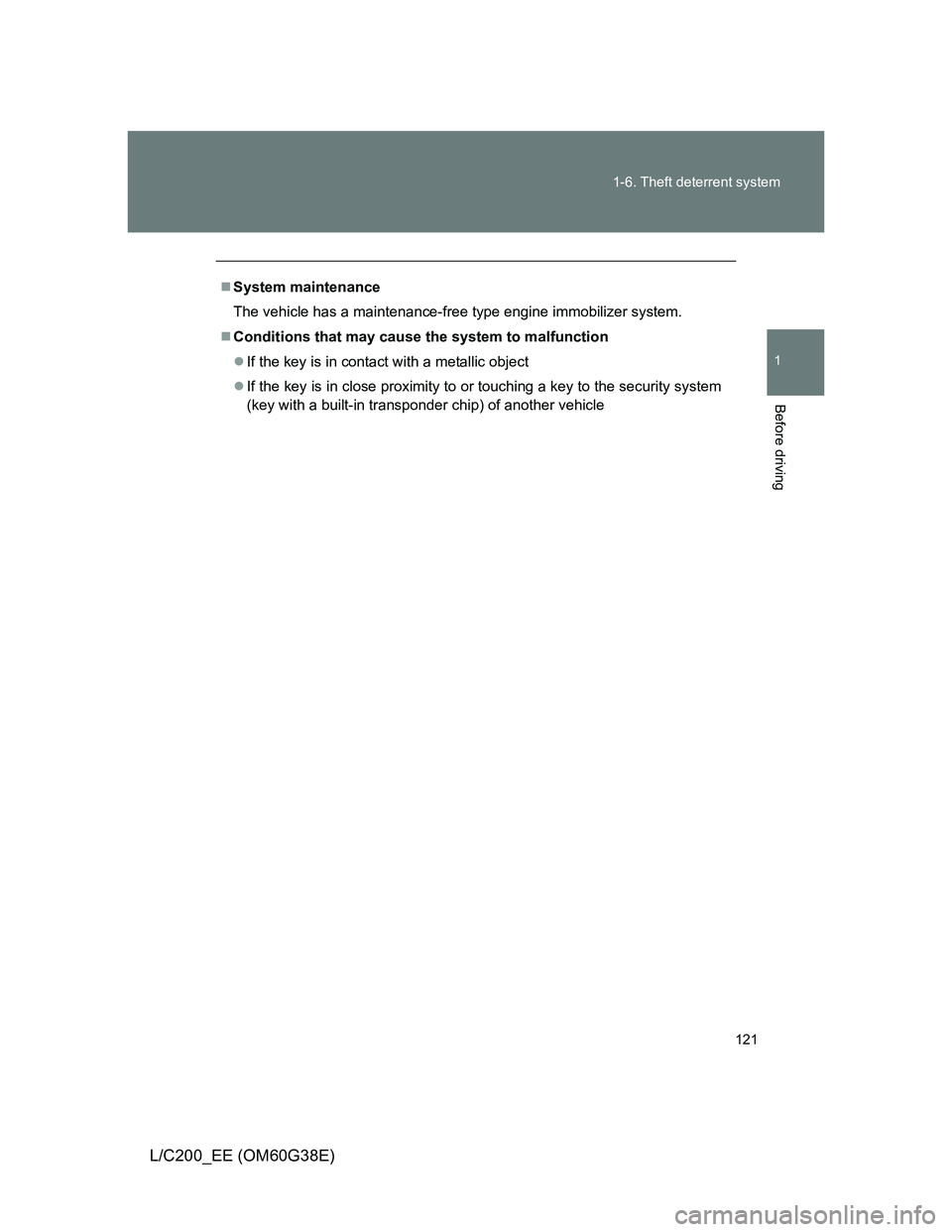

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Conditions that may cause the system to malfunction
If the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

122 1-6. Theft deterrent system
L/C200_EE (OM60G38E)

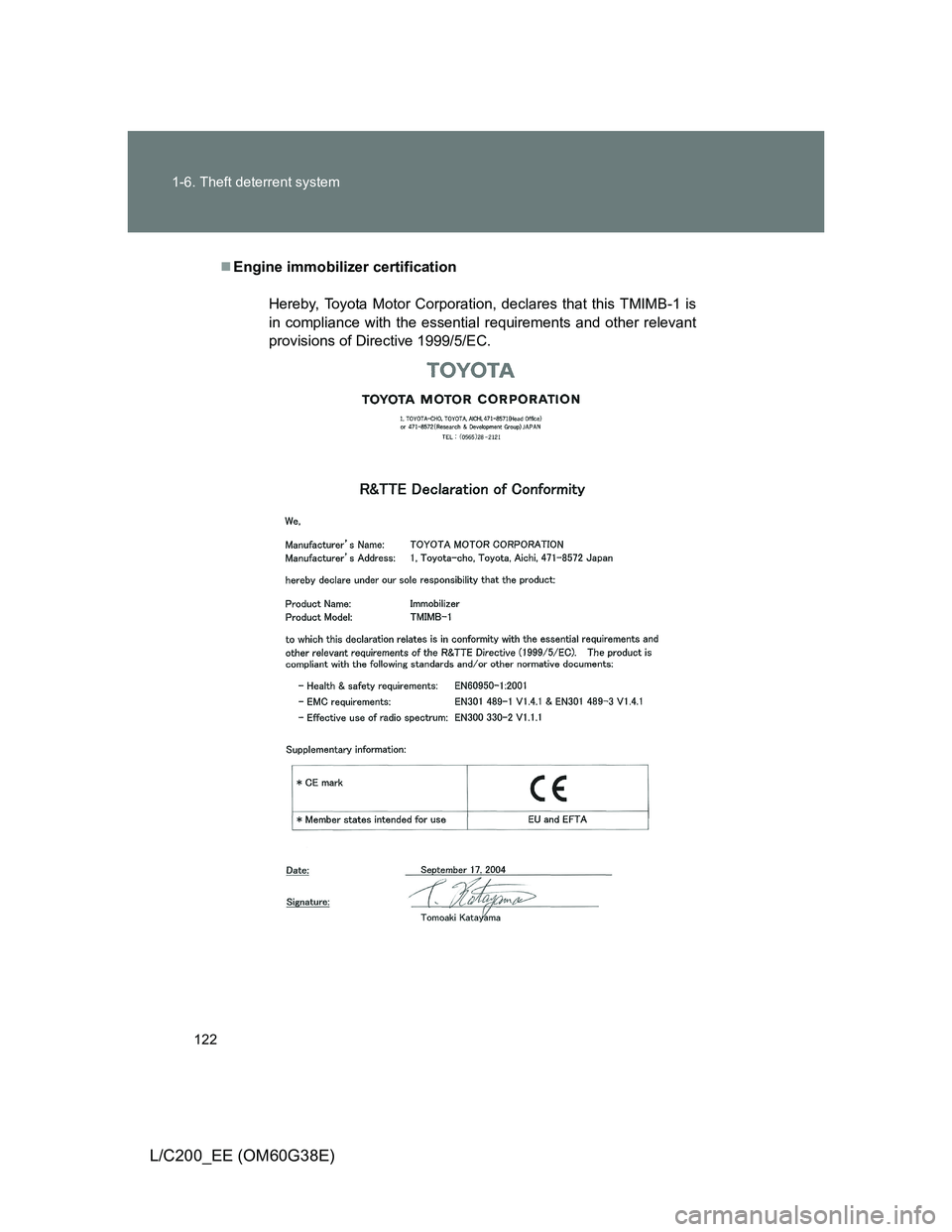

Engine immobilizer certification
Hereby, Toyota Motor Corporation, declares that this TMIMB-1 is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.

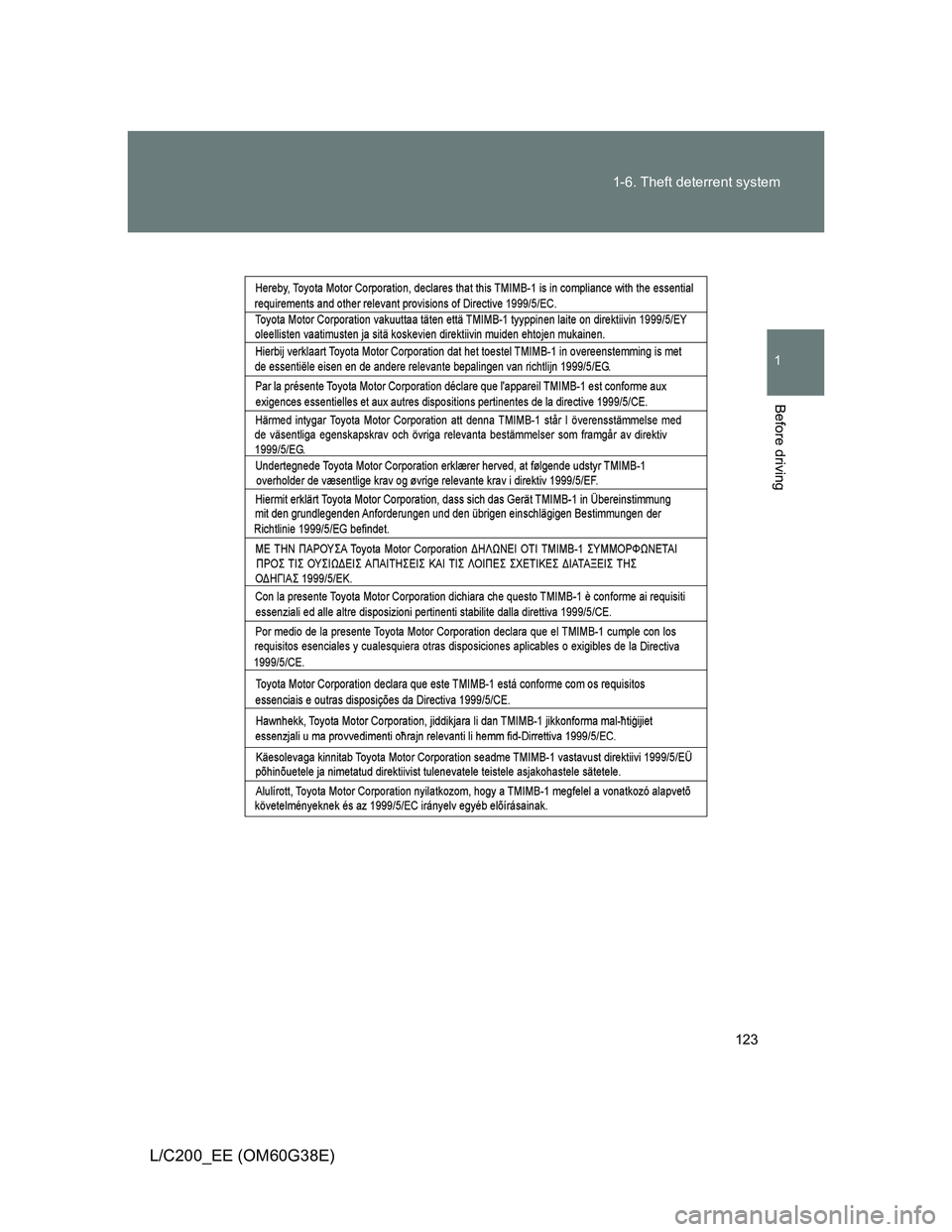

123 1-6. Theft deterrent system
1
Before driving
L/C200_EE (OM60G38E)

124 1-6. Theft deterrent system
L/C200_EE (OM60G38E)

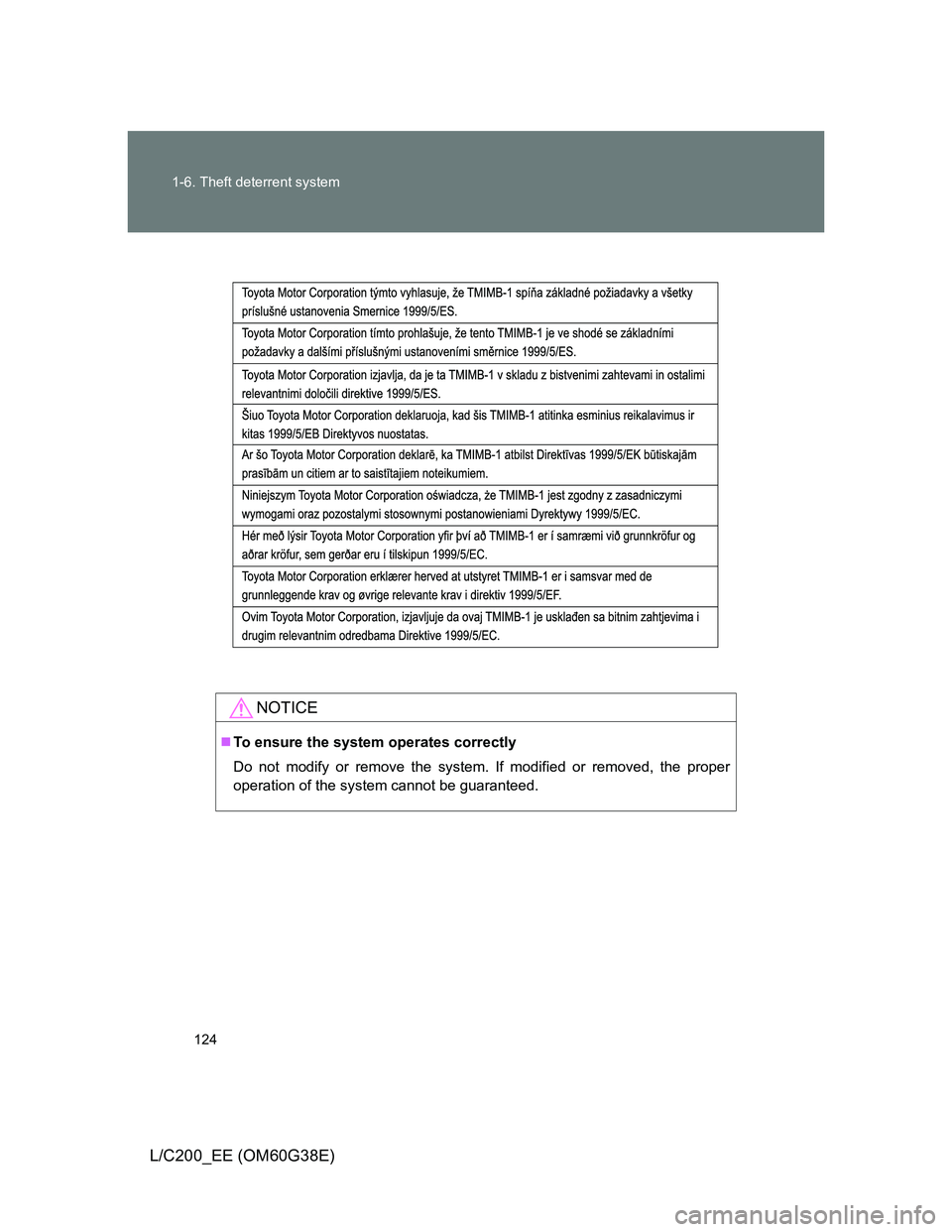

NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

125
1
1-6. Theft deterrent system
Before driving
L/C200_EE (OM60G38E)
Double locking system
Setting the double locking system
Turn the “ENGINE START STOP” switch OFF, have all the passen-
gers exit the vehicle and ensure that all the doors are closed.
Using the entry function:
Press the lock button on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press the
button twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of the
vehicle.
Vehicles employing this sys-
tem have labels on the win-
dow glass of both front doors.

126 1-6. Theft deterrent system
L/C200_EE (OM60G38E)

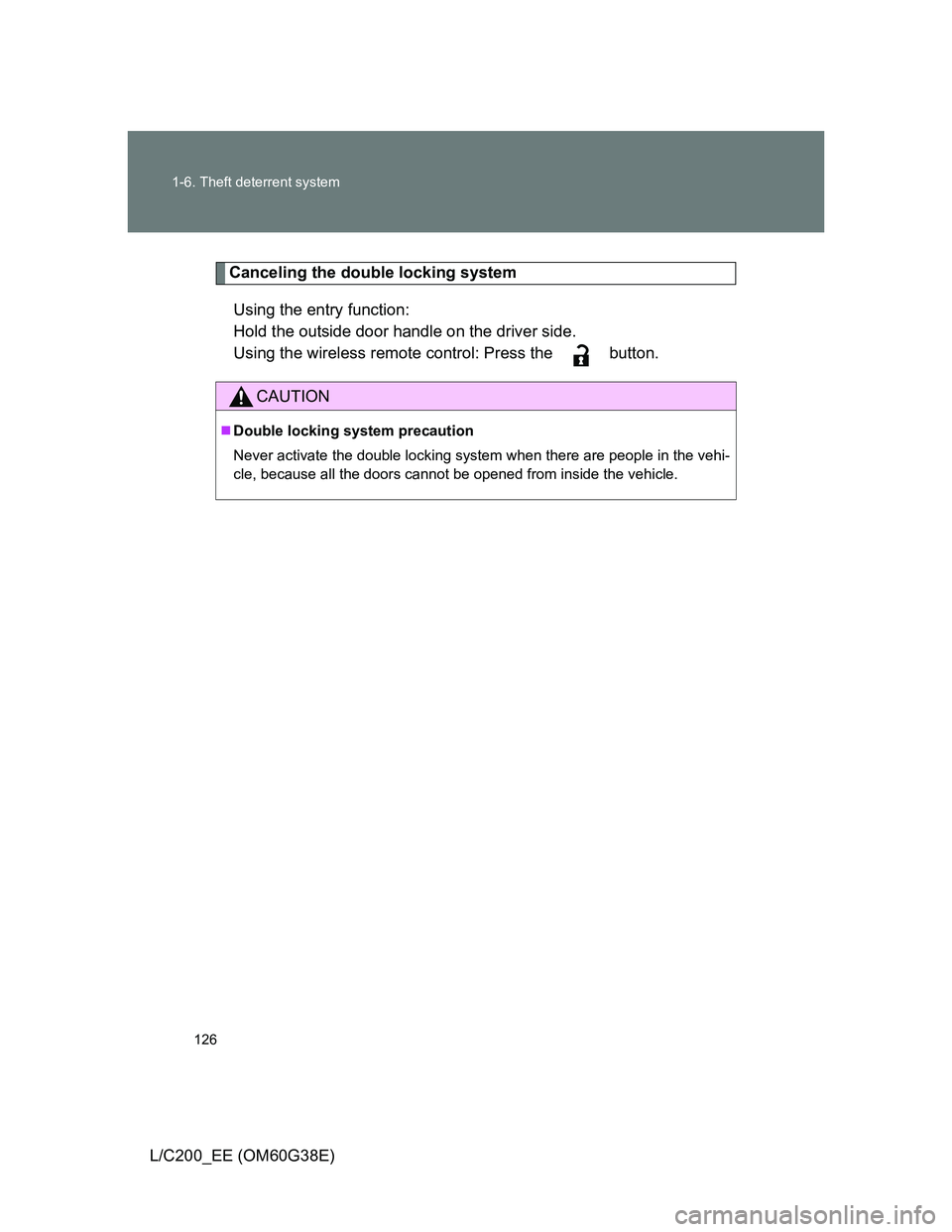

Canceling the double locking system
Using the entry function:
Hold the outside door handle on the driver side.
Using the wireless remote control: Press the
button.
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

127
1
1-6. Theft deterrent system
Before driving
L/C200_EE (OM60G38E)

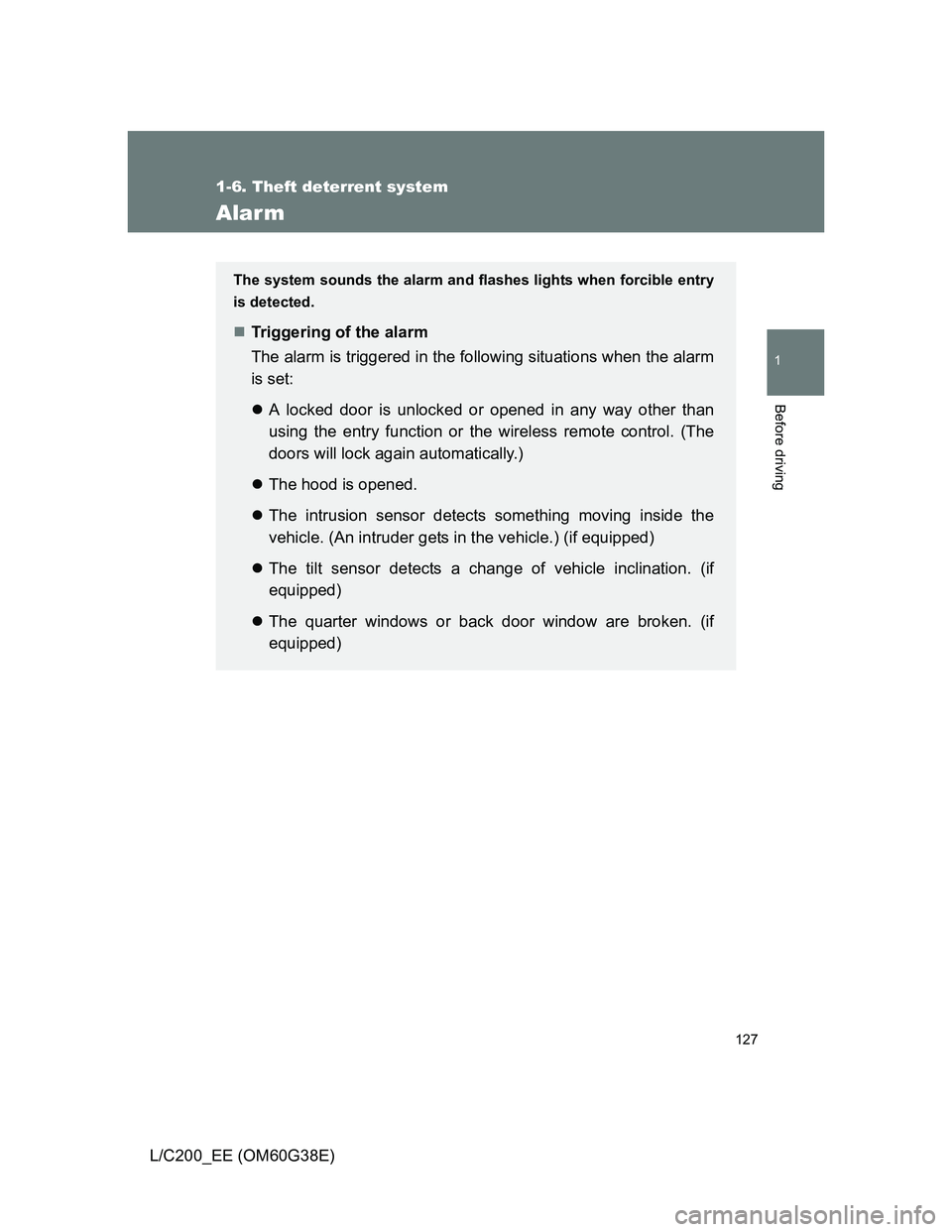

Alarm
The system sounds the alarm and flashes lights when forcible entry
is detected.
Triggering of the alarm
The alarm is triggered in the following situations when the alarm
is set:
A locked door is unlocked or opened in any way other than
using the entry function or the wireless remote control. (The
doors will lock again automatically.)
The hood is opened.
The intrusion sensor detects something moving inside the
vehicle. (An intruder gets in the vehicle.) (if equipped)
The tilt sensor detects a change of vehicle inclination. (if
equipped)
The quarter windows or back door window are broken. (if
equipped)

128 1-6. Theft deterrent system
L/C200_EE (OM60G38E)

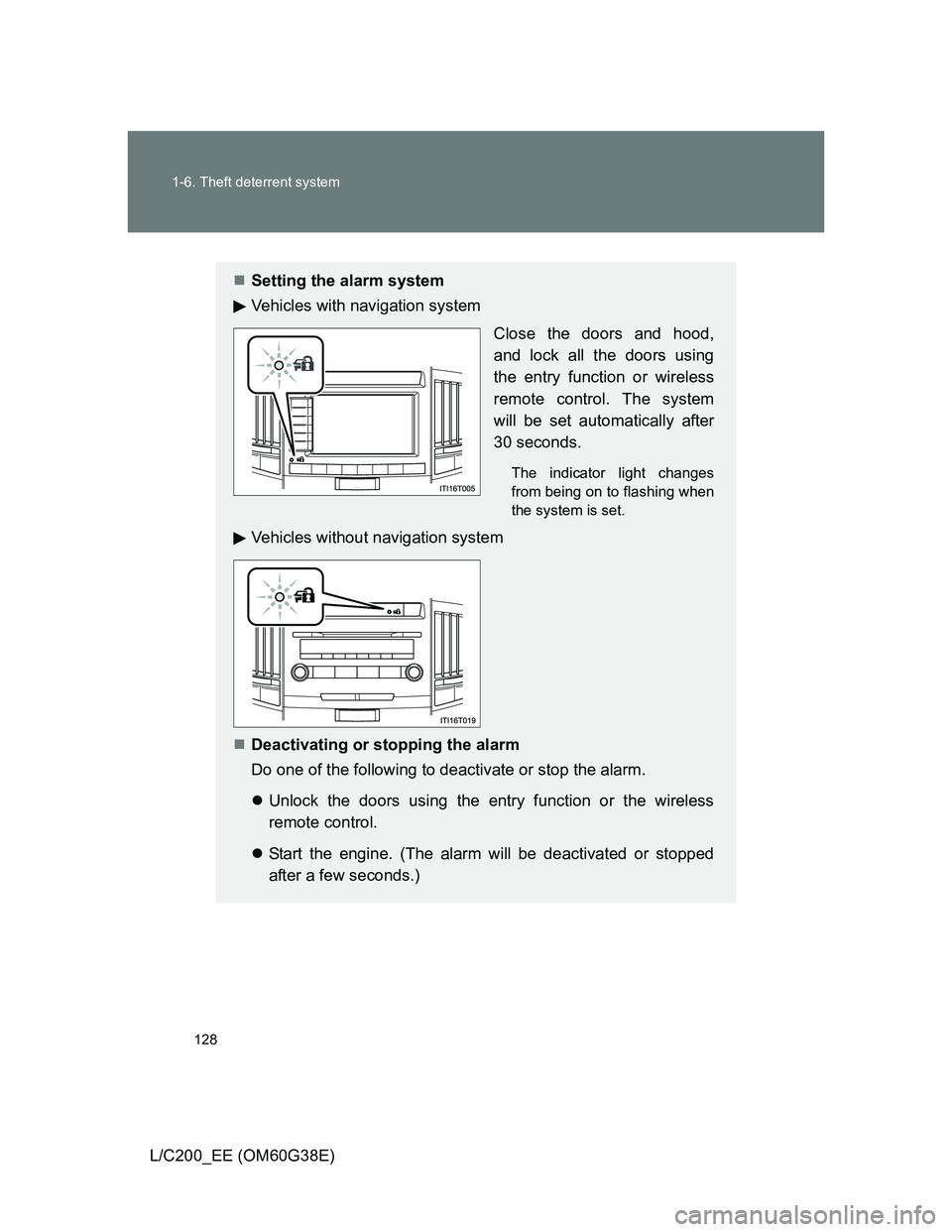

Setting the alarm system
Vehicles with navigation system
Close the doors and hood,
and lock all the doors using
the entry function or wireless
remote control. The system
will be set automatically after
30 seconds.
The indicator light changes
from being on to flashing when
the system is set.
Vehicles without navigation system
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
Unlock the doors using the entry function or the wireless
remote control.
Start the engine. (The alarm will be deactivated or stopped
after a few seconds.)
