2012 TOYOTA LAND CRUISER Owners Manual

57 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)

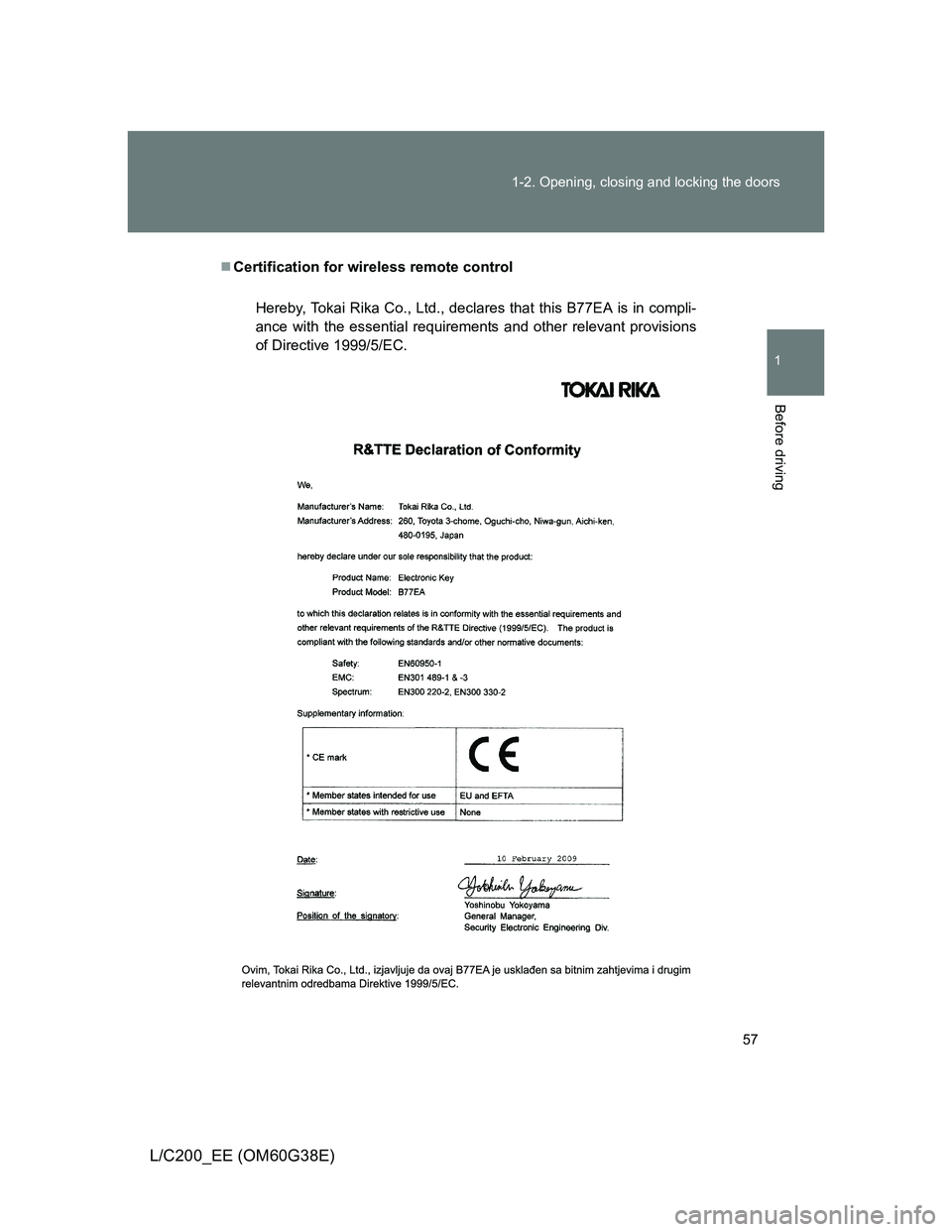

Certification for wireless remote control
Hereby, Tokai Rika Co., Ltd., declares that this B77EA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

58 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)

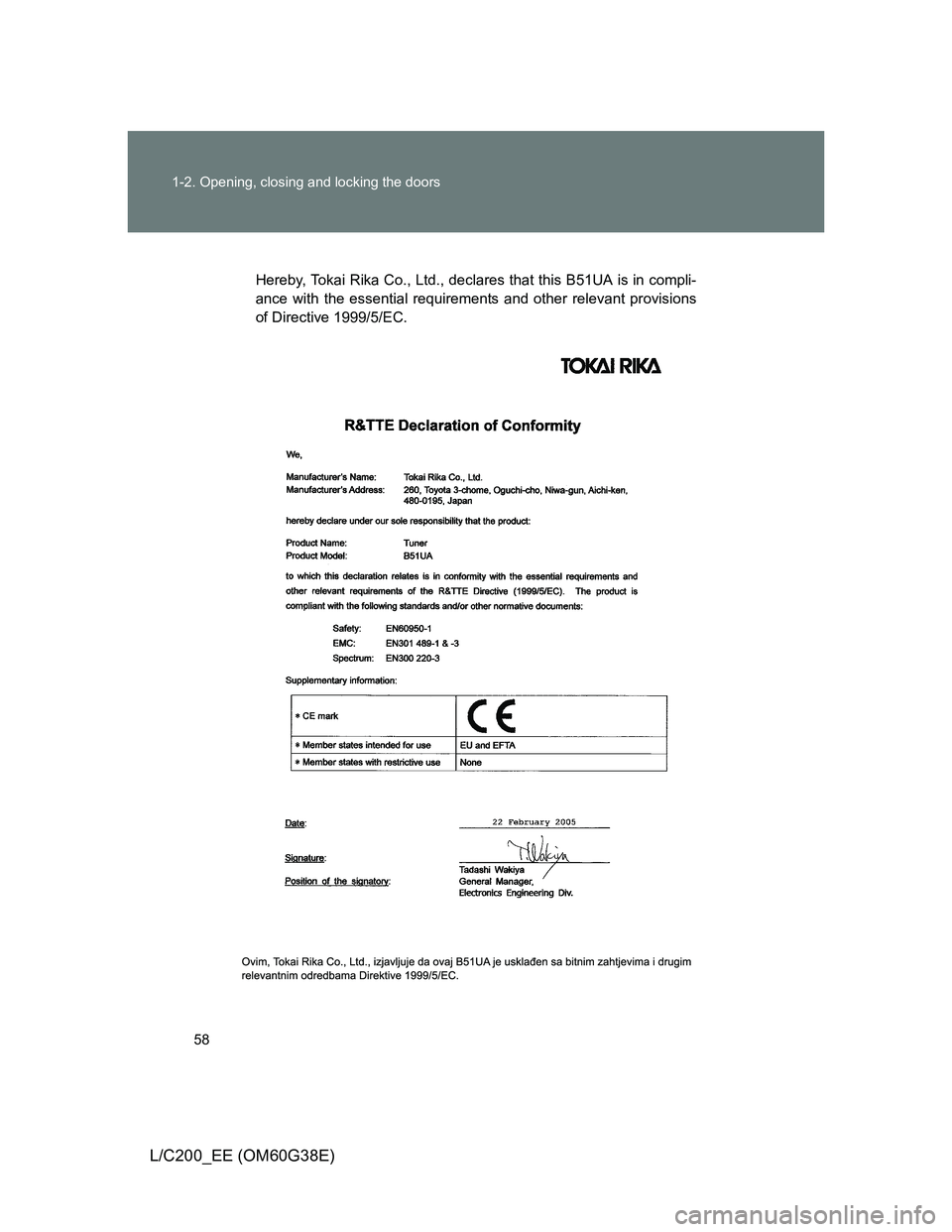

Hereby, Tokai Rika Co., Ltd., declares that this B51UA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

59 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)

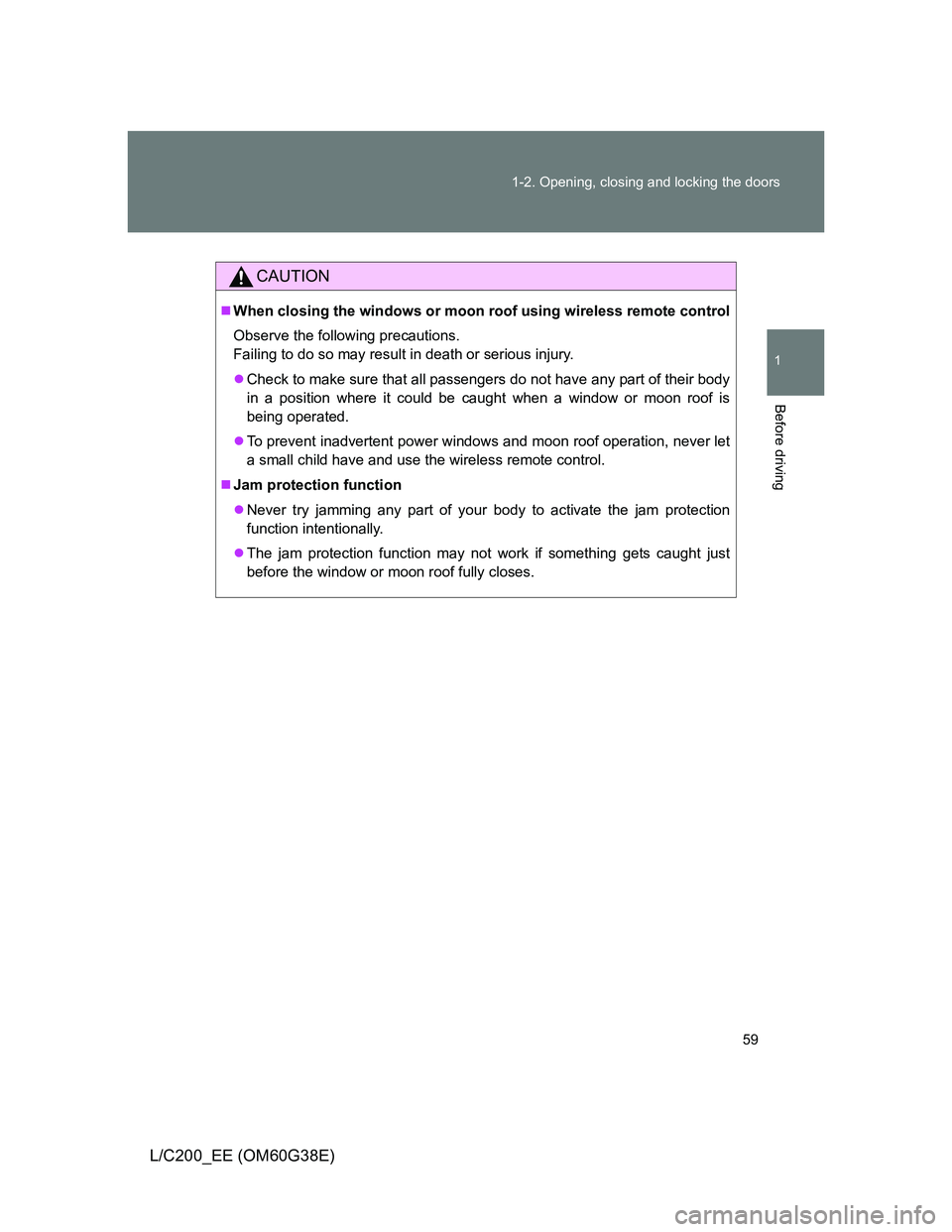

CAUTION
When closing the windows or moon roof using wireless remote control
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window or moon roof is
being operated.
To prevent inadvertent power windows and moon roof operation, never let
a small child have and use the wireless remote control.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the window or moon roof fully closes.

60
1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)

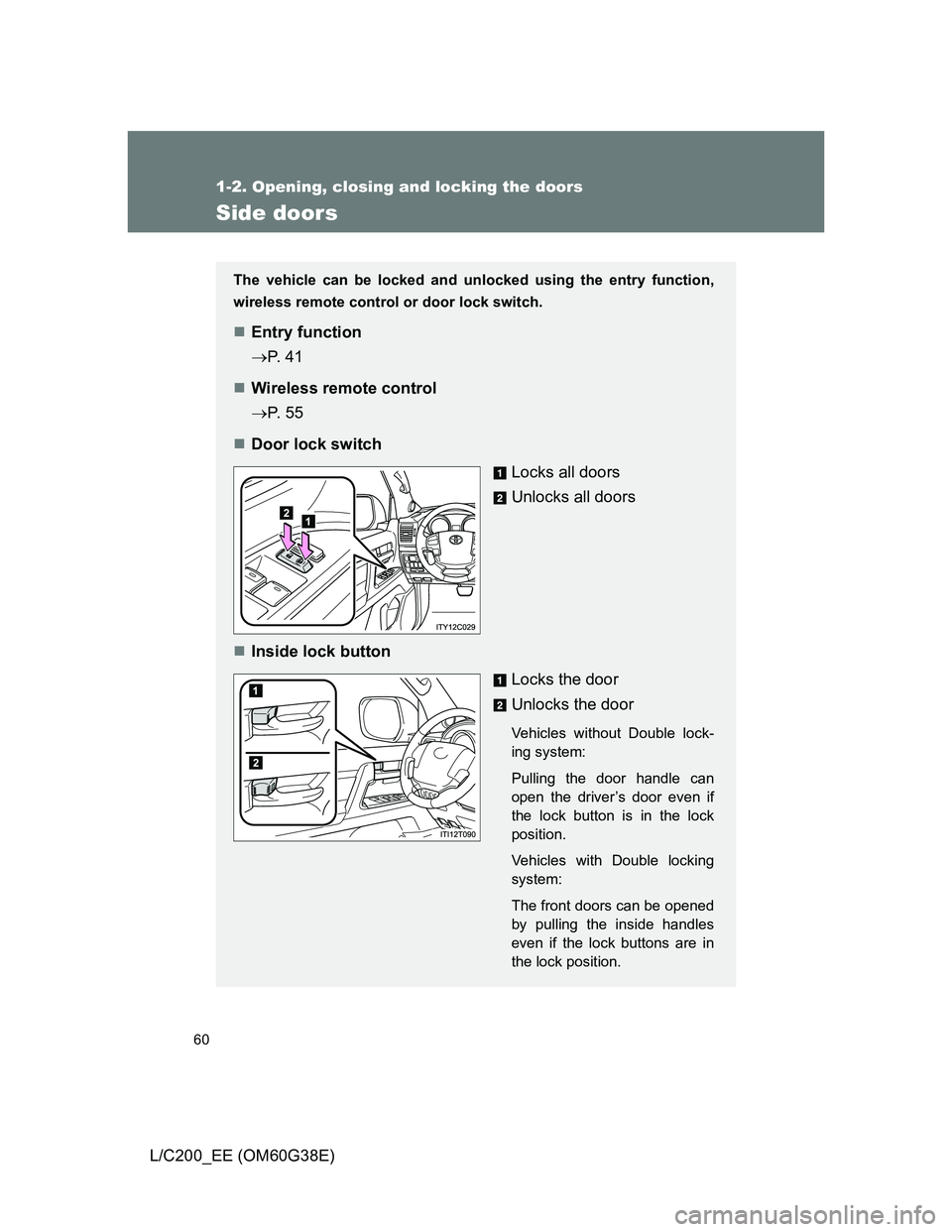

Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
Entry function
P. 4 1
Wireless remote control
P. 5 5
Door lock switch
Locks all doors
Unlocks all doors
Inside lock button
Locks the door
Unlocks the door
Vehicles without Double lock-
ing system:
Pulling the door handle can
open the driver’s door even if
the lock button is in the lock
position.
Vehicles with Double locking
system:
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

61 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)

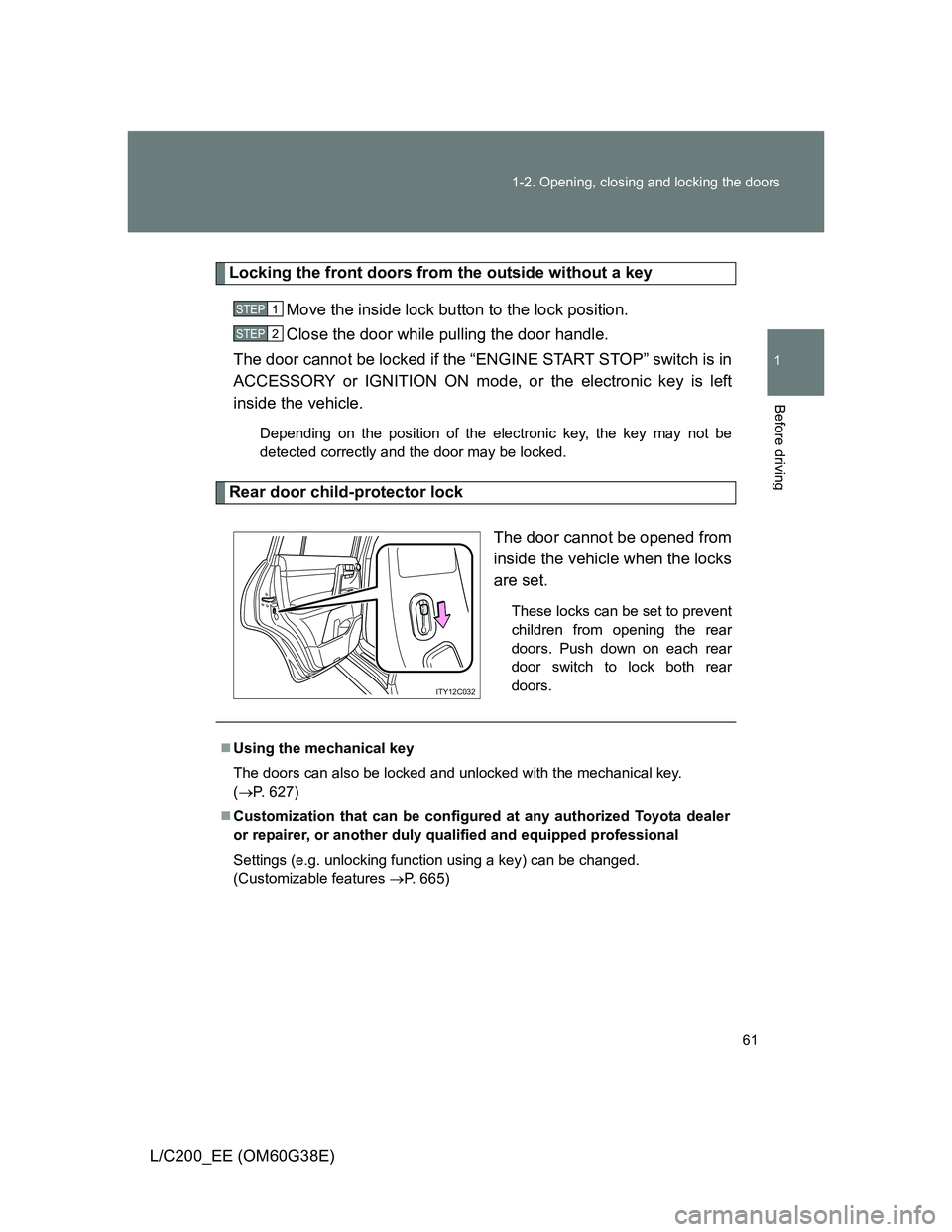

Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP1
STEP2
ITY12C032
Using the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(P. 627)
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 665)

62 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)

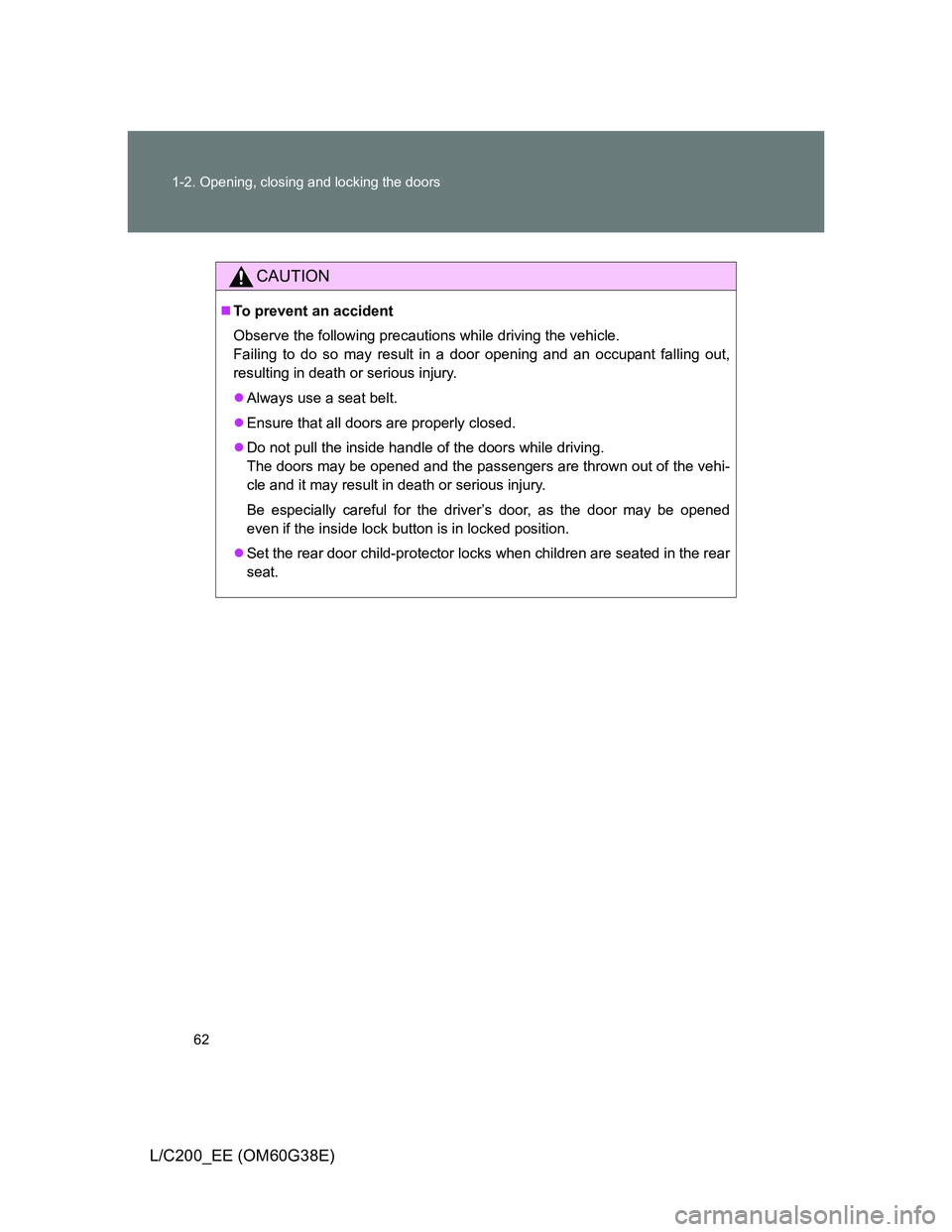

CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in death or serious injury.
Be especially careful for the driver’s door, as the door may be opened
even if the inside lock button is in locked position.
Set the rear door child-protector locks when children are seated in the rear
seat.

63
1
1-2. Opening, closing and locking the doors
Before driving
L/C200_EE (OM60G38E)

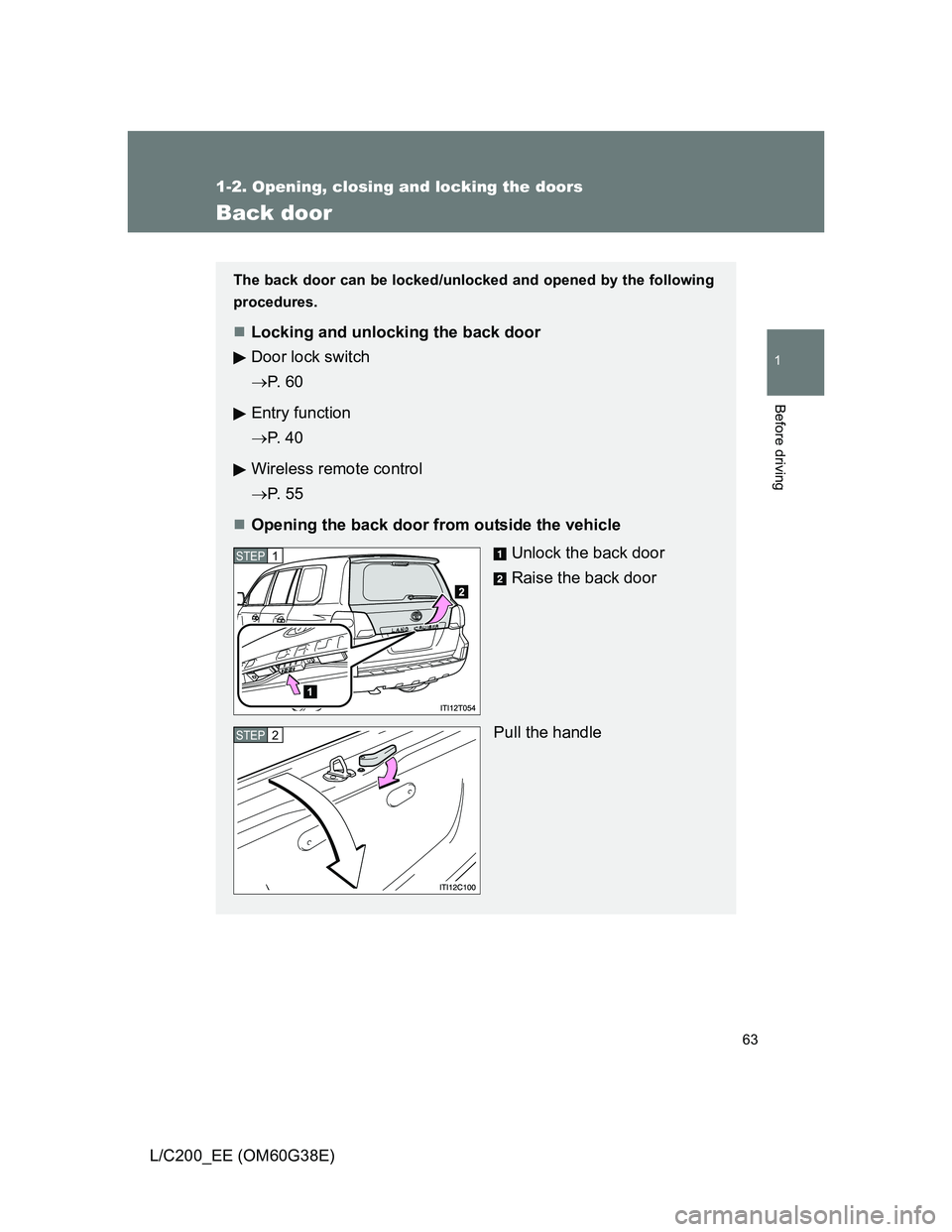

Back door
The back door can be locked/unlocked and opened by the following
procedures.
Locking and unlocking the back door
Door lock switch
P. 6 0
Entry function
P. 4 0
Wireless remote control
P. 5 5
Opening the back door from outside the vehicle
Unlock the back door
Raise the back door
Pull the handle
STEP1
STEP2

64 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)

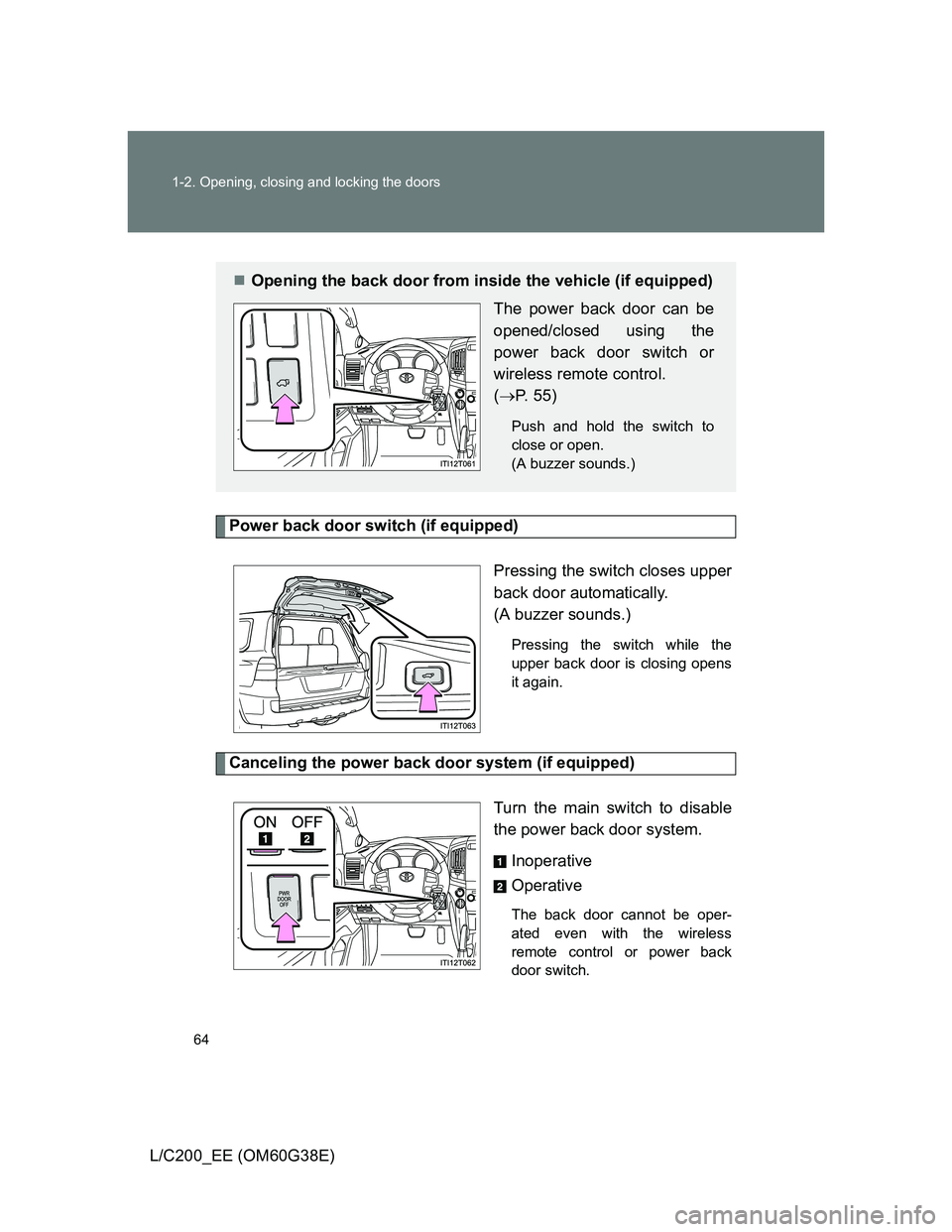

Power back door switch (if equipped)
Pressing the switch closes upper
back door automatically.
(A buzzer sounds.)
Pressing the switch while the
upper back door is closing opens
it again.
Canceling the power back door system (if equipped)
Turn the main switch to disable
the power back door system.
Inoperative
Operative
The back door cannot be oper-
ated even with the wireless
remote control or power back
door switch.
Opening the back door from inside the vehicle (if equipped)
The power back door can be
opened/closed using the
power back door switch or
wireless remote control.
(P. 55)
Push and hold the switch to
close or open.
(A buzzer sounds.)
