2012 TOYOTA LAND CRUISER Owners Manual

89 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving

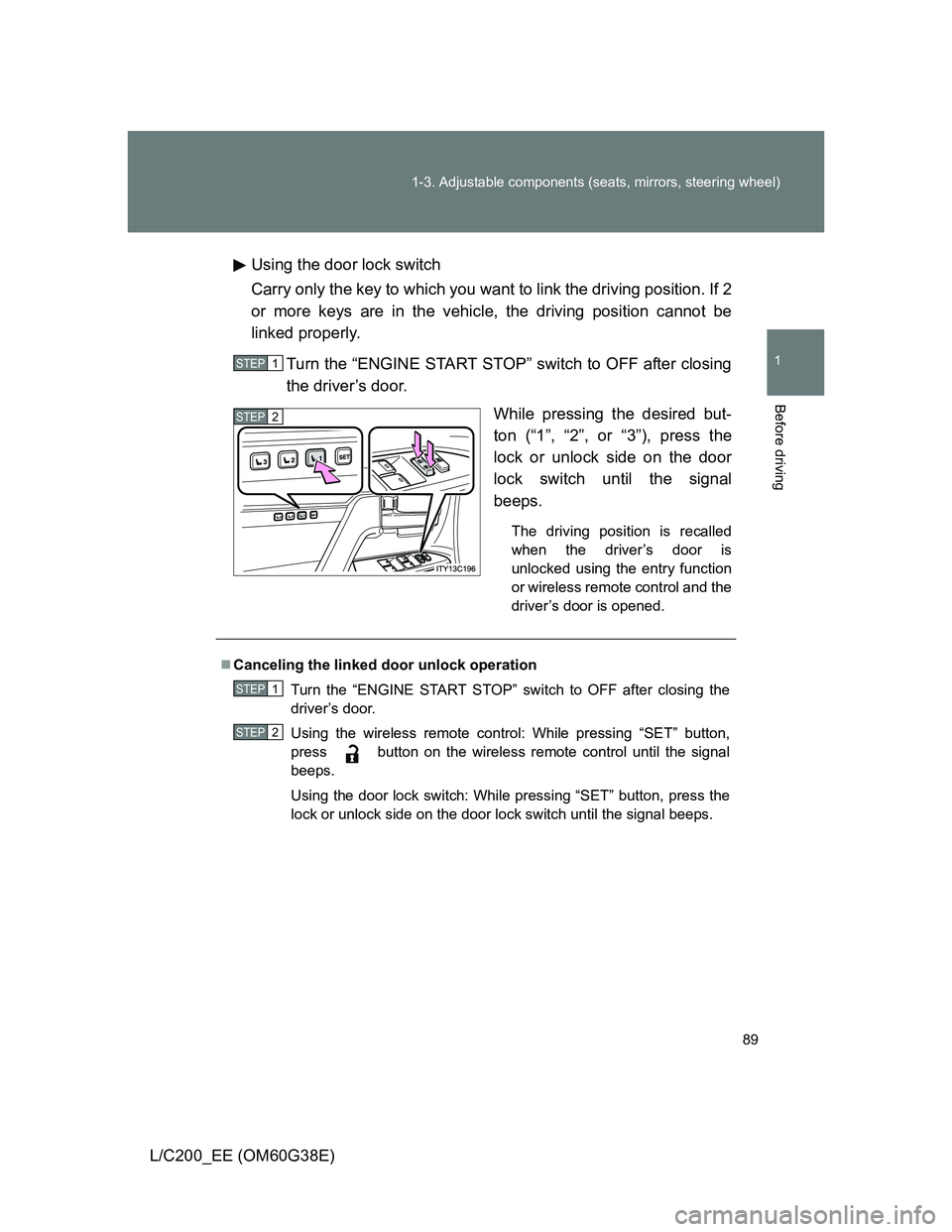

L/C200_EE (OM60G38E)Using the door lock switch
Carry only the key to which you want to link the driving position. If 2
or more keys are in the vehicle, the driving position cannot be
linked properly.
Turn the “ENGINE START STOP” switch to OFF after closing
the driver’s door.
While pressing the desired but-
ton (“1”, “2”, or “3”), press the
lock or unlock side on the door
lock switch until the signal
beeps.
The driving position is recalled
when the driver’s door is
unlocked using the entry function
or wireless remote control and the
driver’s door is opened.
STEP1
STEP2
Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch to OFF after closing the
driver’s door.
Using the wireless remote control: While pressing “SET” button,
press button on the wireless remote control until the signal
beeps.
Using the door lock switch: While pressing “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
STEP1
STEP2

90 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)

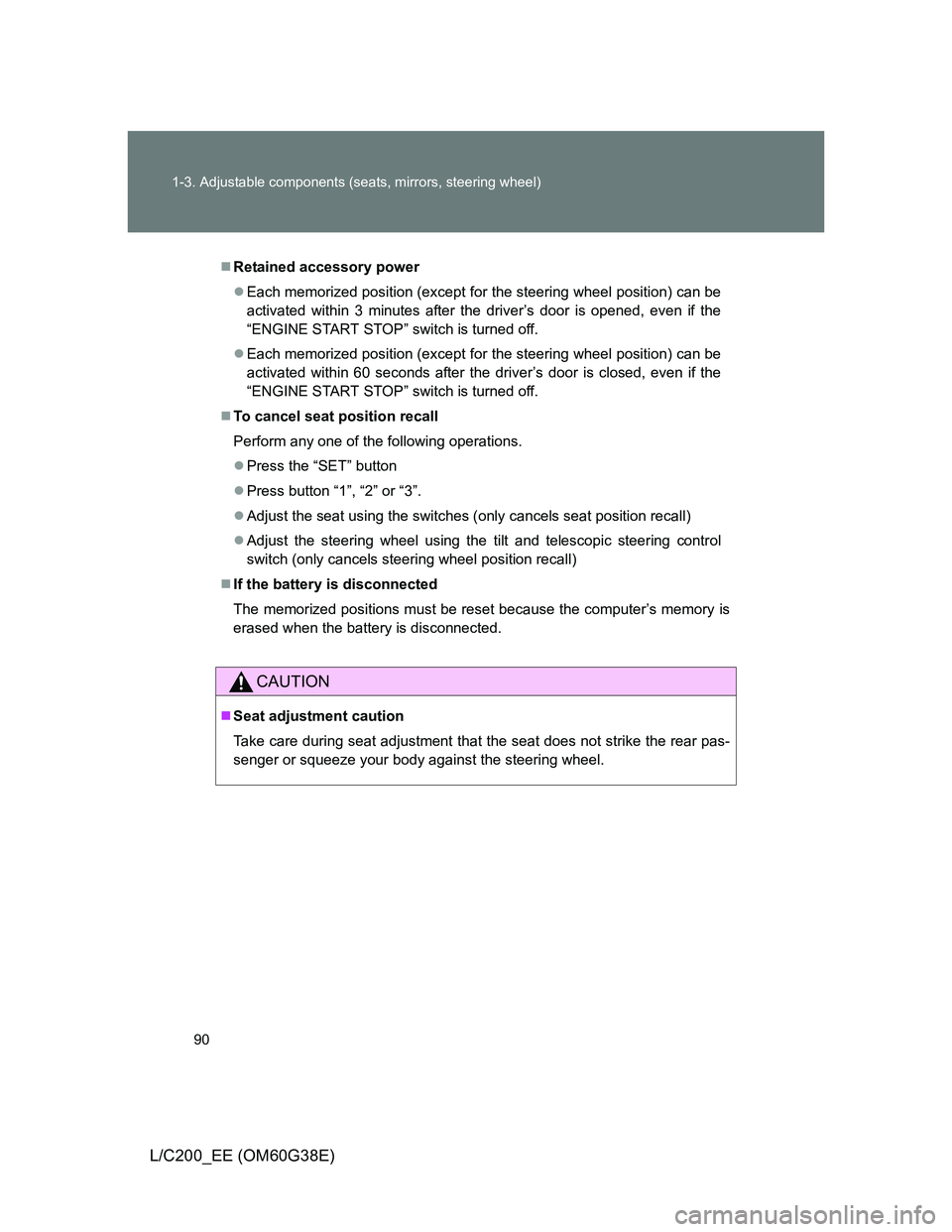

Retained accessory power
Each memorized position (except for the steering wheel position) can be
activated within 3 minutes after the driver’s door is opened, even if the
“ENGINE START STOP” switch is turned off.
Each memorized position (except for the steering wheel position) can be
activated within 60 seconds after the driver’s door is closed, even if the
“ENGINE START STOP” switch is turned off.
To cancel seat position recall
Perform any one of the following operations.
Press the “SET” button
Press button “1”, “2” or “3”.
Adjust the seat using the switches (only cancels seat position recall)
Adjust the steering wheel using the tilt and telescopic steering control
switch (only cancels steering wheel position recall)
If the battery is disconnected
The memorized positions must be reset because the computer’s memory is
erased when the battery is disconnected.
CAUTION
Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas-
senger or squeeze your body against the steering wheel.

91
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
L/C200_EE (OM60G38E)

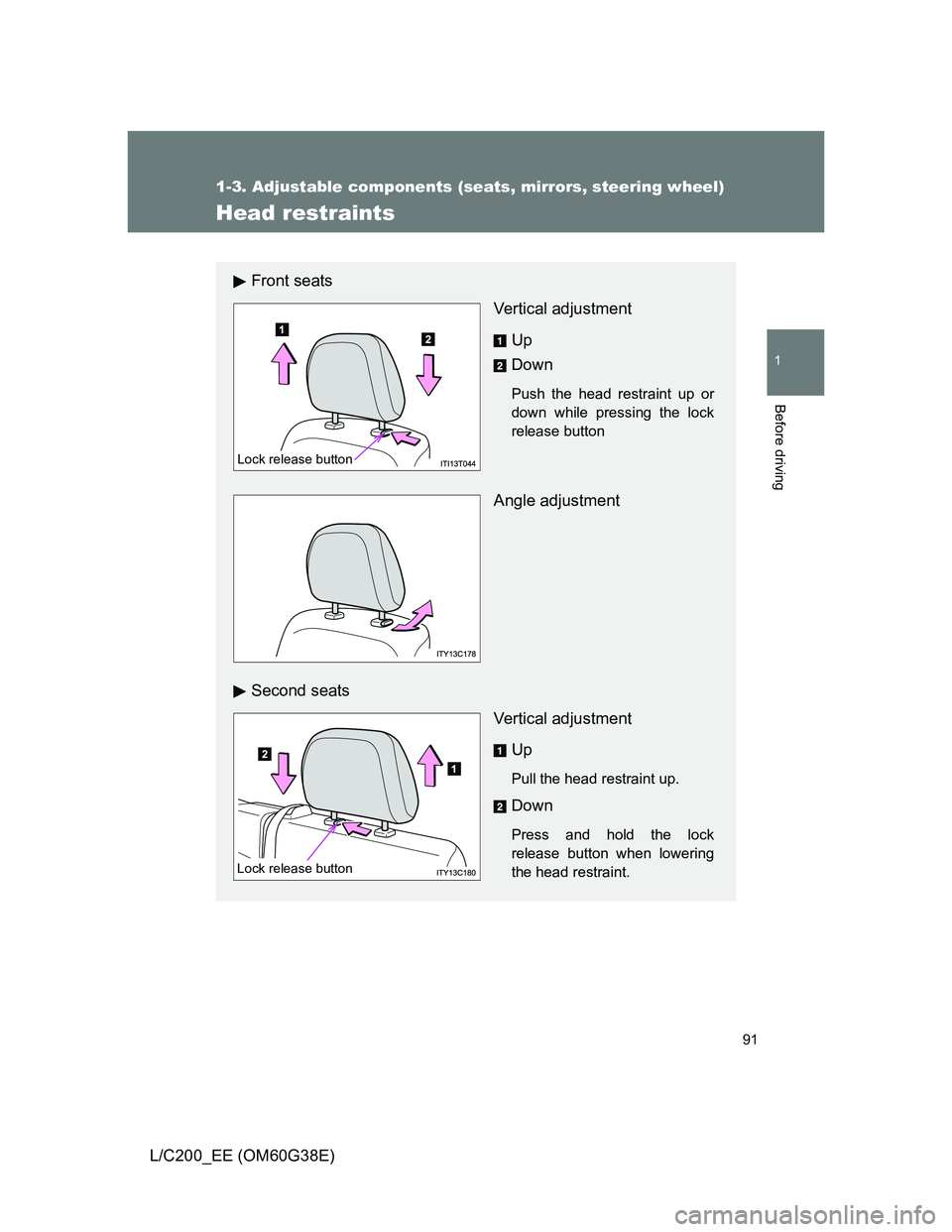

Head restraints
Front seats
Vertical adjustment
Up
Down
Push the head restraint up or
down while pressing the lock
release button
Angle adjustment
Second seats
Vertical adjustment
Up
Pull the head restraint up.
Down
Press and hold the lock
release button when lowering
the head restraint.
Lock release button
Lock release button

92 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)

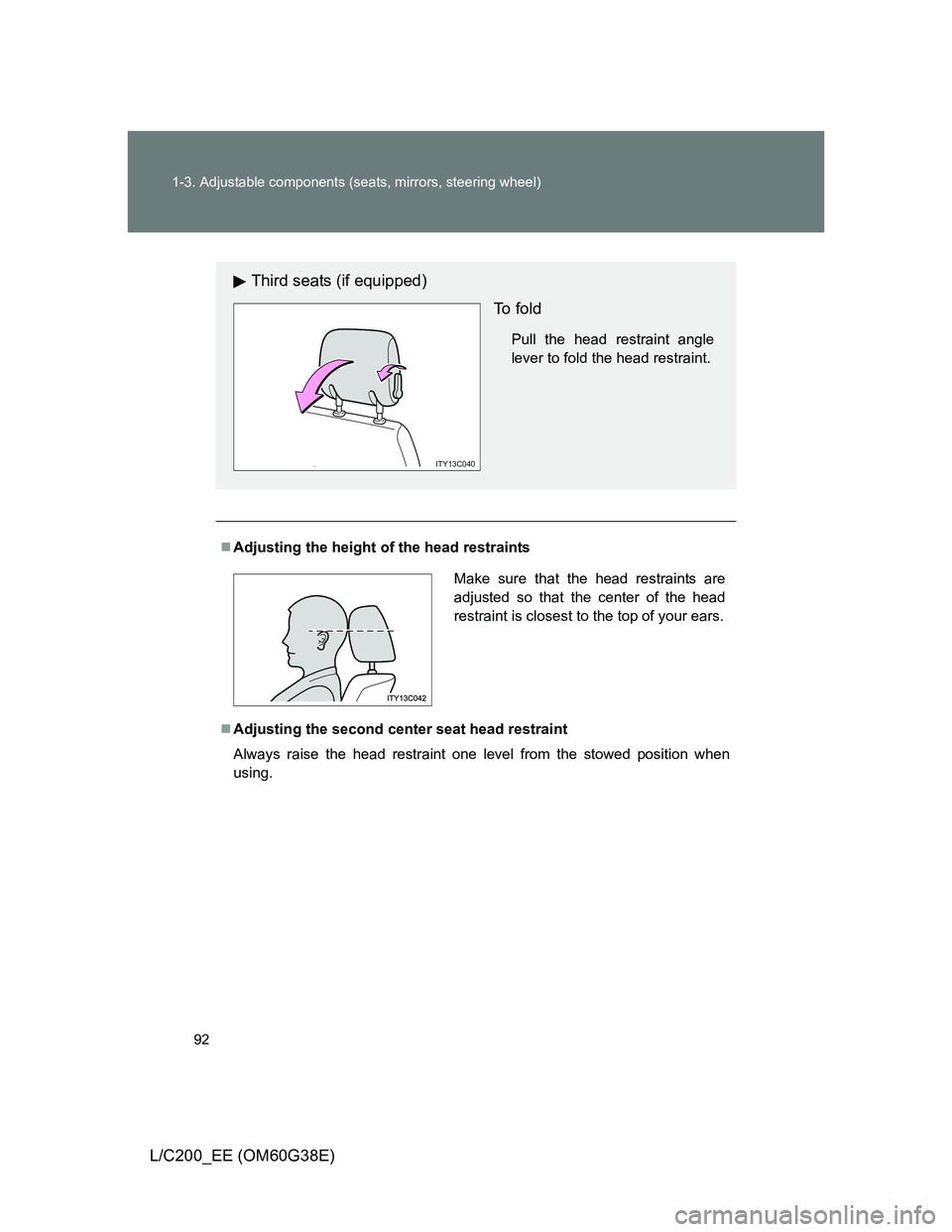

Adjusting the height of the head restraints
Adjusting the second center seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Third seats (if equipped)
To f o l d
Pull the head restraint angle
lever to fold the head restraint.
ITY13C040
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

93 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
L/C200_EE (OM60G38E)

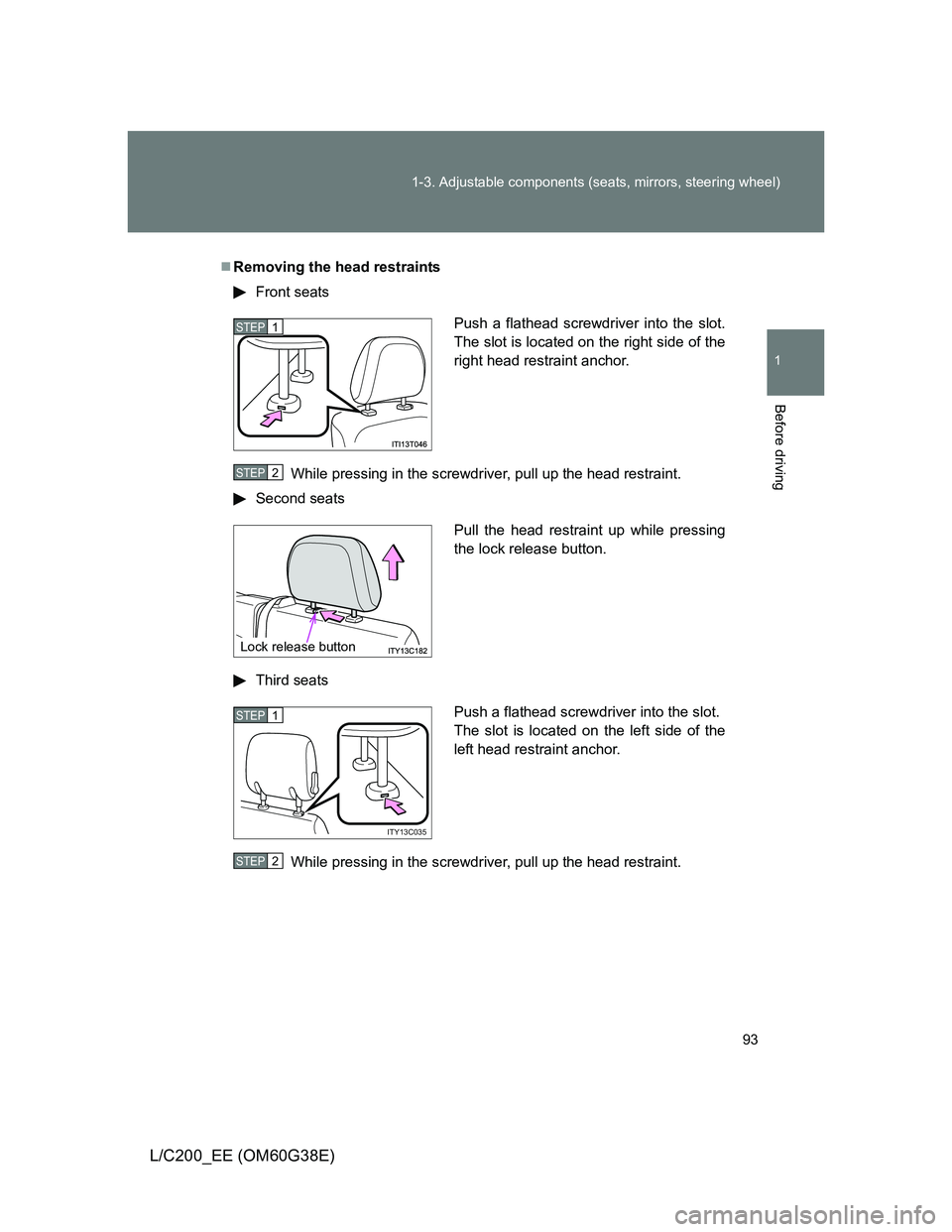

Removing the head restraints
Front seats
While pressing in the screwdriver, pull up the head restraint.
Second seats
Third seats
While pressing in the screwdriver, pull up the head restraint.
Push a flathead screwdriver into the slot.
The slot is located on the right side of the
right head restraint anchor.STEP1
STEP2
Pull the head restraint up while pressing
the lock release button.
Lock release button
Push a flathead screwdriver into the slot.
The slot is located on the left side of the
left head restraint anchor.
ITY13C035
STEP1
STEP2

94 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)

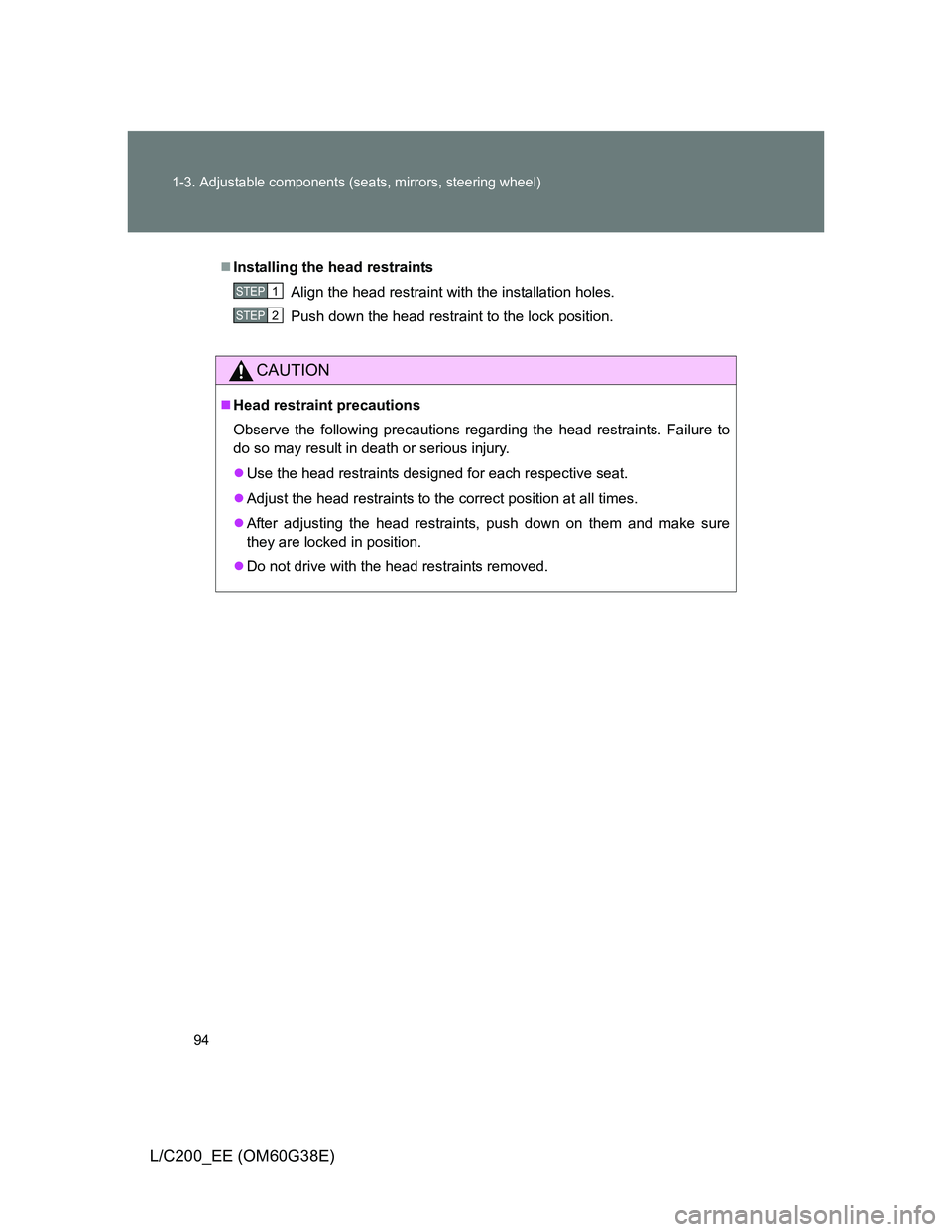

Installing the head restraints
Align the head restraint with the installation holes.
Push down the head restraint to the lock position.
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.
STEP1
STEP2

95
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
L/C200_EE (OM60G38E)

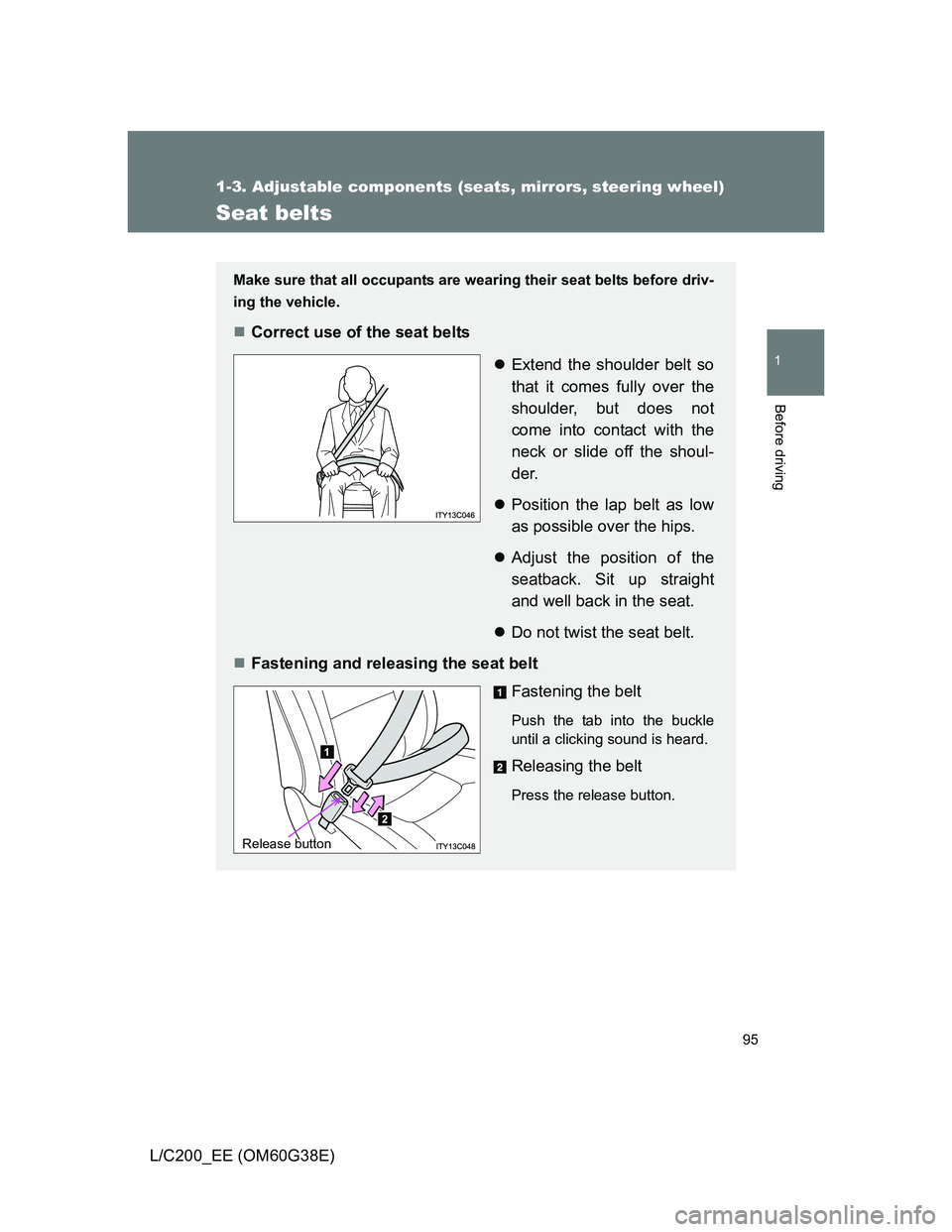

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.
Release button

96 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)

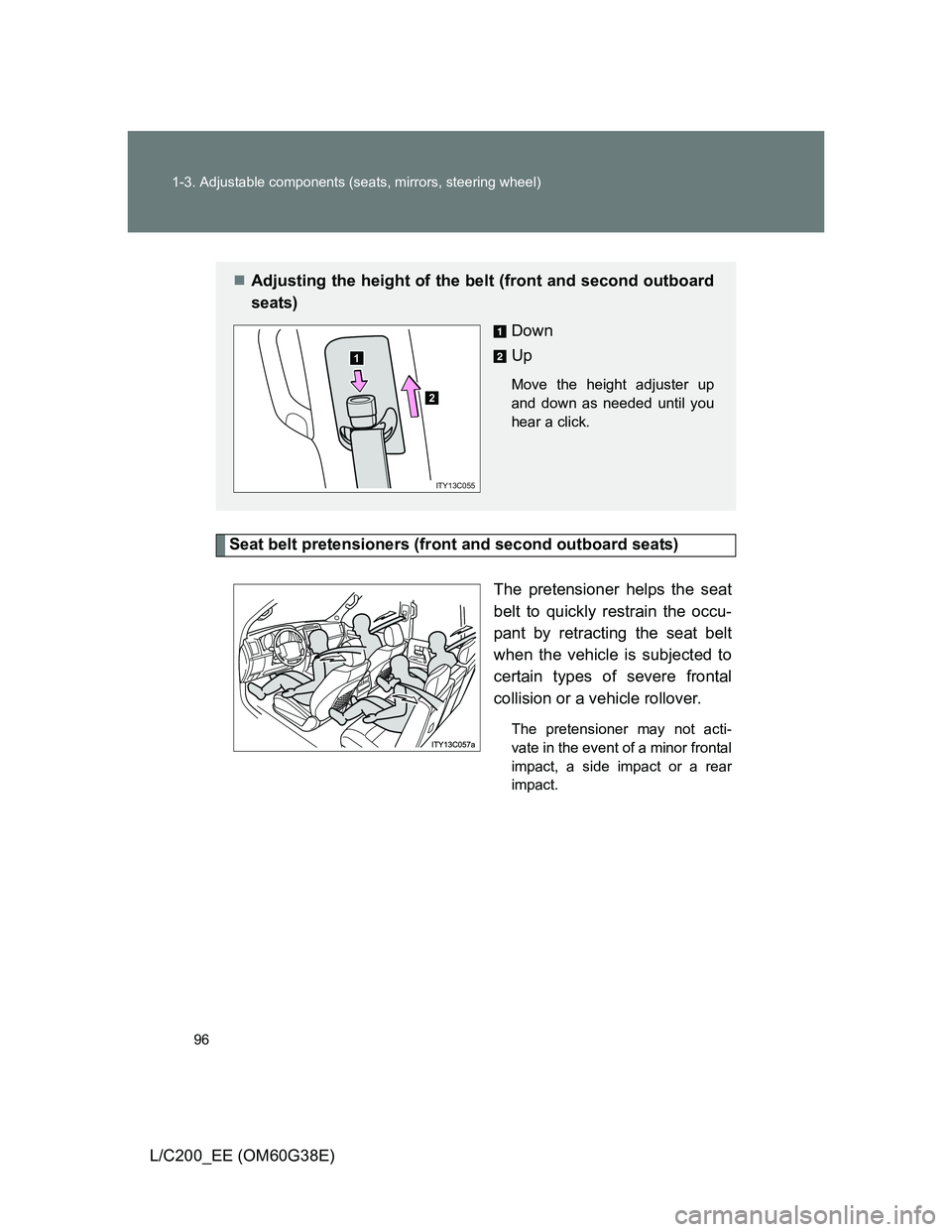

Seat belt pretensioners (front and second outboard seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision or a vehicle rollover.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
Adjusting the height of the belt (front and second outboard
seats)
Down
Up
Move the height adjuster up
and down as needed until you
hear a click.
1
2
ITY13C055
