273 2-4. Using other driving systems
2
When driving
L/C200_EE (OM60G38E)

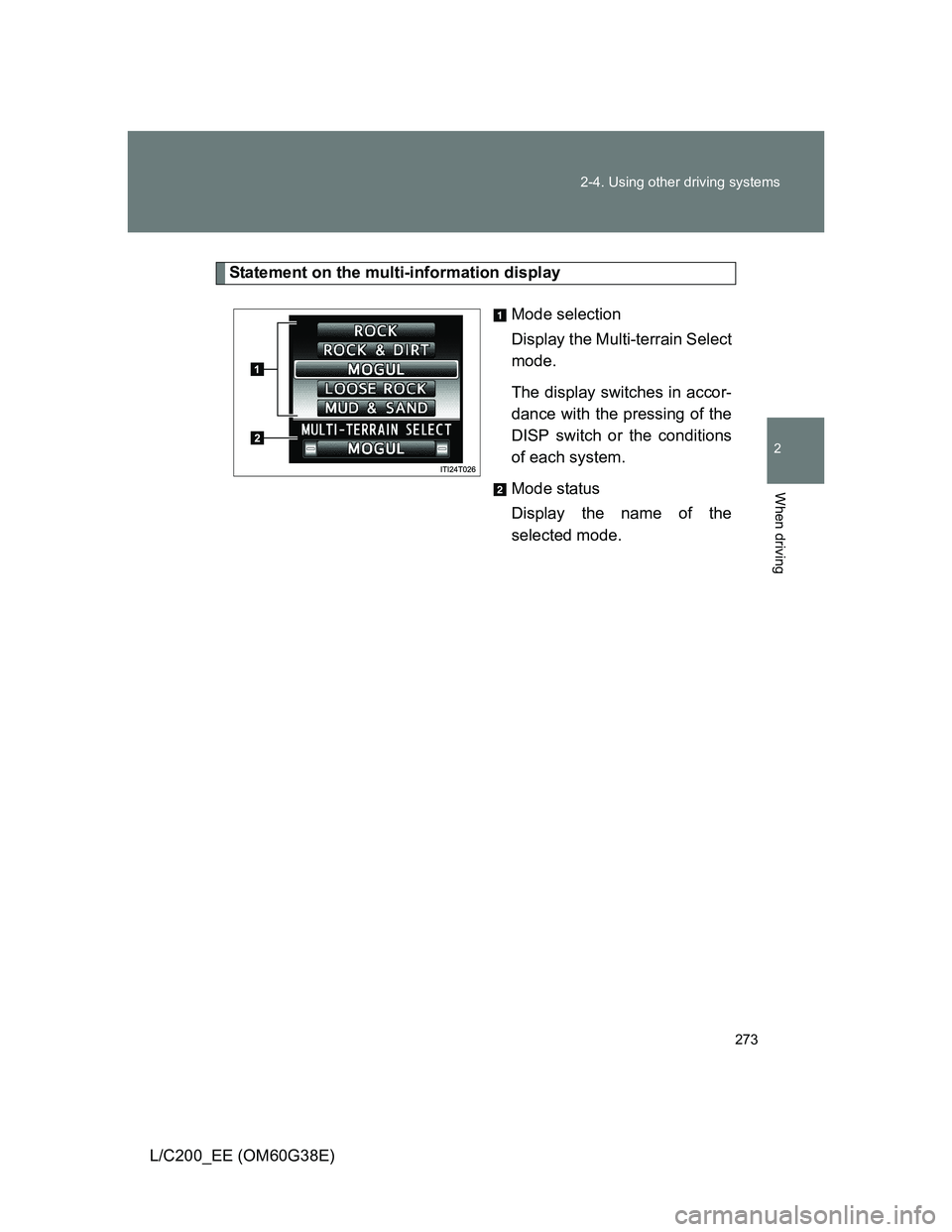

Statement on the multi-information display
Mode selection
Display the Multi-terrain Select
mode.
The display switches in accor-
dance with the pressing of the
DISP switch or the conditions
of each system.
Mode status
Display the name of the
selected mode.

274 2-4. Using other driving systems
L/C200_EE (OM60G38E)

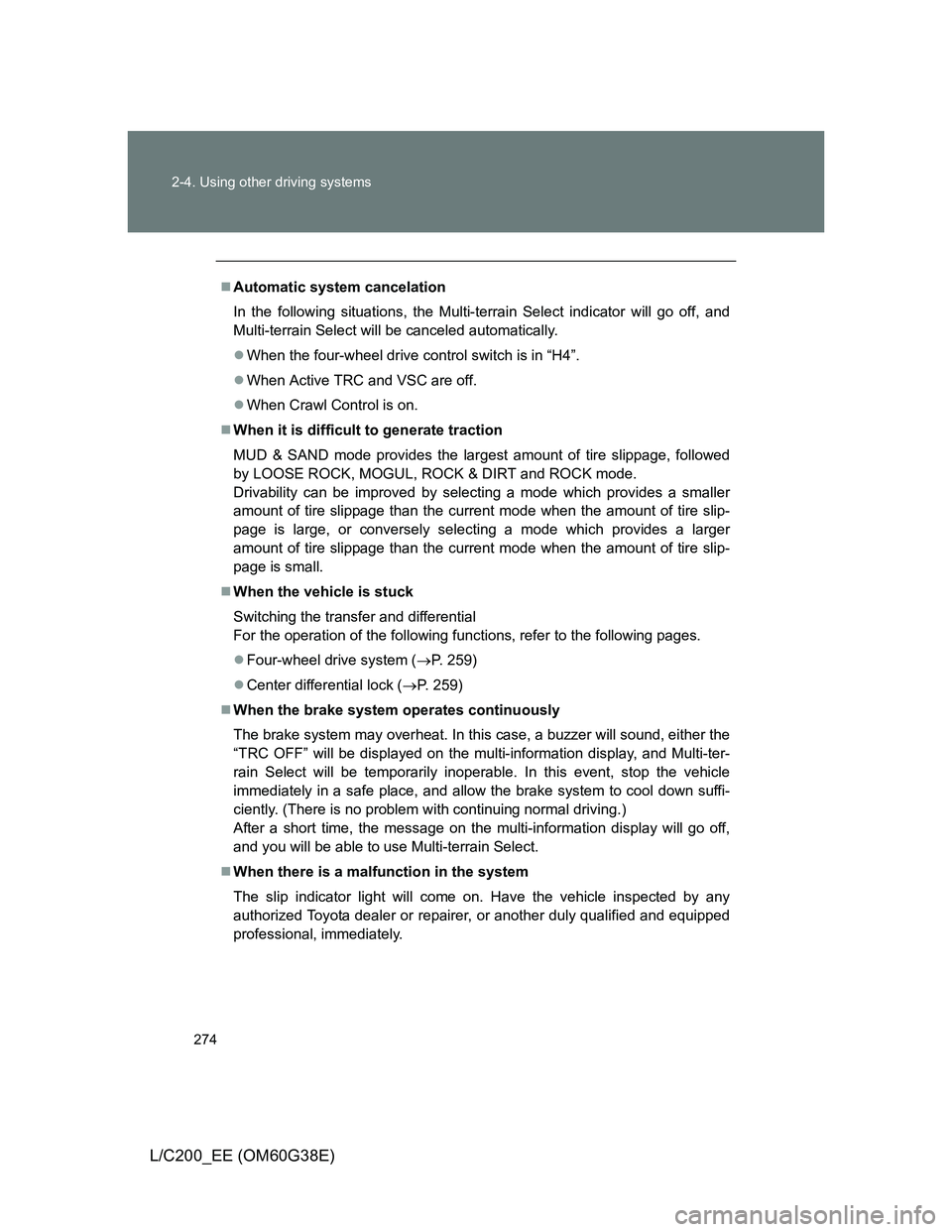

Automatic system cancelation
In the following situations, the Multi-terrain Select indicator will go off, and
Multi-terrain Select will be canceled automatically.
When the four-wheel drive control switch is in “H4”.
When Active TRC and VSC are off.
When Crawl Control is on.
When it is difficult to generate traction
MUD & SAND mode provides the largest amount of tire slippage, followed
by LOOSE ROCK, MOGUL, ROCK & DIRT and ROCK mode.
Drivability can be improved by selecting a mode which provides a smaller
amount of tire slippage than the current mode when the amount of tire slip-
page is large, or conversely selecting a mode which provides a larger
amount of tire slippage than the current mode when the amount of tire slip-
page is small.
When the vehicle is stuck
Switching the transfer and differential
For the operation of the following functions, refer to the following pages.
Four-wheel drive system (P. 259)
Center differential lock (P. 259)
When the brake system operates continuously
The brake system may overheat. In this case, a buzzer will sound, either the
“TRC OFF” will be displayed on the multi-information display, and Multi-ter-
rain Select will be temporarily inoperable. In this event, stop the vehicle
immediately in a safe place, and allow the brake system to cool down suffi-
ciently. (There is no problem with continuing normal driving.)
After a short time, the message on the multi-information display will go off,
and you will be able to use Multi-terrain Select.
When there is a malfunction in the system
The slip indicator light will come on. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, immediately.

275 2-4. Using other driving systems
2
When driving
L/C200_EE (OM60G38E)

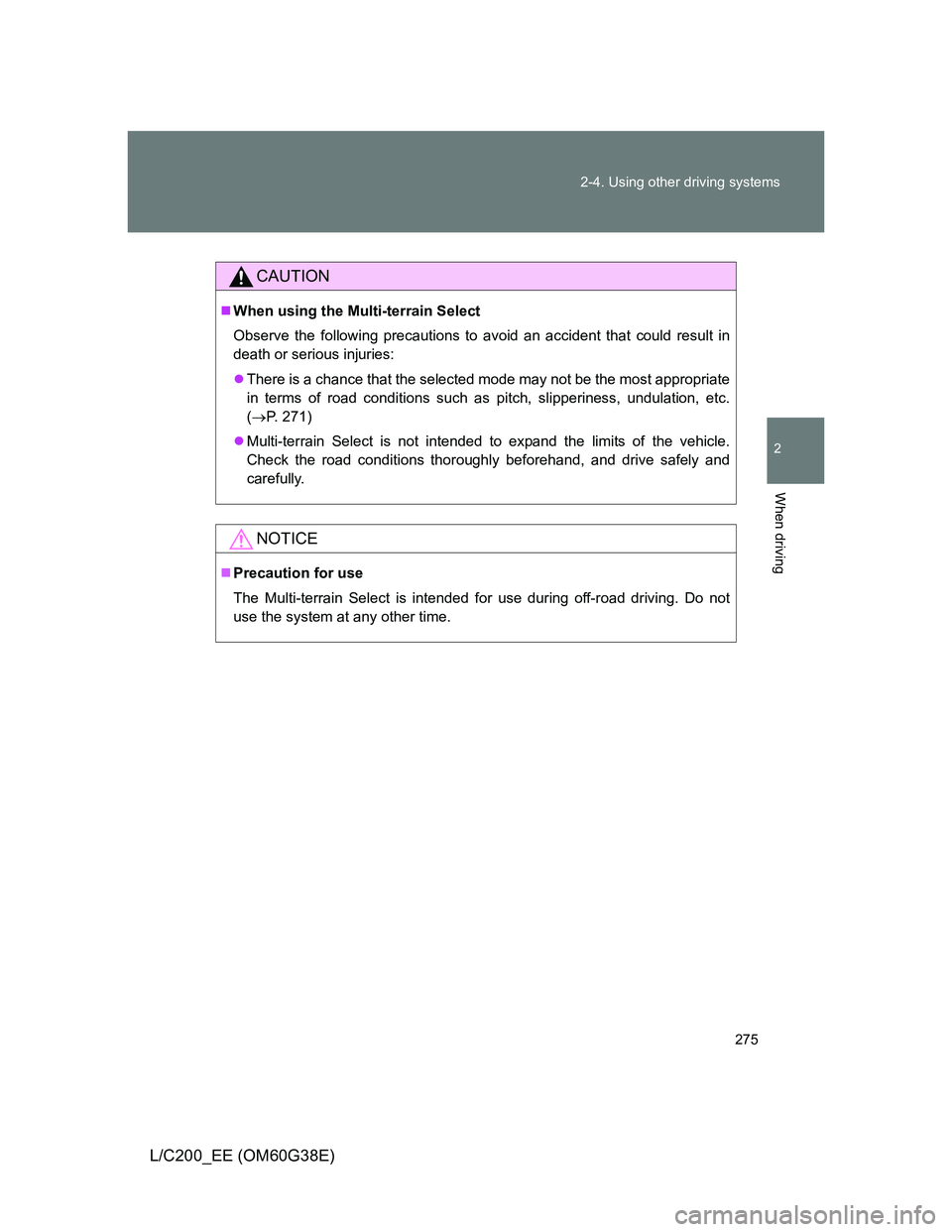

CAUTION
When using the Multi-terrain Select
Observe the following precautions to avoid an accident that could result in
death or serious injuries:
There is a chance that the selected mode may not be the most appropriate
in terms of road conditions such as pitch, slipperiness, undulation, etc.
(P. 271)
Multi-terrain Select is not intended to expand the limits of the vehicle.
Check the road conditions thoroughly beforehand, and drive safely and
carefully.
NOTICE
Precaution for use
The Multi-terrain Select is intended for use during off-road driving. Do not
use the system at any other time.

276
2-4. Using other driving systems
L/C200_EE (OM60G38E)

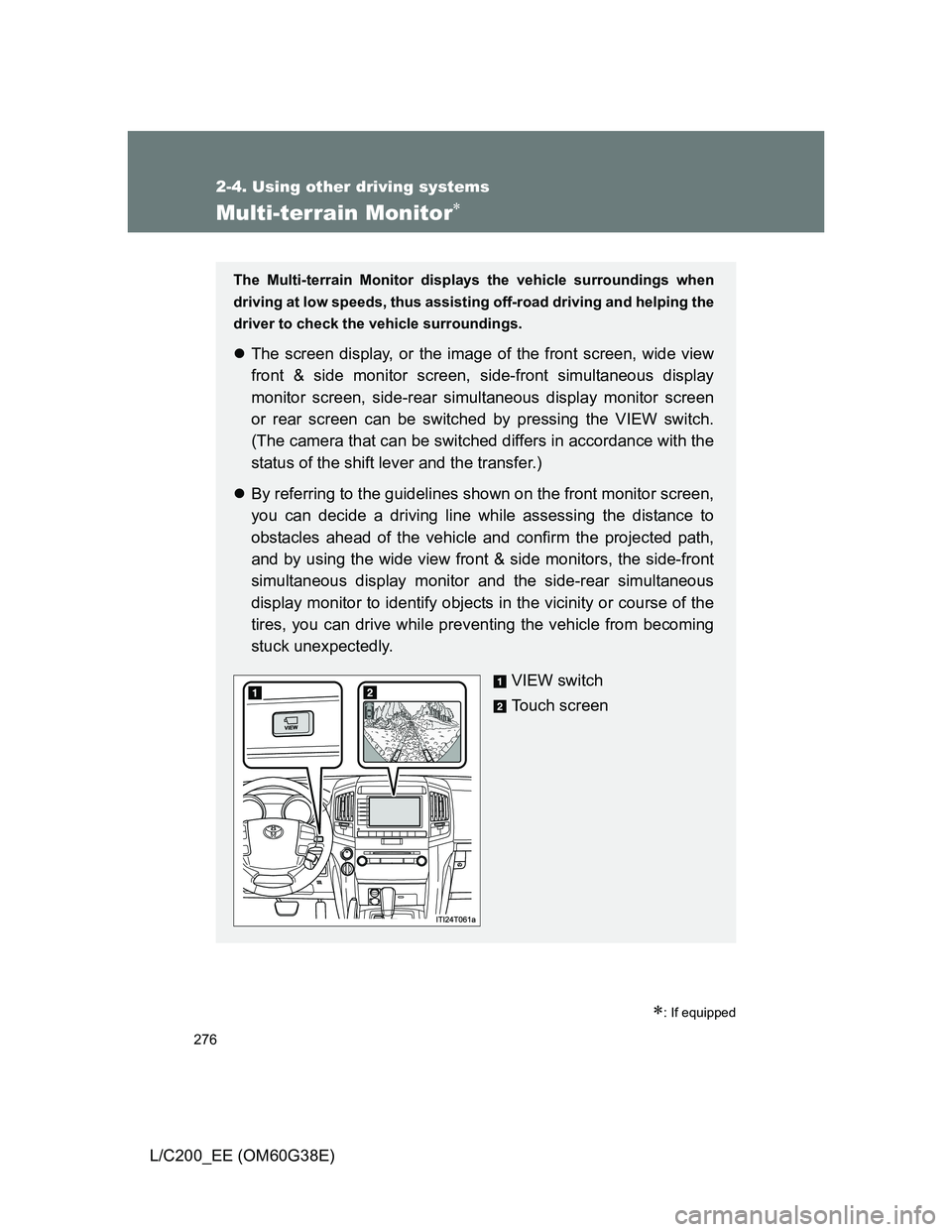

Multi-terrain Monitor
: If equipped
The Multi-terrain Monitor displays the vehicle surroundings when
driving at low speeds, thus assisting off-road driving and helping the
driver to check the vehicle surroundings.
The screen display, or the image of the front screen, wide view
front & side monitor screen, side-front simultaneous display
monitor screen, side-rear simultaneous display monitor screen
or rear screen can be switched by pressing the VIEW switch.
(The camera that can be switched differs in accordance with the
status of the shift lever and the transfer.)
By referring to the guidelines shown on the front monitor screen,
you can decide a driving line while assessing the distance to
obstacles ahead of the vehicle and confirm the projected path,
and by using the wide view front & side monitors, the side-front
simultaneous display monitor and the side-rear simultaneous
display monitor to identify objects in the vicinity or course of the
tires, you can drive while preventing the vehicle from becoming
stuck unexpectedly.
VIEW switch
Touch screen

277 2-4. Using other driving systems
2
When driving
L/C200_EE (OM60G38E)

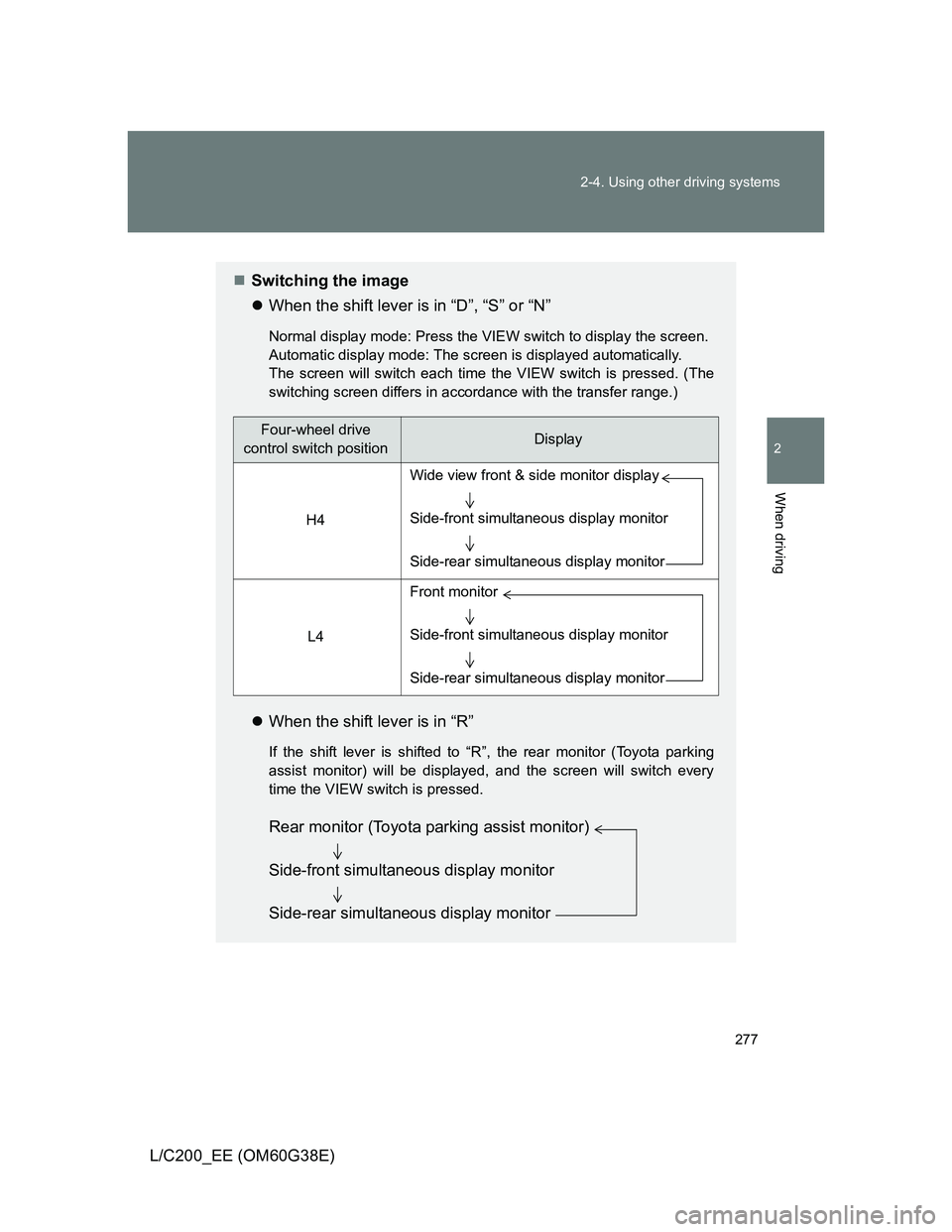

Switching the image
When the shift lever is in “D”, “S” or “N”
Normal display mode: Press the VIEW switch to display the screen.
Automatic display mode: The screen is displayed automatically.
The screen will switch each time the VIEW switch is pressed. (The
switching screen differs in accordance with the transfer range.)
When the shift lever is in “R”
If the shift lever is shifted to “R”, the rear monitor (Toyota parking
assist monitor) will be displayed, and the screen will switch every
time the VIEW switch is pressed.
Four-wheel drive
control switch positionDisplay
H4
L4
Wide view front & side monitor display
Side-front simultaneous display monitor
Side-rear simultaneous display monitor
Front monitor
Side-front simultaneous display monitor
Side-rear simultaneous display monitor
Rear monitor (Toyota parking assist monitor)
Side-front simultaneous display monitor
Side-rear simultaneous display monitor

278 2-4. Using other driving systems
L/C200_EE (OM60G38E)

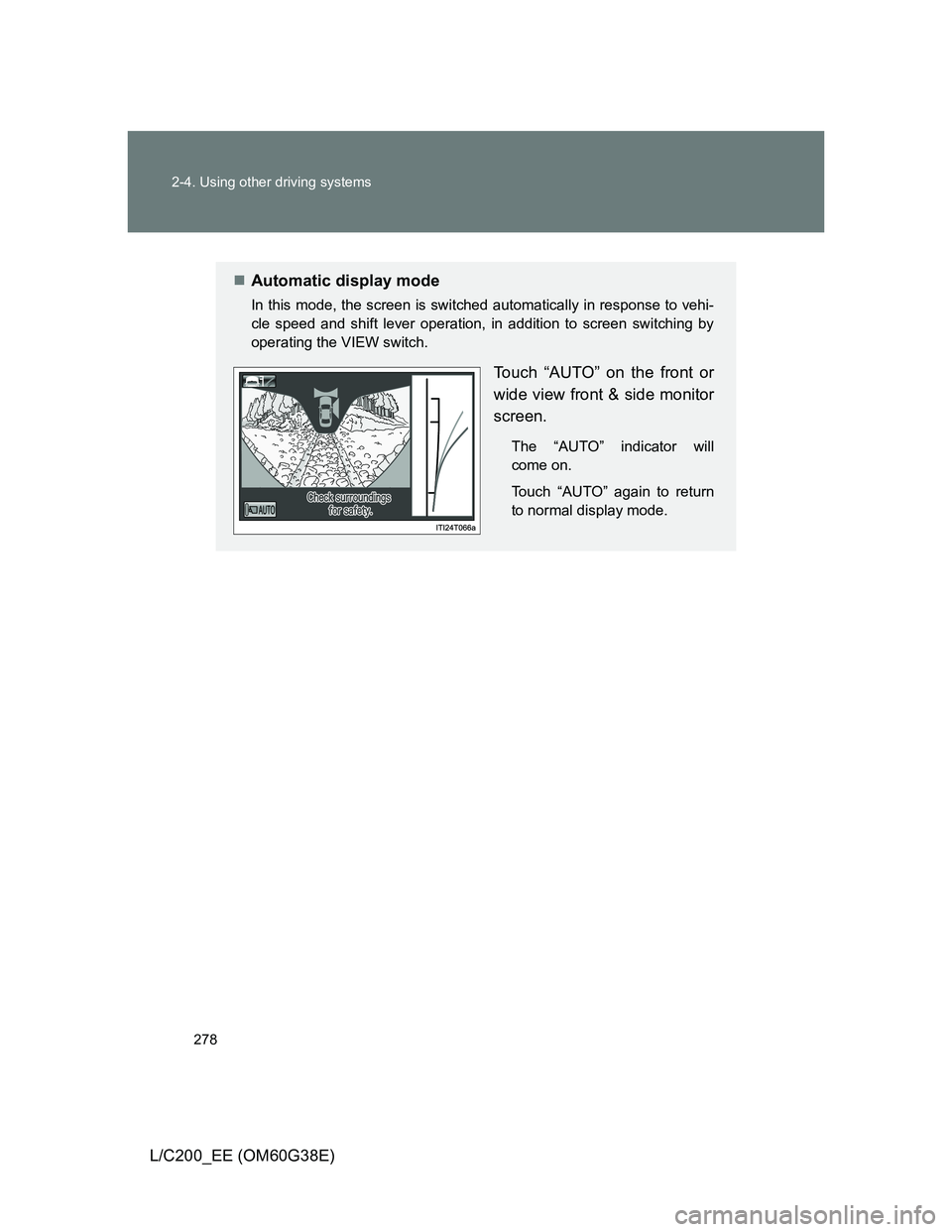

Automatic display mode
In this mode, the screen is switched automatically in response to vehi-
cle speed and shift lever operation, in addition to screen switching by
operating the VIEW switch.
Touch “AUTO” on the front or
wide view front & side monitor
screen.
The “AUTO” indicator will
come on.
Touch “AUTO” again to return
to normal display mode.

279 2-4. Using other driving systems
2
When driving
L/C200_EE (OM60G38E)

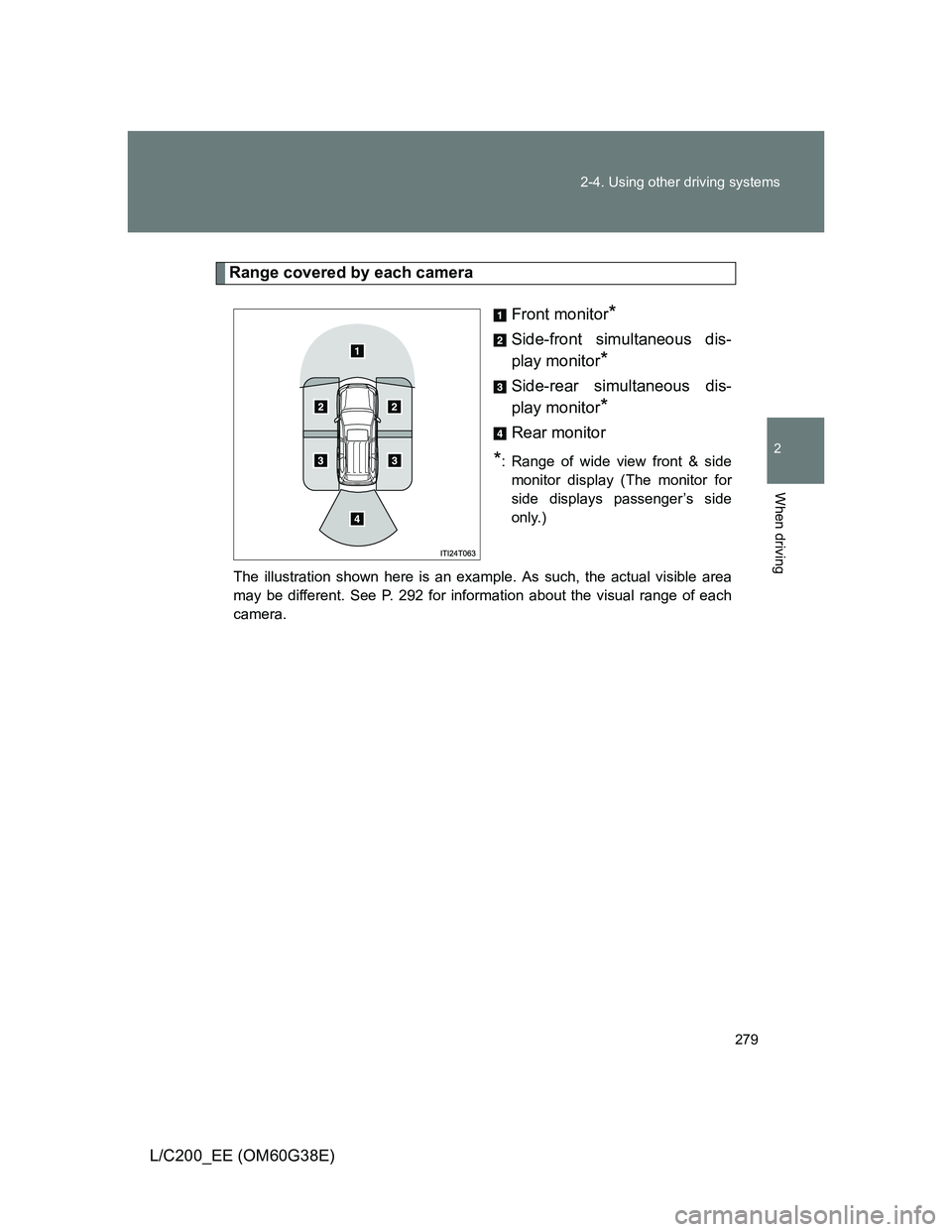

Range covered by each camera
Front monitor
*
Side-front simultaneous dis-
play monitor
*
Side-rear simultaneous dis-
play monitor
*
Rear monitor
*: Range of wide view front & side
monitor display (The monitor for
side displays passenger’s side
only.)
The illustration shown here is an example. As such, the actual visible area
may be different. See P. 292 for information about the visual range of each
camera.

280 2-4. Using other driving systems
L/C200_EE (OM60G38E)

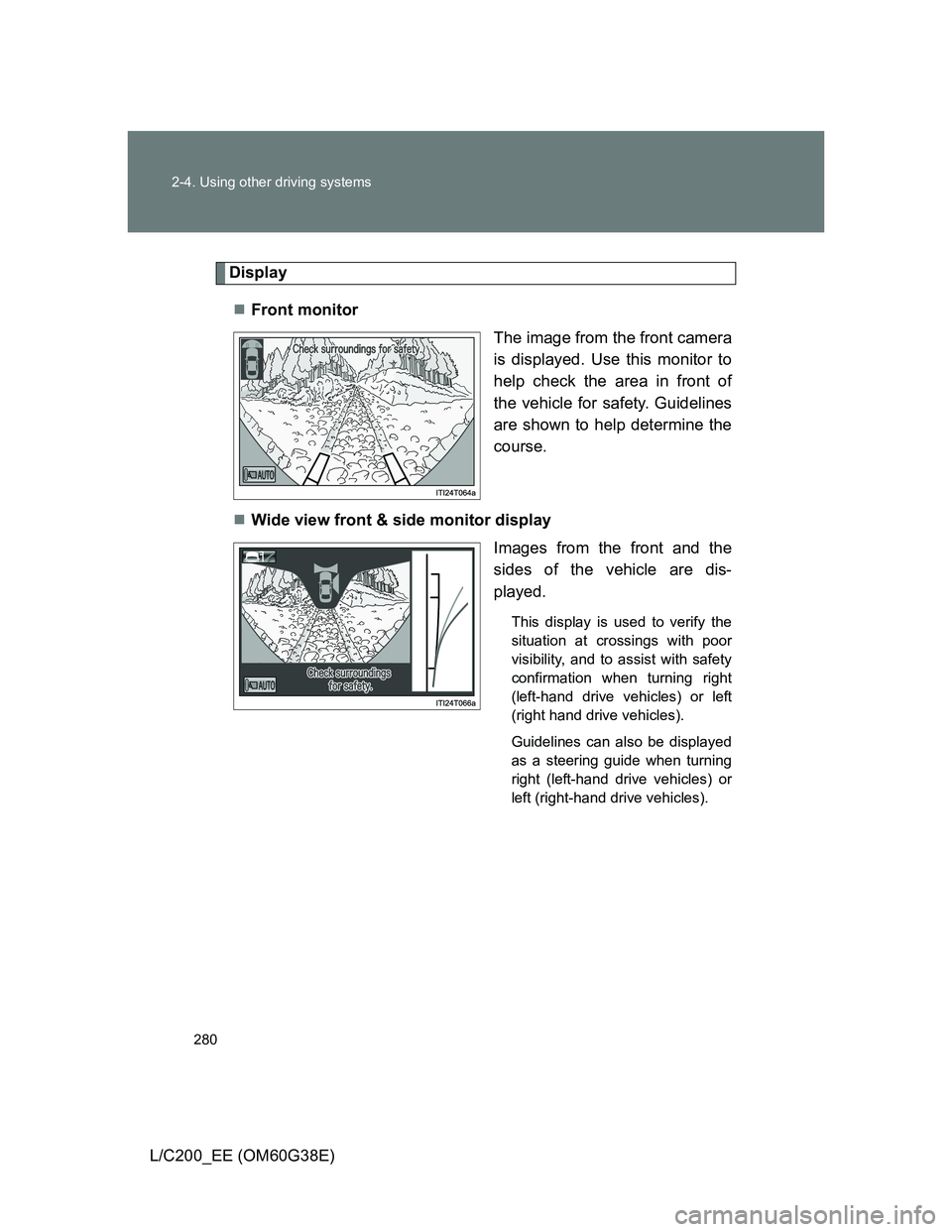

Display
Front monitor
The image from the front camera
is displayed. Use this monitor to
help check the area in front of
the vehicle for safety. Guidelines
are shown to help determine the
course.
Wide view front & side monitor display
Images from the front and the
sides of the vehicle are dis-
played.
This display is used to verify the
situation at crossings with poor
visibility, and to assist with safety
confirmation when turning right
(left-hand drive vehicles) or left
(right hand drive vehicles).
Guidelines can also be displayed
as a steering guide when turning
right (left-hand drive vehicles) or
left (right-hand drive vehicles).
