2012 TOYOTA LAND CRUISER Owners Manual

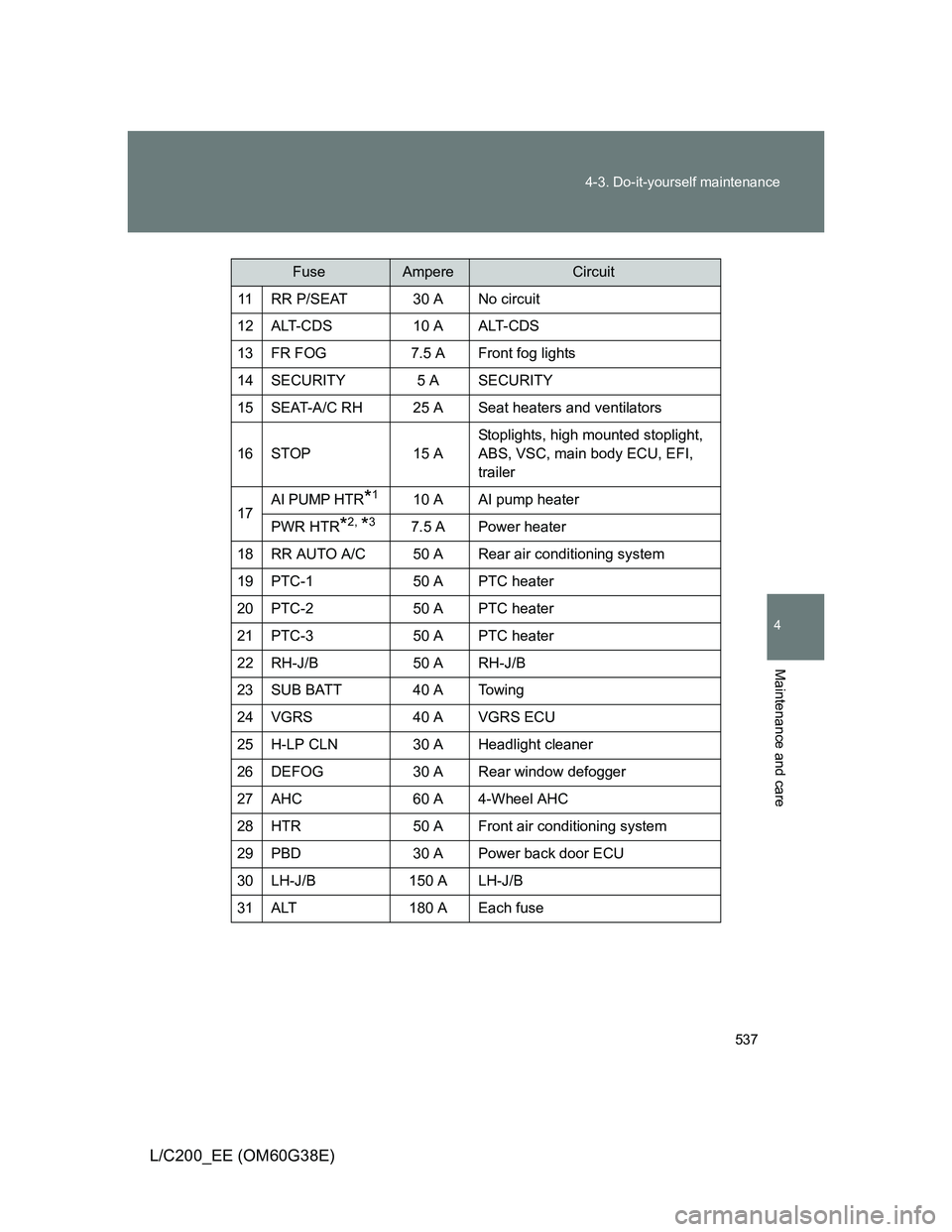

537 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)
11 RR P/SEAT 30 A No circuit
12 ALT-CDS 10 A ALT-CDS
13 FR FOG 7.5 A Front fog lights
14 SECURITY 5 A SECURITY
15 SEAT-A/C RH 25 A Seat heaters and ventilators
16 STOP 15 AStoplights, high mounted stoplight,
ABS, VSC, main body ECU, EFI,
trailer
17
AI PUMP HTR*110 A AI pump heater
PWR HTR
*2, *37.5 A Power heater
18 RR AUTO A/C 50 A Rear air conditioning system
19 PTC-1 50 A PTC heater
20 PTC-2 50 A PTC heater
21 PTC-3 50 A PTC heater
22 RH-J/B 50 A RH-J/B
23 SUB BATT 40 A Towing
24 VGRS 40 A VGRS ECU
25 H-LP CLN 30 A Headlight cleaner
26 DEFOG 30 A Rear window defogger
27 AHC 60 A 4-Wheel AHC
28 HTR 50 A Front air conditioning system
29 PBD 30 A Power back door ECU
30 LH-J/B 150 A LH-J/B
31 ALT 180 A Each fuse
FuseAmpereCircuit

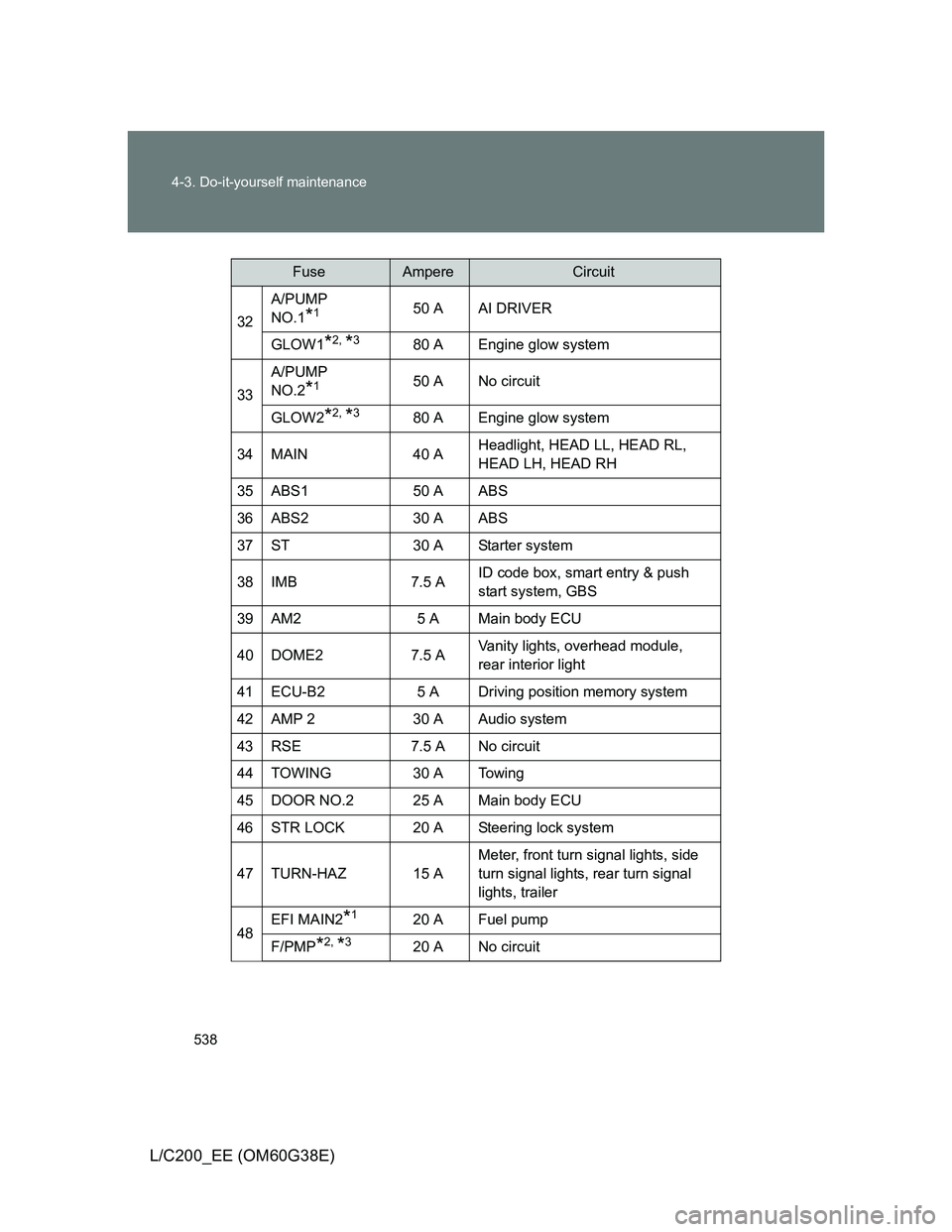

538 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)
32A/PUMP
NO.1*150 A AI DRIVER
GLOW1
*2, *380 A Engine glow system
33A/PUMP
NO.2
*150 A No circuit
GLOW2
*2, *380 A Engine glow system
34 MAIN 40 AHeadlight, HEAD LL, HEAD RL,
HEAD LH, HEAD RH
35 ABS1 50 A ABS
36 ABS2 30 A ABS
37 ST 30 A Starter system
38 IMB 7.5 AID code box, smart entry & push
start system, GBS
39 AM2 5 A Main body ECU
40 DOME2 7.5 AVanity lights, overhead module,
rear interior light
41 ECU-B2 5 A Driving position memory system
42 AMP 2 30 A Audio system
43 RSE 7.5 A No circuit
44 TOWING 30 A Towing
45 DOOR NO.2 25 A Main body ECU
46 STR LOCK 20 A Steering lock system
47 TURN-HAZ 15 AMeter, front turn signal lights, side
turn signal lights, rear turn signal
lights, trailer
48EFI MAIN2*120 A Fuel pump
F/PMP*2, *320 A No circuit
FuseAmpereCircuit

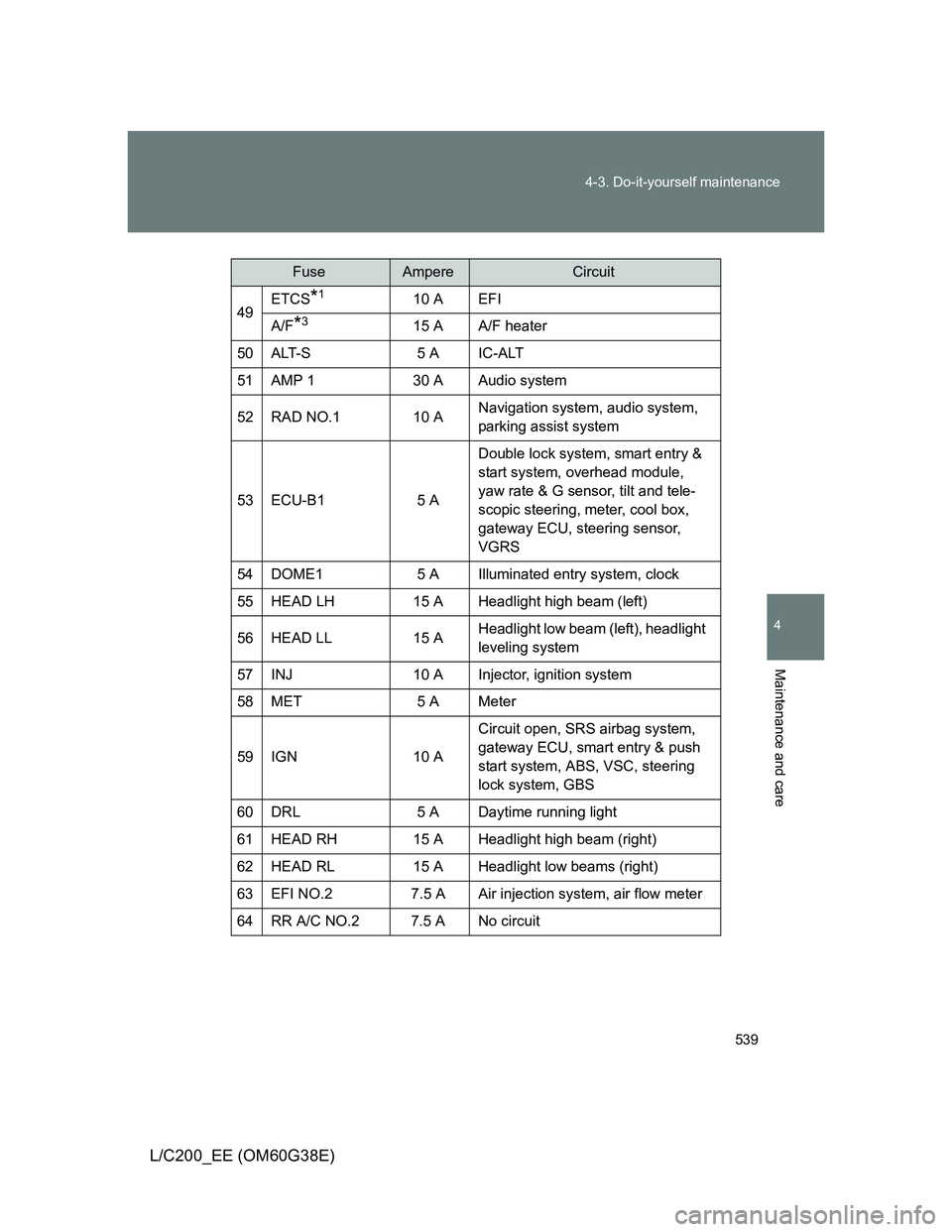

539 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)
49ETCS*110 A EFI
A/F*315 A A/F heater
50ALT-S5 A IC-ALT
51AMP 130 A Audio system
52 RAD NO.1 10 ANavigation system, audio system,
parking assist system
53 ECU-B1 5 ADouble lock system, smart entry &
start system, overhead module,
yaw rate & G sensor, tilt and tele-
scopic steering, meter, cool box,
gateway ECU, steering sensor,
VGRS
54 DOME1 5 A Illuminated entry system, clock
55 HEAD LH 15 A Headlight high beam (left)
56 HEAD LL 15 AHeadlight low beam (left), headlight
leveling system
57 INJ 10 A Injector, ignition system
58 MET 5 A Meter
59 IGN 10 ACircuit open, SRS airbag system,
gateway ECU, smart entry & push
start system, ABS, VSC, steering
lock system, GBS
60 DRL 5 A Daytime running light
61 HEAD RH 15 A Headlight high beam (right)
62 HEAD RL 15 A Headlight low beams (right)
63 EFI NO.2 7.5 A Air injection system, air flow meter
64 RR A/C NO.2 7.5 A No circuit
FuseAmpereCircuit

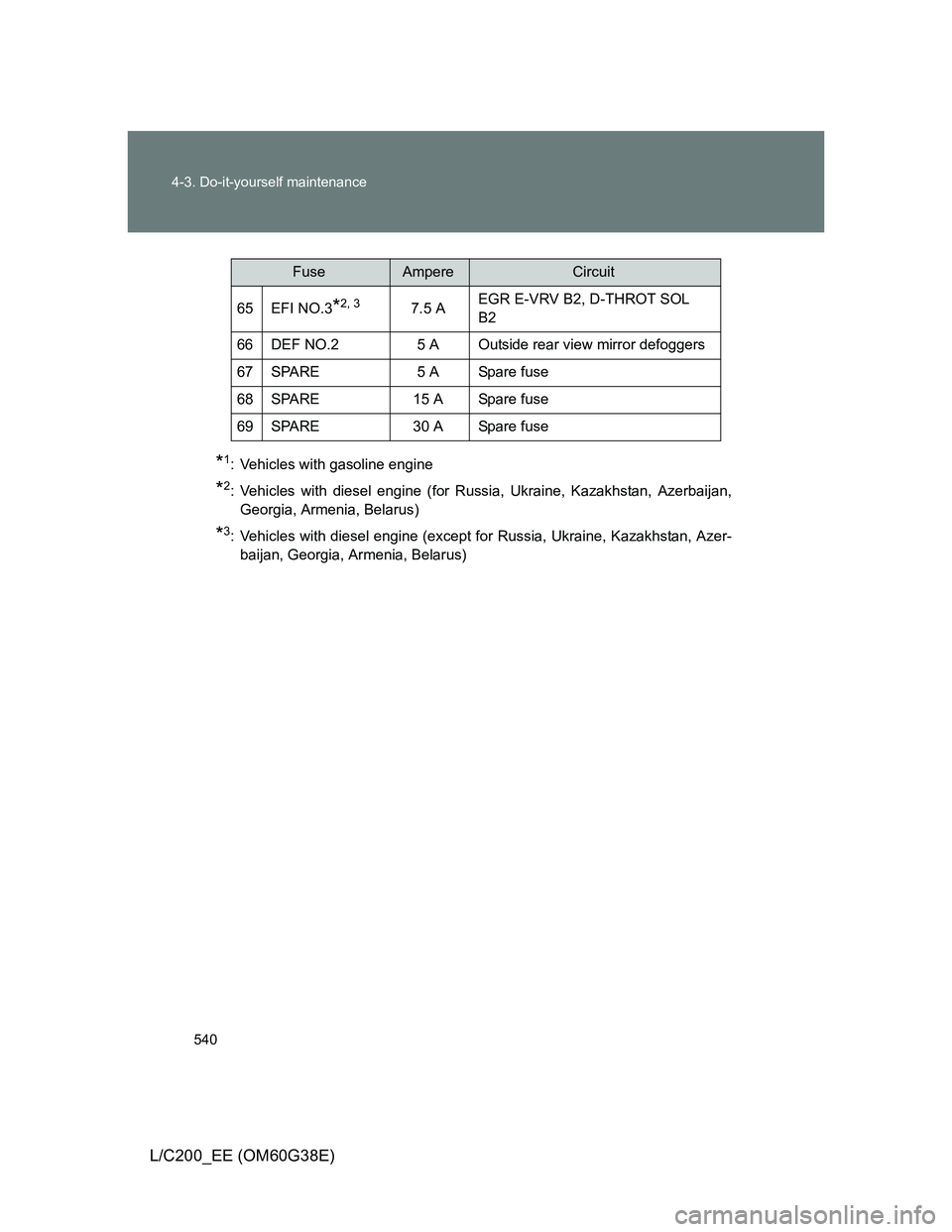

540 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)
*1: Vehicles with gasoline engine
*2: Vehicles with diesel engine (for Russia, Ukraine, Kazakhstan, Azerbaijan,
Georgia, Armenia, Belarus)
*3: Vehicles with diesel engine (except for Russia, Ukraine, Kazakhstan, Azer-
baijan, Georgia, Armenia, Belarus) 65 EFI NO.3
*2, 37.5 AEGR E-VRV B2, D-THROT SOL
B2
66 DEF NO.2 5 A Outside rear view mirror defoggers
67 SPARE 5 A Spare fuse
68 SPARE 15 A Spare fuse
69 SPARE 30 A Spare fuse
FuseAmpereCircuit

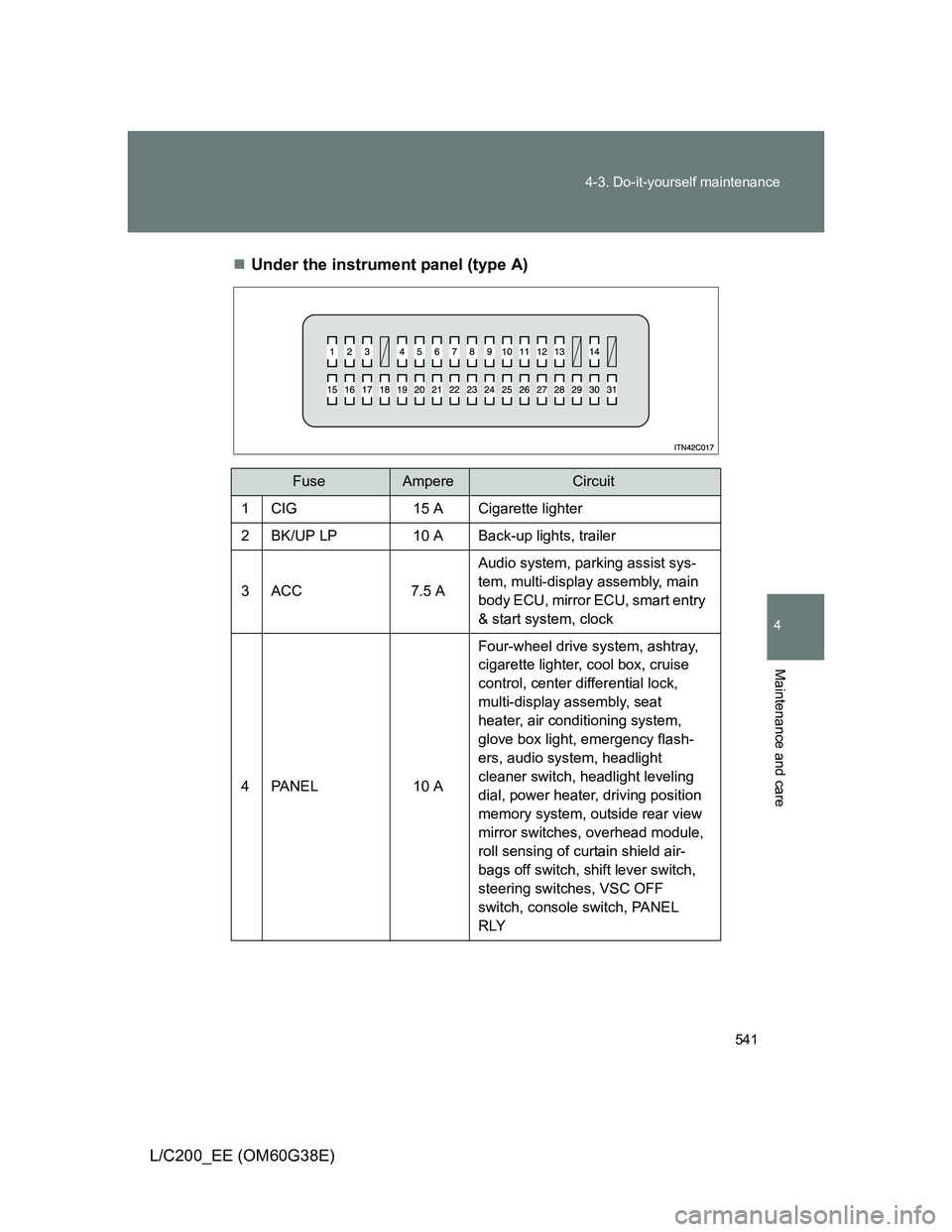

541 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)Under the instrument panel (type A)
FuseAmpereCircuit
1 CIG 15 A Cigarette lighter
2 BK/UP LP 10 A Back-up lights, trailer
3ACC 7.5 AAudio system, parking assist sys-
tem, multi-display assembly, main
body ECU, mirror ECU, smart entry
& start system, clock
4 PANEL 10 AFour-wheel drive system, ashtray,
cigarette lighter, cool box, cruise
control, center differential lock,
multi-display assembly, seat
heater, air conditioning system,
glove box light, emergency flash-
ers, audio system, headlight
cleaner switch, headlight leveling
dial, power heater, driving position
memory system, outside rear view
mirror switches, overhead module,
roll sensing of curtain shield air-
bags off switch, shift lever switch,
steering switches, VSC OFF
switch, console switch, PANEL
RLY

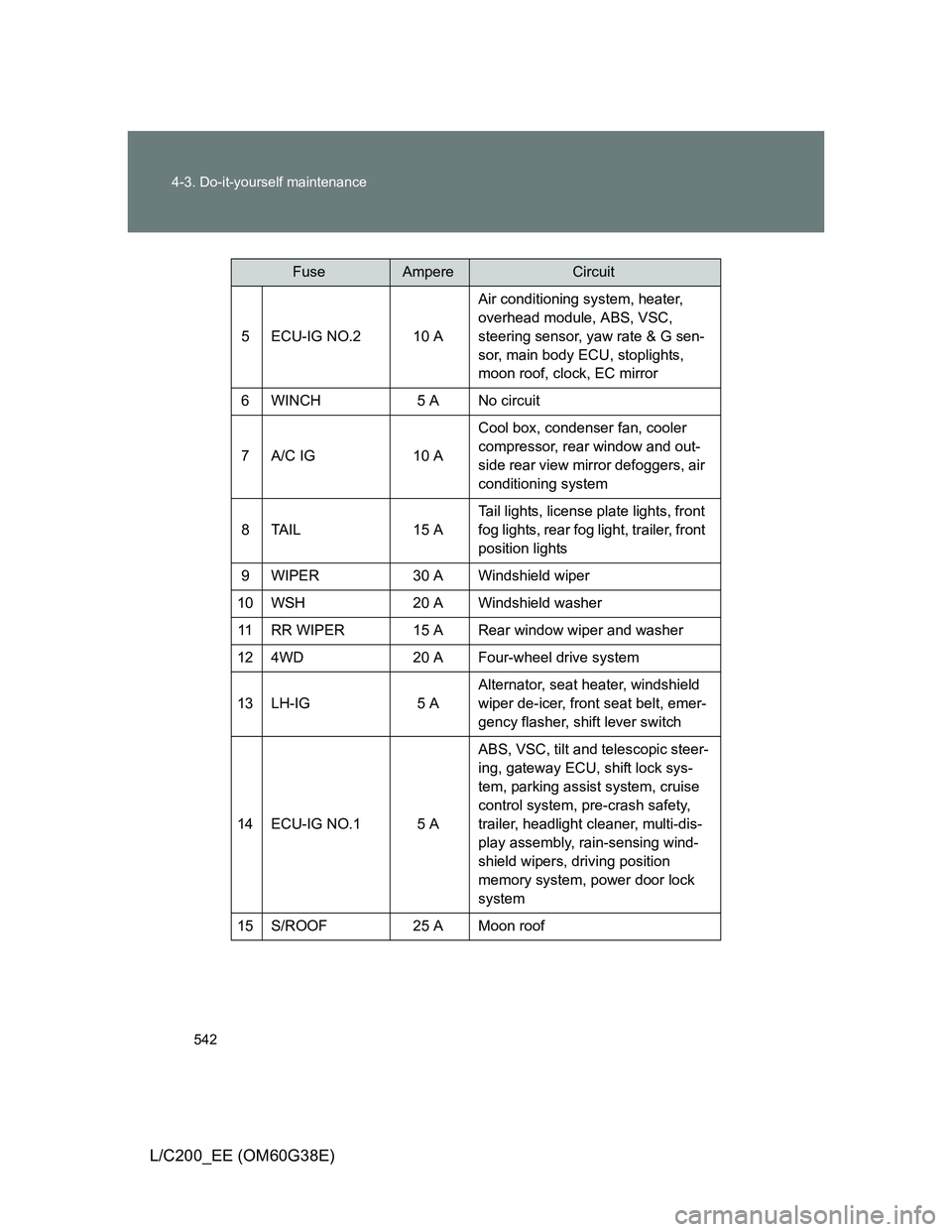

542 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)
5 ECU-IG NO.2 10 AAir conditioning system, heater,
overhead module, ABS, VSC,
steering sensor, yaw rate & G sen-
sor, main body ECU, stoplights,
moon roof, clock, EC mirror
6 WINCH 5 A No circuit
7 A/C IG 10 ACool box, condenser fan, cooler
compressor, rear window and out-
side rear view mirror defoggers, air
conditioning system
8TAIL 15 ATail lights, license plate lights, front
fog lights, rear fog light, trailer, front
position lights
9 WIPER 30 A Windshield wiper
10 WSH 20 A Windshield washer
11 RR WIPER 15 A Rear window wiper and washer
12 4WD 20 A Four-wheel drive system
13 LH-IG 5 AAlternator, seat heater, windshield
wiper de-icer, front seat belt, emer-
gency flasher, shift lever switch
14 ECU-IG NO.1 5 AABS, VSC, tilt and telescopic steer-
ing, gateway ECU, shift lock sys-
tem, parking assist system, cruise
control system, pre-crash safety,
trailer, headlight cleaner, multi-dis-
play assembly, rain-sensing wind-
shield wipers, driving position
memory system, power door lock
system
15 S/ROOF 25 A Moon roof
FuseAmpereCircuit

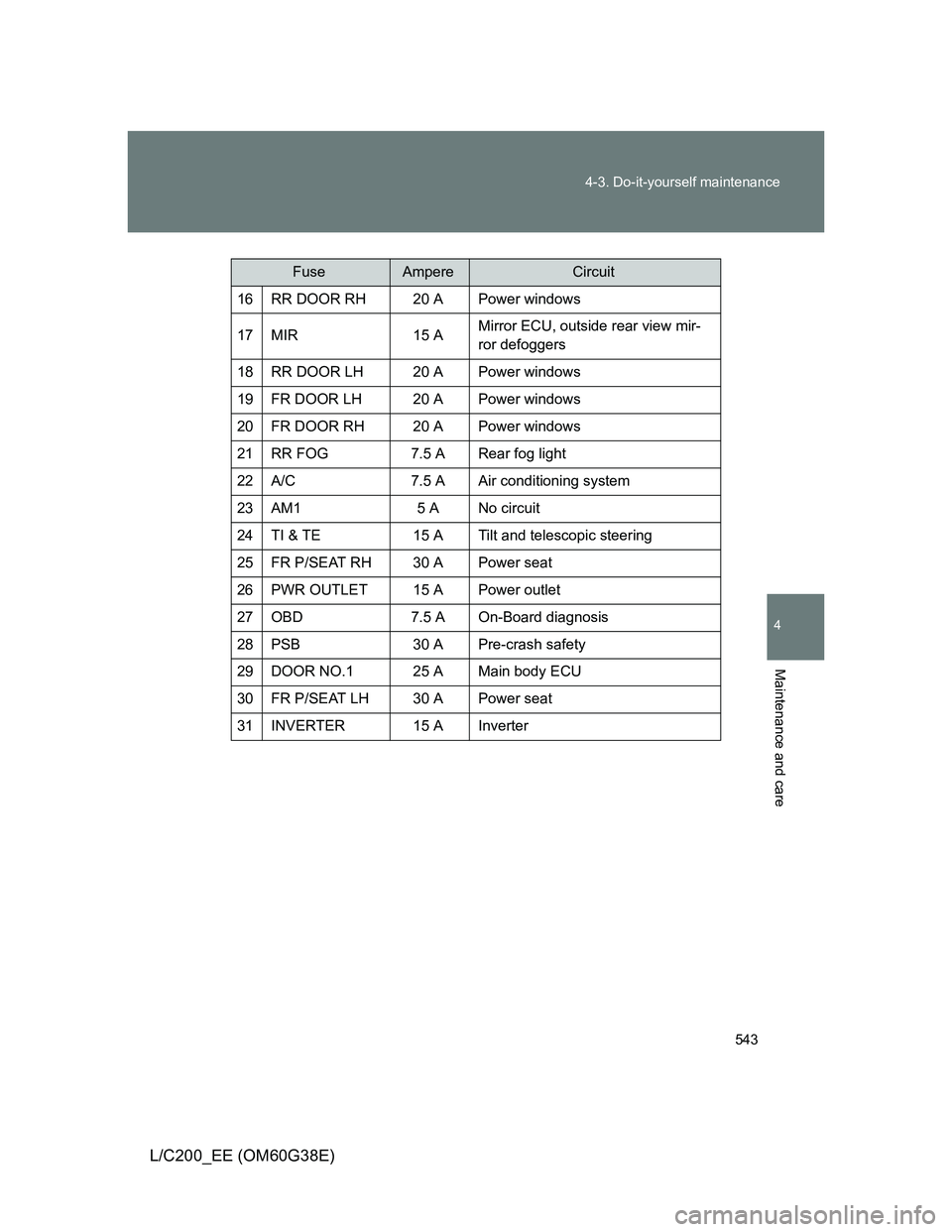

543 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)
16 RR DOOR RH 20 A Power windows
17 MIR 15 AMirror ECU, outside rear view mir-
ror defoggers
18 RR DOOR LH 20 A Power windows
19 FR DOOR LH 20 A Power windows
20 FR DOOR RH 20 A Power windows
21 RR FOG 7.5 A Rear fog light
22 A/C 7.5 A Air conditioning system
23 AM1 5 A No circuit
24 TI & TE 15 A Tilt and telescopic steering
25 FR P/SEAT RH 30 A Power seat
26 PWR OUTLET 15 A Power outlet
27 OBD 7.5 A On-Board diagnosis
28 PSB 30 A Pre-crash safety
29 DOOR NO.1 25 A Main body ECU
30 FR P/SEAT LH 30 A Power seat
31 INVERTER 15 A Inverter
FuseAmpereCircuit

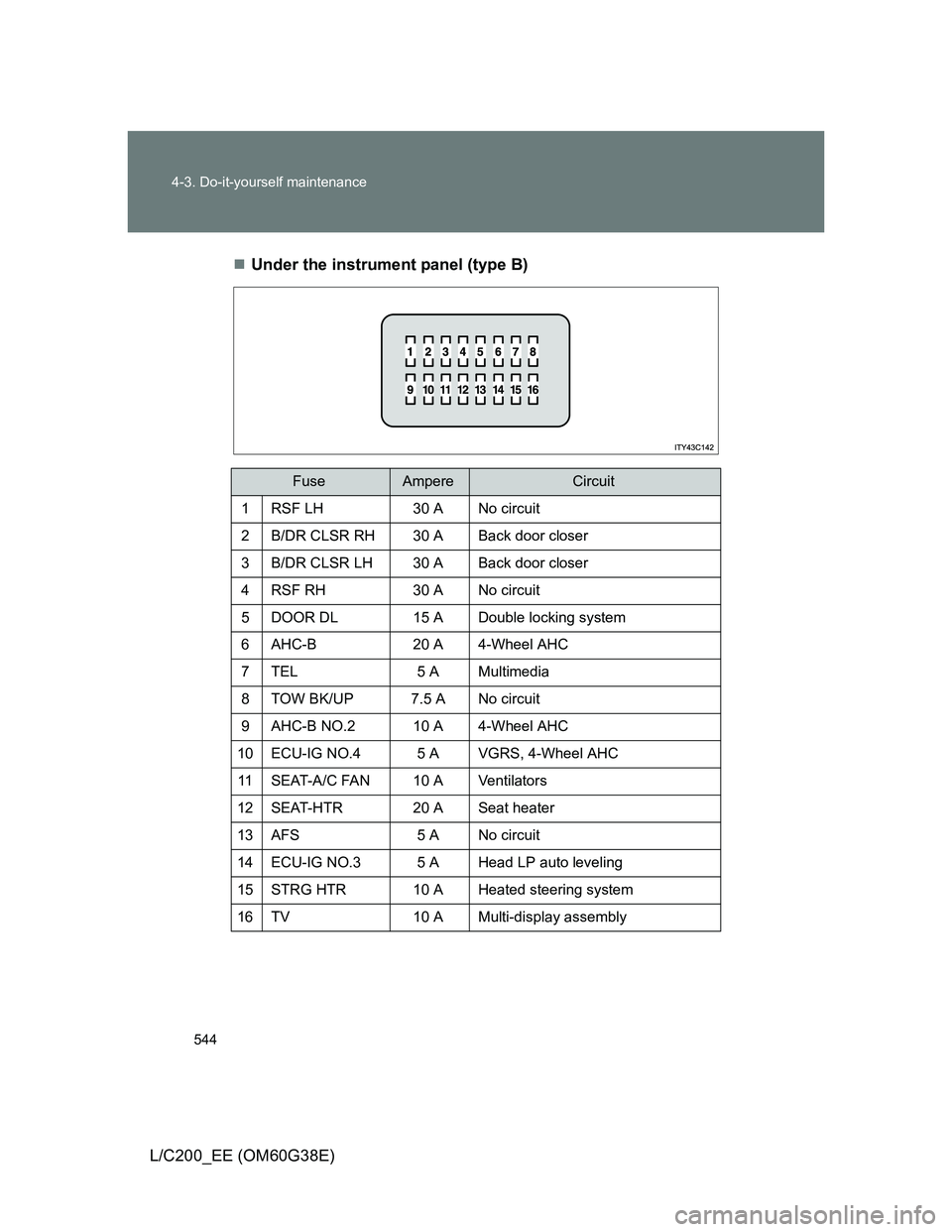

544 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)Under the instrument panel (type B)
FuseAmpereCircuit
1 RSF LH 30 A No circuit
2 B/DR CLSR RH 30 A Back door closer
3 B/DR CLSR LH 30 A Back door closer
4 RSF RH 30 A No circuit
5 DOOR DL 15 A Double locking system
6 AHC-B 20 A 4-Wheel AHC
7 TEL 5 A Multimedia
8 TOW BK/UP 7.5 A No circuit
9 AHC-B NO.2 10 A 4-Wheel AHC
10 ECU-IG NO.4 5 A VGRS, 4-Wheel AHC
11 SEAT-A/C FAN 10 A Ventilators
12 SEAT-HTR 20 A Seat heater
13 AFS 5 A No circuit
14 ECU-IG NO.3 5 A Head LP auto leveling
15 STRG HTR 10 A Heated steering system
16 TV 10 A Multi-display assembly
