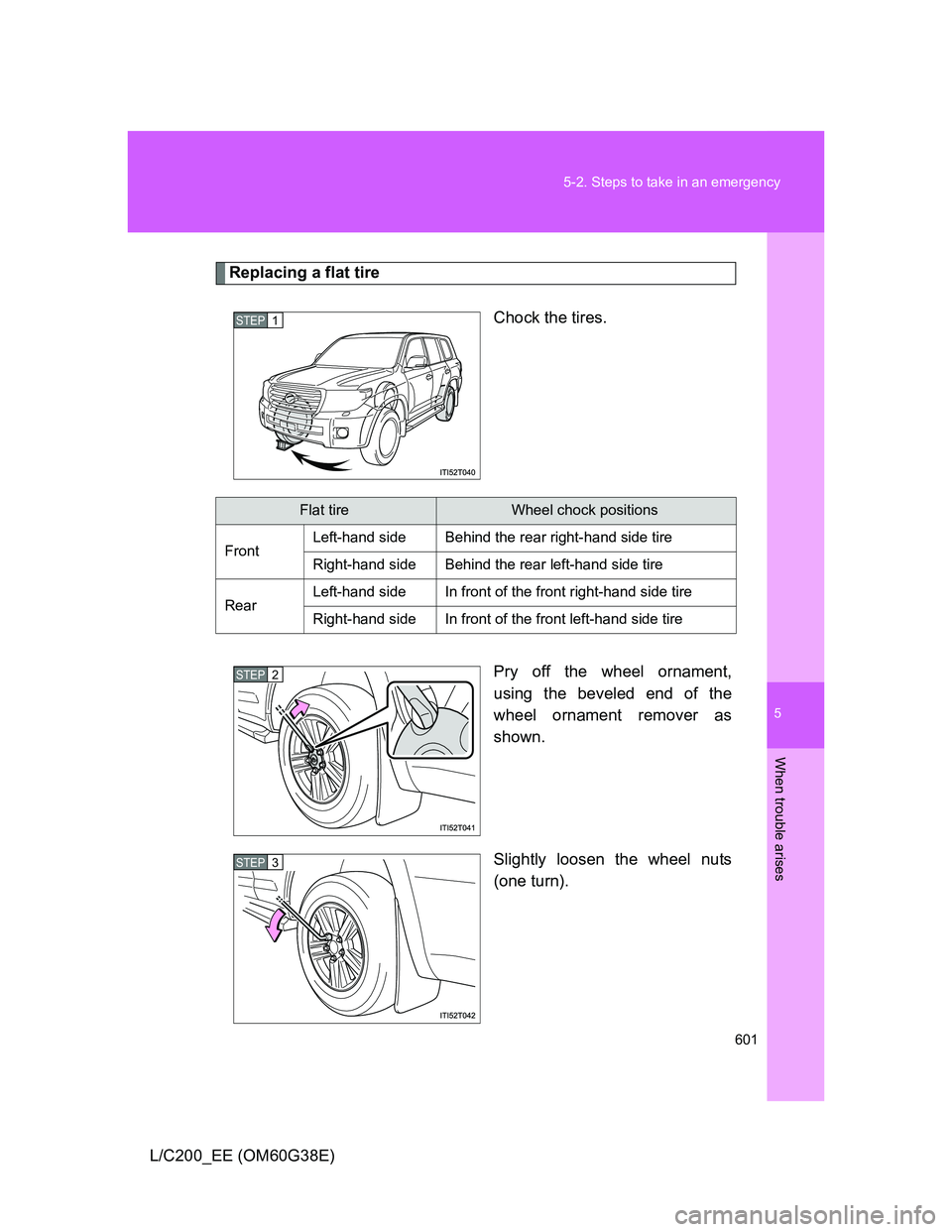

Replacing a flat tire
Chock the tires.
Pry off the wheel ornament,
using the beveled end of the
wheel ornament remover as
shown.
Slightly loosen the wheel nuts
(one turn).
STEP1STEP1
Flat tireWheel chock positions
FrontLeft-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
RearLeft-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP2
STEP3

602 5-2. Steps to take in an emergency

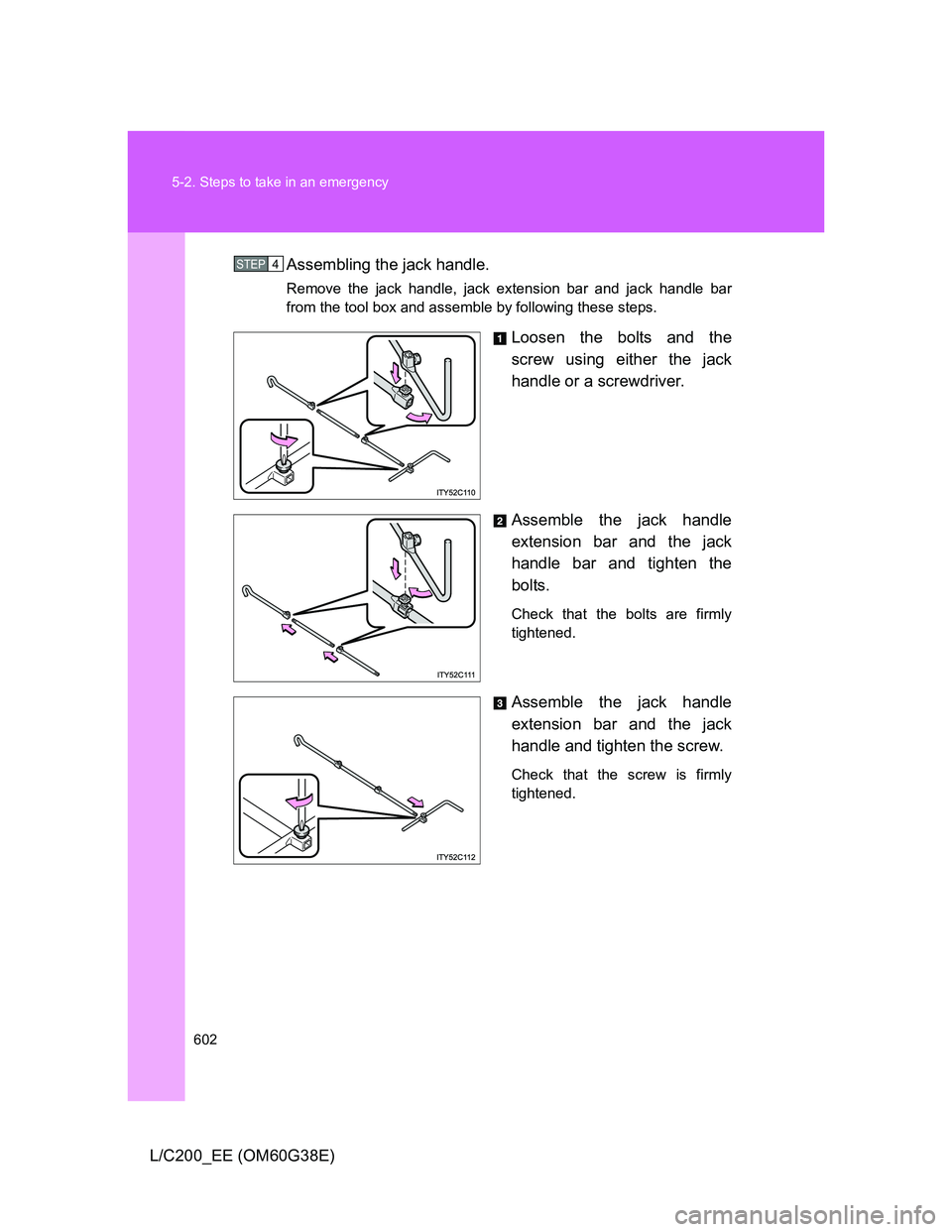

L/C200_EE (OM60G38E)Assembling the jack handle.
Remove the jack handle, jack extension bar and jack handle bar
from the tool box and assemble by following these steps.
Loosen the bolts and the
screw using either the jack
handle or a screwdriver.
Assemble the jack handle
extension bar and the jack
handle bar and tighten the
bolts.
Check that the bolts are firmly
tightened.
Assemble the jack handle
extension bar and the jack
handle and tighten the screw.
Check that the screw is firmly
tightened.
STEP4

5
603 5-2. Steps to take in an emergency
When trouble arises

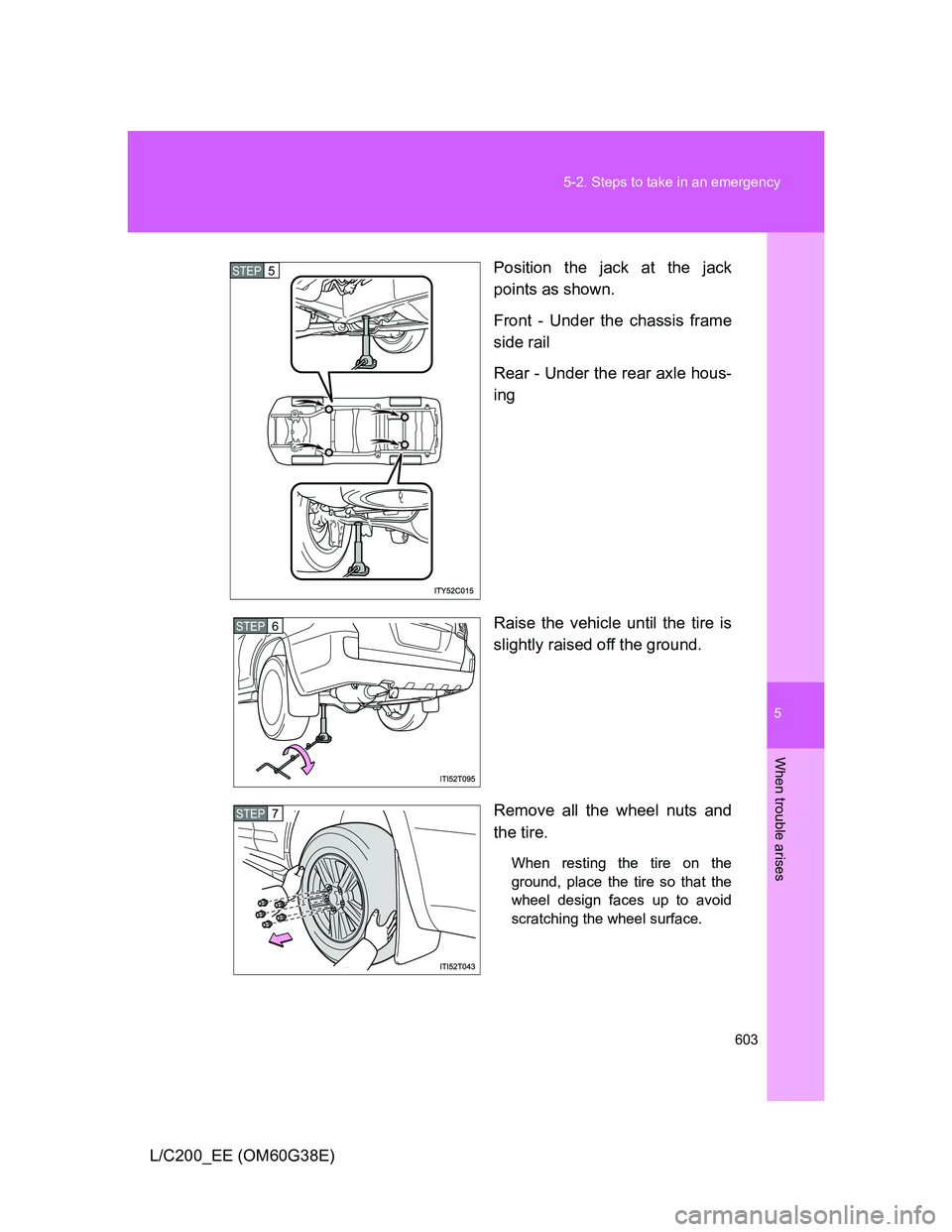

L/C200_EE (OM60G38E)Position the jack at the jack
points as shown.
Front - Under the chassis frame
side rail
Rear - Under the rear axle hous-
ing
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP5
STEP6
STEP7

604 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Turn the nut washers until they
come into contact with the disc
wheel.
Lower the vehicle.
STEP1
STEP2
Washer
Disc wheel
STEP3

5
605 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
131 N•m (13.4 kgf•m, 97 ft•lbf)
Reinstall the wheel ornament.
Stowing the flat/spare tire, jack and tools
Lay down the tire with the outer
side facing up, and install the
holding bracket.
Raise the tire.
Vehicles with kinetic dynamic suspension: Pull the tire
towards the rear of the vehicle when raising. After raising,
visually check that the tire is not interfering with suspension
components.
Stow the tools and jack securely, and replace all covers.
STEP4
STEP5
STEP1
STEP2
STEP3

606 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)Certification for the jack

5
607 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

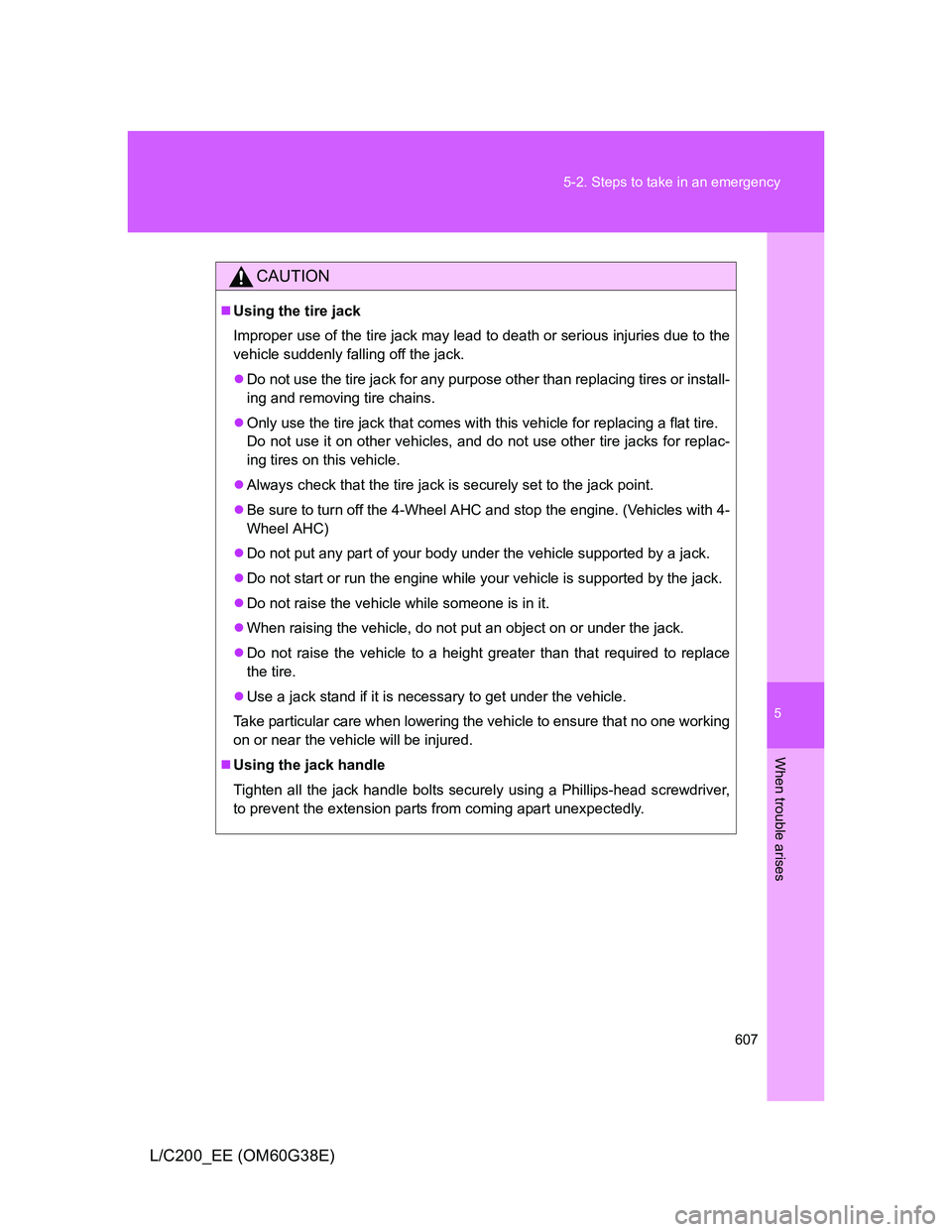

CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Be sure to turn off the 4-Wheel AHC and stop the engine. (Vehicles with 4-
Wheel AHC)
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.
Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver,
to prevent the extension parts from coming apart unexpectedly.

608 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
CAUTION
Replacing a flat tire
Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it from
under the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
• Vehicles with the 4-Wheel AHC: Turn off the vehicle height control.
The vehicle height may change due to the automatic leveling function
and you may catch part of your body in the vehicle, resulting in an acci-
dent. (P. 248)
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 131 N•m (13.4
kgf•m, 97 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads
or bolt holes of the wheel, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward. (P. 524)
