2012 TOYOTA LAND CRUISER Owners Manual

153 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)
Child restraint system suitability for various seating positions
Provided information in the table shows your child restraint system
suitability for various seating positions.
Front passenger
seat
Second seatThird
seat
Airbag manual
on-off switch
ON
OFFOutside Center Outside
0
Up to 10 kg
(22 lb.)
(0 - 9 months)X
Never putU
*UUL1
0
+
Up to 13 kg
(28 lb.)
(0 - 2 years)X
Never putU*UUL1
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years)Rear-
facing —
X
Never put
U
*UUL2
Forward-
facing —
UF
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF U
*UUL3
Mass groupsSeating
position

154 1-7. Safety information

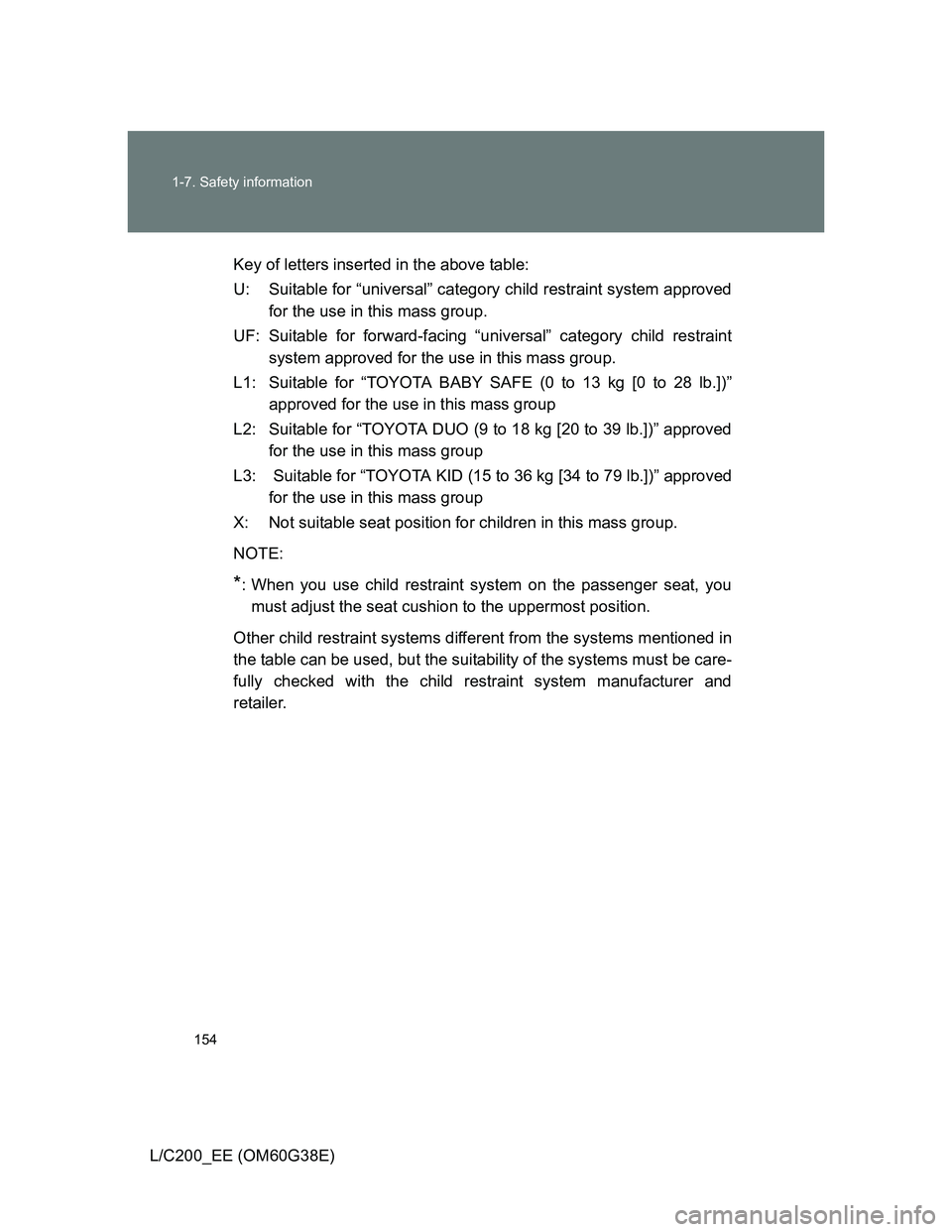

L/C200_EE (OM60G38E)Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
L1: Suitable for “TOYOTA BABY SAFE (0 to 13 kg [0 to 28 lb.])”
approved for the use in this mass group
L2: Suitable for “TOYOTA DUO (9 to 18 kg [20 to 39 lb.])” approved
for the use in this mass group
L3: Suitable for “TOYOTA KID (15 to 36 kg [34 to 79 lb.])” approved
for the use in this mass group
X: Not suitable seat position for children in this mass group.
NOTE:
*: When you use child restraint system on the passenger seat, you
must adjust the seat cushion to the uppermost position.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

155 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)

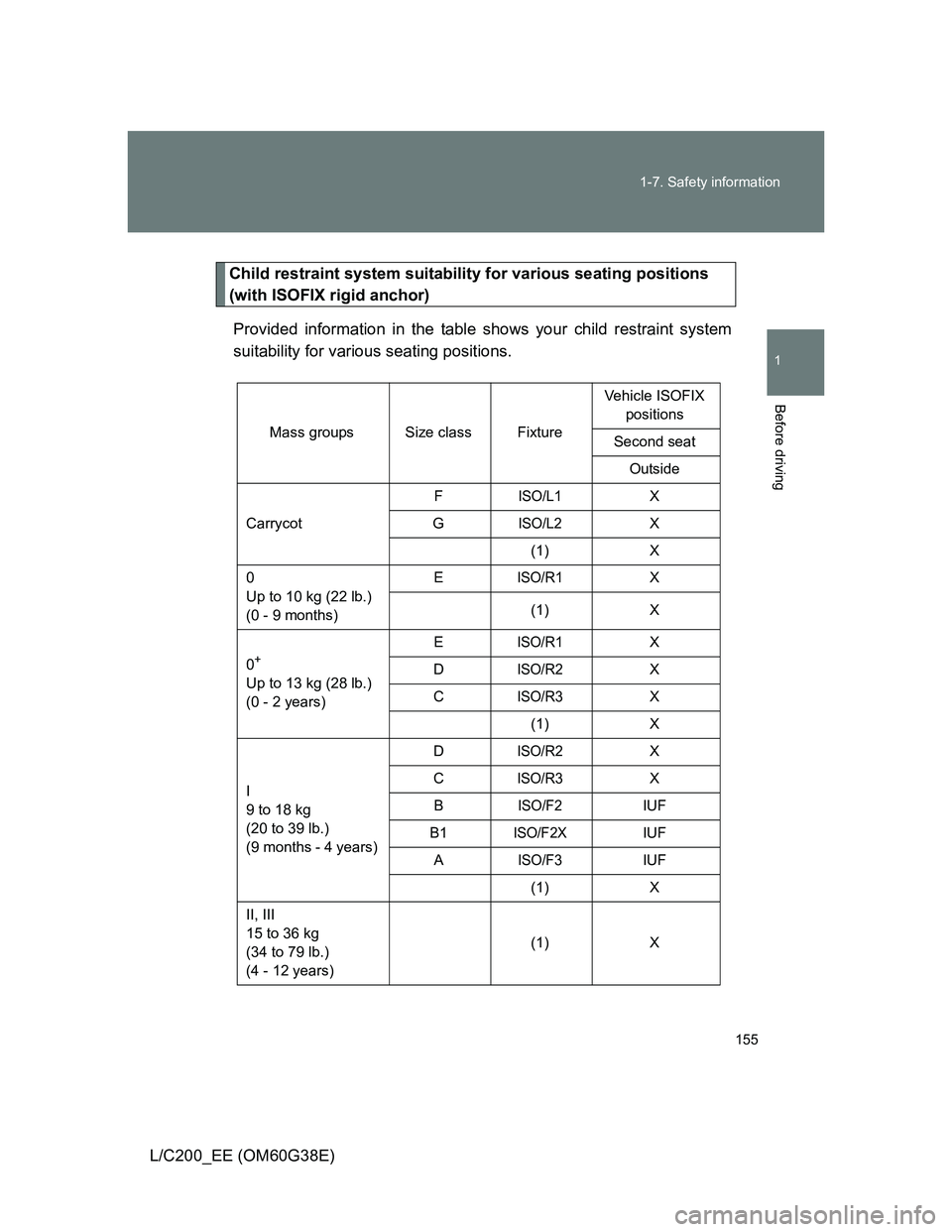

Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Mass groups Size class FixtureVehicle ISOFIX
positions
Second seat
Outside
CarrycotF
ISO/L1X
G
ISO/L2X
(1) X
0
Up to 10 kg (22 lb.)
(0 - 9 months)E
ISO/R1X
(1) X
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)E
ISO/R1X
D
ISO/R2X
C
ISO/R3X
(1) X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)D
ISO/R2X
C
ISO/R3X
B
ISO/F2IUF
B1
ISO/F2XIUF
A
ISO/F3IUF
(1) X
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)(1) X

156 1-7. Safety information

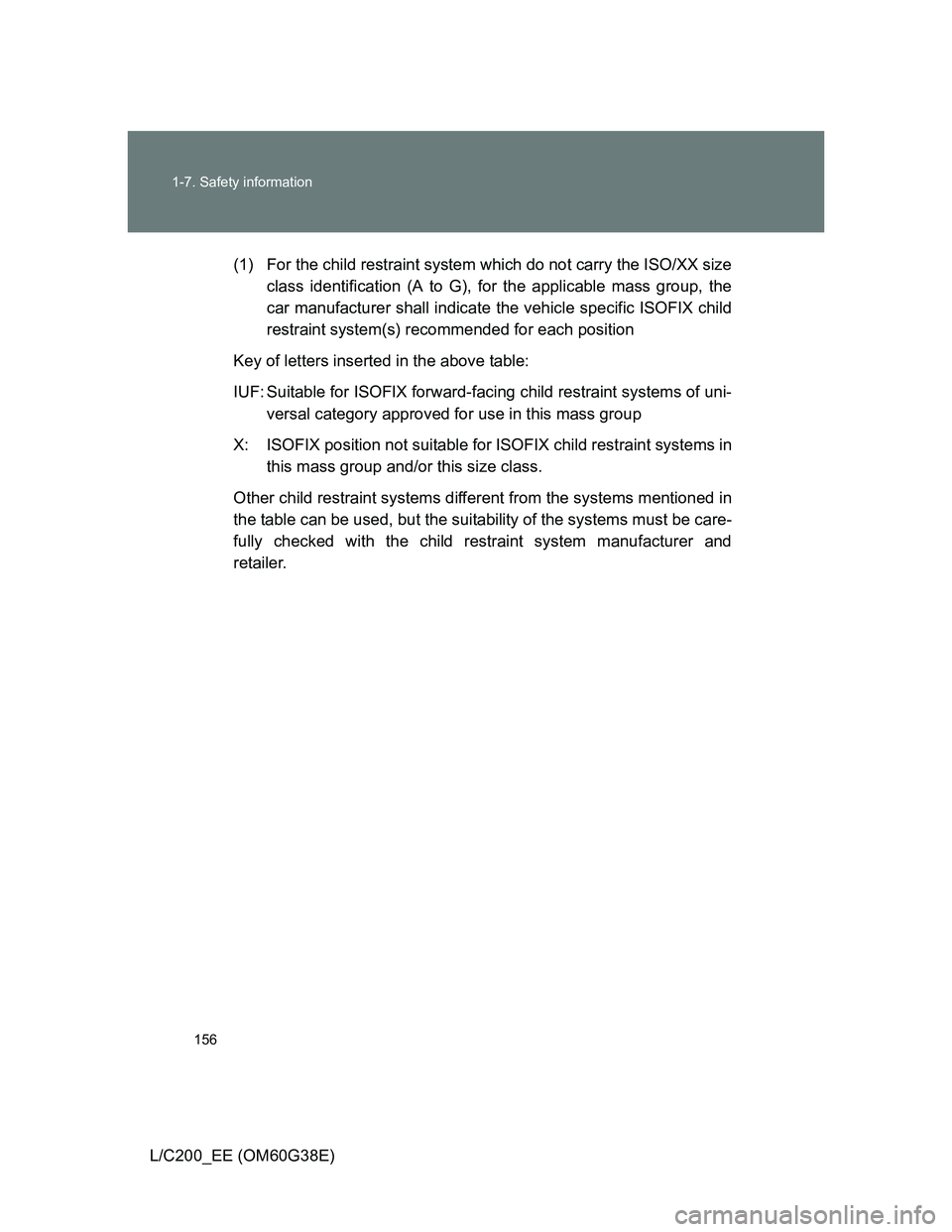

L/C200_EE (OM60G38E)(1) For the child restraint system which do not carry the ISO/XX size
class identification (A to G), for the applicable mass group, the
car manufacturer shall indicate the vehicle specific ISOFIX child
restraint system(s) recommended for each position
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for use in this mass group
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

157 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)

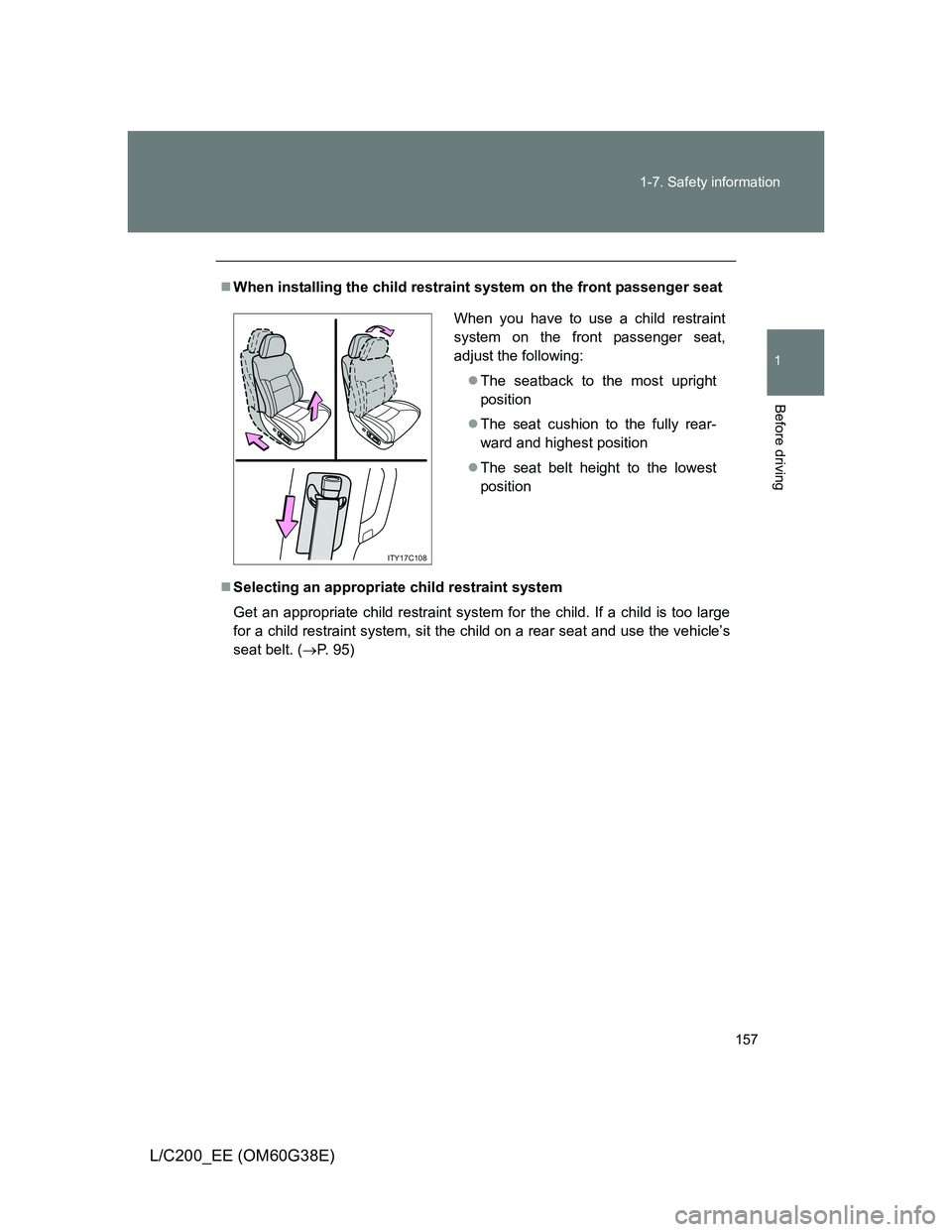

When installing the child restraint system on the front passenger seat
Selecting an appropriate child restraint system
Get an appropriate child restraint system for the child. If a child is too large
for a child restraint system, sit the child on a rear seat and use the vehicle’s
seat belt. (P. 95)
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
The seatback to the most upright
position
The seat cushion to the fully rear-
ward and highest position
The seat belt height to the lowest
position
ITY17C108

158 1-7. Safety information
L/C200_EE (OM60G38E)

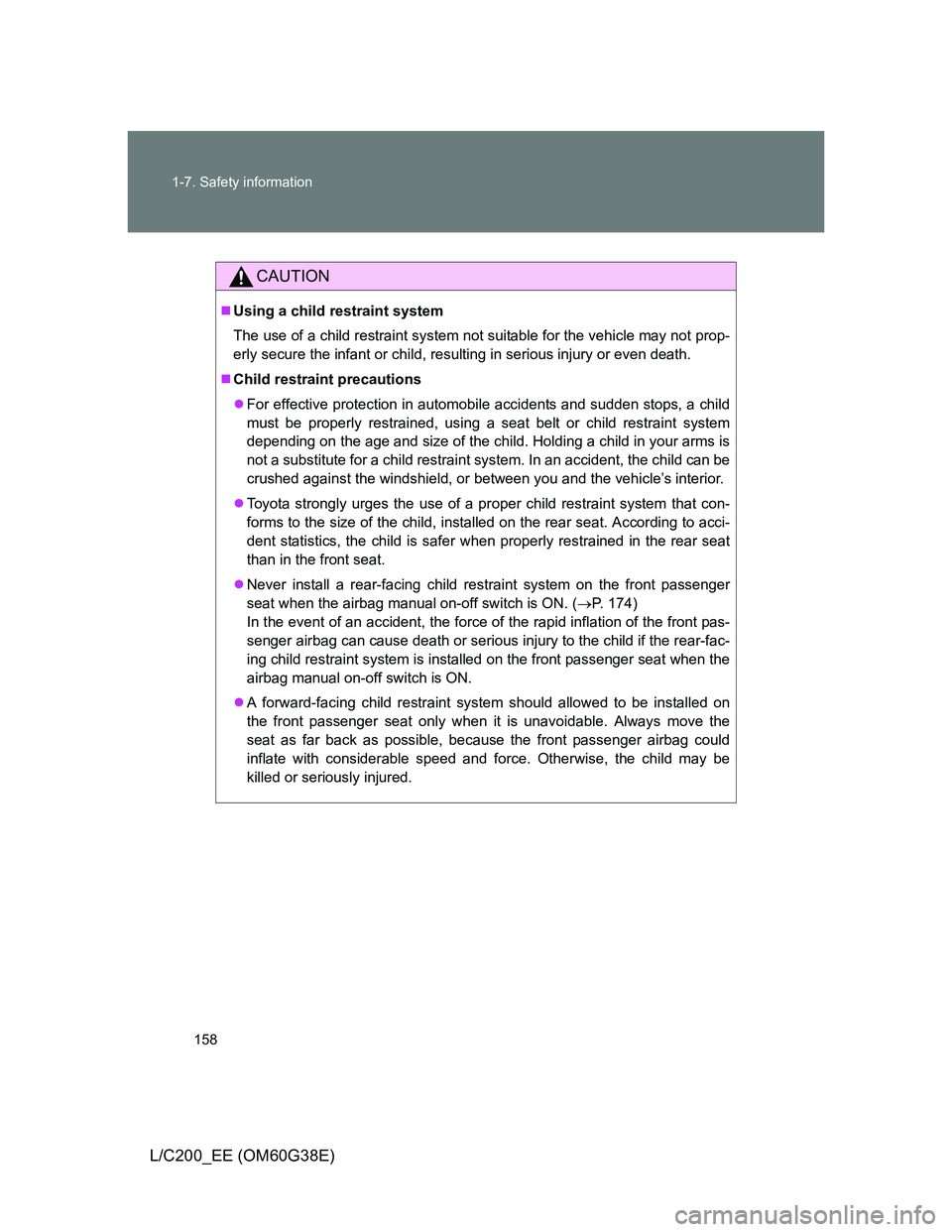

CAUTION
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child, resulting in serious injury or even death.
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
Never install a rear-facing child restraint system on the front passenger
seat when the airbag manual on-off switch is ON. (P. 174)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-fac-
ing child restraint system is installed on the front passenger seat when the
airbag manual on-off switch is ON.
A forward-facing child restraint system should allowed to be installed on
the front passenger seat only when it is unavoidable. Always move the
seat as far back as possible, because the front passenger airbag could
inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.

159 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)
CAUTION
Child restraint precautions
Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front, center and rear pillars or
roof side rail from which the side airbags or curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the side airbags and curtain shield airbags inflate, and the impact could
cause death or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.

160
1-7. Safety information
L/C200_EE (OM60G38E)

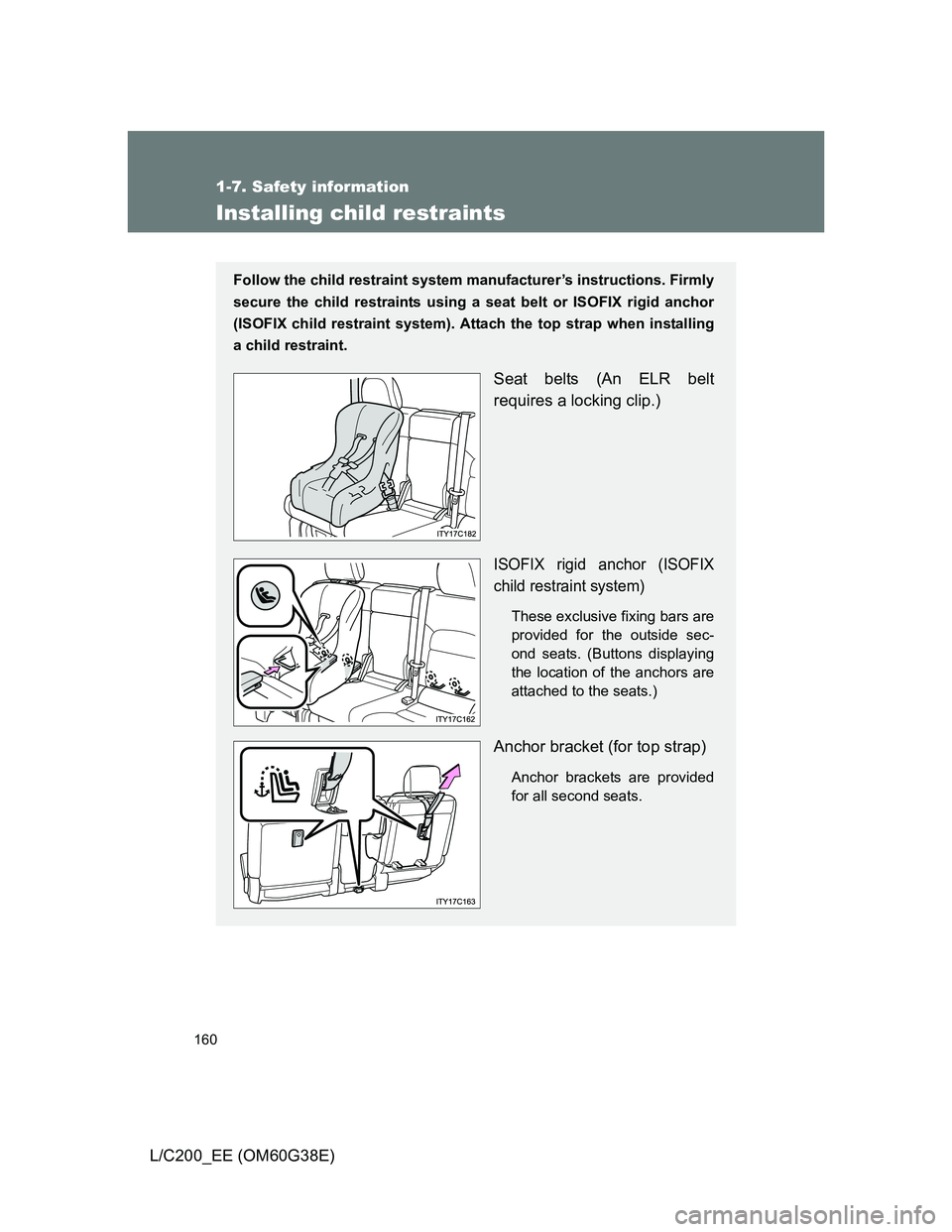

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure the child restraints using a seat belt or ISOFIX rigid anchor
(ISOFIX child restraint system). Attach the top strap when installing
a child restraint.
Seat belts (An ELR belt
requires a locking clip.)
ISOFIX rigid anchor (ISOFIX
child restraint system)
These exclusive fixing bars are
provided for the outside sec-
ond seats. (Buttons displaying
the location of the anchors are
attached to the seats.)
Anchor bracket (for top strap)
Anchor brackets are provided
for all second seats.
