After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 546)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
Do not modify the fuse or the fuse box.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.

546
4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 661)
Remove the engine compartment cover
P. 504

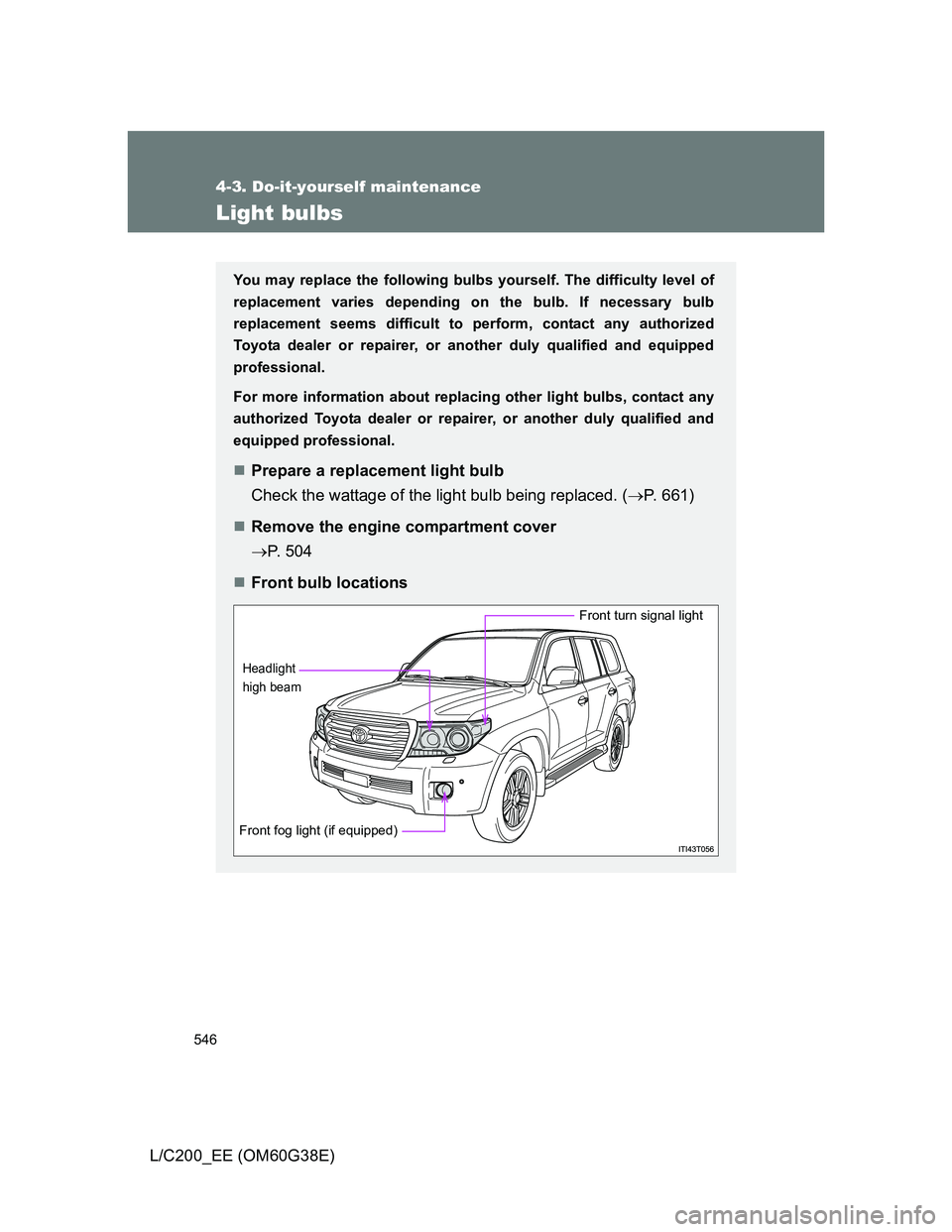

Front bulb locations
Front fog light (if equipped)Front turn signal light
Headlight
high beam

547 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)
Rear bulb locations
Rear fog light Rear turn signal light Back-up light
License plate lights

548 4-3. Do-it-yourself maintenance
L/C200_EE (OM60G38E)
Replacing light bulbs

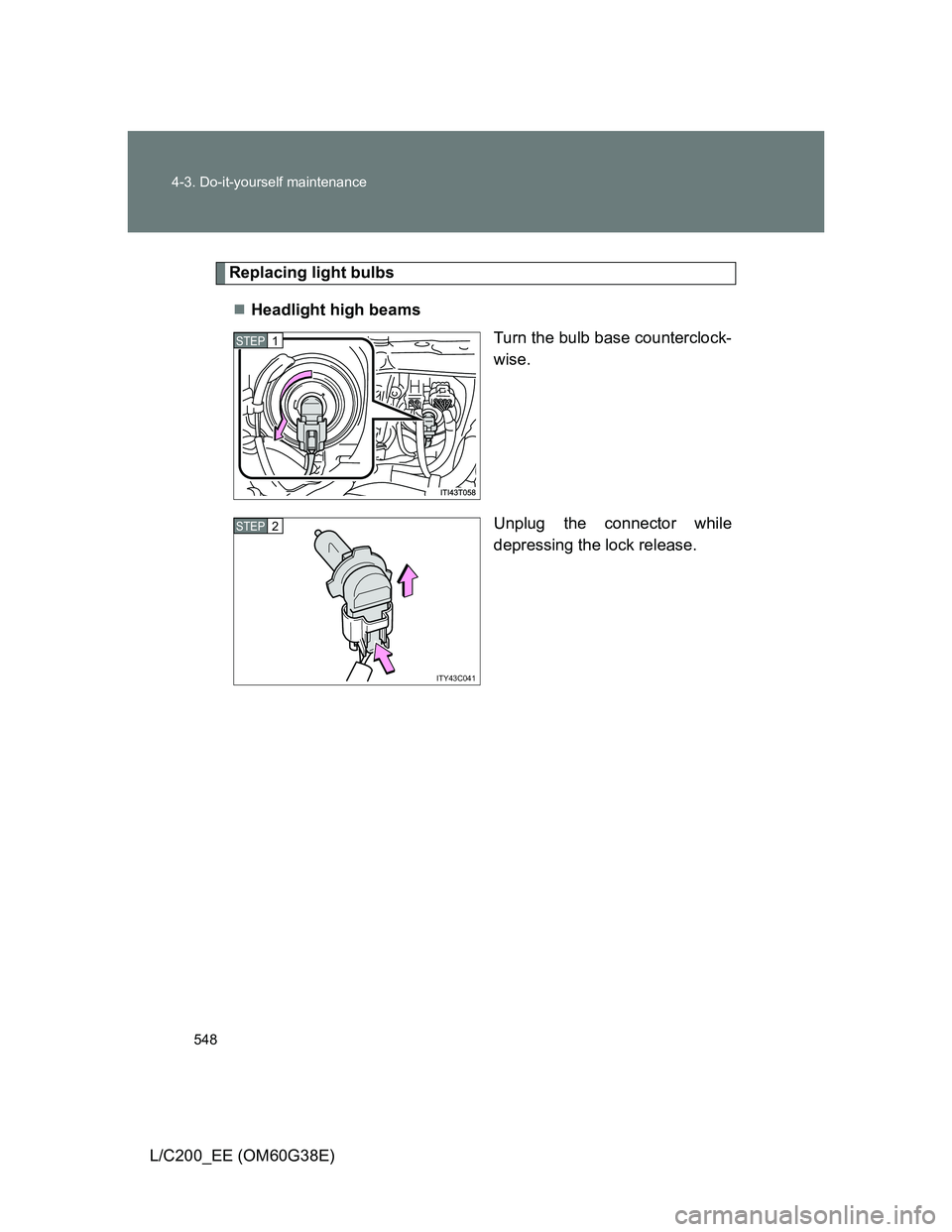

Headlight high beams
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
ITY43C041
STEP2

549 4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_EE (OM60G38E)Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP3
STEP4

550 4-3. Do-it-yourself maintenance

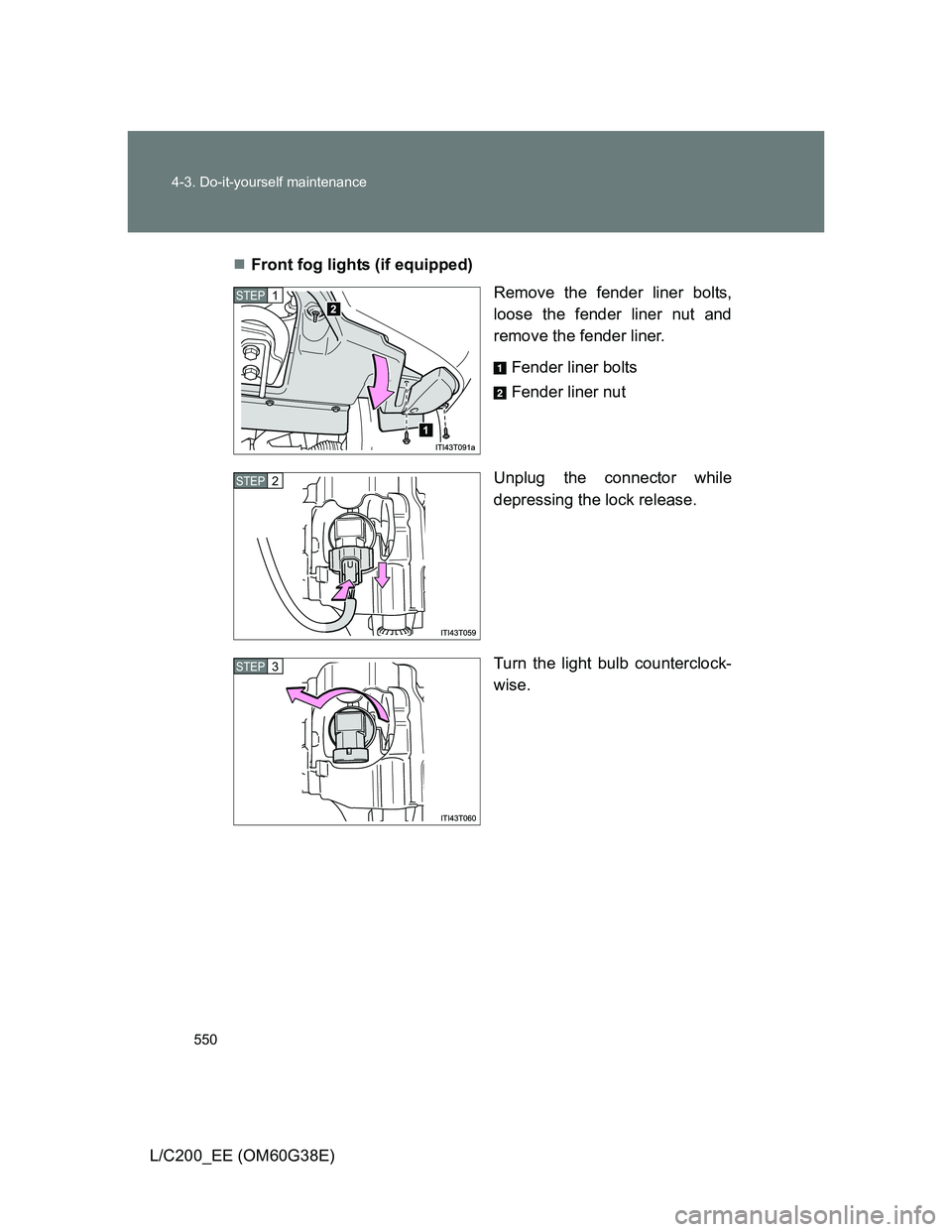

L/C200_EE (OM60G38E)Front fog lights (if equipped)
Remove the fender liner bolts,
loose the fender liner nut and
remove the fender liner.
Fender liner bolts
Fender liner nut
Unplug the connector while
depressing the lock release.
Turn the light bulb counterclock-
wise.
STEP1
STEP2
STEP3

551 4-3. Do-it-yourself maintenance
4
Maintenance and care

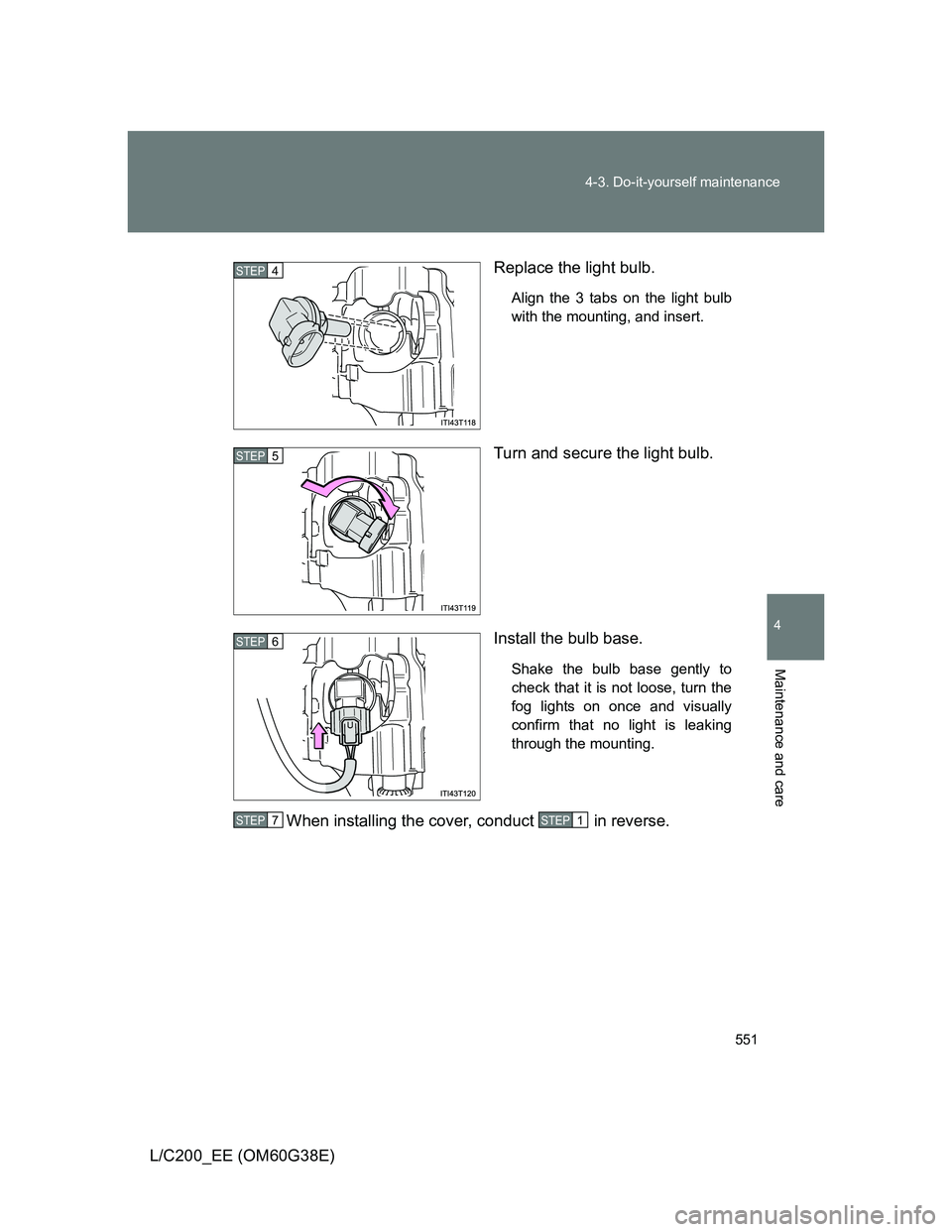

L/C200_EE (OM60G38E)Replace the light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the light bulb.
Install the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
fog lights on once and visually
confirm that no light is leaking
through the mounting.
When installing the cover, conduct in reverse.
STEP4
STEP5
STEP6
STEP7STEP1

552 4-3. Do-it-yourself maintenance

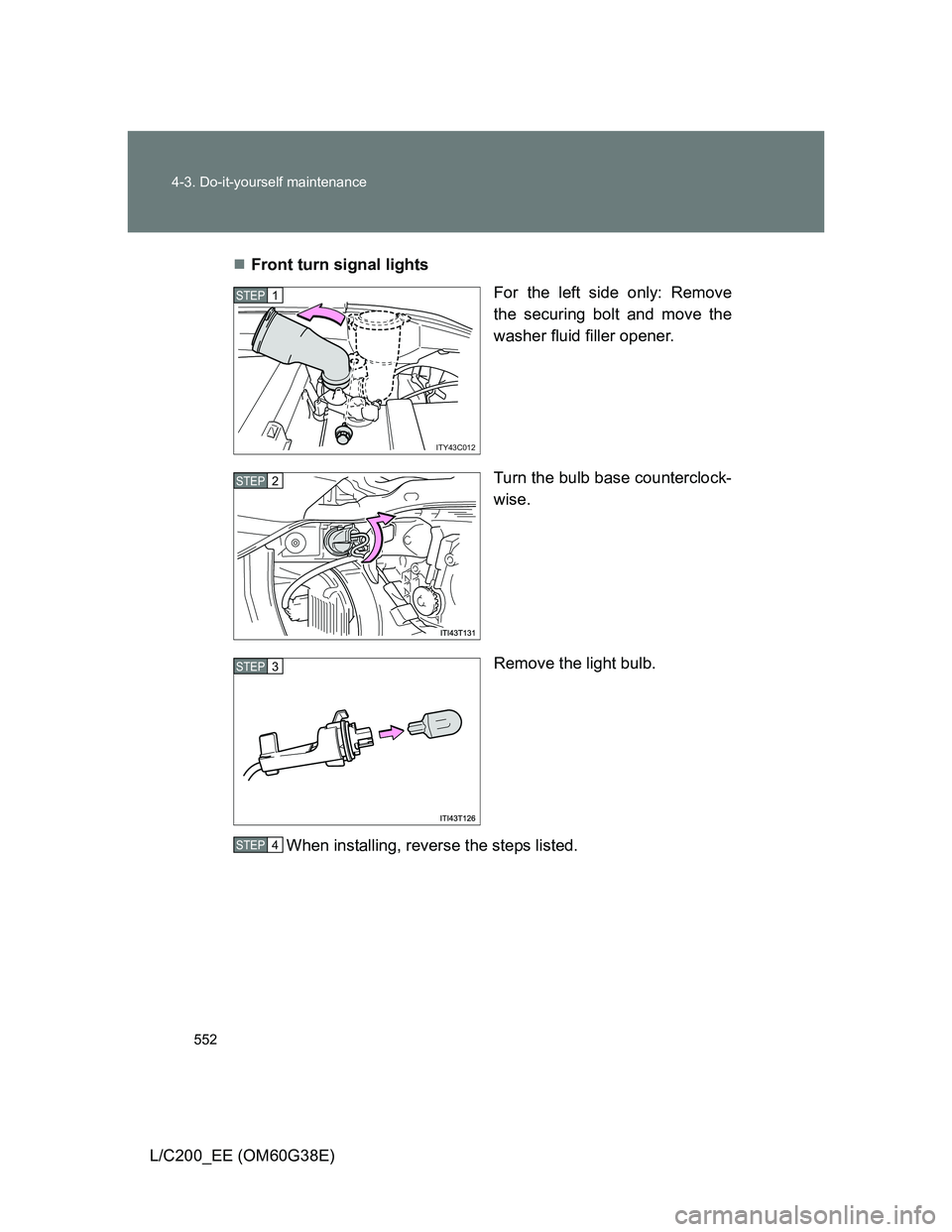

L/C200_EE (OM60G38E)Front turn signal lights
For the left side only: Remove
the securing bolt and move the
washer fluid filler opener.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C012
STEP1
STEP2
STEP3
STEP4
