2012 TOYOTA LAND CRUISER Owners Manual

465
3-7. Other interior features
3
Interior features
L/C200_EE (OM60G38E)

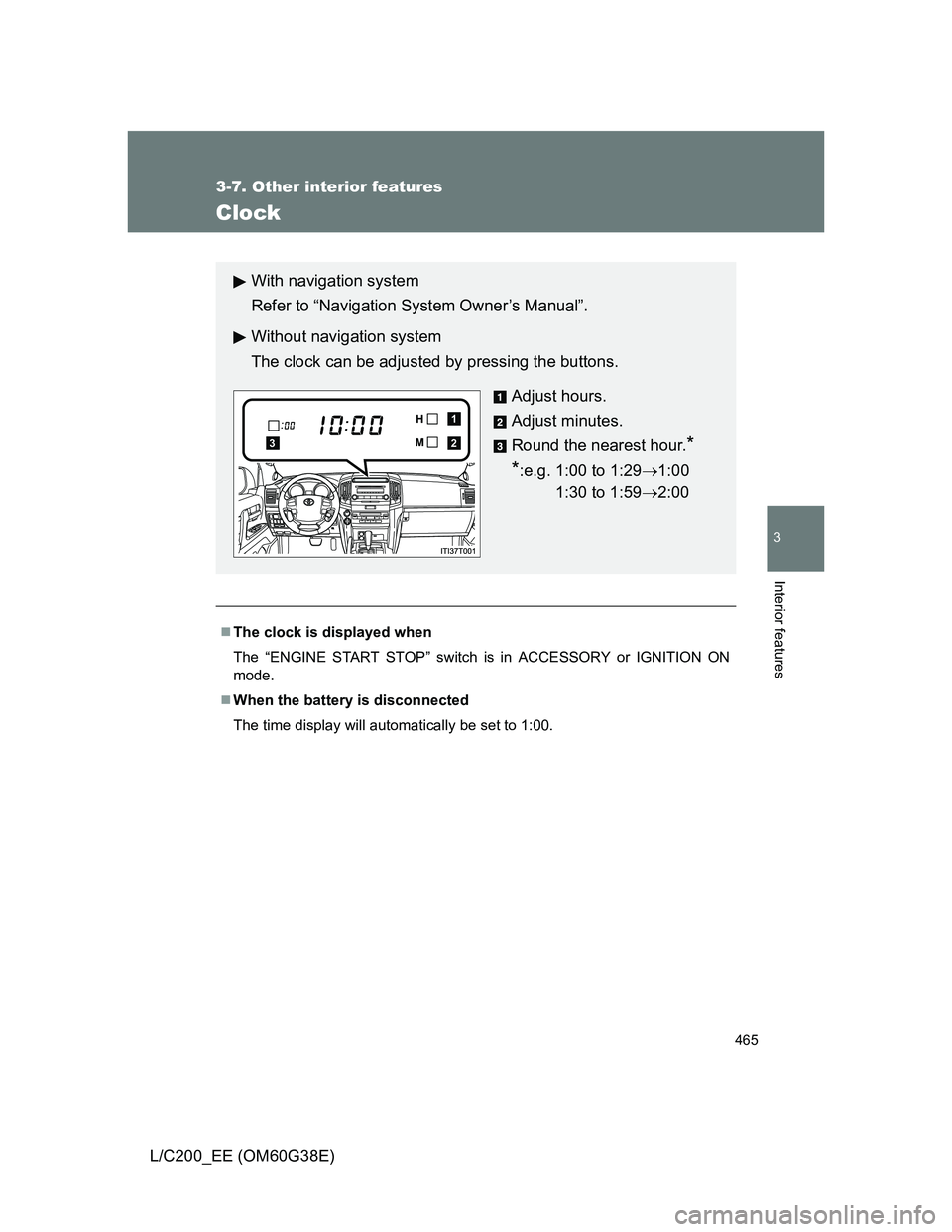

Clock
The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
When the battery is disconnected
The time display will automatically be set to 1:00.
With navigation system
Refer to “Navigation System Owner’s Manual”.
Without navigation system
The clock can be adjusted by pressing the buttons.
Adjust hours.
Adjust minutes.
Round the nearest hour.
*
*
:e.g. 1:00 to 1:291:00
1:30 to 1:592:00
2
1
3

466
3-7. Other interior features
L/C200_EE (OM60G38E)

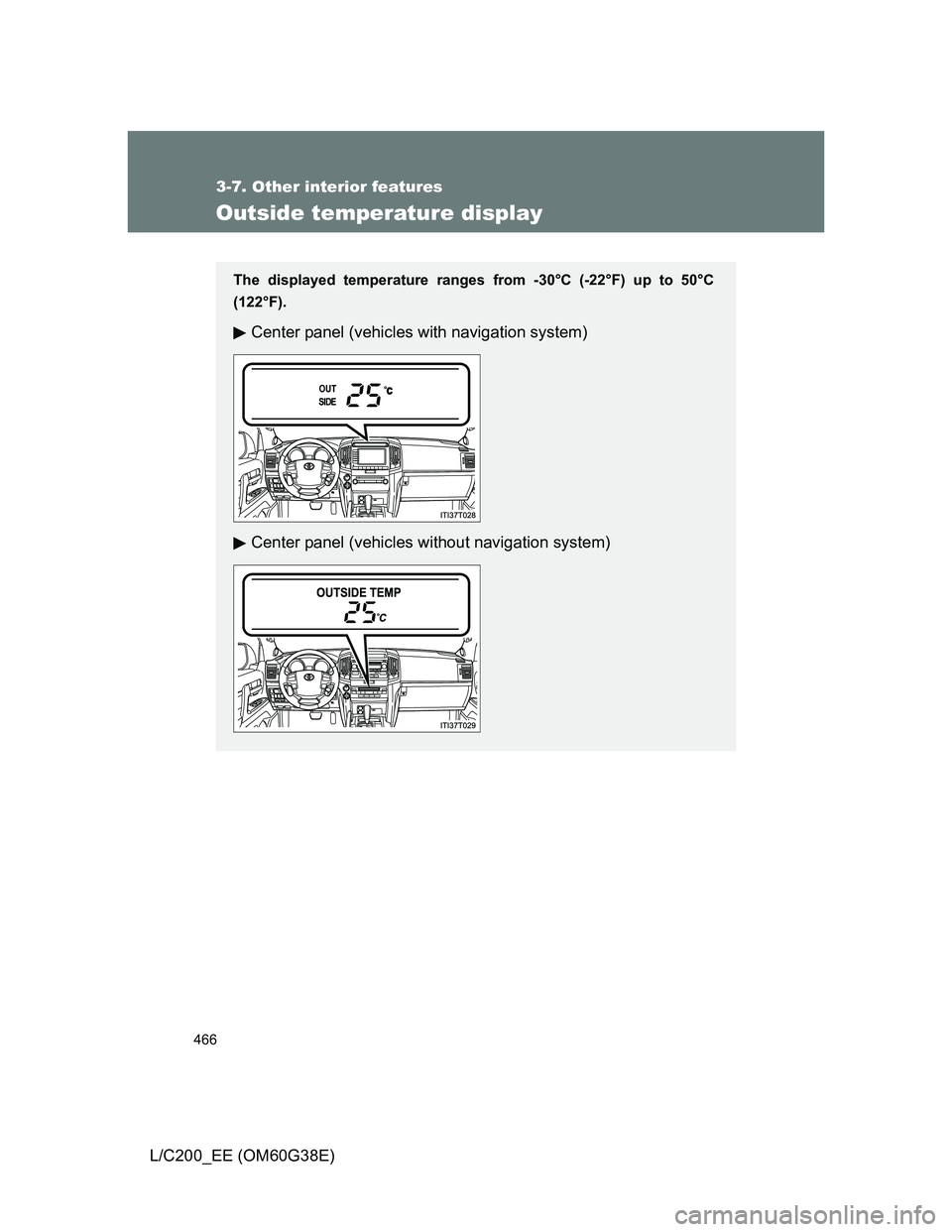

Outside temperature display
The displayed temperature ranges from -30°C (-22°F) up to 50°C
(122°F).
Center panel (vehicles with navigation system)
Center panel (vehicles without navigation system)

467 3-7. Other interior features
3
Interior features
L/C200_EE (OM60G38E)

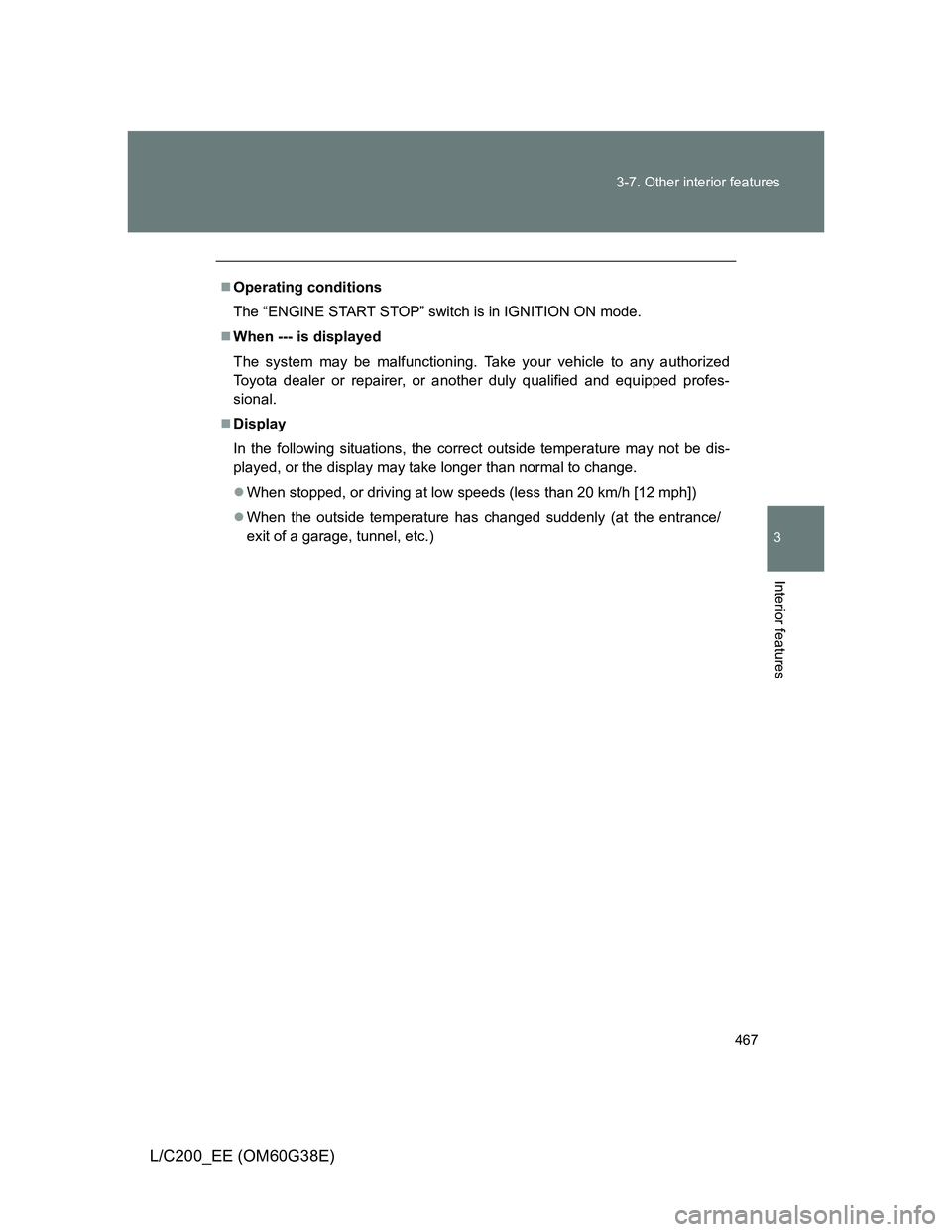

Operating conditions
The “ENGINE START STOP” switch is in IGNITION ON mode.
When --- is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When stopped, or driving at low speeds (less than 20 km/h [12 mph])
When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)

468
3-7. Other interior features
L/C200_EE (OM60G38E)

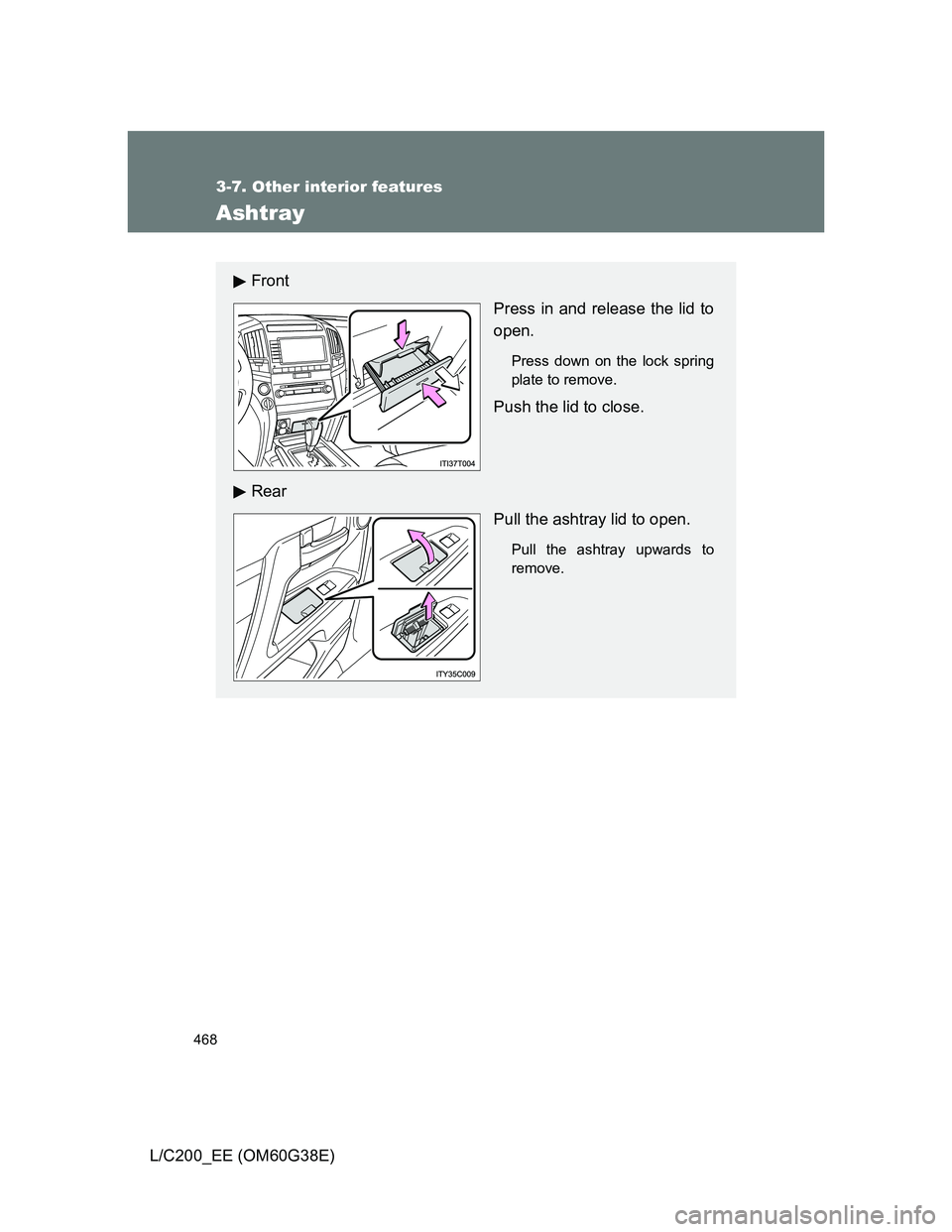

Ashtray
Front
Press in and release the lid to
open.
Press down on the lock spring
plate to remove.
Push the lid to close.
Rear
Pull the ashtray lid to open.
Pull the ashtray upwards to
remove.

469 3-7. Other interior features
3
Interior features
L/C200_EE (OM60G38E)
CAUTION
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
To prevent fire
Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
Do not place paper or any other type of flammable object in the ashtray.

470
3-7. Other interior features
L/C200_EE (OM60G38E)

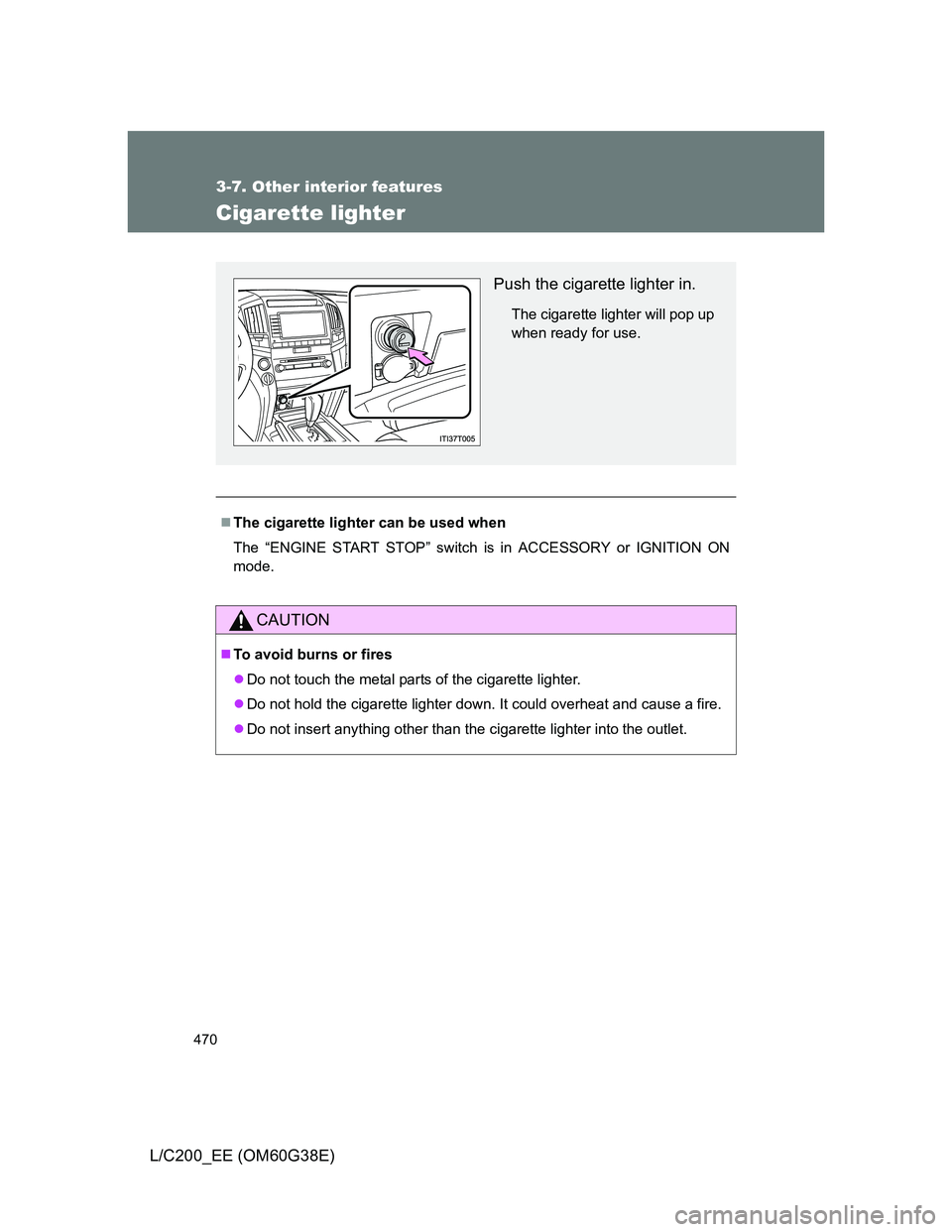

Cigarette lighter
The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
CAUTION
To avoid burns or fires
Do not touch the metal parts of the cigarette lighter.
Do not hold the cigarette lighter down. It could overheat and cause a fire.
Do not insert anything other than the cigarette lighter into the outlet.
Push the cigarette lighter in.
The cigarette lighter will pop up
when ready for use.

471
3-7. Other interior features
3
Interior features
L/C200_EE (OM60G38E)

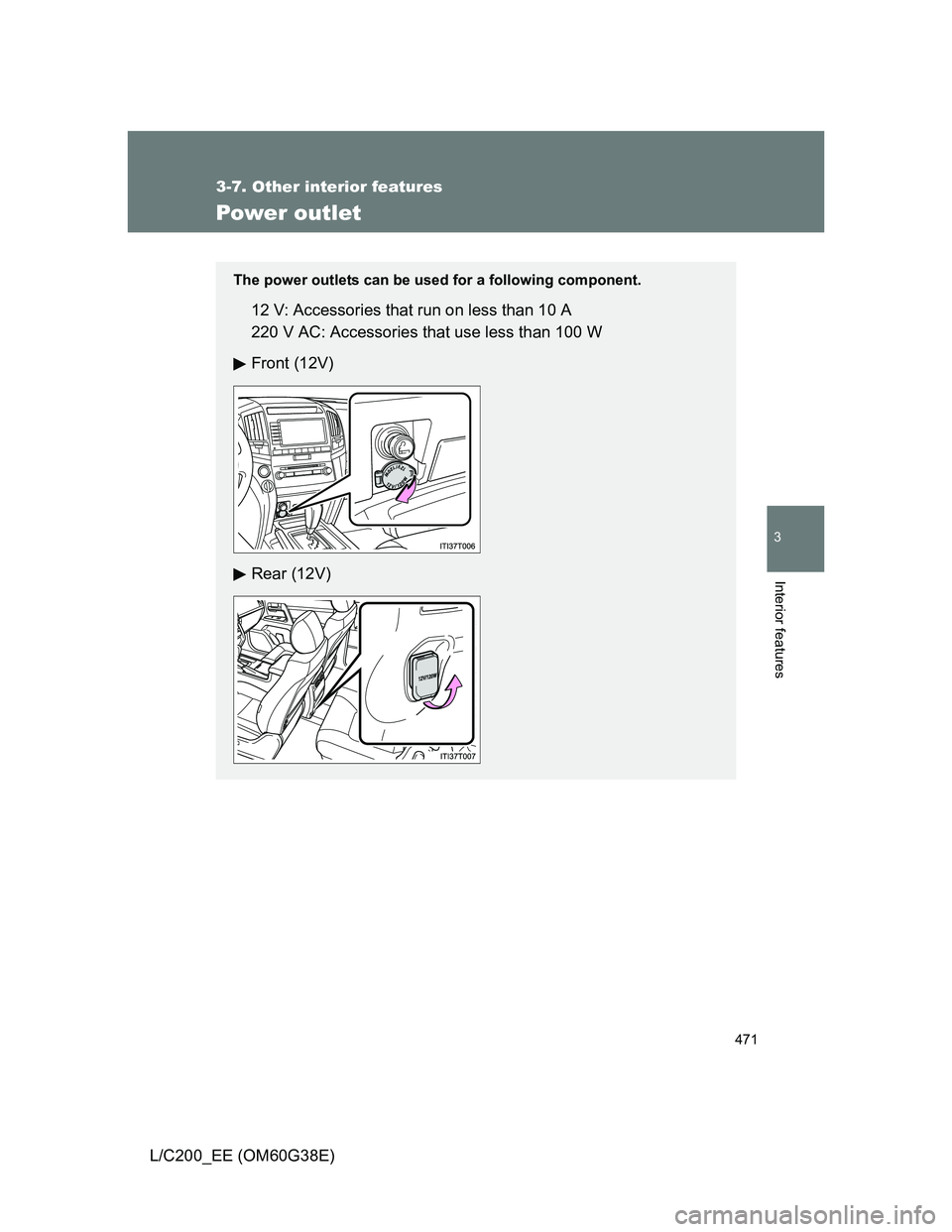

Power outlet
The power outlets can be used for a following component.
12 V: Accessories that run on less than 10 A
220 V AC: Accessories that use less than 100 W
Front (12V)
Rear (12V)

472 3-7. Other interior features
L/C200_EE (OM60G38E)

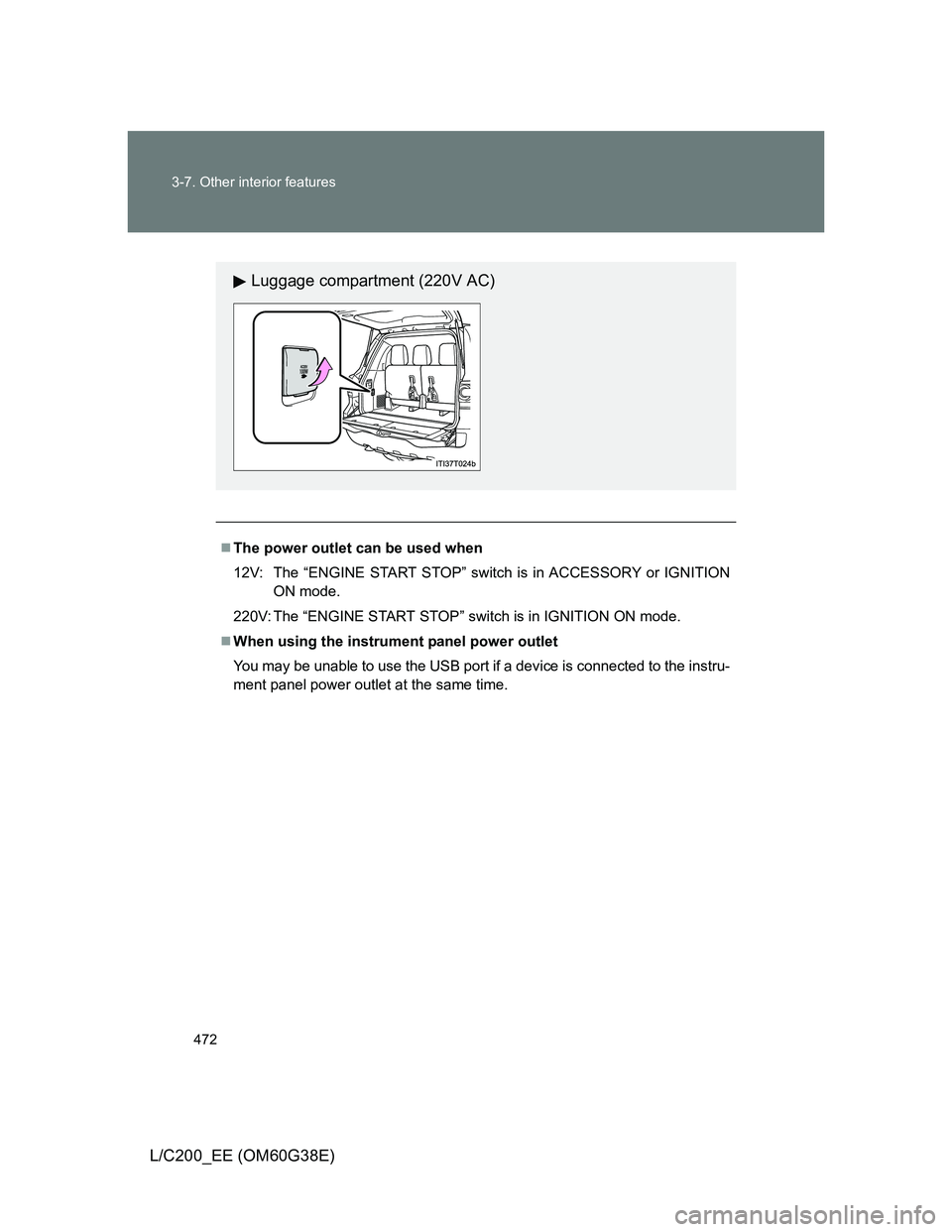

The power outlet can be used when
12V: The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
220V: The “ENGINE START STOP” switch is in IGNITION ON mode.
When using the instrument panel power outlet
You may be unable to use the USB port if a device is connected to the instru-
ment panel power outlet at the same time.
Luggage compartment (220V AC)
