2012 TOYOTA LAND CRUISER Owners Manual

449 3-5. Using the interior lights
3
Interior features
L/C200_EE (OM60G38E)

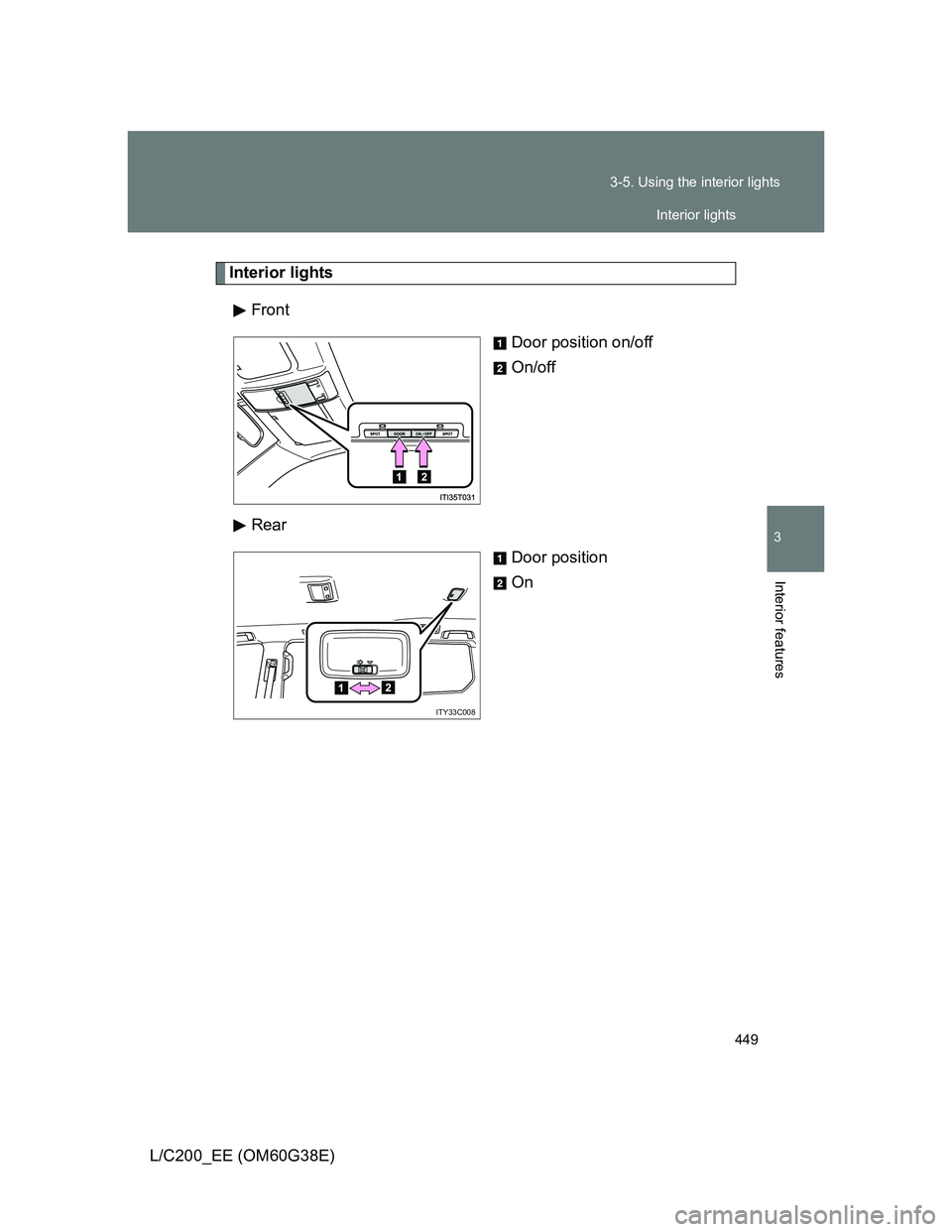

Interior lights
Front
Door position on/off
On/off
Rear
Door position
On
ITY33C008
Interior lights

450 3-5. Using the interior lights
L/C200_EE (OM60G38E)

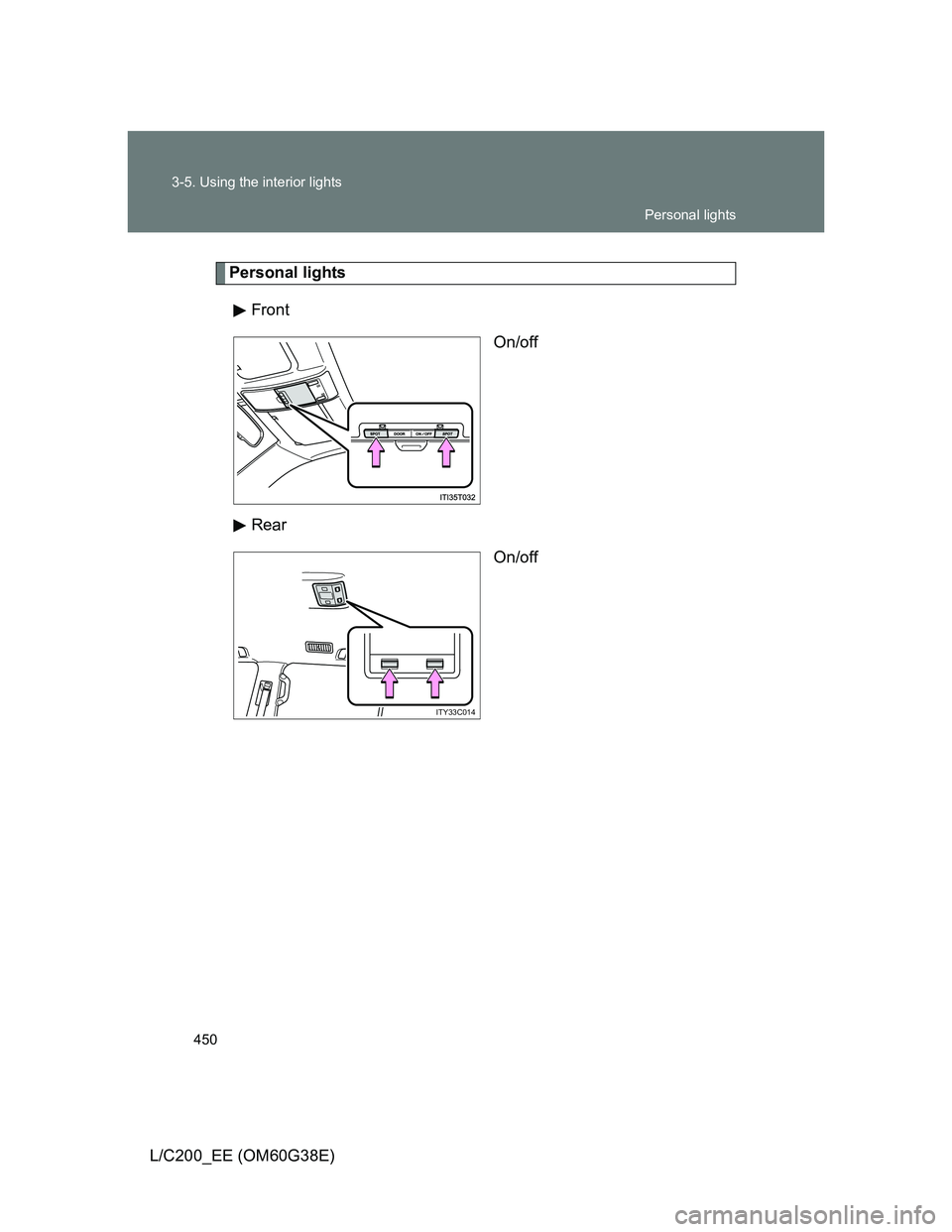

Personal lights
Front
On/off
Rear
On/off
ITY33C014
Personal lights

451 3-5. Using the interior lights
3
Interior features
L/C200_EE (OM60G38E)

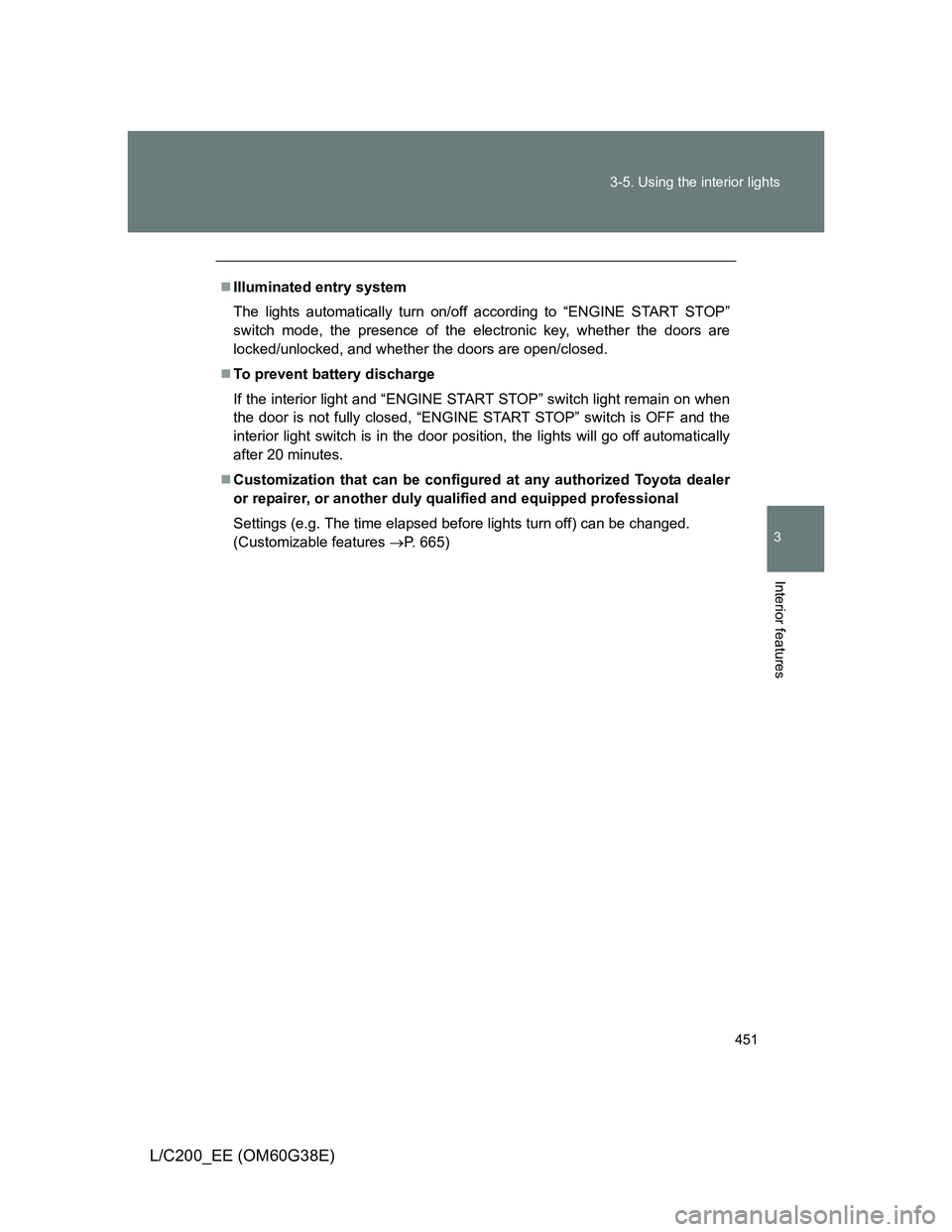

Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
To prevent battery discharge
If the interior light and “ENGINE START STOP” switch light remain on when
the door is not fully closed, “ENGINE START STOP” switch is OFF and the
interior light switch is in the door position, the lights will go off automatically
after 20 minutes.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 665)

452
L/C200_EE (OM60G38E)

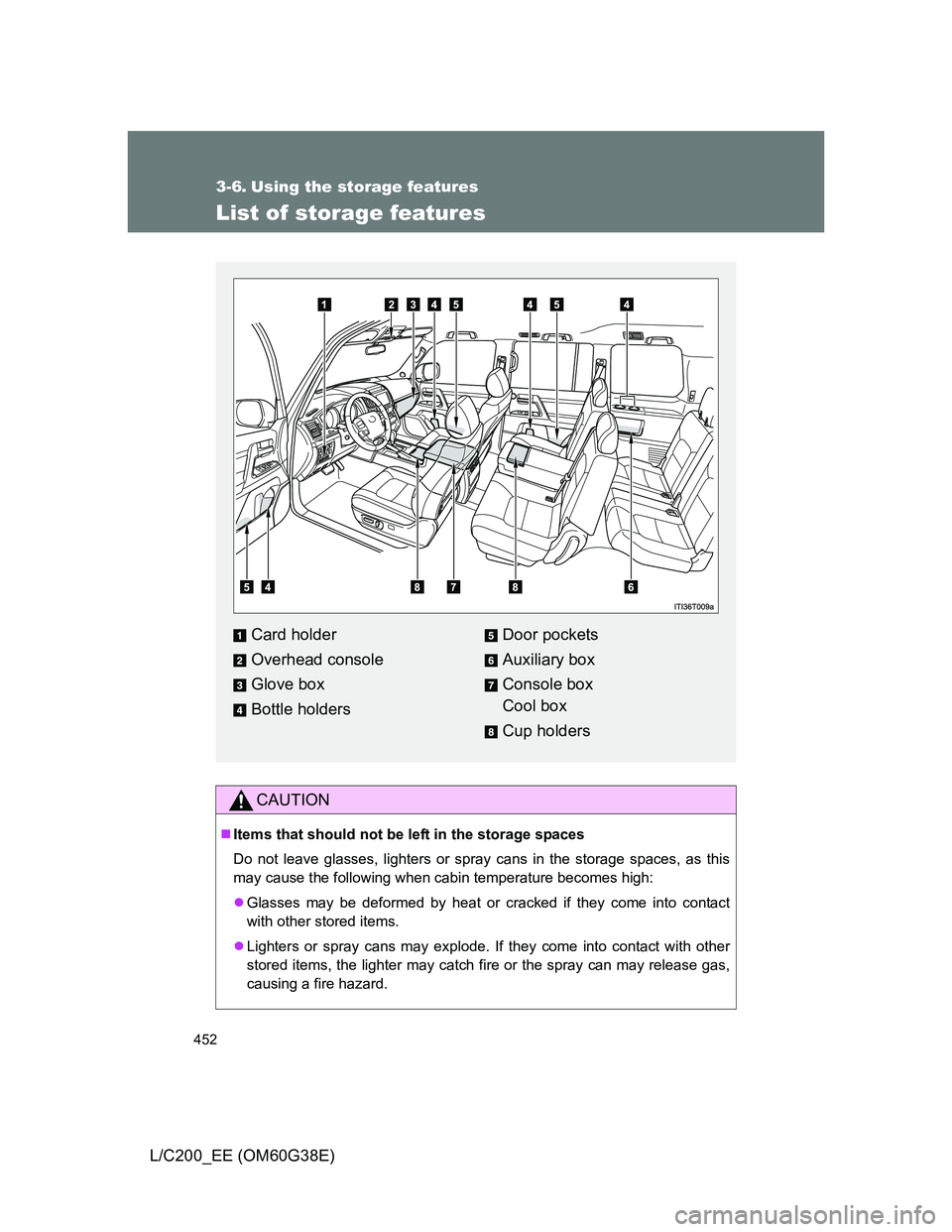

3-6. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Card holder
Overhead console
Glove box
Bottle holdersDoor pockets
Auxiliary box
Console box
Cool box
Cup holders

453 3-6. Using the storage features
3
Interior features
L/C200_EE (OM60G38E)
Glove box
Open (push button)
Lock with the mechanical key
Unlock with the mechanical
key
Glove box light
The glove box light turns on when the tail lights are on.
Removing the separate tray
CAUTION
While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Pull out the separate tray.
Glove box

454 3-6. Using the storage features
L/C200_EE (OM60G38E)

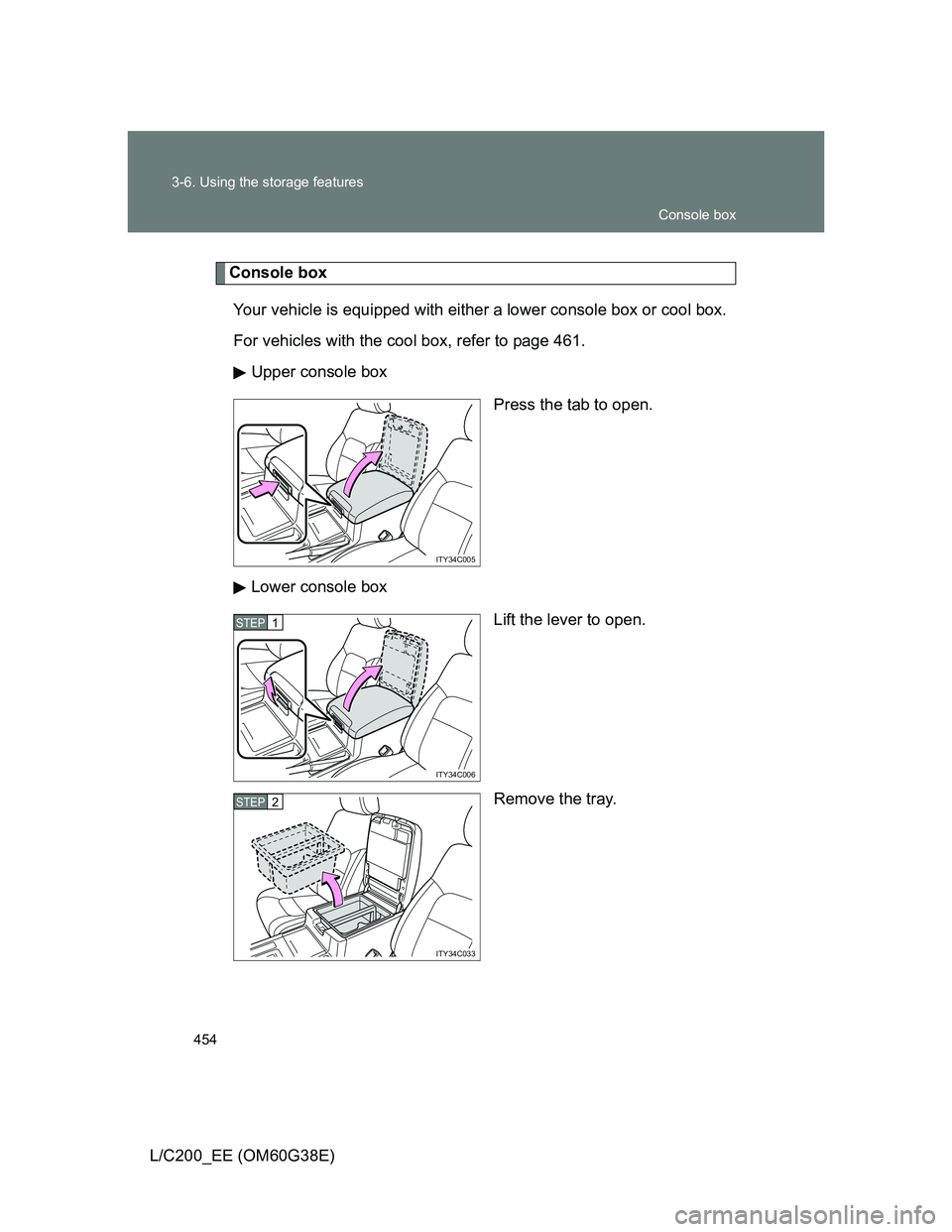

Console box
Your vehicle is equipped with either a lower console box or cool box.
For vehicles with the cool box, refer to page 461.
Upper console box
Press the tab to open.
Lower console box
Lift the lever to open.
Remove the tray.
ITY34C005
ITY34C006
STEP1
ITY34C033
STEP2
Console box

455 3-6. Using the storage features
3
Interior features
L/C200_EE (OM60G38E)

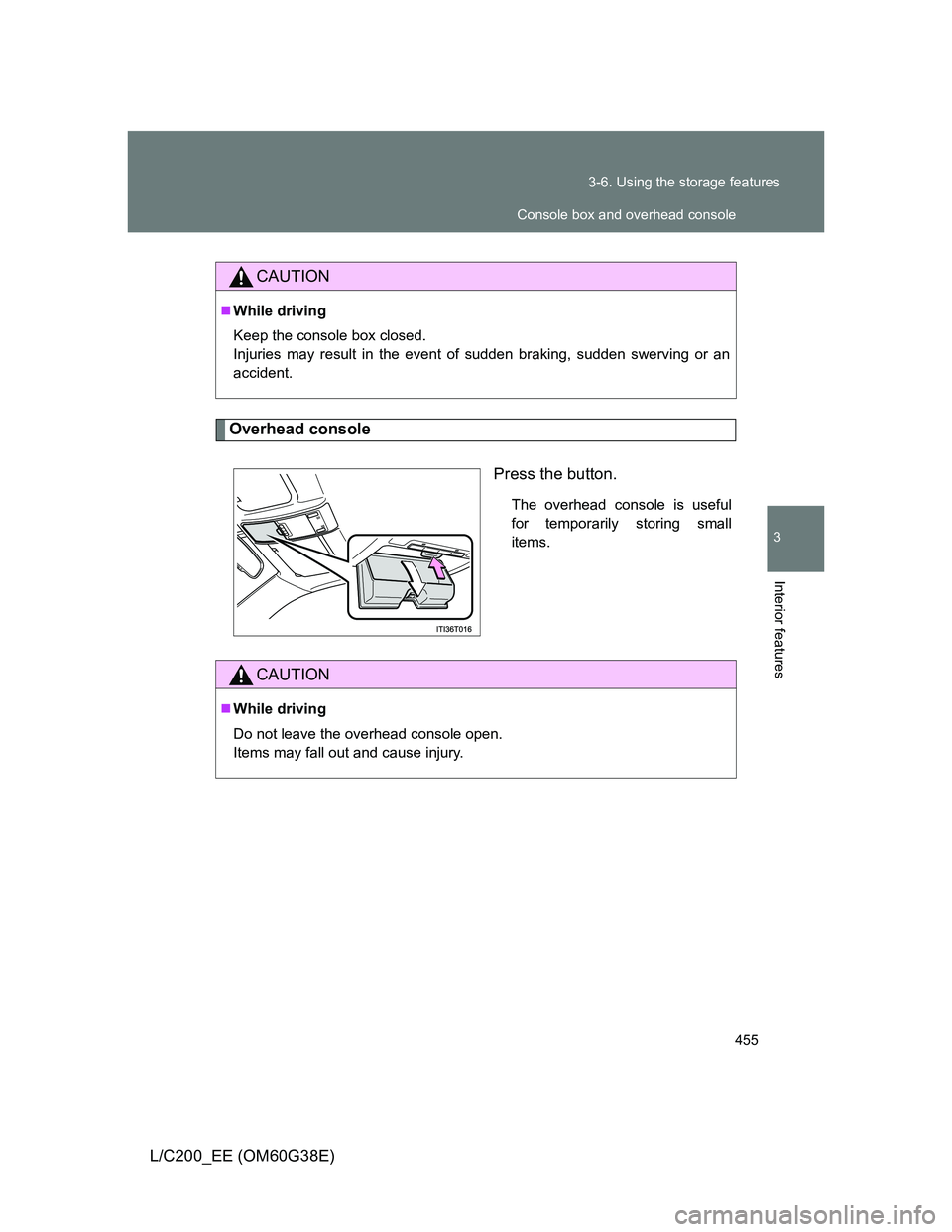

Overhead console
Press the button.
The overhead console is useful
for temporarily storing small
items.
CAUTION
While driving
Keep the console box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
CAUTION
While driving
Do not leave the overhead console open.
Items may fall out and cause injury.
Console box and overhead console

456 3-6. Using the storage features
L/C200_EE (OM60G38E)
Cup holders
Front (type A)
Press down and release the lid.
You can adjust or remove the
separator inside.
Front (type B)
Open the lower console box lid.
Rear
Pull the armrest down. (P. 480)
Press the button.
ITY34C011
ITY34C013
STEP1
ITY34C015
STEP2
Cup holders
