2012 TOYOTA LAND CRUISER Owners Manual

129 1-6. Theft deterrent system
1
Before driving
L/C200_EE (OM60G38E)

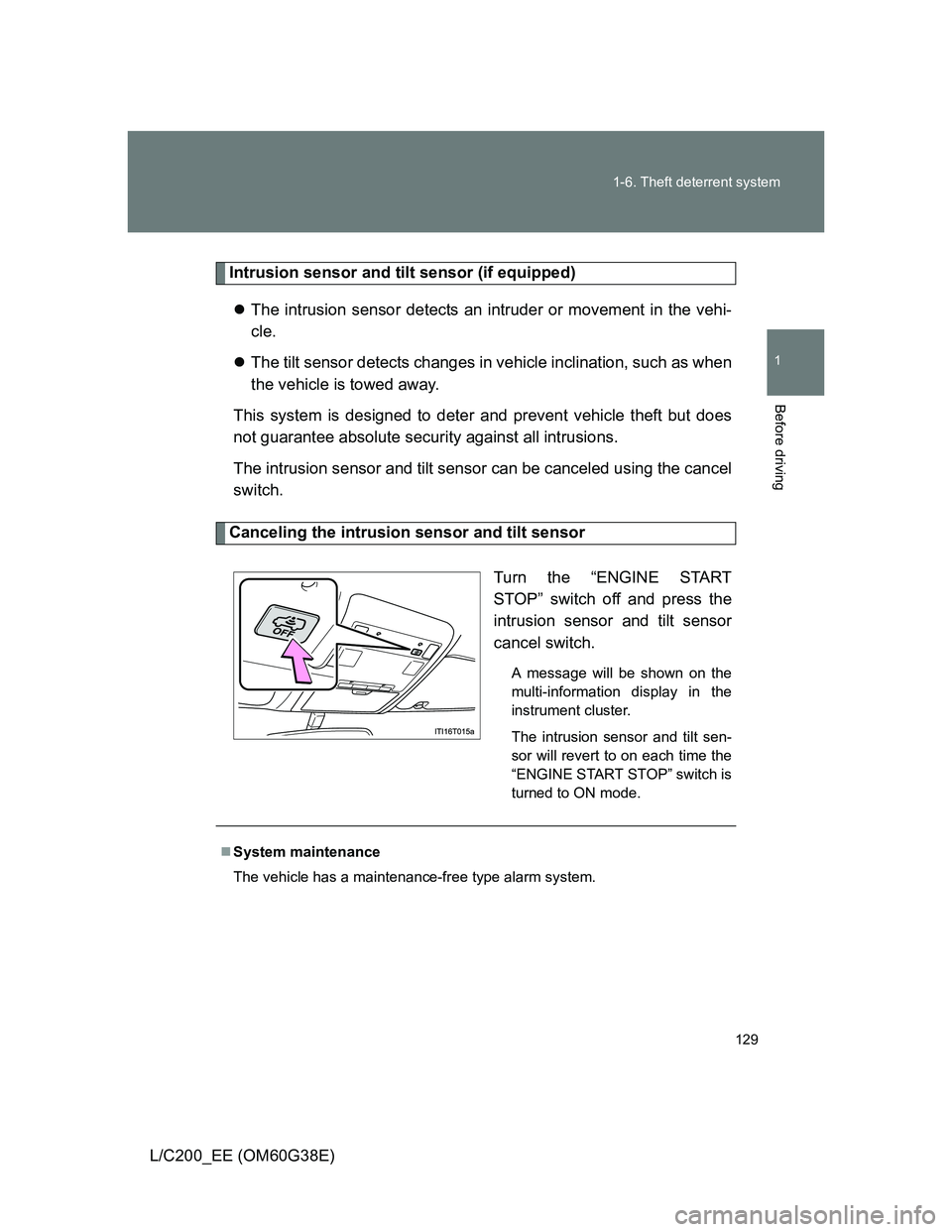

Intrusion sensor and tilt sensor (if equipped)
The intrusion sensor detects an intruder or movement in the vehi-
cle.
The tilt sensor detects changes in vehicle inclination, such as when
the vehicle is towed away.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
The intrusion sensor and tilt sensor can be canceled using the cancel
switch.
Canceling the intrusion sensor and tilt sensor
Turn the “ENGINE START
STOP” switch off and press the
intrusion sensor and tilt sensor
cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
The intrusion sensor and tilt sen-
sor will revert to on each time the
“ENGINE START STOP” switch is
turned to ON mode.
System maintenance
The vehicle has a maintenance-free type alarm system.

130 1-6. Theft deterrent system
L/C200_EE (OM60G38E)

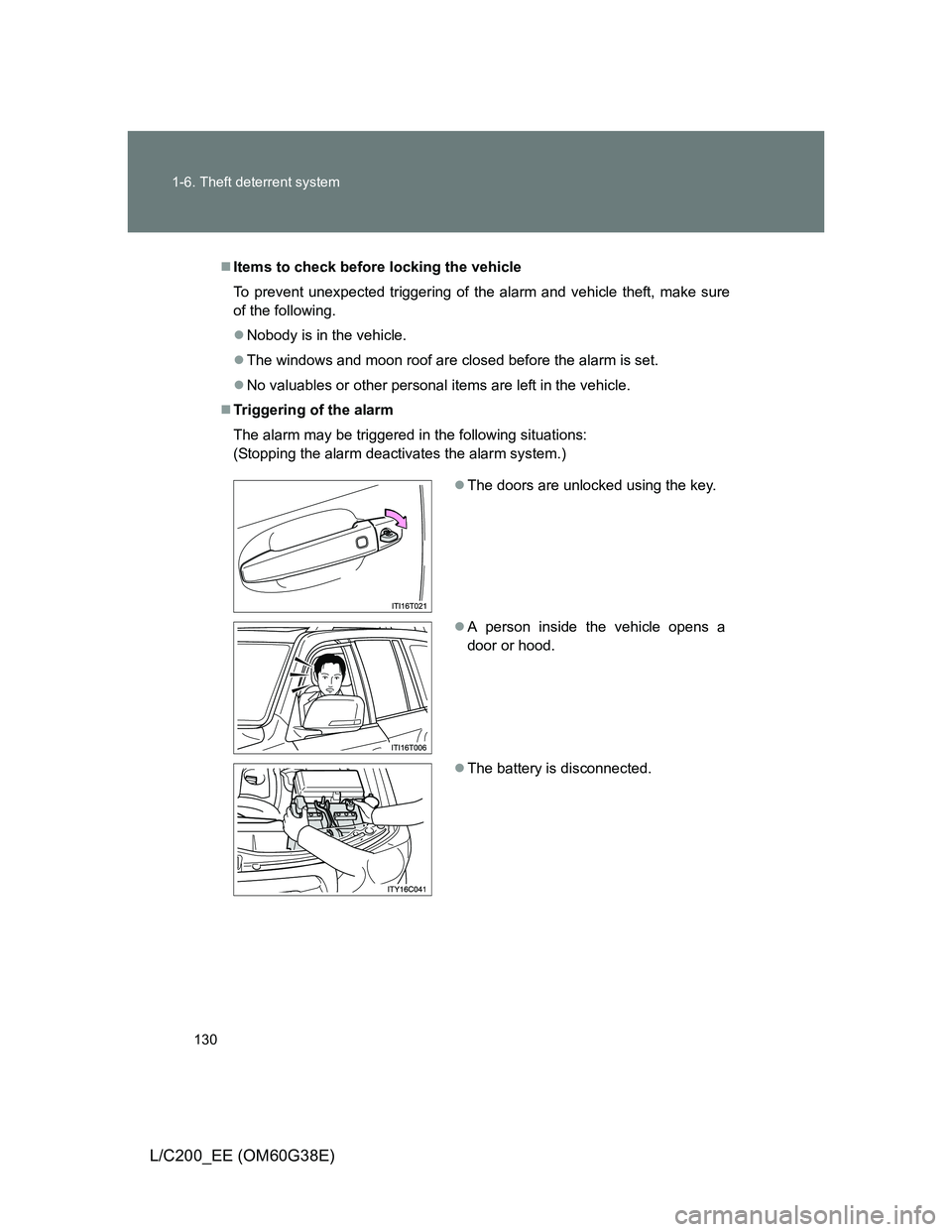

Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
Nobody is in the vehicle.
The windows and moon roof are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
The doors are unlocked using the key.
A person inside the vehicle opens a
door or hood.
The battery is disconnected.

131 1-6. Theft deterrent system
1
Before driving
L/C200_EE (OM60G38E)

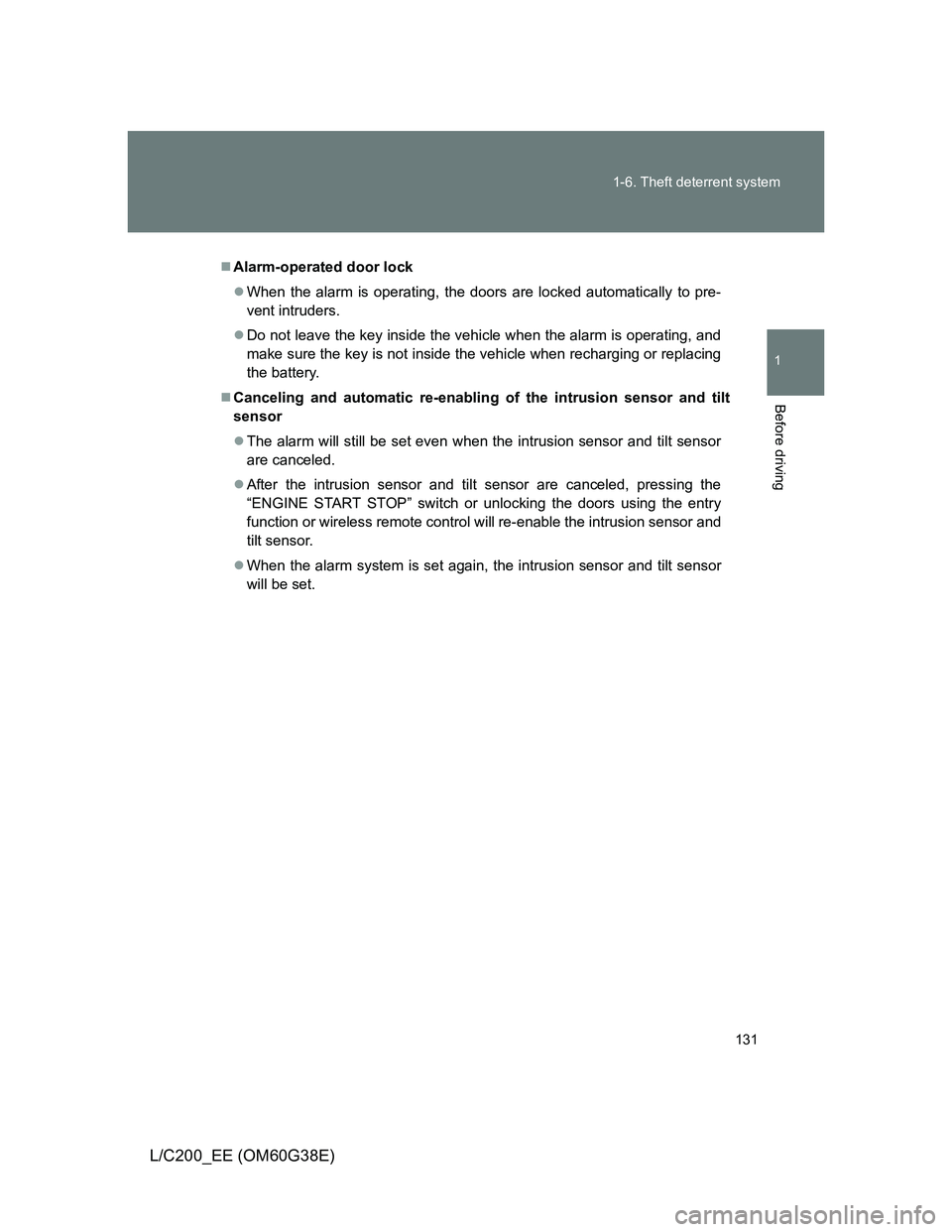

Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to pre-
vent intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing
the battery.
Canceling and automatic re-enabling of the intrusion sensor and tilt
sensor
The alarm will still be set even when the intrusion sensor and tilt sensor
are canceled.
After the intrusion sensor and tilt sensor are canceled, pressing the
“ENGINE START STOP” switch or unlocking the doors using the entry
function or wireless remote control will re-enable the intrusion sensor and
tilt sensor.
When the alarm system is set again, the intrusion sensor and tilt sensor
will be set.

132 1-6. Theft deterrent system
L/C200_EE (OM60G38E)

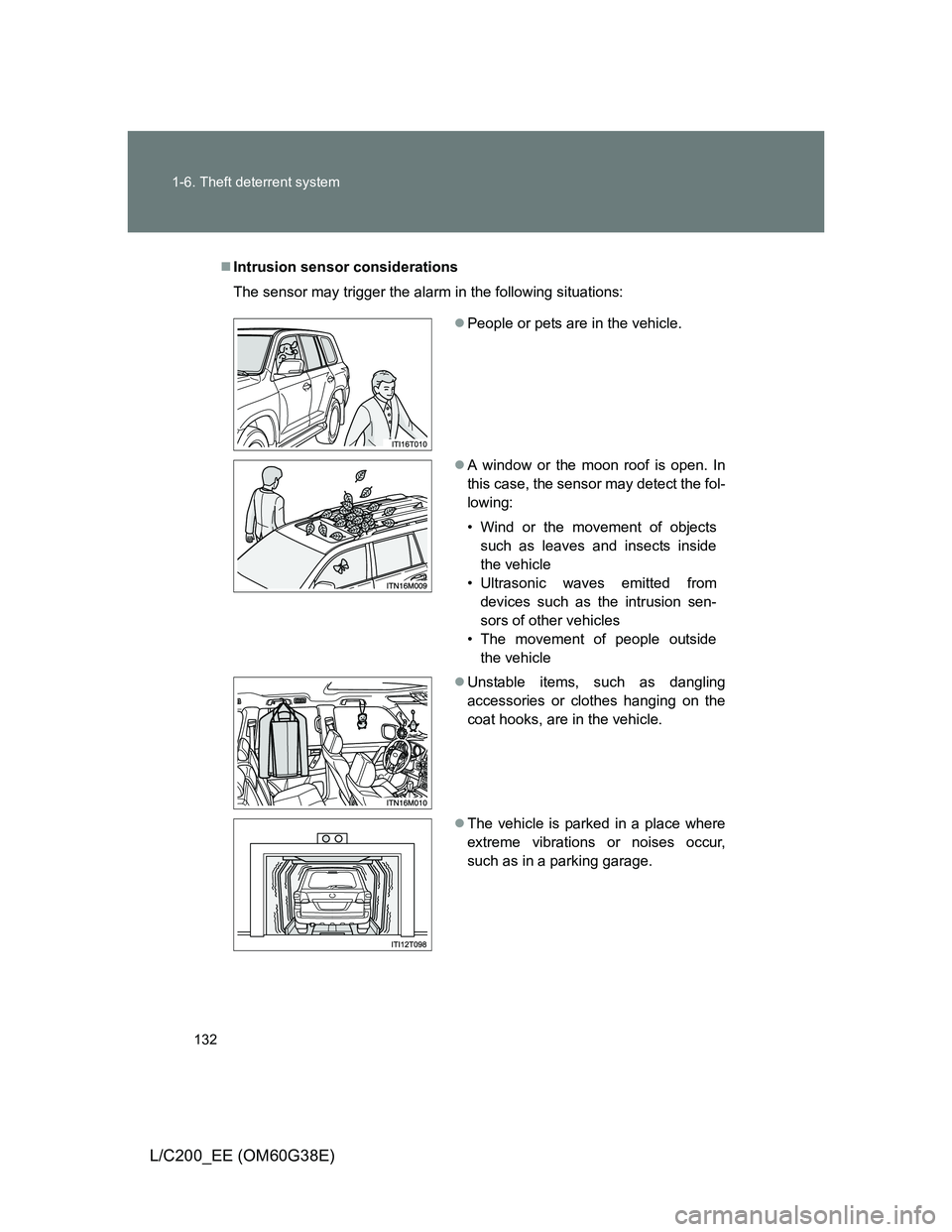

Intrusion sensor considerations
The sensor may trigger the alarm in the following situations:
People or pets are in the vehicle.
A window or the moon roof is open. In
this case, the sensor may detect the fol-
lowing:
• Wind or the movement of objects
such as leaves and insects inside
the vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sen-
sors of other vehicles
• The movement of people outside
the vehicle
Unstable items, such as dangling
accessories or clothes hanging on the
coat hooks, are in the vehicle.
The vehicle is parked in a place where
extreme vibrations or noises occur,
such as in a parking garage.

133 1-6. Theft deterrent system
1
Before driving
L/C200_EE (OM60G38E)
The vehicle is inside an automatic or high-pressure car wash.
The vehicle experiences impacts, such as hail, lightning strikes, and
other kinds of repeated impacts or vibrations.
Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
The vehicle is transported by a ferry, trailer, train, etc.
The vehicle is parked in a parking garage.
The vehicle is inside a car wash that moves the vehicle.
Any of the tires loses air pressure.
The vehicle is jacked up.
An earthquake occurs or the road caves in.
Cargo is loaded onto or unloaded from the roof luggage carrier.
Ice or snow is removed from the vehi-
cle, causing the vehicle to receive
repeated impacts or vibrations.

134 1-6. Theft deterrent system
L/C200_EE (OM60G38E)

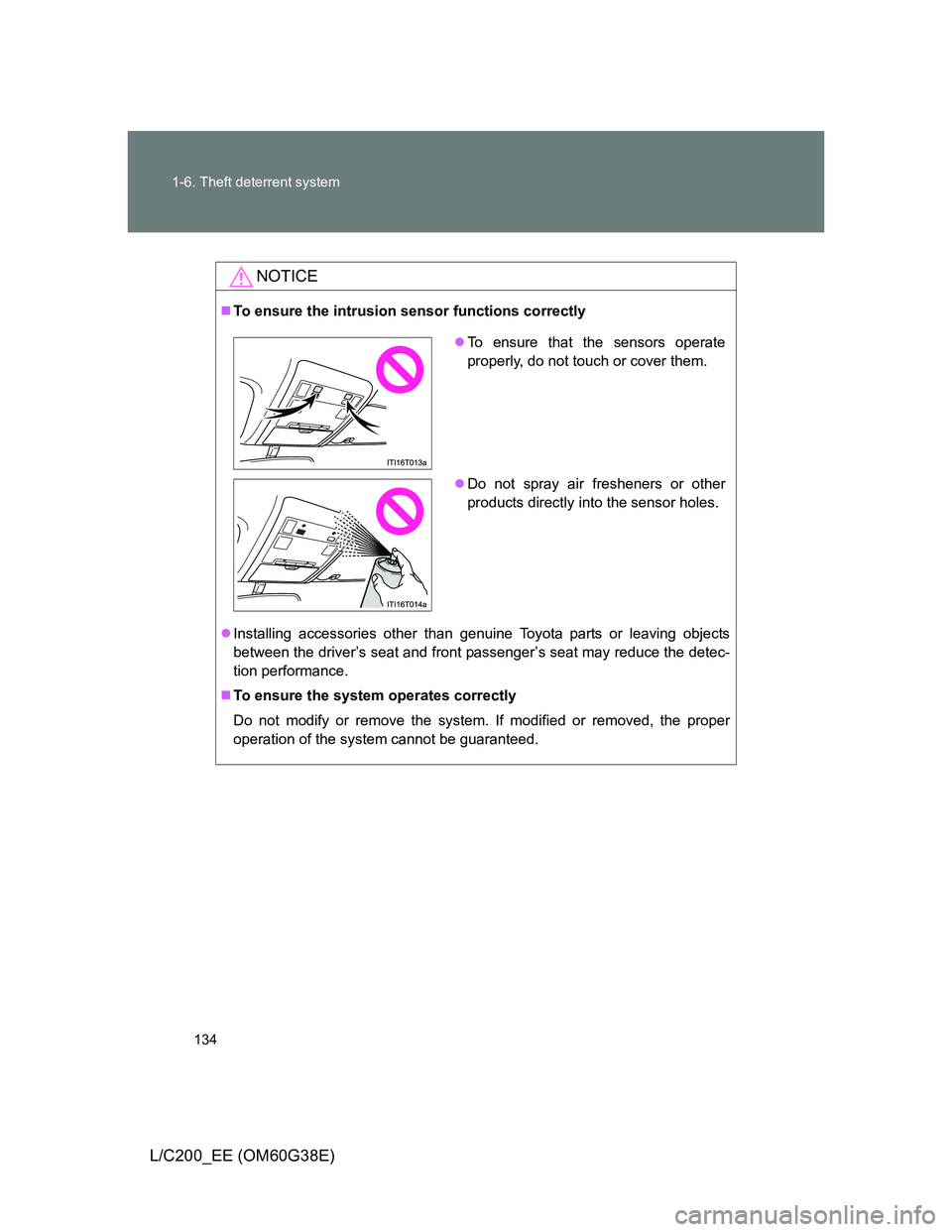

NOTICE
To ensure the intrusion sensor functions correctly
Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the detec-
tion performance.
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
To ensure that the sensors operate
properly, do not touch or cover them.
Do not spray air fresheners or other
products directly into the sensor holes.

135
1
Before driving
L/C200_EE (OM60G38E)
1-7. Safety information

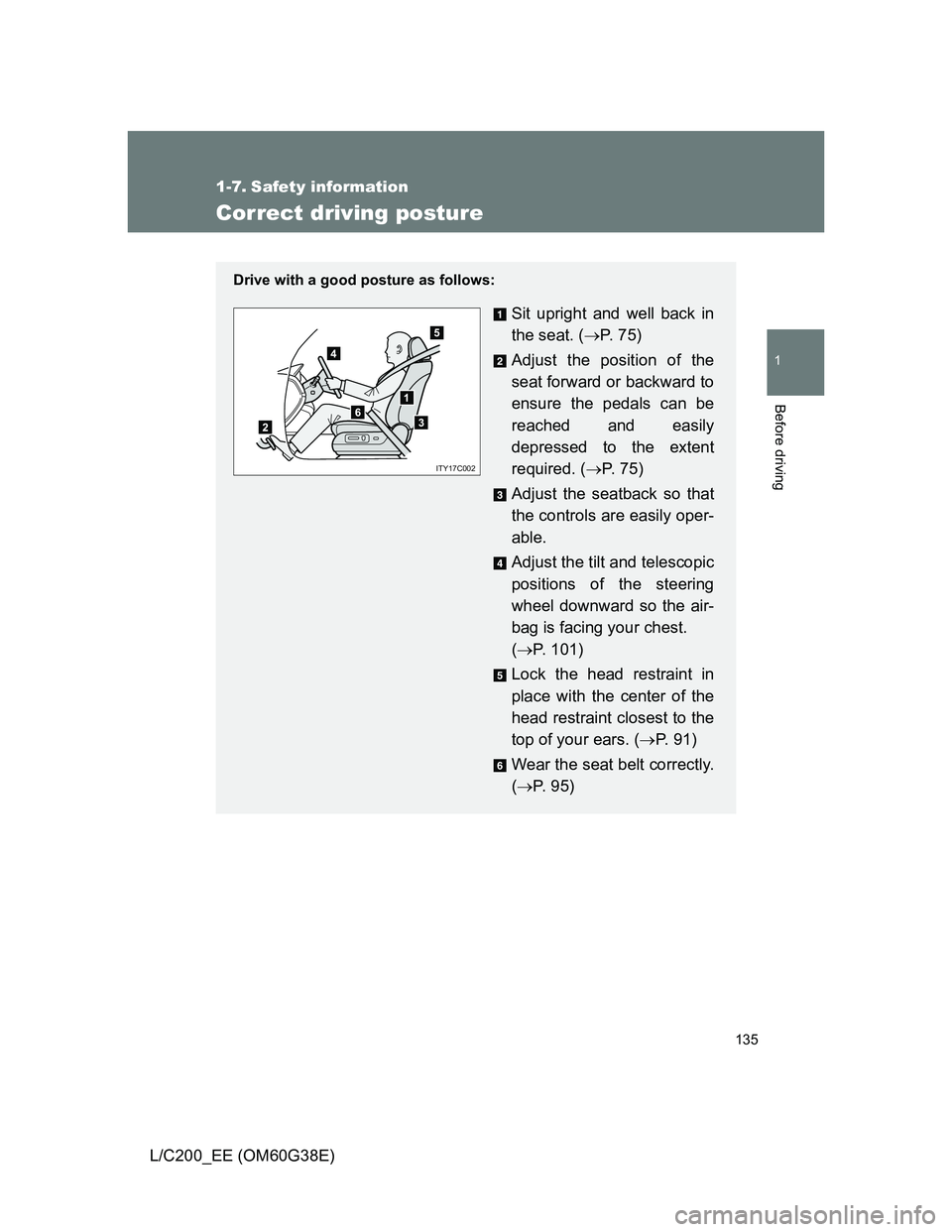

Correct driving posture
Drive with a good posture as follows:
Sit upright and well back in
the seat. (P. 7 5 )
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. (P. 75)
Adjust the seatback so that
the controls are easily oper-
able.
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(P. 101)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (P. 91)
Wear the seat belt correctly.
(P. 95)
ITY17C002

136 1-7. Safety information
L/C200_EE (OM60G38E)

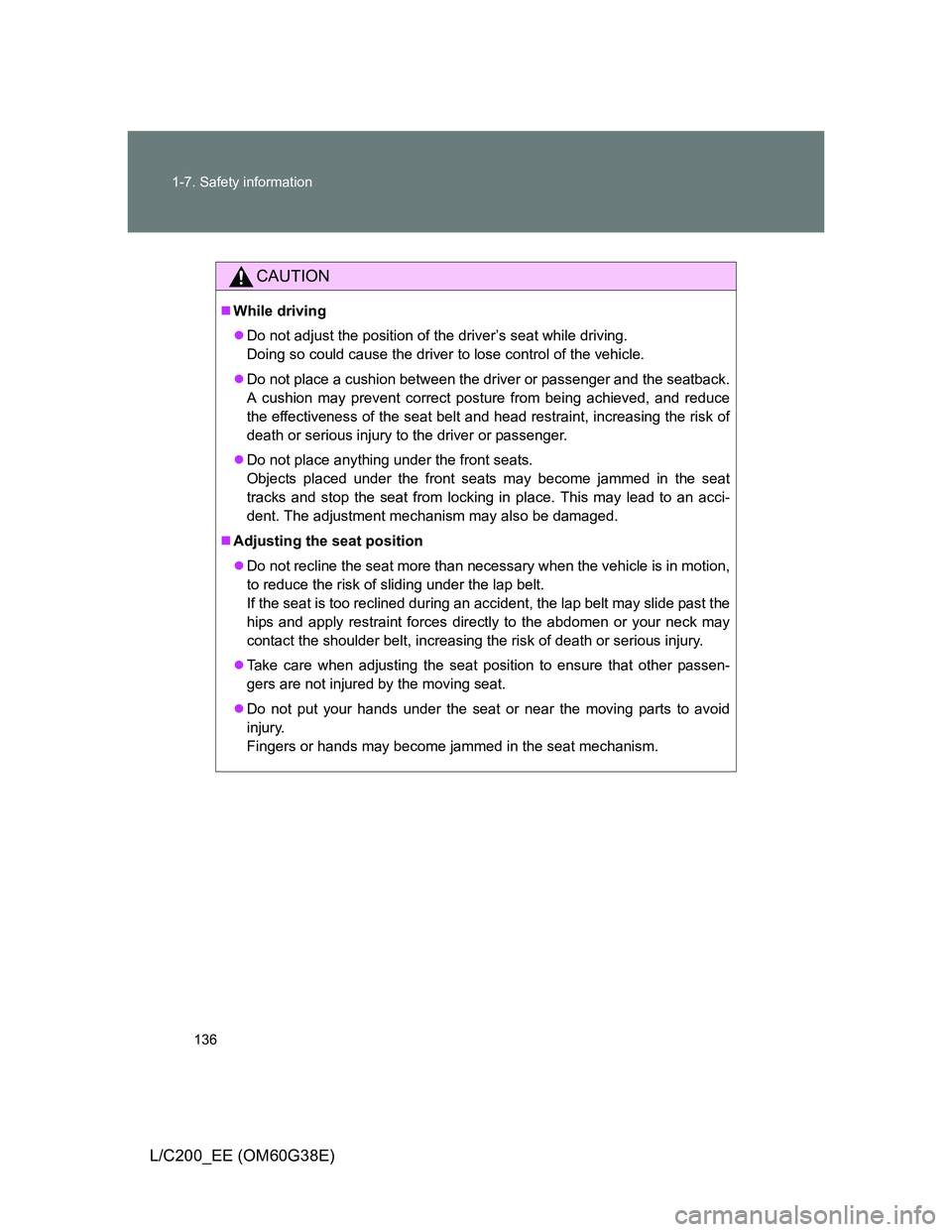

CAUTION
While driving
Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent. The adjustment mechanism may also be damaged.
Adjusting the seat position
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined during an accident, the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
