2012 TOYOTA LAND CRUISER Owners Manual

5

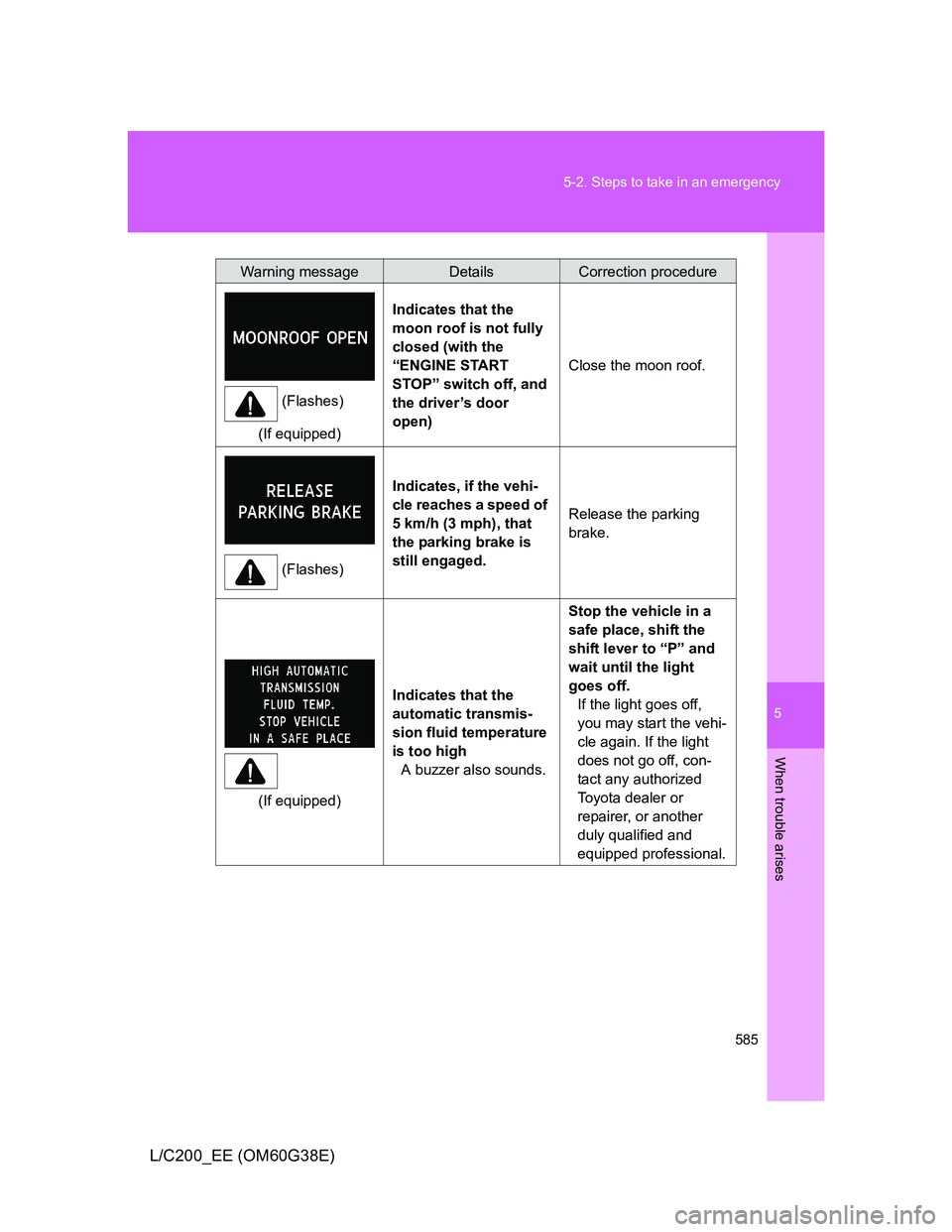

585 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
(Flashes)
(If equipped)Indicates that the
moon roof is not fully
closed (with the
“ENGINE START
STOP” switch off, and
the driver’s door
open)Close the moon roof.
(Flashes)Indicates, if the vehi-
cle reaches a speed of
5 km/h (3 mph), that
the parking brake is
still engaged.Release the parking
brake.
(If equipped)Indicates that the
automatic transmis-
sion fluid temperature
is too high
A buzzer also sounds.Stop the vehicle in a
safe place, shift the
shift lever to “P” and
wait until the light
goes off.
If the light goes off,
you may start the vehi-
cle again. If the light
does not go off, con-
tact any authorized
Toyota dealer or
repairer, or another
duly qualified and
equipped professional.
Warning messageDetailsCorrection procedure

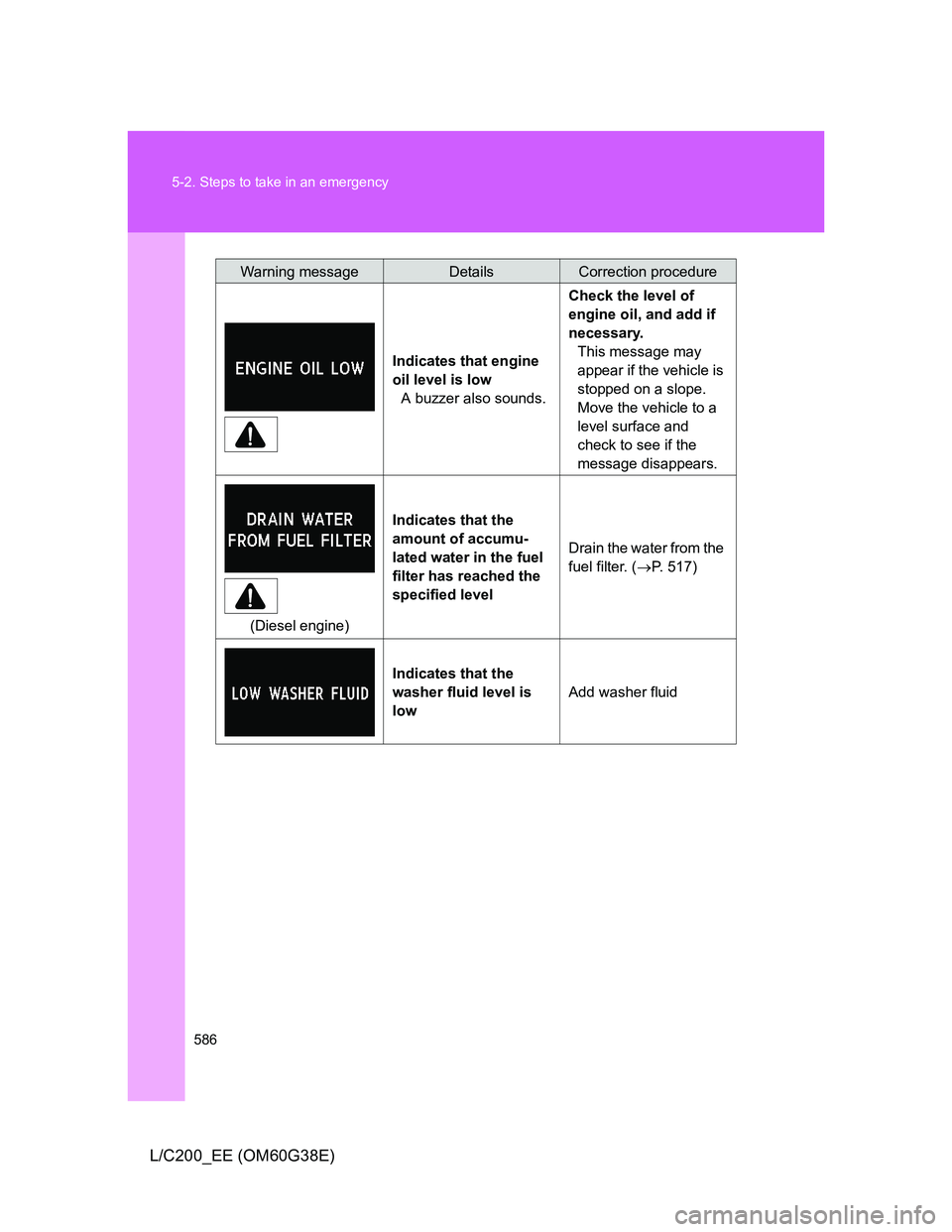

586 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Indicates that engine
oil level is low
A buzzer also sounds.Check the level of
engine oil, and add if
necessary.
This message may
appear if the vehicle is
stopped on a slope.
Move the vehicle to a
level surface and
check to see if the
message disappears.
(Diesel engine)Indicates that the
amount of accumu-
lated water in the fuel
filter has reached the
specified levelDrain the water from the
fuel filter. (P. 517)
Indicates that the
washer fluid level is
lowAdd washer fluid
Warning messageDetailsCorrection procedure

5

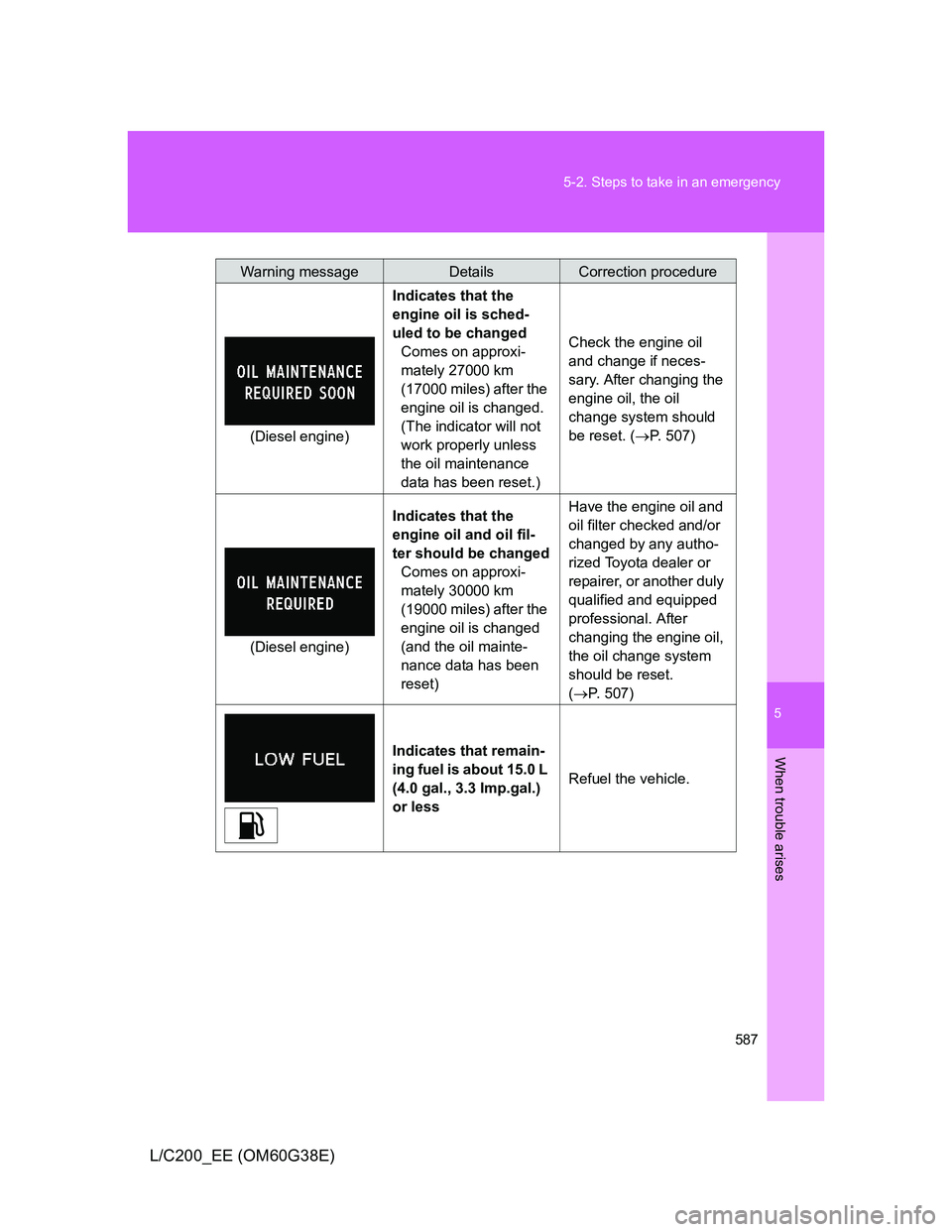

587 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
(Diesel engine)Indicates that the
engine oil is sched-
uled to be changed
Comes on approxi-
mately 27000 km
(17000 miles) after the
engine oil is changed.
(The indicator will not
work properly unless
the oil maintenance
data has been reset.)Check the engine oil
and change if neces-
sary. After changing the
engine oil, the oil
change system should
be reset. (P. 507)
(Diesel engine)Indicates that the
engine oil and oil fil-
ter should be changed
Comes on approxi-
mately 30000 km
(19000 miles) after the
engine oil is changed
(and the oil mainte-
nance data has been
reset)Have the engine oil and
oil filter checked and/or
changed by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional. After
changing the engine oil,
the oil change system
should be reset.
(P. 507)
Indicates that remain-
ing fuel is about 15.0 L
(4.0 gal., 3.3 Imp.gal.)
or less Refuel the vehicle.
Warning messageDetailsCorrection procedure

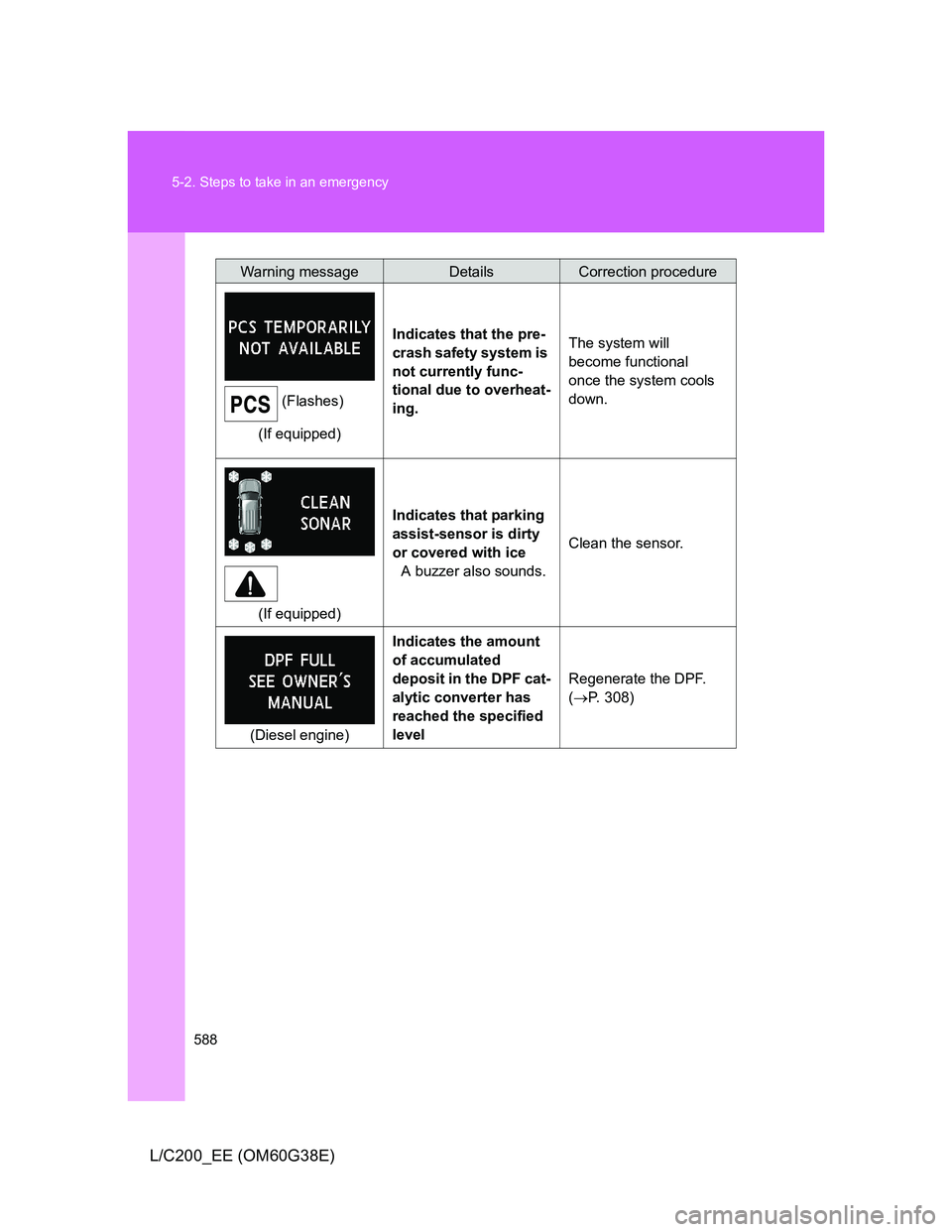

588 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
(Flashes)
(If equipped)Indicates that the pre-
crash safety system is
not currently func-
tional due to overheat-
ing.The system will
become functional
once the system cools
down.
(If equipped)Indicates that parking
assist-sensor is dirty
or covered with ice
A buzzer also sounds.Clean the sensor.
(Diesel engine)Indicates the amount
of accumulated
deposit in the DPF cat-
alytic converter has
reached the specified
levelRegenerate the DPF.
(P. 308)
Warning messageDetailsCorrection procedure

5

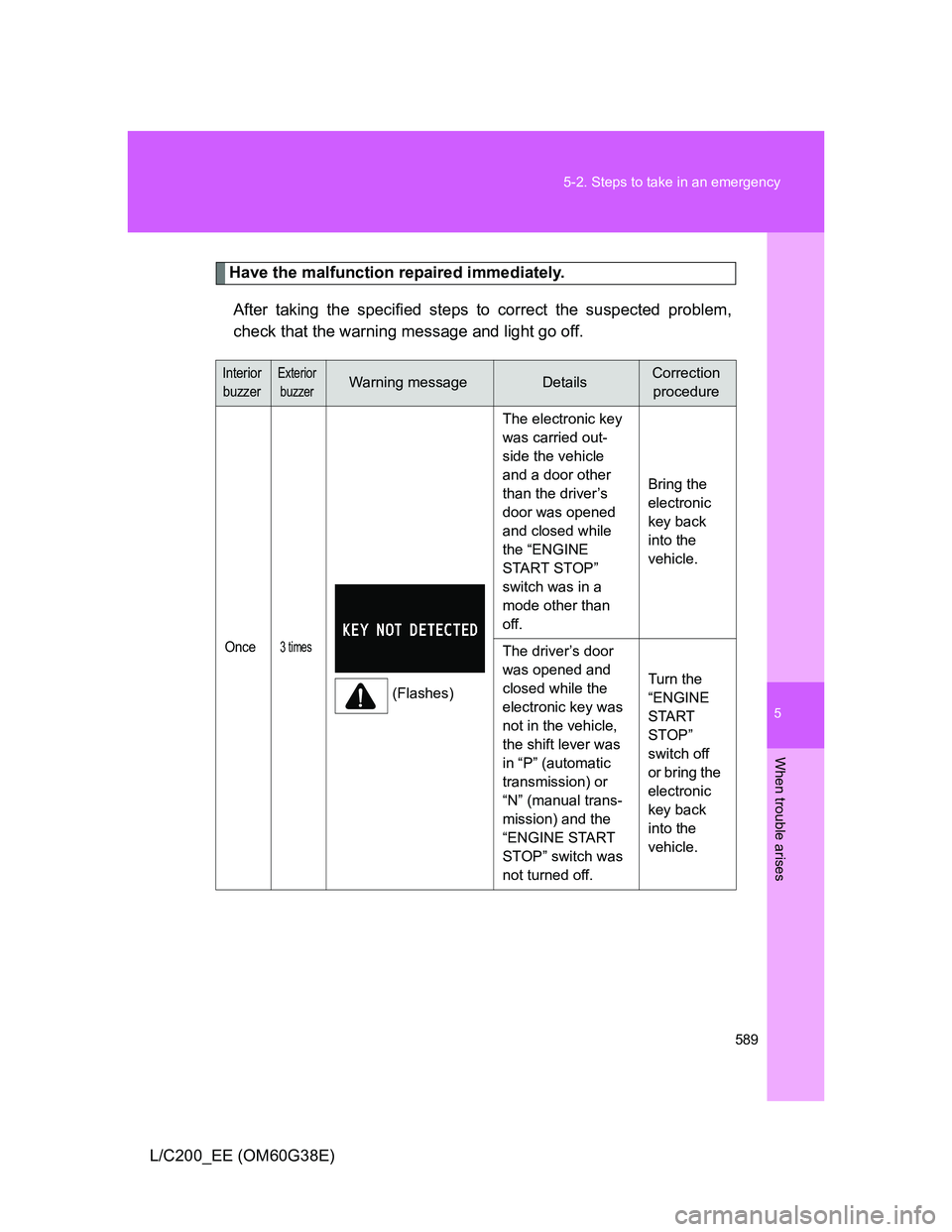

589 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once3 times
(Flashes)The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the “ENGINE
START STOP”
switch was in a
mode other than
off.Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
in “P” (automatic
transmission) or
“N” (manual trans-
mission) and the
“ENGINE START
STOP” switch was
not turned off. Turn the
“ENGINE
START
STOP”
switch off
or bring the
electronic
key back
into the
vehicle.

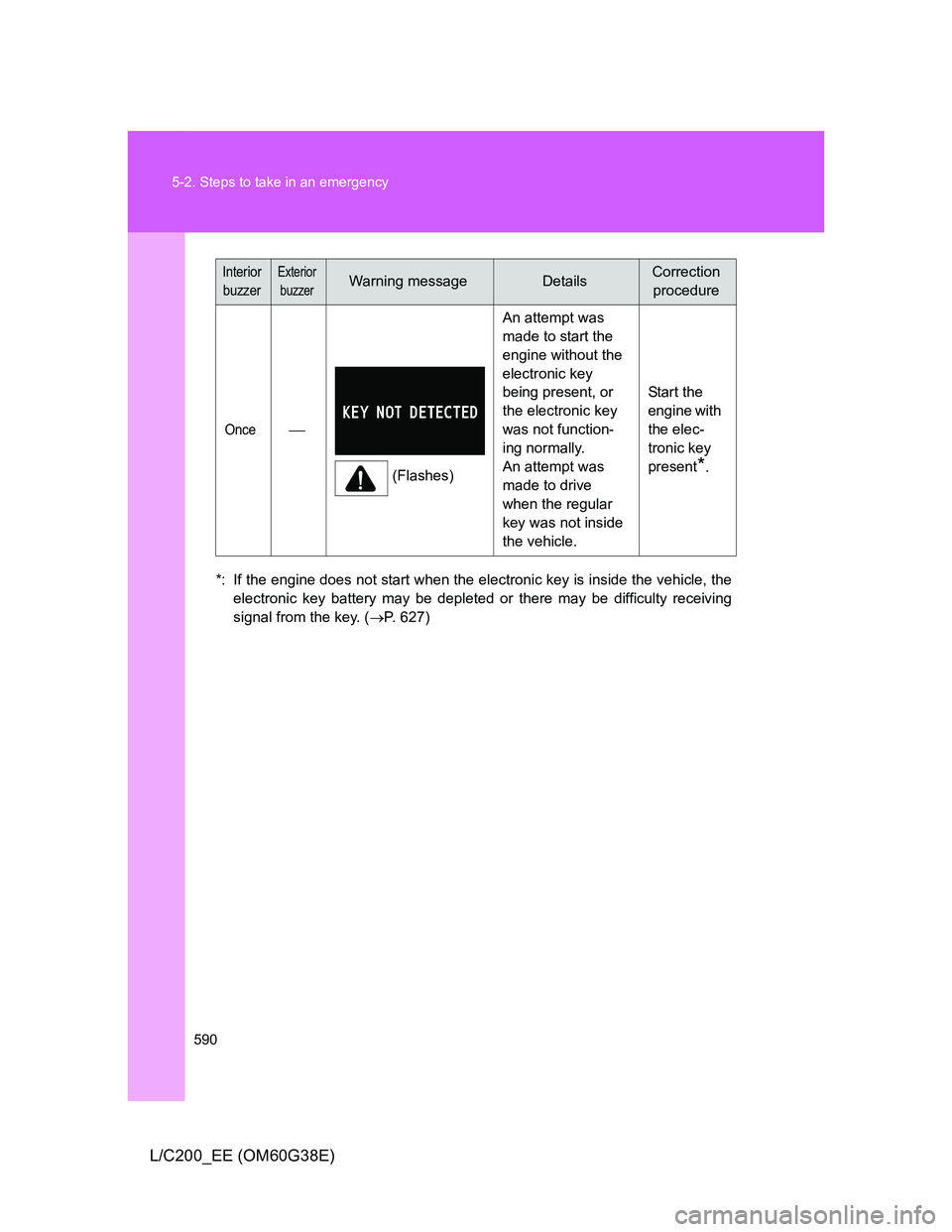

590 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
*: If the engine does not start when the electronic key is inside the vehicle, the
electronic key battery may be depleted or there may be difficulty receiving
signal from the key. (P. 627)
Once
(Flashes)An attempt was
made to start the
engine without the
electronic key
being present, or
the electronic key
was not function-
ing normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle.Start the
engine with
the elec-
tronic key
present
*.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5

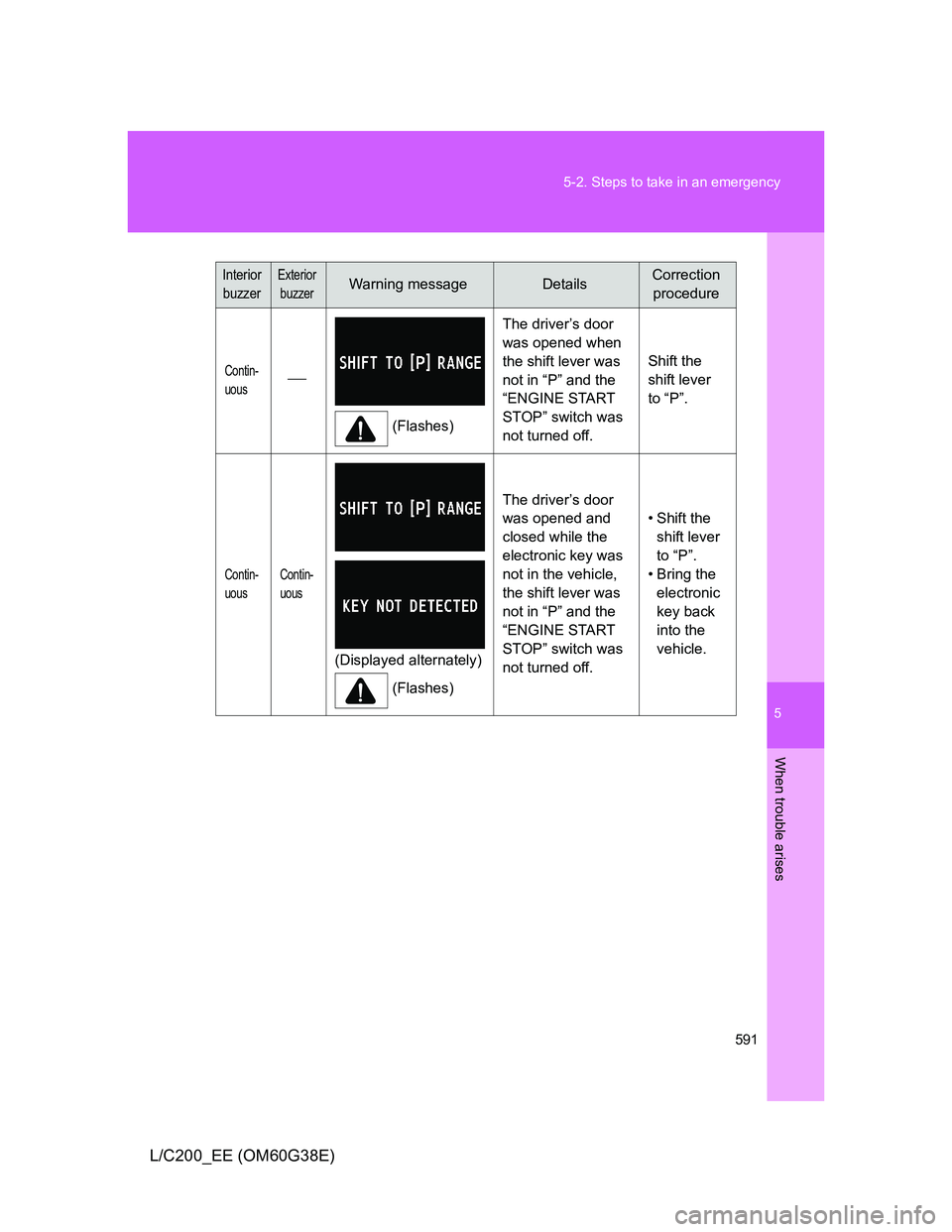

591 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Contin-
uous
(Flashes)The driver’s door
was opened when
the shift lever was
not in “P” and the
“ENGINE START
STOP” switch was
not turned off.Shift the
shift lever
to “P”.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashes)The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in “P” and the
“ENGINE START
STOP” switch was
not turned off. • Shift the
shift lever
to “P”.
• Bring the
electronic
key back
into the
vehicle.

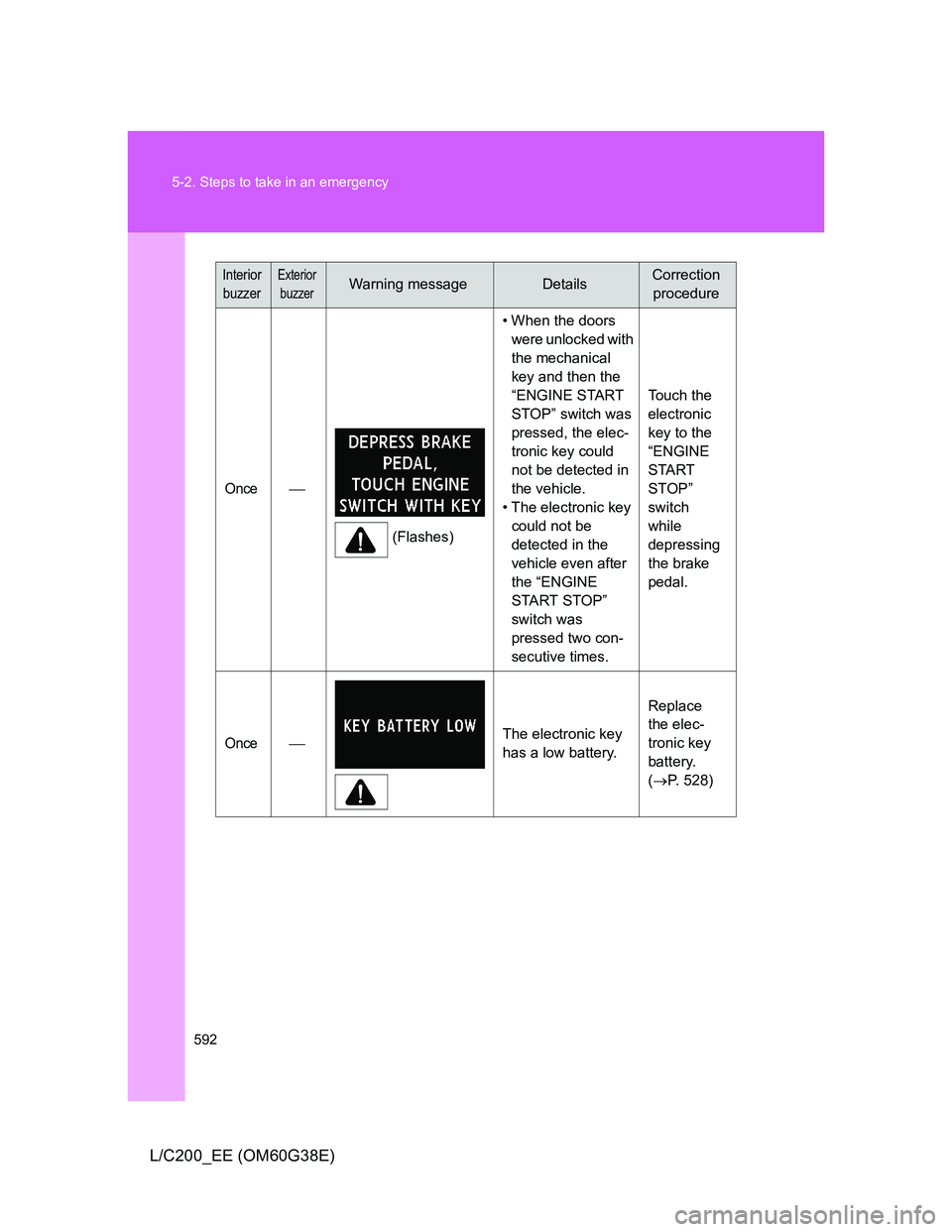

592 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashes)• When the doors
were unlocked with
the mechanical
key and then the
“ENGINE START
STOP” switch was
pressed, the elec-
tronic key could
not be detected in
the vehicle.
• The electronic key
could not be
detected in the
vehicle even after
the “ENGINE
START STOP”
switch was
pressed two con-
secutive times. Touch the
electronic
key to the
“ENGINE
START
STOP”
switch
while
depressing
the brake
pedal.
OnceThe electronic key
has a low battery.Replace
the elec-
tronic key
battery.
(P. 528)
