2003 SSANGYONG MUSSO Service Manual

SECTION 9P
DOORS
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9P-2 Power Window . . . . . . . . . . . . . . . . . . . . . . . . 9P-2
Maintenance and Repair . . . . . . . . . . . . . . . 9P-3
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . . 9P-3Front Door . . . . . . . . . . . . . . . . . . . . . . . . . . . 9P-3
Rear Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9P-4
Tail Gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9P-5

9P-2 DOORSSCHEMATIC AND ROUTING DIAGRAMS
POWER WINDOW

DOORS 9P-3
MAINTENANCE AND REPAIRON-VEHICLE SERVICE

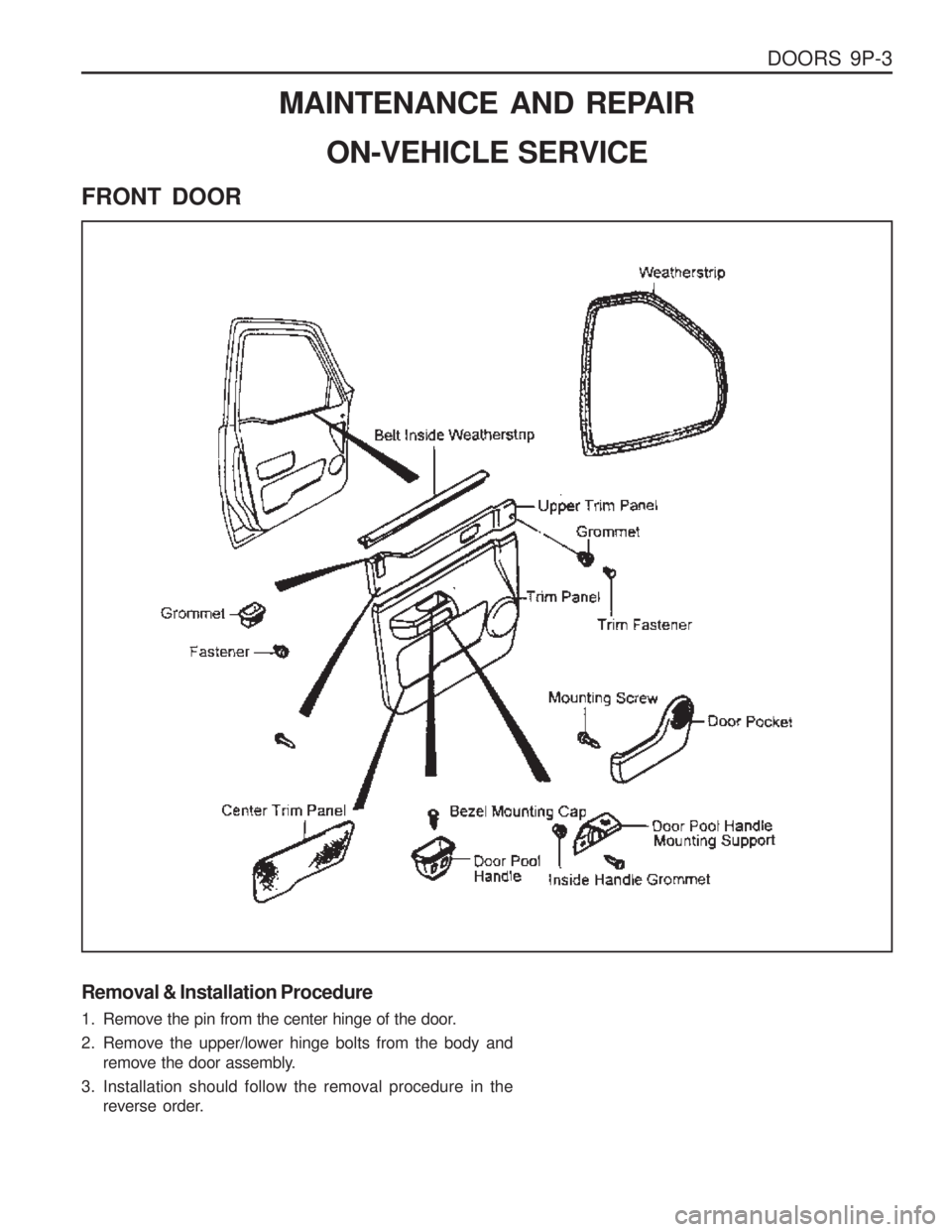

FRONT DOOR
Removal & Installation Procedure
1. Remove the pin from the center hinge of the door.
2. Remove the upper/lower hinge bolts from the body and remove the door assembly.
3. Installation should follow the removal procedure in the reverse order.

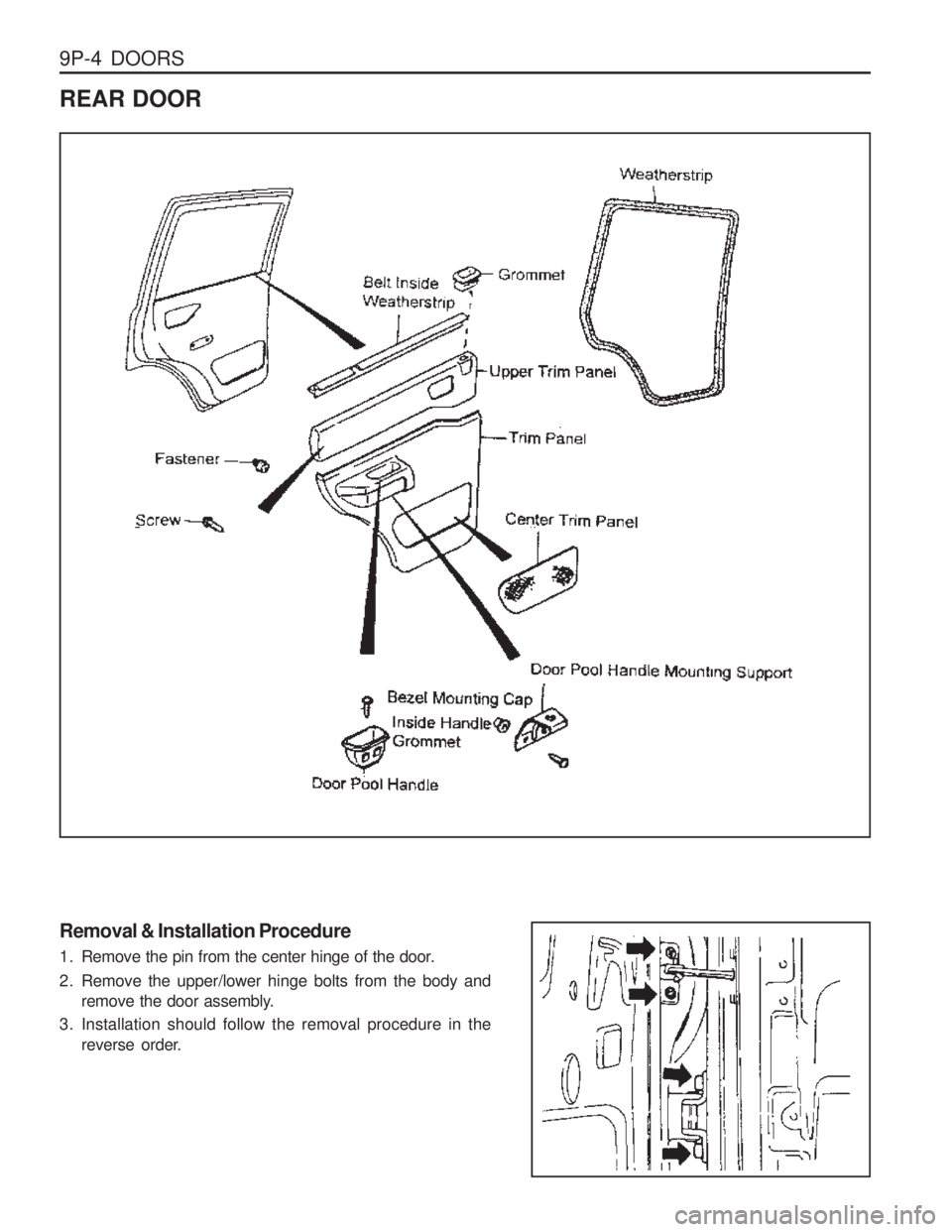

9P-4 DOORS REAR DOOR
Removal & Installation Procedure
1. Remove the pin from the center hinge of the door.
2. Remove the upper/lower hinge bolts from the body andremove the door assembly.
3. Installation should follow the removal procedure in the reverse order.

DOORS 9P-5

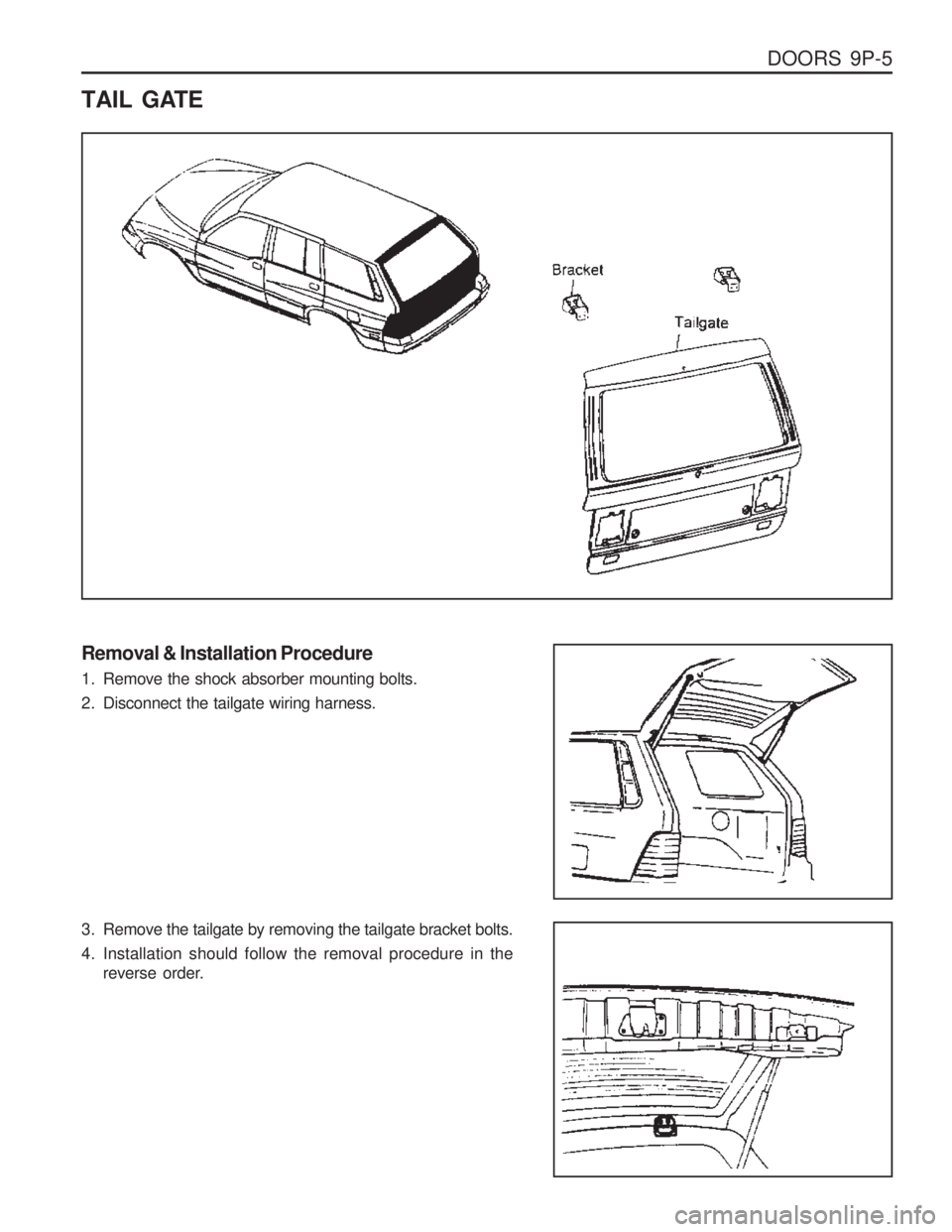

TAIL GATE
Removal & Installation Procedure
1. Remove the shock absorber mounting bolts.
2. Disconnect the tailgate wiring harness.
3. Remove the tailgate by removing the tailgate bracket bolts.
4. Installation should follow the removal procedure in thereverse order.

9P-6 DOORS

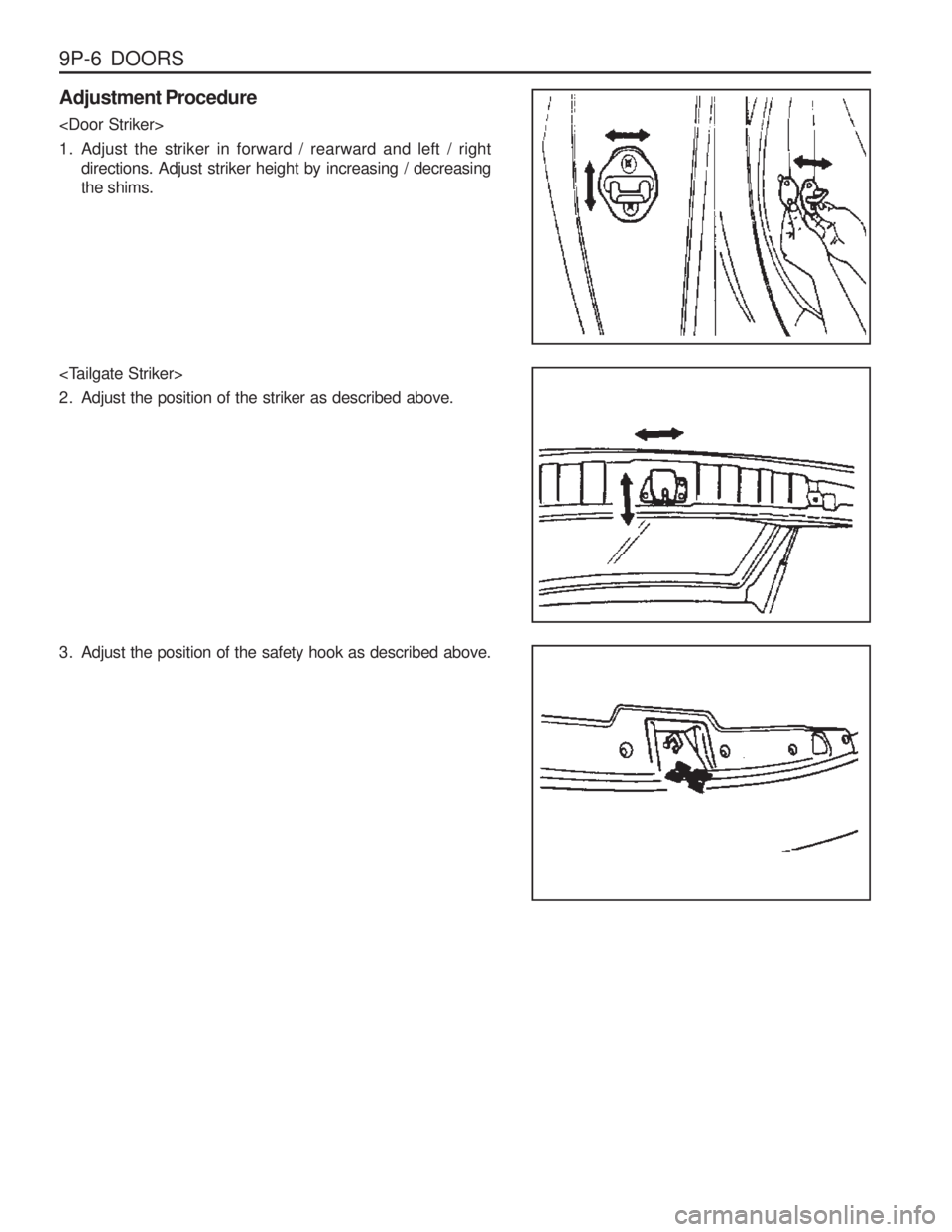

Adjustment Procedure
1. Adjust the striker in forward / rearward and left / rightdirections. Adjust striker height by increasing / decreasing the shims.

2. Adjust the position of the striker as described above.
3. Adjust the position of the safety hook as described above.

SECTION 9Q
ROOF
TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9Q-2 Sun Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Q-2
Maintenance and Repair . . . . . . . . . . . . . . . 9Q-3 On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . .
9Q-3
Sun Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Q-3

9Q-2 ROOF
SUN ROOF
SCHEMATIC AND ROUTING DIAGRAMS
