Page 1257 of 1574
AUDIO SYSTEM 9F-3
DIAGNOSIS

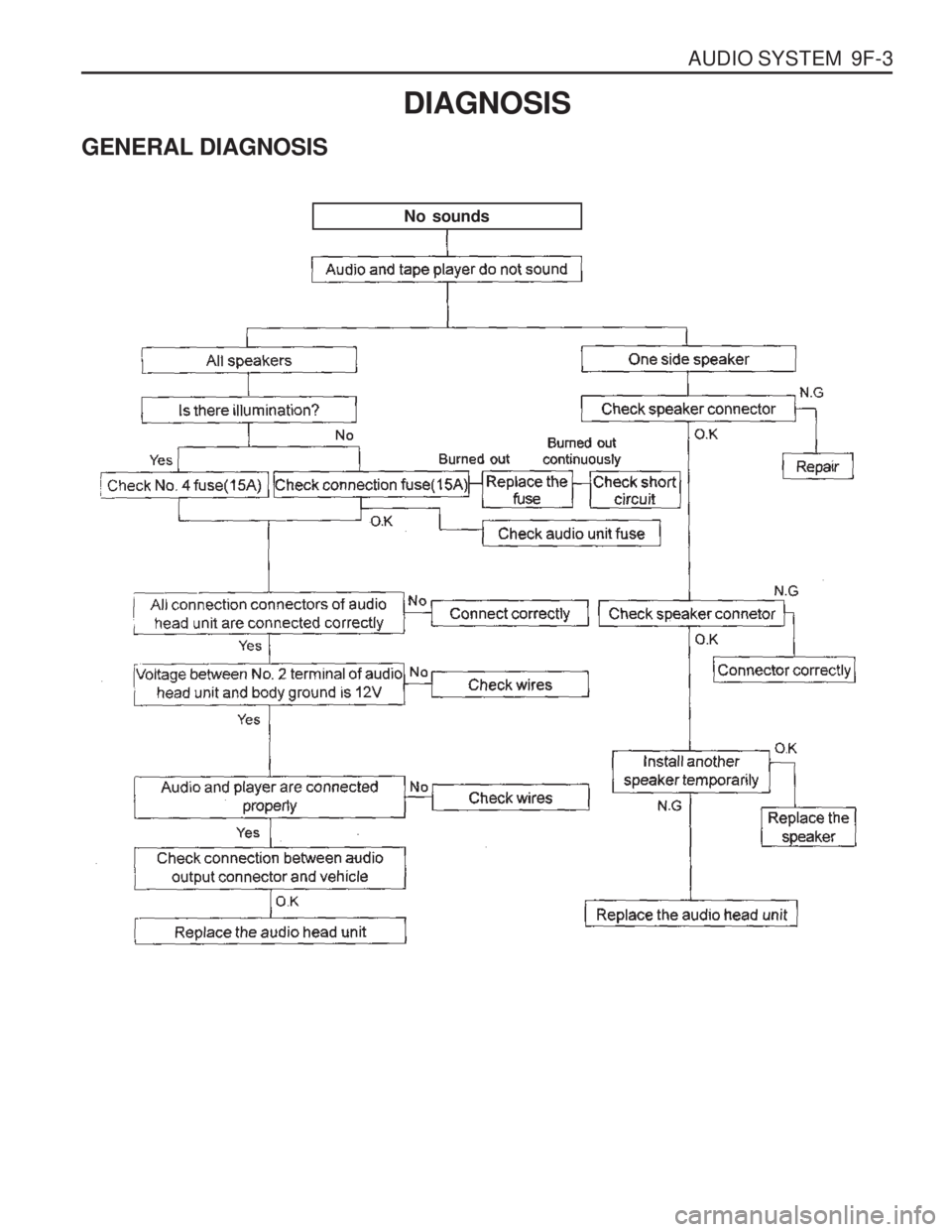

GENERAL DIAGNOSIS
No sounds
Page 1258 of 1574

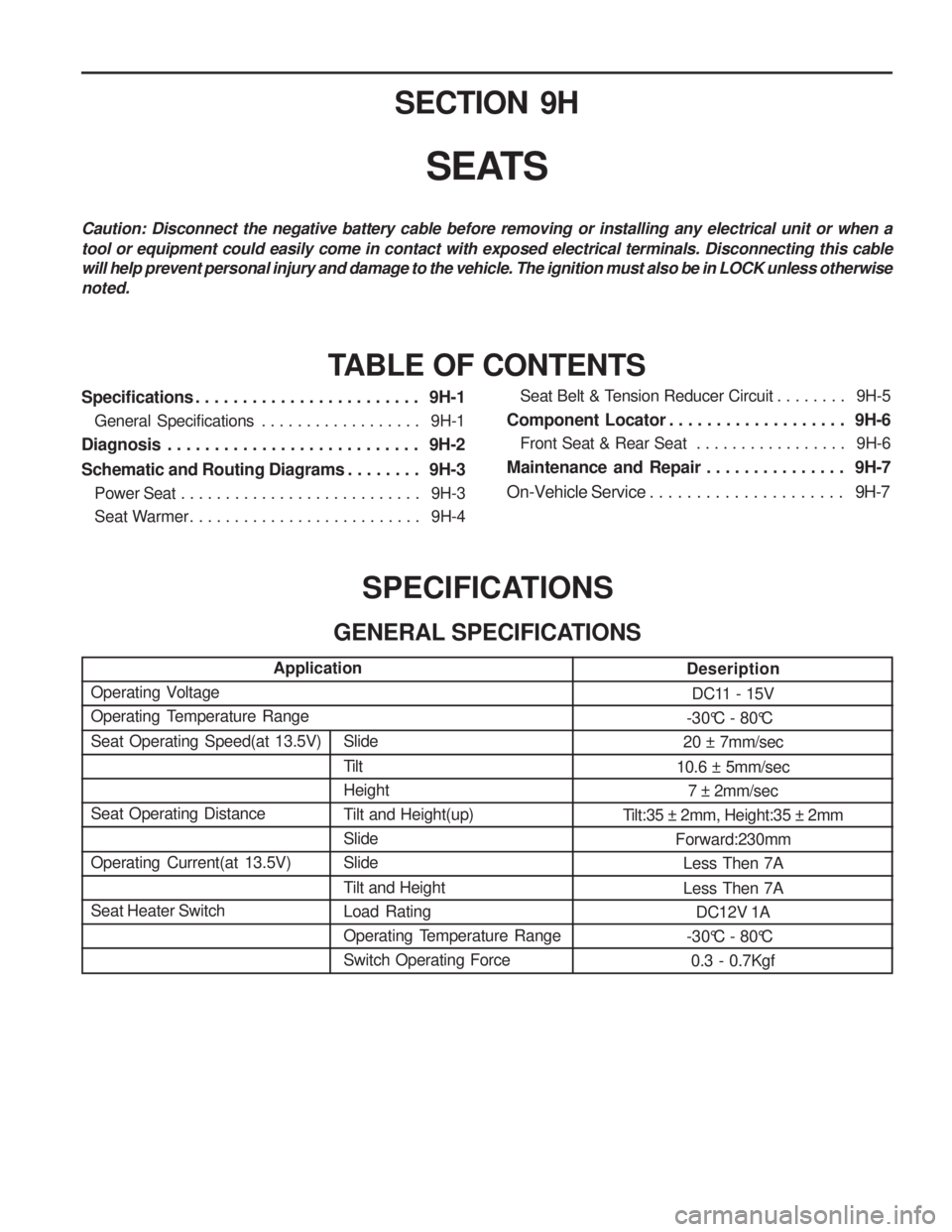

SECTION 9H
SEATS
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 9H-1 General Specifications . . . . . . . . . . . . . . . . . . 9H-1
Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . 9H-2
Schematic and Routing Diagrams . . . . . . . . 9H-3 Power Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 9H-3
Seat Warmer . . . . . . . . . . . . . . . . . . . . . . . . . . 9H-4Seat Belt & Tension Reducer Circuit . . . . . . . . 9H-5
Component Locator . . . . . . . . . . . . . . . . . . . 9H-6 Front Seat & Rear Seat . . . . . . . . . . . . . . . . . 9H-6
Maintenance and Repair . . . . . . . . . . . . . . . 9H-7
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . 9H-7
SPECIFICATIONS
GENERAL SPECIFICATIONS
Slide
Tilt Height
Tilt and Height(up)SlideSlide
Tilt and Height Load Rating
Operating Temperature RangeSwitch Operating Force
Application
Deseription
DC11 - 15V
-30°C - 80°C
20 ± 7mm/sec
10.6 ± 5mm/sec 7 ± 2mm/sec
Tilt:35 ± 2mm, Height:35 ± 2mm
Forward:230mmLess Then 7A Less Then 7A DC12V 1A
-30°C - 80°C 0.3 - 0.7Kgf
Operating Voltage
Operating Temperature Range Seat Operating Speed(at 13.5V) Seat Operating Distance Operating Current(at 13.5V) Seat Heater Switch
Page 1259 of 1574
9H-2 SEATSDIAGNOSIS

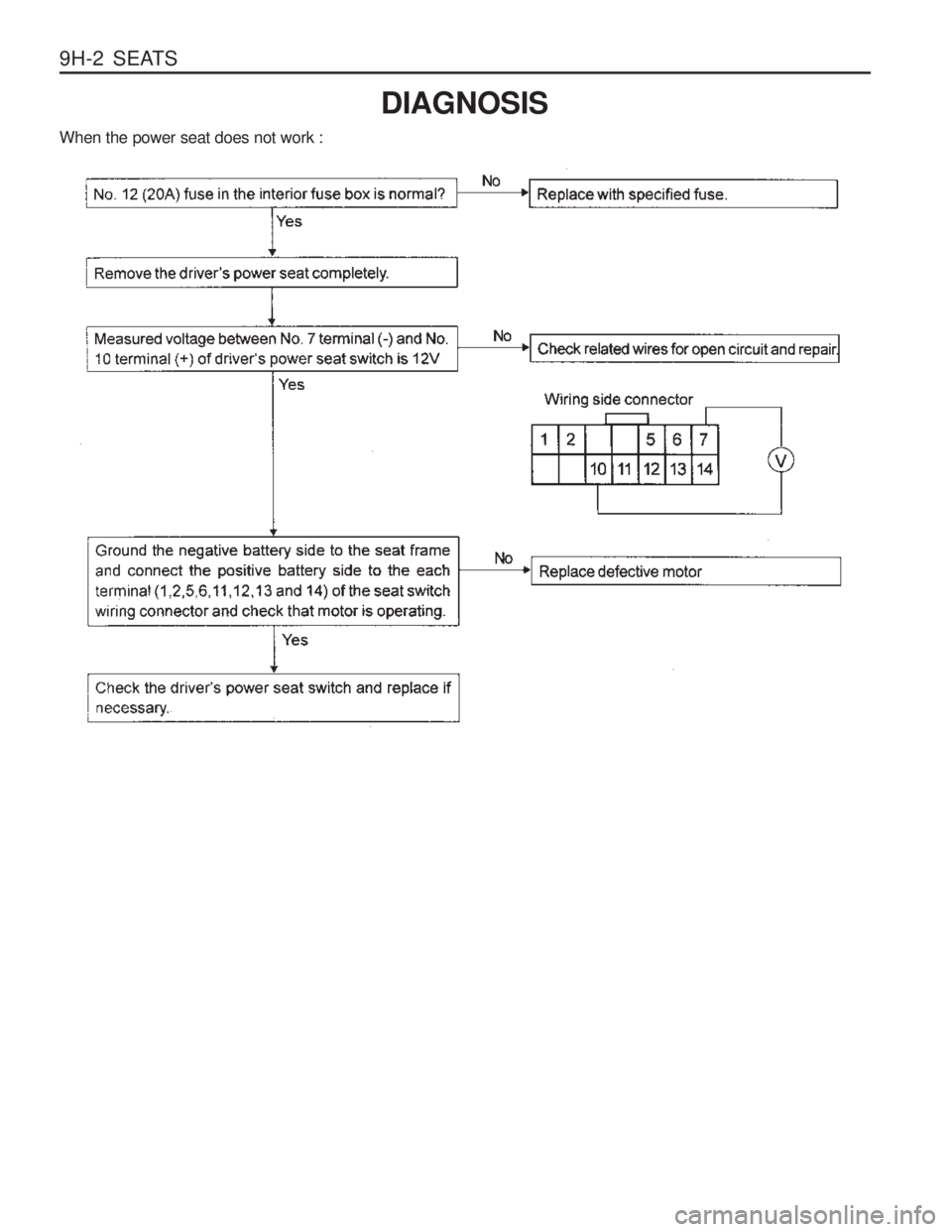

When the power seat does not work :
Page 1260 of 1574
SEATS 9H-3
POWER SEAT
SCHEMATIC AND ROUTING DIAGRAMS
Page 1261 of 1574
9H-4 SEATS
SEAT WARMER
0.5 GW
Page 1262 of 1574
SEATS 9H-5
SEAT BELT & TENSION REDUCER
Page 1263 of 1574
9H-6 SEATSCOMPONENT LOCATOR

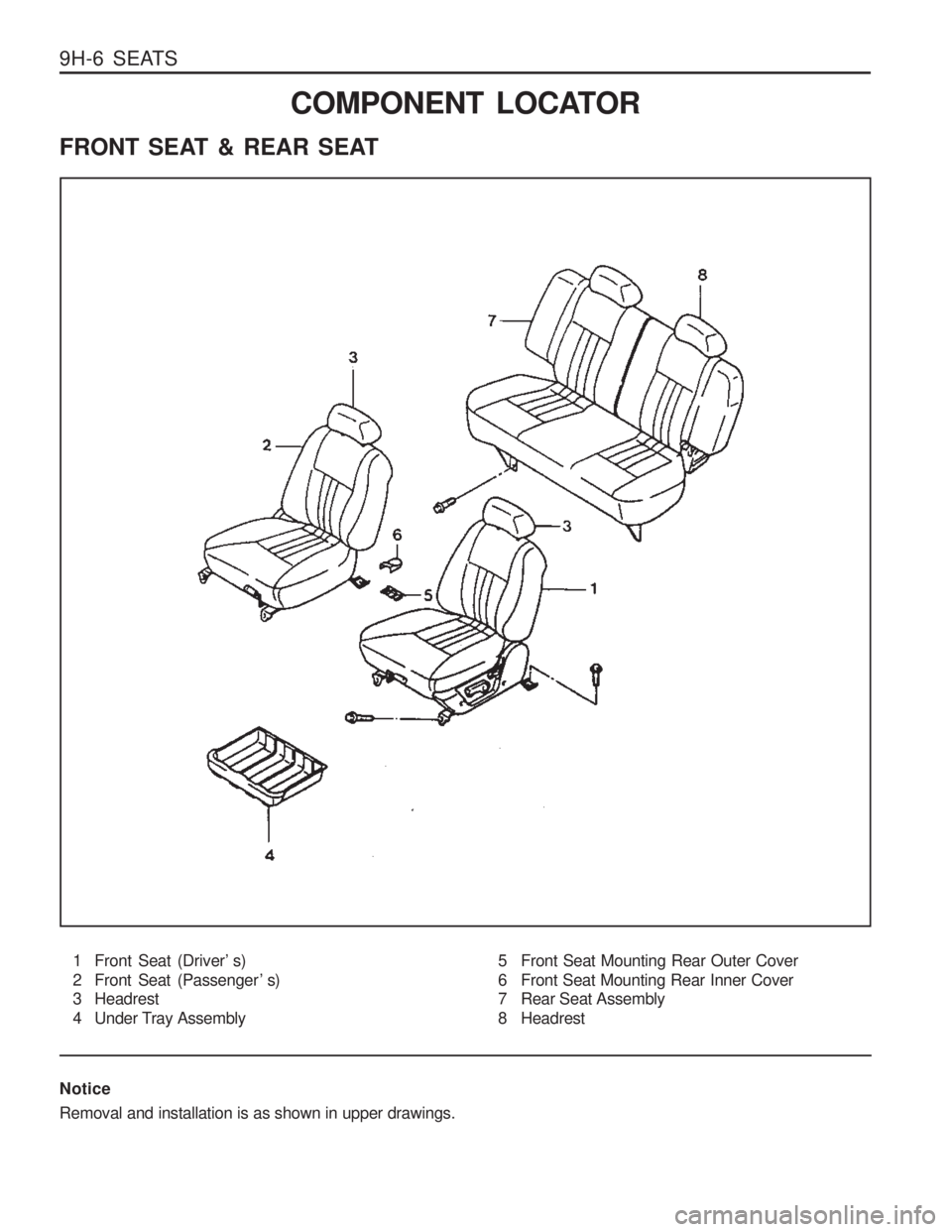

FRONT SEAT & REAR SEAT
1 Front Seat (Driver’ s)
2 Front Seat (Passenger ’ s)
3 Headrest
4 Under Tray Assembly 5 Front Seat Mounting Rear Outer Cover
6 Front Seat Mounting Rear Inner Cover
7 Rear Seat Assembly
8 Headrest
Notice Removal and installation is as shown in upper drawings.
Page 1264 of 1574
SEATS 9H-7

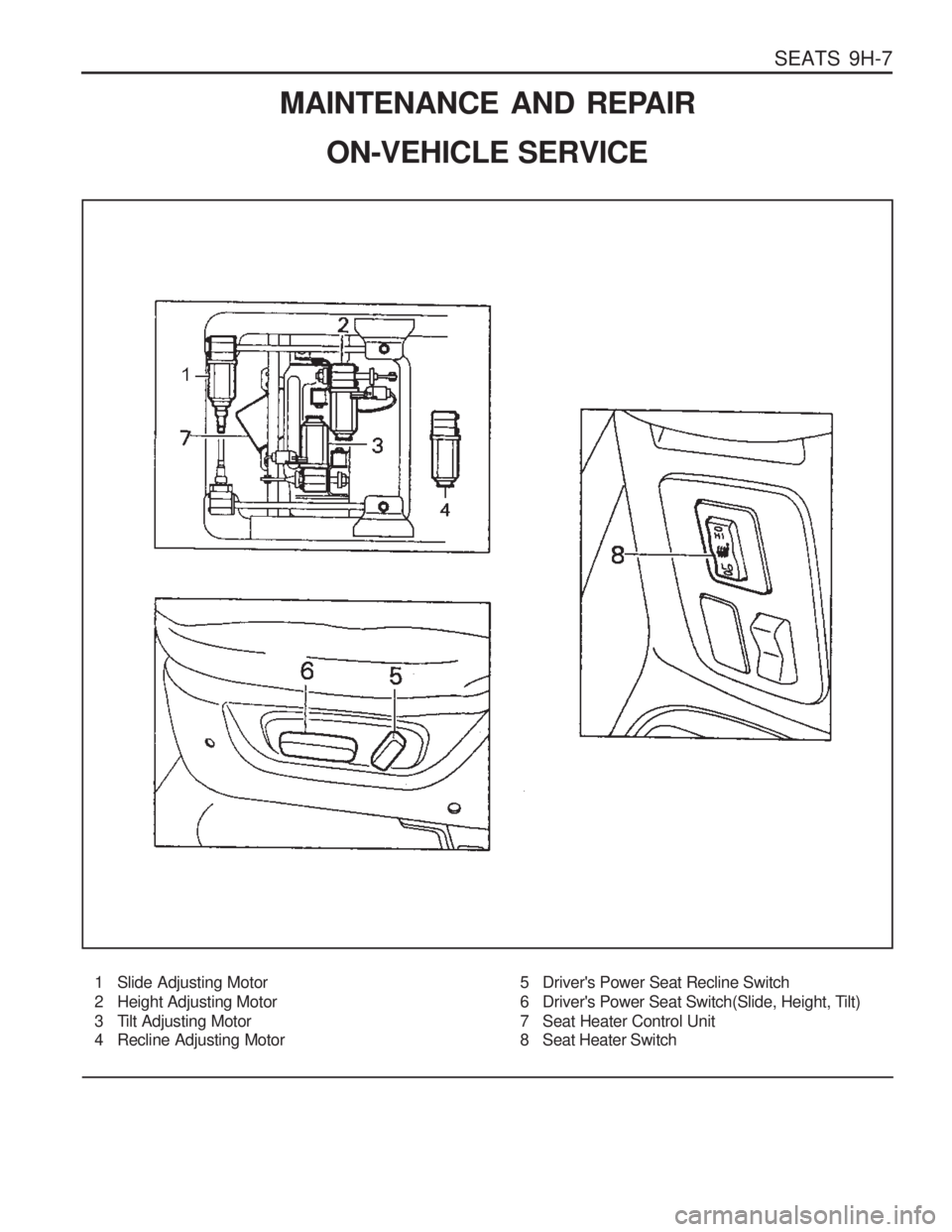

MAINTENANCE AND REPAIRON-VEHICLE SERVICE
1 Slide Adjusting Motor
2 Height Adjusting Motor
3 Tilt Adjusting Motor
4 Recline Adjusting Motor 5 Driver's Power Seat Recline Switch
6 Driver's Power Seat Switch(Slide, Height, Tilt)
7 Seat Heater Control Unit
8 Seat Heater Switch
